Open-Frame vs Enclosed Touch Panels: Understanding the S Series

When integrating a display into your own product, you face a fundamental choice: buy a fully enclosed panel, or build your enclosure around an open-frame board. The S Series from AOYU TECH is designed for the second approach — open, shellless modules that drop directly into your housing.

What an open-frame panel is

An open-frame panel ships as a bare display board with the touchscreen, processor and mounting points exposed. There is no front bezel or rear case. You design the fascia and chassis, which lets the finished product look exactly like your own hardware rather than an off-the-shelf screen.

The same no-shell family also includes front-bezel variants: the C-043 4.3-inch HMI Panel, the C-070 7-inch and the C-101 10.1-inch embedded panel. These sit into a cutout from the front, so the module holds itself in place while you finish the enclosure around it.

Why choose open-frame

• Branded aesthetics: the front surface matches your product design, not a third-party bezel.
• Flexible mounting: board-level mounting fits walls, cabinets, desks and custom fixtures.
• Shallow depth: without a case the module stays thin, ideal for wall boxes and flush mounts.
• Cost control: you pay for the display, not for a case you would replace anyway.

S Series options

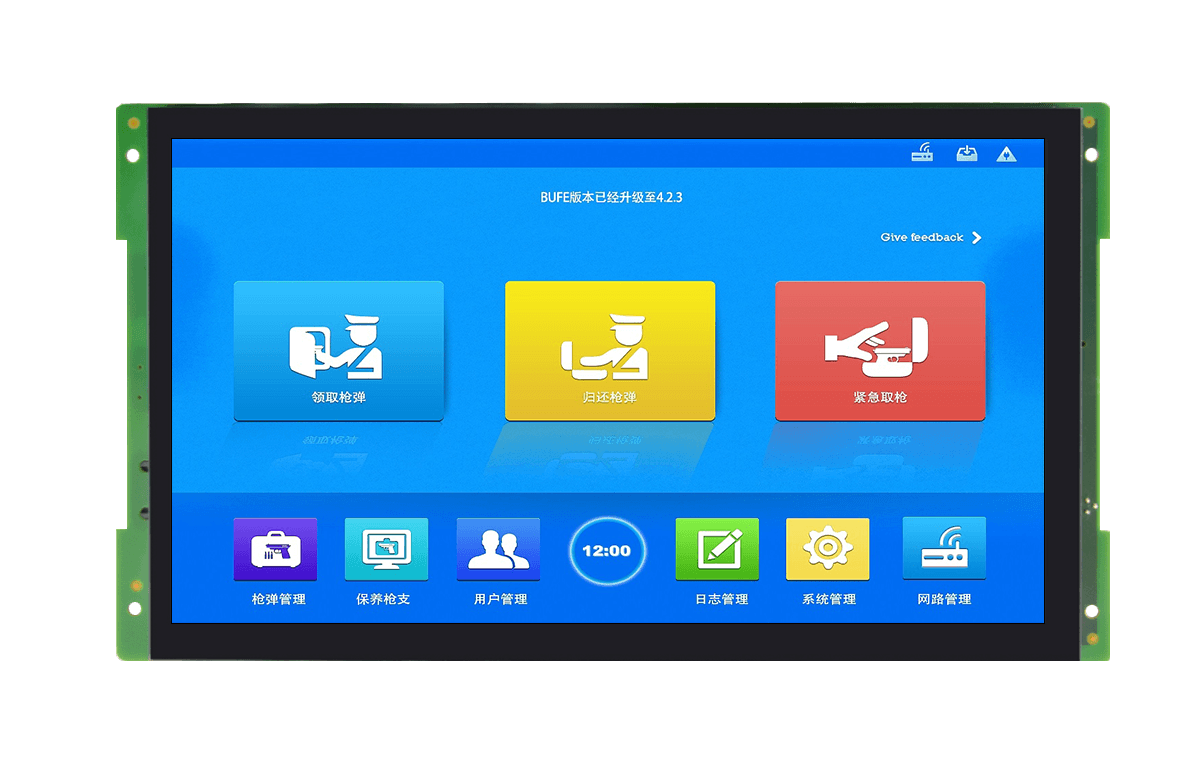

The S Series spans 4.3-inch, 7-inch and 10.1-inch touch panels, with an A133P processor and Android as standard. The 4.3-inch model runs at 800 × 480 px, the 7-inch and 10.1-inch models at 1024 × 600 px, and all three use IPS displays rated at 500 cd/m². They are a common choice for smart light switches, thermostats, hotel room controllers and cabinet control units, including the smart home and hotel room control deployments.

How to decide between open-frame and enclosed

Ask one question: does your product provide the enclosure? If the housing is part of your design and you control the front fascia, open-frame gives the cleaner result. If the panel has to survive on its own on a wall, a machine or in a dusty workshop, an enclosed unit such as the AY-T03 10.1-inch Enclosed Industrial Panel PC is the safer pick, because the chassis, connectors and mounting are already engineered. If you are not sure which side your project falls on, the OEM/ODM process guide shows how a custom requirement becomes a production run, and the B Series overview covers the alternative where the panel also runs local logic.

If your product already has a housing and you just need a reliable display core, an open-frame panel is usually the cleanest path. Contact our team to discuss board dimensions, IO and touch requirements.

Frequently asked questions

What is the difference between an open-frame and an enclosed touch panel?

An open-frame panel has no bezel or rear case and is meant to live inside your own housing. An enclosed panel has a finished chassis with its own mounting, so it can go straight onto a wall or machine. Open-frame wins when the enclosure is part of your product design; enclosed wins when the panel has to work standalone.

Which sizes does the S Series come in?

4.3, 7 and 10.1 inches, plus front-bezel C variants in the same size range (C-043, C-070, C-101). All run Android on an A133P processor.

Are S Series panels bright enough for a bright room?

They are rated at 500 cd/m² with IPS viewing angles, which suits indoor products such as switches, thermostats and cabinet controllers. For outdoor or direct-sunlight installations, review the brightness requirement with us before you specify.

Do I need a cutout drawing before ordering?

It helps but is not required. Send the enclosure concept or whatever mounting dimensions you have, and the team will confirm which module fits and what the board outline allows.

Can I get the S Series with my own interface preloaded?

Yes. The OEM/ODM route covers branding and software loading; the process guide describes the steps from requirement to production.

Send us your cutout drawing

Share your enclosure concept or cutout dimensions and we will confirm which S Series module fits, what the board outline and connector positions look like, and what lead times apply. Send an inquiry or see the S Series in a finished product on the smart cabinet solution page.
