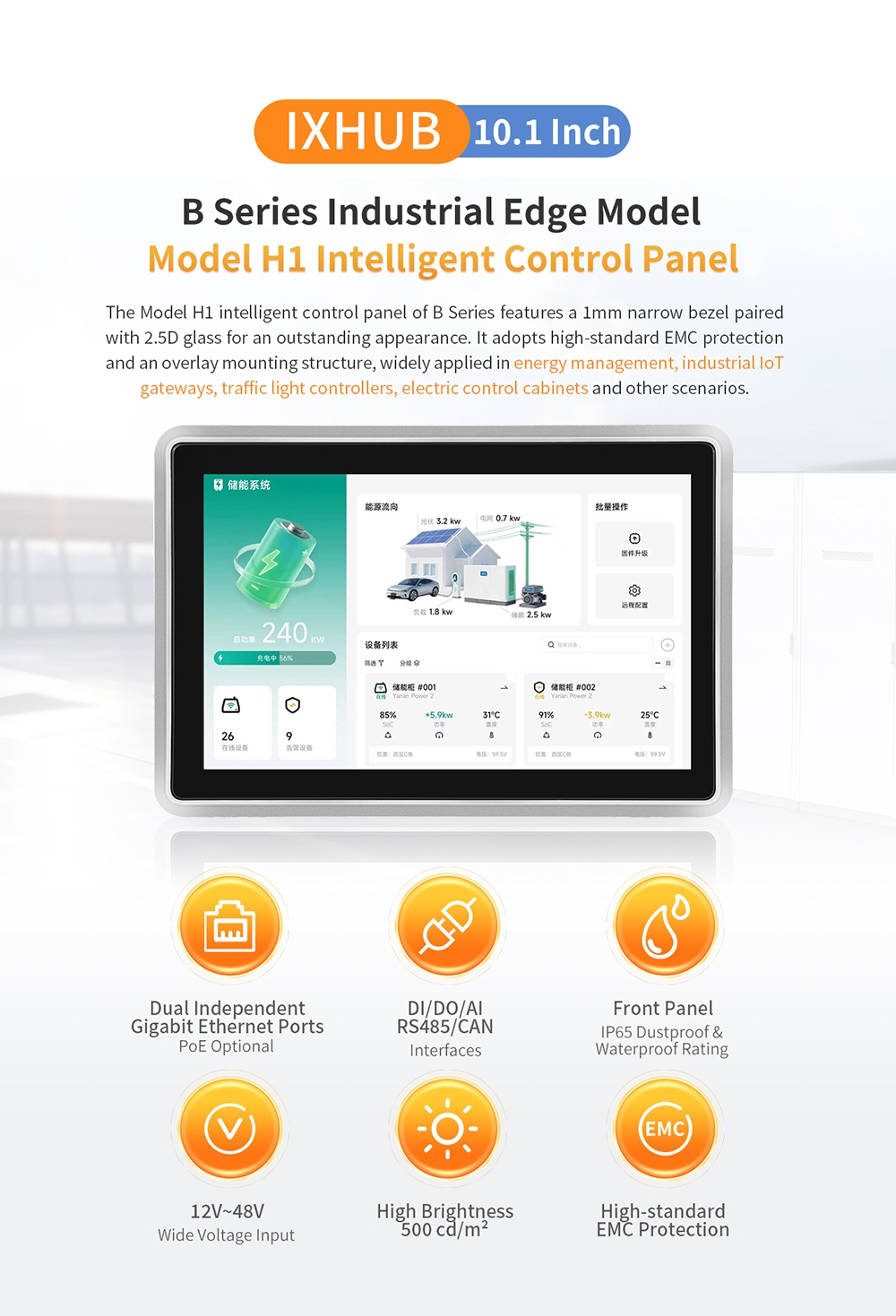

Industrial Edge B Series

B-H1-101 10.1-inch HMI Panel

10.1 inches · Industrial Edge B Series

Frame material
Plastic
Frame color
Silver / Black / White
Mounting methods
Exterior inset mounting
VESA hole spacing
75 × 75 mm
Request a quote

Overview

Frame material: Plastic. Frame color: Silver / Black / White. Mounting methods: Exterior inset mounting. VESA hole spacing: 75 × 75 mm

Specifications

AYB101H1-IXM93

Structure

Structure — AYB101H1-IXM93
Frame materialPlasticNot specified
Frame colorSilver / Black / WhiteCustomizable

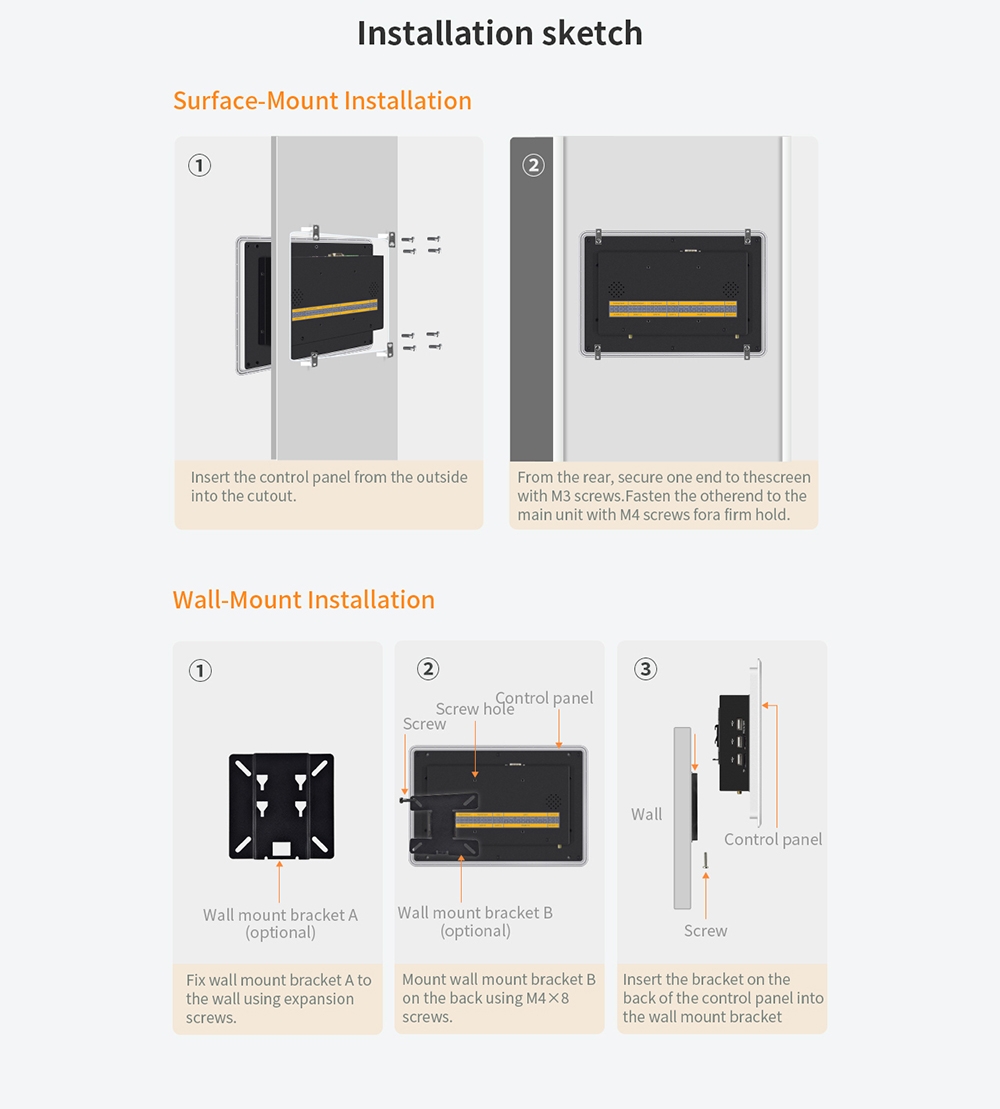

Installation

Installation — AYB101H1-IXM93
Mounting methodsExterior inset mountingNot specified
VESA hole spacing75 × 75 mmNot specified

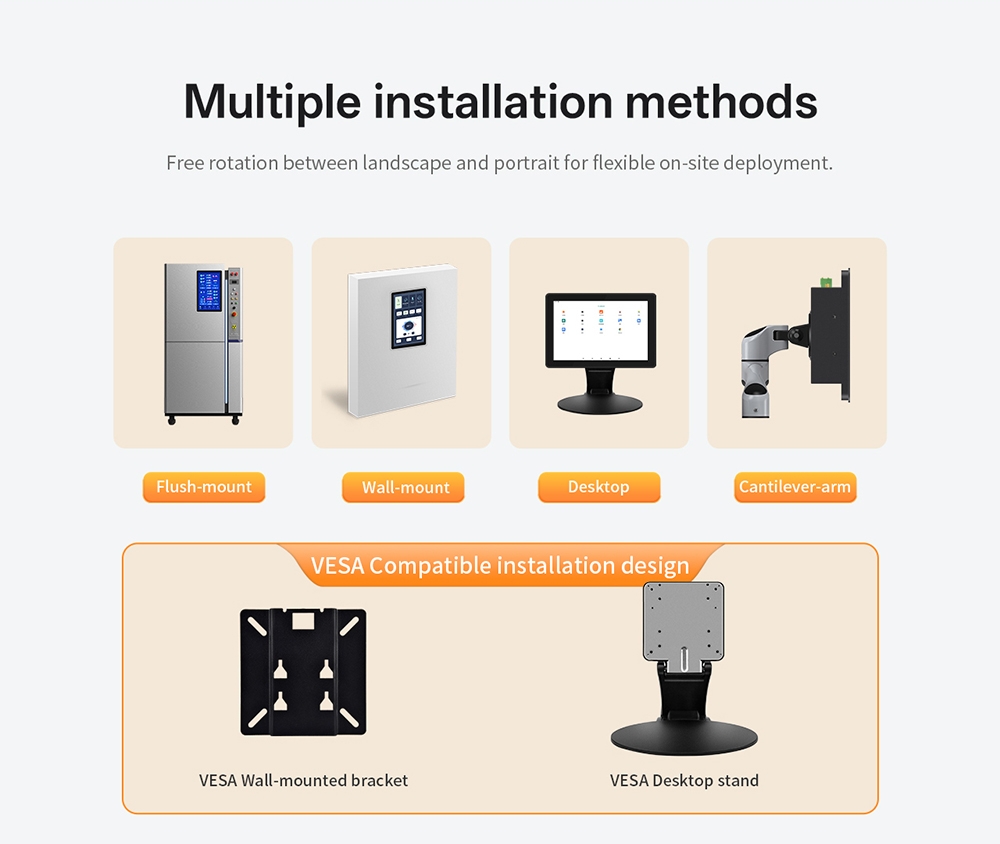

Available mounting methodsExterior inset mounting / Wall mounting / Desktop mounting / Arm mountingNot specified
Landscape / PortraitLandscape / PortraitNot specified

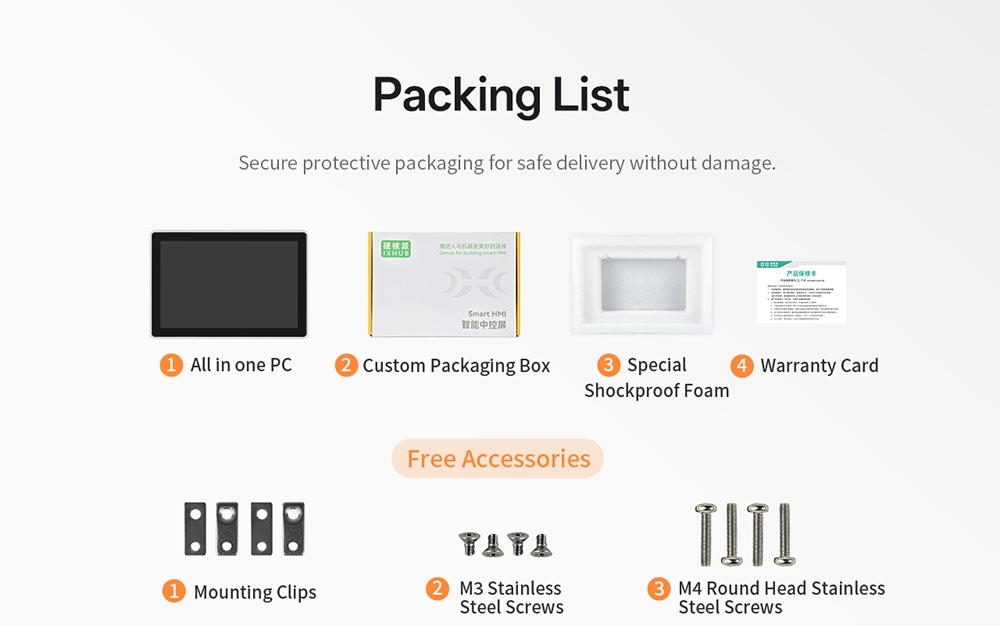

Exterior inset fixing screwsM3 / M4Not specified

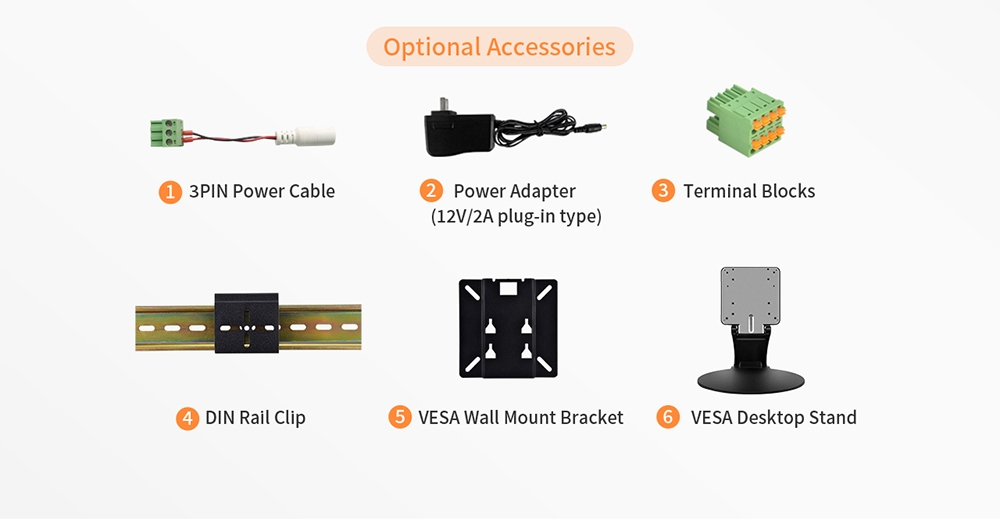

Wall-mount accessoriesBracket A / Bracket BOptional accessories
Wall-mount screwsthread: M4; count: 4Not specified

Power

Power — AYB101H1-IXM93
Input voltage12 / 48 VNot specified
Reverse-polarity protectiontrueNot specified
Power inputrange: 12 / 48; ground: FG VStandard
Power outputcount: 2; voltage: 12; isolation: true; ground: FG VStandard

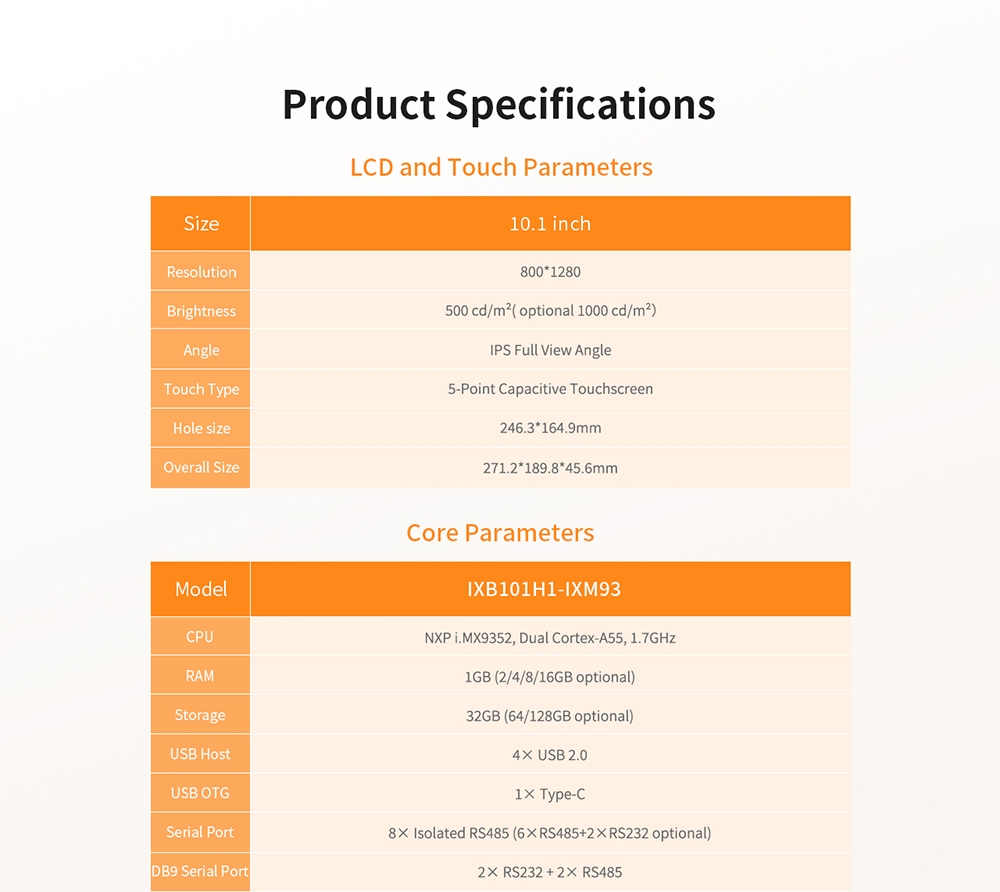

Display

Display — AYB101H1-IXM93
Backlight brightness500 cd/m²Standard
Full bondingtrueNot specified
Resolution800 × 1280 pxNot specified
Brightness upgrade1000 cd/m²Optional
Resolution800 × 1280 pxNot specified
Backlight brightness500 cd/m²Not specified
Viewing angleIPS wide viewing anglesNot specified

Series selection

Series selection — AYB101H1-IXM93
Screen size10.1 inchesNot specified
Frame materialPlasticNot specified
Frame colorSilver / Black / WhiteCustomizable
Mounting and fixing holesmount: Exterior inset mounting; vesa: 75 / 75 mmNot specified

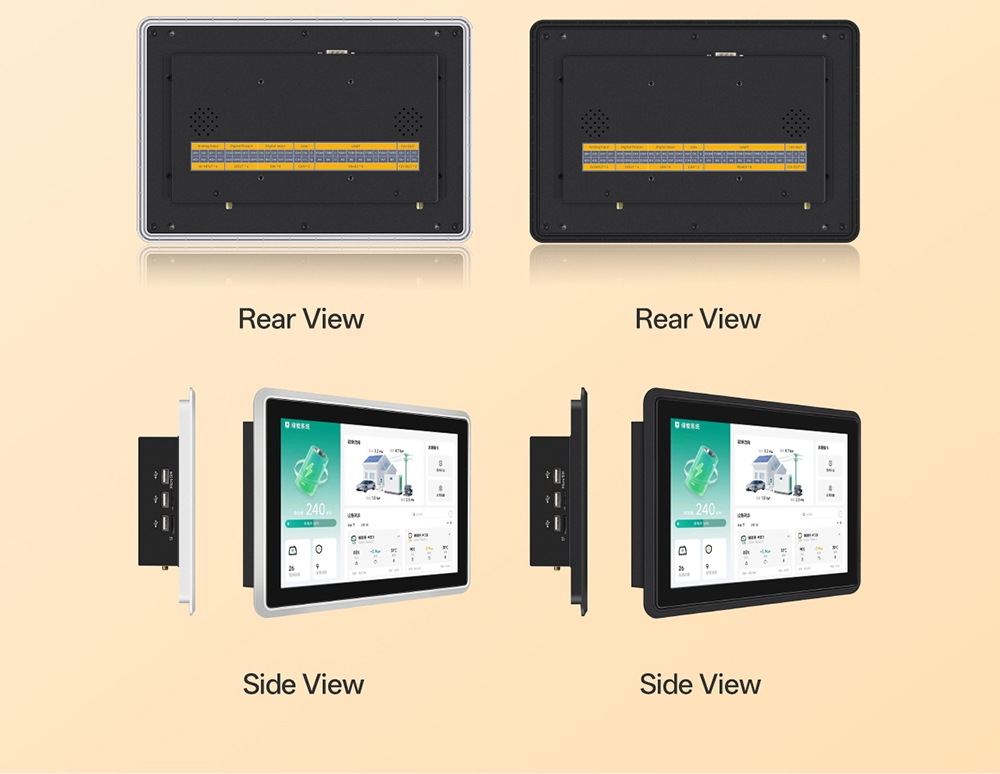

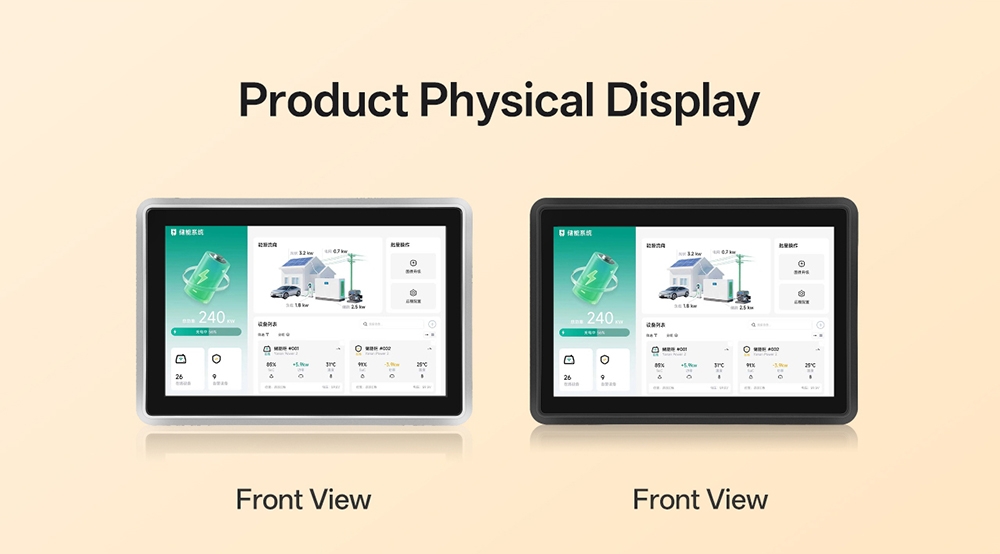

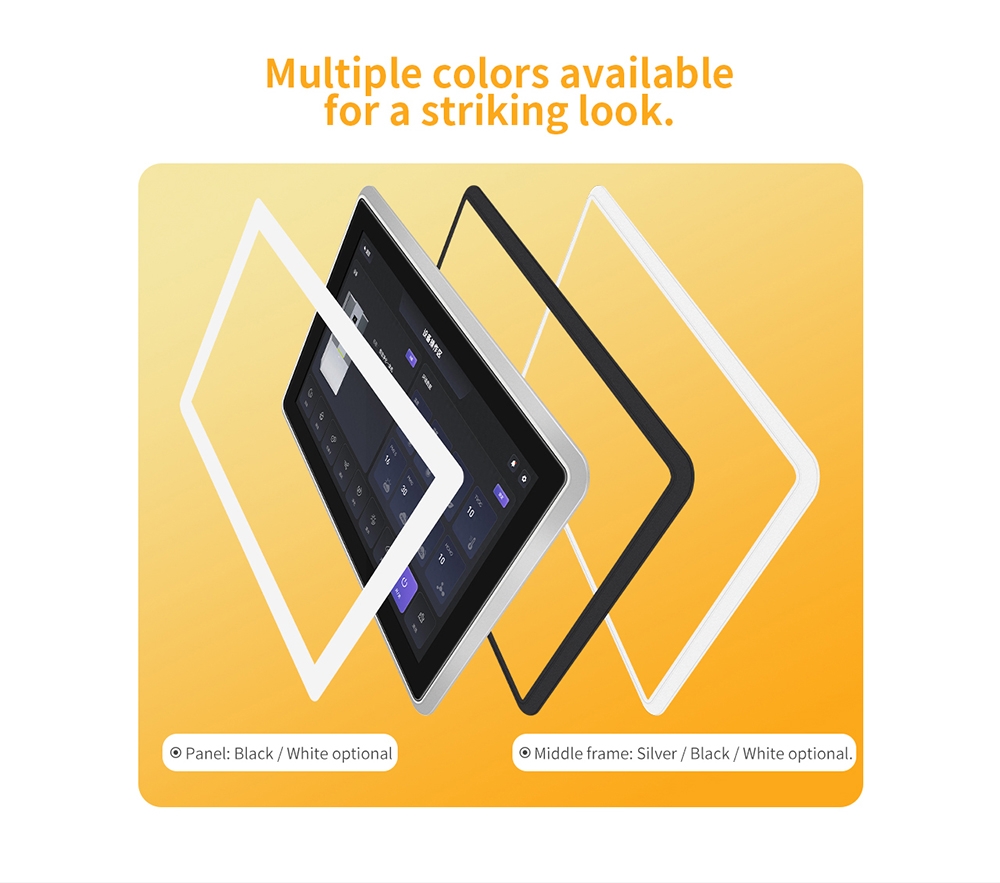

Appearance

Appearance — AYB101H1-IXM93
Panel colorBlack / WhiteOptional
Frame colorSilver / Black / WhiteOptional

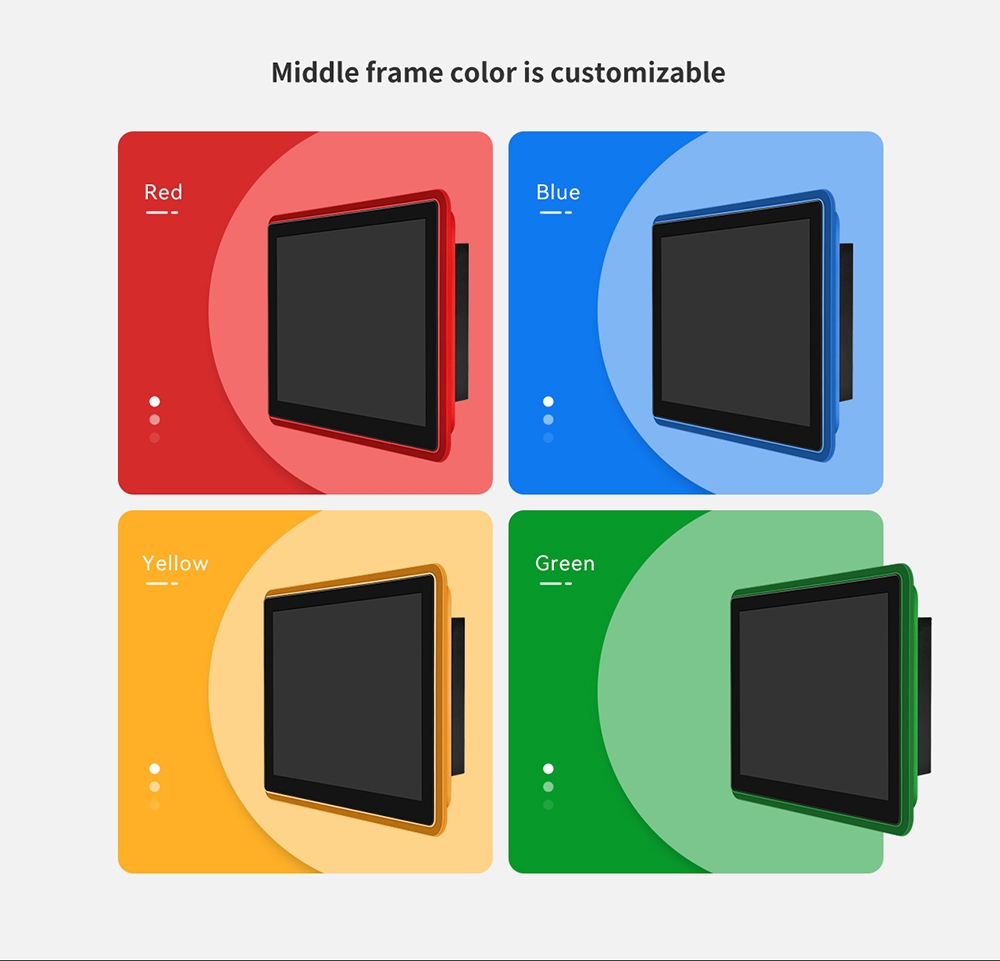

Custom frame examplesRed / Blue / Yellow / GreenCustomization examples

Processor

Processor — AYB101H1-IXM93
Processor modelNXP i.MX9352Not specified
Application processorcore: Cortex-A55; count: 2; frequency: 1.7 GHzNot specified
Real-time processorcore: Cortex-M33; count: 1; frequency: 250 MHzNot specified
CPUmodel: NXP i.MX9352; core: A55; count: 2; frequency: 1.7 GHzNot specified

Isolated

Isolated — AYB101H1-IXM93
Isolation designSerial ports / CAN / IO / 12 V outputNot specified

Environment

Environment — AYB101H1-IXM93
Operating temperature-10 – 60 °CNot specified
Operating temperature-10 – 60 °CNot specified
Storage temperature-20 – 70 °CNot specified
Operating humidityrange: 0 / 95; condition: Non-condensing %Not specified

Network

Network — AYB101H1-IXM93

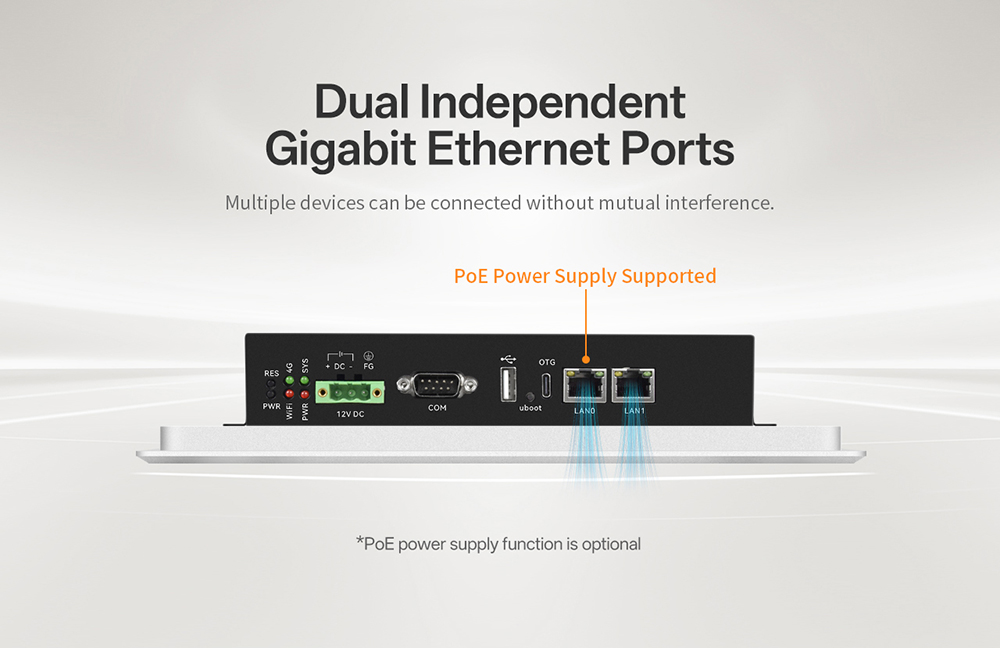

Independent Ethernet port count2 channelsNot specified
PoEoptional: true; port: LAN0Optional
WiFiDual-band Wi-Fi 6Not specified
Bluetooth5.4Not specified
PoEport: LAN0Optional
Ethernetcount: 2; rates: 10 / 100 / 1000 MbpsStandard
WiFiDual-band Wi-Fi 6Standard
Bluetooth5.4Standard

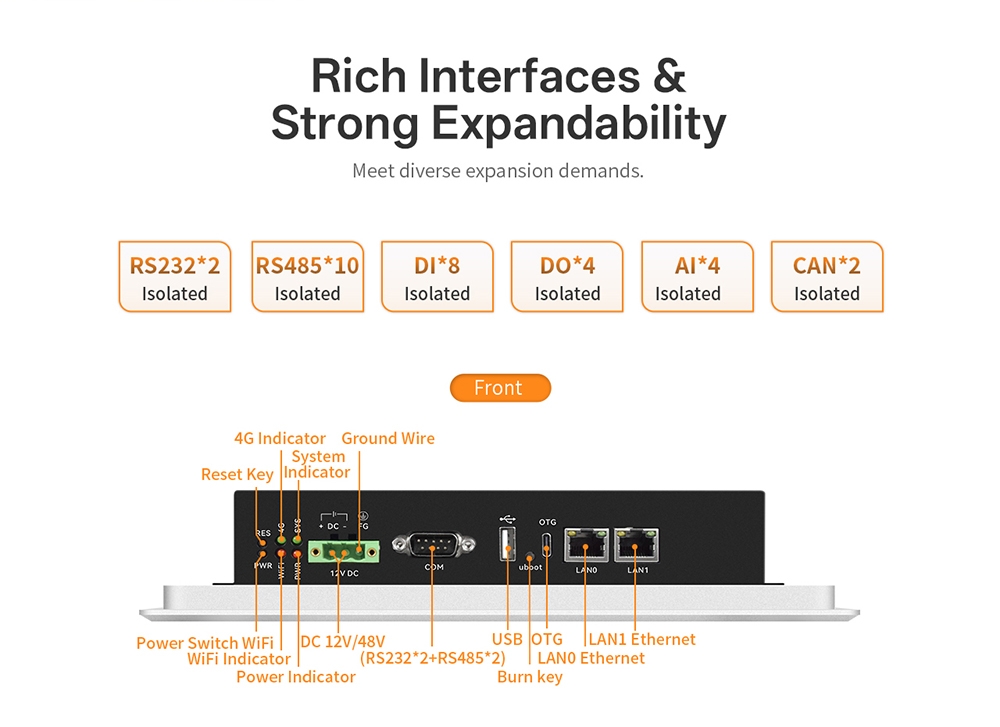

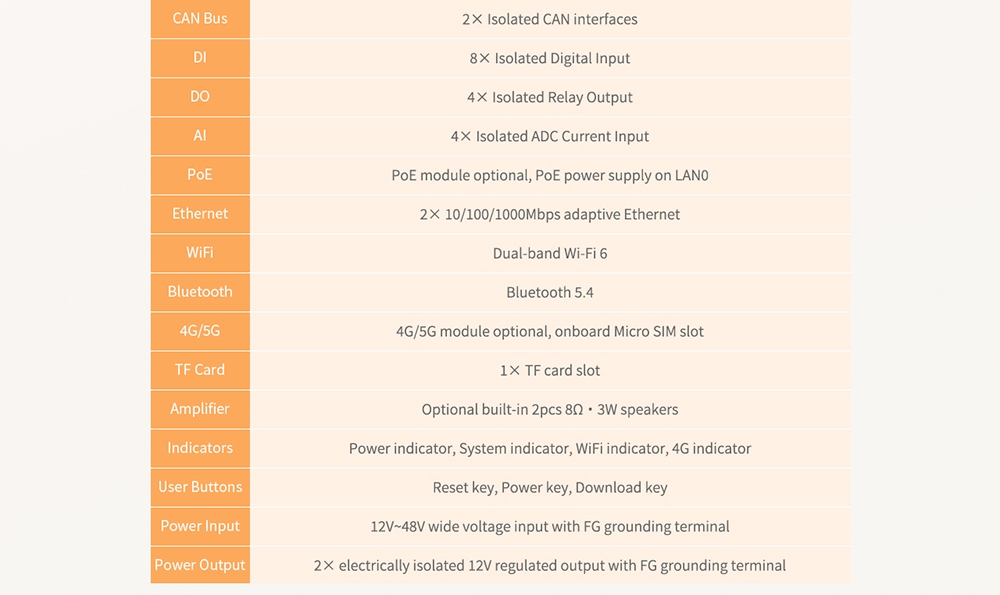

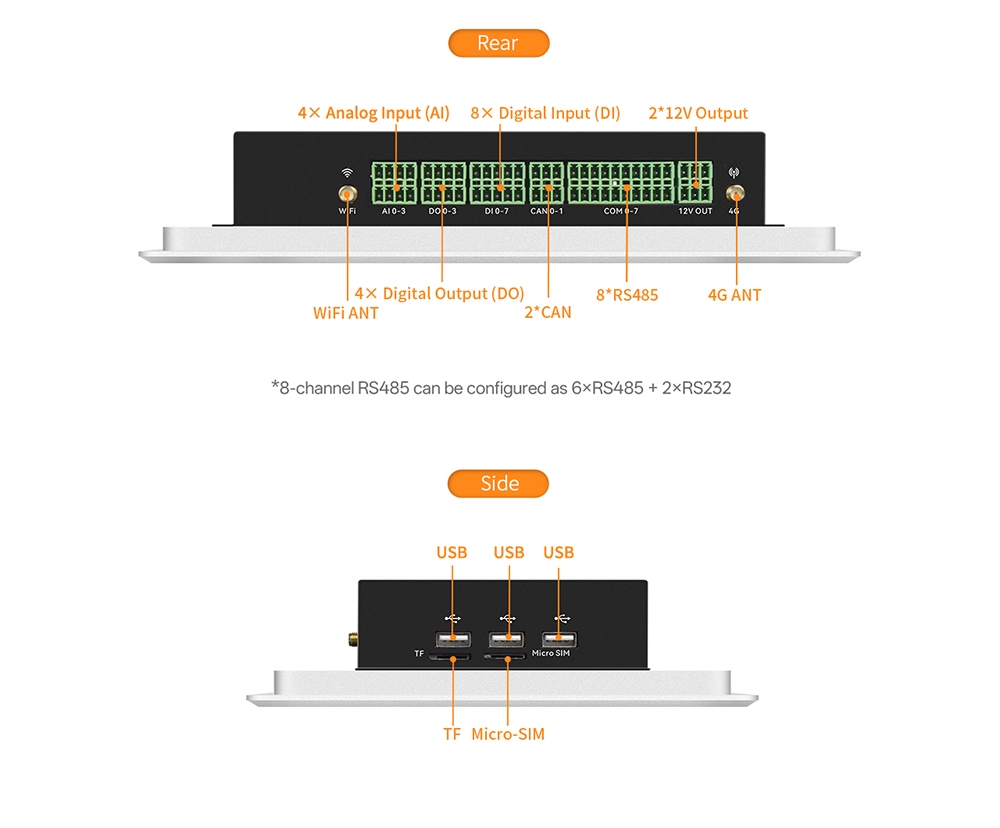

Interfaces

Interfaces — AYB101H1-IXM93
Total RS232 channels2 channelsNot specified
Total RS485 channels10 channelsNot specified
Total DI channels8 channelsNot specified
Total DO channels4 channelsNot specified
Total AI channels4 channelsNot specified
Total CAN channels2 channelsNot specified
DB9 serial configurationRS232: 2; RS485: 2 channelsNot specified
Front USB and OTGUSB_A: 1; OTG: 1 itemsNot specified
Rear RS485 configuration8 channelsNot specified
Isolated power outputcount: 2; voltage: 12 VNot specified
Side USB3 itemsNot specified
USB Hostcount: 4; version: 2.0Not specified
USB OTGcount: 1; connector: Type-CNot specified
Serial portsRS485: 8 channelsNot specified
DB9 serial portRS232: 2; RS485: 2 channelsNot specified
CAN bus2 channelsNot specified
DO4 channelsNot specified
AI4 channelsNot specified

Expansion

Expansion — AYB101H1-IXM93
Storage-card slot1 itemsNot specified
SIM slot1 itemsNot specified
TF card1 channelsStandard

Touch

Touch — AYB101H1-IXM93
Touch typetype: Capacitive touch; points: 5Not specified

RAM

RAM — AYB101H1-IXM93
RAM1 GBNot specified

Storage

Storage — AYB101H1-IXM93
Storage32 GBNot specified

Audio

Audio — AYB101H1-IXM93
Speakercount: 2; impedance: 8; power: 3 Ω/WOptional

Status

Status — AYB101H1-IXM93
IndicatorsPower / System / WiFi / 4GStandard

Control

Control — AYB101H1-IXM93
User buttonsReset / Switch / ProgrammingStandard

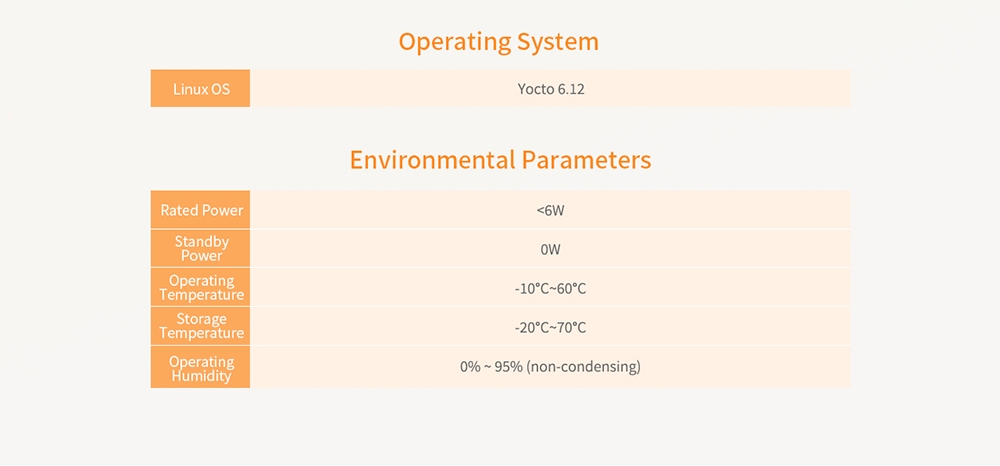

System

System — AYB101H1-IXM93
Linux systemsYocto 6.12Not specified

Power consumption

Power consumption — AYB101H1-IXM93
Rated poweroperator: <; value: 6 WNot specified
Standby power0 WNot specified

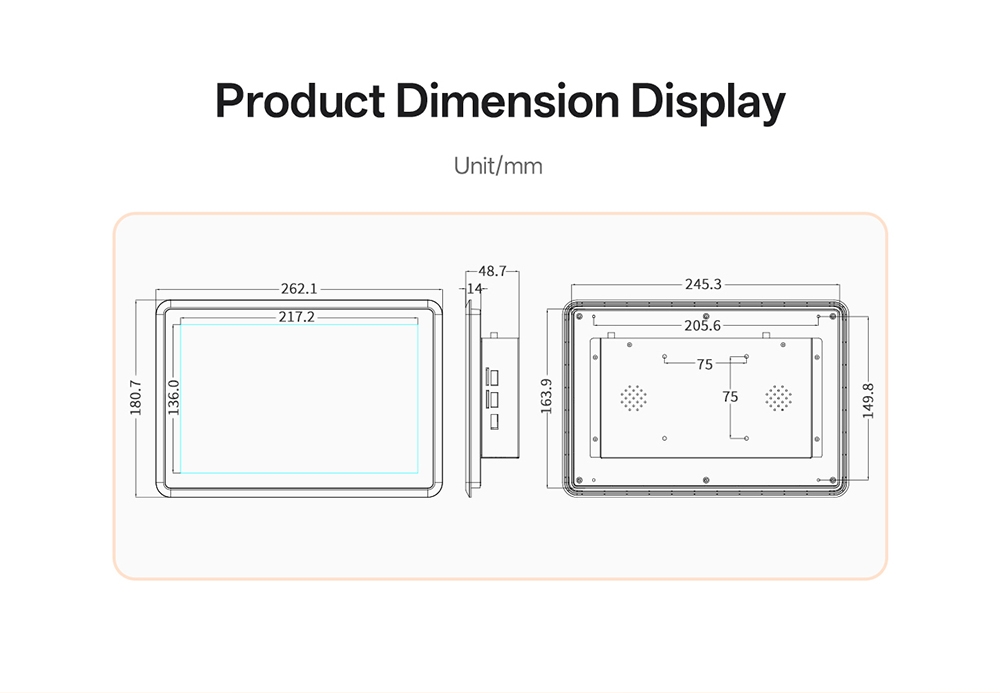

Drawing annotation

Drawing annotation — AYB101H1-IXM93
Active display area217.2 × 136 mmNot specified
Rear enclosure perimeter245.3 × 163.9 mmNot specified
Rear annotated spacing205.6 × 149.8 mmNot specified
VESA hole spacing75 × 75 mmNot specified

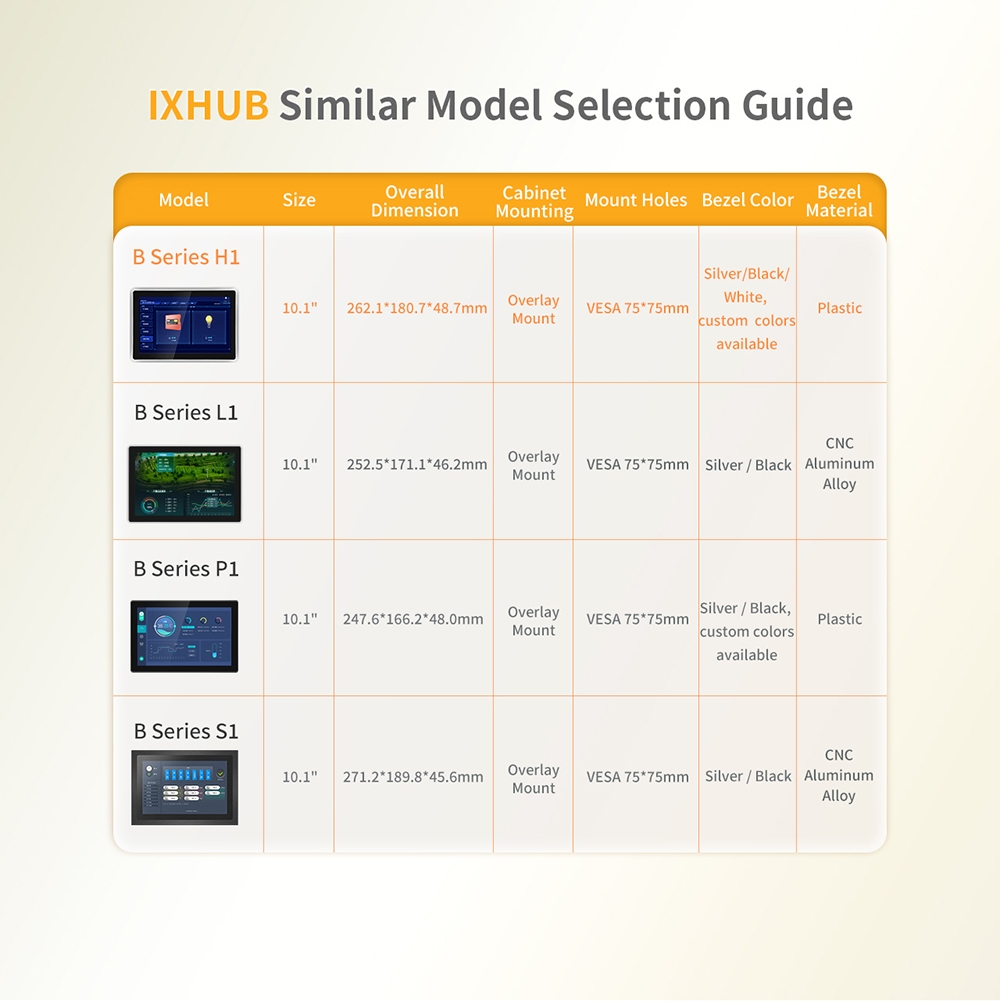

Explore similar models
