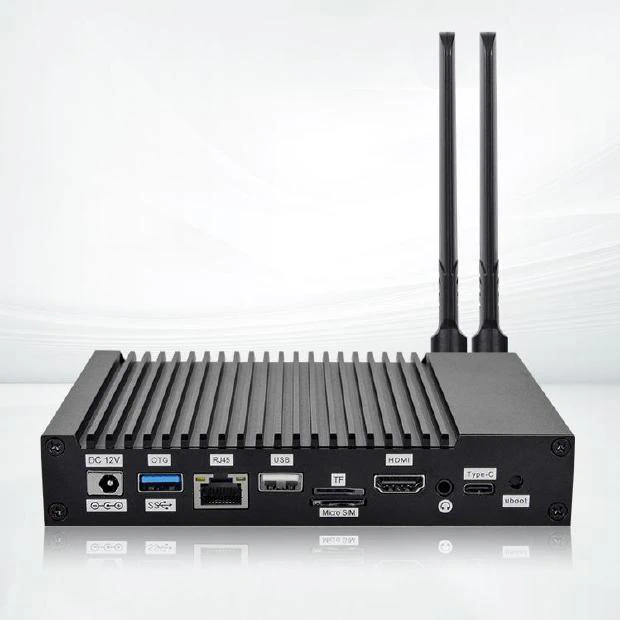

IC-K3588S

Name: IC-K3588S - High-Performance AI IoT Controller
Brand: 奥宇智能科技

Rockchip RK3588S

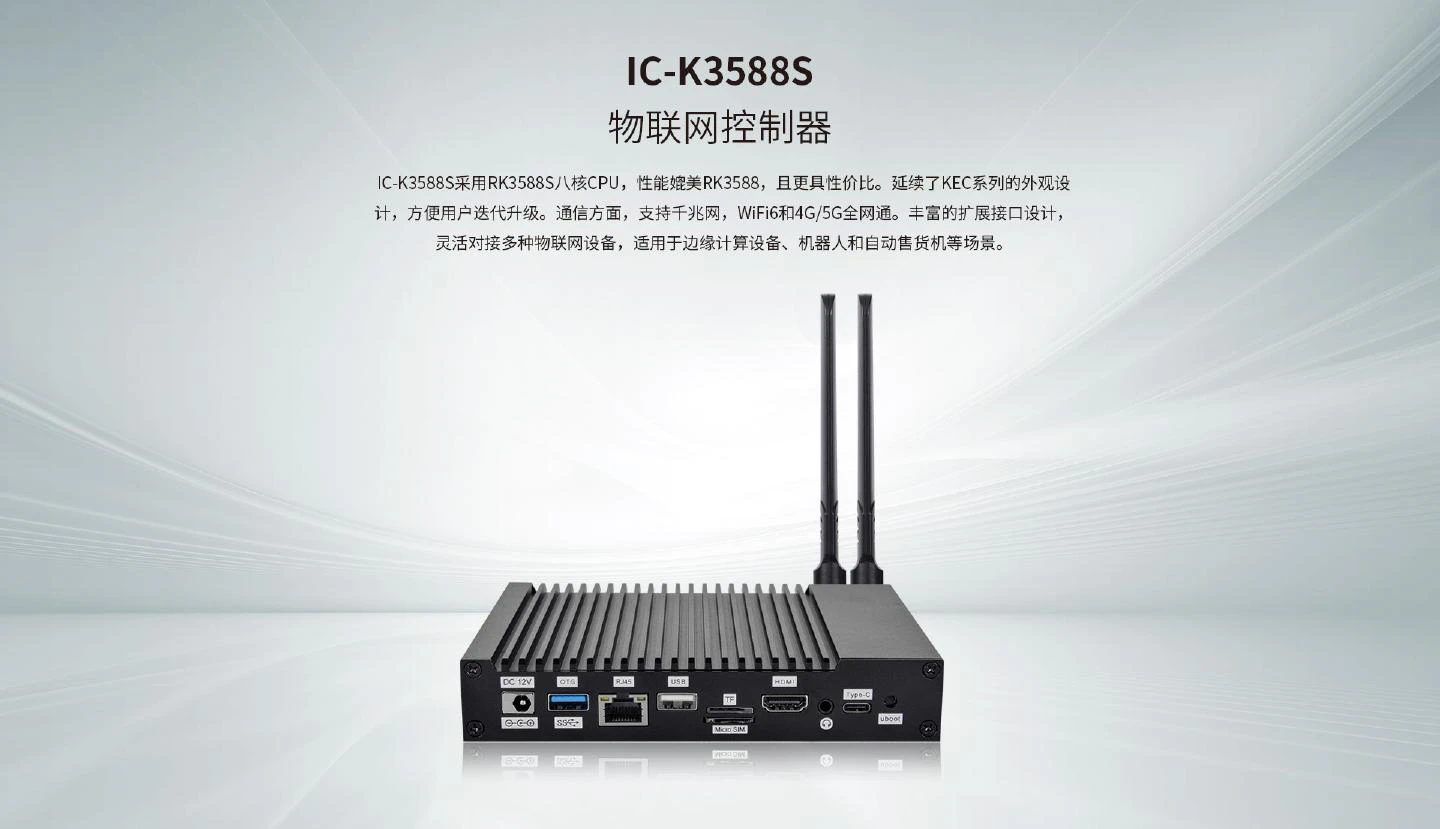

IC-K3588S is equipped with Rockchip RK3588S octa-core processor with a maximum frequency of 2.4GHz and a built-in independent NPU with computing power up to 6 Tops. It features a rich array of expansion interfaces for flexible connection to various peripherals. The device has an ultra-thin design to meet diverse deployment scenario requirements.

Processor Rockchip RK3588S

Memory 4GB

Storage 32GB

OS Support Android 12 / Ubuntu 20.04

Network 1× 10/100/1000Mbps

Video Output HDMI

Request Quote View Specifications

Product Downloads

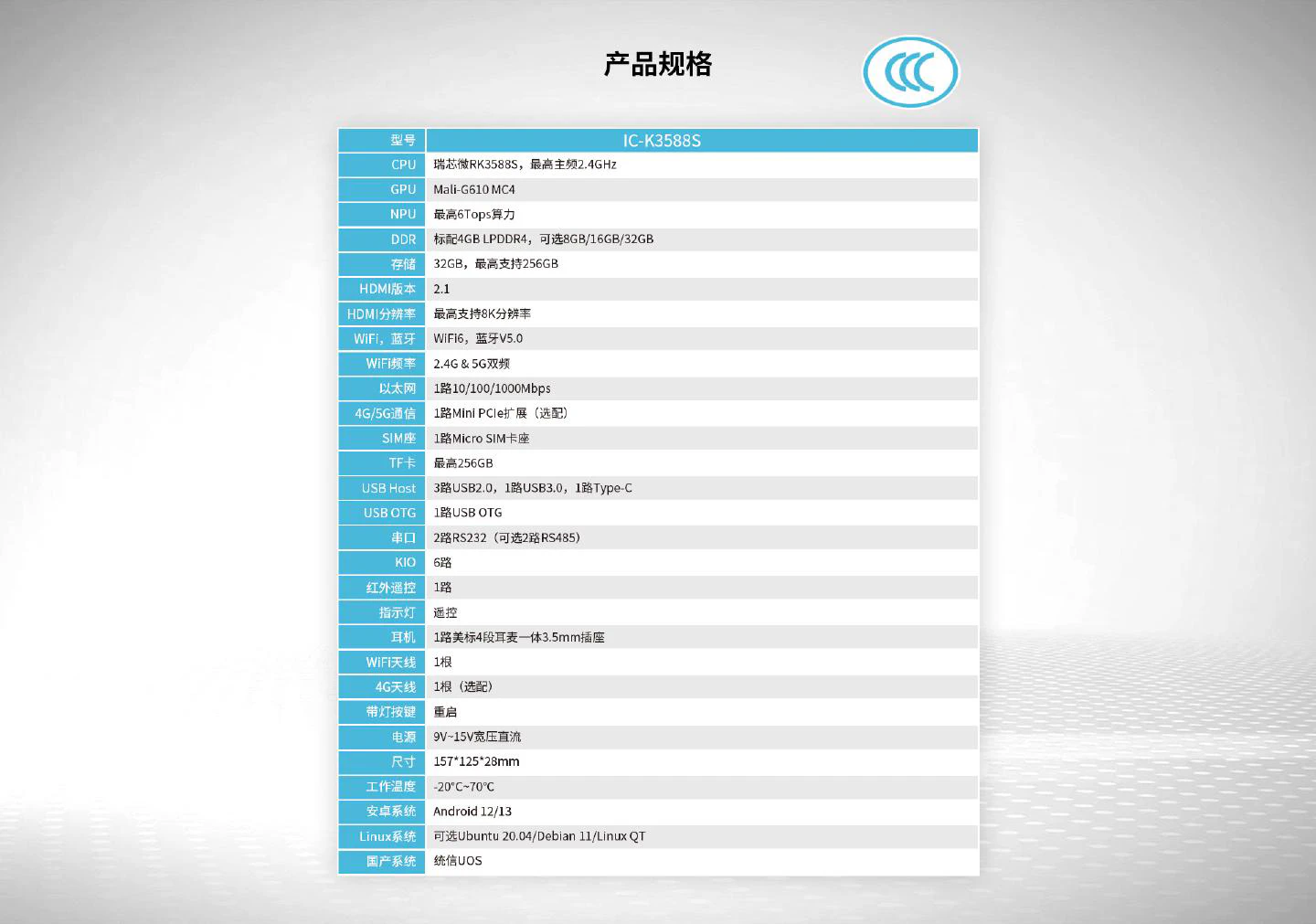

Technical Specifications

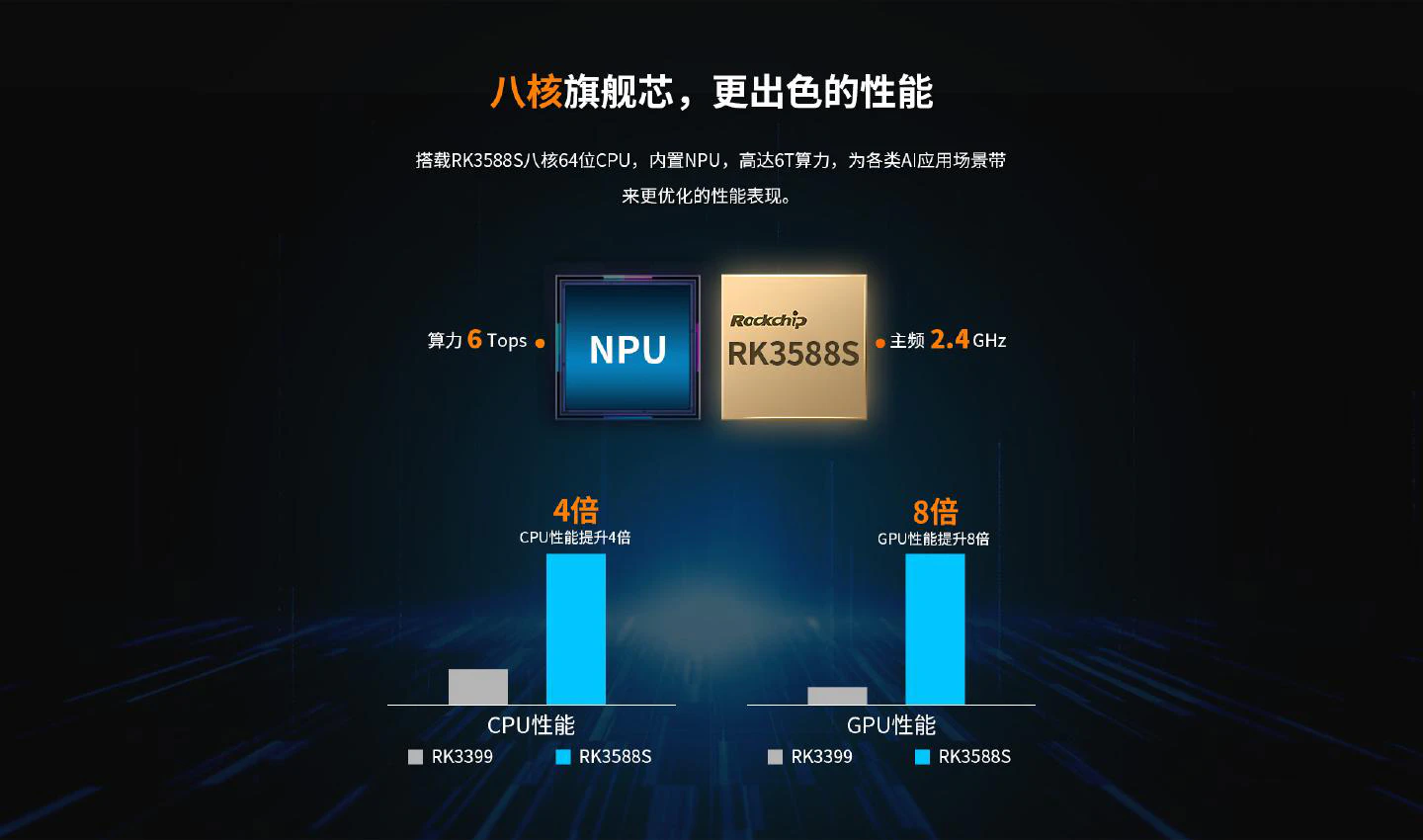

Processor	Rockchip RK3588S，Quad-core Cortex-A76 + quad-core Cortex-A55，FrequencyUp to 2.4GHz
GPU	Mali-G610 MP4，
NPU	Supports 6 Tops computing power

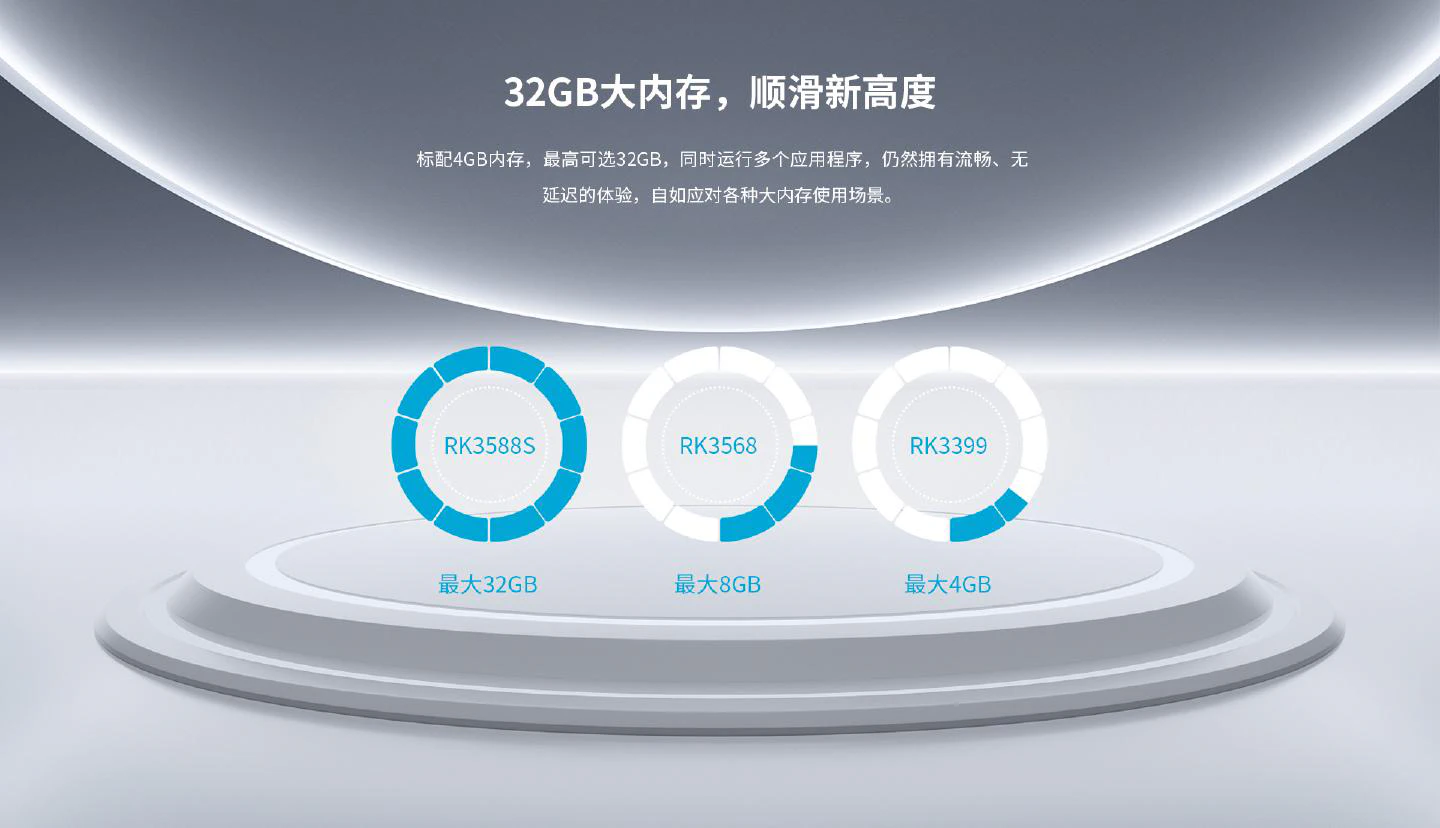

Memory	Standard 4GB ，Max 32GB
Storage	Standard 32GB ，Max 256GB

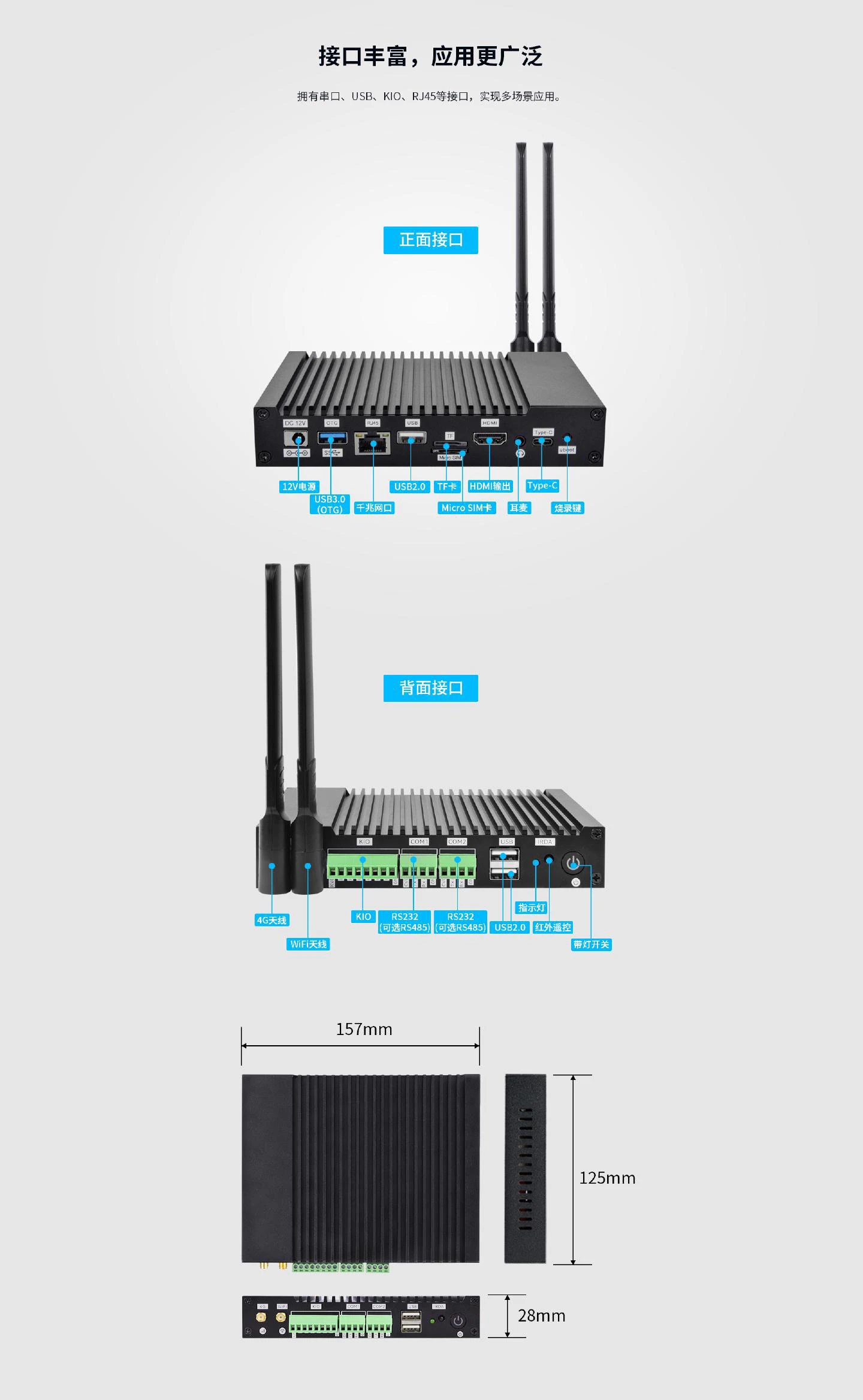

Dimensions	15712528mmmm
Weight	g
Appearance	Color: ，Material:
Power Consumption	Typical ，Max

Display Output	1× HDMI ，8K

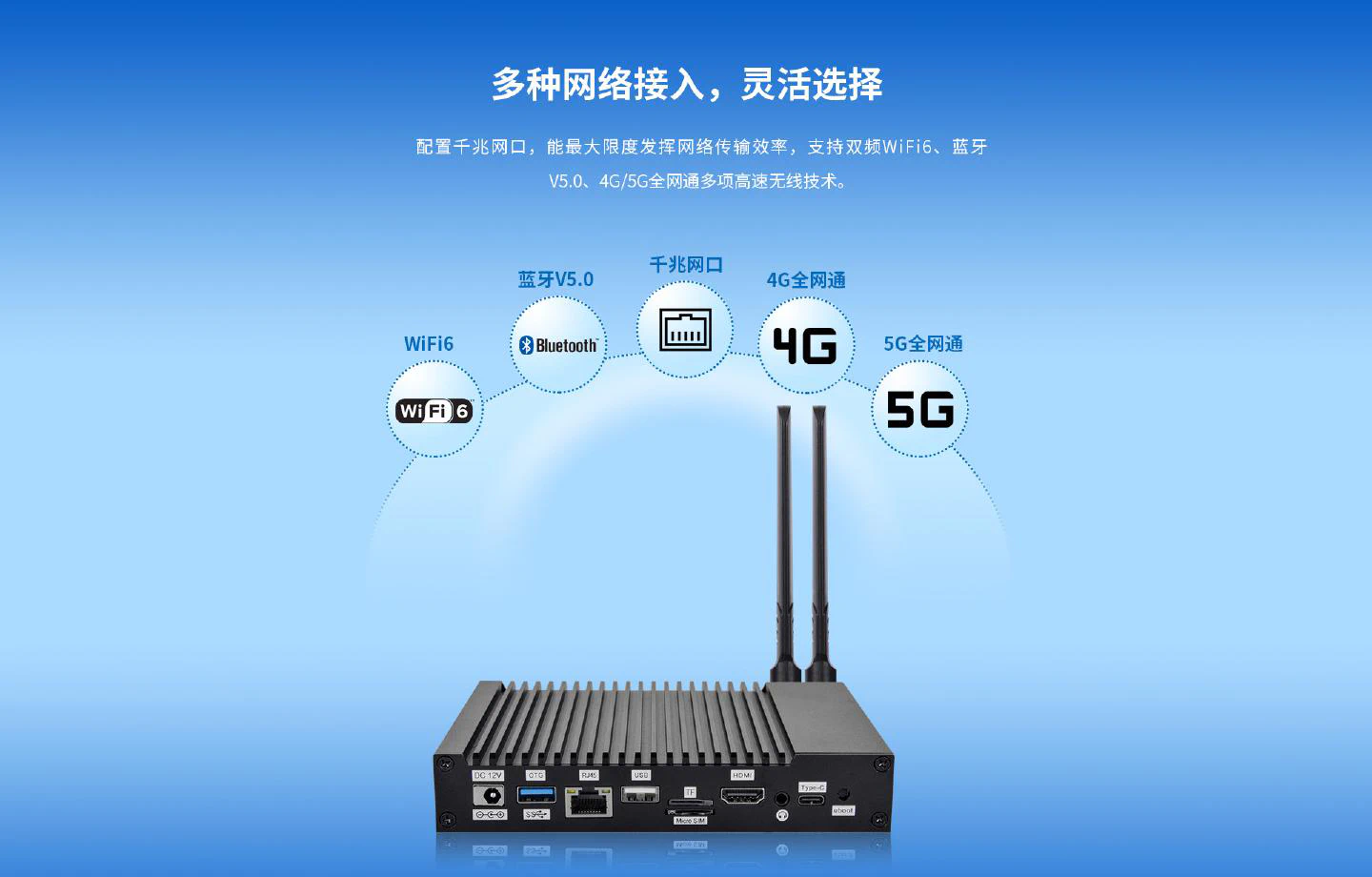

Network	1× 10/100/1000Mbps Ethernet Interface
Wi-Fi	WiFi6
Bluetooth	5.0
Cellular	4G (1 Mini PCIe expansion slot (optional))
USB	3× USB 2.0 ，1× USB 3.0 ，1× USB OTG ，1× USB Type-C

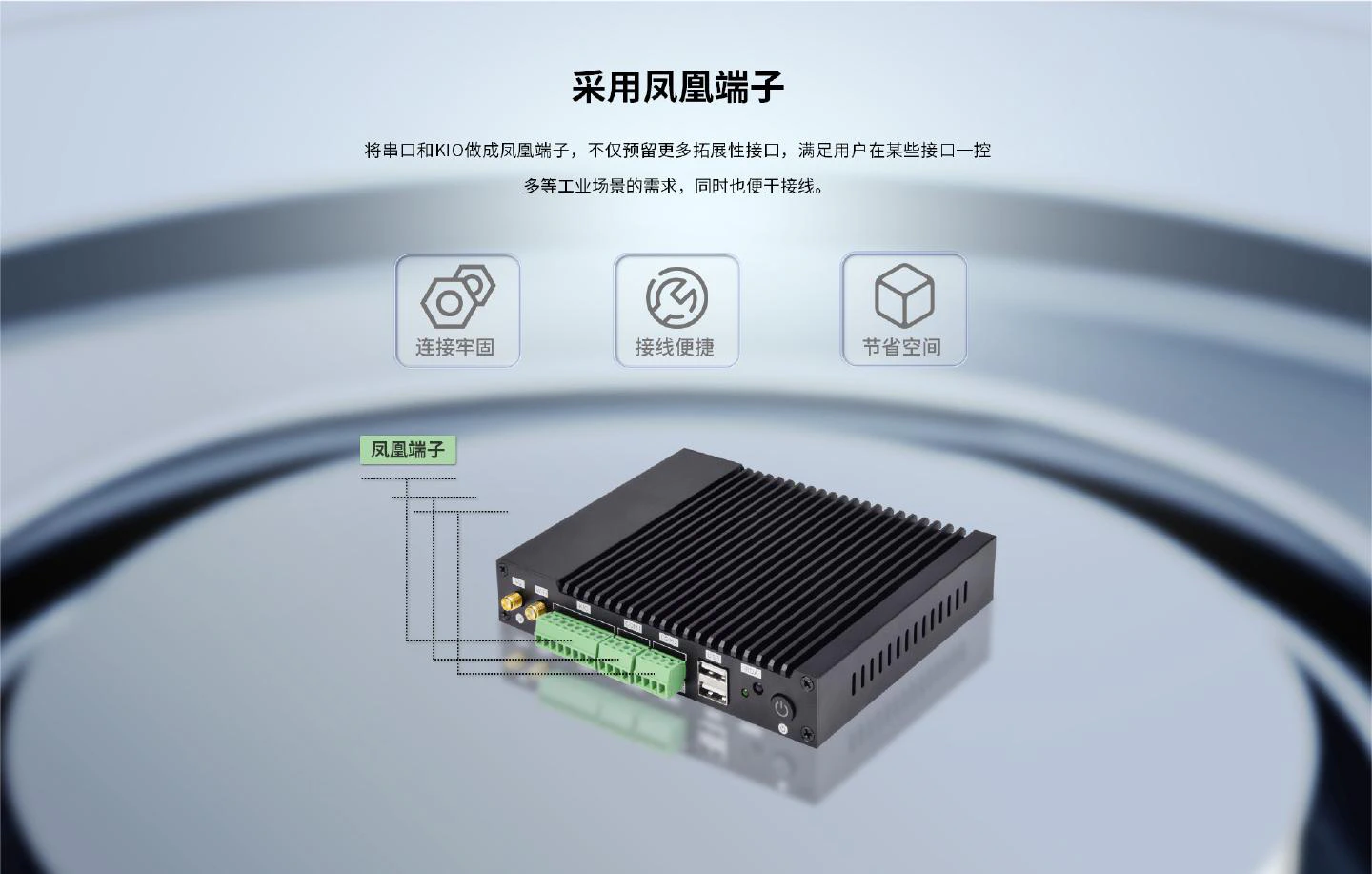

Serial Port	2× RS232
Power Input	9V~15V wide voltage DC
Audio	Output: 1 American standard 4-segment headset integrated 3.5mm socket ，Input: 1 American standard 4-segment headset integrated 3.5mm socket

Android	12, 13
Linux	Ubuntu 20.04, Linux QT, Debian 11
Special Features	RTC,
Power Management
System Upgrade

Operating Temperature	-20℃~70℃
Storage Temperature
Operating Humidity	0%~95% (non-condensing)
Storage Humidity
