IC-KS905

Name: IC-KS905 - AI IoT Controller
Brand: 奥宇智能科技

Amlogic S905D3

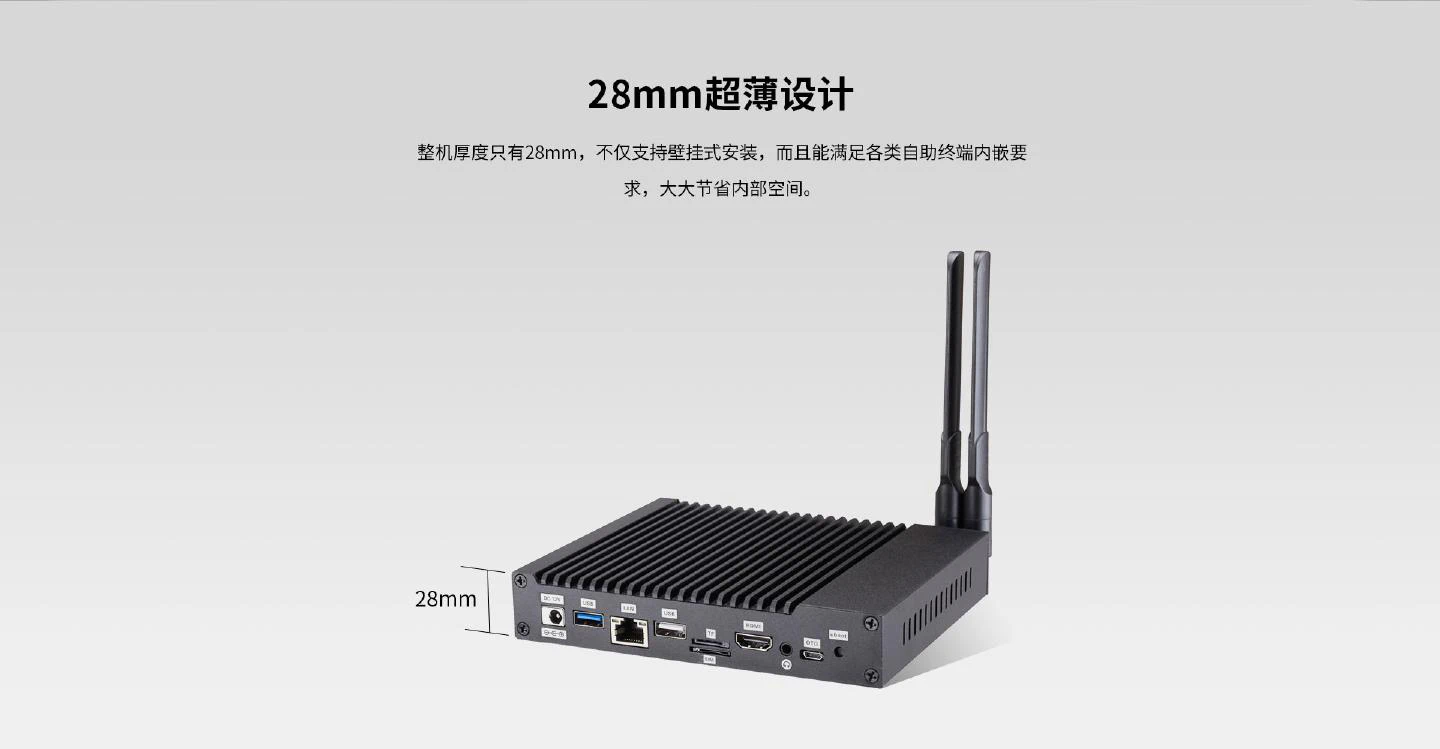

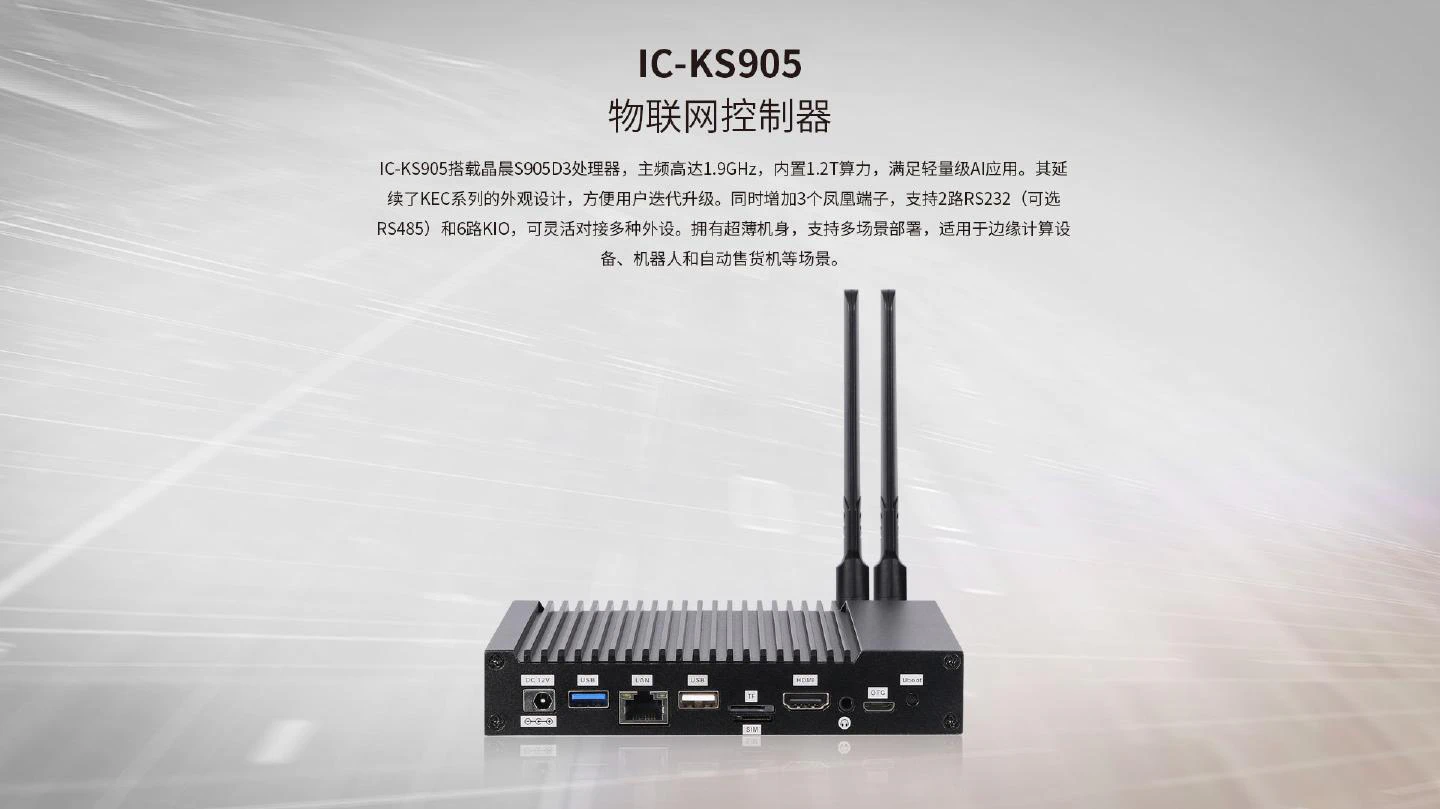

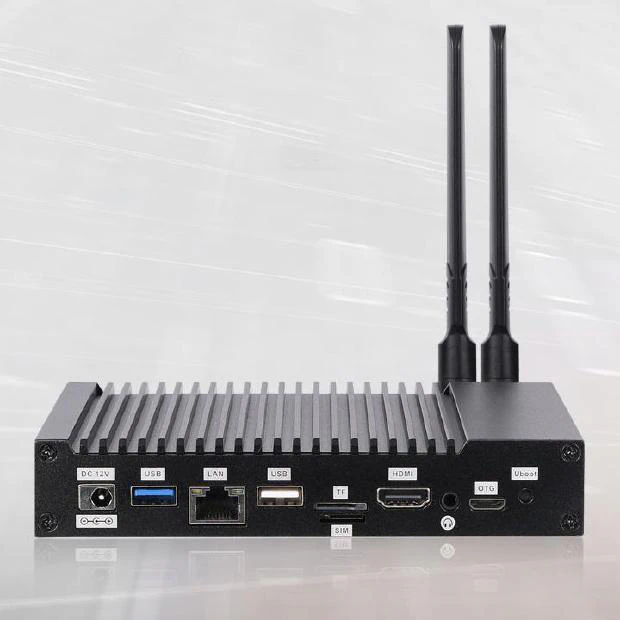

IC-KS905 is equipped with Amlogic S905D3 quad-core processor with a maximum frequency of 1.9GHz and a built-in independent NPU with computing power up to 1.2 Tops. It features a rich array of expansion interfaces for flexible connection to various peripherals. The device has an ultra-thin design to meet diverse deployment scenario requirements.

Processor Amlogic S905D3

Memory 1GB

Storage 16GB

OS Support Android 9.0

Network 1× 10/100/1000Mbps auto-adaptive

Video Output HDMI

Request Quote View Specifications

Product Downloads

Specifications

Case Drawing

Base & Ears Drawing

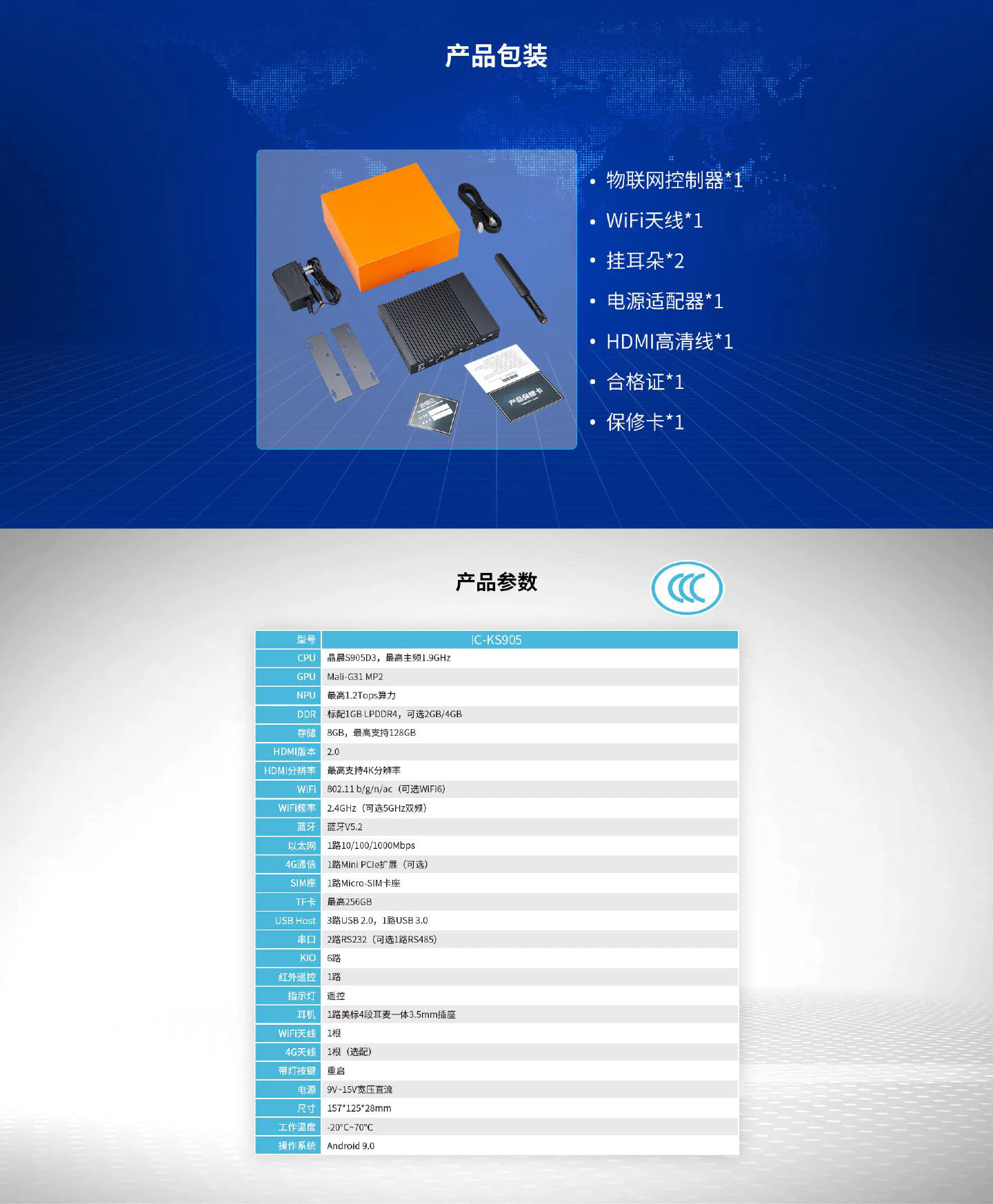

Technical Specifications

Processor	Amlogic S905D3，Quad-core Cortex-A55，FrequencyUp to 1.9GHz
GPU	Mali-G31MP2，
NPU	Supports up to 1.2 Tops computing power
Memory	Standard 1GB ，Max 4GB
Storage	Standard 16GB ，Max 128GB
Dimensions	15712528mmmm
Weight	g
Appearance	Color: ，Material:
Power Consumption	Typical ，Max

Display Output	1× HDMI ，4K
Network	1× 10/100/1000Mbps auto-adaptive Ethernet Interface
Wi-Fi	802.11b/g/n/ac WiFi6 (optional)
Bluetooth	5.2
Cellular	4G (Built-in MiniPCIe interface, supports various 4G modules from manufacturers like Quectel (optional))

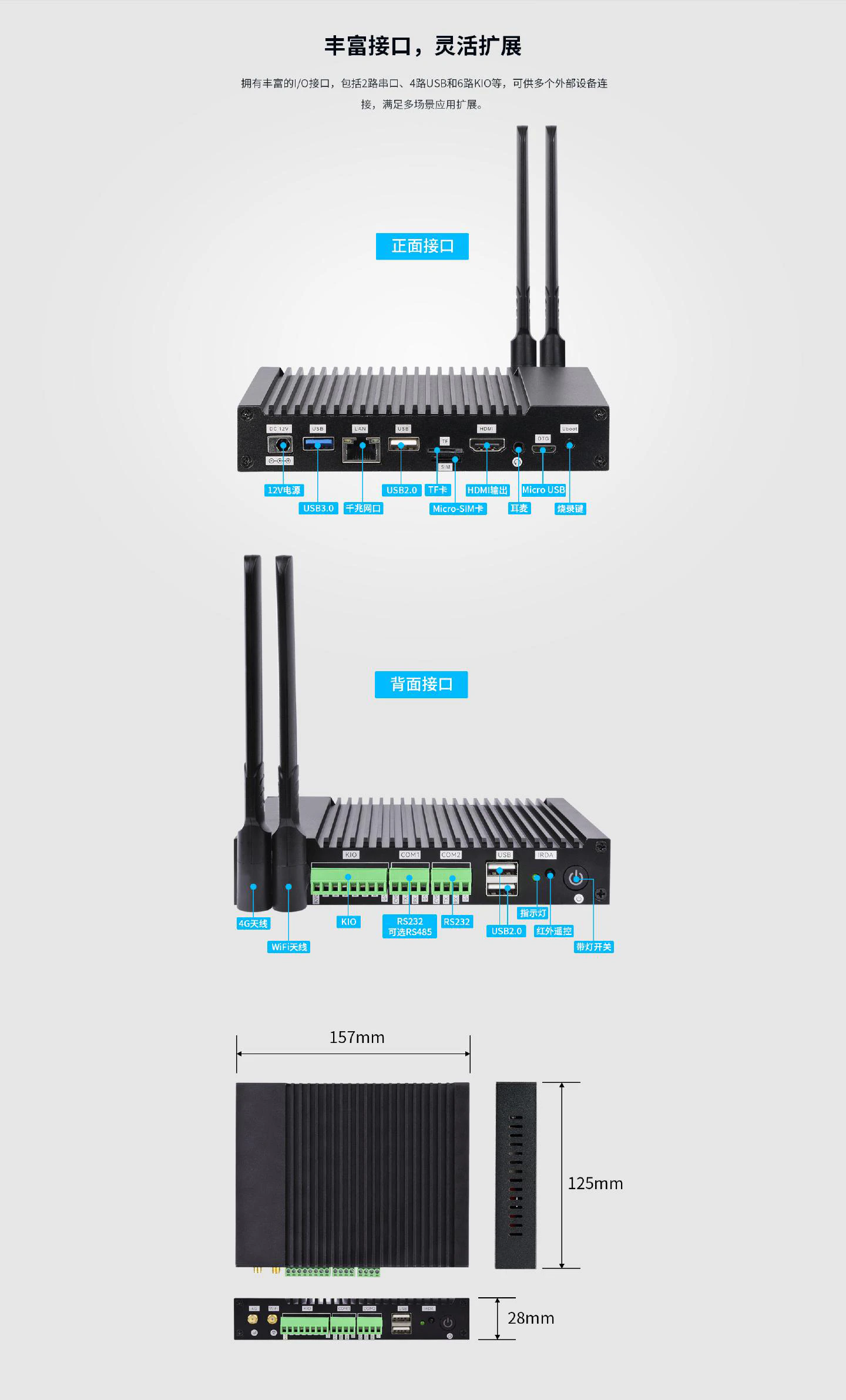

USB	3× USB 2.0 ，1× USB 3.0 ，1× USB OTG ，0× USB Type-C

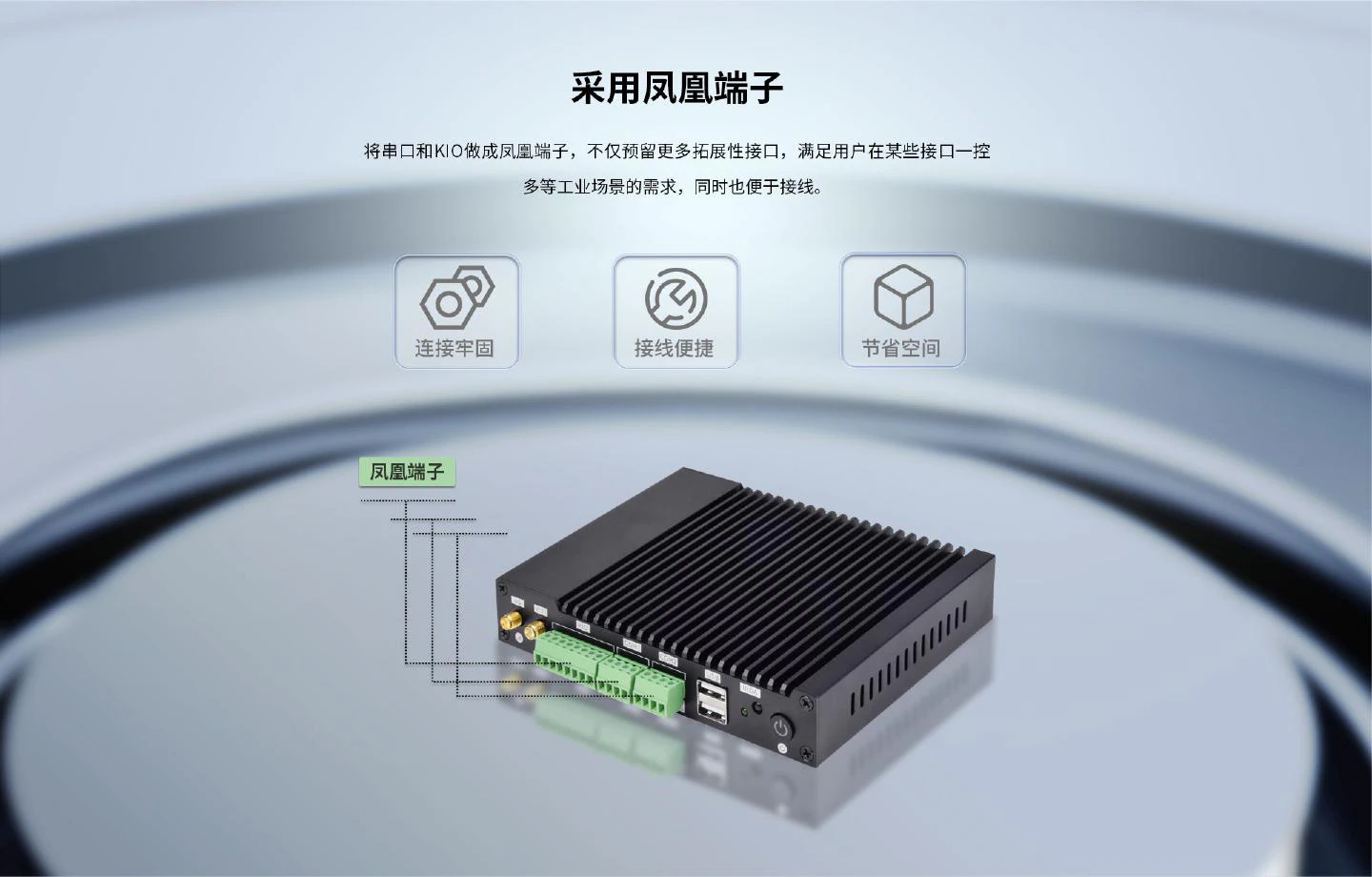

Serial Port	2× RS232
Power Input	9V~15V wide voltage DC
Audio	Output: 1 American standard 4-segment headset integrated 3.5mm socket ，Input: 1 American standard 4-segment headset integrated 3.5mm socket

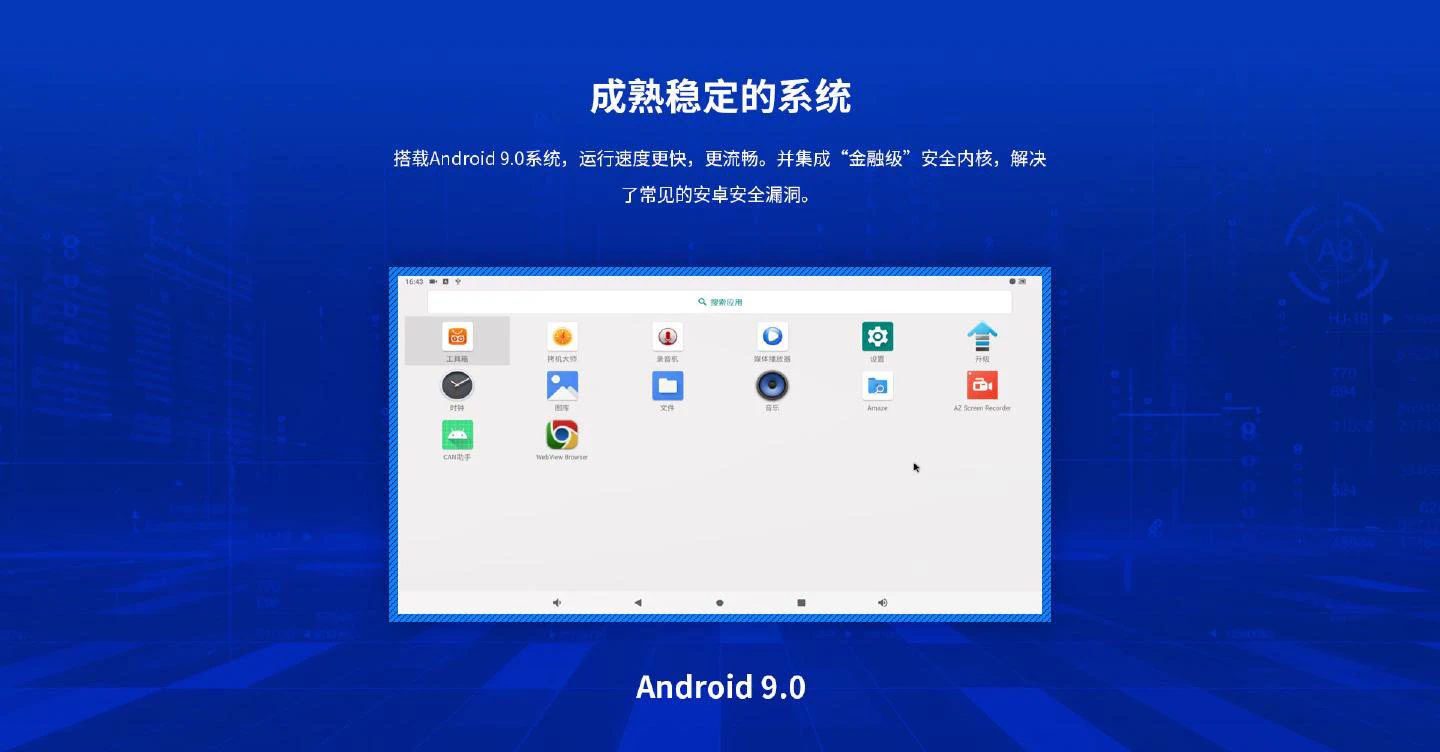

Android	9.0
Special Features
Power Management
System Upgrade

Operating Temperature	-20℃~70℃
Storage Temperature
Operating Humidity	0%~95% (non-condensing)
Storage Humidity
