Name: M200 - Advanced Multimedia Player
Brand: 奥宇智能科技

Rockchip RK3368

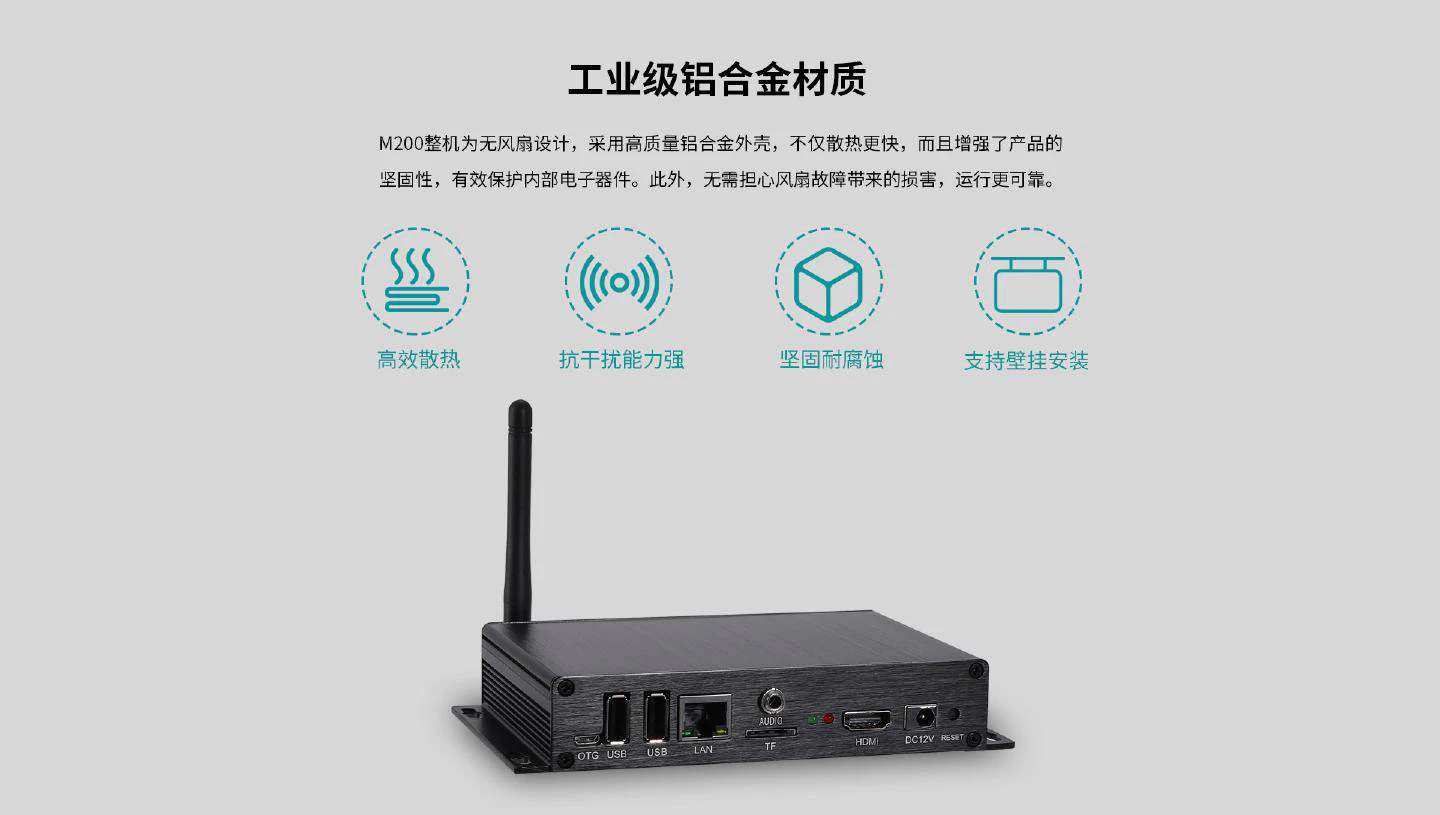

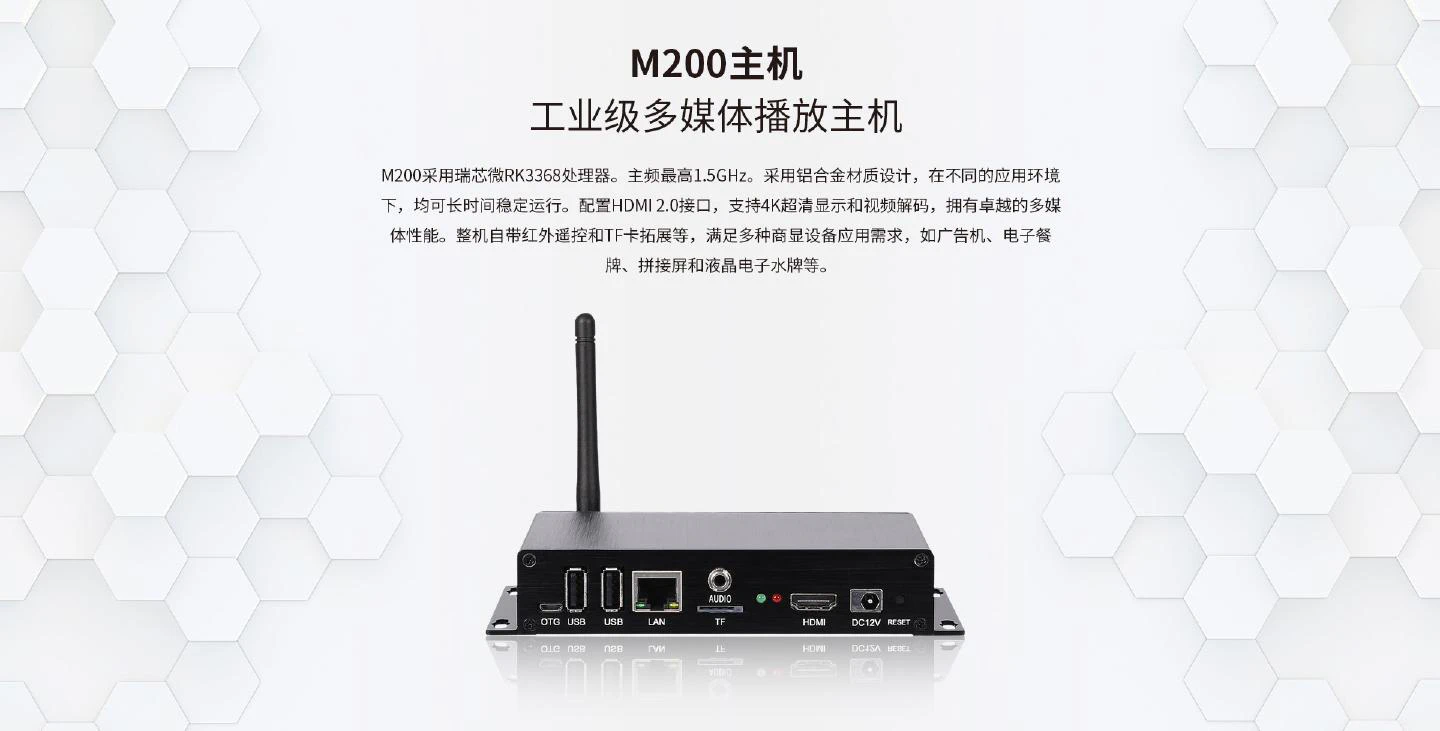

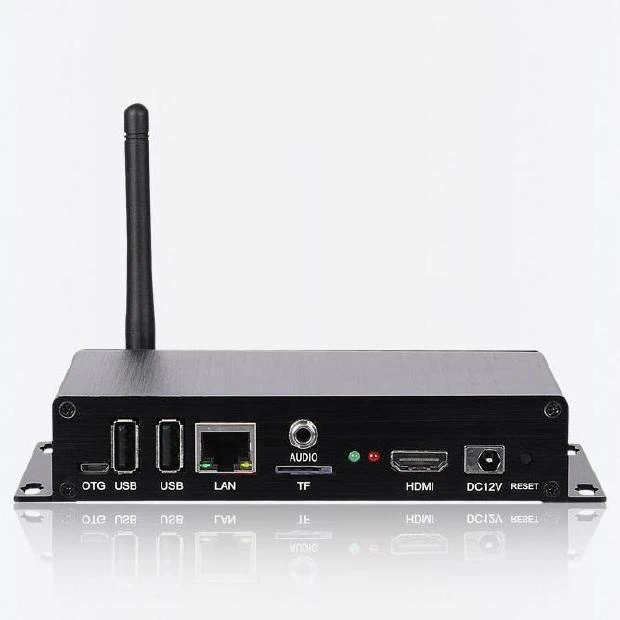

M200 adopts Rockchip RK3368, a Cortex-A53 octa-core CPU with Android 5.1 system, with a maximum frequency of 1.5GHz. It features a GC6110 GPU, supporting 4K display. Interface-wise, it integrates Ethernet, HDMI, WiFi, and Bluetooth. This product features a fanless design with built-in high-quality heat sink, making it very suitable for industrial and commercial information distribution application requirements.

Processor RK3368

Memory 1GB

Storage 8GB

OS Support Android 5.1

Network 1× 10/100Mbps

Video Output HDMI

Request Quote View Specifications

Product Downloads

Specifications

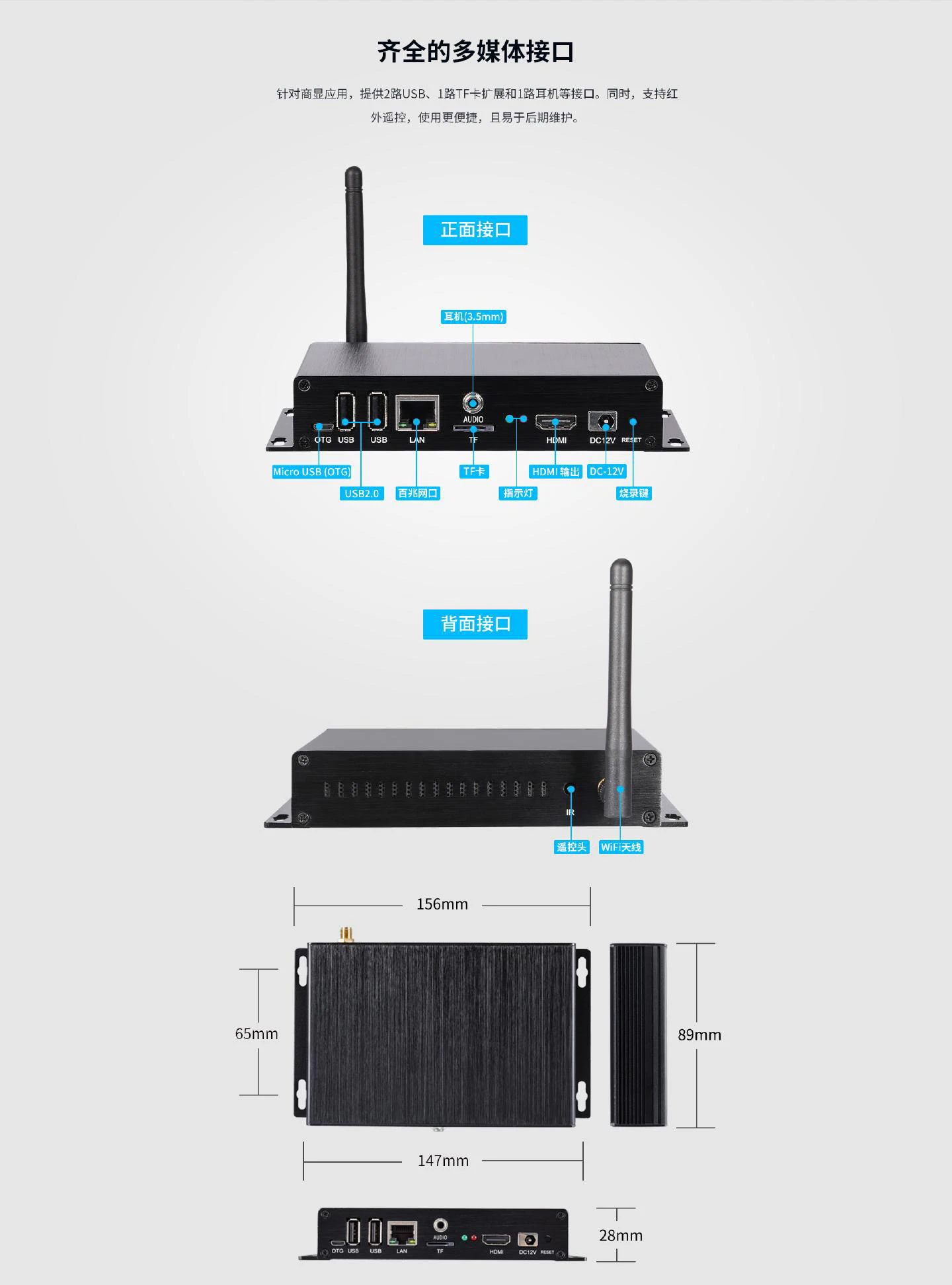

Mechanical Drawing

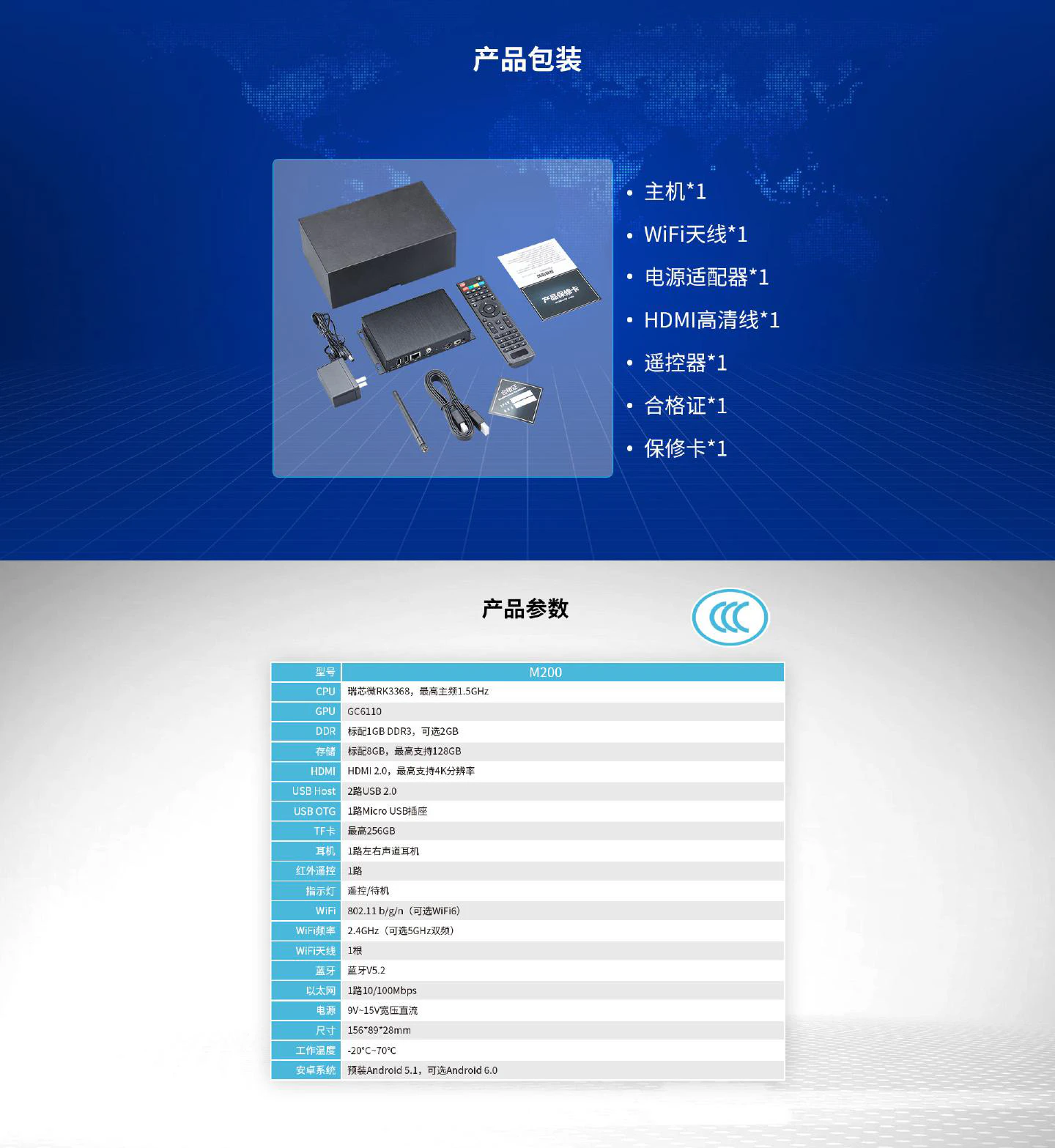

Technical Specifications

Processor	RK3368，Octa-core Cortex-A53，FrequencyUp to 1.5GHz
GPU	GC6110，High-performance GPU
NPU
Memory	Standard 1GB ，Max 2GB
Storage	Standard 8GB ，Max 128GB
Dimensions	1568928mmmm
Weight	g
Appearance	Color: ，Material:
Power Consumption	Typical ，Max

Display Output	1× HDMI ，1080P@60Hz, 4K output

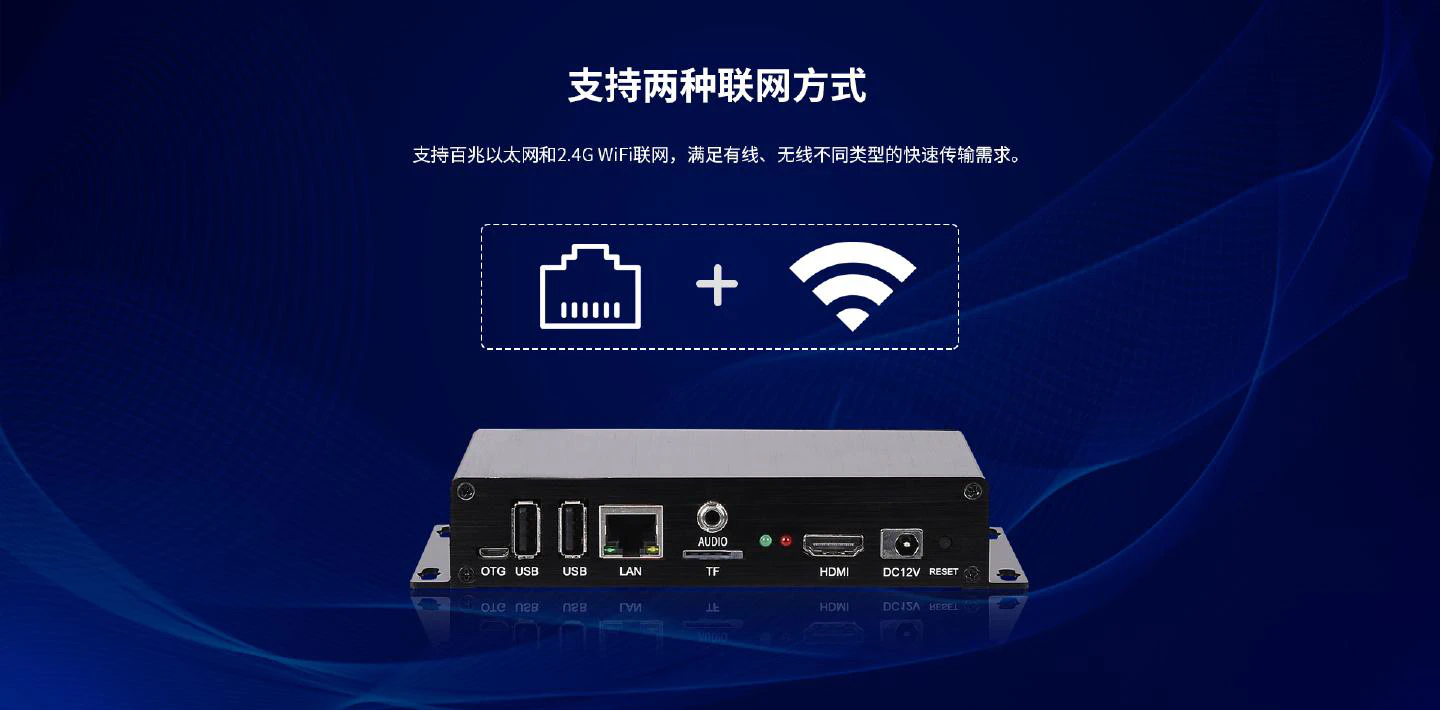

Network	1× 10/100Mbps Ethernet Interface
Wi-Fi
Bluetooth	4.0
Cellular
USB	2× USB 2.0 ，0× USB 3.0 ，1× USB OTG ，0× USB Type-C
Serial Port	0× RS232
Power Input	90Vac-264Vac
Audio	Output: Supports one channel left and right audio output for headphones

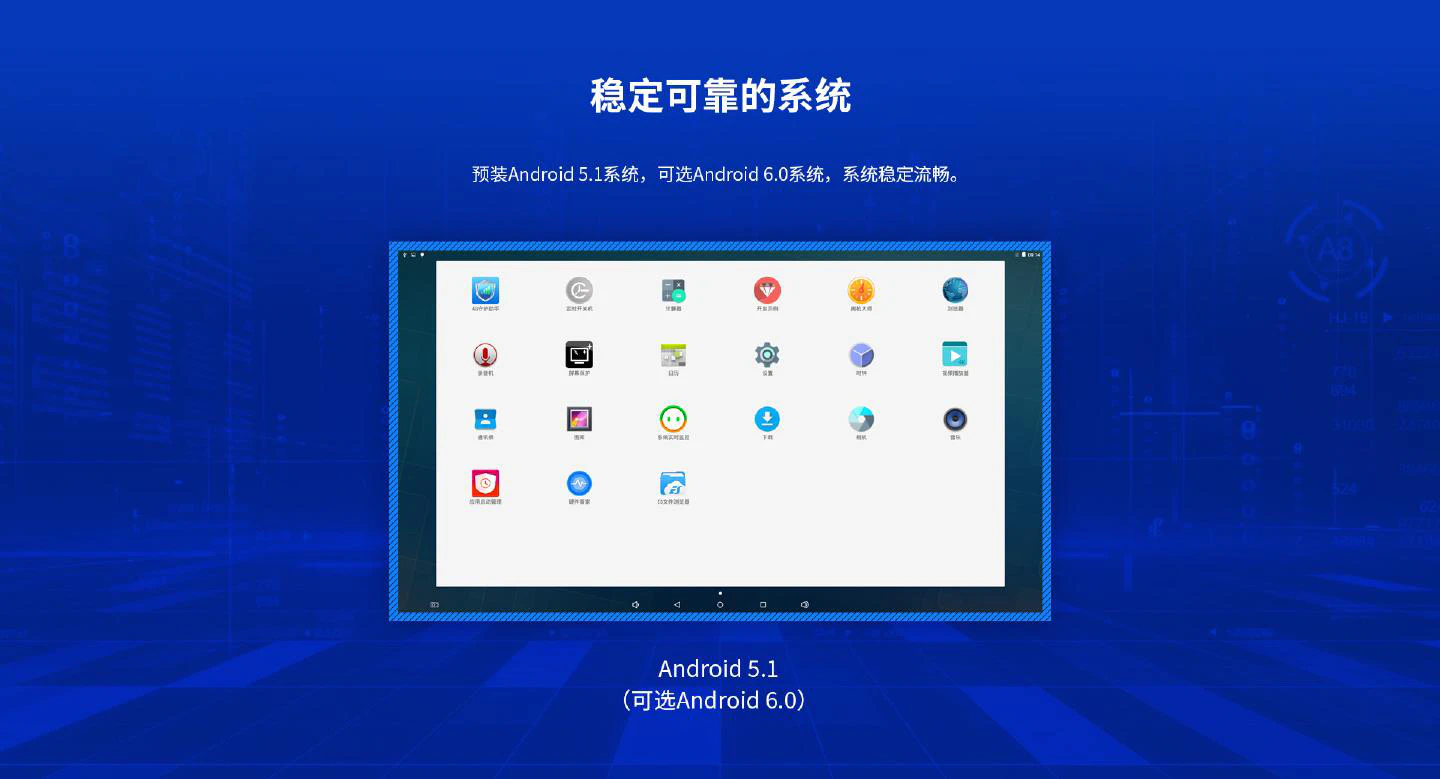

Android	5.1, 6.0
Special Features	RTC,

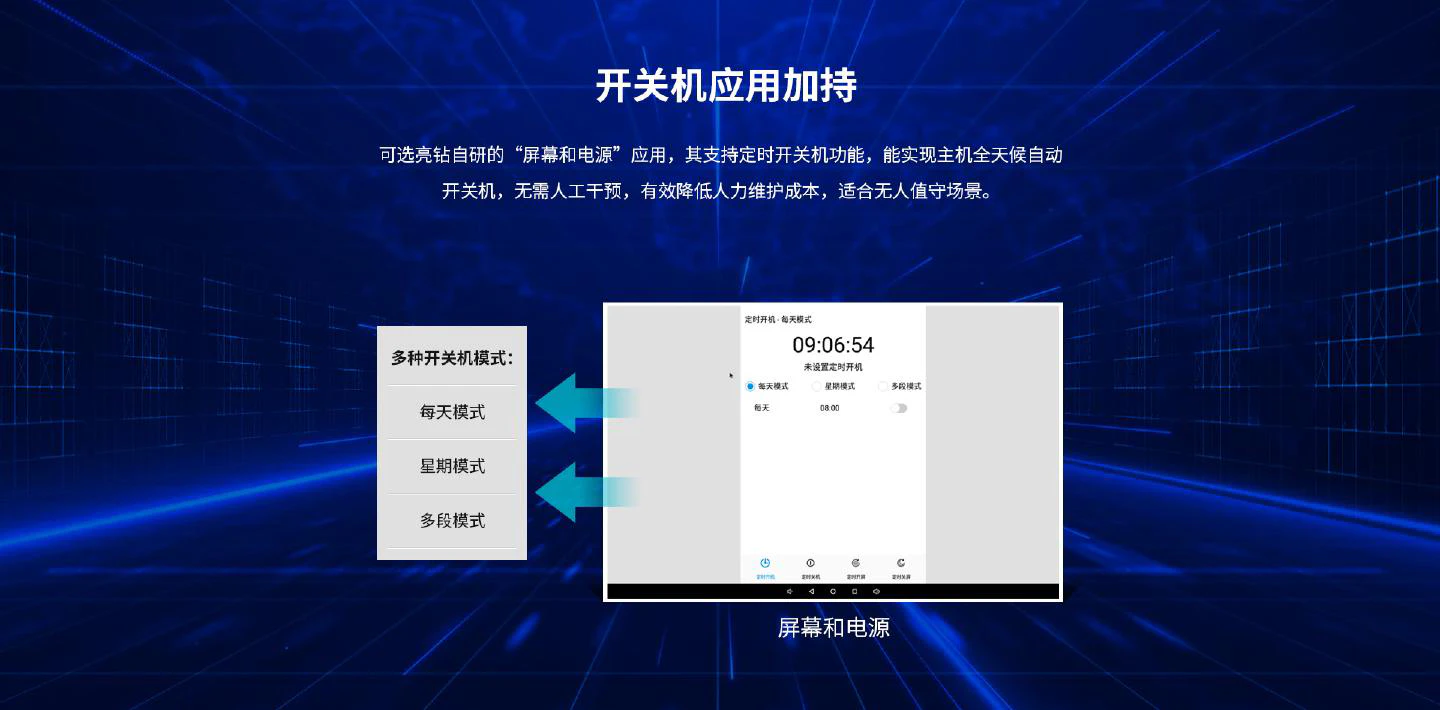

Power Management	Scheduled Power
System Upgrade	Local USB upgrade

Operating Temperature	-20℃~+70℃
Storage Temperature	-40℃~+70℃
Operating Humidity	0%~95% (non-condensing)
Storage Humidity
