HS-3568

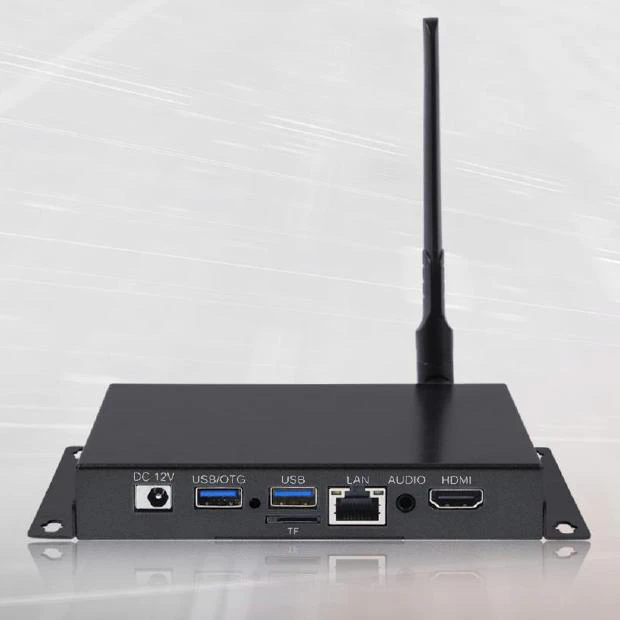

Name: HS-3568 - High-Performance AI Ultra-Thin Host
Brand: 奥宇智能科技

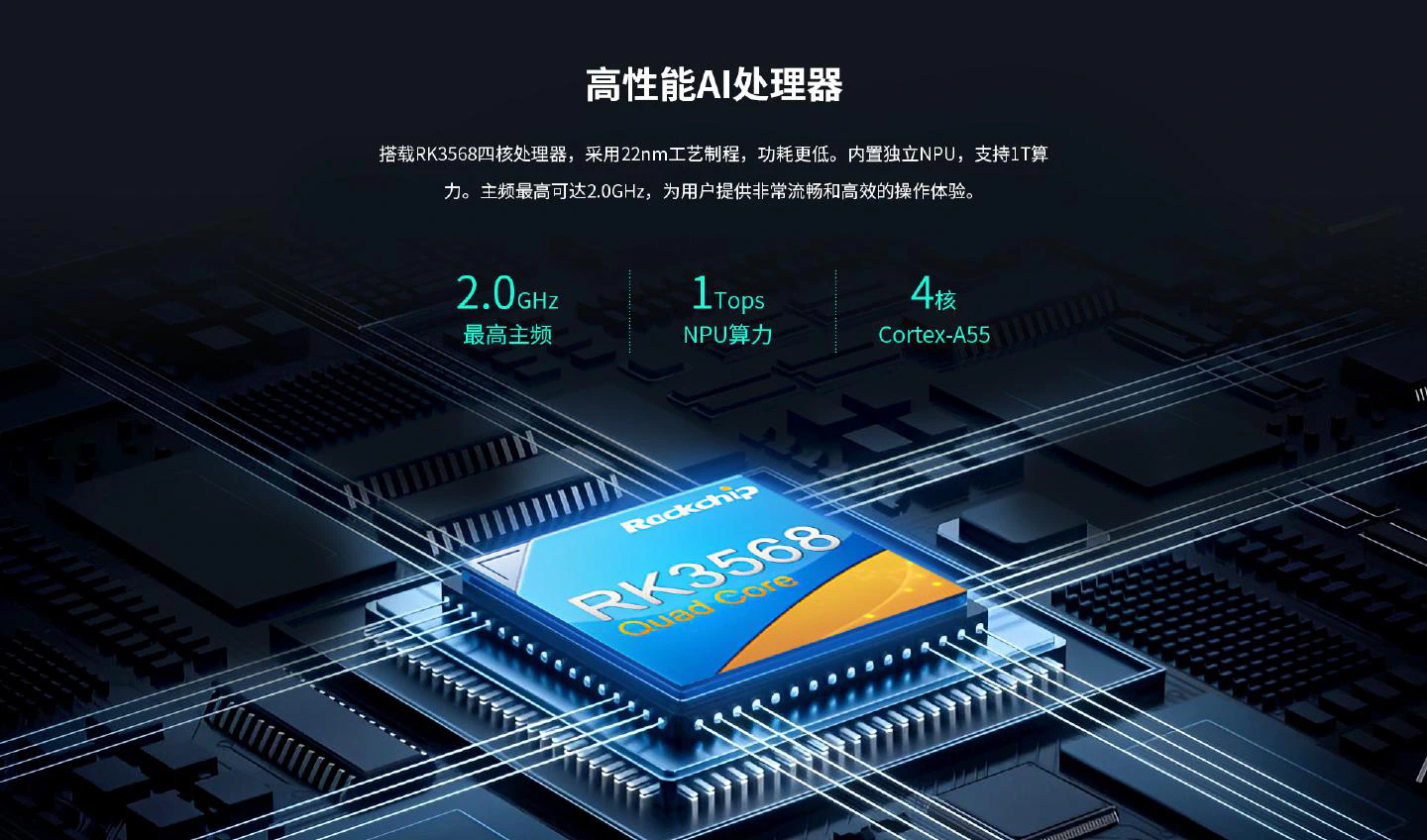

Rockchip RK3568

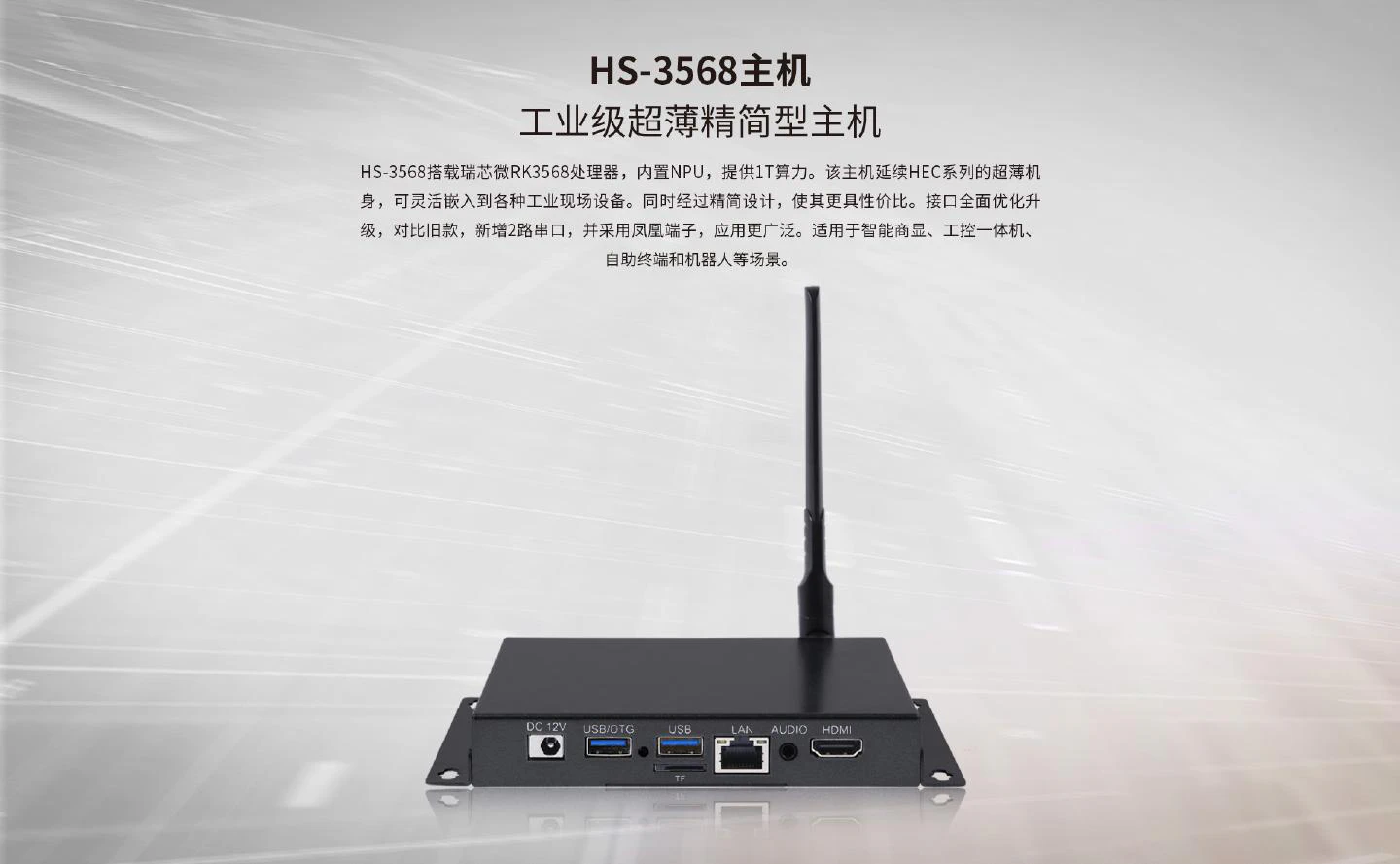

HS-3568 adopts Rockchip RK3568, a quad-core Cortex-A55 processor with a maximum frequency of 2.0GHz, built-in independent NPU, computing power up to 1 Tops. The whole machine is ultra-thin and compact, can be flexibly embedded into various industrial field equipment.

Processor RK3568

Memory 2GB LPDDR4

Storage 8GB

OS Support Android 11.0 / Ubuntu 20.04

Network 1× 10/100/1000M adaptive

Video Output HDMI 2.0

Request Quote View Specifications

Product Downloads

Specifications

Case Drawing

Mechanical Drawing #2

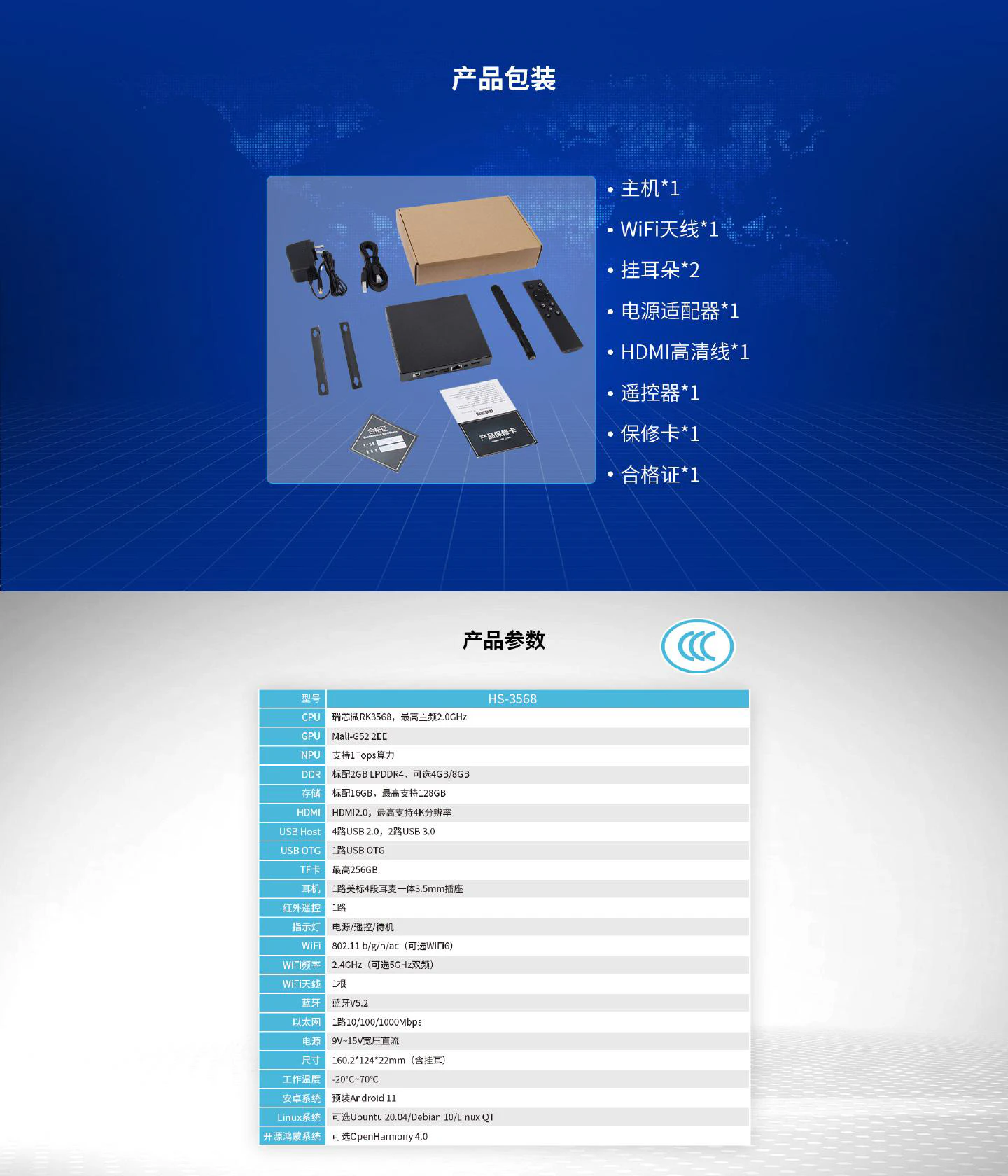

Technical Specifications

Processor	RK3568，Quad-core Cortex-A55，FrequencyUp to 2.0GHz
GPU	Mali-G522EE，
NPU	Supports 1 Tops computing power
Memory	Standard 2GB LPDDR4，Max 8GB
Storage	Standard 8GB ，Max 128GB

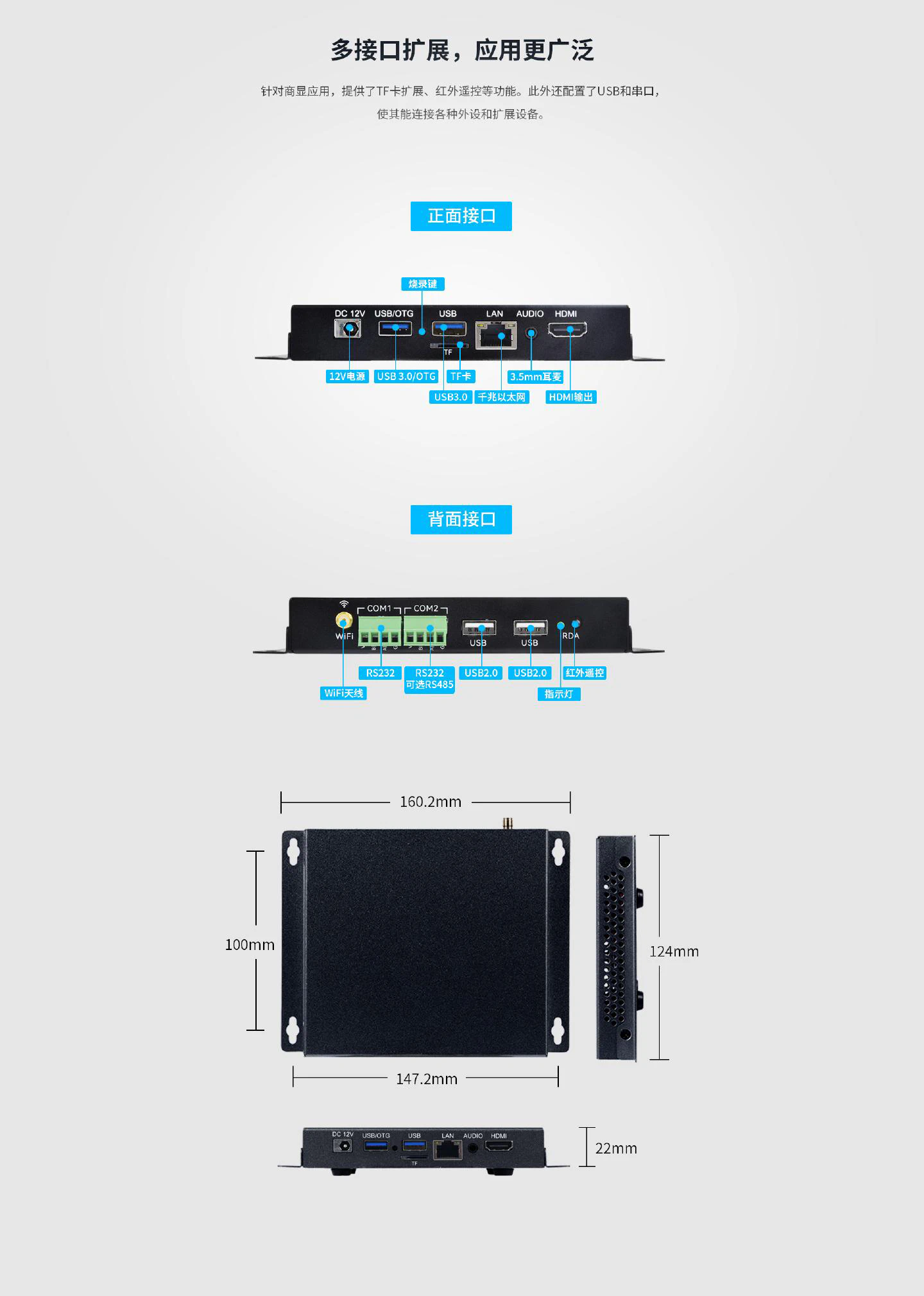

Dimensions	160.212422mm (including mounting ears)mm
Weight	g
Appearance	Color: ，Material:
Power Consumption	Typical ，Max

Display Output	1× HDMI 2.0，4K
Network	1× 10/100/1000M adaptive Ethernet Interface
Wi-Fi
Bluetooth	5.2
Cellular
USB	2× USB 2.0 ，2× USB 3.0 ，1× USB OTG ，0× USB Type-C

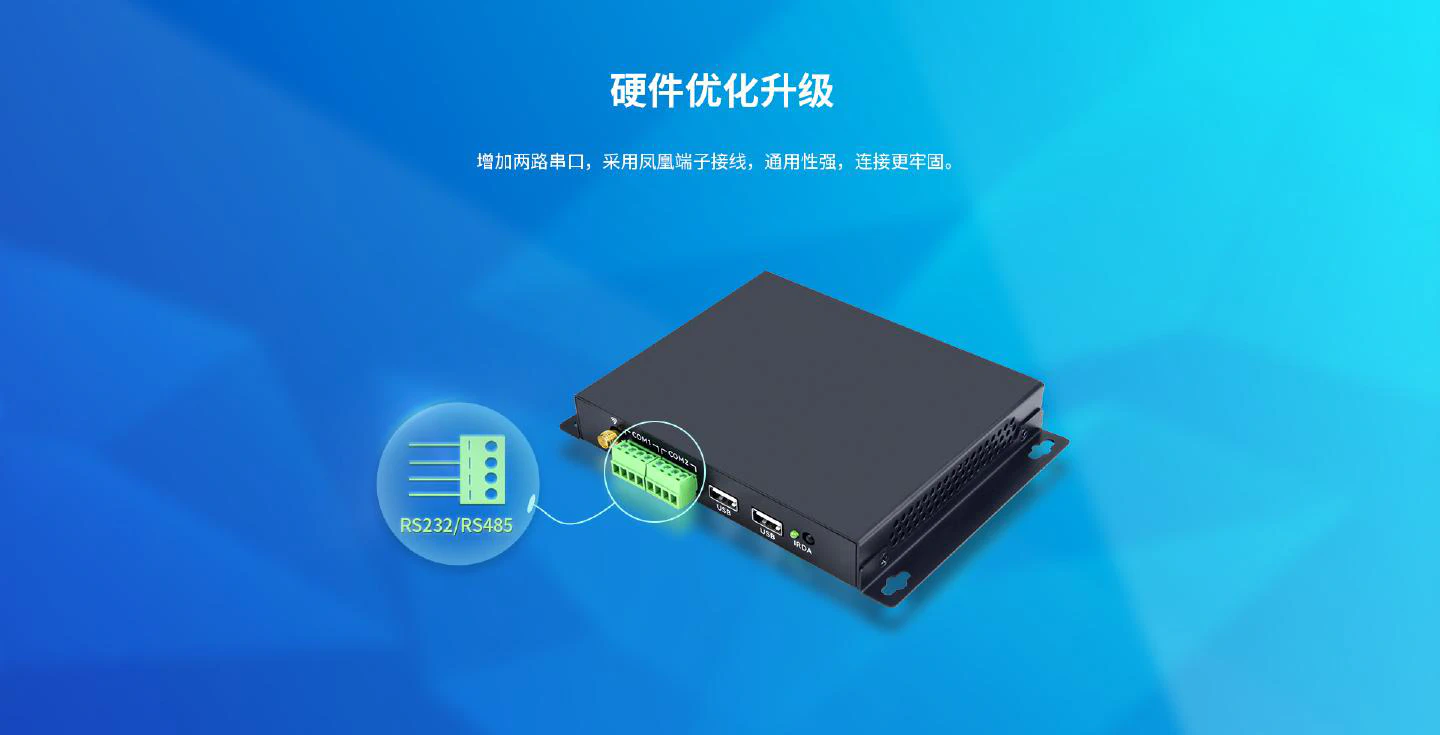

Serial Port	2× RS232
Power Input	9V-15V wide voltage DC
Audio	Output: 1 channel, four-segment 3.5mm headphone + microphone socket ，Input: 1 channel, four-segment 3.5mm headphone + microphone socket

Android	11.0
Linux	Ubuntu 20.04, Debian 10, Linux Buildroot
Special Features	RTC,
Power Management	Scheduled Power
System Upgrade	Local USB upgrade

Operating Temperature	-20℃~70℃
Storage Temperature
Operating Humidity	0%~90% (non-condensing)
Storage Humidity
