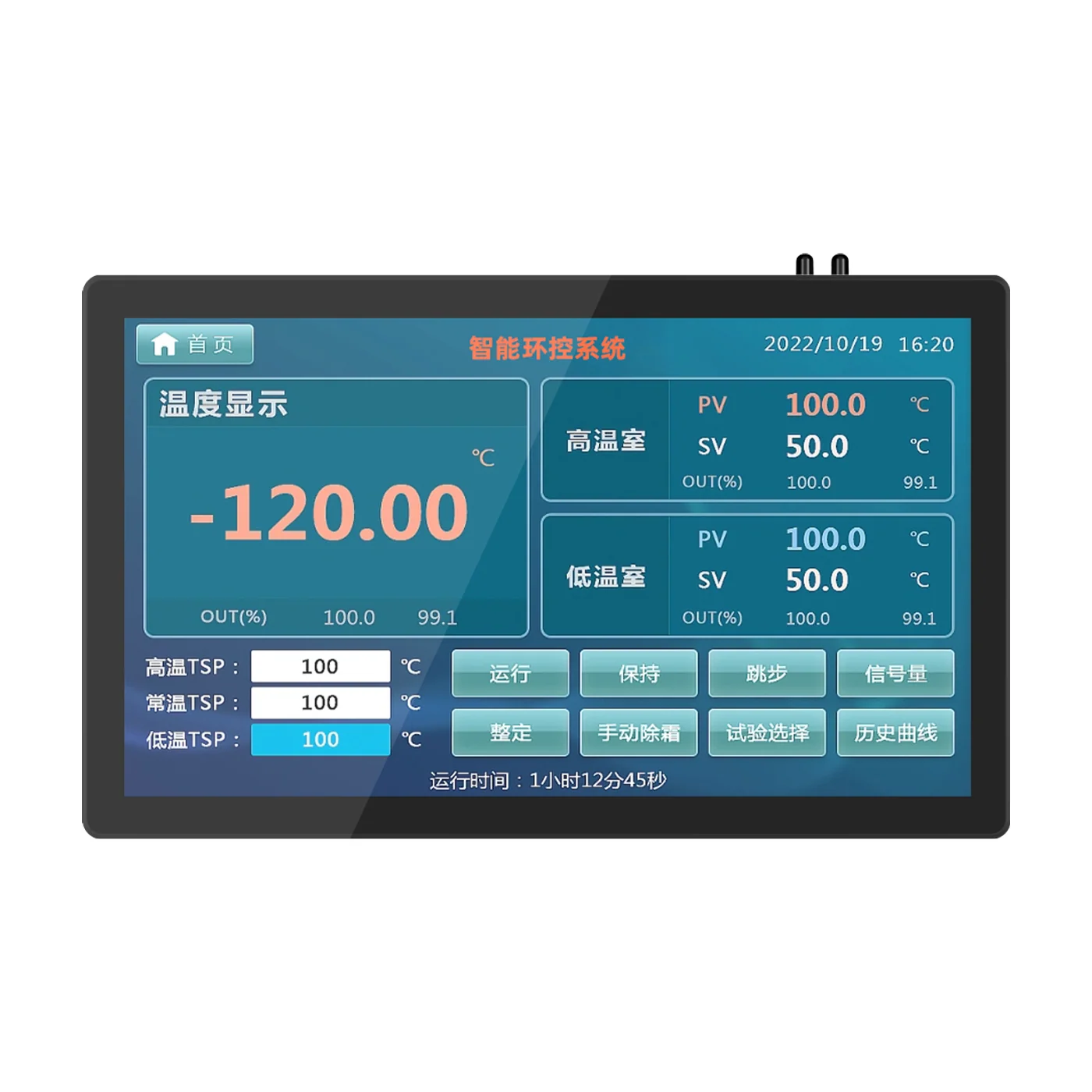

AY-T02 18.5-inch Wall-mount Industrial Panel PC

18.5-inch · Android / Windows / monitor options

Screen size
10.1″11.6″13.3″15.6″18.5″21.5″23.6″27″32″43″
Processor
RK3566
Memory
4 GB
Storage
64 GB storage
Operating system
Android
Request a quote

Specifications follow the selected configuration. Contact us to confirm options and delivery requirements.

Built around your requirements

Explore the display, enclosure and configuration-specific capabilities of this HMI panel.

AY-T02 18.5-inch Wall-mount Industrial Panel PC combines a fully enclosed aluminum housing, fanless passive cooling and G+G 10-point capacitive touch. Choose an Android or Windows motherboard configuration, or a touchscreen monitor configuration without a motherboard, for equipment integration.

Choose the enclosure around your installation

This size has an overall envelope of 453 × 273 × 50 mm and uses fanless passive cooling. Confirm the wall, desktop or VESA mounting hardware for the chosen size.

Display and touch selection

The 18.5-inch display uses a 1920 × 1080 native resolution with G+G 10-point capacitive touch. The original datasheet references 350 cd/m² brightness and a typical 1000:1 contrast ratio. Confirm the final panel option and its optical specifications with your enquiry.

Motherboard, system and storage options

Select from 22 configurations: RK3566, RK3568, RK3576 and RK3588 Android options, Intel Core i3/i5/i7 Windows options, and a touchscreen monitor without a motherboard. The configuration selector lists the processor, memory and storage for each SKU. Confirm OS version, drivers and application support for the selected motherboard.

I/O and equipment integration

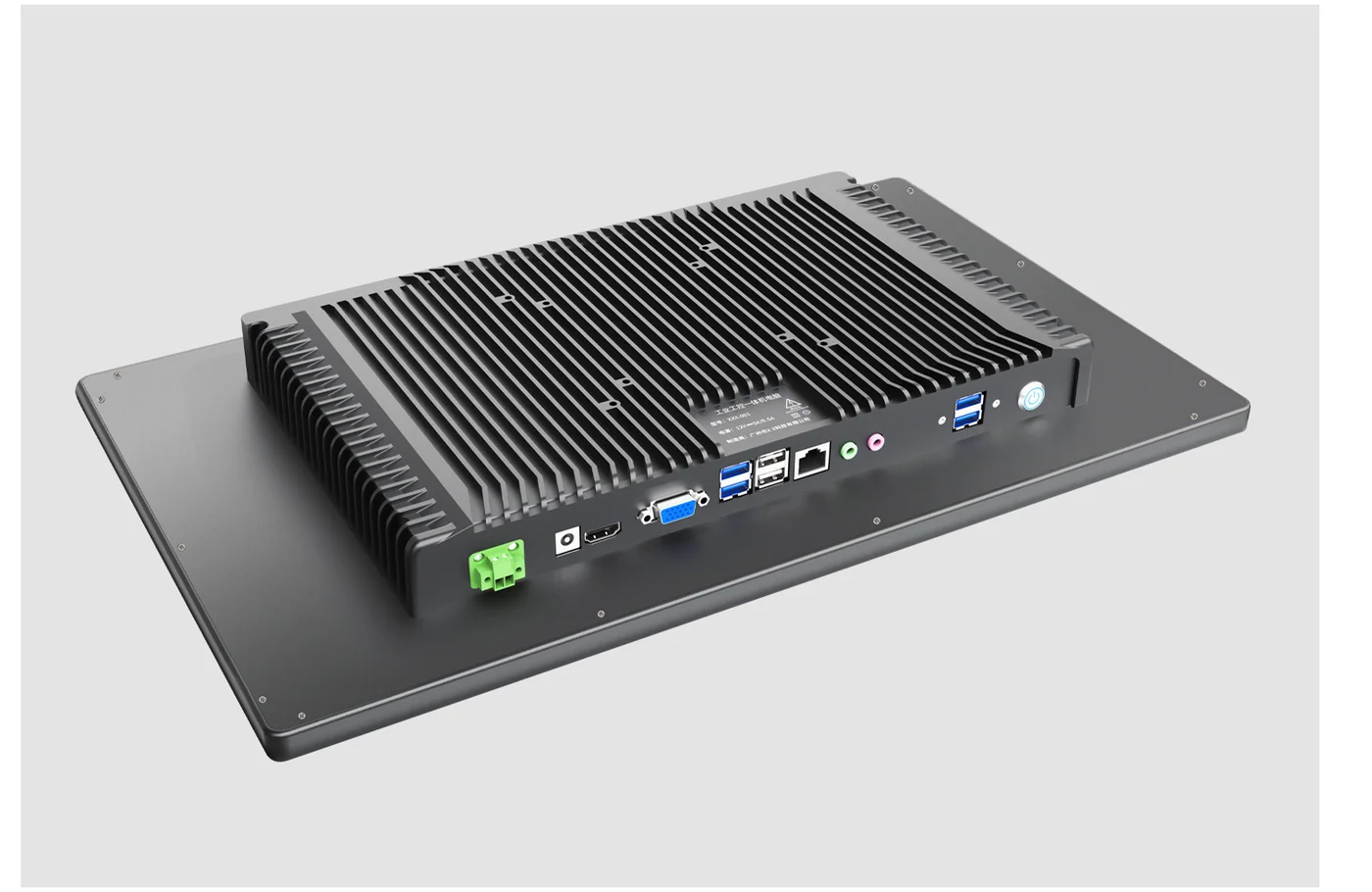

USB, Ethernet, display outputs, audio and serial expansion are matched to the motherboard and enclosure. Product images illustrate the enclosure and reference port layouts; port counts vary by configuration. Confirm wireless options, cabling and mounting accessories for your equipment.

Confirm these items with your enquiry

Tell us the display size, installation cutout, processor, memory, storage, OS, I/O and required quantity. Housing color, branding, interface expansion and power options can be discussed together. Delivery configuration and accessories follow the confirmed order.

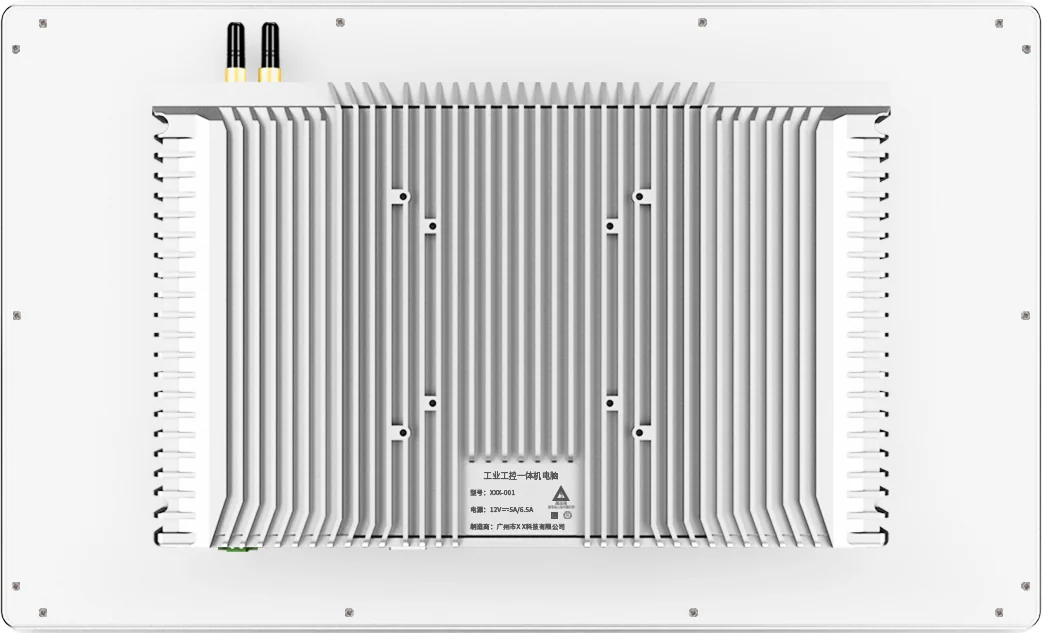

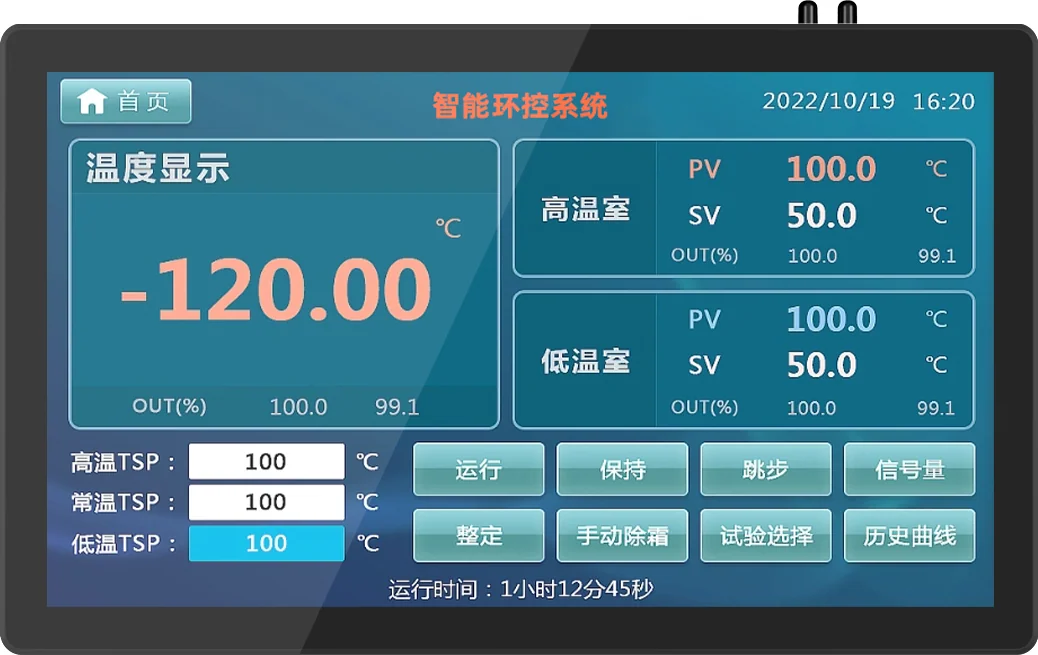

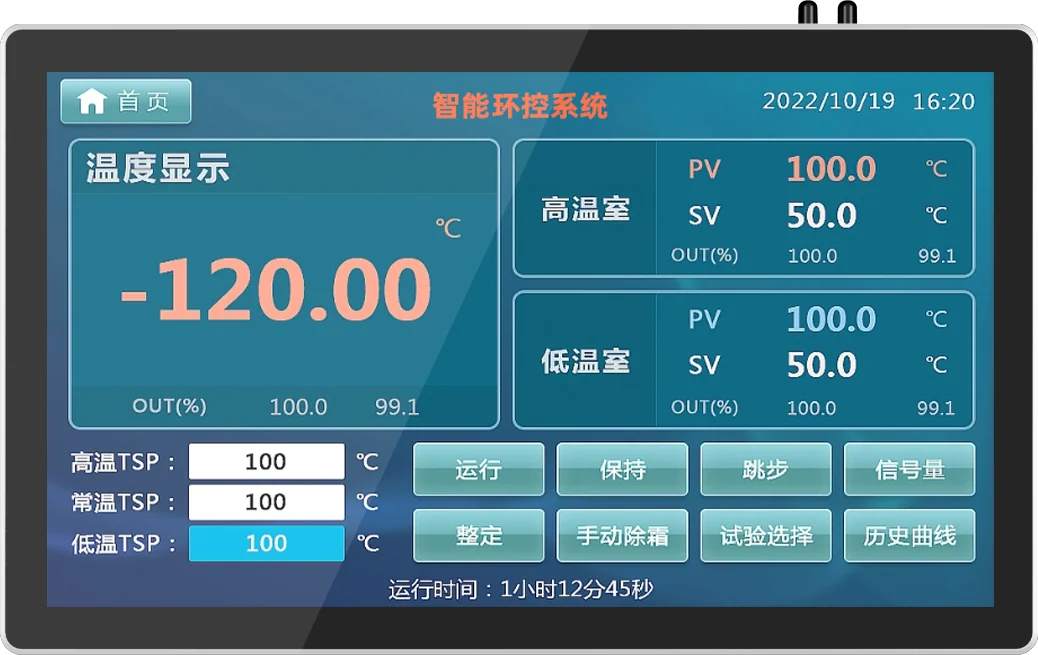

A closer look

Complete series material may show other sizes or configurations. Refer to the selected model specifications and confirmed delivery configuration. Select an image to enlarge it.

Configuration & specifications

Only source-checked specifications with a clear model association are listed. Contact us for details that are not listed.

AY-T02-185-A3566-4-64

Configuration

Configuration — AY-T02-185-A3566-4-64
ProcessorRK3566
Memory4 GB
Storage64 GB storage
Operating systemAndroid

Display and touch

Display and touch — AY-T02-185-A3566-4-64
Screen size18.5 inches
Native resolution1920 × 1080
Brightness350 cd/m² (datasheet reference)
Viewing angleFull viewing angle (datasheet reference)
Contrast ratio1000:1 (typ., datasheet reference)
Display colors16.7M / 72% NTSC (datasheet reference)
Touch technologyG+G 10-point capacitive touch
Touch coordinate resolution4096 × 4096
Surface hardness≥6H

Enclosure and mounting

Enclosure and mounting — AY-T02-185-A3566-4-64
EnclosureFully enclosed aluminum housing
CoolingFanless passive cooling
Overall dimensions453 × 273 × 50 mm
Package dimensions500 × 320 × 86 mm
Housing colorsBlack / silver
Mounting optionsPanel / wall / desktop / VESA; hardware confirmed by model

Power and environment

Power and environment — AY-T02-185-A3566-4-64
Power adapter12 V / 5 A external adapter (datasheet reference; confirm configuration)
Operating current≤5 A (datasheet reference)
Operating temperature0–50 °C
Storage temperature-10–60 °C

Connectivity and expansion

Connectivity and expansion — AY-T02-185-A3566-4-64
External I/OUSB, Ethernet, video and audio I/O depend on motherboard and enclosure
Optional expansionSerial I/O, wireless connectivity, port counts and power options confirmed per project

AY-T02-185

Let’s find your configuration

Tell us about your application, quantities and interface requirements. We will help confirm a suitable configuration.
