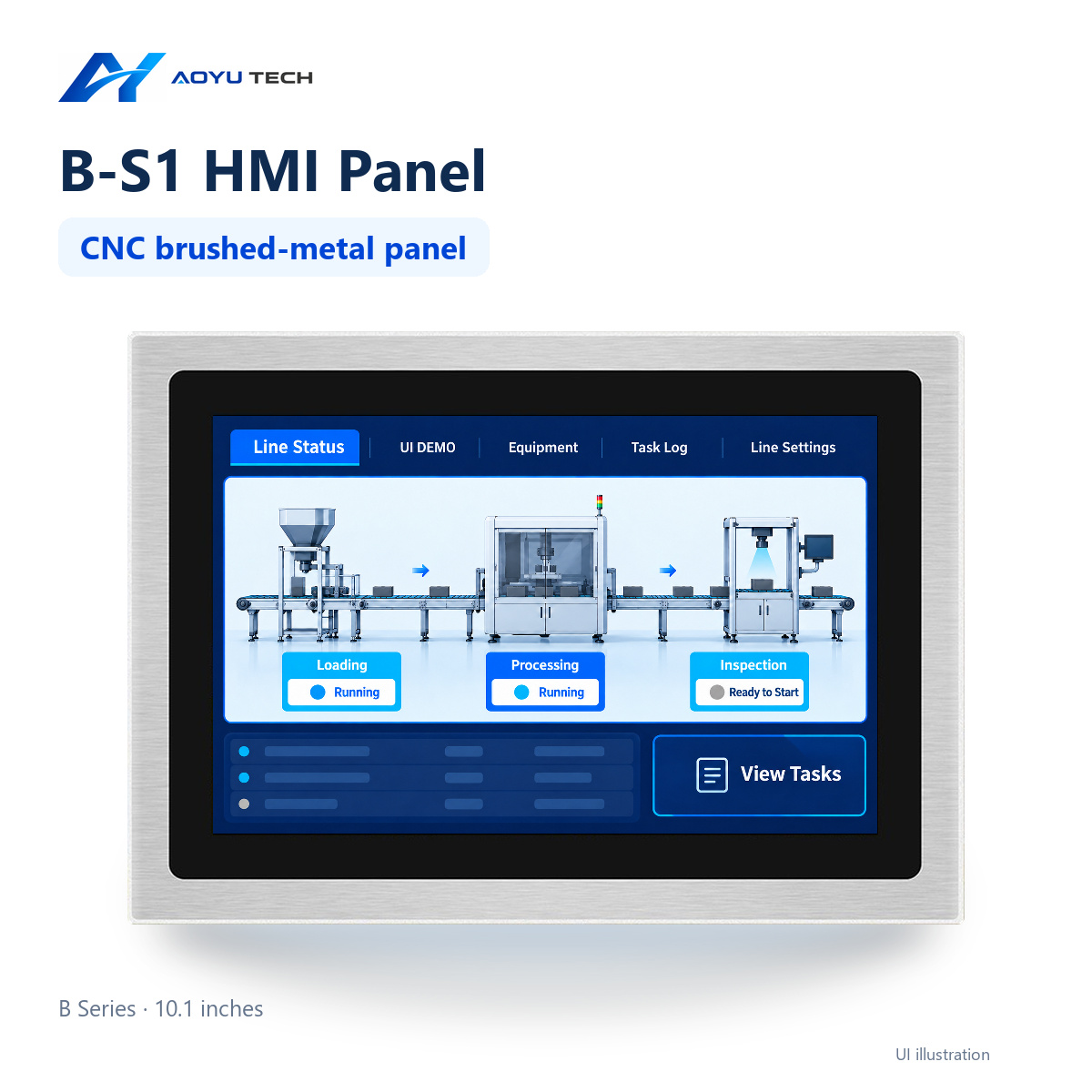

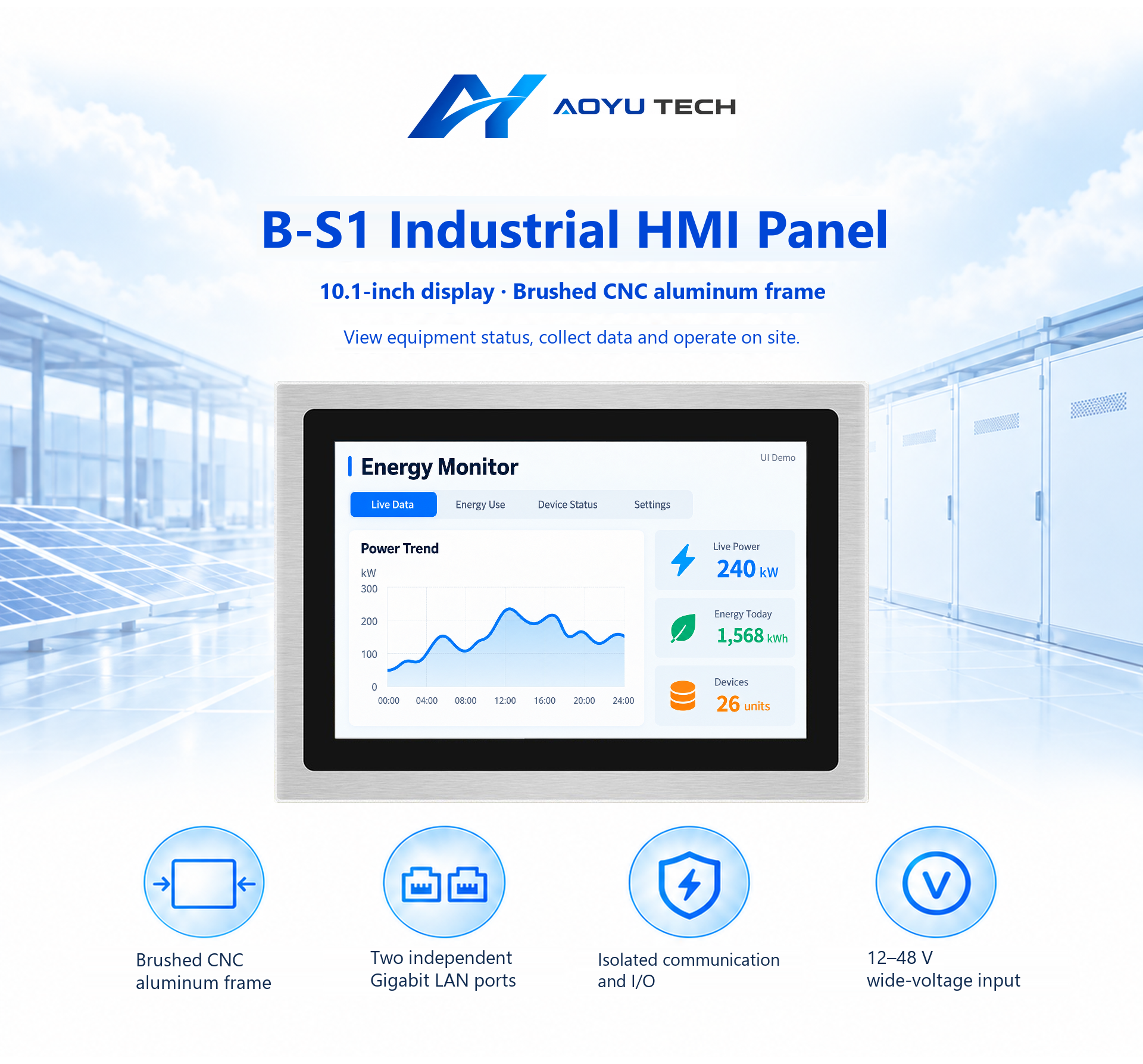

Industrial Edge B Series

B-S1-101 10.1-inch HMI Panel

10.1 inches · Industrial Edge B Series

Frame material
CNC aluminum alloy
Frame color
Silver / Black
Overall dimensions
271.2 × 189.8 × 45.6 mm
Overall dimensions
271.2 × 189.8 × 45.6 mm
Request a quote

Specifications follow the selected configuration. Contact us to confirm options and delivery requirements.

Built around your requirements

Explore the display, enclosure and configuration-specific capabilities of this HMI panel.

Frame material: CNC aluminum alloy. Frame color: Silver / Black. Mounting methods: Exterior inset mounting. VESA hole spacing: 75 × 75 mm

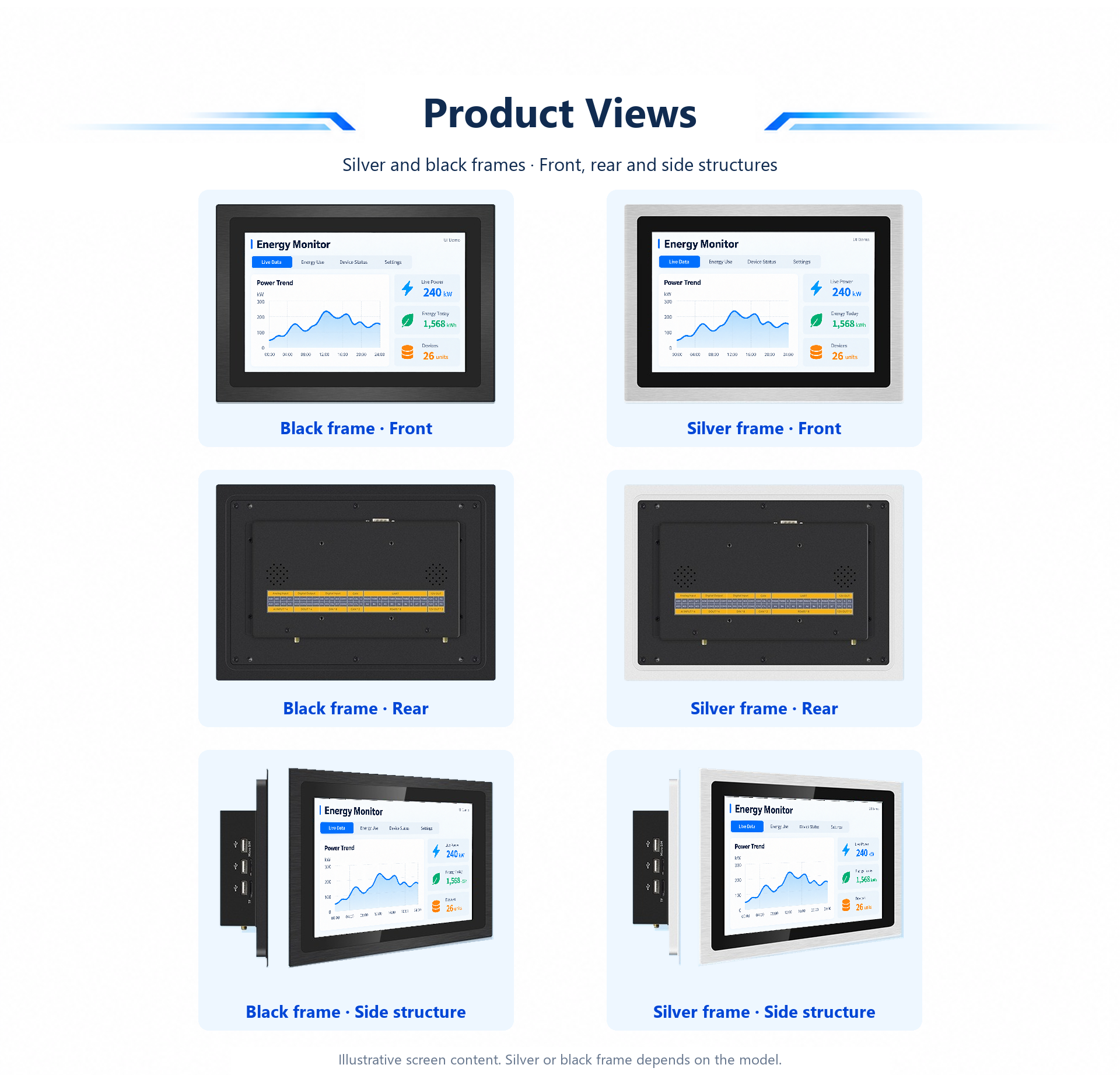

A closer look

Complete series material may show other sizes or configurations. Refer to the selected model specifications and confirmed delivery configuration. Select an image to enlarge it.

Configuration & specifications

Only source-checked specifications with a clear model association are listed. Contact us for details that are not listed.

AYB101S1-IMX93

Structure

Structure — AYB101S1-IMX93
Frame materialCNC aluminum alloyNot specified
Frame colorSilver / BlackCustomizable
Overall dimensions271.2 × 189.8 × 45.6 mmNot specified
Overall dimensions271.2 × 189.8 × 45.6 mmNot specified

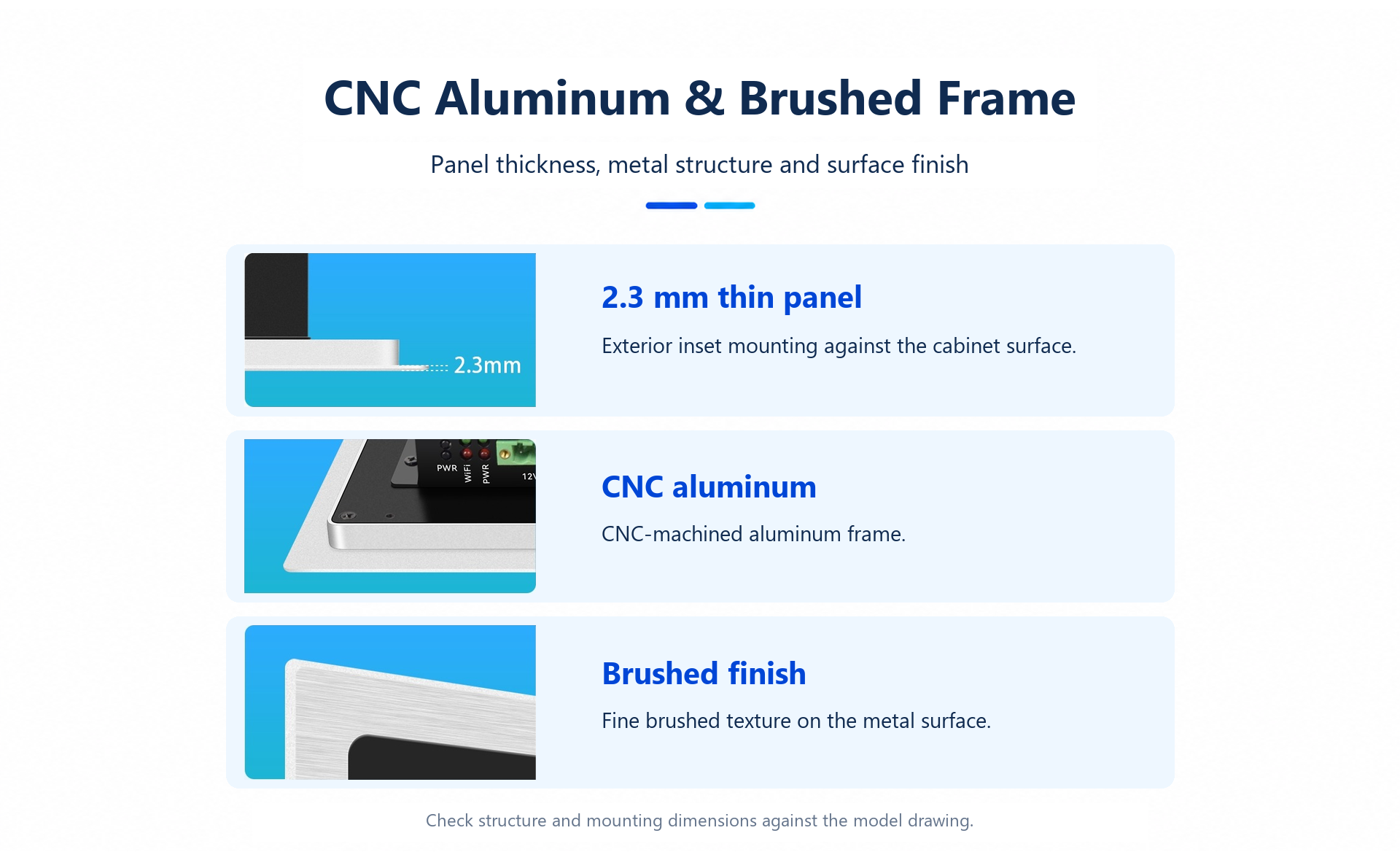

Panel thickness annotation2.3 mmNot specified
Panel materialCNC aluminum alloyNot specified
Surface finishBrushed finishNot specified

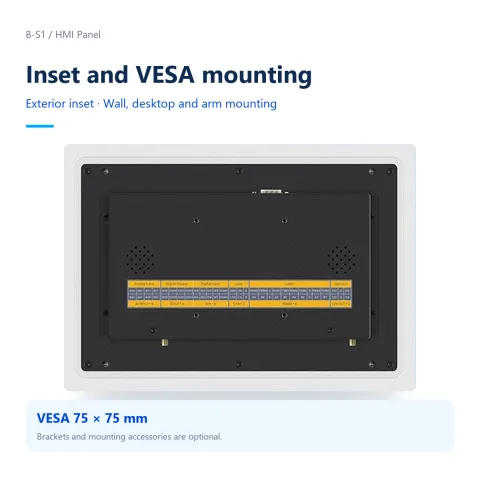

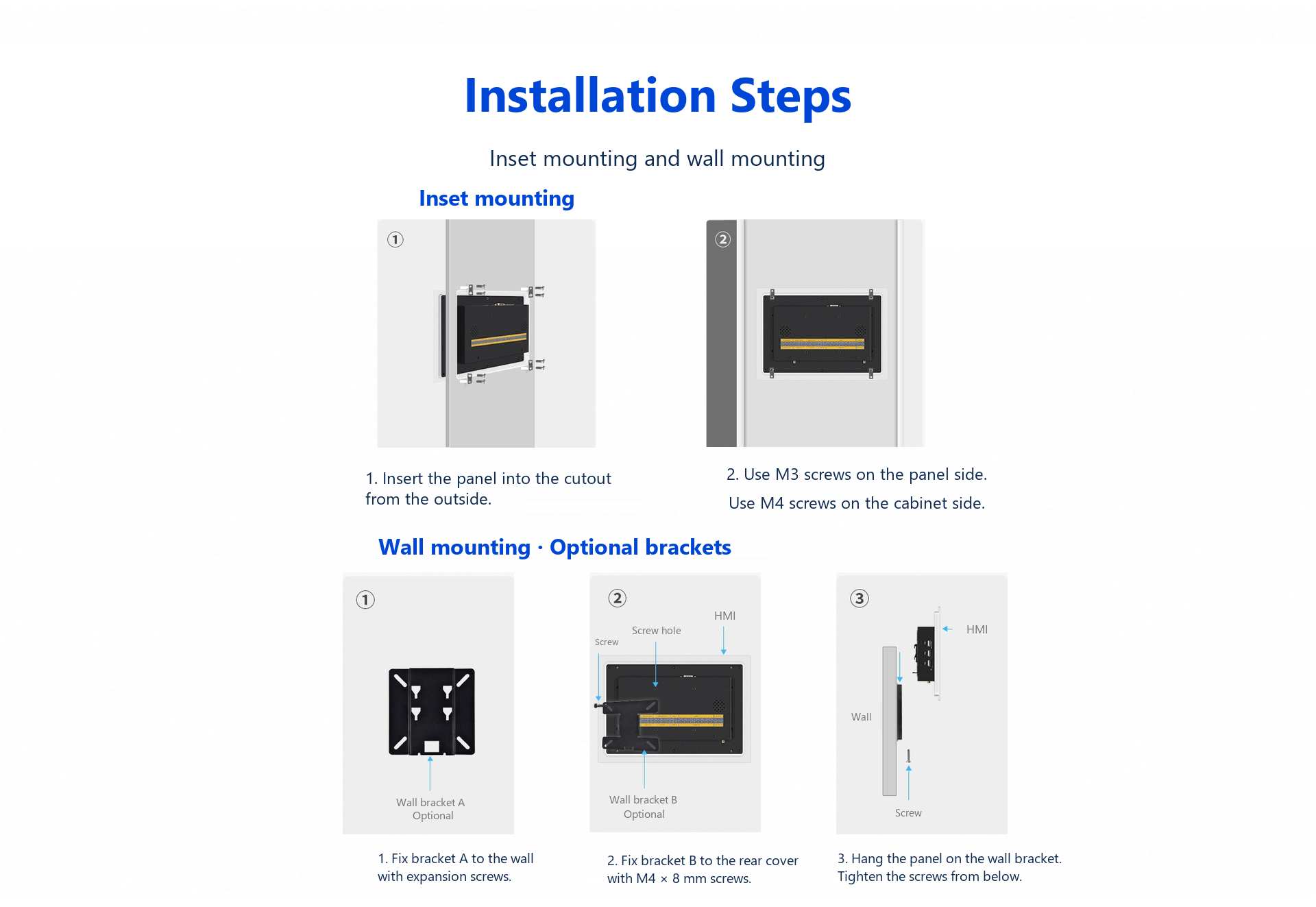

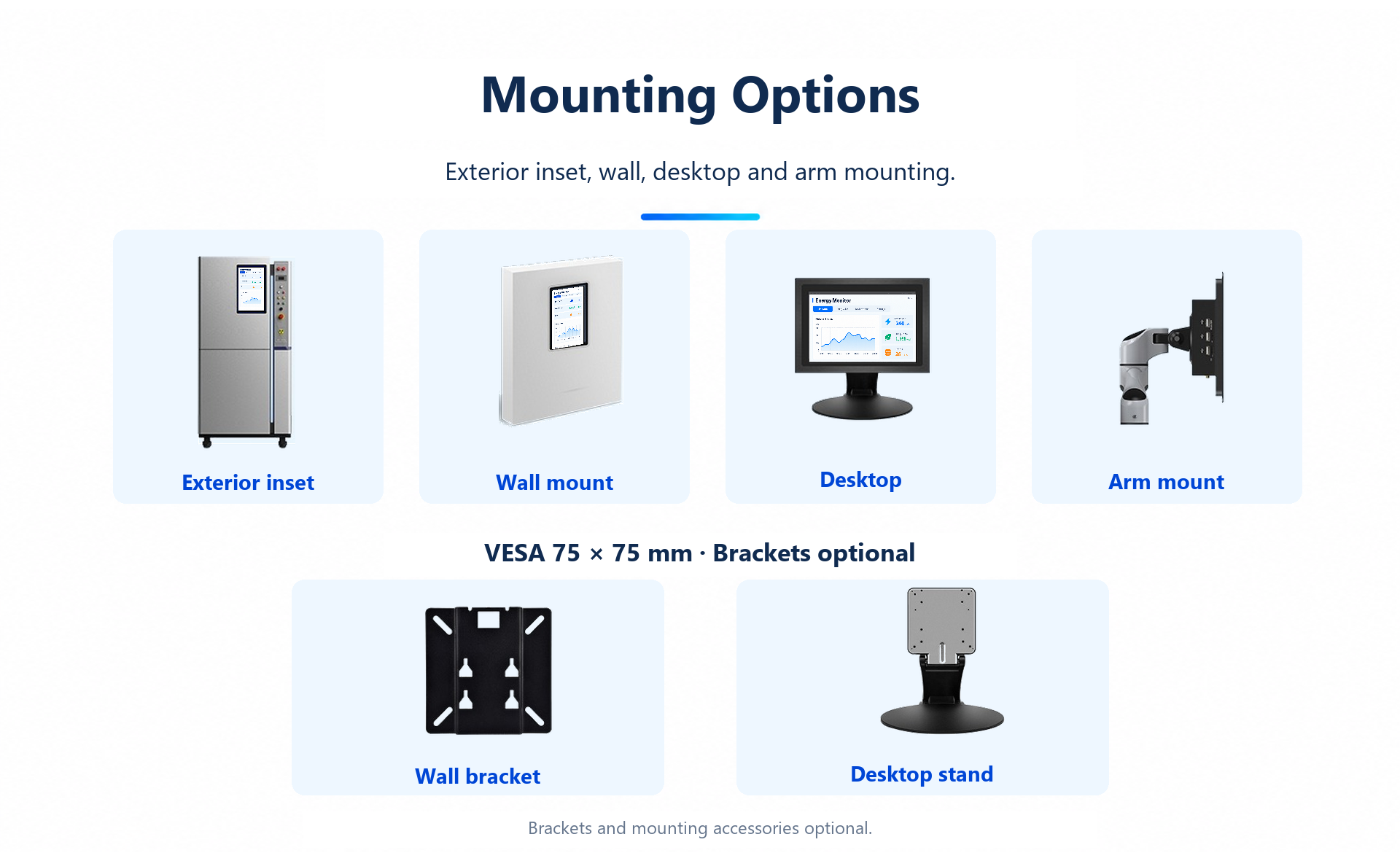

Installation

Installation — AYB101S1-IMX93
Mounting methodsExterior inset mountingNot specified
VESA hole spacing75 × 75 mmNot specified
Available mounting methodsExterior inset mounting / Wall mounting / Desktop mounting / Arm mountingNot specified
Landscape / PortraitLandscape / PortraitNot specified
Exterior inset fixing screwsM3 / M4Not specified
Wall-mount accessoriesBracket A / Bracket BOptional accessories
Wall-mount screwsthread: M4; length: 8 mmNot specified
Panel cutout dimensions253.2 × 171.8 mmNot specified

Power

Power — AYB101S1-IMX93
Input voltage12 / 48 VNot specified
Reverse-polarity protectiontrueNot specified
Power inputrange: 12 / 48; ground: FG VStandard
Power outputcount: 2; voltage: 12; isolation: true; ground: FG VStandard

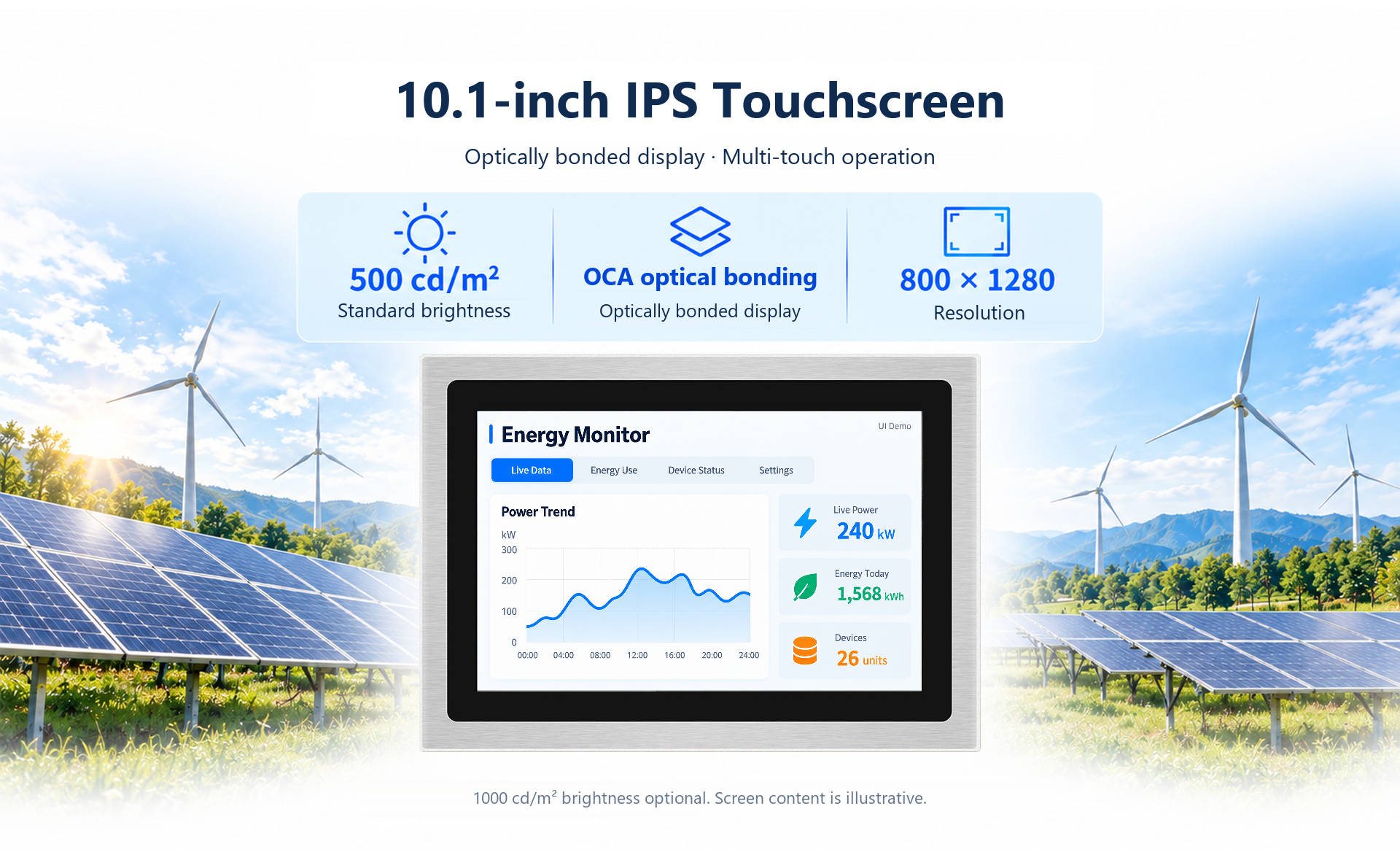

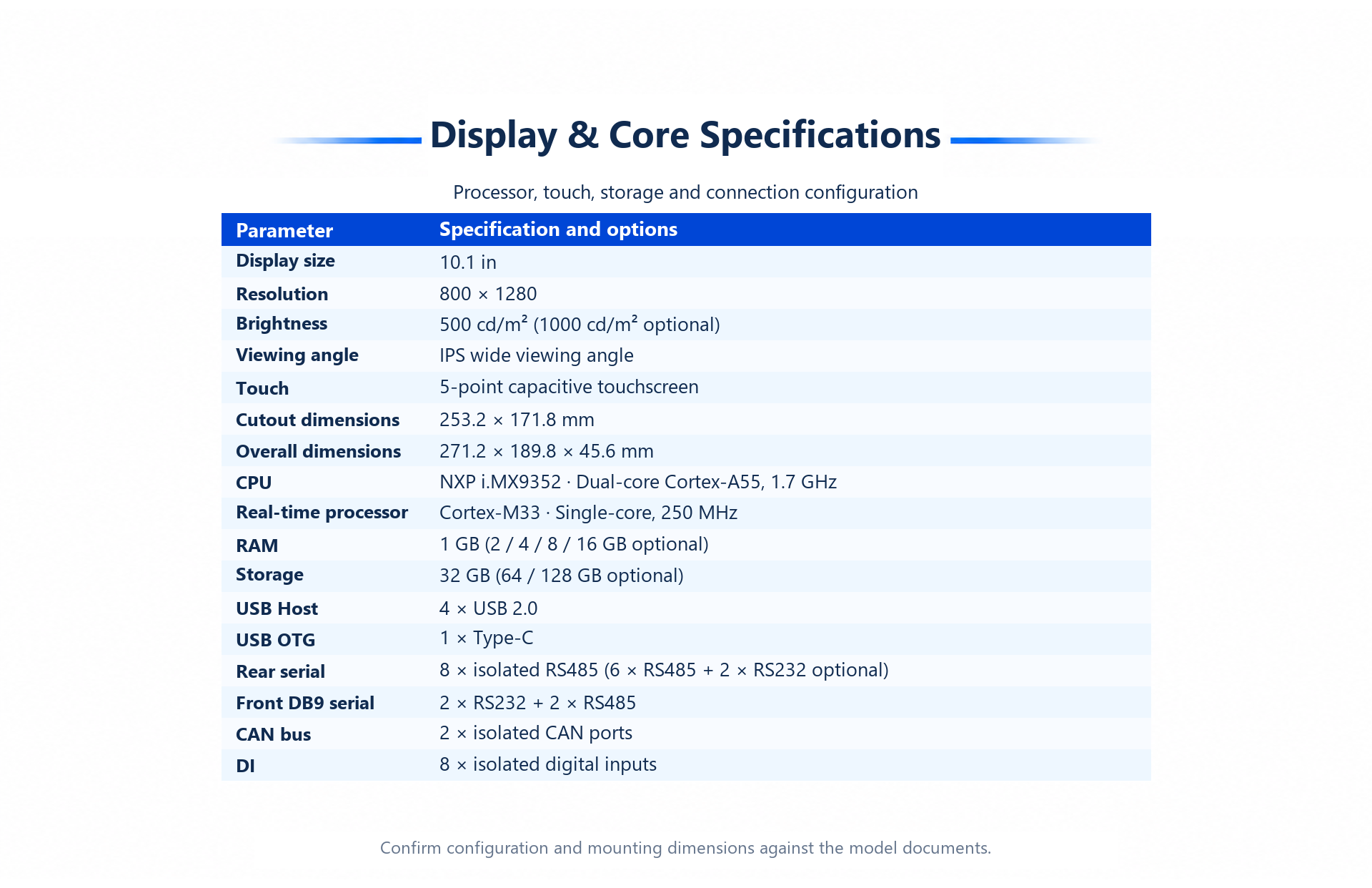

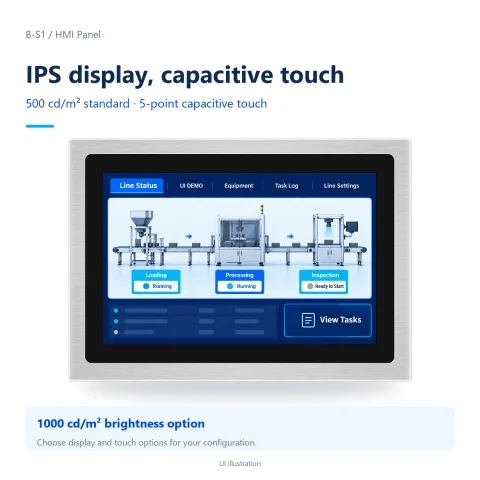

Display

Display — AYB101S1-IMX93
Backlight brightness500 cd/m²Standard
Full bondingtrueNot specified
Resolution800 × 1280 pxNot specified
Brightness upgrade1000 cd/m²Optional
Resolution800 × 1280 pxNot specified
Backlight brightness500 cd/m²Not specified
Viewing angleIPS wide viewing anglesNot specified

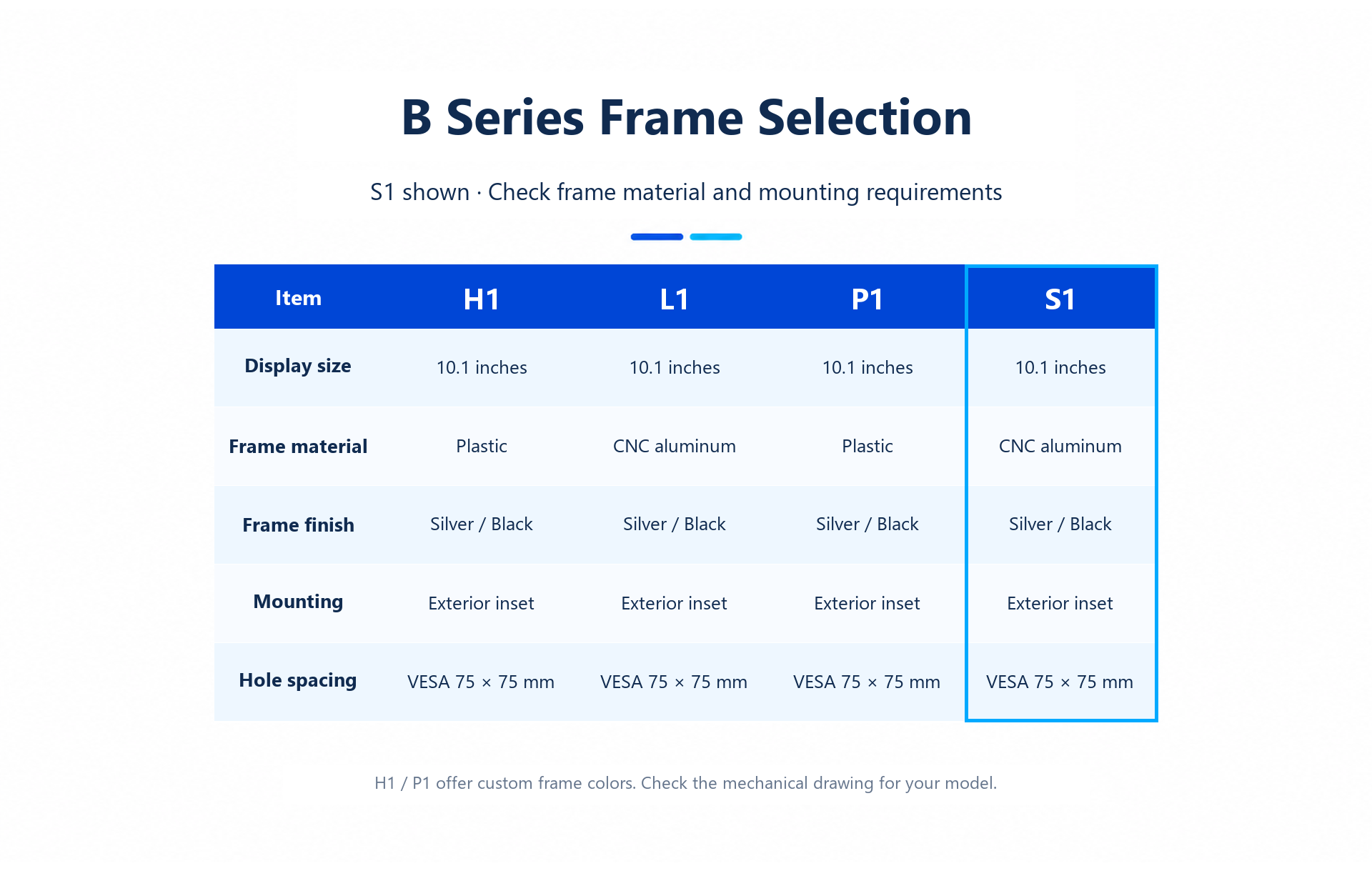

Series selection

Series selection — AYB101S1-IMX93
Overall dimensions271.2 × 189.8 × 45.6 mmNot specified
Screen size10.1 inchesNot specified
Frame materialCNC aluminum alloyNot specified
Frame colorSilver / BlackNot specified
Mounting and fixing holesmount: Exterior inset mounting; vesa: 75 / 75 mmNot specified

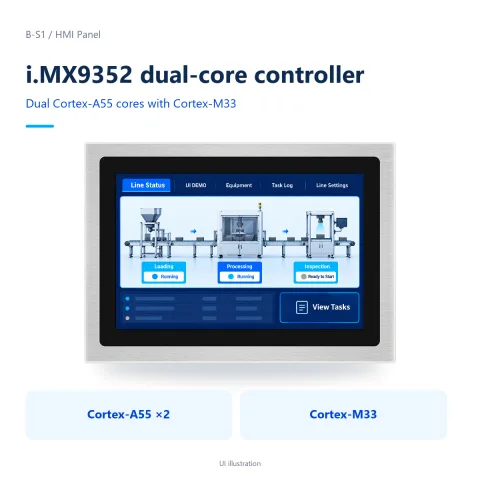

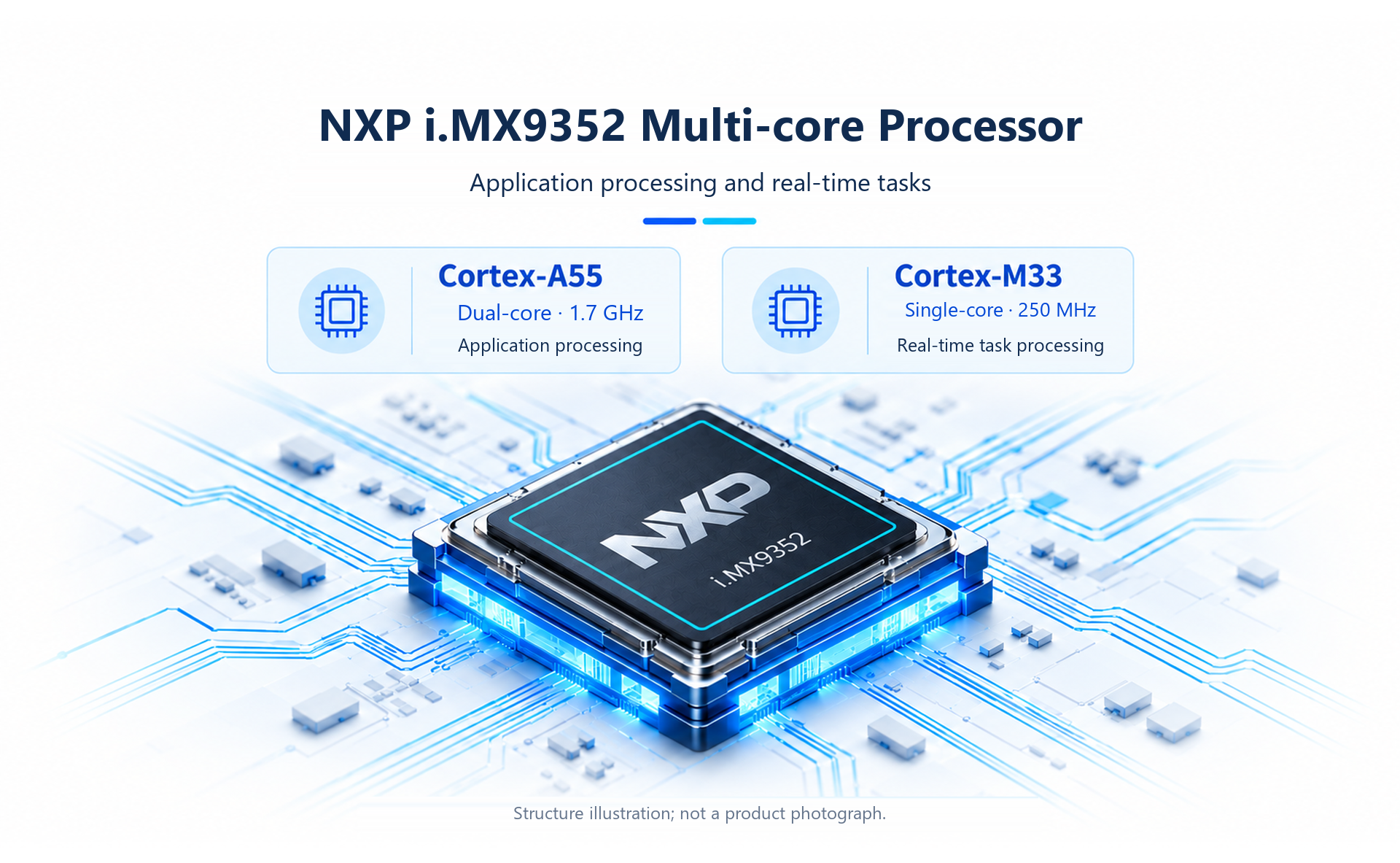

Processor

Processor — AYB101S1-IMX93
Processor modelNXP i.MX9352Not specified
Application processorcore: Cortex-A55; count: 2; frequency: 1.7 GHzNot specified
Real-time processorcore: Cortex-M33; count: 1; frequency: 250 MHzNot specified
CPUmodel: NXP i.MX9352; core: A55; count: 2; frequency: 1.7 GHzNot specified

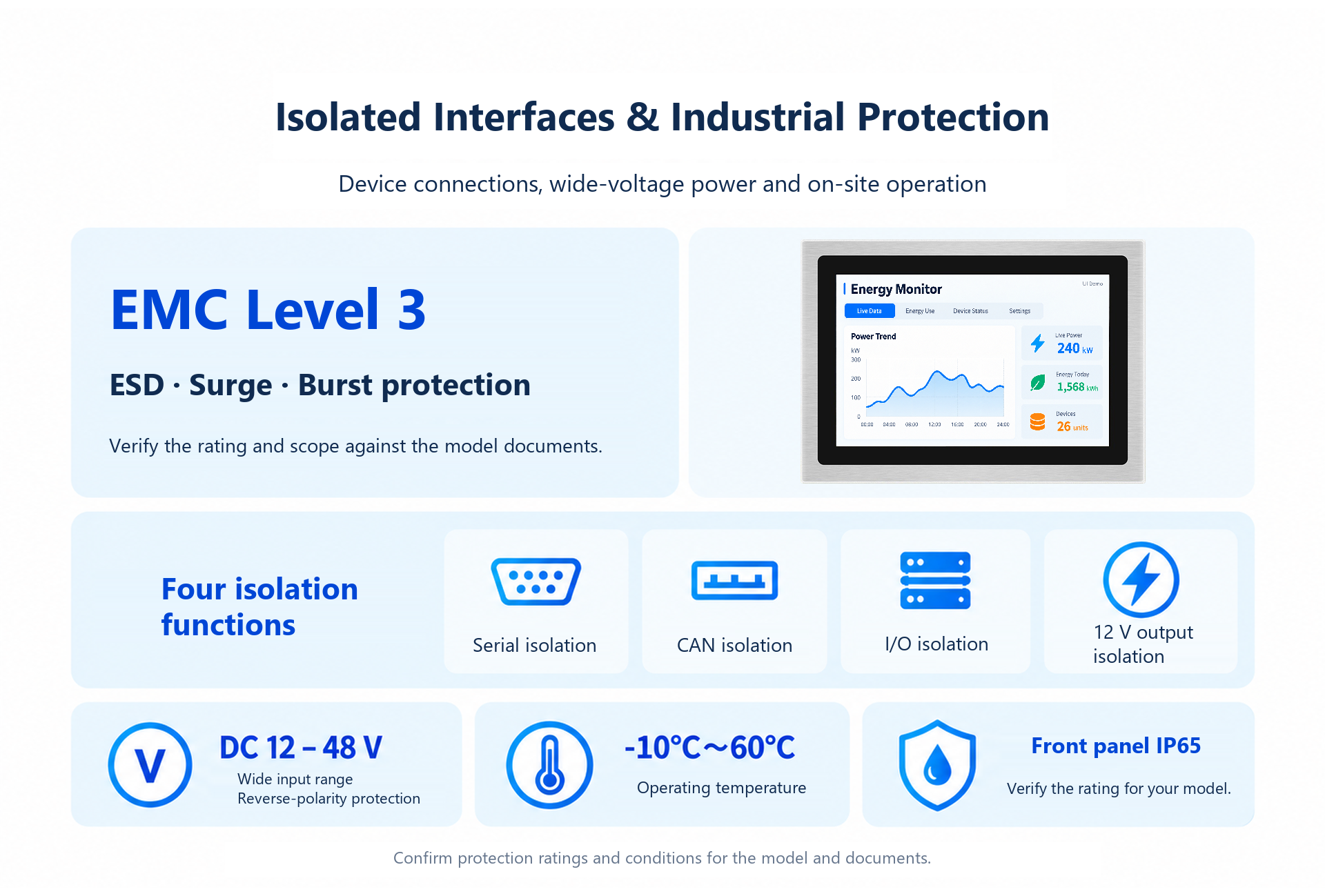

Isolated

Isolated — AYB101S1-IMX93
Isolation designSerial ports / CAN / IO / 12 V outputNot specified

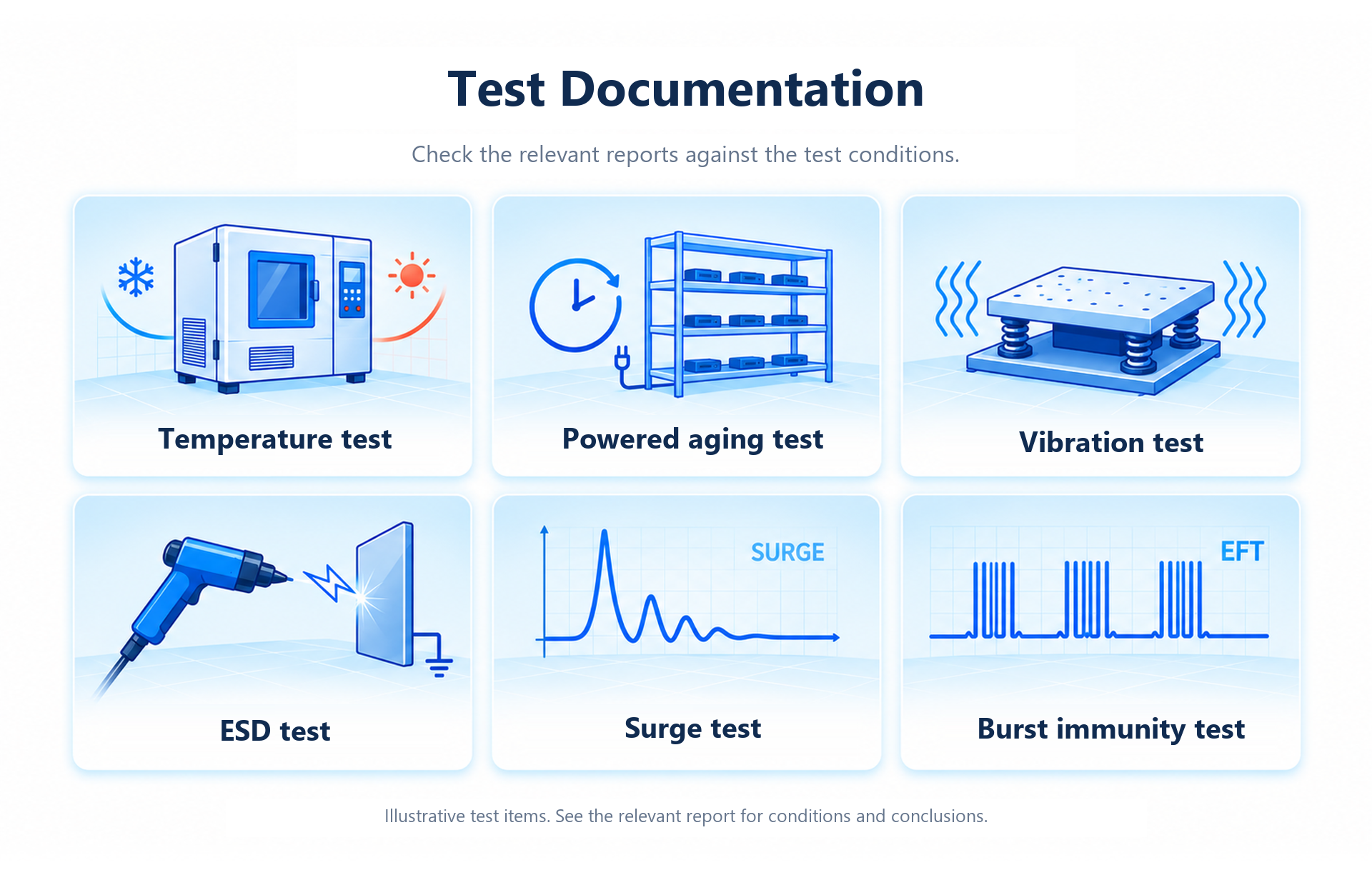

Environment

Environment — AYB101S1-IMX93
Operating temperature-10 – 60 °CNot specified
Operating temperature-10 – 60 °CNot specified
Storage temperature-20 – 70 °CNot specified
Operating humidityrange: 0 / 95; condition: Non-condensing %Not specified

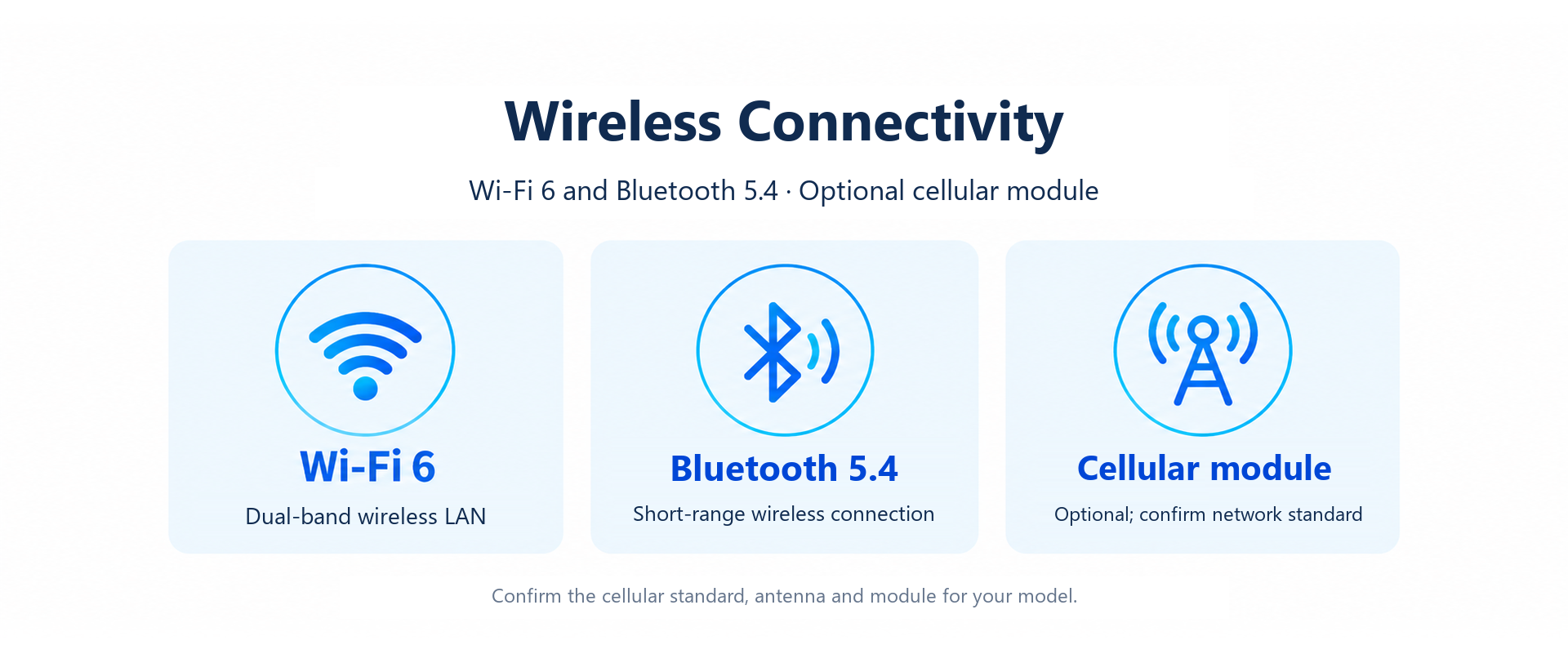

Network

Network — AYB101S1-IMX93

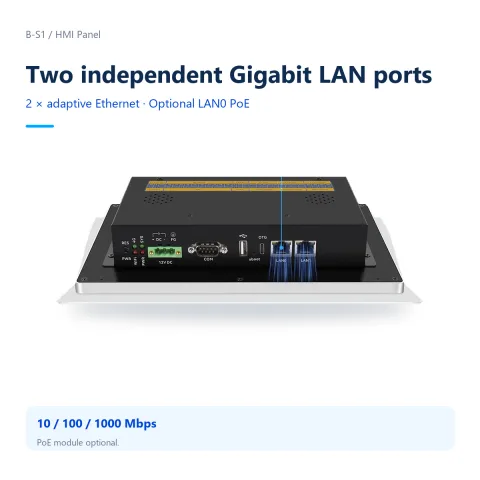

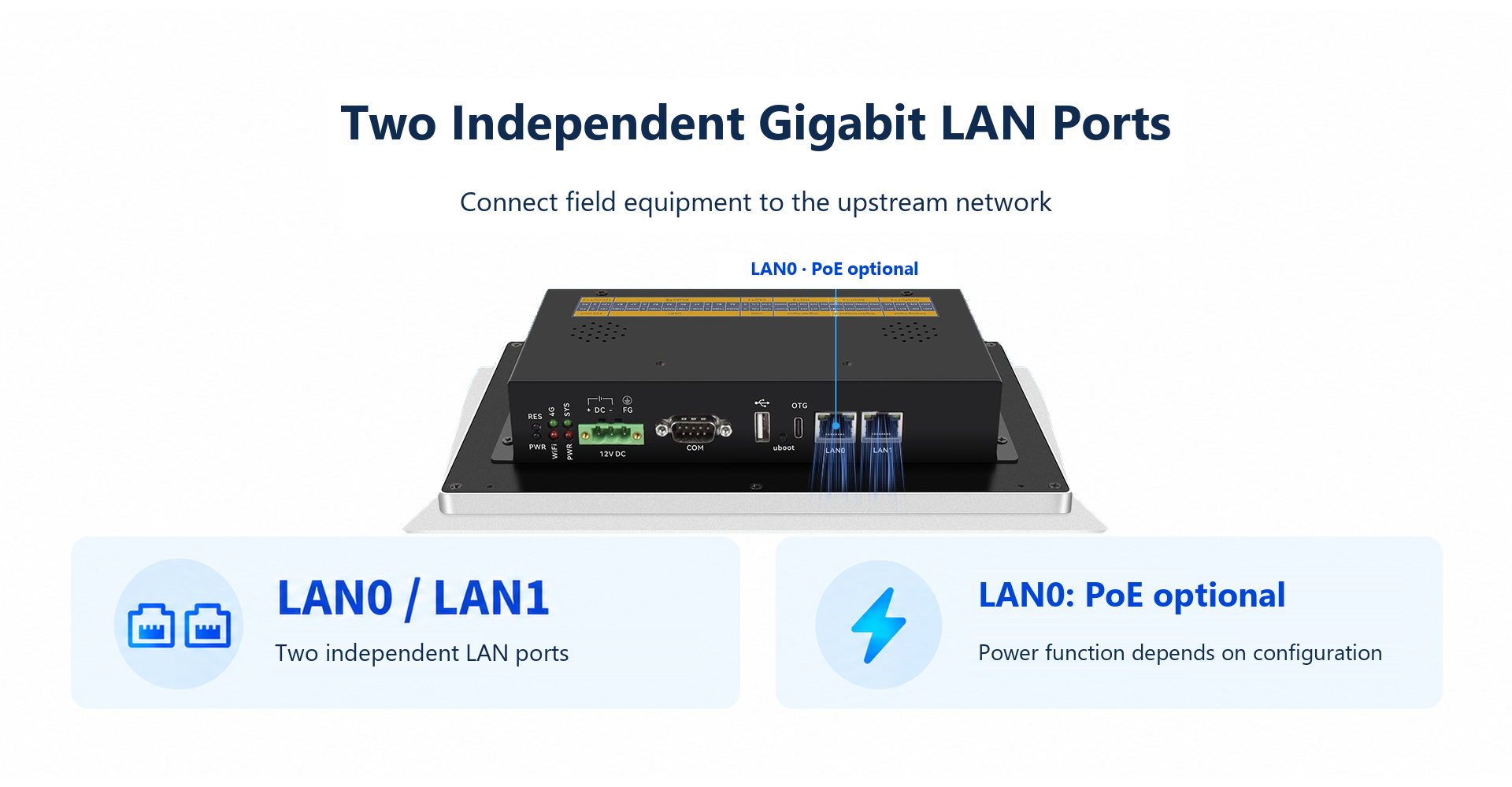

Independent Ethernet port count2 channelsNot specified
PoEoptional: true; port: LAN0Optional
WiFiDual-band Wi-Fi 6Not specified
Bluetooth5.4Not specified
PoEport: LAN0Optional
Ethernetcount: 2; rates: 10 / 100 / 1000 MbpsStandard
WiFiDual-band Wi-Fi 6Standard
Bluetooth5.4Standard

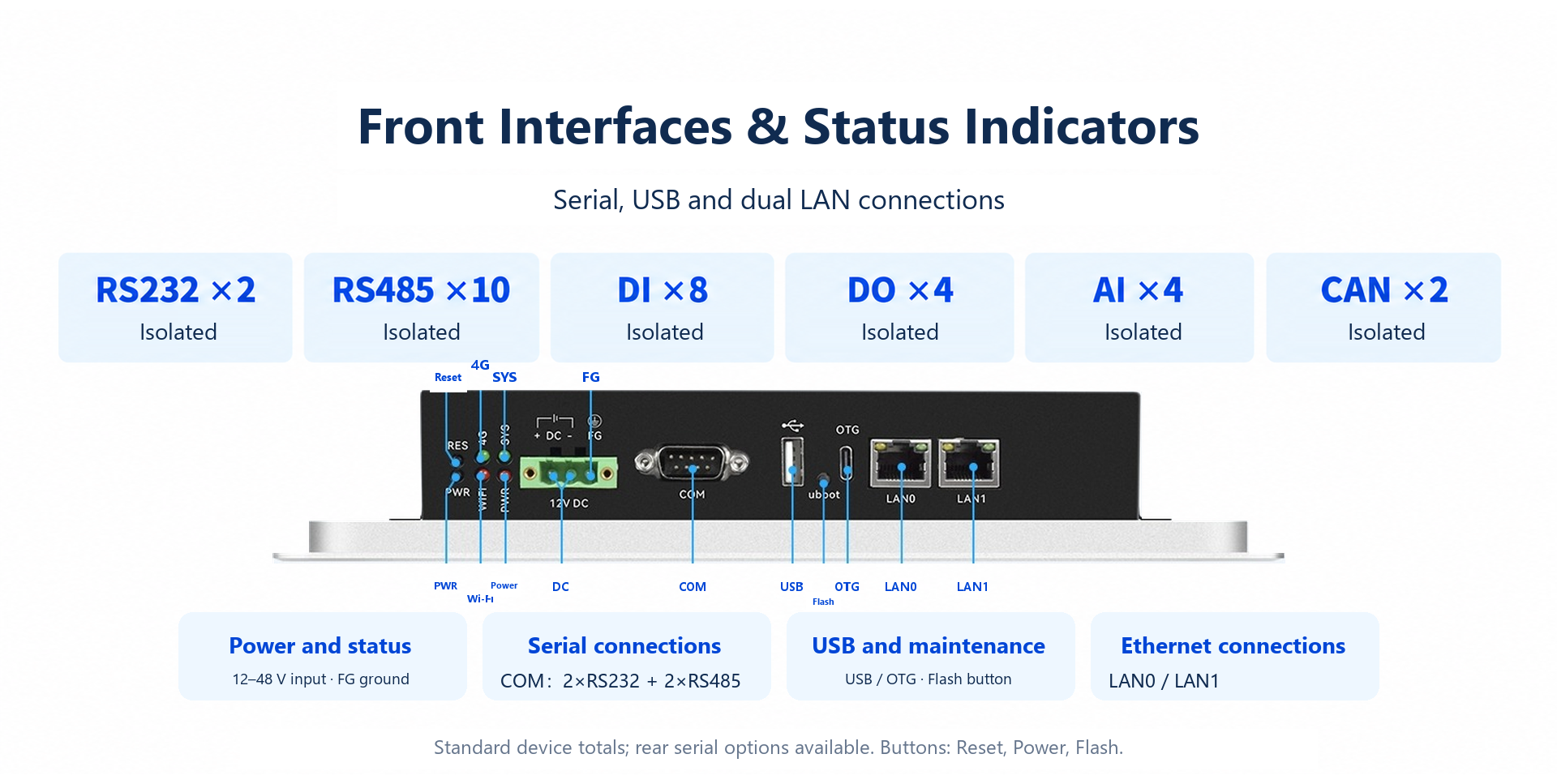

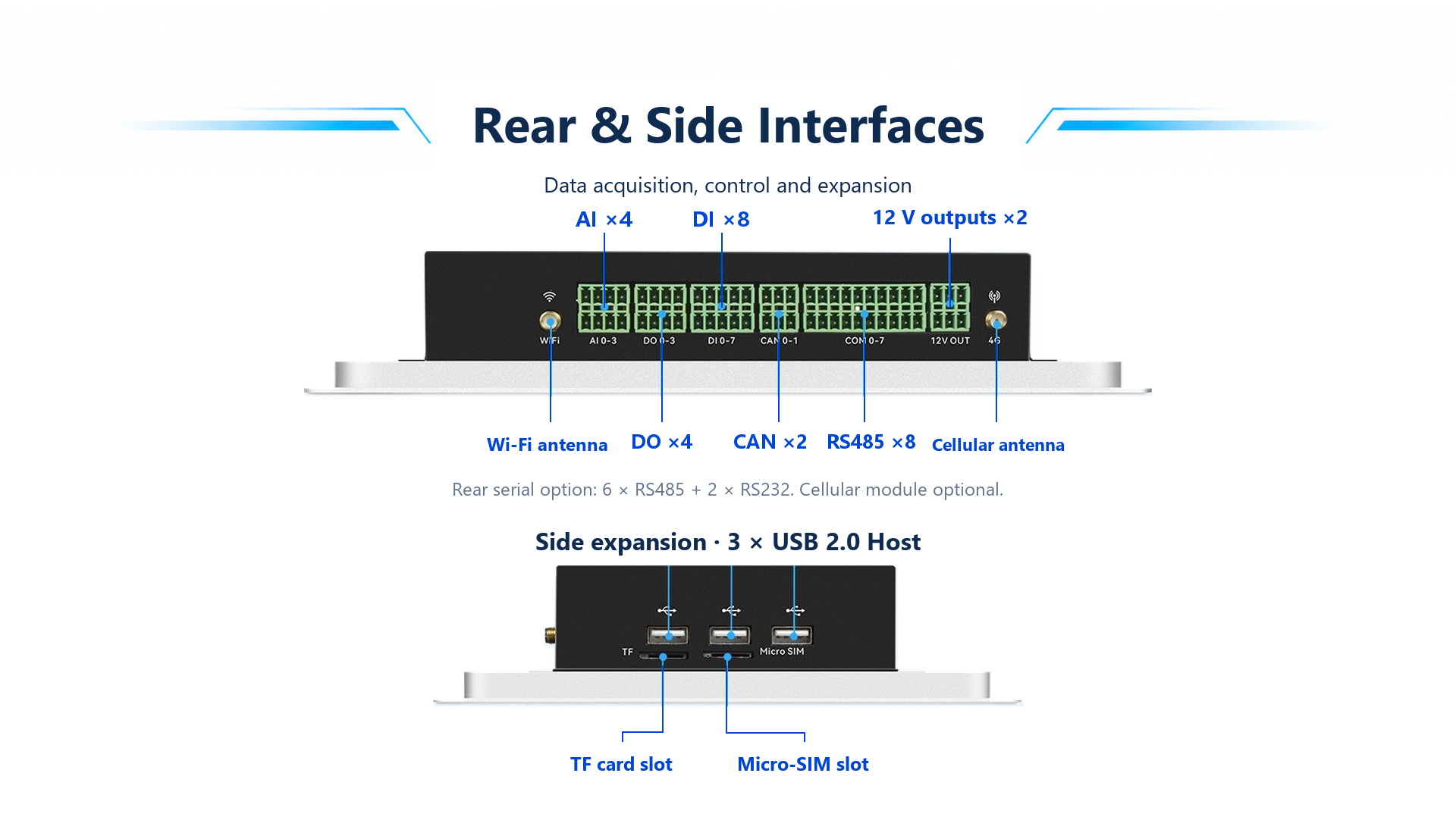

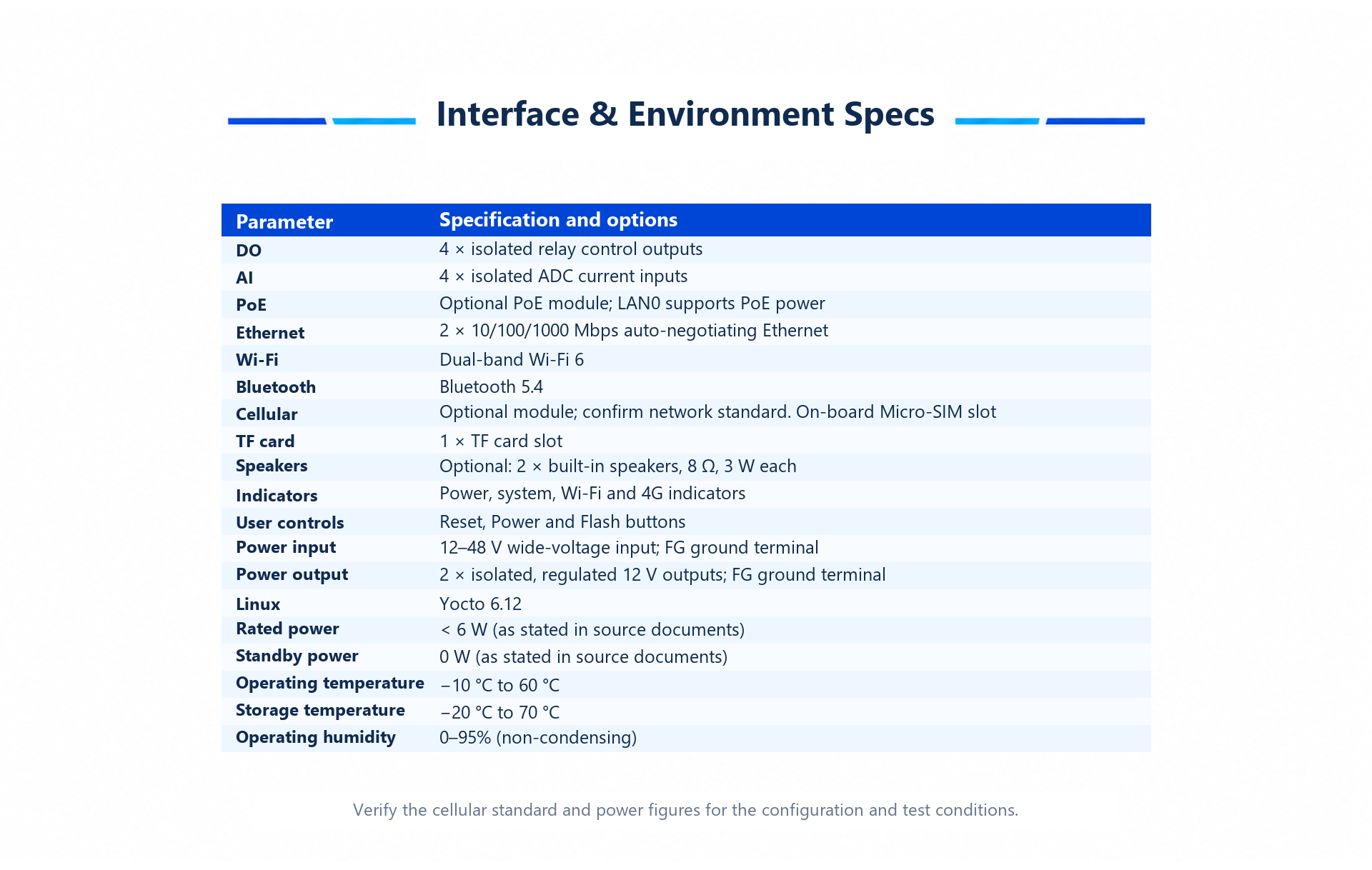

Interfaces

Interfaces — AYB101S1-IMX93
Total RS232 channels2 channelsNot specified
Total RS485 channels10 channelsNot specified
Total DI channels8 channelsNot specified
Total DO channels4 channelsNot specified
Total AI channels4 channelsNot specified
Total CAN channels2 channelsNot specified
DB9 serial configurationRS232: 2; RS485: 2 channelsNot specified
Front USB and OTGUSB_A: 1; OTG: 1 itemsNot specified
Rear RS485 configuration8 channelsNot specified
Isolated power outputcount: 2; voltage: 12 VNot specified
Side USB3 itemsNot specified
USB Hostcount: 4; version: 2.0Not specified
USB OTGcount: 1; connector: Type-CNot specified
Serial portsRS485: 8 channelsNot specified
DB9 serial portRS232: 2; RS485: 2 channelsNot specified
CAN bus2 channelsNot specified
DO4 channelsNot specified
AI4 channelsNot specified

Expansion

Expansion — AYB101S1-IMX93
Storage-card slot1 itemsNot specified
SIM slot1 itemsNot specified
TF card1 channelsStandard

Touch

Touch — AYB101S1-IMX93
Touch typetype: Capacitive touch; points: 5Not specified

RAM

RAM — AYB101S1-IMX93
RAM1 GBNot specified

Storage

Storage — AYB101S1-IMX93
Storage32 GBNot specified

Audio

Audio — AYB101S1-IMX93
Speakercount: 2; impedance: 8; power: 3 Ω/WOptional

Status

Status — AYB101S1-IMX93
IndicatorsPower / System / WiFi / 4GStandard

Control

Control — AYB101S1-IMX93
User buttonsReset / Switch / ProgrammingStandard

System

System — AYB101S1-IMX93
Linux systemsYocto 6.12Not specified

Power consumption

Power consumption — AYB101S1-IMX93
Rated poweroperator: <; value: 6 WNot specified
Standby power0 WNot specified

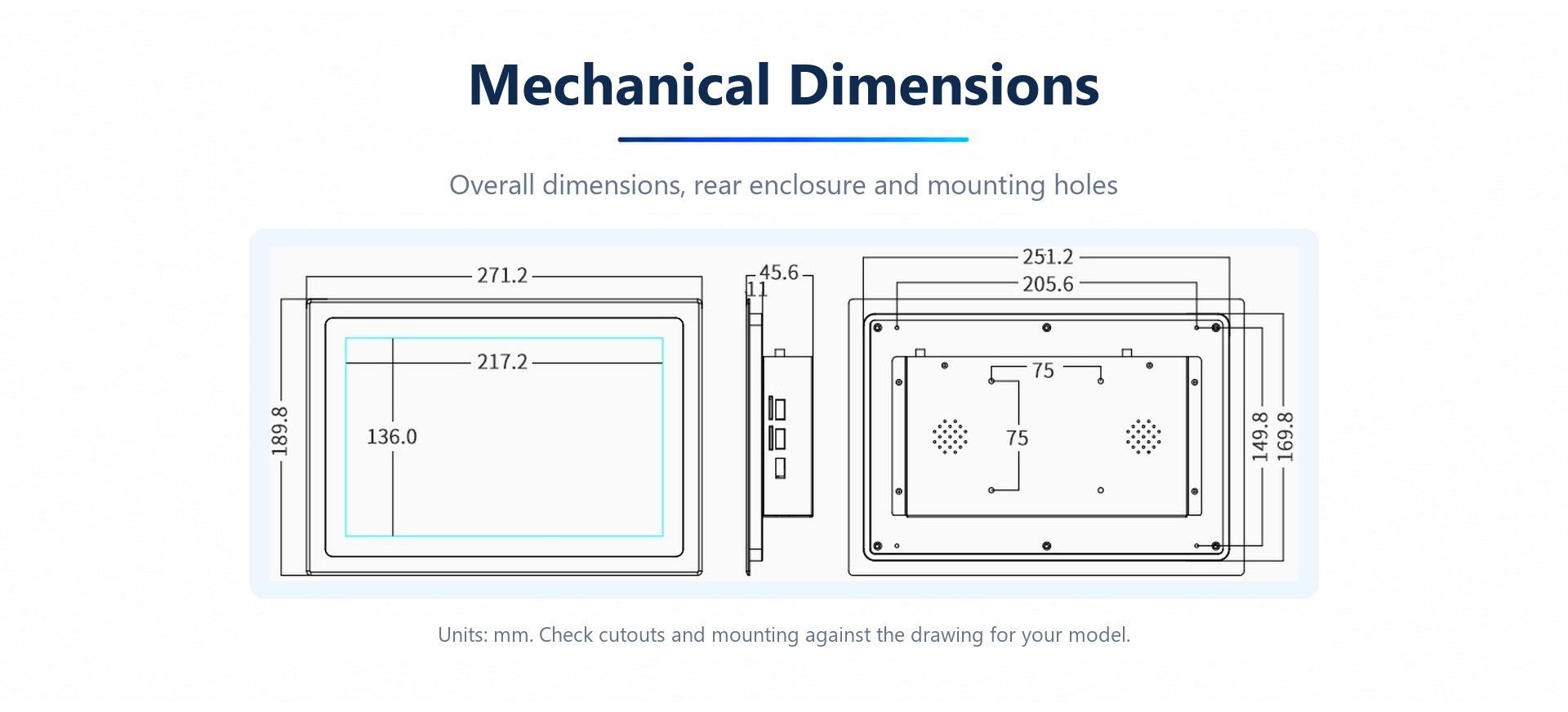

Drawing annotation

Drawing annotation — AYB101S1-IMX93
Front width271.2 mmNot specified
Front height189.8 mmNot specified
Overall thickness45.6 mmNot specified
Active display area217.2 × 136 mmNot specified
Rear enclosure perimeter251.2 × 169.8 mmNot specified
Rear annotated spacing205.6 × 149.8 mmNot specified
VESA hole spacing75 × 75 mmNot specified
