01 No Shell S Series · 6 models

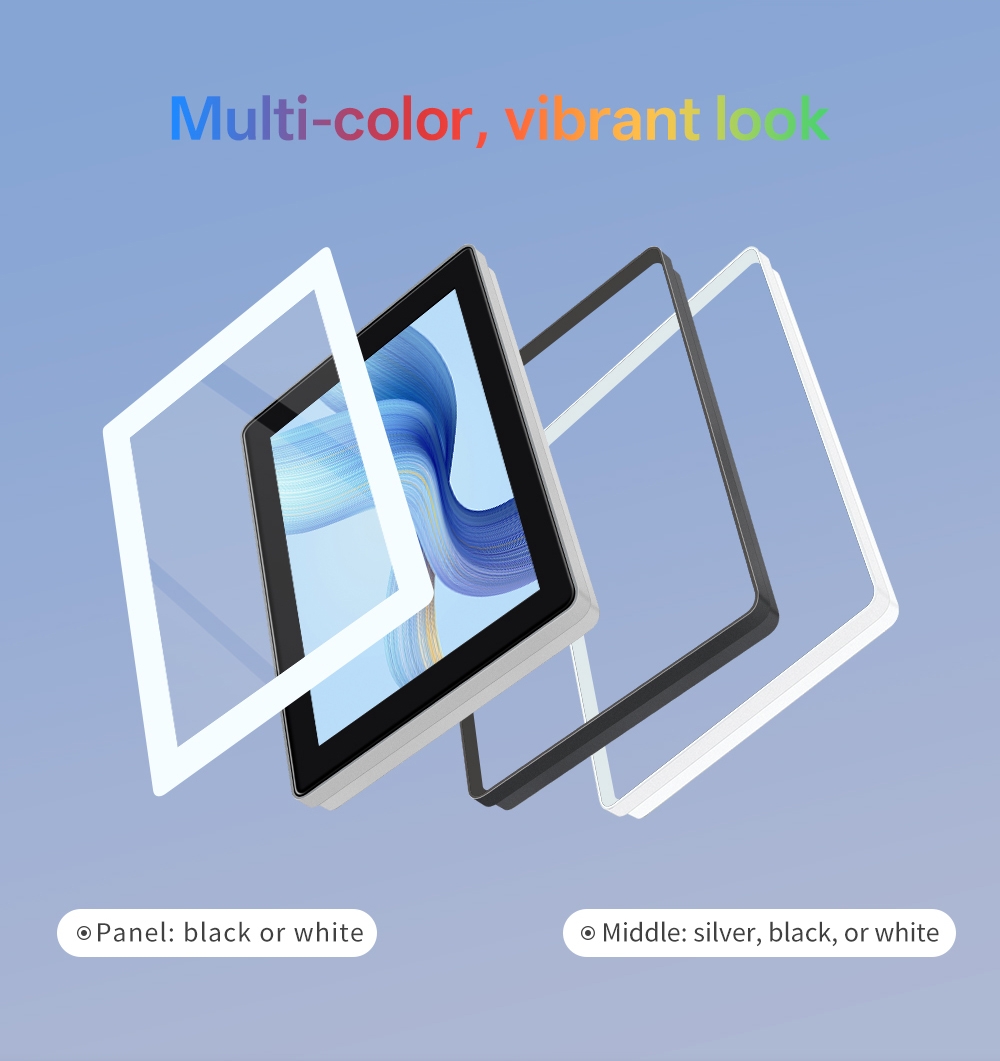

No Shell S Series

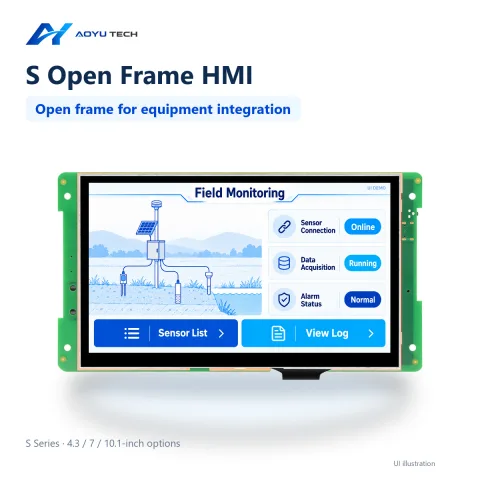

S-043 4.3-inch HMI Panel
Size: 4.3 inches. Resolution: 800 × 480 px. Backlight brightness: 500 cd/m². Viewing angle: IPS
S-070 7-inch HMI Panel
Size: 7 inches. Resolution: 1024 × 600 px. Backlight brightness: 500 cd/m². Viewing angle: IPS
S-101 10.1-inch HMI Panel
Size: 10.1 inches. Resolution: 1024 × 600 px. Backlight brightness: 500 cd/m². Viewing angle: IPS

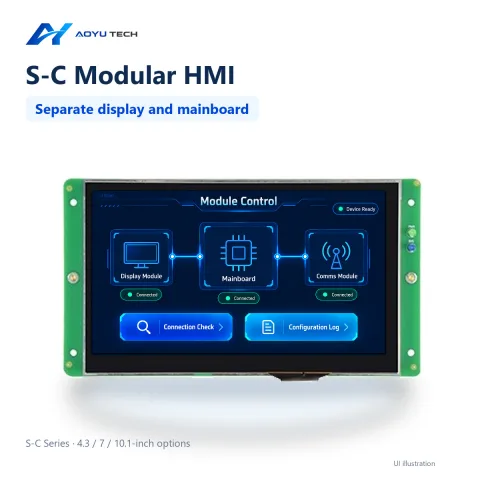

C-070 7-inch HMI Panel
7-inch HMI panel in the No Shell S Series. See model-specific specifications for available configurations.
C-101 10.1-inch HMI Panel
Display size: 10.1 inches. Backlight brightness: 500 cd/m². Viewing angle: IPS. 10.1-inch bezel: 235.5 × 133.5…
C-043 4.3-inch HMI Panel
Display size: 4.3 inches. Backlight brightness: 500 cd/m². Viewing angle: IPS. Operating temperature: -20 – 70…
02 Interactive P Series · 14 models

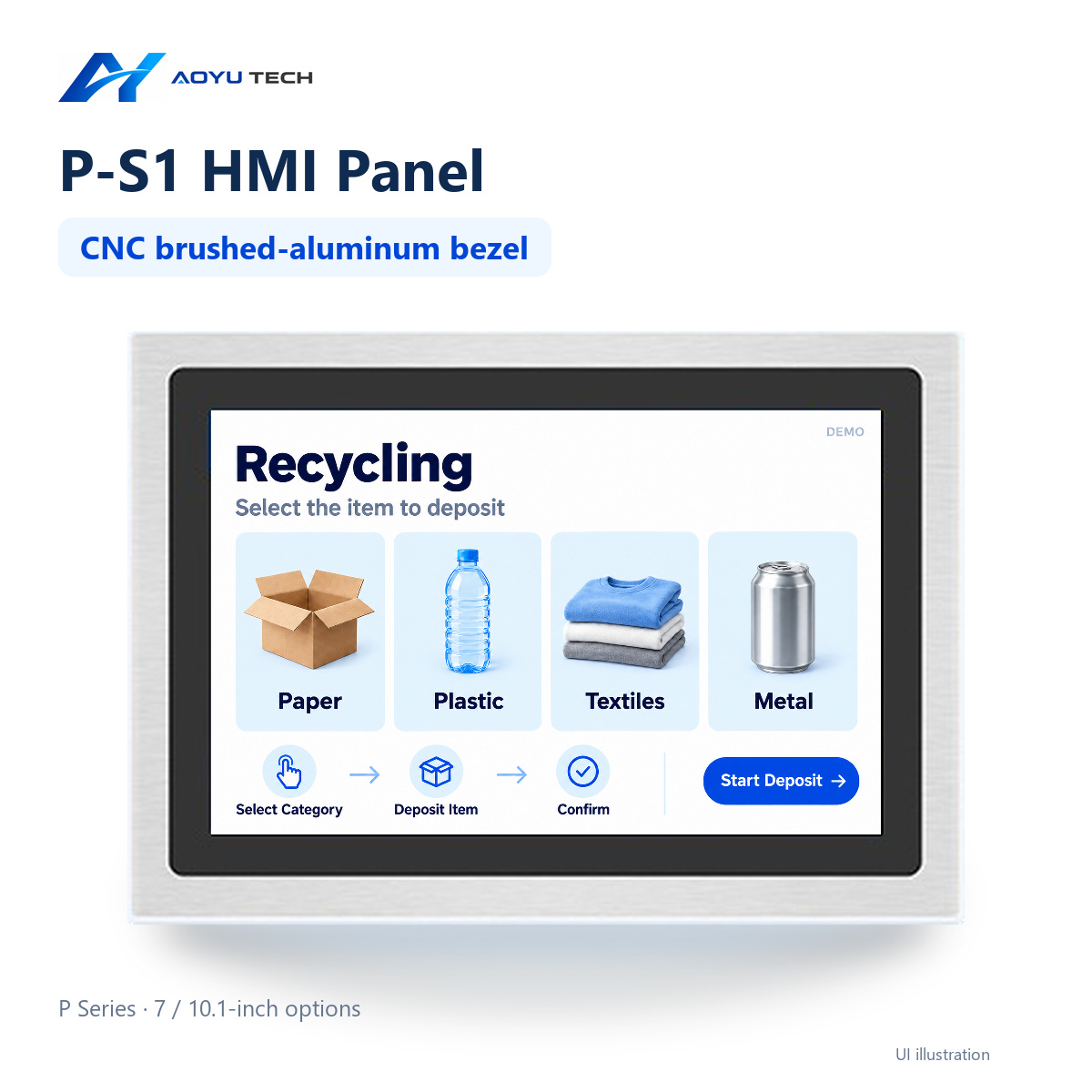

Interactive P Series
P-S1-070 7-inch HMI Panel
Display size: 7 inches. Resolution: 1024 × 600 px. Brightness: standard: 500; optional: 1000 cd/m². Viewing an…
P-S1-101 10.1-inch HMI Panel
10.1-inch HMI panel in the Interactive P Series. See model-specific specifications for available configuration…

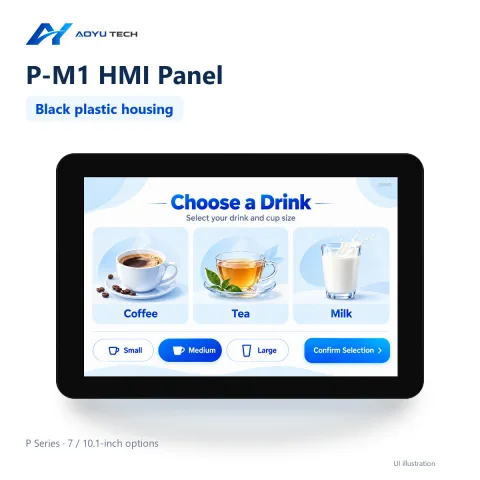

P-M1-070 7-inch HMI Panel
Display size: 7 inches. Brightness: standard: 500; optional: 1000 cd/m². Viewing angle: IPS. Operating tempera…
P-M1-101 10.1-inch HMI Panel
Display size: 10.1 inches. Brightness: standard: 500; optional: 1000 cd/m². Viewing angle: IPS. Operating temp…

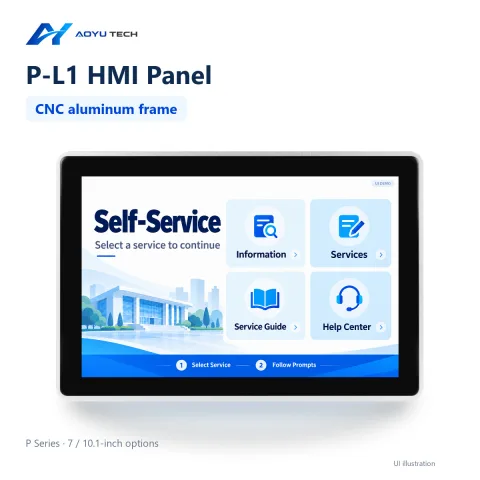

P-L1-070 7-inch HMI Panel
Display size: 7 inches. Resolution: 1024 × 600 px. Brightness: 500 cd/m². Optional brightness: 1000 cd/m²
P-L1-101 10.1-inch HMI Panel
Display size: 10.1 inches. Resolution: 800 × 1280 px. Brightness: 500 cd/m². Optional brightness: 1000 cd/m²

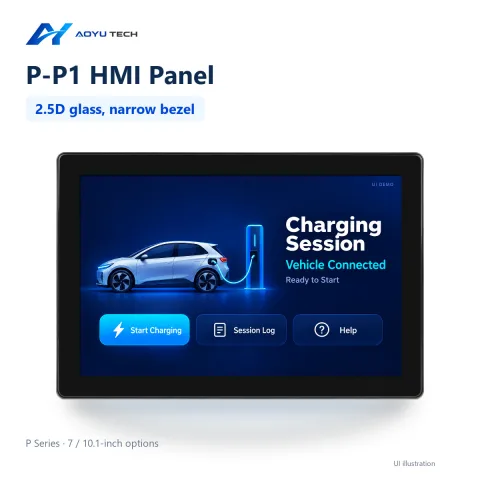

P-P1-070 7-inch HMI Panel
Display size: 7 inches. Resolution: 1024 × 600 px. Brightness: standard: 500; optional: 1000 cd/m². Viewing an…
P-P1-101 10.1-inch HMI Panel
Display size: 10.1 inches. Resolution: 800 × 1280 px. Brightness: standard: 500; optional: 1000 cd/m². Viewing…

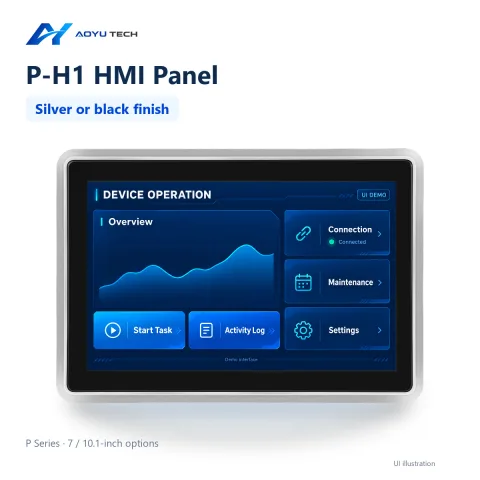

P-H1-070 7-inch HMI Panel
Display size: 7 inches. Resolution: 1024 × 600 px. Viewing angle: IPS. Panel cutout dimensions: 185.4 × 117.2…
P-H1-101 10.1-inch HMI Panel
Display size: 10.1 inches. Resolution: 800 × 1280 px. Viewing angle: IPS. Panel cutout dimensions: 249.3 × 167…

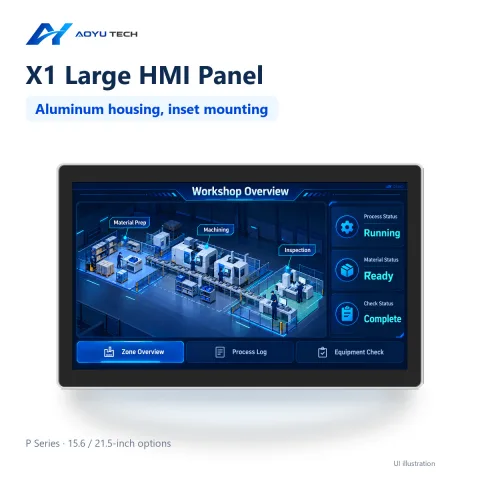

P-X1-156 15.6-inch HMI Panel
Display size: 15.6 inches. Resolution: 1920 × 1080 px. Brightness: standard: 250; optional: 500 / 1000 cd/m².…
P-X1-215 21.5-inch HMI Panel
Display size: 21.5 inches. Resolution: 1920 × 1080 px. Brightness: standard: 250; optional: 500 / 1000 cd/m².…

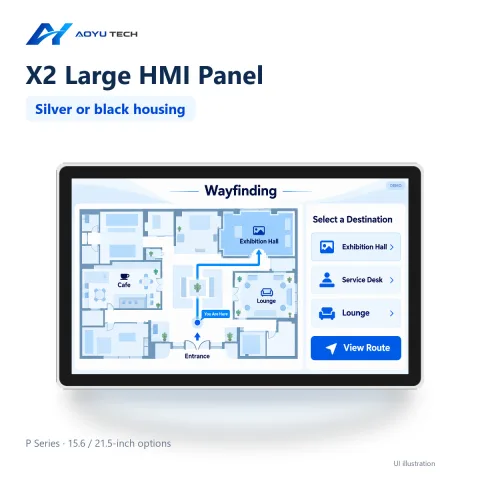

P-X2-156 15.6-inch HMI Panel
Display size: 15.6 inches. Resolution: 1920 × 1080 px. Brightness: standard: 250; optional: 500 / 1000 cd/m².…
P-X2-215 21.5-inch HMI Panel
Display size: 21.5 inches. Resolution: 1920 × 1080 px. Brightness: standard: 250; optional: 500 / 1000 cd/m².…
03 Economic IOT M Series · 8 models

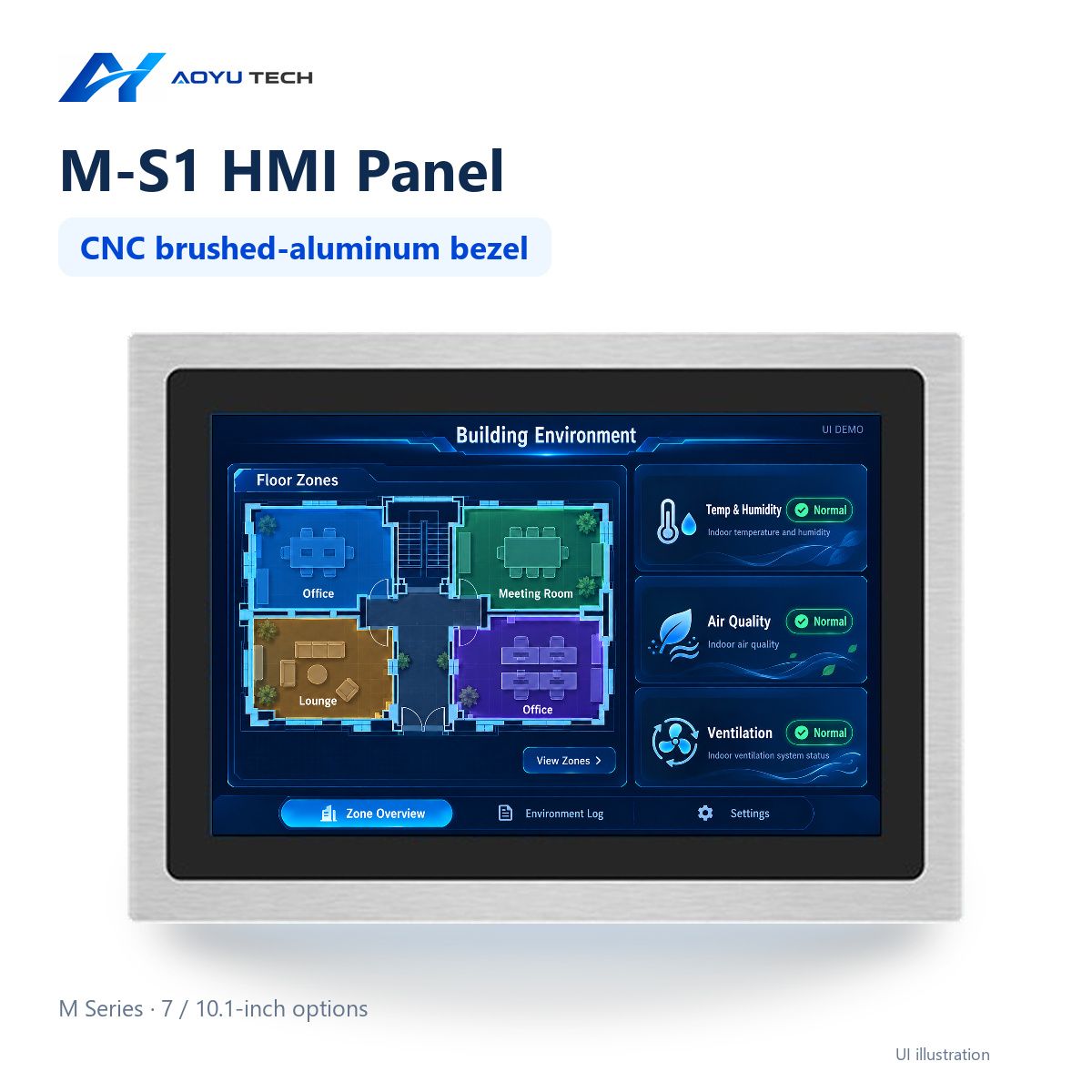

Economic IOT M Series
M-S1-070 7-inch HMI Panel
Series: M-S1. Size variant: 7 / 10.1 inches. Frame material: Aluminum alloy. Serial port count: RS232: 2; RS48…
M-S1-101 10.1-inch HMI Panel
Series: M-S1. Size variant: 7 / 10.1 inches. Frame material: Aluminum alloy. Serial port count: RS232: 2; RS48…

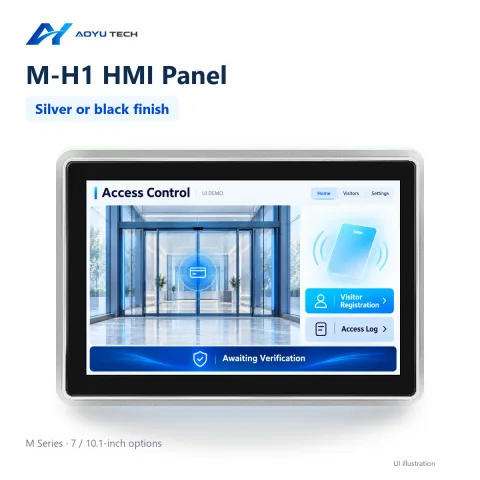

M-H1-070 7-inch HMI Panel
Series: M-H1. Size variant: 7 / 10.1 inches. Standard brightness: 500 cd/m². Glass options: Anti-glare glass
M-H1-101 10.1-inch HMI Panel
Series: M-H1. Size variant: 7 / 10.1 inches. Standard brightness: 500 cd/m². Glass options: Anti-glare glass

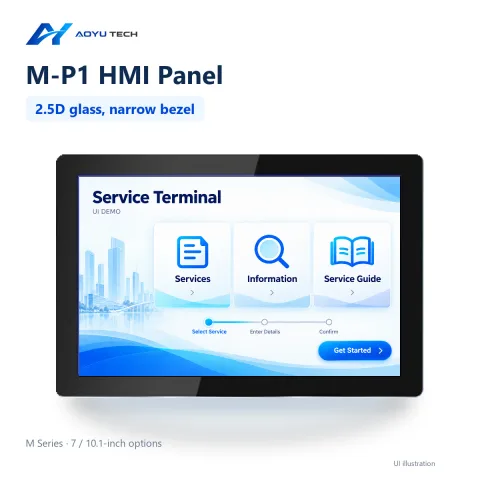

M-P1-070 7-inch HMI Panel
Series: M-P1. Size variant: 7 / 10.1 inches. Panel construction: 2.5D glass and narrow frame. Isolated serial…
M-P1-101 10.1-inch HMI Panel
Series: M-P1. Size variant: 7 / 10.1 inches. Panel construction: 2.5D glass and narrow frame. Isolated serial…

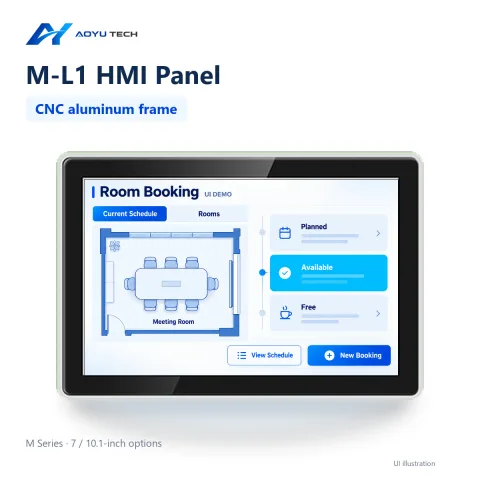

M-L1-070 7-inch HMI Panel
Series: M-L1. Size variant: 7 / 10.1 inches. Frame material: CNC aluminum alloy. Standard brightness: 500 cd/m…
M-L1-101 10.1-inch HMI Panel
Series: M-L1. Size variant: 7 / 10.1 inches. Frame material: CNC aluminum alloy. Standard brightness: 500 cd/m…
04 Auto Control G Series · 5 models

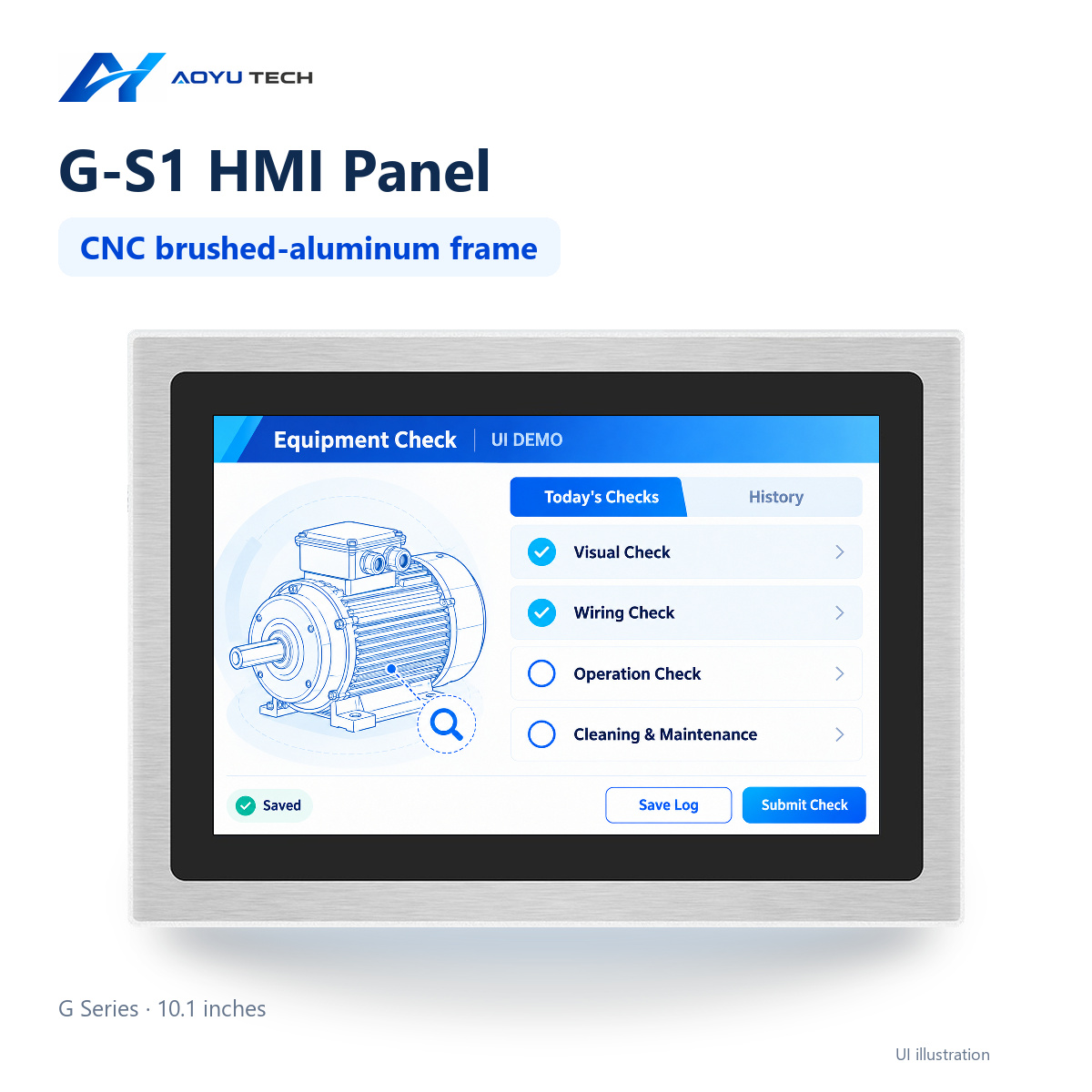

Auto Control G Series
G-S1-101 10.1-inch HMI Panel
Series: G-S1. Frame: CNC aluminum alloy. Ethernet: 4 channels. Standard brightness: 500 cd/m²

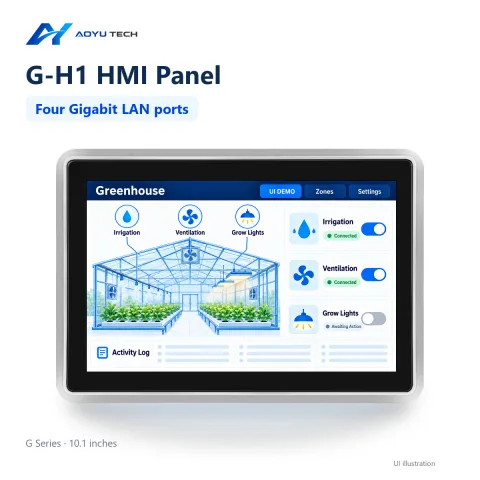

G-H1-101 10.1-inch HMI Panel
Ethernet: 4 channels. Brightness: 500 cd/m². Power input: 12 / 48 V. PoE: PoE

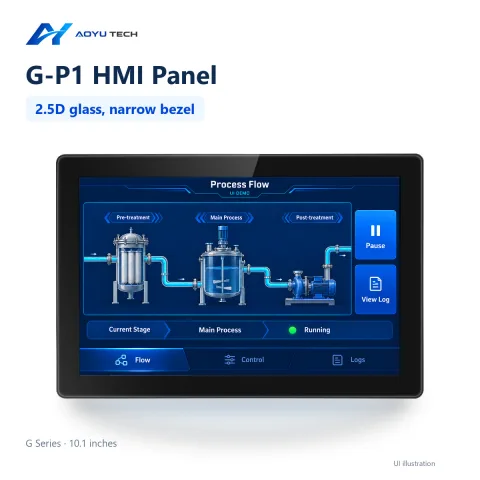

G-P1-101 10.1-inch HMI Panel
Series: G-P1. Panel glass: 2.5D. Ethernet: 4 channels. PoE: PoE

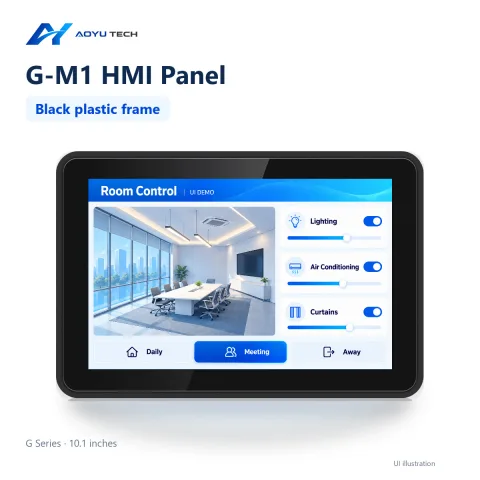

G-M1-101 10.1-inch HMI Panel
Frame material: Plastic. Ethernet: count: 4; speed: 1000 Mbps. PoE: PoE. Power input: 12 / 48 V

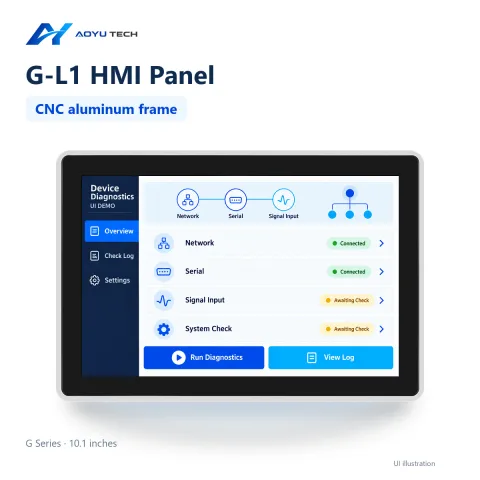

G-L1-101 10.1-inch HMI Panel
Frame material and process: CNC aluminum alloy. Glass: 2.5D glass. Mounting structure: Exterior inset mounting…
06 Industrial Edge B Series · 4 models
Industrial Edge B Series

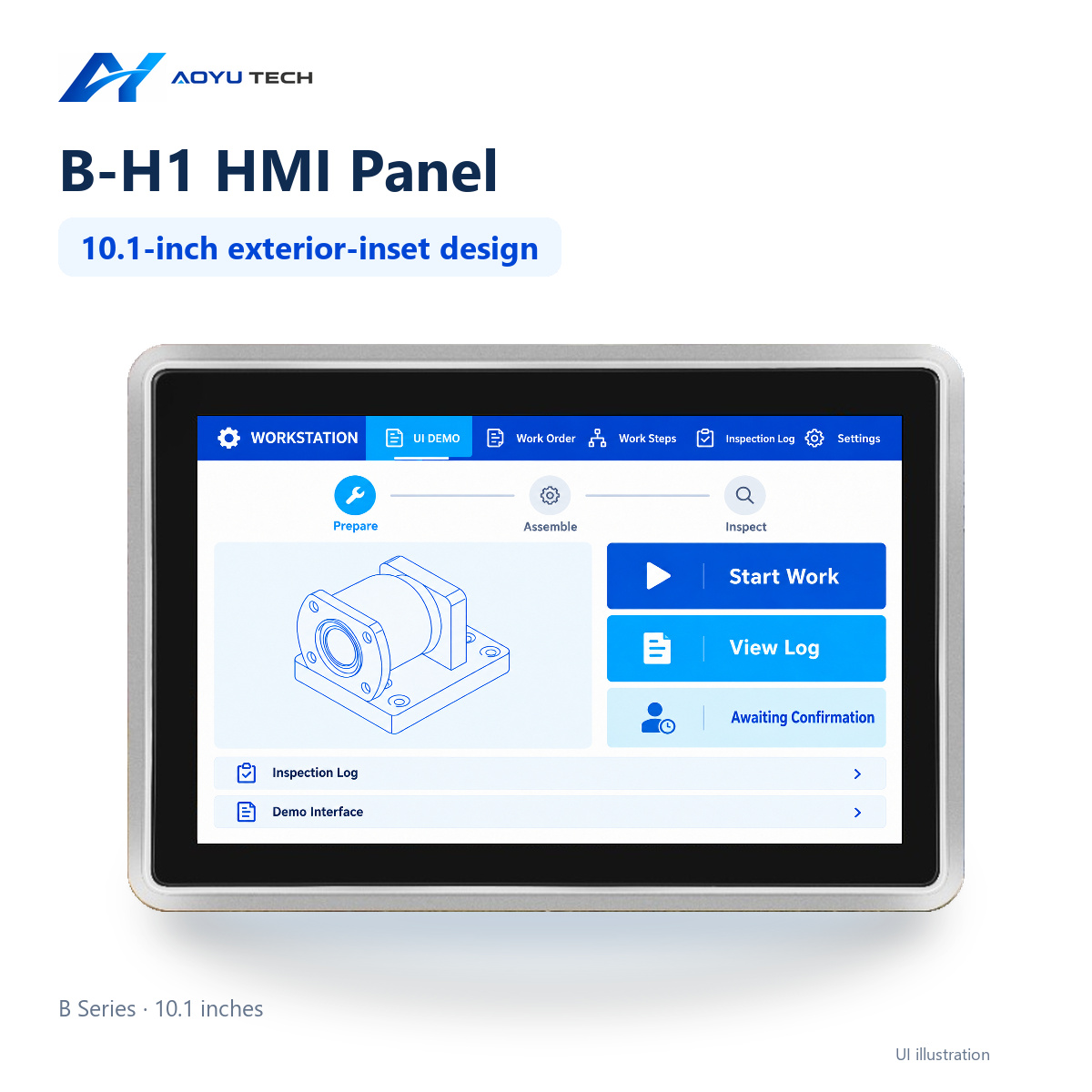

B-H1-101 10.1-inch HMI Panel
Frame material: Plastic. Frame color: Silver / Black / White. Mounting methods: Exterior inset mounting. VESA…

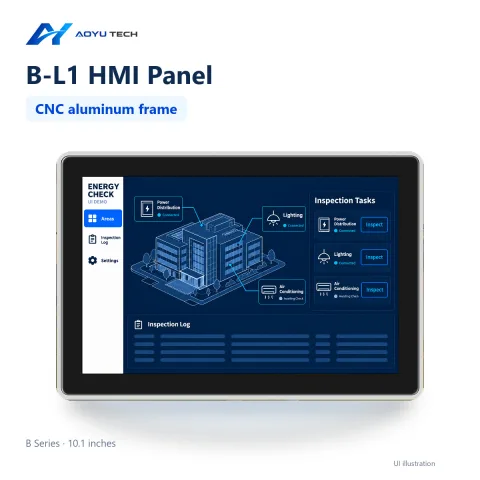

B-L1-101 10.1-inch HMI Panel
Frame material: CNC aluminum alloy. Frame color: Silver / Black. Mounting methods: Exterior inset mounting. VE…

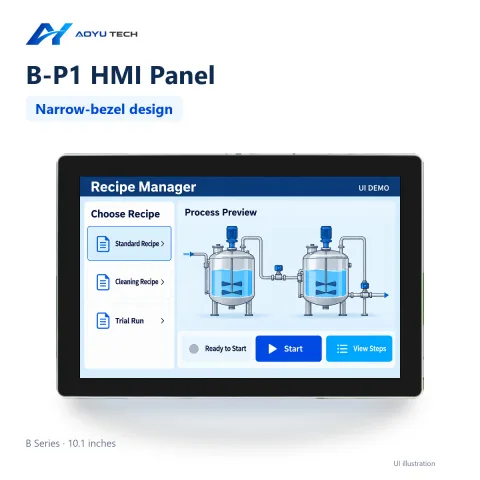

B-P1-101 10.1-inch HMI Panel
Frame material: Plastic. Frame color: Silver / Black. Mounting methods: Exterior inset mounting. VESA hole spa…

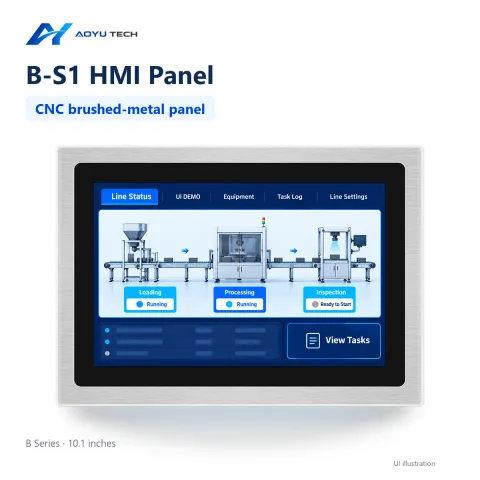

B-S1-101 10.1-inch HMI Panel
Frame material: CNC aluminum alloy. Frame color: Silver / Black. Mounting methods: Exterior inset mounting. VE…
