No Shell S Series

C-070 7-inch HMI Panel

7 inches · No Shell S Series

Screen size
4.3″7″10.1″
Display size
7 inches
Backlight brightness
500 cd/m²
Viewing angle
IPS
Operating temperature
-20 – 70 ℃
Request a quote

Specifications follow the selected configuration. Contact us to confirm options and delivery requirements.

Built around your requirements

Explore the display, enclosure and configuration-specific capabilities of this HMI panel.

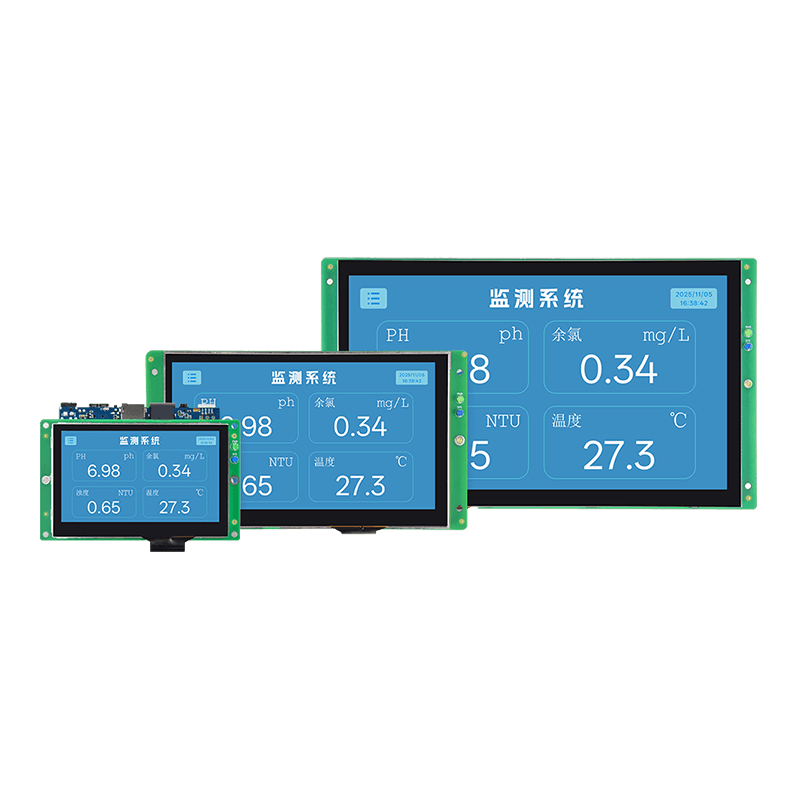

7-inch HMI panel in the No Shell S Series. See model-specific specifications for available configurations.

A closer look

Complete series material may show other sizes or configurations. Refer to the selected model specifications and confirmed delivery configuration. Select an image to enlarge it.

Configuration & specifications

Only source-checked specifications with a clear model association are listed. Contact us for details that are not listed.

AYS070C-D*-IPS

Display and structure

Display and structure — AYS070C-D*-IPS
Display size7 inchesOriginal table configuration
Backlight brightness500 cd/m²Original table configuration
Viewing angleIPSOriginal table configuration

Environment and power consumption

Environment and power consumption — AYS070C-D*-IPS
Operating temperature-20 – 70 ℃Original table model
Operating humidityrange: 0 / 95; condensation: false % RHOriginal table model

Mechanical drawing

Mechanical drawing — AYS070C-D*-IPS
7-inch bezel165.9 × 100.9 mmNot specified
7-inch active area AA154.21 × 85.92 mmNot specified
7-inch hole-spacing annotations180.28 × 80 mmNot specified
7-inch indicator and mounting annotationsPower indicator / System indicator / Grounding stud / TP / Brass mounting standoffsNot specified

C-070

Let’s find your configuration

Tell us about your application, quantities and interface requirements. We will help confirm a suitable configuration.
