C-101 10.1-inch HMI Panel

10.1 inches · No Shell S Series

Screen size
4.3″7″10.1″
Display size
10.1 inches
Backlight brightness
500 cd/m²
Viewing angle
IPS
Operating temperature
-20 – 70 ℃
Request a quote

Specifications follow the selected configuration. Contact us to confirm options and delivery requirements.

Built around your requirements

Explore the display, enclosure and configuration-specific capabilities of this HMI panel.

Display size: 10.1 inches. Backlight brightness: 500 cd/m². Viewing angle: IPS. 10.1-inch bezel: 235.5 × 133.55 mm

A closer look

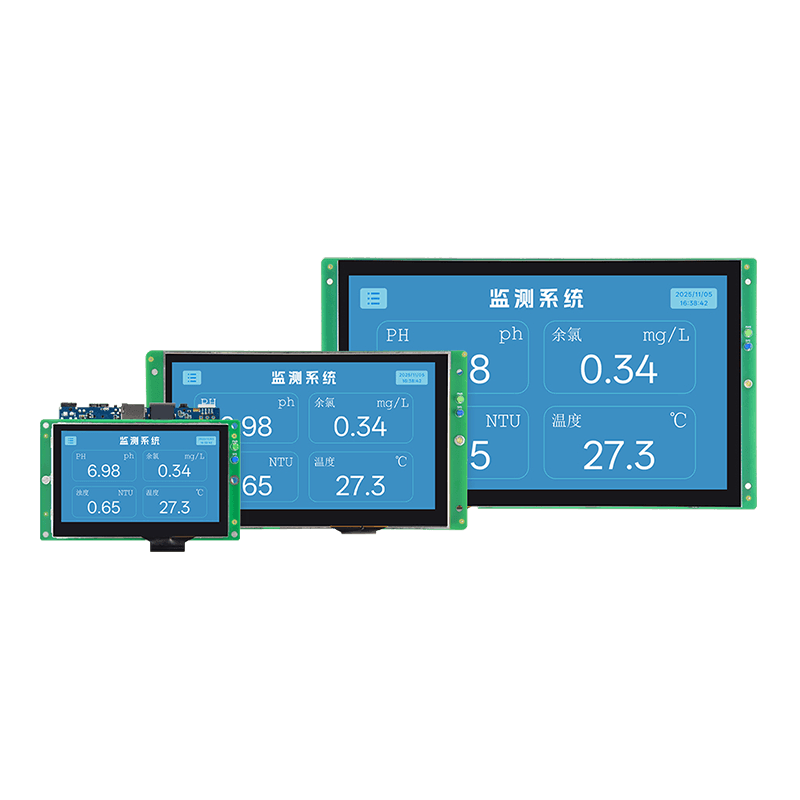

Complete series material may show other sizes or configurations. Refer to the selected model specifications and confirmed delivery configuration. Select an image to enlarge it.

Configuration & specifications

Only source-checked specifications with a clear model association are listed. Contact us for details that are not listed.

AYS101C-D*-IPS

Display and structure

Display and structure — AYS101C-D*-IPS
Display size10.1 inchesOriginal table configuration
Backlight brightness500 cd/m²Original table configuration
Viewing angleIPSOriginal table configuration

Environment and power consumption

Environment and power consumption — AYS101C-D*-IPS
Operating temperature-20 – 70 ℃Original table model
Operating humidityrange: 0 / 95; condensation: false % RHOriginal table model

Mechanical drawing

Mechanical drawing — AYS101C-D*-IPS
10.1-inch bezel235.5 × 133.55 mmNot specified
10.1-inch active area AA221.85 × 124.8 mmNot specified
10.1-inch hole-spacing annotations248.03 × 120.3 mmNot specified
10.1-inch indicator and mounting annotationsPower indicator / System indicator / Grounding stud / TP / Brass mounting standoffsNot specified
