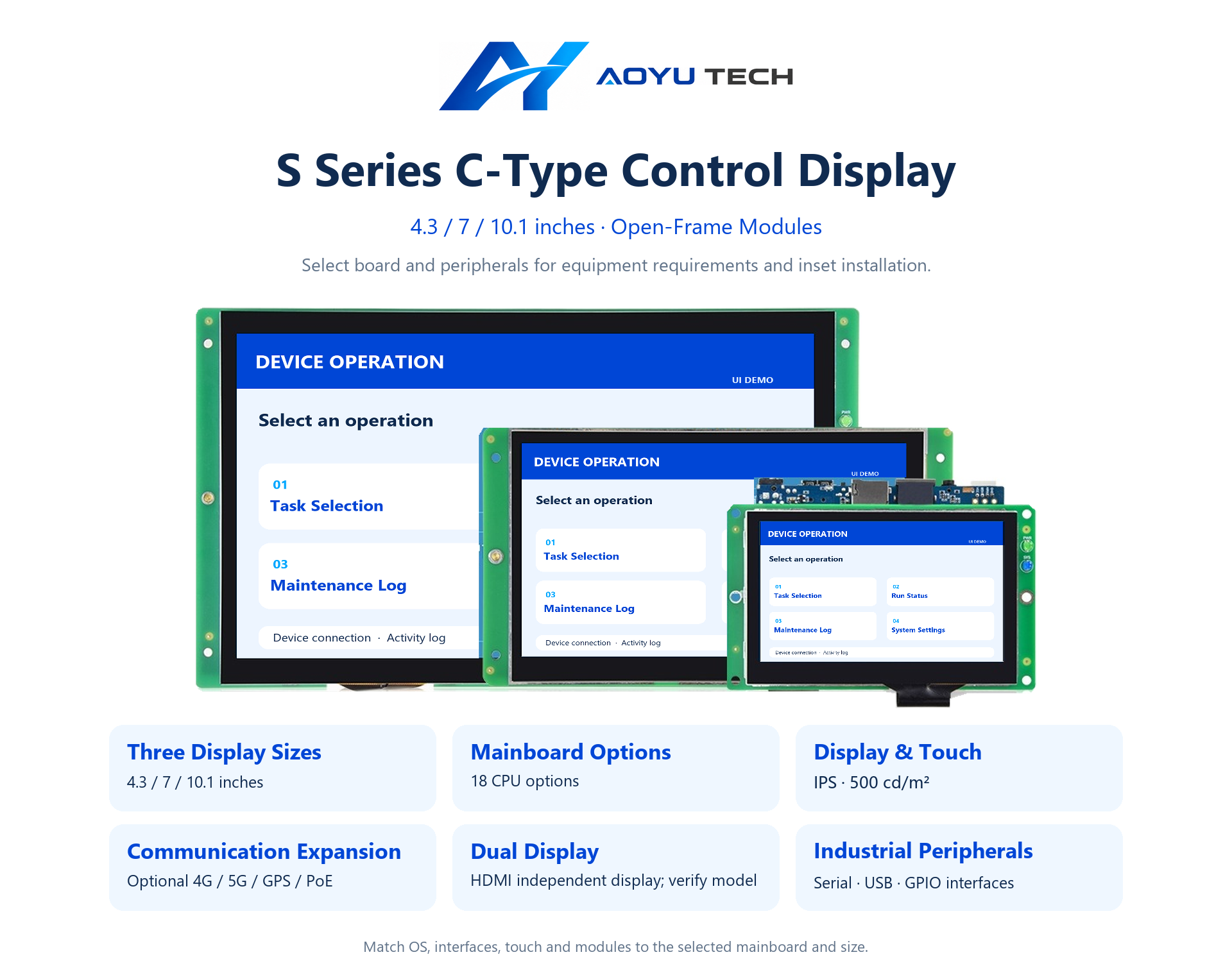

No Shell S Series

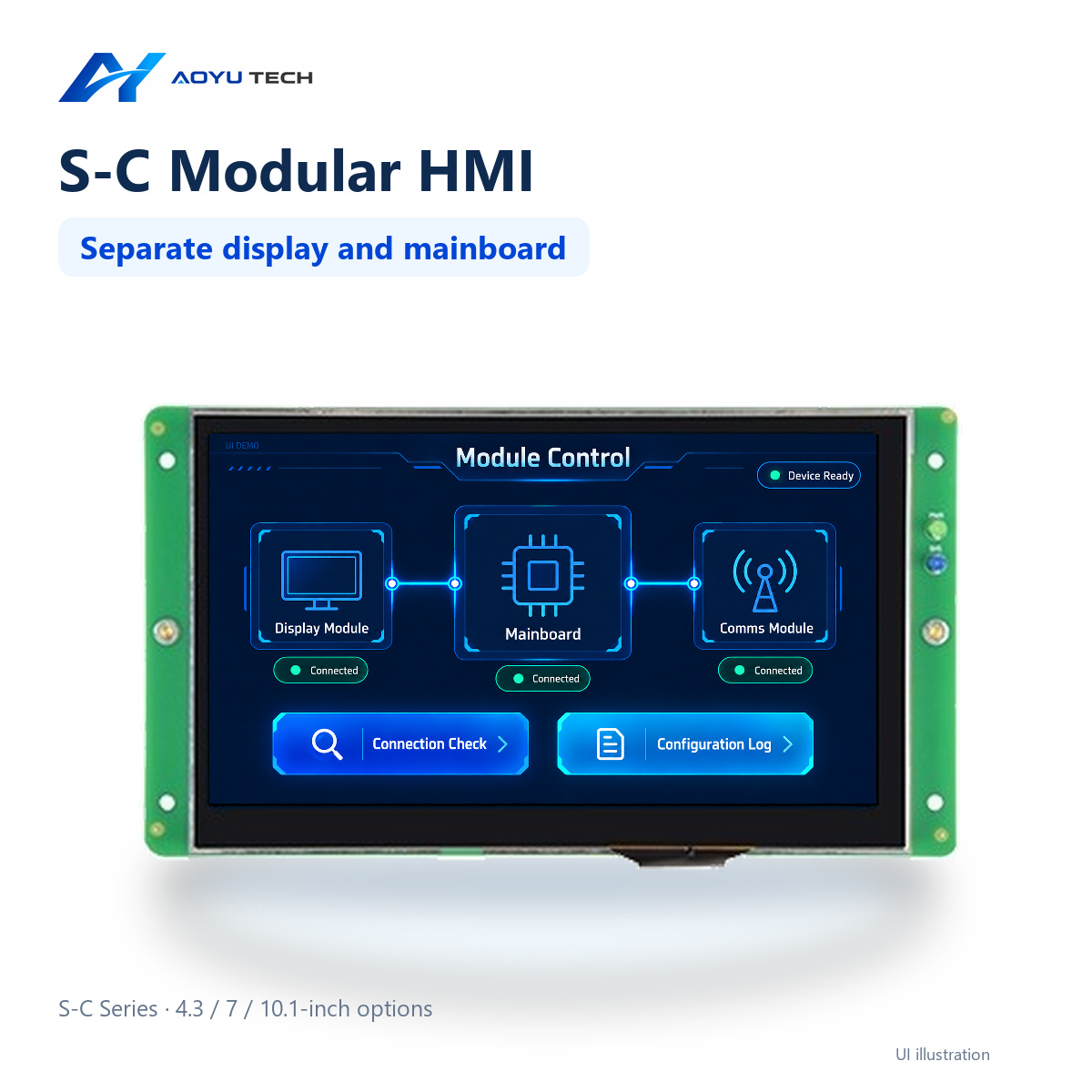

C-043 4.3-inch HMI Panel

4.3 inches · No Shell S Series

Screen size
4.3″7″10.1″
Display size
4.3 inches
Backlight brightness
500 cd/m²
Viewing angle
IPS
Operating temperature
-20 – 70 ℃
Request a quote

Specifications follow the selected configuration. Contact us to confirm options and delivery requirements.

Built around your requirements

Explore the display, enclosure and configuration-specific capabilities of this HMI panel.

Display size: 4.3 inches. Backlight brightness: 500 cd/m². Viewing angle: IPS. Operating temperature: -20 – 70 ℃

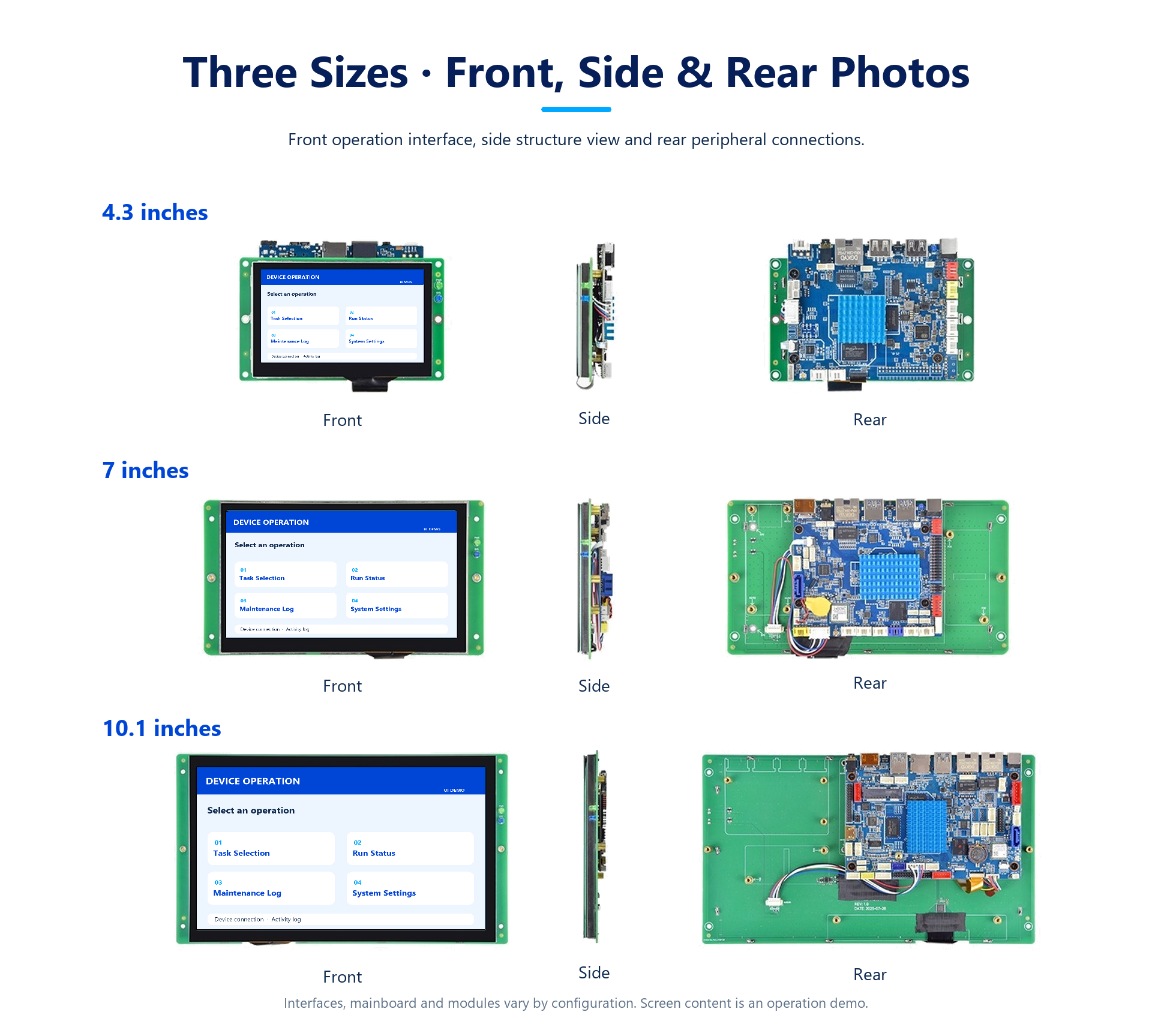

A closer look

Complete series material may show other sizes or configurations. Refer to the selected model specifications and confirmed delivery configuration. Select an image to enlarge it.

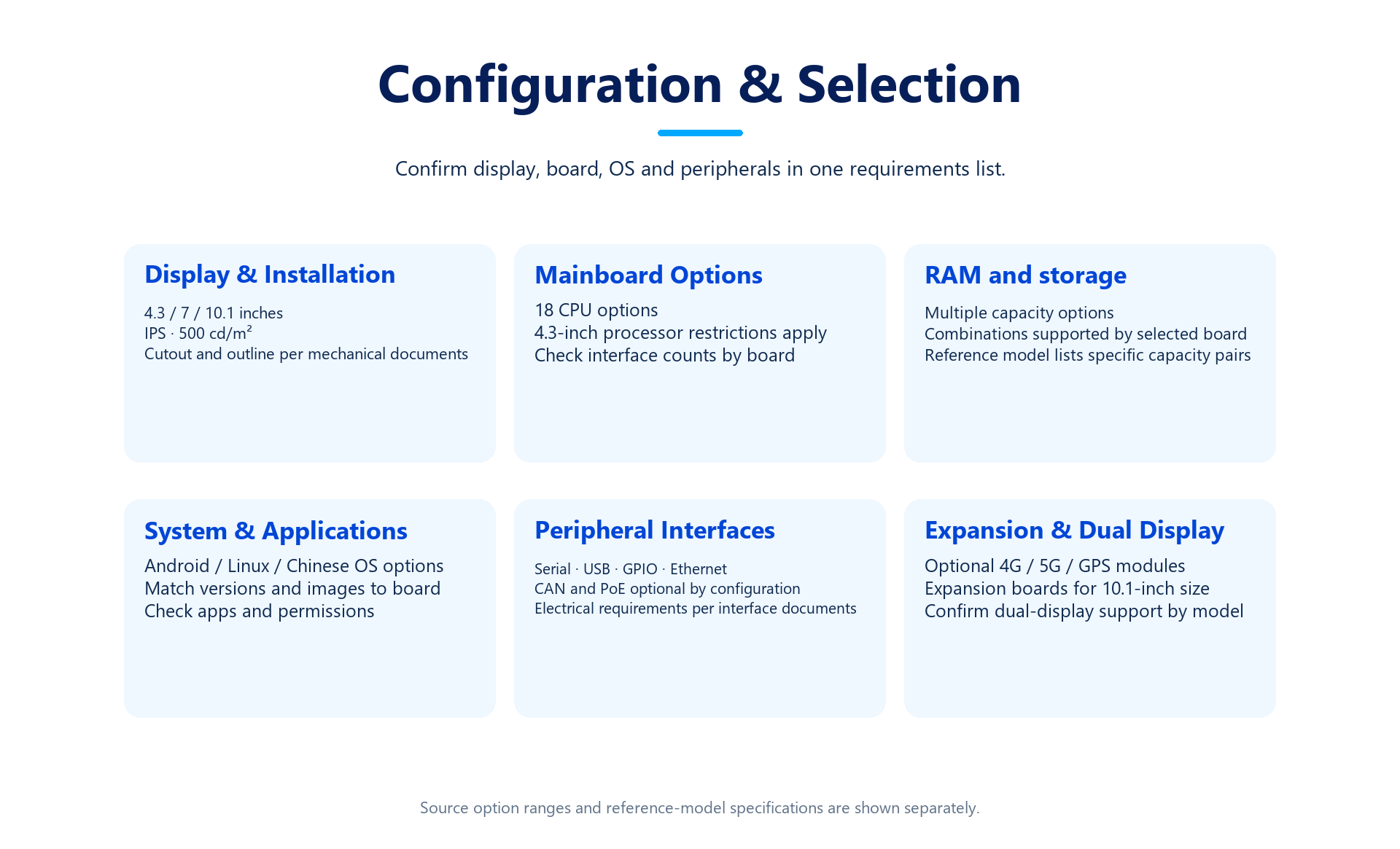

Configuration & specifications

Only source-checked specifications with a clear model association are listed. Contact us for details that are not listed.

AYS043C-H*-IPS

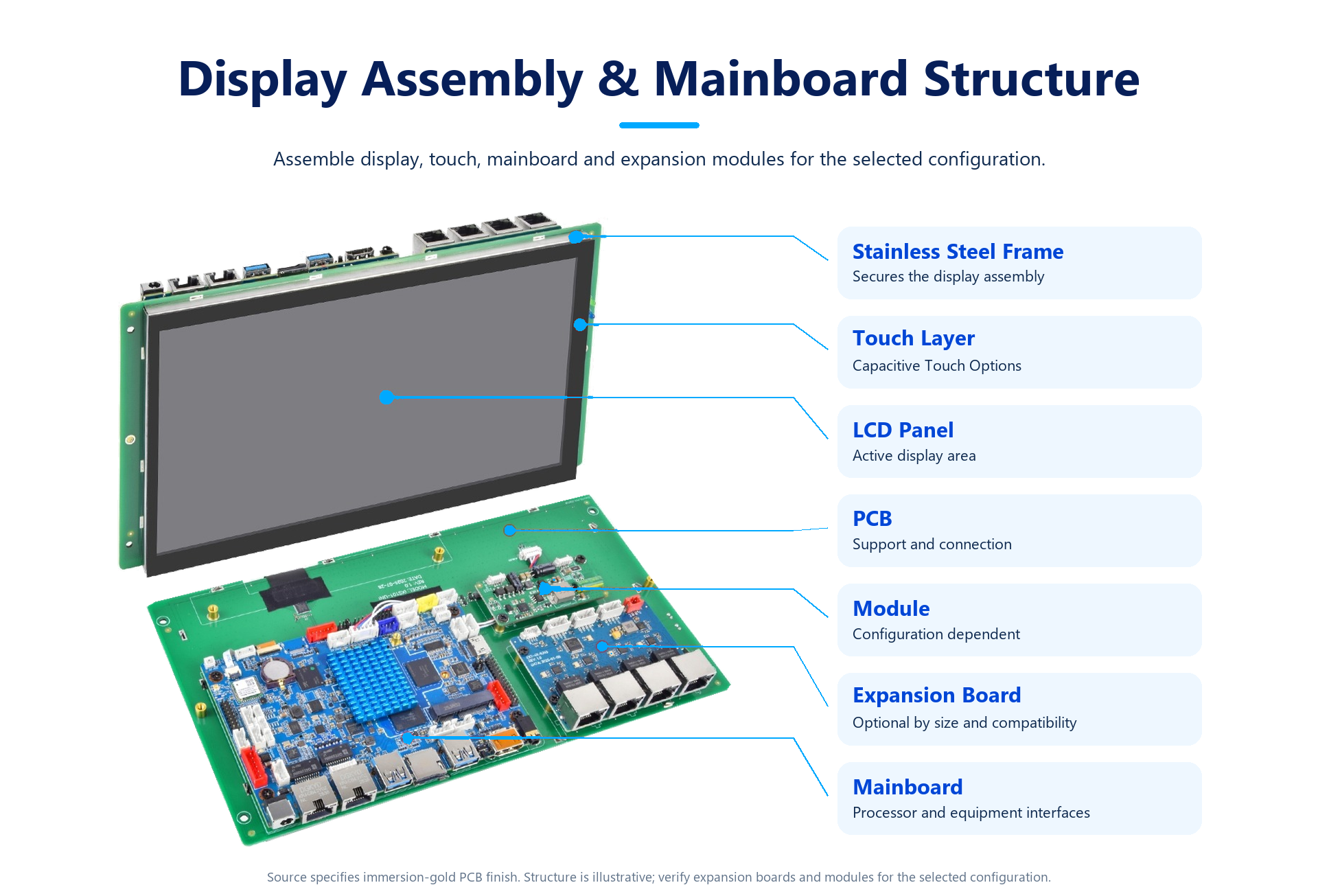

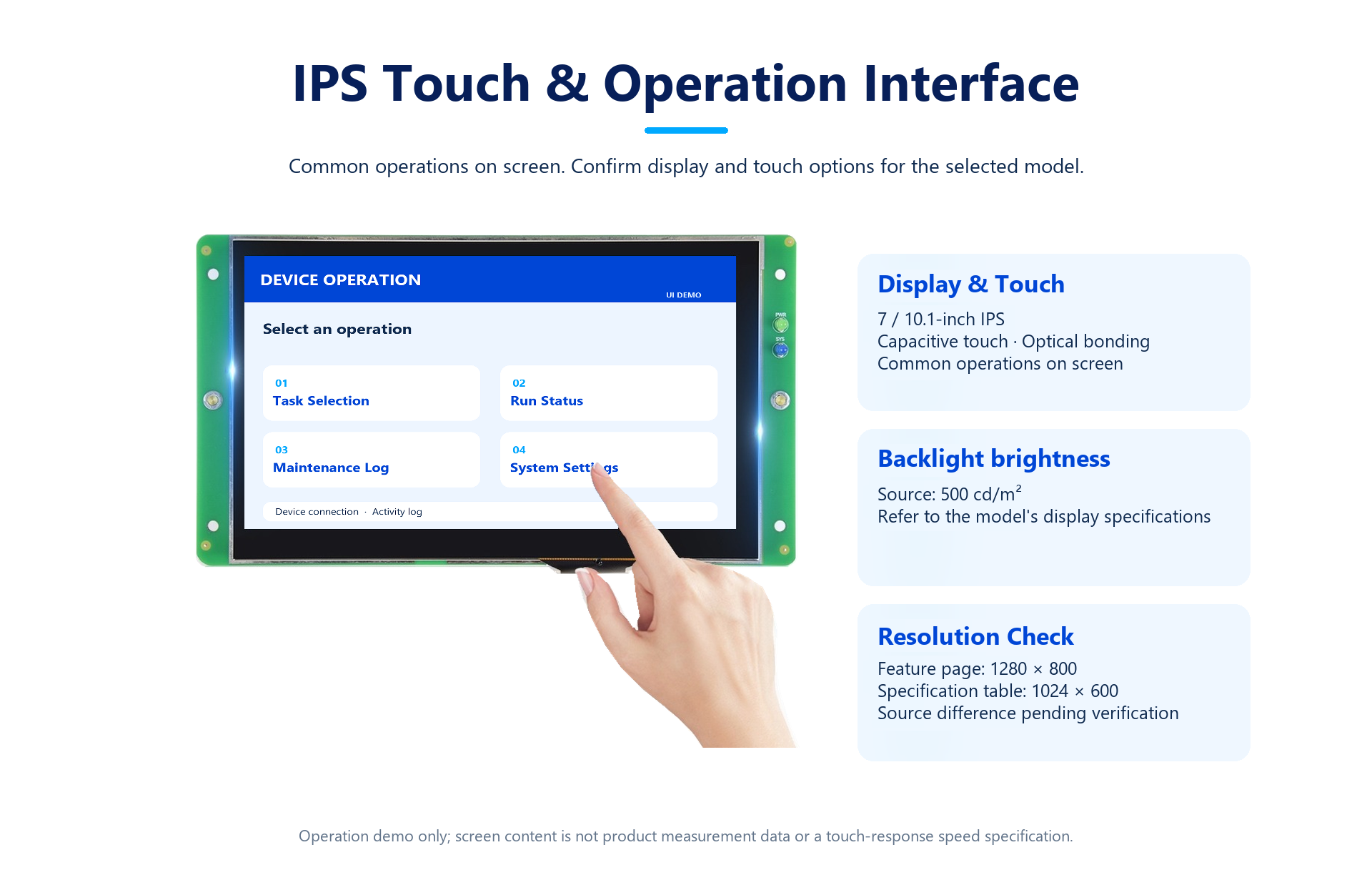

Display and structure

Display and structure — AYS043C-H*-IPS
Display size4.3 inchesOriginal table configuration
Backlight brightness500 cd/m²Original table configuration
Viewing angleIPSOriginal table configuration

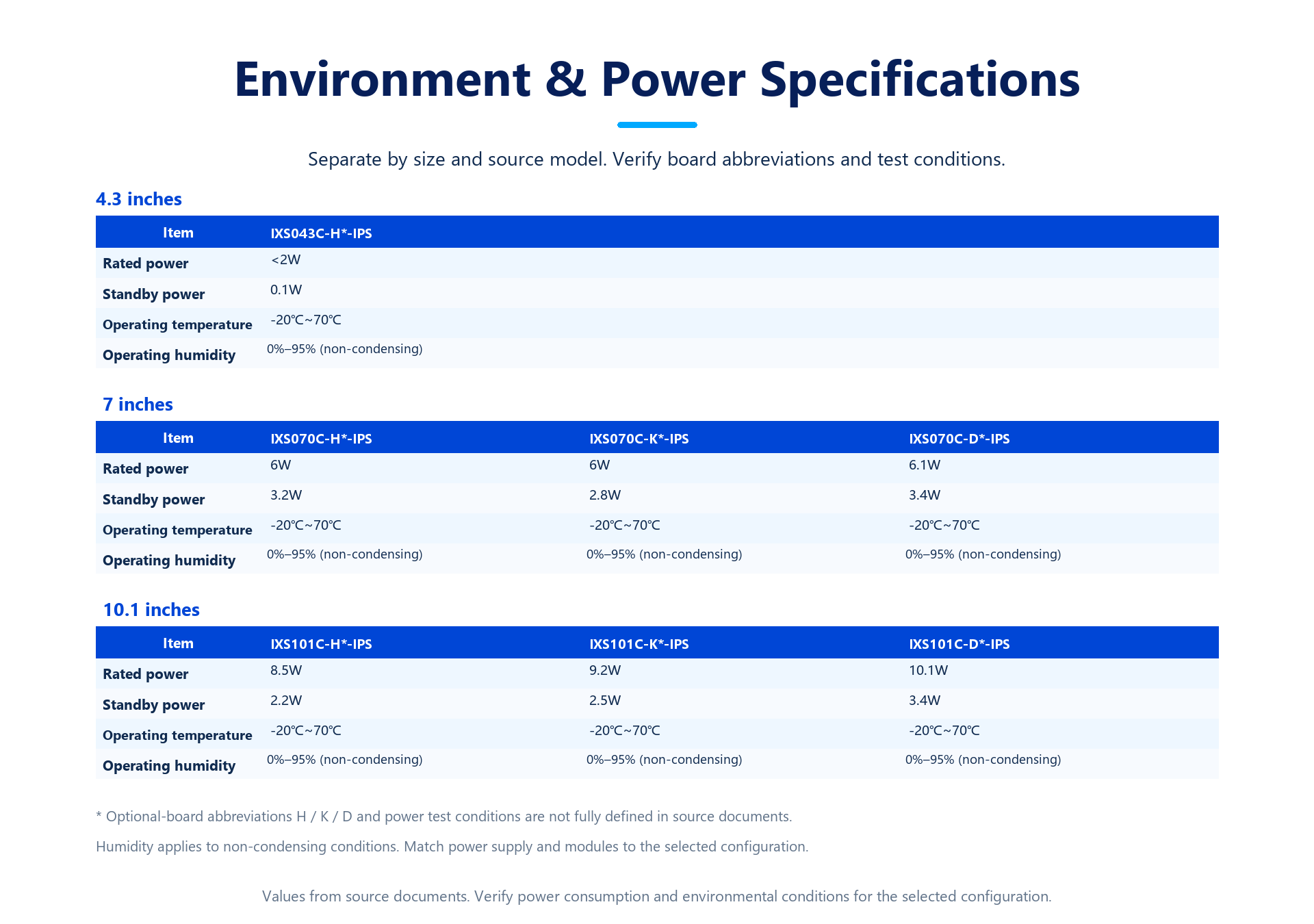

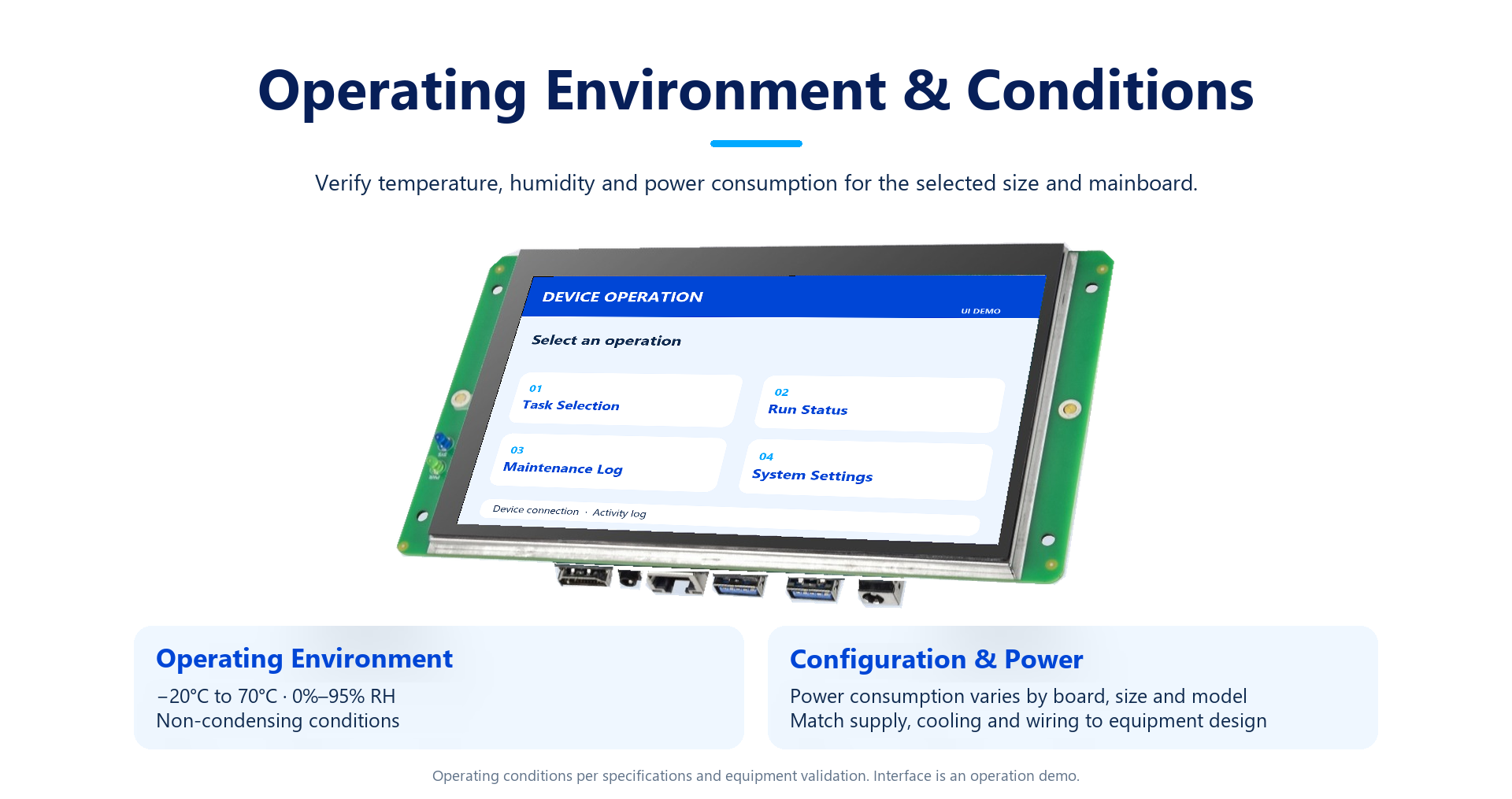

Environment and power consumption

Environment and power consumption — AYS043C-H*-IPS
Operating temperature-20 – 70 ℃Original table model
Operating humidityrange: 0 / 95; condensation: false % RHOriginal table model

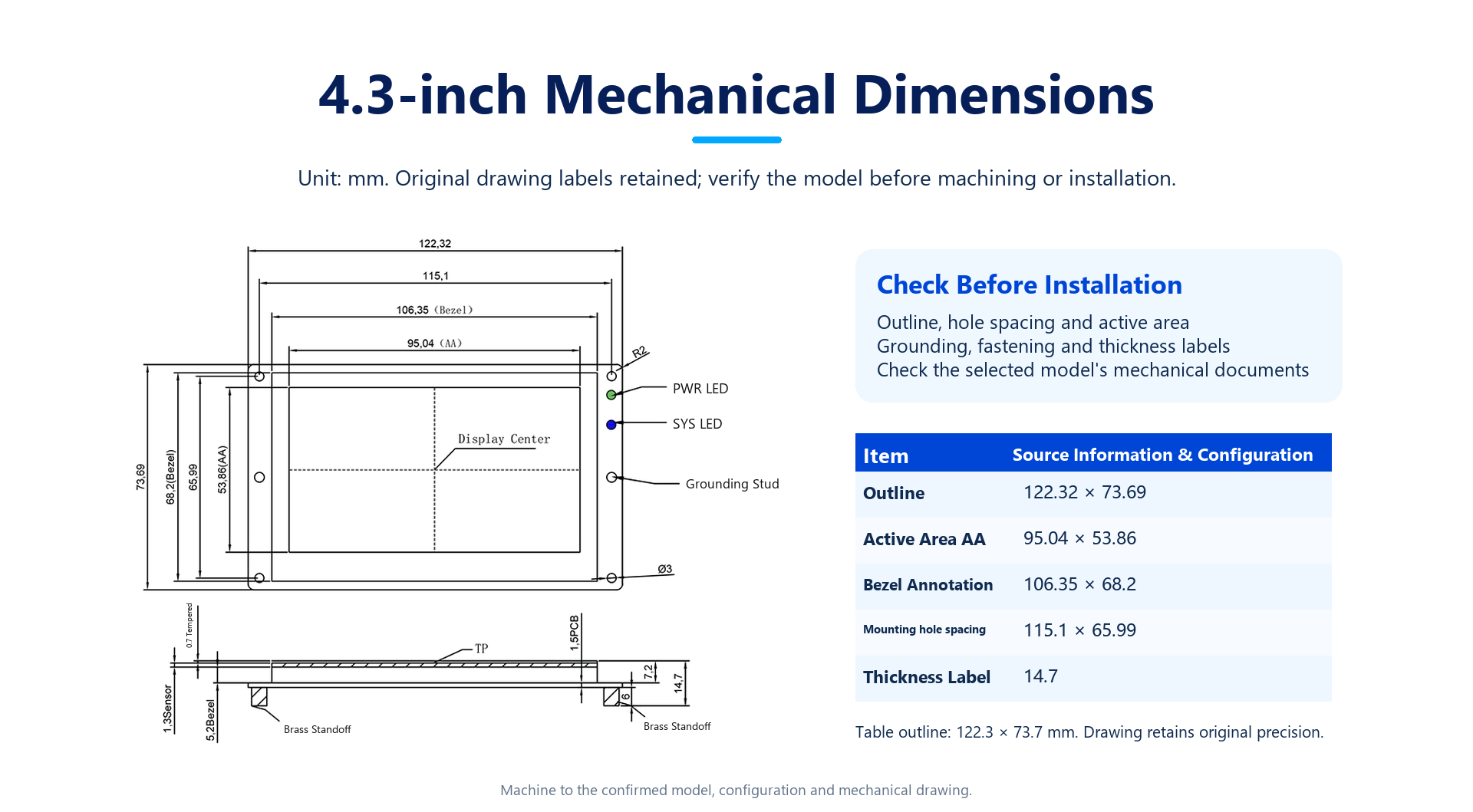

Mechanical drawing

Mechanical drawing — AYS043C-H*-IPS
4.3-inch bezel106.35 × 68.2 mmNot specified
4.3-inch active area AA95.04 × 53.86 mmNot specified
4.3-inch hole-spacing annotations115.1 × 65.99 mmNot specified
4.3-inch indicator and mounting annotationsPower indicator / System indicator / Grounding stud / TP / Brass mounting standoffsNot specified

C-043

Let’s find your configuration

Tell us about your application, quantities and interface requirements. We will help confirm a suitable configuration.
