Economic IOT M Series

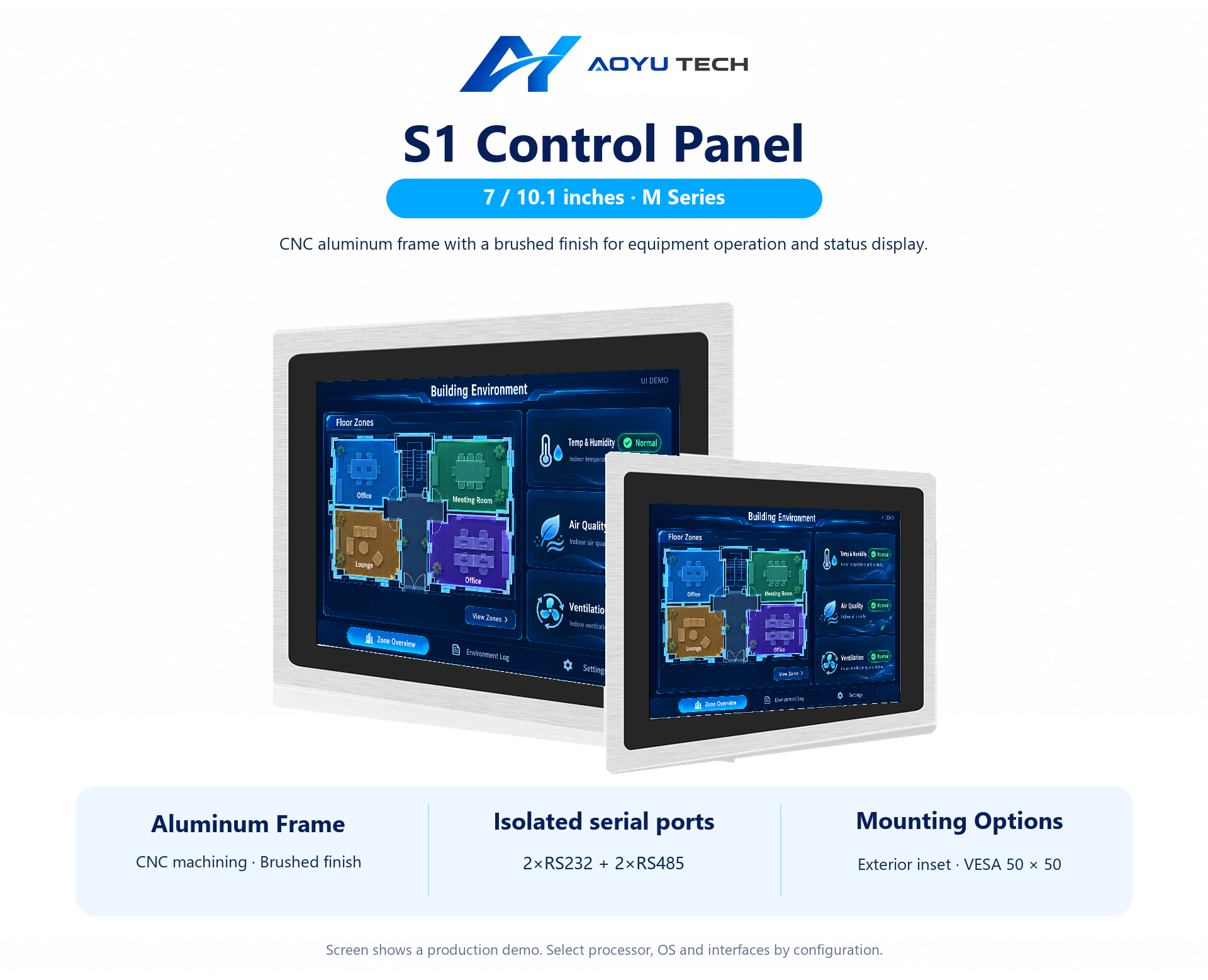

M-S1-070 7-inch HMI Panel
7 inches · Economic IOT M Series
- Series
- M-S1
- Size variant
- 7 / 10.1 inches
- Frame material
- Aluminum alloy
- Serial port count
- RS232: 2; RS485: 2
- Series
- M-S1
- Size variant
- 7 / 10.1 inches
- Frame material
- Aluminum alloy
- Serial port count
- RS232: 2; RS485: 2
- Series
- M-S1
- Size variant
- 7 / 10.1 inches
- Frame material
- Aluminum alloy
- Serial port count
- RS232: 2; RS485: 2
- Series
- M-S1
- Size variant
- 7 / 10.1 inches
- Frame material
- Aluminum alloy
- Serial port count
- RS232: 2; RS485: 2
Specifications follow the selected configuration. Contact us to confirm options and delivery requirements.

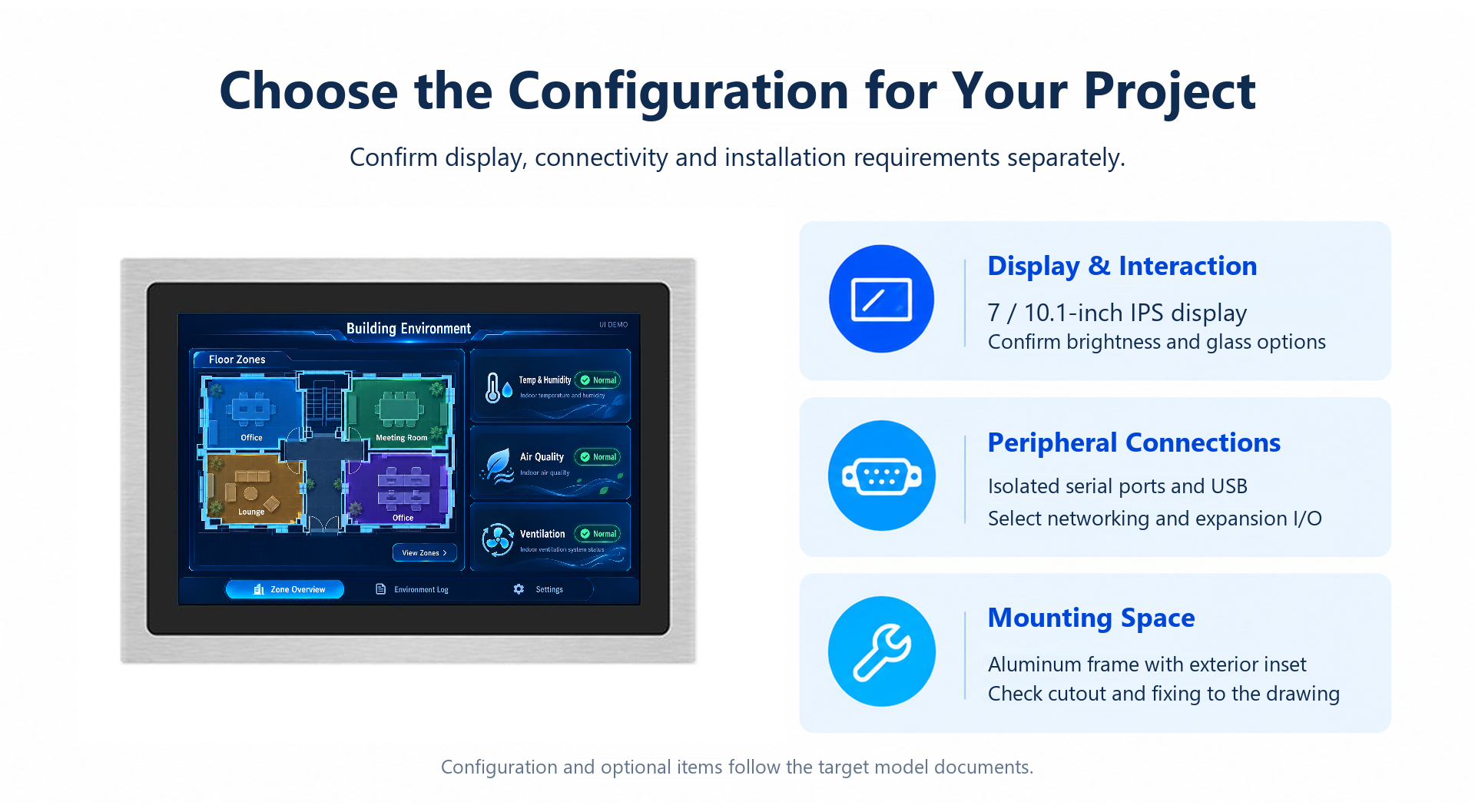

Built around your requirements
Explore the display, enclosure and configuration-specific capabilities of this HMI panel.
Series: M-S1. Size variant: 7 / 10.1 inches. Frame material: Aluminum alloy. Serial port count: RS232: 2; RS485: 2
- Series: M-S1
- Size variant: 7 / 10.1 inches
- Frame material: Aluminum alloy
- Serial port count: RS232: 2; RS485: 2
A closer look
Complete series material may show other sizes or configurations. Refer to the selected model specifications and confirmed delivery configuration. Select an image to enlarge it.
Configuration & specifications
Only source-checked specifications with a clear model association are listed. Contact us for details that are not listed.
AYM070S1-A133P
Product
| Series | M-S1Not specified |
|---|---|
| Size variant | 7 / 10.1 inchesNot specified |
Hero selling points
| Frame material | Aluminum alloyNot specified |
|---|---|
| Serial port count | RS232: 2; RS485: 2Not specified |
| Cable exit direction | Perpendicular cable exitNot specified |

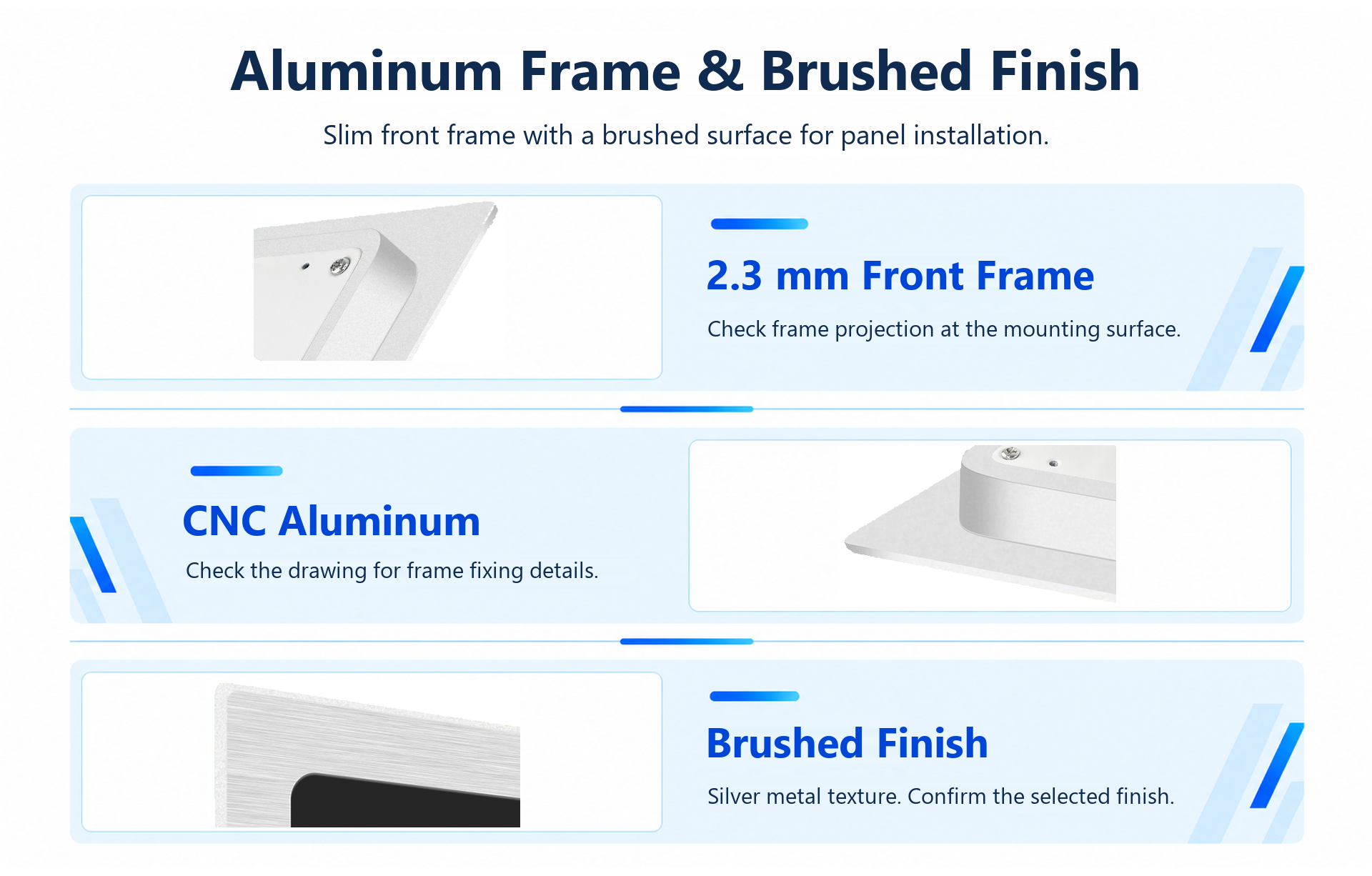

Structure
| Front-frame thickness | 2.3 mmNot specified |
|---|---|
| Frame manufacturing process | CNC aluminum alloyNot specified |
| Surface finish | Brushed finishNot specified |

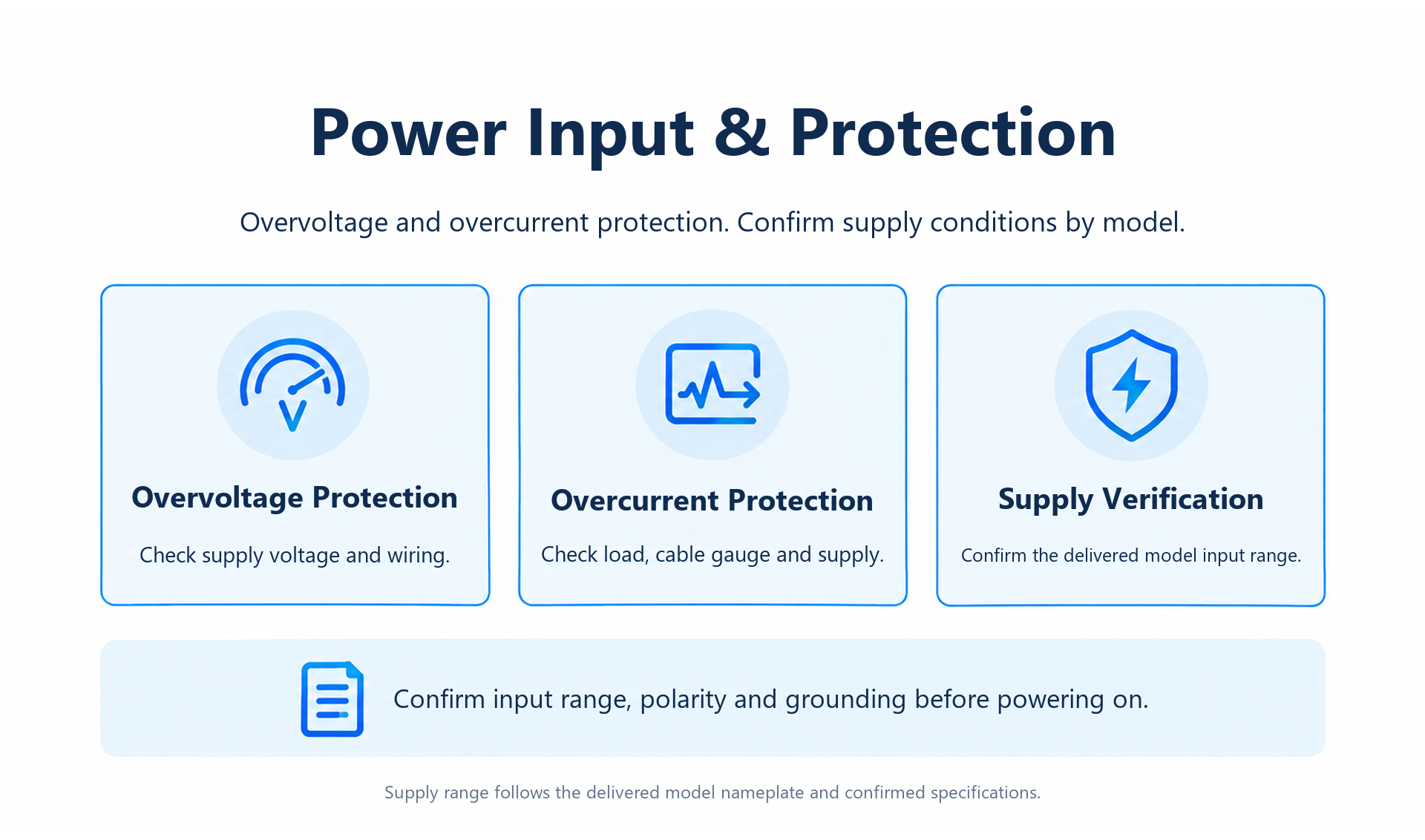

Power protection
| Protection component | VaristorNot specified |
|---|

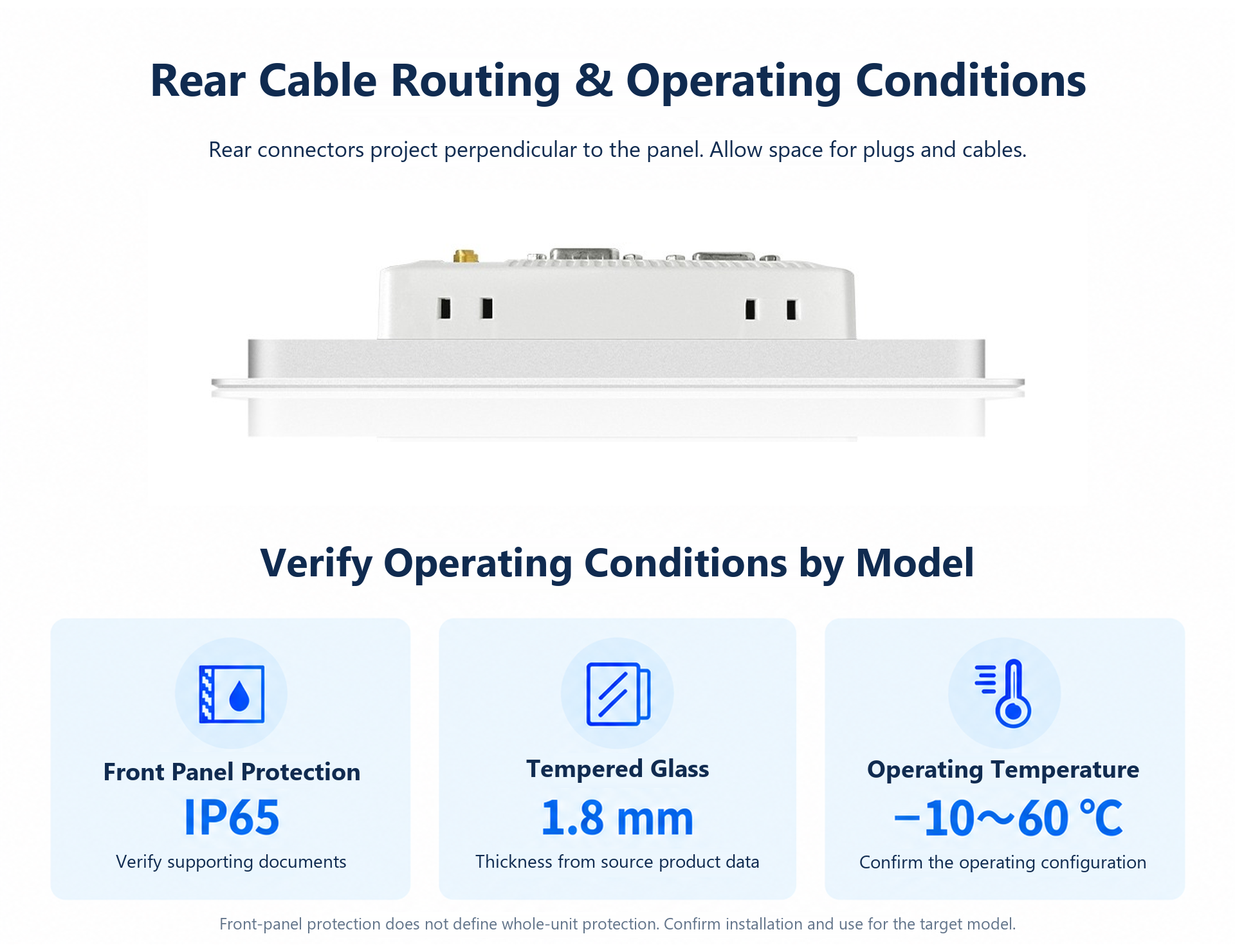

Construction and environment
| Cable exit direction | Perpendicular cable exitNot specified |
|---|---|
| Glass thickness | 1.8 mmNot specified |
| Operating temperature | -10 – 60 ℃Not specified |

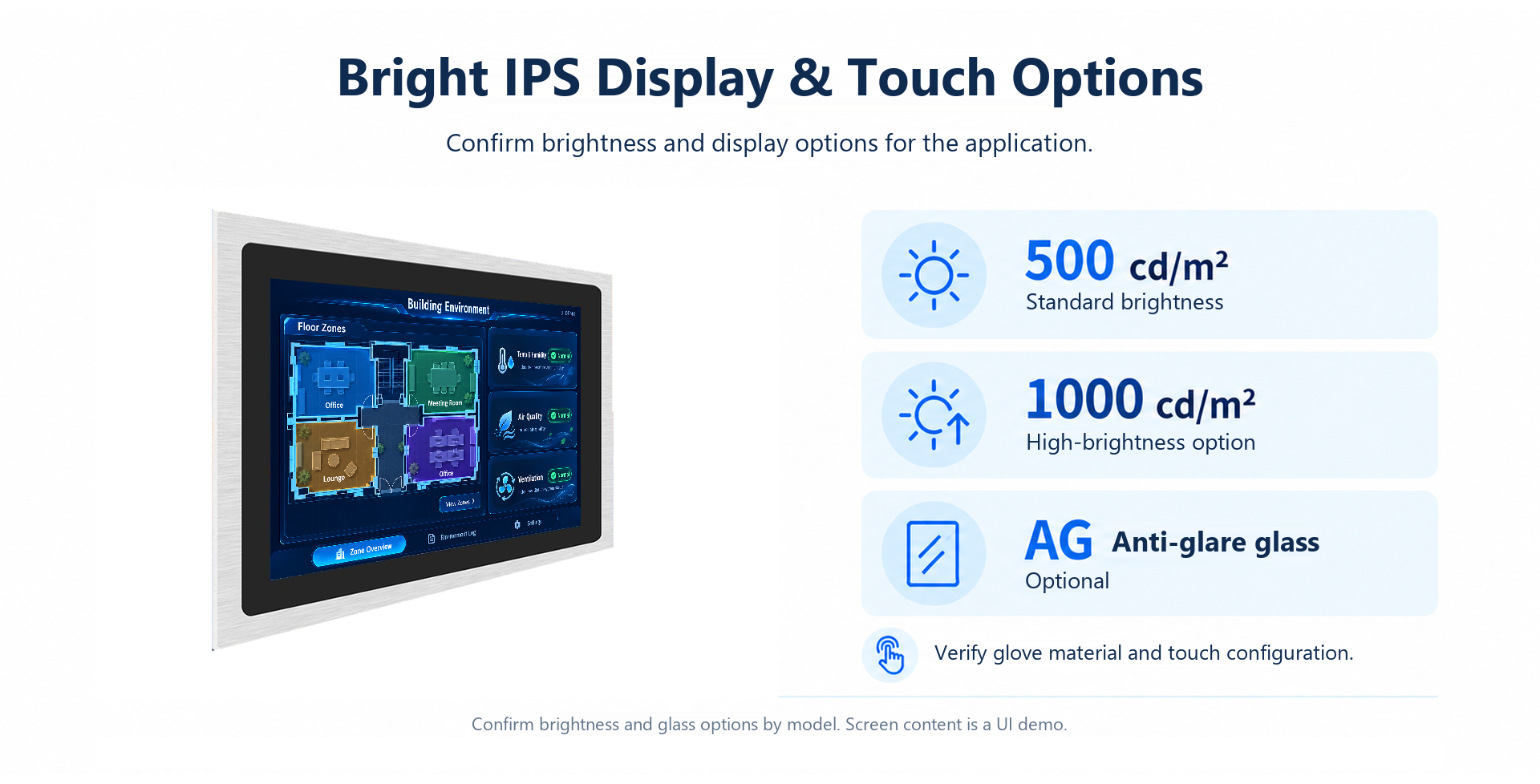

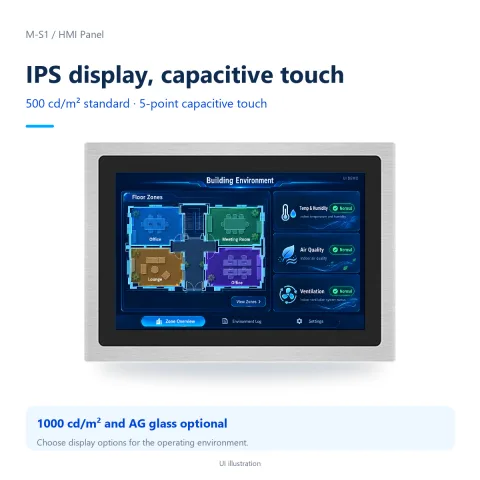

Display and touch
| Standard brightness | 500 cd/m²Standard |
|---|---|
| High-brightness option | 1000 cd/m²Optional |
| Glass options | AG anti-glareOptional |
| Bonding method | Full bondingNot specified |

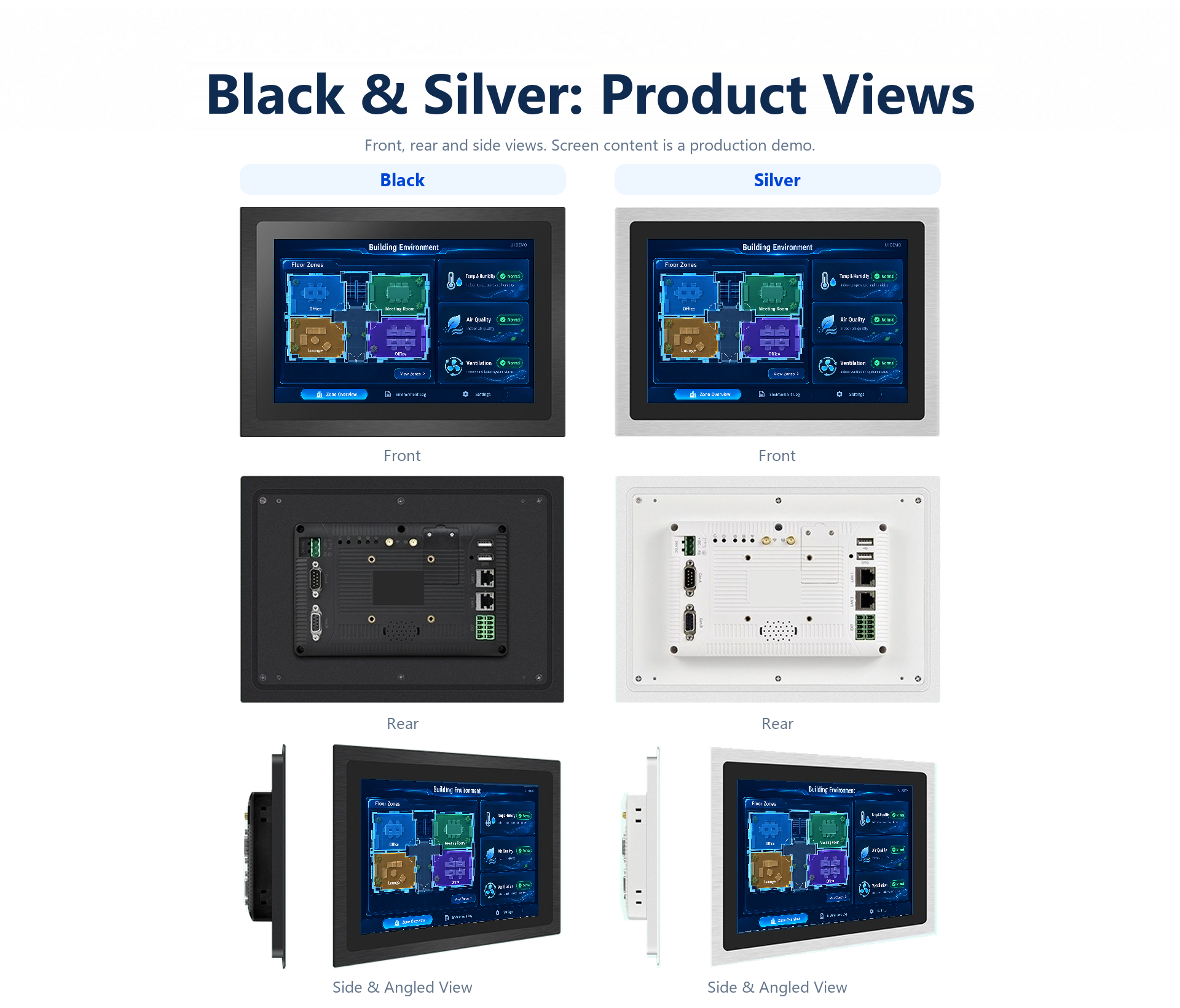

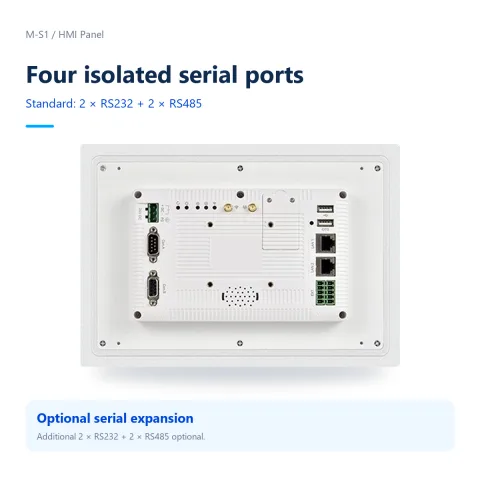

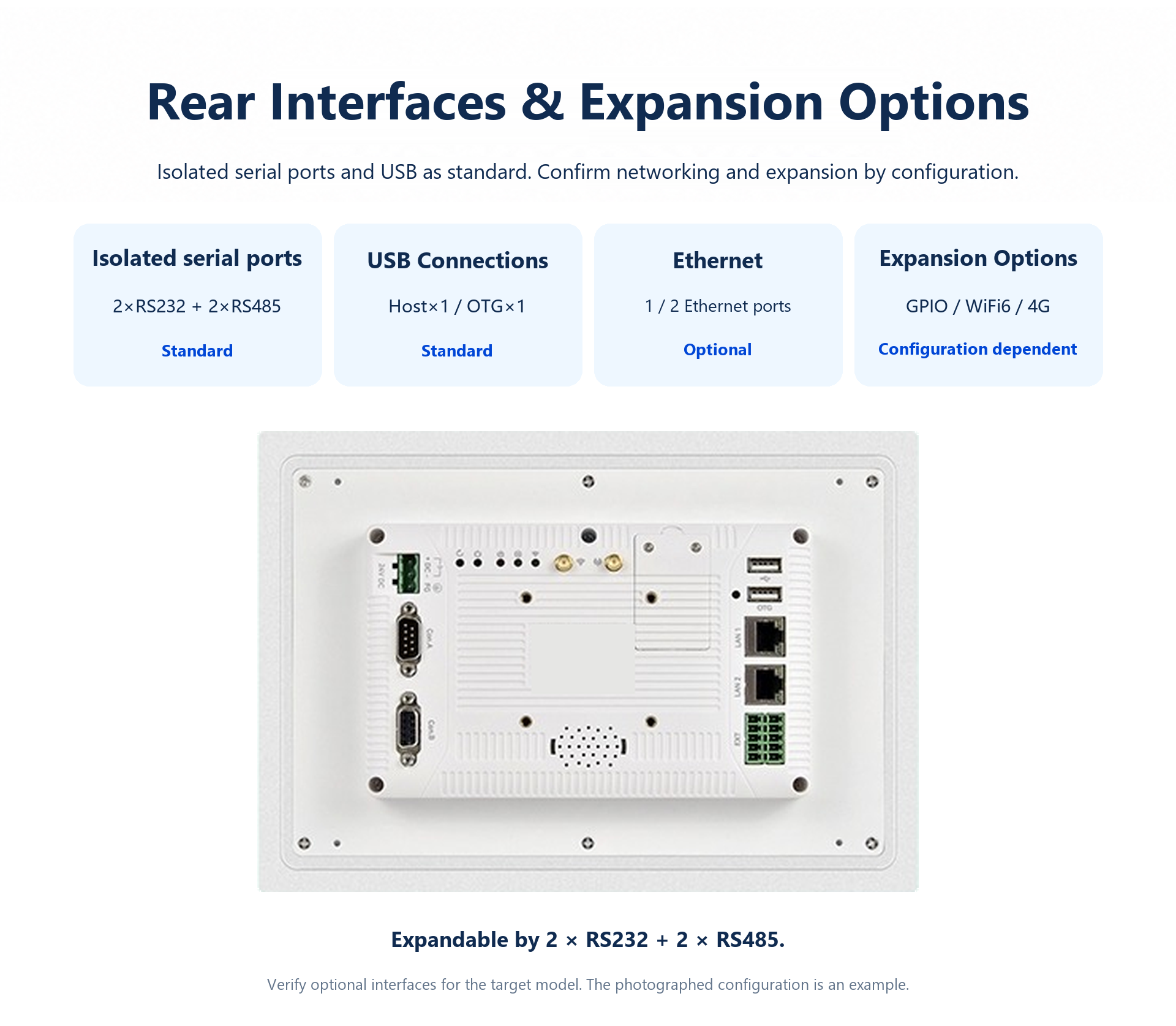

Rear interfaces
| Serial ports | RS232: 2; RS485: 2 channelsStandard |
|---|---|
| USB Host | 1 channelsStandard |
| USB OTG | 1 channelsStandard |
| Ethernet ports | 1 / 2 channelsOptional |
| WiFi | WiFi6Optional |
| Cellular network | 4GOptional |
| Serial port expansion | additional_RS232: 2; additional_RS485: 2 channelsExpansion counted separately |
| Concealed card slot | Micro SIMConfiguration dependent |

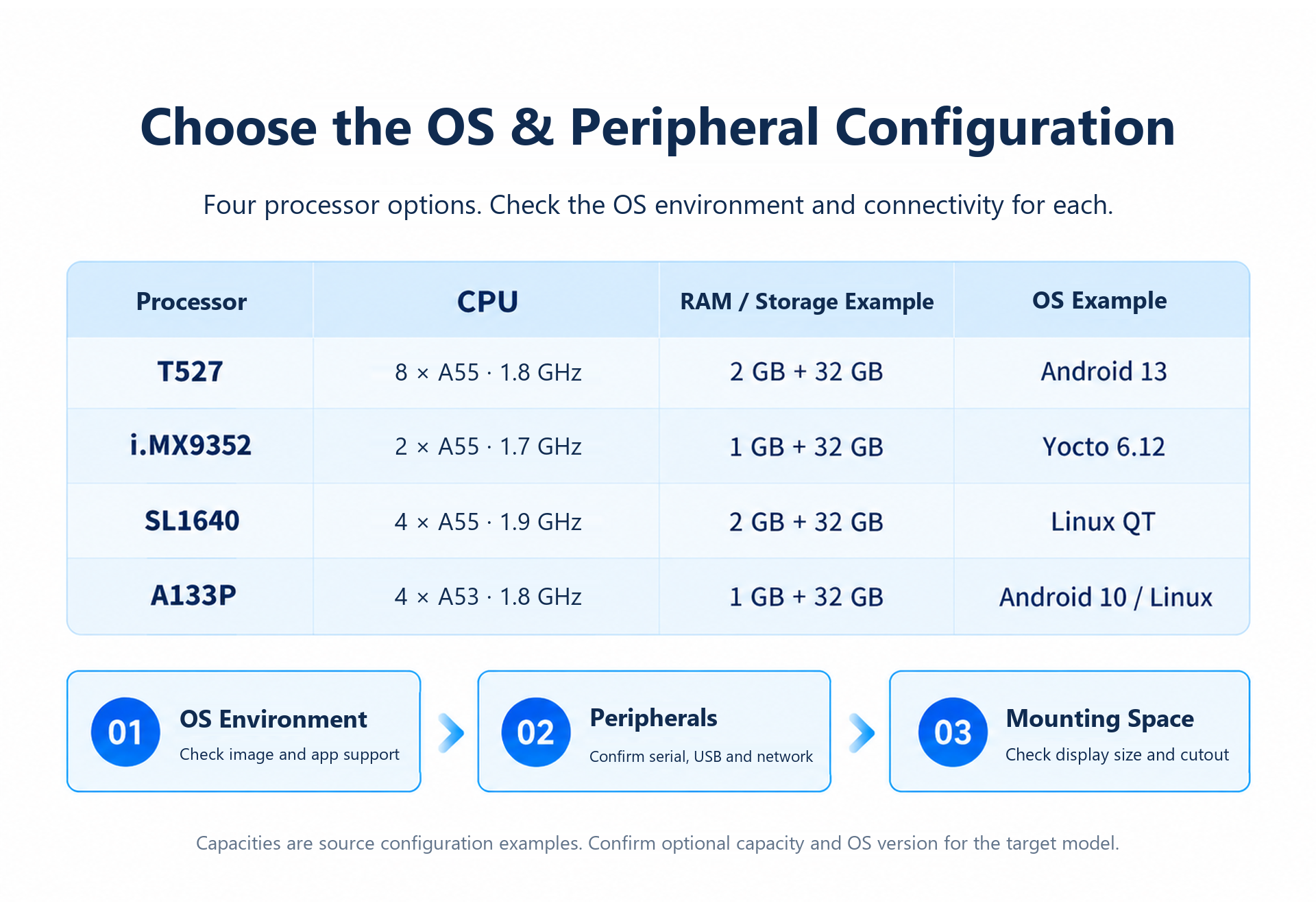

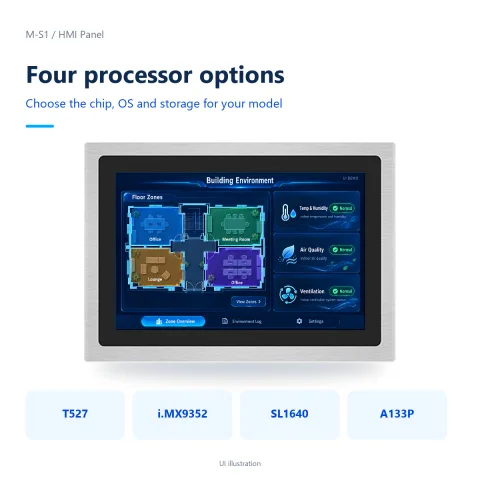

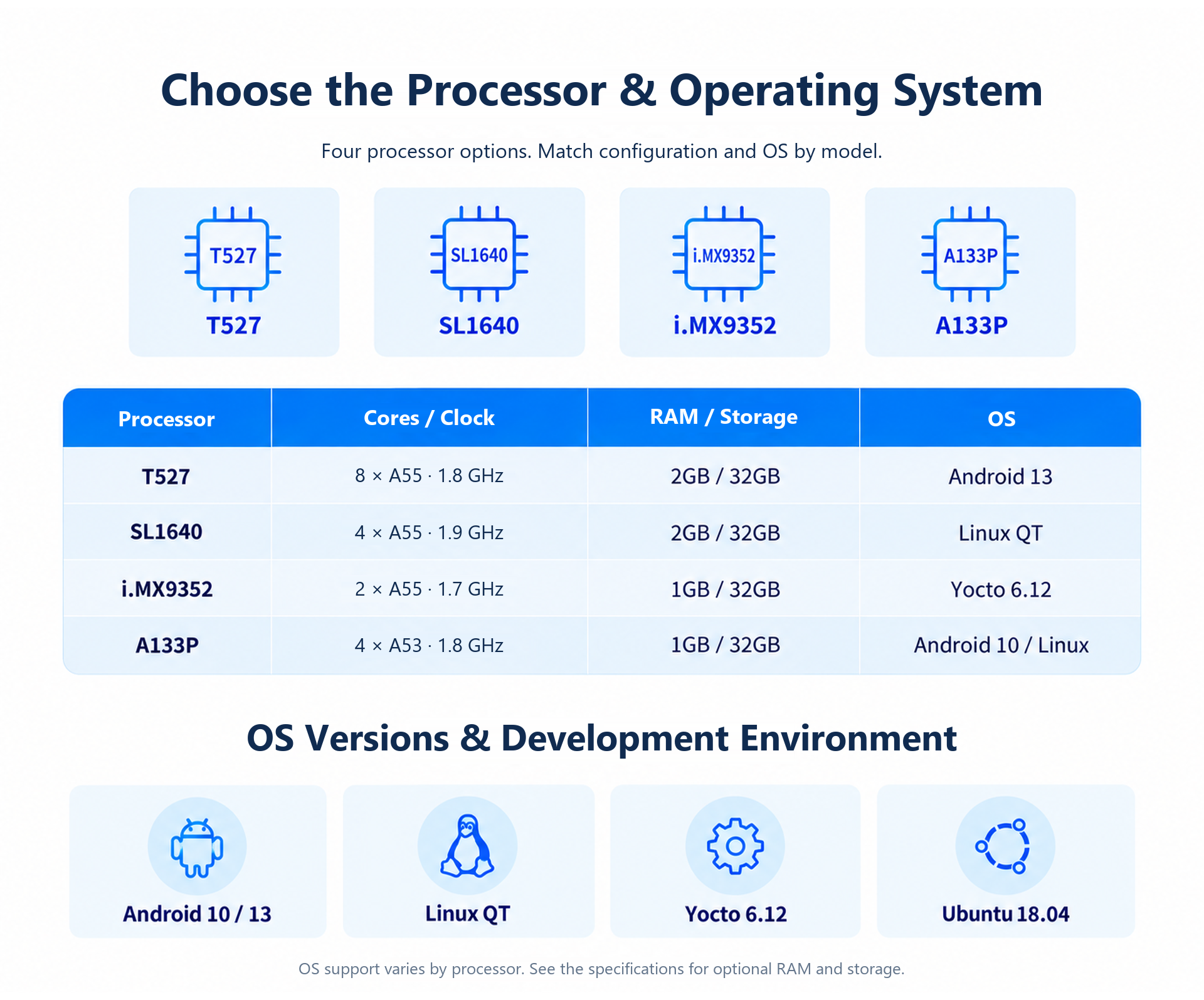

Processor configuration
| CPU | processor: Allwinner A133P; cores: 4; architecture: A53; clock_GHz: 1.8Not specified |
|---|---|
| RAM / storage example | RAM: 1; storage: 32 GBNot specified |
| OS example | Android 10/LinuxNot specified |

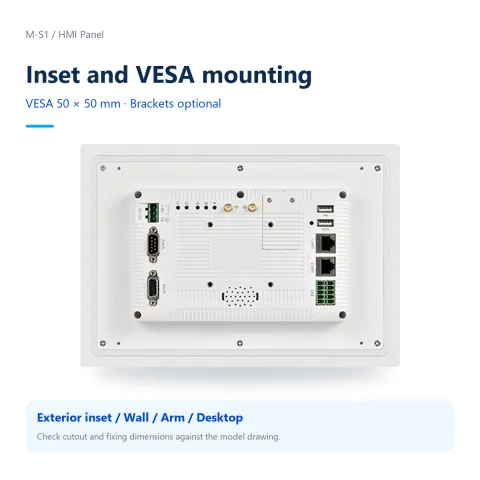

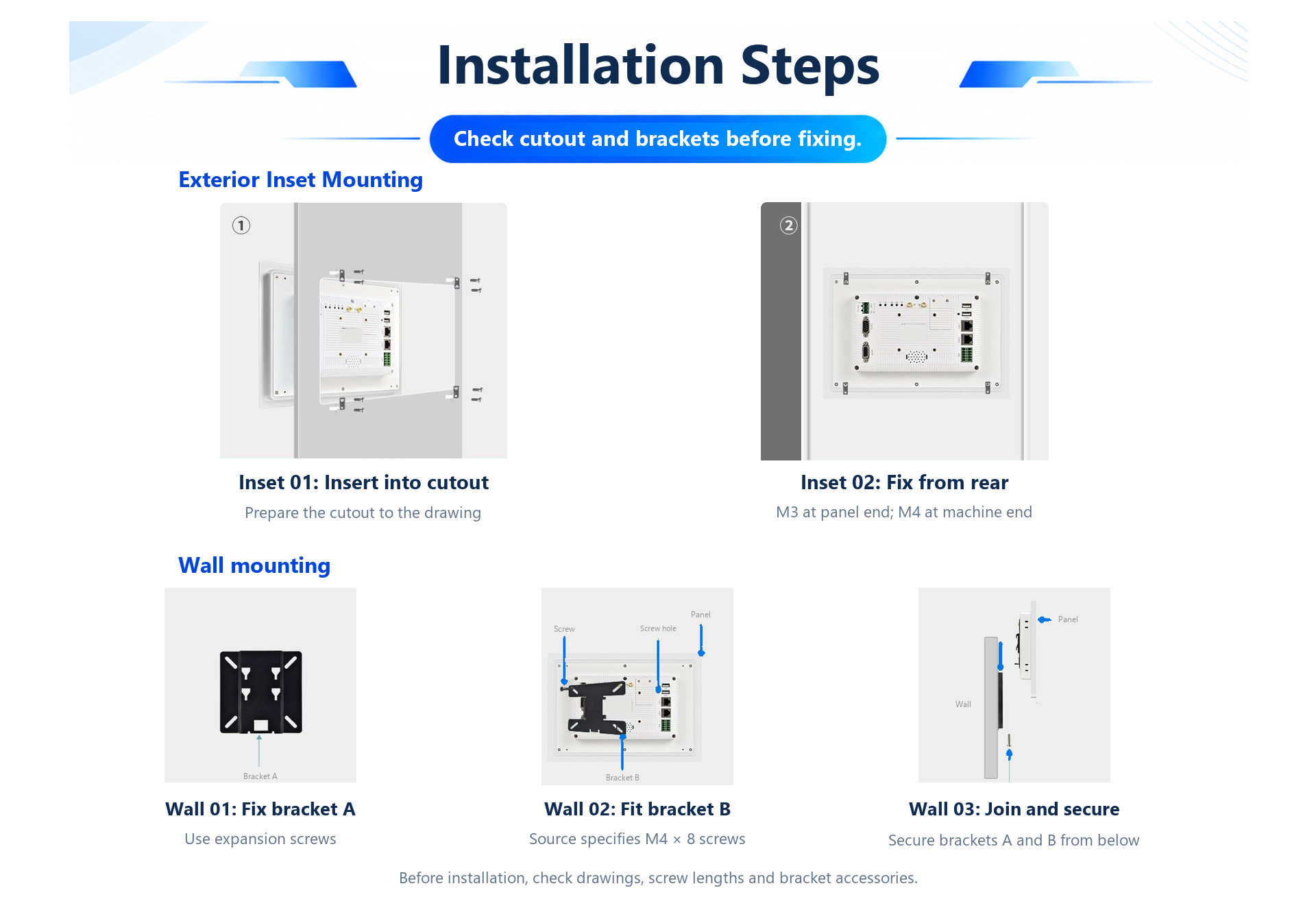

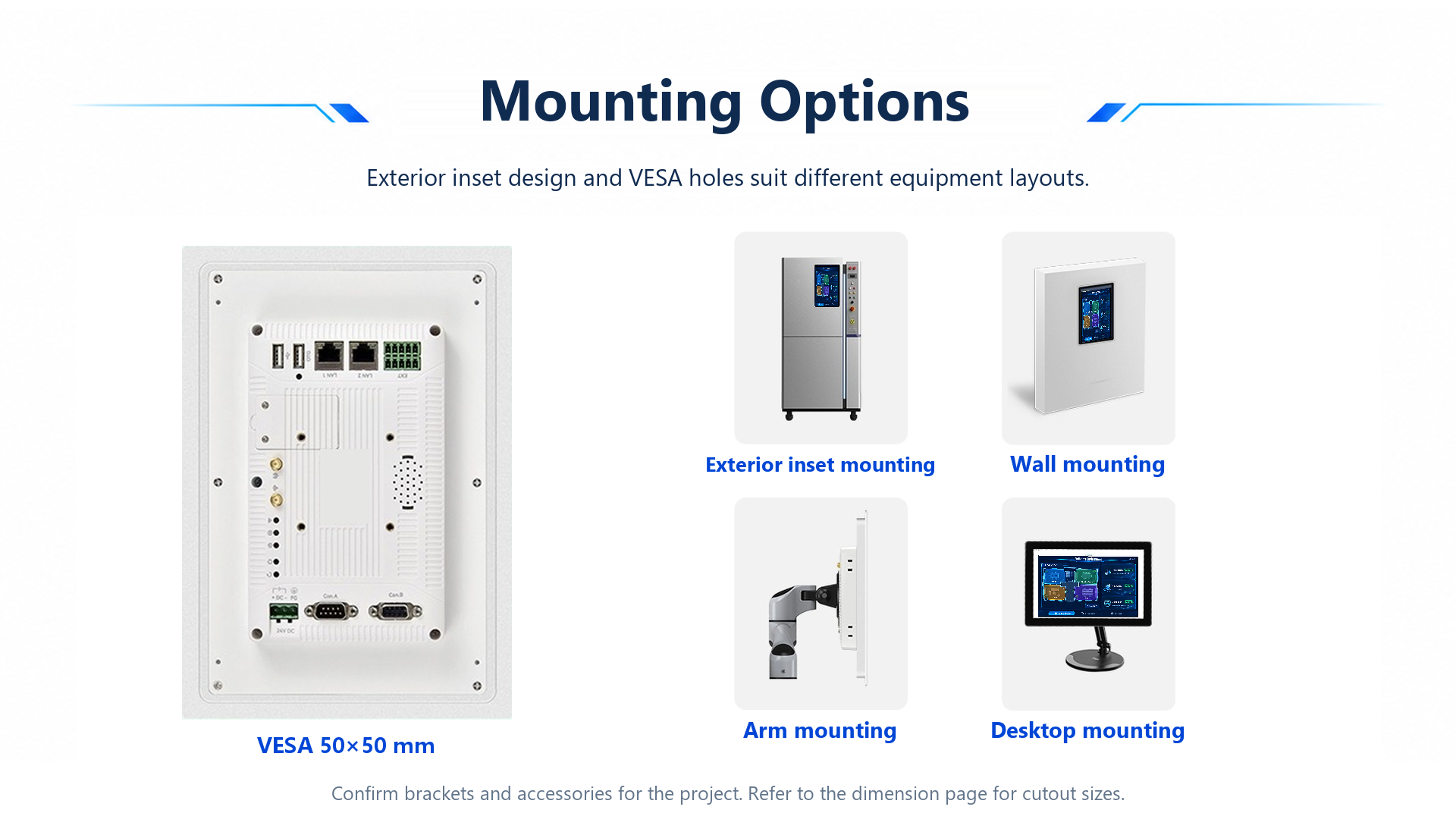

Installation
| Mounting methods | Exterior inset / Wall mount / Arm mount / Desktop mountNot specified |
|---|---|
| Mounting structure | VESA; landscape / portraitNot specified |
| Exterior inset fixing | screen_screw: M3; machine_screw: M4Not specified |
| Wall-mount fixing | M4×8Brackets A / B optional |

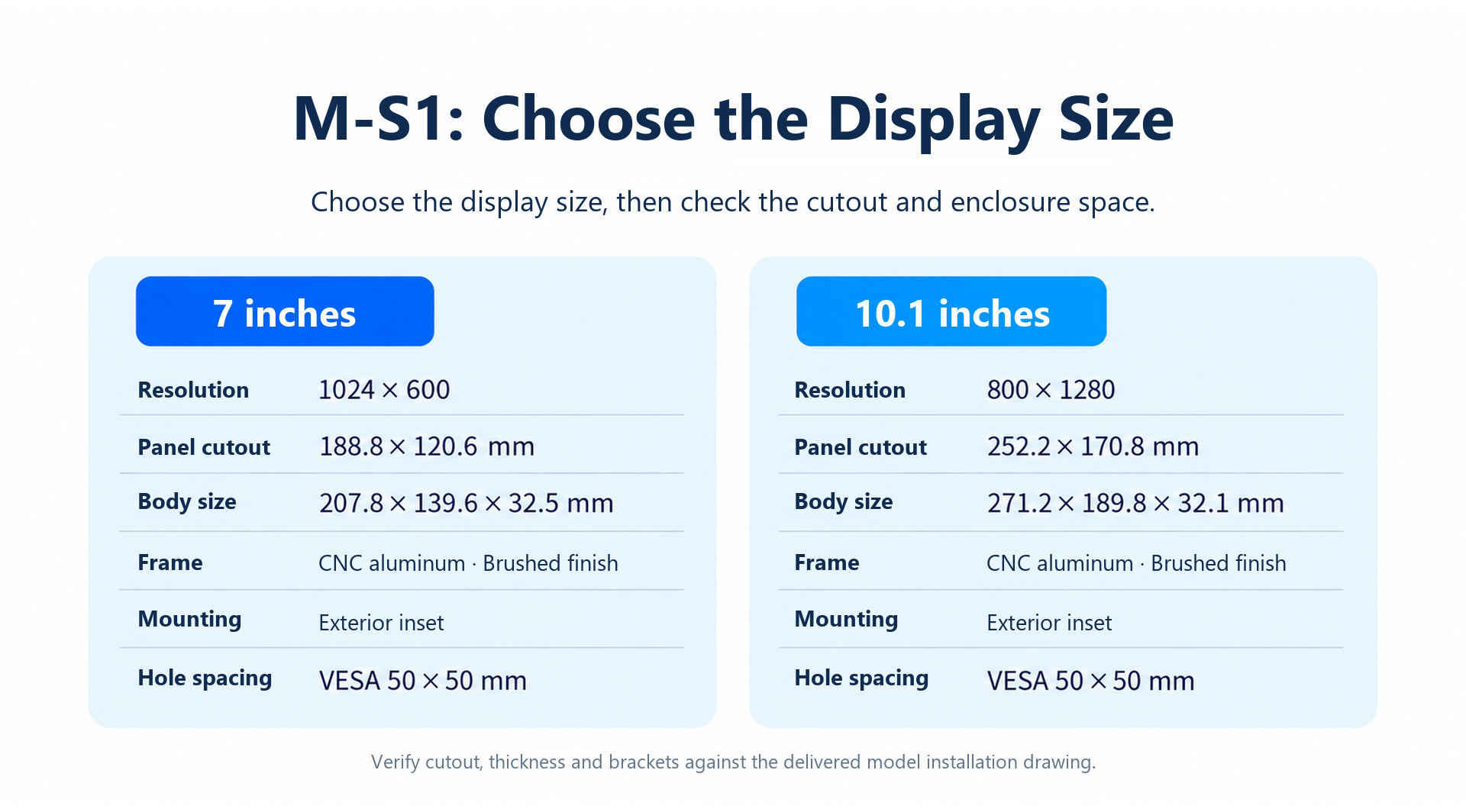

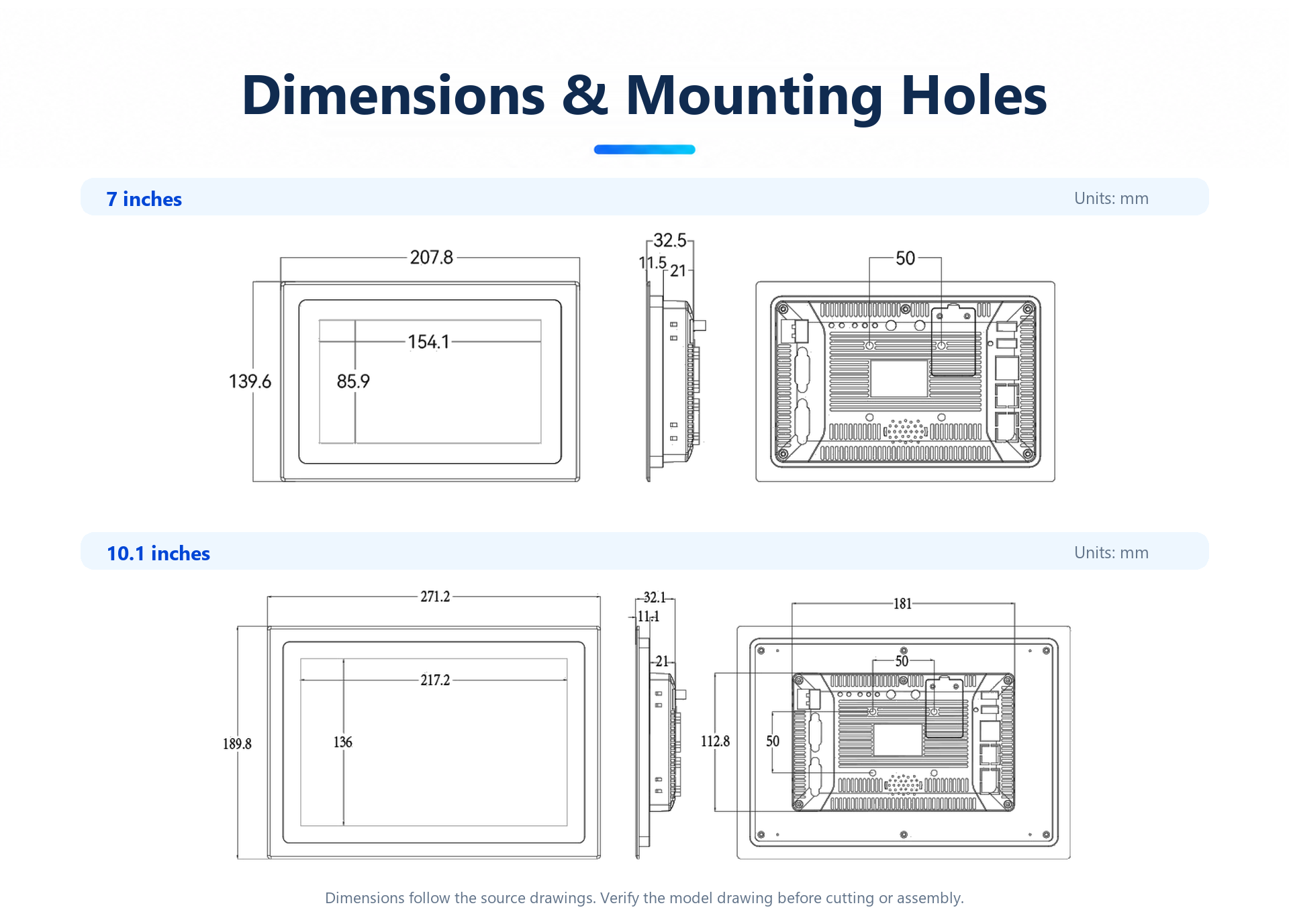

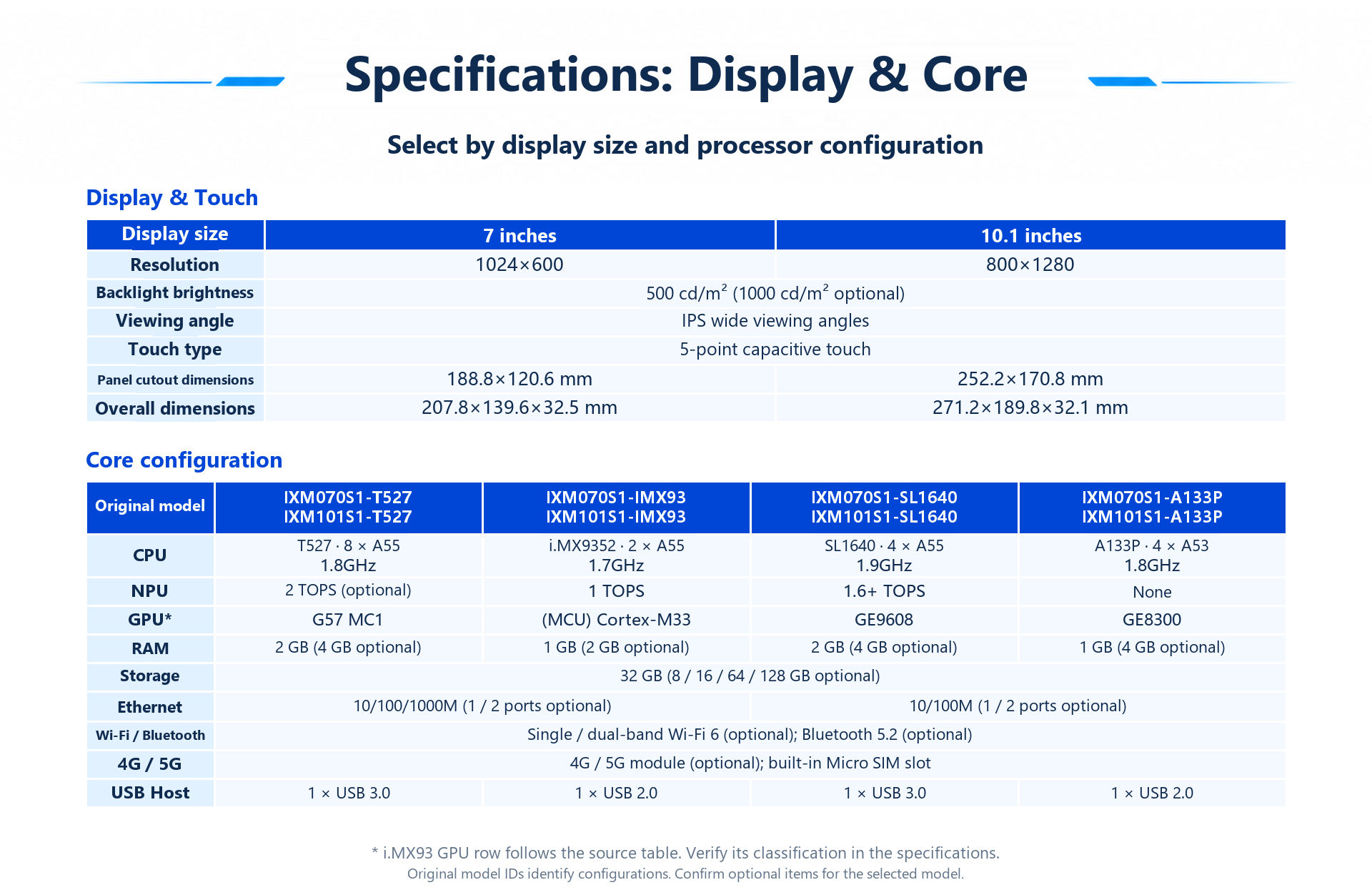

Display & mechanical specifications
| Display size | 7 inchesNot specified |
|---|---|
| Resolution | 1024×600 pixelsNot specified |
| Panel cutout dimensions | 188.8×120.6 mmNot specified |
| Overall dimensions | 207.8×139.6×32.5 mmNot specified |
Display & touch specifications
| Backlight brightness | 500 cd/m²1000 optional |
|---|---|
| Viewing angle | IPSNot specified |
| Touch type | 5 pointsNot specified |
Core specifications
| CPU | processor: A133P; cores: 4; architecture: A53; clock_GHz: 1.8Not specified |
|---|---|
| GPU row in source table | GE8300Not specified |
| RAM | 1 GBDefault capacity in source table; bracketed capacities optional |
| Storage | 32 GBOther capacities optional |
| Ethernet | 10 / 100 Mbps1 or 2 ports optional |
Interfaces and systems
| USB Host | 1 channelsStandard quantity; USB version depends on CPU configuration |
|---|---|
| USB OTG | 1 channelsNot specified |
| Android systems | Android 10Not specified |
| Linux systems | Ubuntu 18.04/Linux QTNot specified |

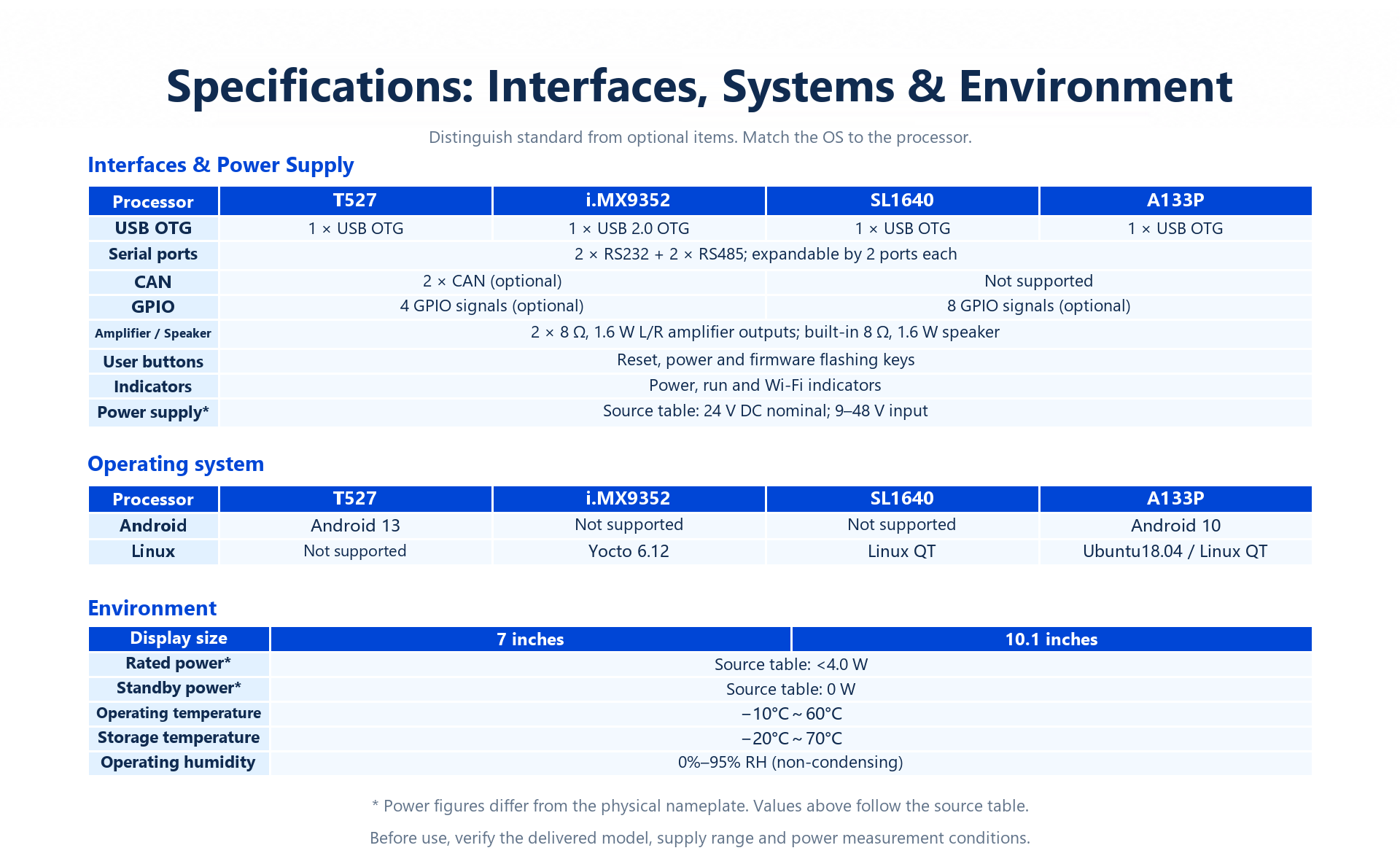

Interfaces and power supply
| Serial ports | RS232: 2; RS485: 2 channelsExpansion counted separately |
|---|---|
| CAN | falseNot supported |
| GPIO | 8 channelsOptional |
Environmental specifications
| Operating temperature | -10 – 60 ℃Not specified |
|---|---|
| Storage temperature | -20 – 70 ℃Not specified |
| Operating humidity | 0 – 95 %Not specified |
AYM070S1-IMX93
Product
| Series | M-S1Not specified |
|---|---|
| Size variant | 7 / 10.1 inchesNot specified |
Hero selling points
| Frame material | Aluminum alloyNot specified |
|---|---|
| Serial port count | RS232: 2; RS485: 2Not specified |
| Cable exit direction | Perpendicular cable exitNot specified |
Structure
| Front-frame thickness | 2.3 mmNot specified |
|---|---|
| Frame manufacturing process | CNC aluminum alloyNot specified |
| Surface finish | Brushed finishNot specified |
Power protection
| Protection component | VaristorNot specified |
|---|
Construction and environment
| Cable exit direction | Perpendicular cable exitNot specified |
|---|---|
| Glass thickness | 1.8 mmNot specified |
| Operating temperature | -10 – 60 ℃Not specified |
Display and touch
| Standard brightness | 500 cd/m²Standard |
|---|---|
| High-brightness option | 1000 cd/m²Optional |
| Glass options | AG anti-glareOptional |
| Bonding method | Full bondingNot specified |
Rear interfaces
| Serial ports | RS232: 2; RS485: 2 channelsStandard |
|---|---|
| USB Host | 1 channelsStandard |
| USB OTG | 1 channelsStandard |
| Ethernet ports | 1 / 2 channelsOptional |
| WiFi | WiFi6Optional |
| Cellular network | 4GOptional |
| Serial port expansion | additional_RS232: 2; additional_RS485: 2 channelsExpansion counted separately |
| Concealed card slot | Micro SIMConfiguration dependent |
Processor configuration
| CPU | processor: NXP i.MX9352; cores: 2; architecture: A55; clock_GHz: 1.7Not specified |
|---|---|
| RAM / storage example | RAM: 1; storage: 32 GBNot specified |
| OS example | LinuxNot specified |
Installation
| Mounting methods | Exterior inset / Wall mount / Arm mount / Desktop mountNot specified |
|---|---|
| Mounting structure | VESA; landscape / portraitNot specified |
| Exterior inset fixing | screen_screw: M3; machine_screw: M4Not specified |
| Wall-mount fixing | M4×8Brackets A / B optional |
Display & mechanical specifications
| Display size | 7 inchesNot specified |
|---|---|
| Resolution | 1024×600 pixelsNot specified |
| Panel cutout dimensions | 188.8×120.6 mmNot specified |
| Overall dimensions | 207.8×139.6×32.5 mmNot specified |
Display & touch specifications
| Backlight brightness | 500 cd/m²1000 optional |
|---|---|
| Viewing angle | IPSNot specified |
| Touch type | 5 pointsNot specified |
Core specifications
| CPU | processor: i.MX9352; cores: 2; architecture: A55; clock_GHz: 1.7Not specified |
|---|---|
| NPU | 1 TOPSNot specified |
| RAM | 1 GBDefault capacity in source table; bracketed capacities optional |
| Storage | 32 GBOther capacities optional |
| Ethernet | 10 / 100 / 1000 Mbps1 or 2 ports optional |
Interfaces and systems
| USB Host | 1 channelsStandard quantity; USB version depends on CPU configuration |
|---|---|
| USB OTG | 1 channelsNot specified |
| Android systems | falseNot specified |
Interfaces and power supply
| Serial ports | RS232: 2; RS485: 2 channelsExpansion counted separately |
|---|---|
| CAN | 2 channelsOptional |
| GPIO | 4 channelsOptional |
Environmental specifications
| Operating temperature | -10 – 60 ℃Not specified |
|---|---|
| Storage temperature | -20 – 70 ℃Not specified |
| Operating humidity | 0 – 95 %Not specified |
AYM070S1-SL1640
Product
| Series | M-S1Not specified |
|---|---|
| Size variant | 7 / 10.1 inchesNot specified |
Hero selling points
| Frame material | Aluminum alloyNot specified |
|---|---|
| Serial port count | RS232: 2; RS485: 2Not specified |
| Cable exit direction | Perpendicular cable exitNot specified |
Structure
| Front-frame thickness | 2.3 mmNot specified |
|---|---|
| Frame manufacturing process | CNC aluminum alloyNot specified |
| Surface finish | Brushed finishNot specified |
Power protection
| Protection component | VaristorNot specified |
|---|
Construction and environment
| Cable exit direction | Perpendicular cable exitNot specified |
|---|---|
| Glass thickness | 1.8 mmNot specified |
| Operating temperature | -10 – 60 ℃Not specified |
Display and touch
| Standard brightness | 500 cd/m²Standard |
|---|---|
| High-brightness option | 1000 cd/m²Optional |
| Glass options | AG anti-glareOptional |
| Bonding method | Full bondingNot specified |
Rear interfaces
| Serial ports | RS232: 2; RS485: 2 channelsStandard |
|---|---|
| USB Host | 1 channelsStandard |
| USB OTG | 1 channelsStandard |
| Ethernet ports | 1 / 2 channelsOptional |
| WiFi | WiFi6Optional |
| Cellular network | 4GOptional |
| Serial port expansion | additional_RS232: 2; additional_RS485: 2 channelsExpansion counted separately |
| Concealed card slot | Micro SIMConfiguration dependent |
Processor configuration
| CPU | processor: Synaptics SL1640; cores: 4; architecture: A55; clock_GHz: 1.9Not specified |
|---|---|
| RAM / storage example | RAM: 2; storage: 32 GBNot specified |
| OS example | LinuxNot specified |
Installation
| Mounting methods | Exterior inset / Wall mount / Arm mount / Desktop mountNot specified |
|---|---|
| Mounting structure | VESA; landscape / portraitNot specified |
| Exterior inset fixing | screen_screw: M3; machine_screw: M4Not specified |
| Wall-mount fixing | M4×8Brackets A / B optional |
Display & mechanical specifications
| Display size | 7 inchesNot specified |
|---|---|
| Resolution | 1024×600 pixelsNot specified |
| Panel cutout dimensions | 188.8×120.6 mmNot specified |
| Overall dimensions | 207.8×139.6×32.5 mmNot specified |
Display & touch specifications
| Backlight brightness | 500 cd/m²1000 optional |
|---|---|
| Viewing angle | IPSNot specified |
| Touch type | 5 pointsNot specified |
Core specifications
| CPU | processor: SL1640; cores: 4; architecture: A55; clock_GHz: 1.9Not specified |
|---|---|
| NPU | 1.6+ TOPSNot specified |
| GPU row in source table | GE9608Not specified |
| RAM | 2 GBDefault capacity in source table; bracketed capacities optional |
| Storage | 32 GBOther capacities optional |
| Ethernet | 10 / 100 Mbps1 or 2 ports optional |
Interfaces and systems
| USB Host | 1 channelsStandard quantity; USB version depends on CPU configuration |
|---|---|
| USB OTG | 1 channelsNot specified |
| Android systems | falseNot specified |
| Linux systems | Linux QTNot specified |
Interfaces and power supply
| Serial ports | RS232: 2; RS485: 2 channelsExpansion counted separately |
|---|---|
| CAN | falseNot supported |
| GPIO | 8 channelsOptional |
Environmental specifications
| Operating temperature | -10 – 60 ℃Not specified |
|---|---|
| Storage temperature | -20 – 70 ℃Not specified |
| Operating humidity | 0 – 95 %Not specified |
AYM070S1-T527
Product
| Series | M-S1Not specified |
|---|---|
| Size variant | 7 / 10.1 inchesNot specified |
Hero selling points
| Frame material | Aluminum alloyNot specified |
|---|---|
| Serial port count | RS232: 2; RS485: 2Not specified |
| Cable exit direction | Perpendicular cable exitNot specified |
Structure
| Front-frame thickness | 2.3 mmNot specified |
|---|---|
| Frame manufacturing process | CNC aluminum alloyNot specified |
| Surface finish | Brushed finishNot specified |
Power protection
| Protection component | VaristorNot specified |
|---|
Construction and environment
| Cable exit direction | Perpendicular cable exitNot specified |
|---|---|
| Glass thickness | 1.8 mmNot specified |
| Operating temperature | -10 – 60 ℃Not specified |
Display and touch
| Standard brightness | 500 cd/m²Standard |
|---|---|
| High-brightness option | 1000 cd/m²Optional |
| Glass options | AG anti-glareOptional |
| Bonding method | Full bondingNot specified |
Rear interfaces
| Serial ports | RS232: 2; RS485: 2 channelsStandard |
|---|---|
| USB Host | 1 channelsStandard |
| USB OTG | 1 channelsStandard |
| Ethernet ports | 1 / 2 channelsOptional |
| WiFi | WiFi6Optional |
| Cellular network | 4GOptional |
| Serial port expansion | additional_RS232: 2; additional_RS485: 2 channelsExpansion counted separately |
| Concealed card slot | Micro SIMConfiguration dependent |
Processor configuration
| CPU | processor: Allwinner T527; cores: 8; architecture: A55; clock_GHz: 1.8Not specified |
|---|---|
| RAM / storage example | RAM: 2; storage: 32 GBNot specified |
| OS example | Android 13Not specified |
Installation
| Mounting methods | Exterior inset / Wall mount / Arm mount / Desktop mountNot specified |
|---|---|
| Mounting structure | VESA; landscape / portraitNot specified |
| Exterior inset fixing | screen_screw: M3; machine_screw: M4Not specified |
| Wall-mount fixing | M4×8Brackets A / B optional |
Display & mechanical specifications
| Display size | 7 inchesNot specified |
|---|---|
| Resolution | 1024×600 pixelsNot specified |
| Panel cutout dimensions | 188.8×120.6 mmNot specified |
| Overall dimensions | 207.8×139.6×32.5 mmNot specified |
Display & touch specifications
| Backlight brightness | 500 cd/m²1000 optional |
|---|---|
| Viewing angle | IPSNot specified |
| Touch type | 5 pointsNot specified |
Core specifications
| CPU | processor: T527; cores: 8; architecture: A55; clock_GHz: 1.8Not specified |
|---|---|
| NPU | 2 TOPSOptional |
| GPU row in source table | G57 MC1Not specified |
| RAM | 2 GBDefault capacity in source table; bracketed capacities optional |
| Storage | 32 GBOther capacities optional |
| Ethernet | 10 / 100 / 1000 Mbps1 or 2 ports optional |
Interfaces and systems
| USB Host | 1 channelsStandard quantity; USB version depends on CPU configuration |
|---|---|
| USB OTG | 1 channelsNot specified |
| Android systems | Android 13Not specified |
| Linux systems | falseNot specified |
Interfaces and power supply
| Serial ports | RS232: 2; RS485: 2 channelsExpansion counted separately |
|---|---|
| CAN | 2 channelsOptional |
| GPIO | 4 channelsOptional |
Environmental specifications
| Operating temperature | -10 – 60 ℃Not specified |
|---|---|
| Storage temperature | -20 – 70 ℃Not specified |
| Operating humidity | 0 – 95 %Not specified |
M-S1-070

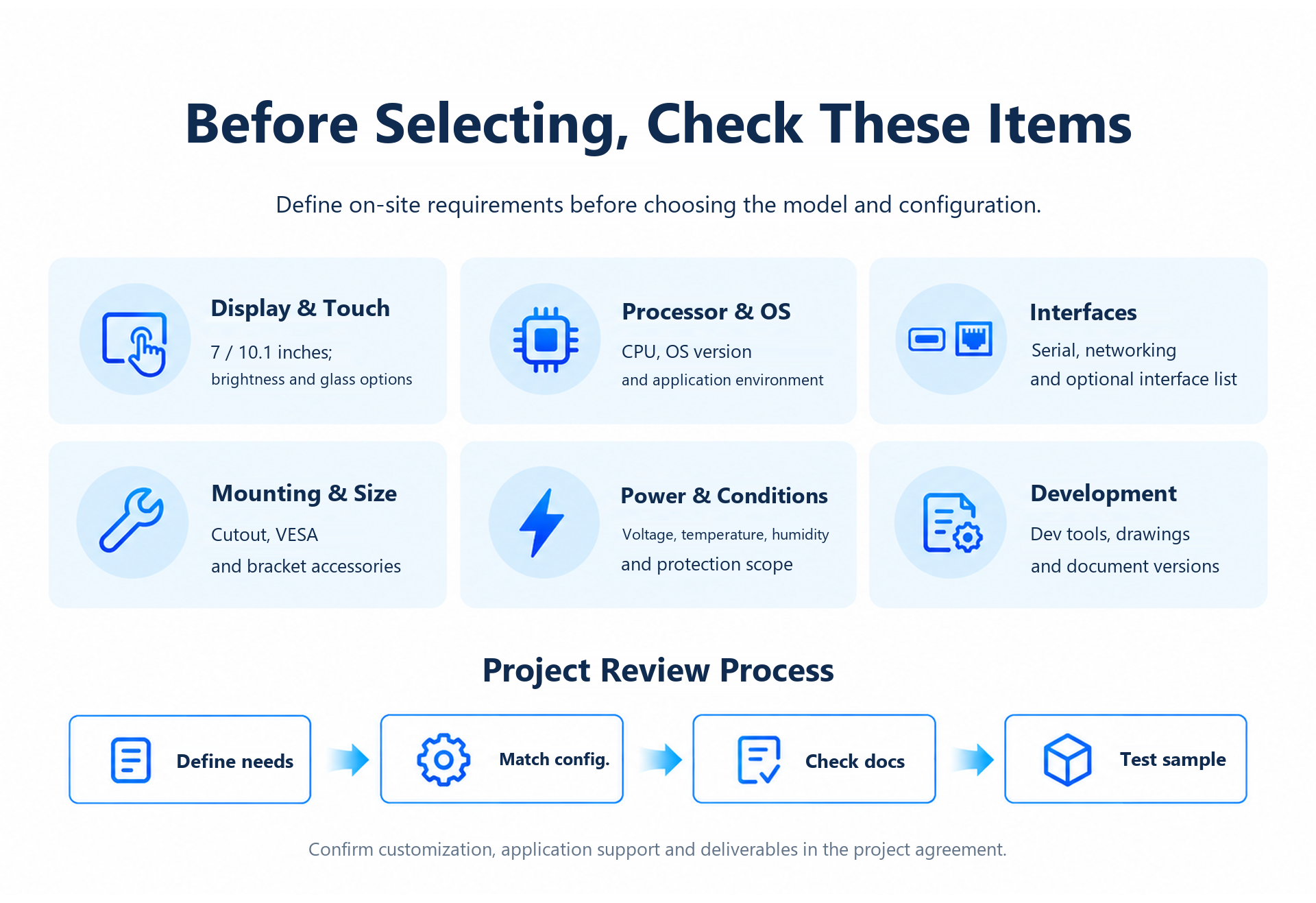

Let’s find your configuration
Tell us about your application, quantities and interface requirements. We will help confirm a suitable configuration.
Thank you — your inquiry was sent.
We'll get back to you shortly. For urgent matters, reach us via WhatsApp or email.
