Interactive P Series

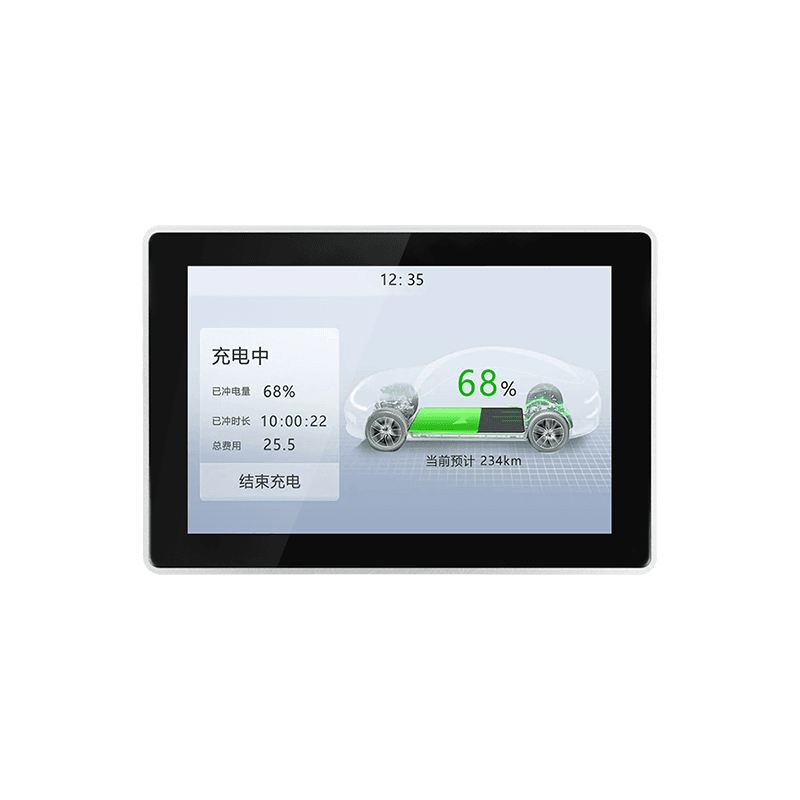

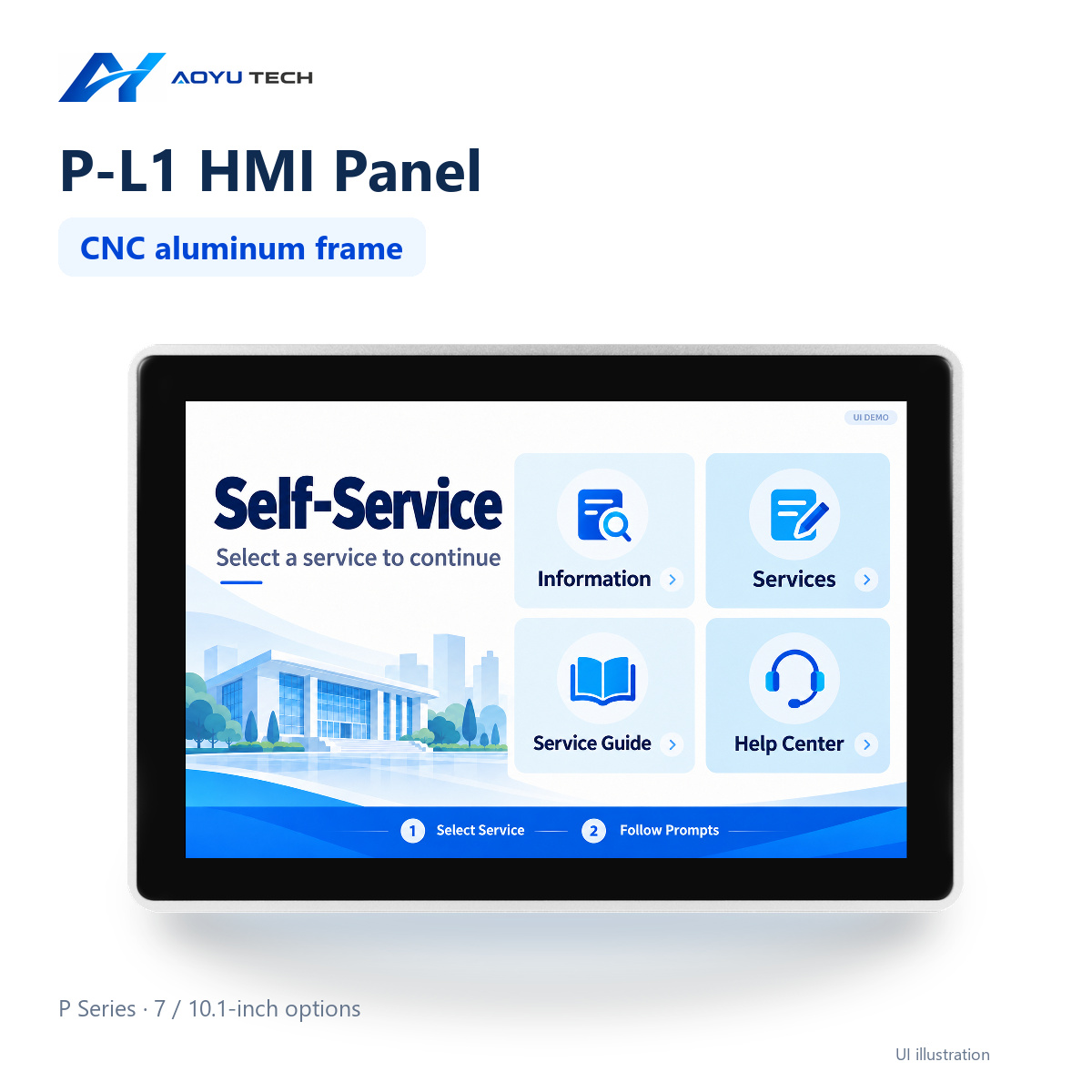

P-L1-070 7-inch HMI Panel
7 inches · Interactive P Series
- Display size
- 7 inches
- Resolution
- 1024 × 600 px
- Brightness
- 500 cd/m²
- Optional brightness
- 1000 cd/m²
- Display size
- 7 inches
- Resolution
- 1024 × 600 px
- Brightness
- 500 cd/m²
- Optional brightness
- 1000 cd/m²
- Display size
- 7 inches
- Resolution
- 1024 × 600 px
- Brightness
- 500 cd/m²
- Optional brightness
- 1000 cd/m²
- Display size
- 7 inches
- Resolution
- 1024 × 600 px
- Brightness
- 500 cd/m²
- Optional brightness
- 1000 cd/m²
Specifications follow the selected configuration. Contact us to confirm options and delivery requirements.
Built around your requirements
Explore the display, enclosure and configuration-specific capabilities of this HMI panel.

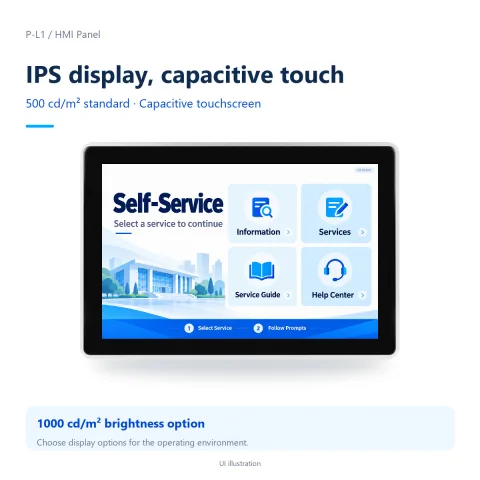

Display size: 7 inches. Resolution: 1024 × 600 px. Brightness: 500 cd/m². Optional brightness: 1000 cd/m²
- Display size: 7 inches
- Resolution: 1024 × 600 px
- Brightness: 500 cd/m²
- Optional brightness: 1000 cd/m²

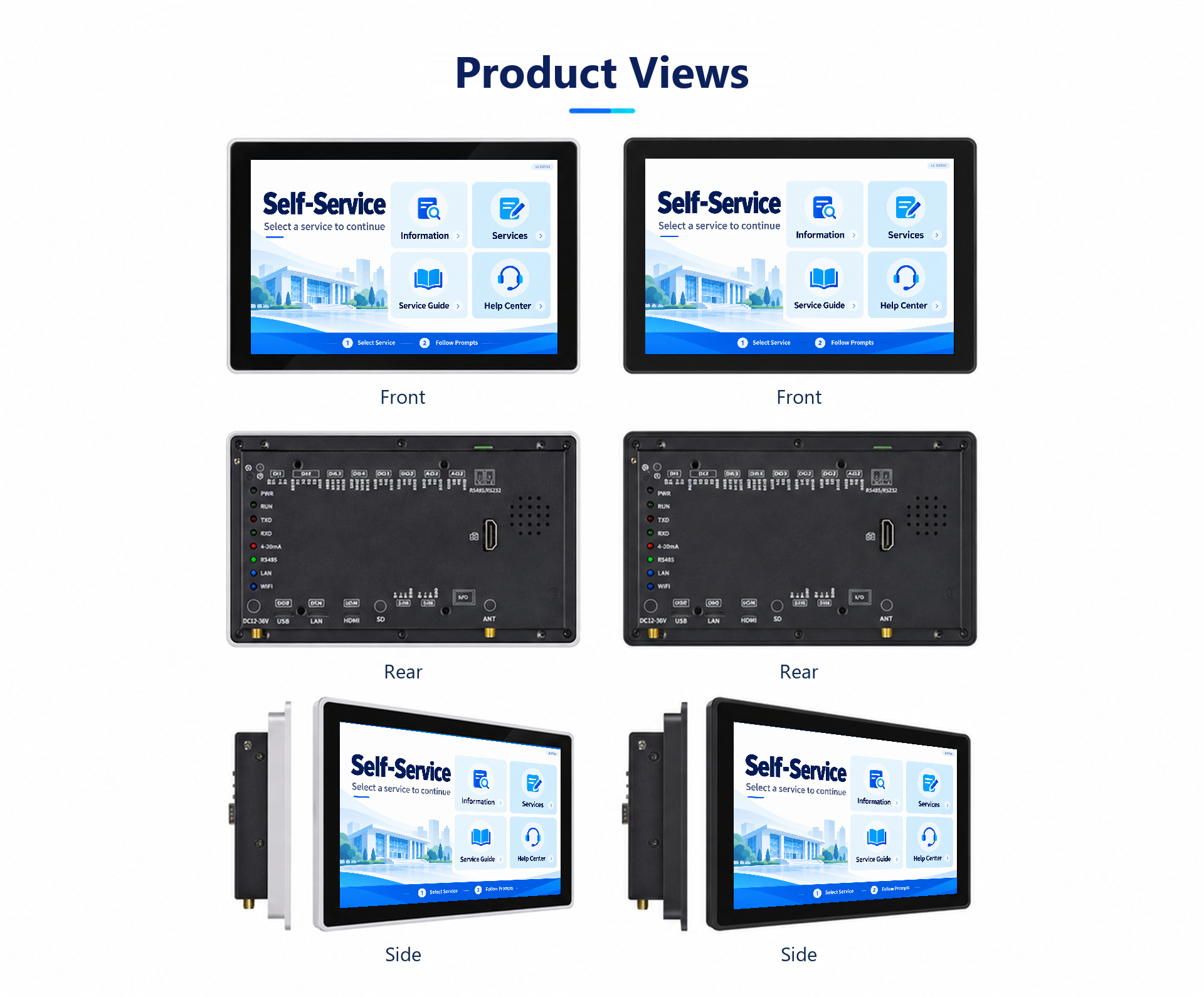

A closer look
Complete series material may show other sizes or configurations. Refer to the selected model specifications and confirmed delivery configuration. Select an image to enlarge it.

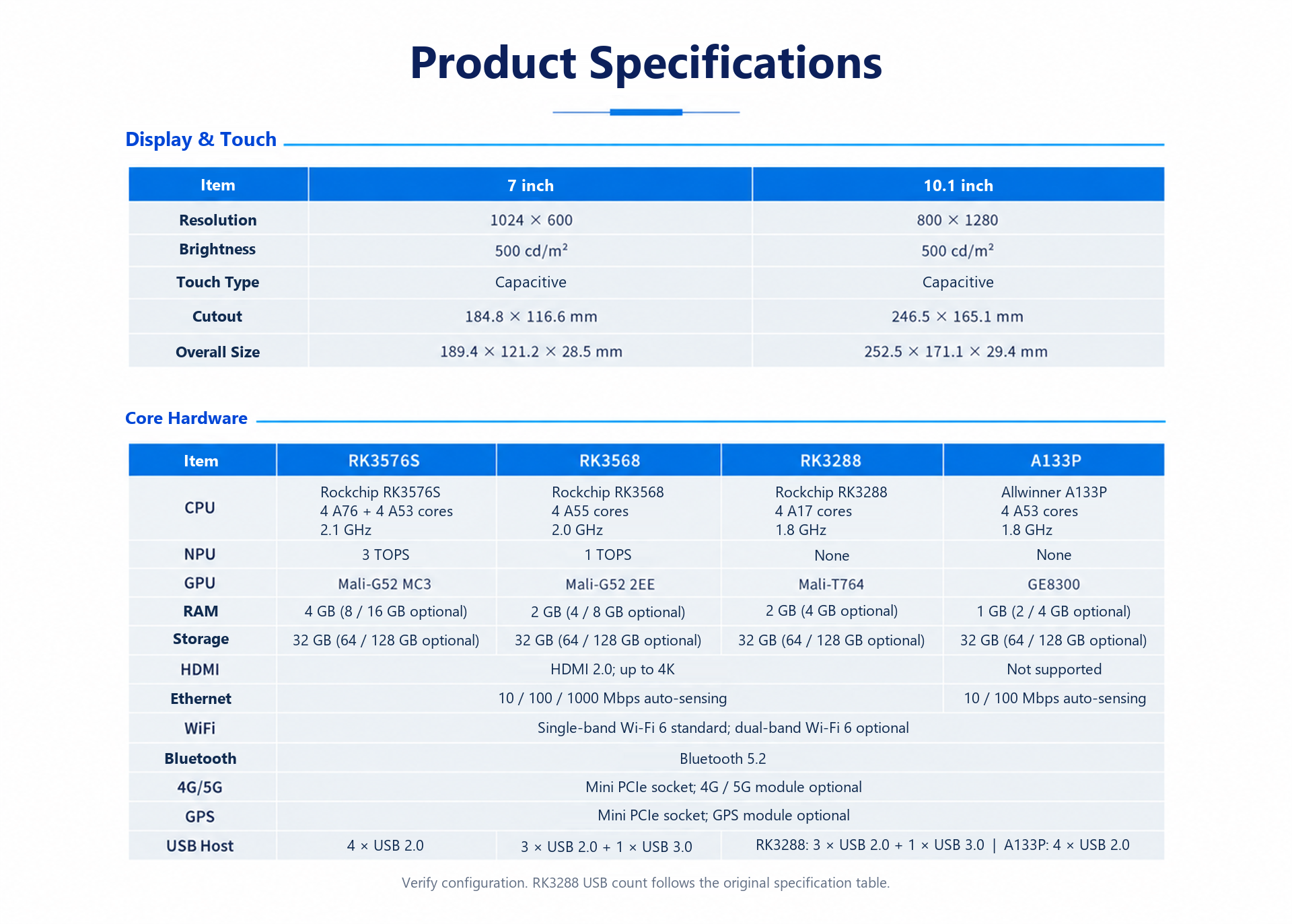

Configuration & specifications
Only source-checked specifications with a clear model association are listed. Contact us for details that are not listed.
AYP070L1-A133P
General
| Display size | 7 inchesstandard |
|---|---|
| Resolution | 1024 × 600 pxstandard |
| Brightness | 500 cd/m²standard |
| Optional brightness | 1000 cd/m²optional |

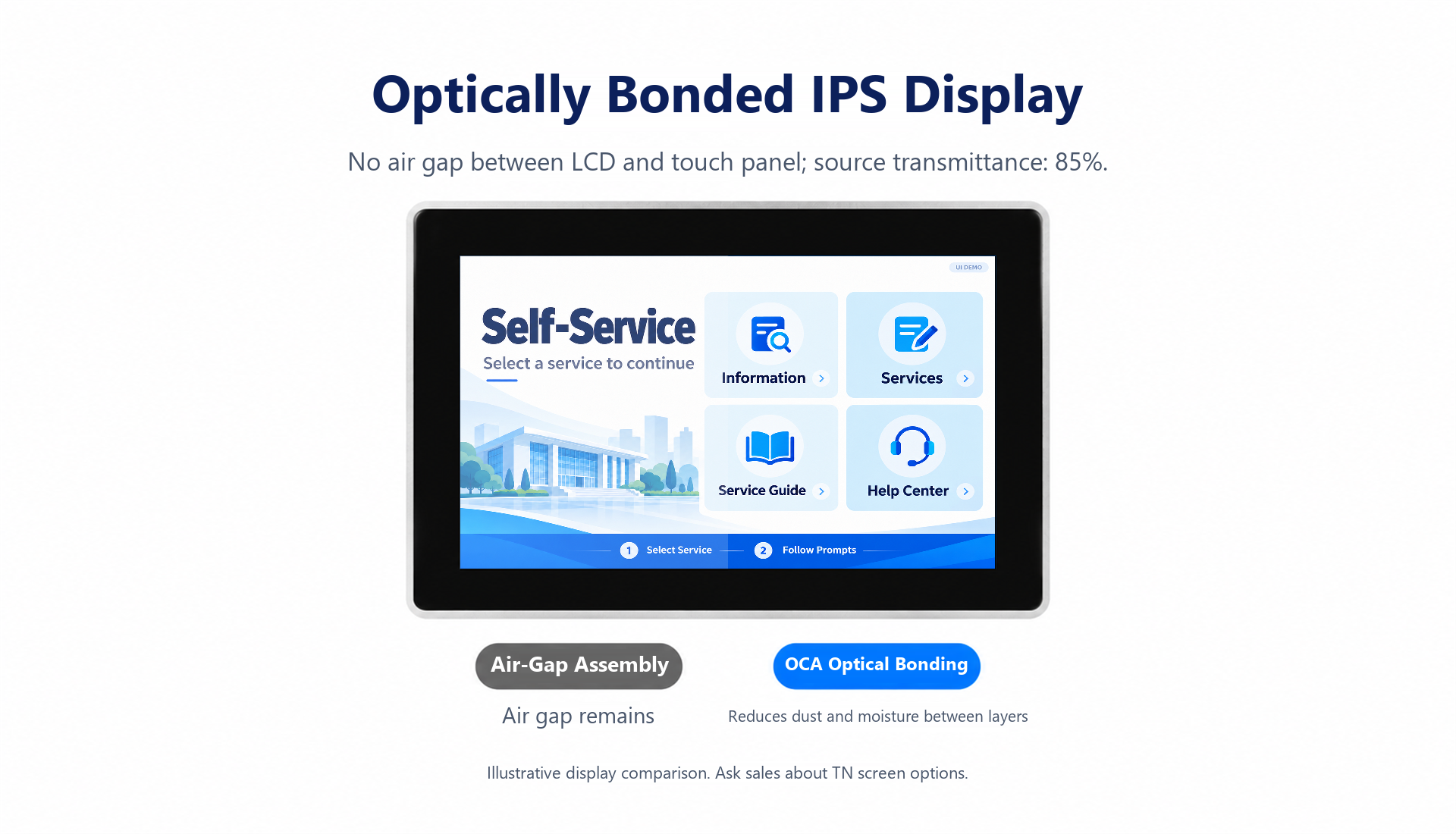

| Viewing angle | IPSstandard |
| Touch type | Capacitivestandard |

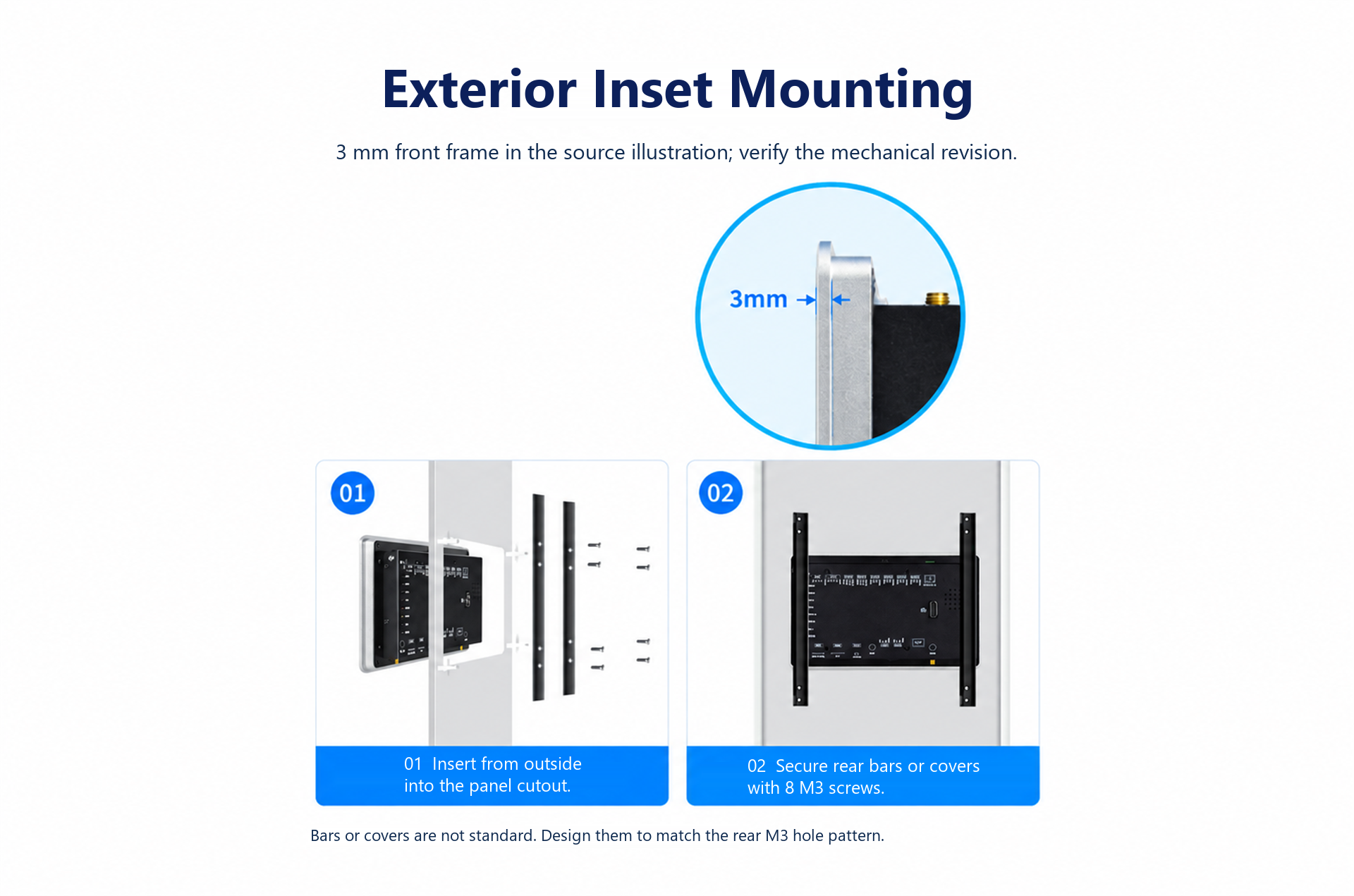

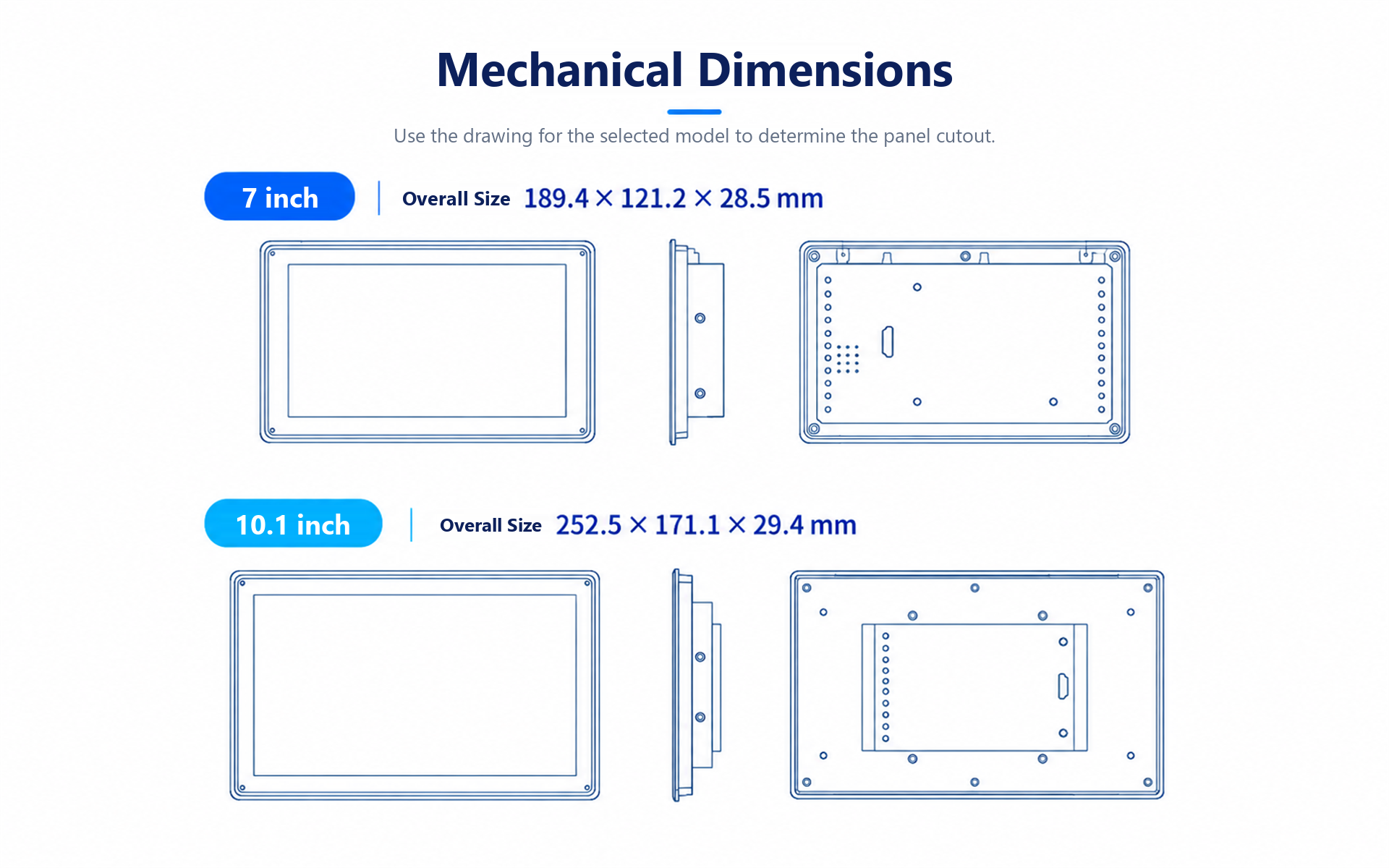

| Panel cutout | 184.8 × 116.6 mmstandard |

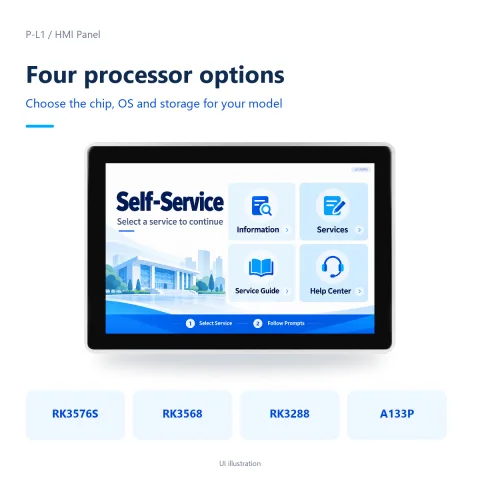

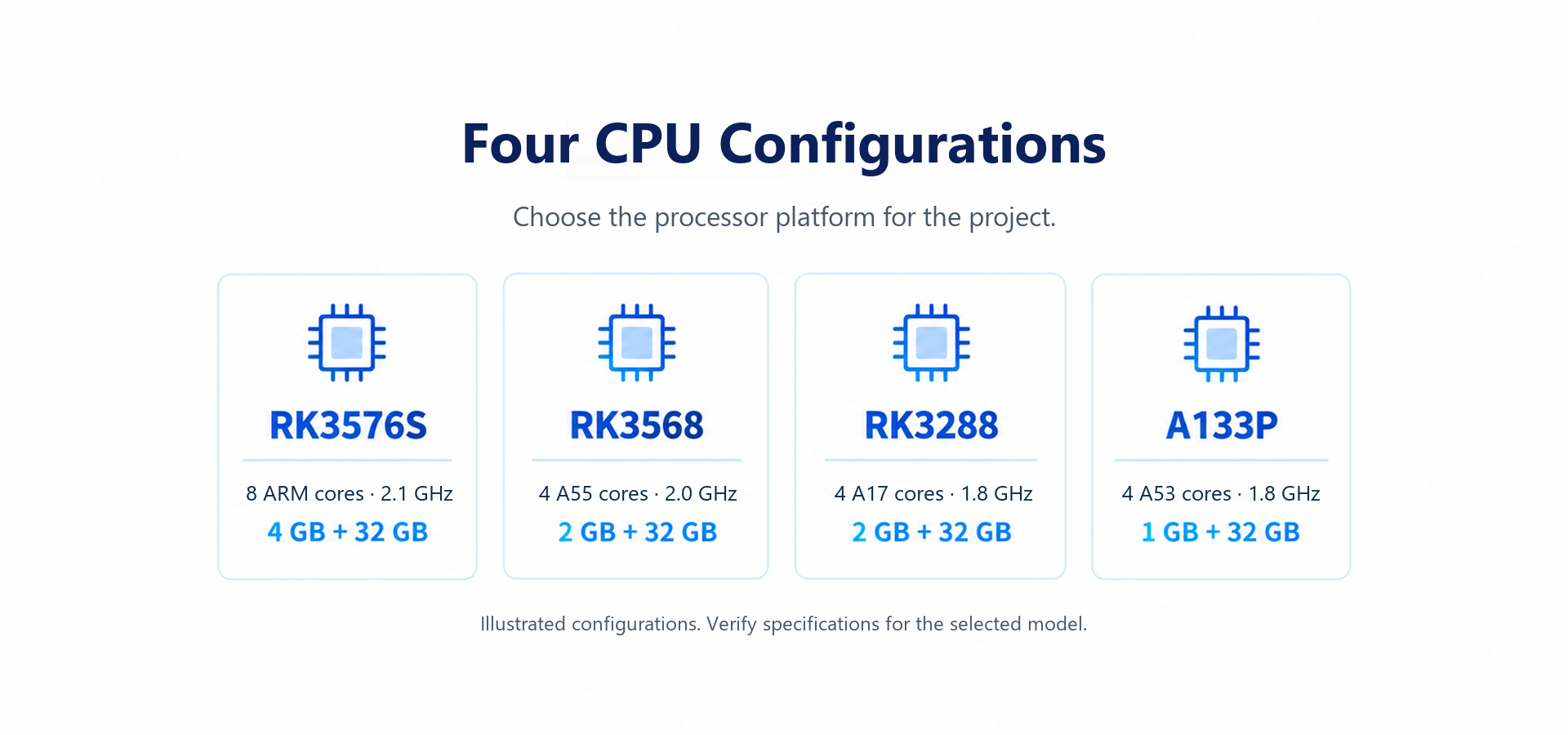

| CPU | A133Pstandard |
| CPU cores | 4 Cortex-A53standard |
| CPU frequency | 1.8 GHzstandard |
| GPU | GE8300standard |
| RAM options | 2 / 4 GBoptional |
| Storage | 32 GBstandard |
| Storage options | 64 / 128 GBoptional |
| Ethernet | 10 / 100 Mbpsstandard |
| HDMI | Not supportednot supported |
| Wi-Fi | Single-band Wi-Fi 6; dual-band optionalstandard; optional dual-band |
| Bluetooth | BT 5.2standard |
| Cellular | Mini PCIe; optional 4G/5G moduleoptional |
| GPS | Mini PCIe; optional GPS moduleoptional |

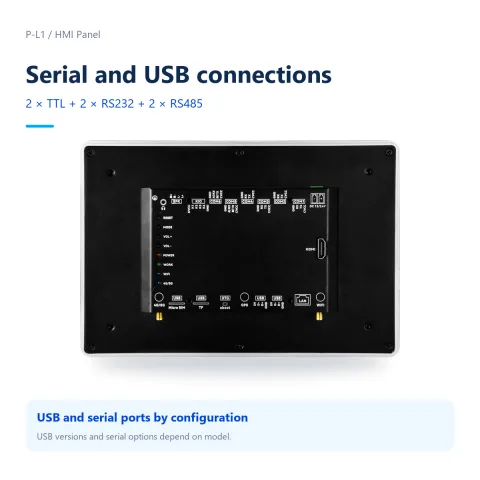

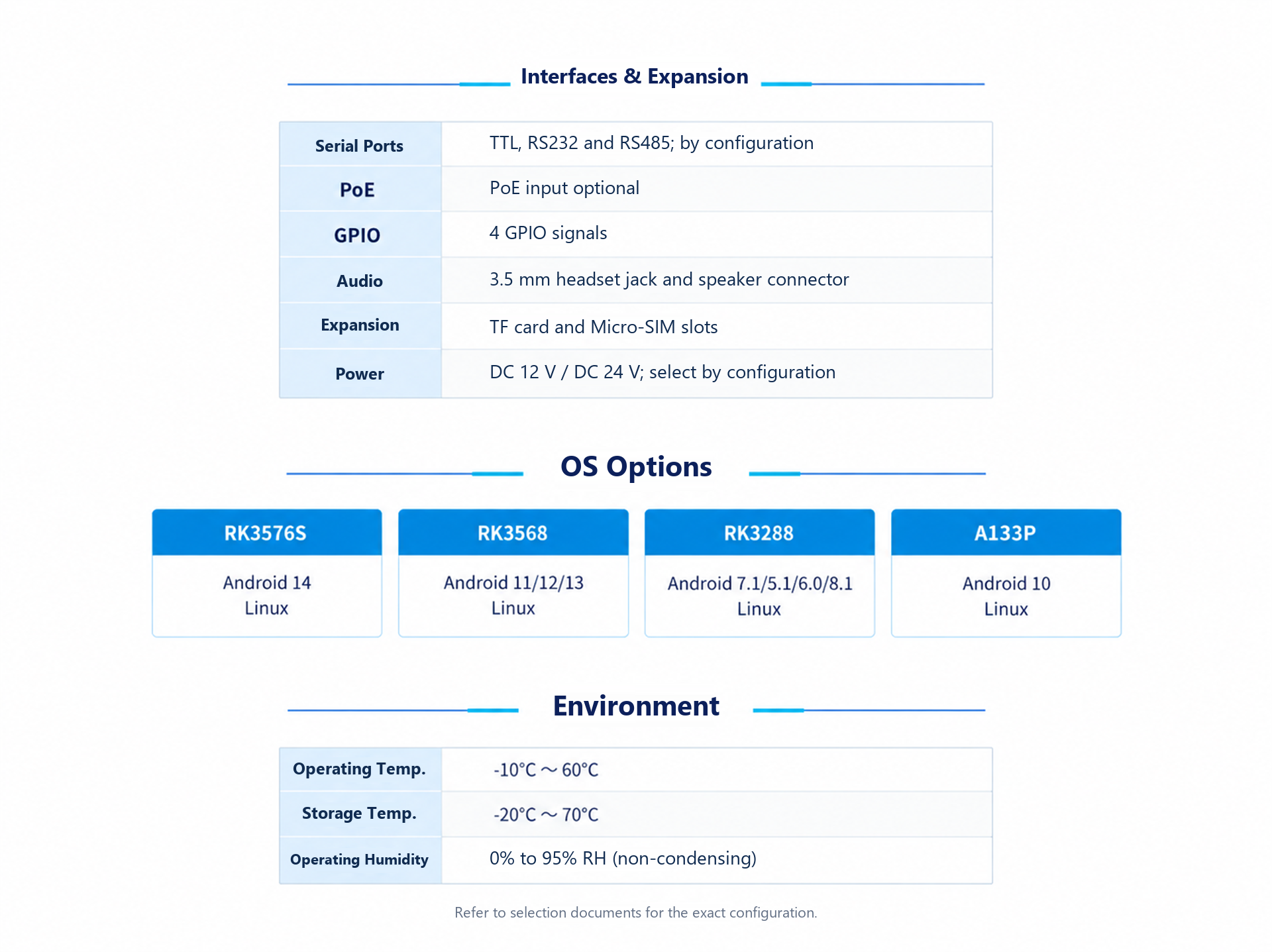

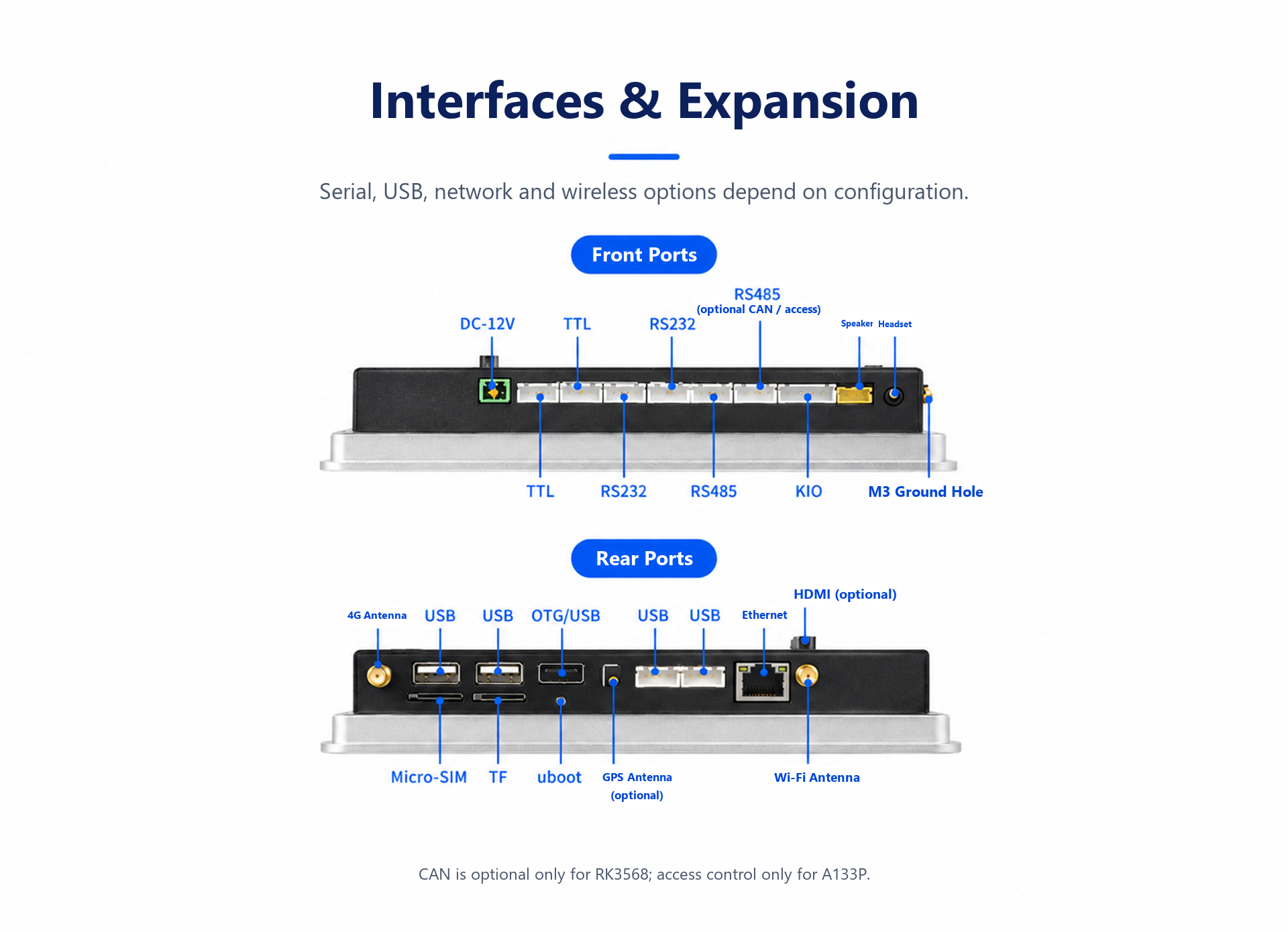

| Serial ports | TTL: 2; RS232: 2; RS485: 2; options: 6 TTL / 4 RS232 portsstandard; optional alternatives |
| CAN | RK3568 only, COM6optional |
| Access control | A133P only, COM6optional |
| PoE | 1 PoE IN; 7-inch: PoE or speaker; 10.1-inch: both selectableoptional |
| GPIO | 4 signalsstandard |
| Headset | 4-pole 3.5 mm headset jackstandard |
| Speaker outputs | Dual external 8 ohm / 3 W outputs; built-in speaker optionalstandard; optional built-in |
| TF card | 256 GBstandard |
| SIM | 1 Micro-SIM slotstandard |

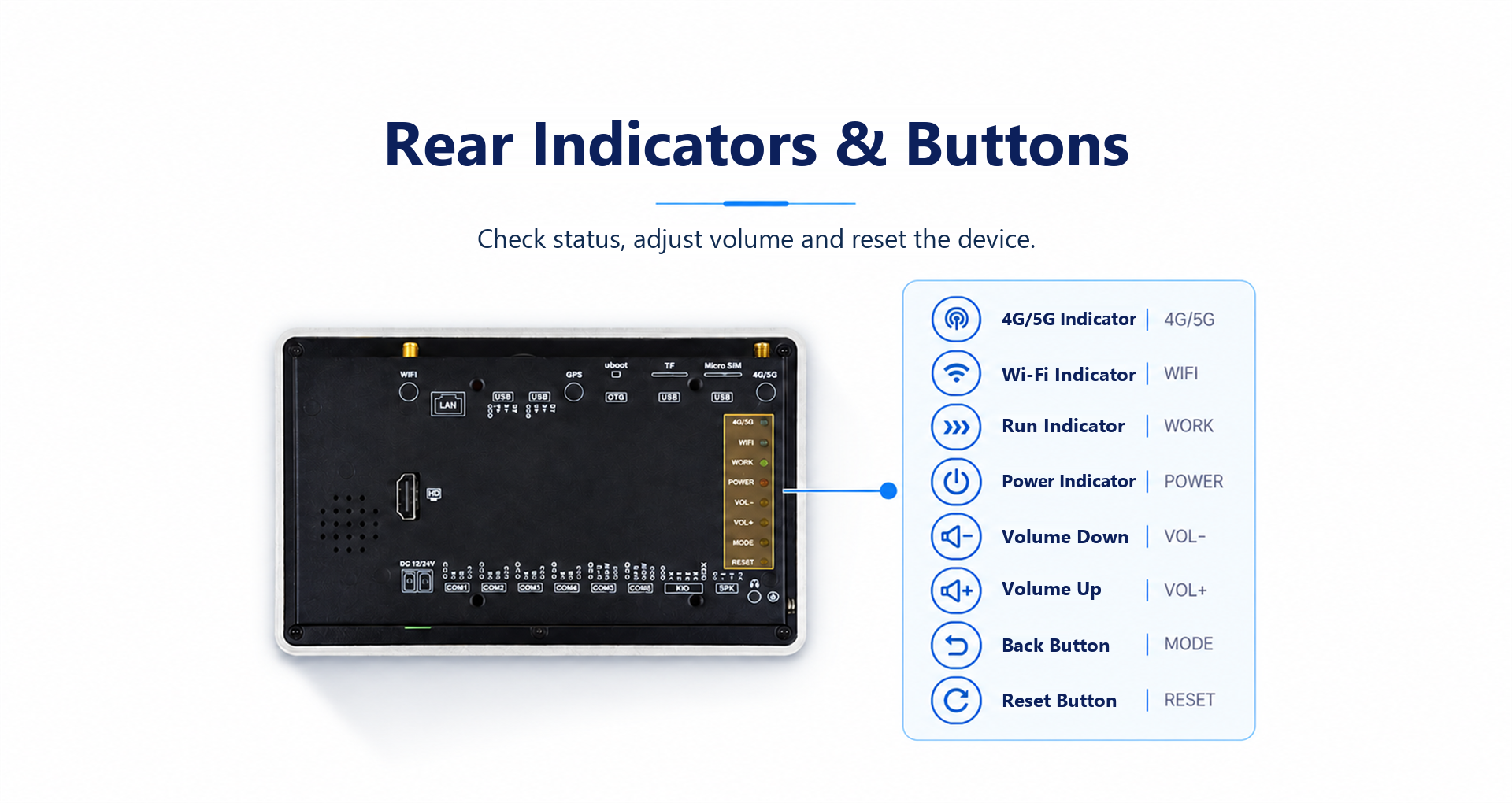

| Buttons | Reset / Back / Volume + / Volume - / Flashingstandard |
| LED indicators | Power / Run / Wi-Fi / 4G/5Gstandard |
| Power supply | DC 12 V ±5% or DC 24 V ±5%; verify configurationby model |
| Operating temperature | -10 – 60 °Cstandard |
| Storage temperature | -20 – 70 °Cstandard |
| Operating humidity | 0 – 95 % RHstandard |
| Humidity condition | Non-condensingstandard |
| Touch points | 5 pointsstandard |
| Touch restrictions | Some models lack touch; glove suitability must be verifiedstandard |

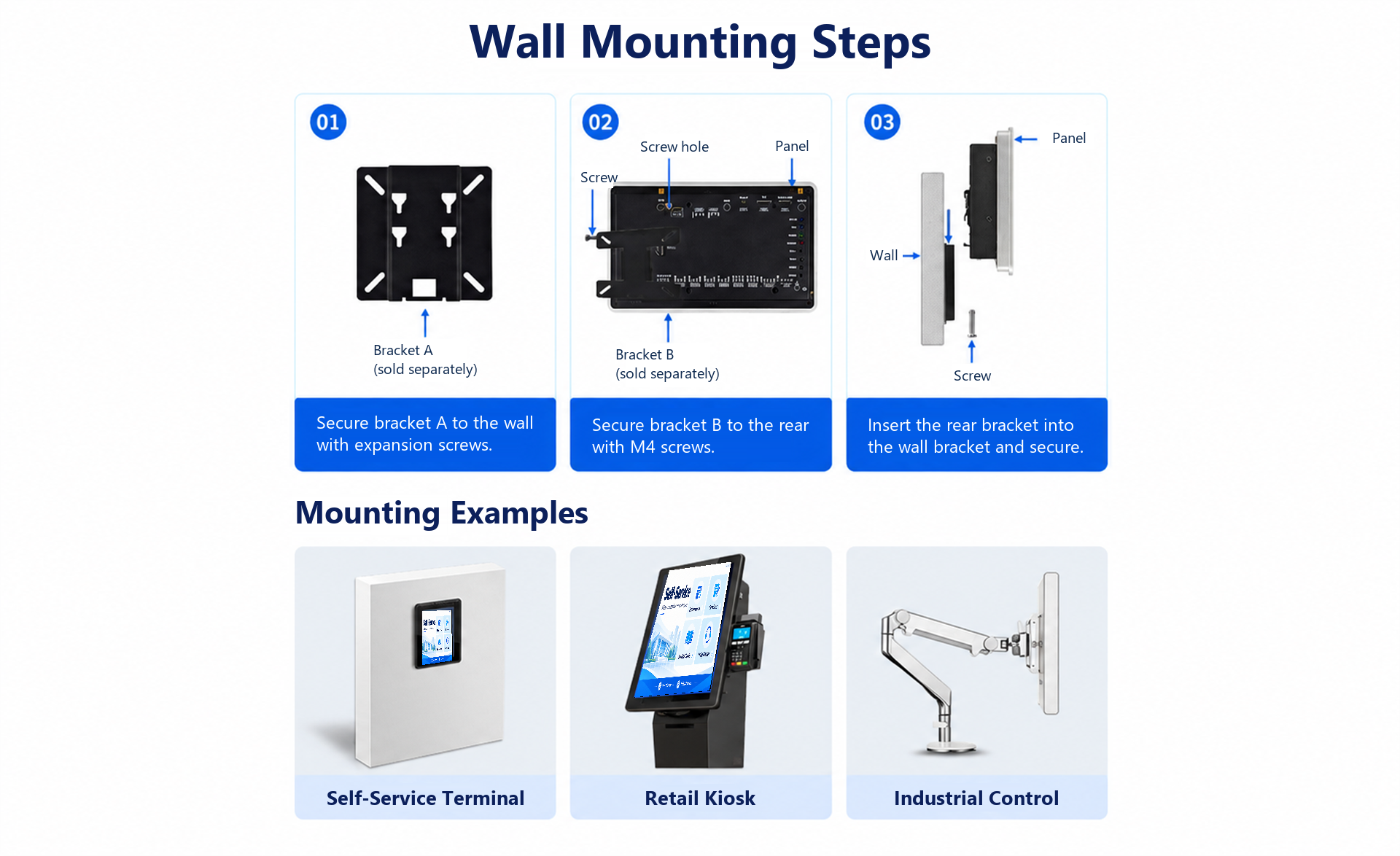

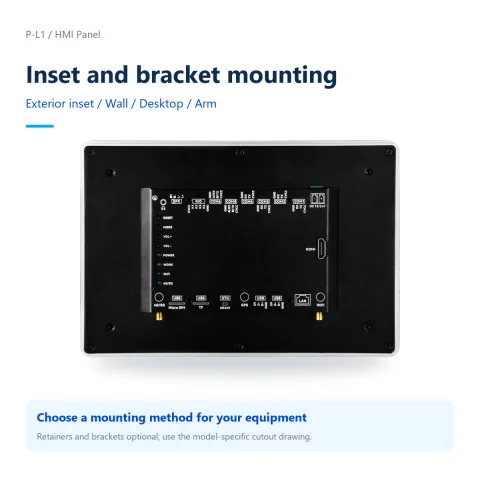

| VESA mounting spacing | 75 × 75 mmstandard |
| Rear mounting threaded holes | count: 4; thread: M3standard |
| Rear mounting threaded holes | count: 4; thread: M4standard |
AYP070L1-RK3288
General
| Display size | 7 inchesstandard |
|---|---|
| Resolution | 1024 × 600 pxstandard |
| Brightness | 500 cd/m²standard |
| Optional brightness | 1000 cd/m²optional |
| Viewing angle | IPSstandard |
| Touch type | Capacitivestandard |
| Panel cutout | 184.8 × 116.6 mmstandard |
| CPU | RK3288standard |
| CPU cores | 4 Cortex-A17standard |
| CPU frequency | 1.8 GHzstandard |
| GPU | Mali-T764standard |
| RAM options | 4 GBoptional |
| Storage | 32 GBstandard |
| Storage options | 64 / 128 GBoptional |
| Ethernet | 10 / 100 / 1000 Mbpsstandard |

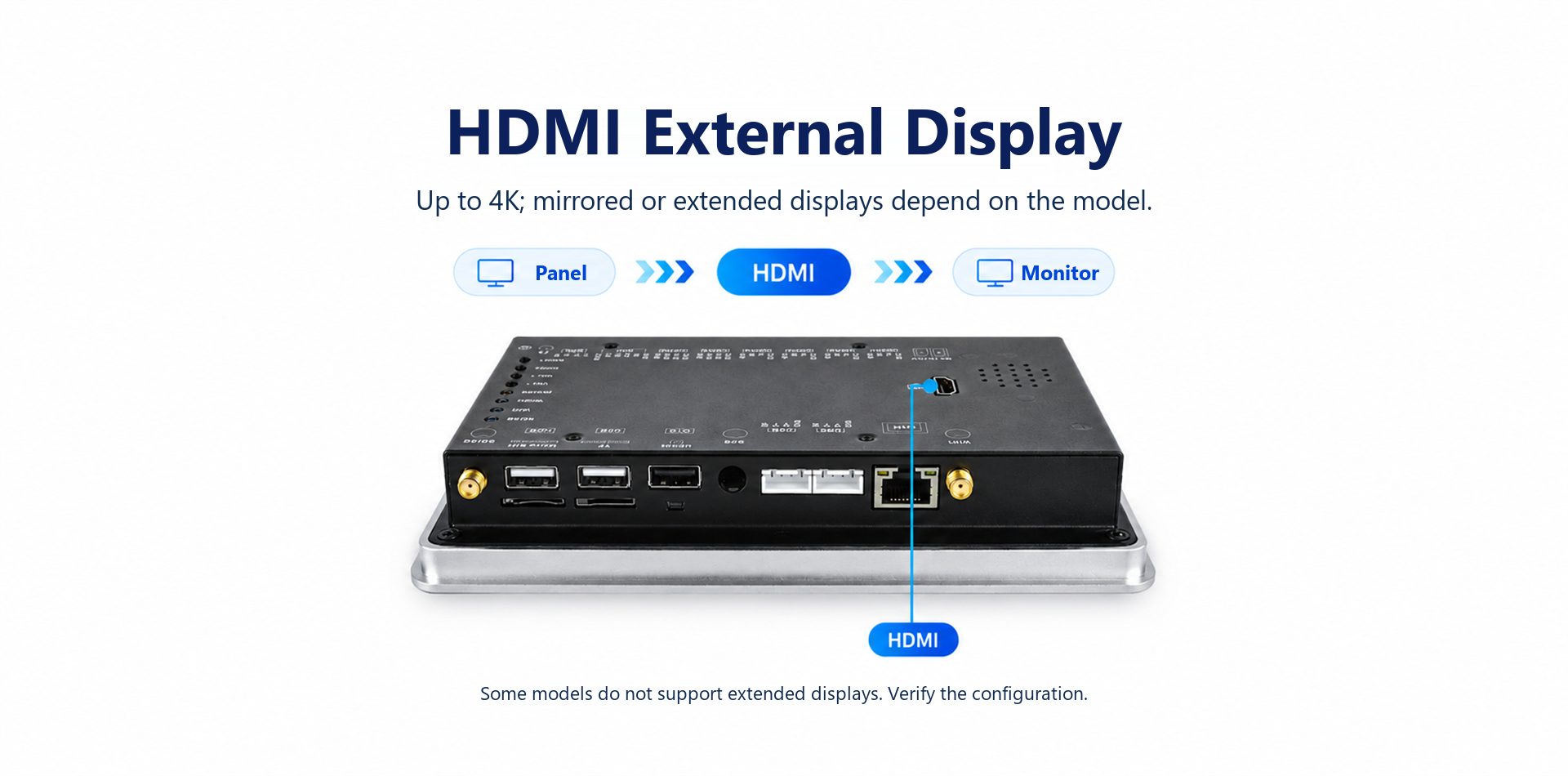

| HDMI | HDMI 2.0, up to 4Koptional |
| Wi-Fi | Single-band Wi-Fi 6; dual-band optionalstandard; optional dual-band |
| Bluetooth | BT 5.2standard |
| Cellular | Mini PCIe; optional 4G/5G moduleoptional |
| GPS | Mini PCIe; optional GPS moduleoptional |
| Serial ports | TTL: 2; RS232: 2; RS485: 2; options: 6 TTL / 4 RS232 portsstandard; optional alternatives |
| CAN | RK3568 only, COM6optional |
| Access control | A133P only, COM6optional |
| PoE | 1 PoE IN; 7-inch: PoE or speaker; 10.1-inch: both selectableoptional |
| GPIO | 4 signalsstandard |
| Headset | 4-pole 3.5 mm headset jackstandard |
| Speaker outputs | Dual external 8 ohm / 3 W outputs; built-in speaker optionalstandard; optional built-in |
| TF card | 256 GBstandard |
| SIM | 1 Micro-SIM slotstandard |
| Buttons | Reset / Back / Volume + / Volume - / Flashingstandard |
| LED indicators | Power / Run / Wi-Fi / 4G/5Gstandard |
| Power supply | DC 12 V ±5% or DC 24 V ±5%; verify configurationby model |
| Operating temperature | -10 – 60 °Cstandard |
| Storage temperature | -20 – 70 °Cstandard |
| Operating humidity | 0 – 95 % RHstandard |
| Humidity condition | Non-condensingstandard |
| Touch points | 5 pointsstandard |
| Touch restrictions | Some models lack touch; glove suitability must be verifiedstandard |
| VESA mounting spacing | 75 × 75 mmstandard |
| Rear mounting threaded holes | count: 4; thread: M3standard |
| Rear mounting threaded holes | count: 4; thread: M4standard |
AYP070L1-RK3568
General
| Display size | 7 inchesstandard |
|---|---|
| Resolution | 1024 × 600 pxstandard |
| Brightness | 500 cd/m²standard |
| Optional brightness | 1000 cd/m²optional |
| Viewing angle | IPSstandard |
| Touch type | Capacitivestandard |
| Panel cutout | 184.8 × 116.6 mmstandard |
| CPU | RK3568standard |
| CPU cores | 4 Cortex-A55standard |
| CPU frequency | 2 GHzstandard |
| GPU | Mali-G52 2EEstandard |
| RAM options | 4 / 8 GBoptional |
| Storage | 32 GBstandard |
| Storage options | 64 / 128 GBoptional |
| Ethernet | 10 / 100 / 1000 Mbpsstandard |
| HDMI | HDMI 2.0, up to 4Koptional |
| Wi-Fi | Single-band Wi-Fi 6; dual-band optionalstandard; optional dual-band |
| Bluetooth | BT 5.2standard |
| Cellular | Mini PCIe; optional 4G/5G moduleoptional |
| GPS | Mini PCIe; optional GPS moduleoptional |
| Serial ports | TTL: 2; RS232: 2; RS485: 2; options: 6 TTL / 4 RS232 portsstandard; optional alternatives |
| CAN | RK3568 only, COM6optional |
| Access control | A133P only, COM6optional |
| PoE | 1 PoE IN; 7-inch: PoE or speaker; 10.1-inch: both selectableoptional |
| GPIO | 4 signalsstandard |
| Headset | 4-pole 3.5 mm headset jackstandard |
| Speaker outputs | Dual external 8 ohm / 3 W outputs; built-in speaker optionalstandard; optional built-in |
| TF card | 256 GBstandard |
| SIM | 1 Micro-SIM slotstandard |
| Buttons | Reset / Back / Volume + / Volume - / Flashingstandard |
| LED indicators | Power / Run / Wi-Fi / 4G/5Gstandard |
| Power supply | DC 12 V ±5% or DC 24 V ±5%; verify configurationby model |
| Operating temperature | -10 – 60 °Cstandard |
| Storage temperature | -20 – 70 °Cstandard |
| Operating humidity | 0 – 95 % RHstandard |
| Humidity condition | Non-condensingstandard |
| Touch points | 5 pointsstandard |
| Touch restrictions | Some models lack touch; glove suitability must be verifiedstandard |
| VESA mounting spacing | 75 × 75 mmstandard |
| Rear mounting threaded holes | count: 4; thread: M3standard |
| Rear mounting threaded holes | count: 4; thread: M4standard |
AYP070L1-RK3576S
General
| Display size | 7 inchesstandard |
|---|---|
| Resolution | 1024 × 600 pxstandard |
| Brightness | 500 cd/m²standard |
| Optional brightness | 1000 cd/m²optional |
| Viewing angle | IPSstandard |
| Touch type | Capacitivestandard |
| Panel cutout | 184.8 × 116.6 mmstandard |
| CPU | RK3576Sstandard |
| CPU cores | 4 Cortex-A76 + 4 Cortex-A53standard |
| CPU frequency | 2.1 GHzstandard |
| GPU | Mali-G52 MC3standard |
| RAM options | 8 / 16 GBoptional |
| Storage | 32 GBstandard |
| Storage options | 64 / 128 GBoptional |
| Ethernet | 10 / 100 / 1000 Mbpsstandard |
| HDMI | HDMI 2.0, up to 4Koptional |
| Wi-Fi | Single-band Wi-Fi 6; dual-band optionalstandard; optional dual-band |
| Bluetooth | BT 5.2standard |
| Cellular | Mini PCIe; optional 4G/5G moduleoptional |
| GPS | Mini PCIe; optional GPS moduleoptional |
| Serial ports | TTL: 2; RS232: 2; RS485: 2; options: 6 TTL / 4 RS232 portsstandard; optional alternatives |
| CAN | RK3568 only, COM6optional |
| Access control | A133P only, COM6optional |
| PoE | 1 PoE IN; 7-inch: PoE or speaker; 10.1-inch: both selectableoptional |
| GPIO | 4 signalsstandard |
| Headset | 4-pole 3.5 mm headset jackstandard |
| Speaker outputs | Dual external 8 ohm / 3 W outputs; built-in speaker optionalstandard; optional built-in |
| TF card | 256 GBstandard |
| SIM | 1 Micro-SIM slotstandard |
| Buttons | Reset / Back / Volume + / Volume - / Flashingstandard |
| LED indicators | Power / Run / Wi-Fi / 4G/5Gstandard |
| Power supply | DC 12 V ±5% or DC 24 V ±5%; verify configurationby model |
| Operating temperature | -10 – 60 °Cstandard |
| Storage temperature | -20 – 70 °Cstandard |
| Operating humidity | 0 – 95 % RHstandard |
| Humidity condition | Non-condensingstandard |
| Touch points | 5 pointsstandard |
| Touch restrictions | Some models lack touch; glove suitability must be verifiedstandard |
| VESA mounting spacing | 75 × 75 mmstandard |
| Rear mounting threaded holes | count: 4; thread: M3standard |
| Rear mounting threaded holes | count: 4; thread: M4standard |
