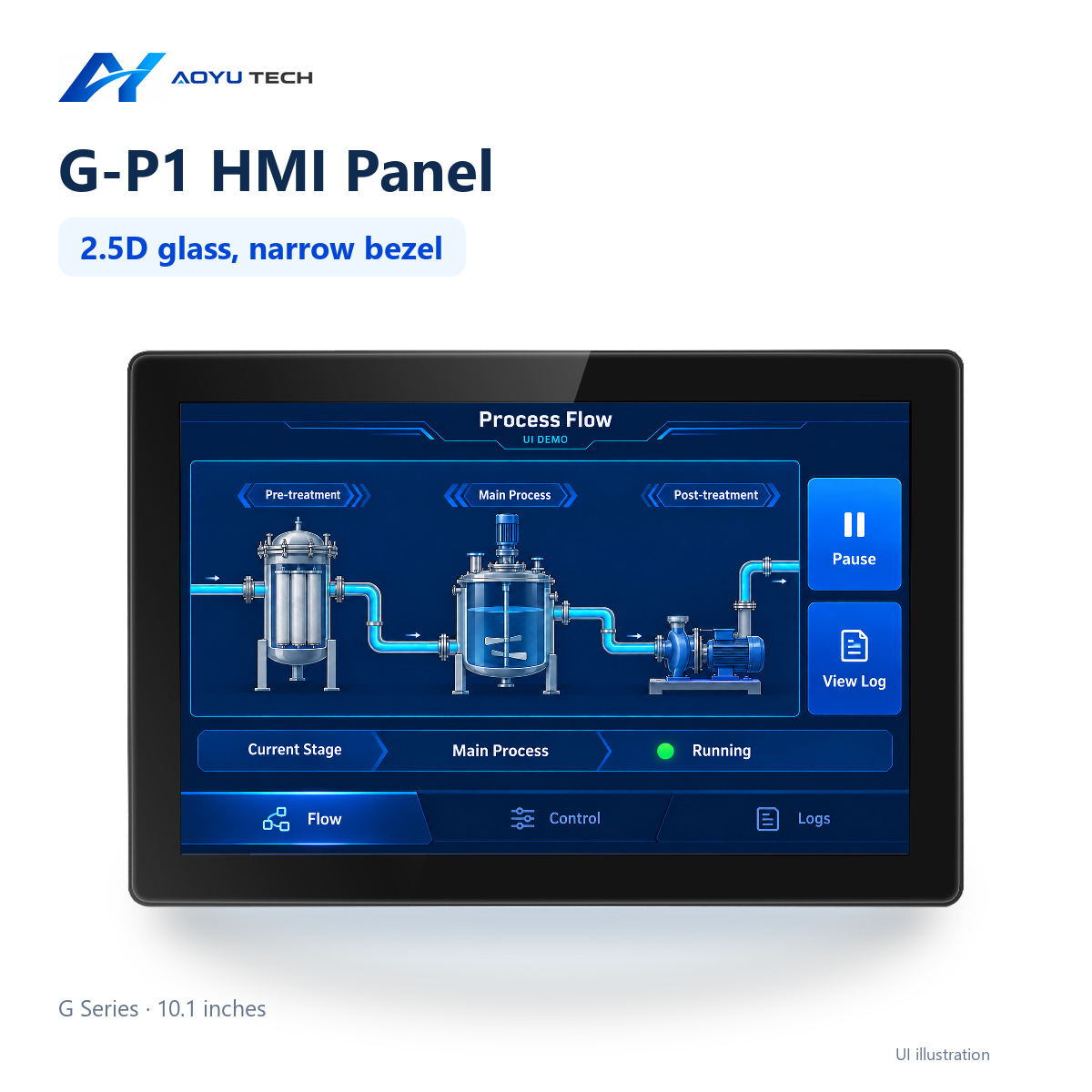

G-P1-101 10.1-inch HMI Panel

10.1 inches · Auto Control G Series

Series
G-P1
Panel glass
2.5D
Ethernet
4 channels
PoE
PoE
Request a quote

Specifications follow the selected configuration. Contact us to confirm options and delivery requirements.

Built around your requirements

Explore the display, enclosure and configuration-specific capabilities of this HMI panel.

Series: G-P1. Panel glass: 2.5D. Ethernet: 4 channels. PoE: PoE

A closer look

Complete series material may show other sizes or configurations. Refer to the selected model specifications and confirmed delivery configuration. Select an image to enlarge it.

Configuration & specifications

Only source-checked specifications with a clear model association are listed. Contact us for details that are not listed.

AYG101P1-RK3568

Overview

Overview — AYG101P1-RK3568
SeriesG-P1Not specified

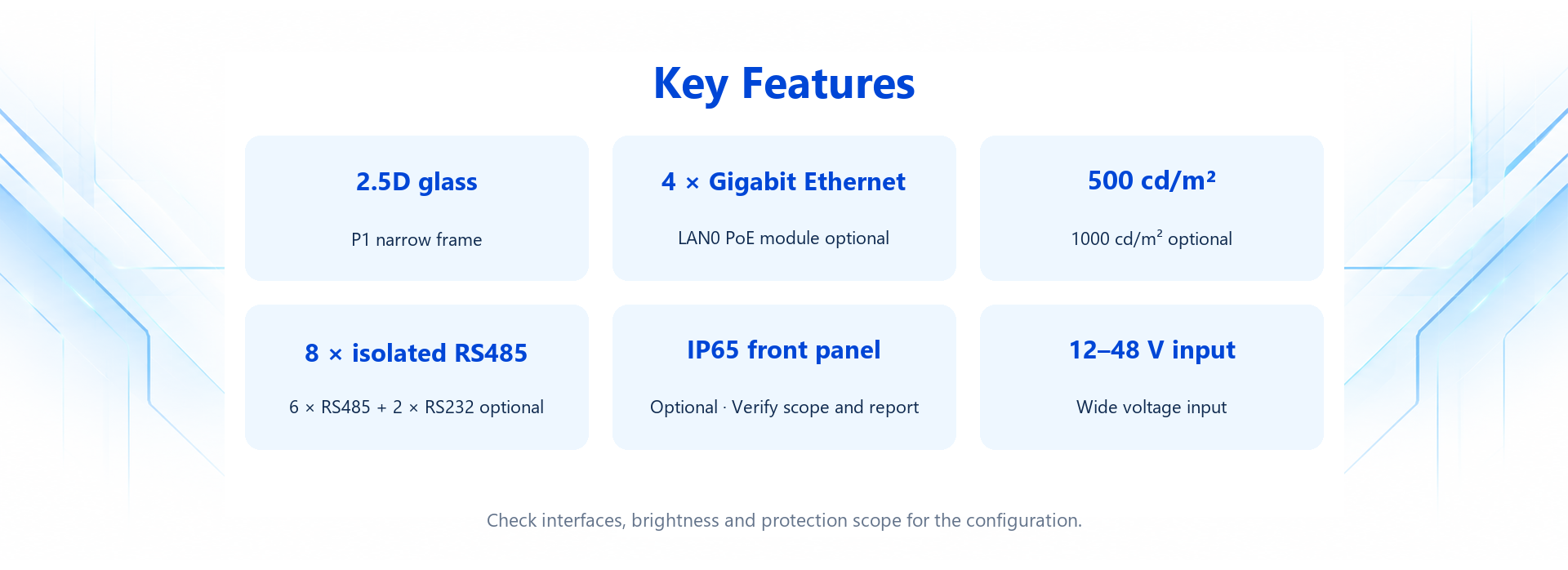

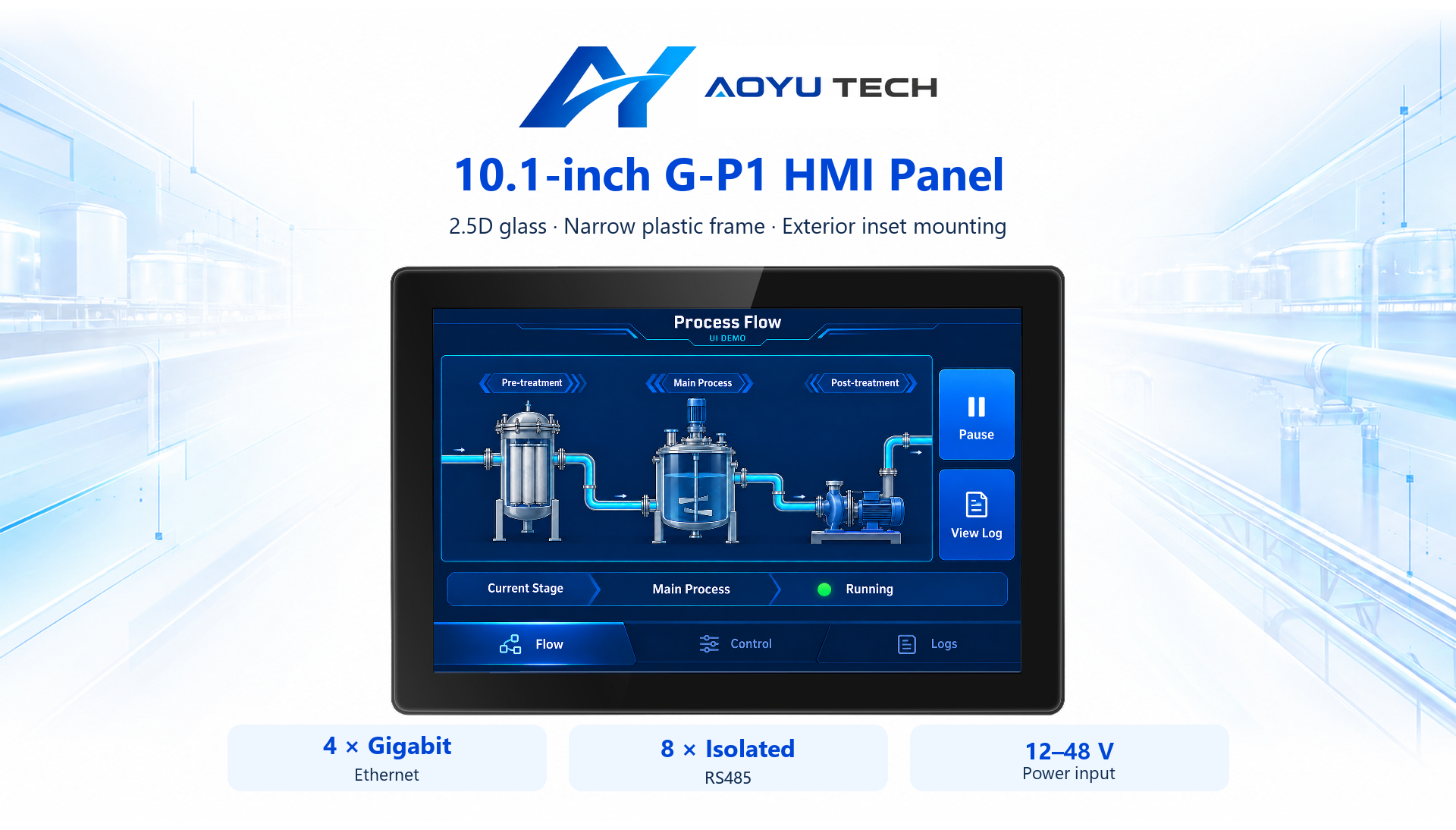

Key features

Key features — AYG101P1-RK3568
Panel glass2.5DNot specified
Ethernet4 channelsNot specified
PoEPoEOptional
Brightness500 cd/m²Not specified
Power input12 / 48 VNot specified

Appearance

Appearance — AYG101P1-RK3568

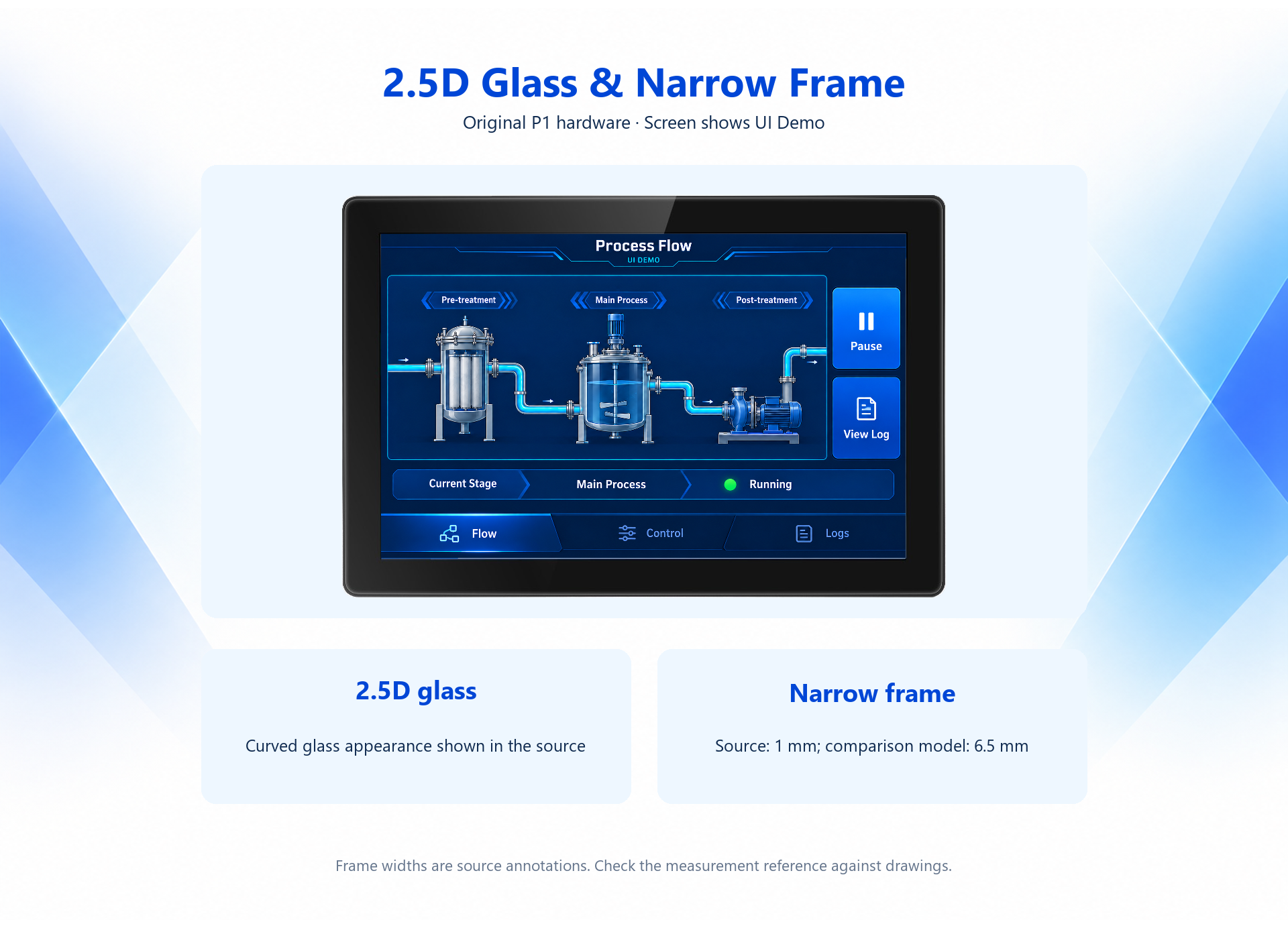

Glass profile2.5DNot specified

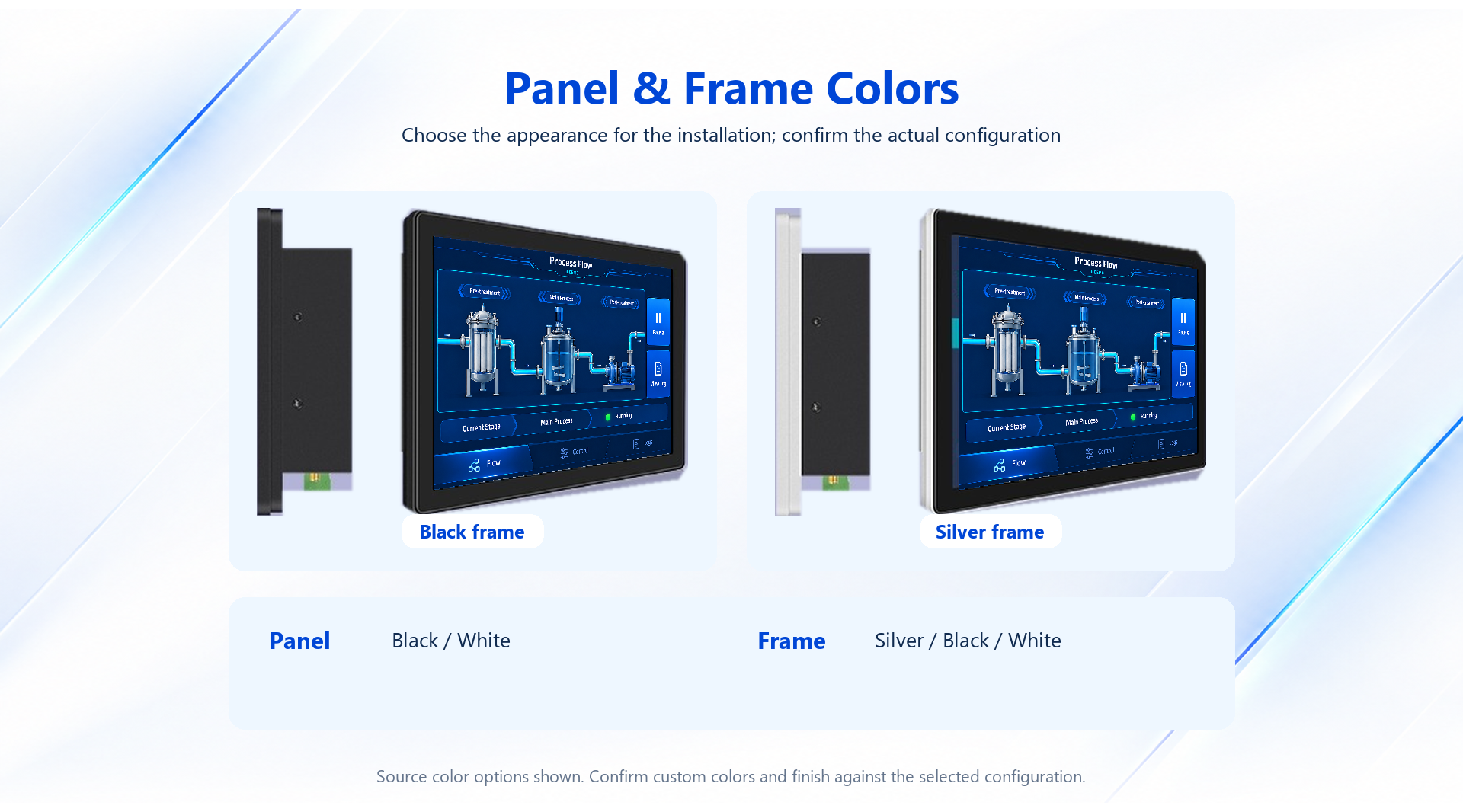

Panel colorBlack / WhiteOptional appearance
Frame colorSilver / BlackOptional appearance

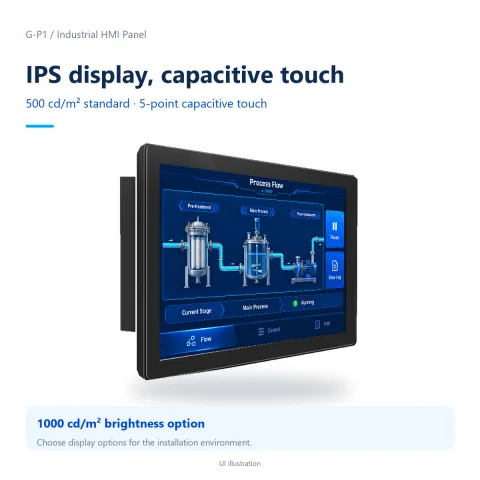

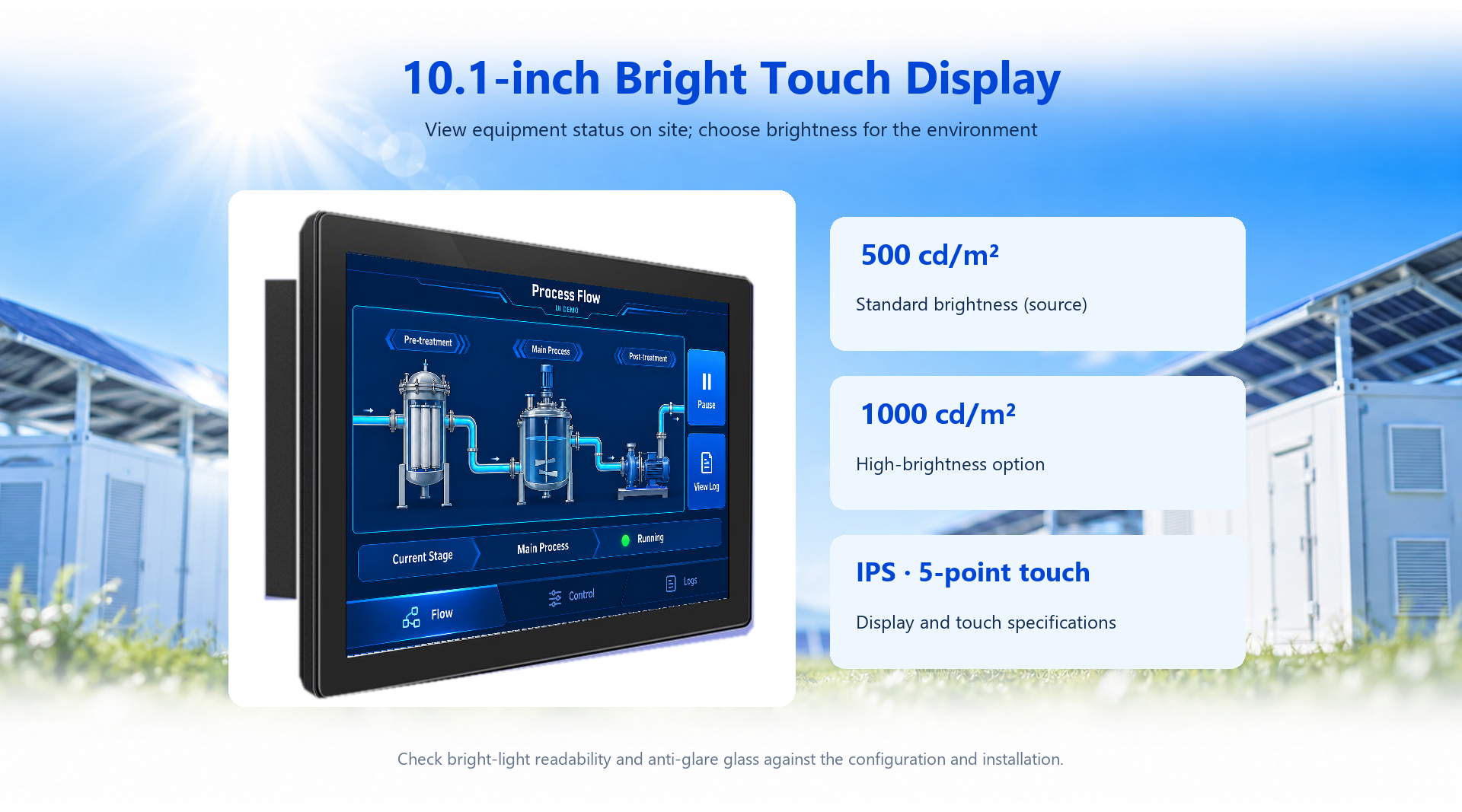

Display

Display — AYG101P1-RK3568
Standard brightness500 cd/m²Standard
Optional brightness1000 cd/m²Optional

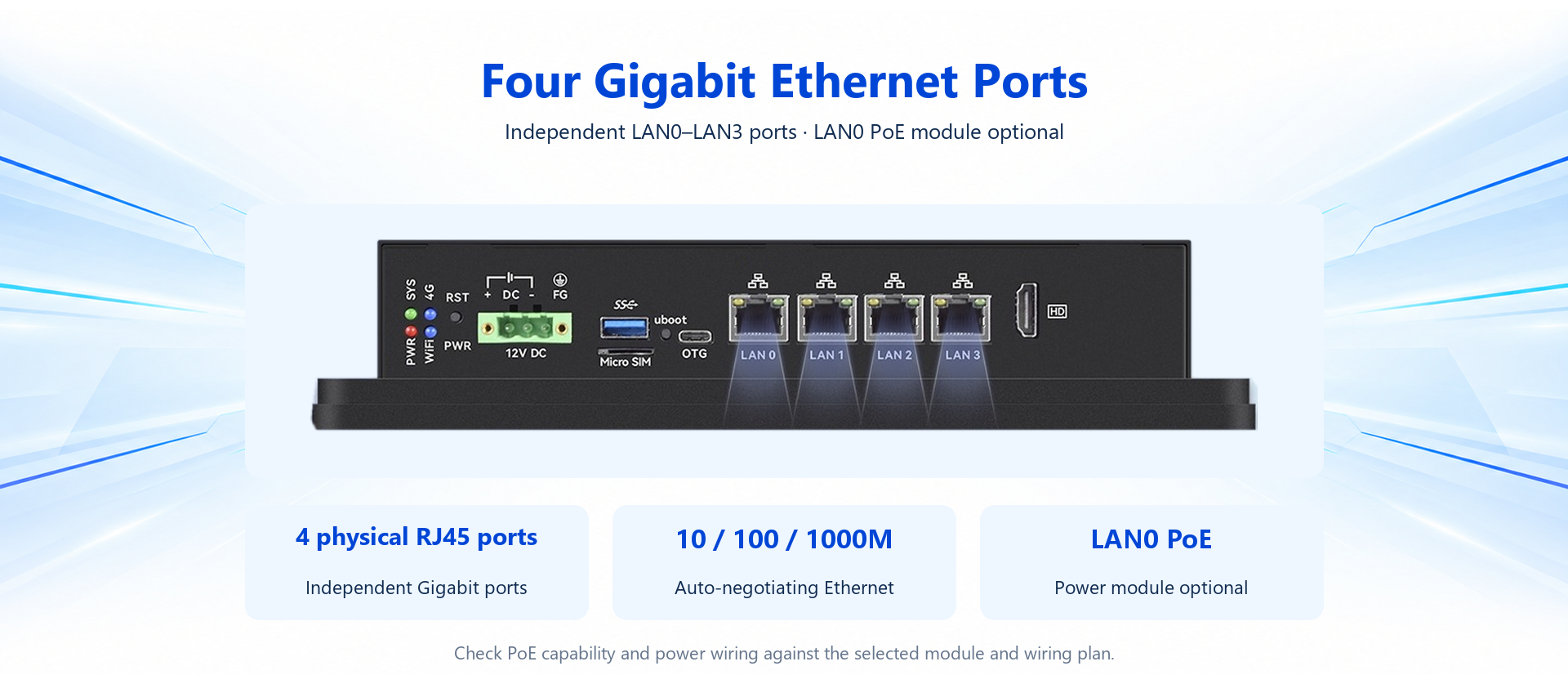

Network

Network — AYG101P1-RK3568

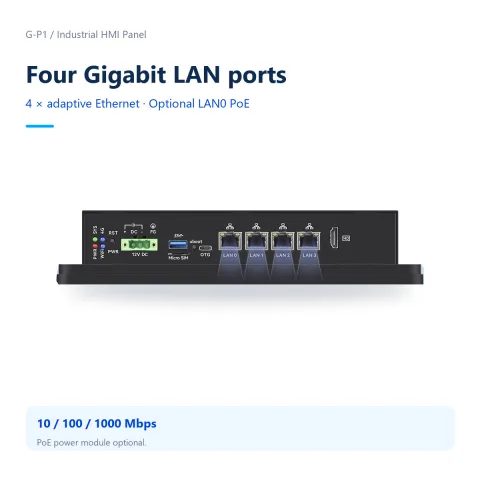

Gigabit Ethernet4 channelsNot specified
LAN0 PoELAN0Optional

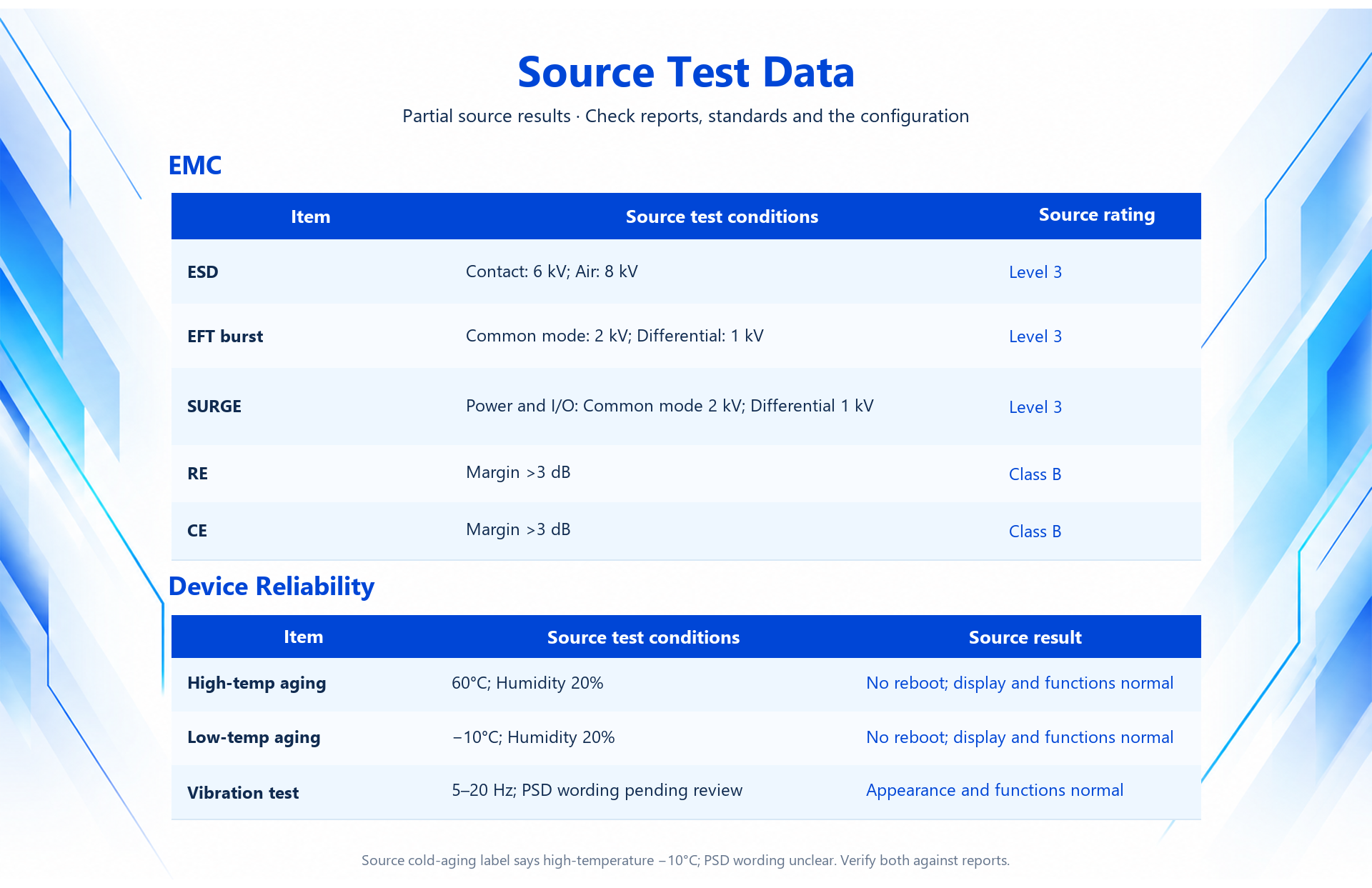

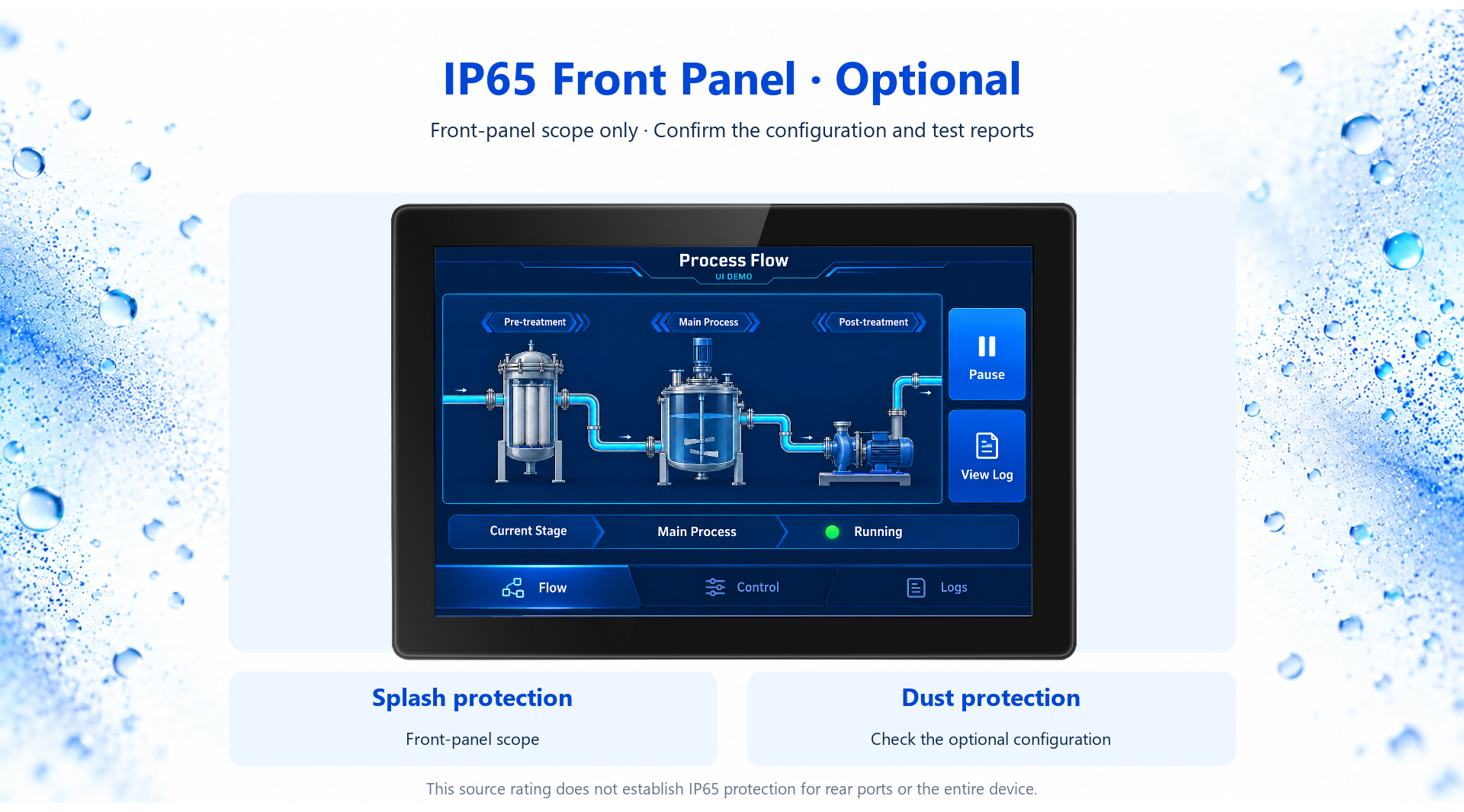

Environment and protection

Environment and protection — AYG101P1-RK3568

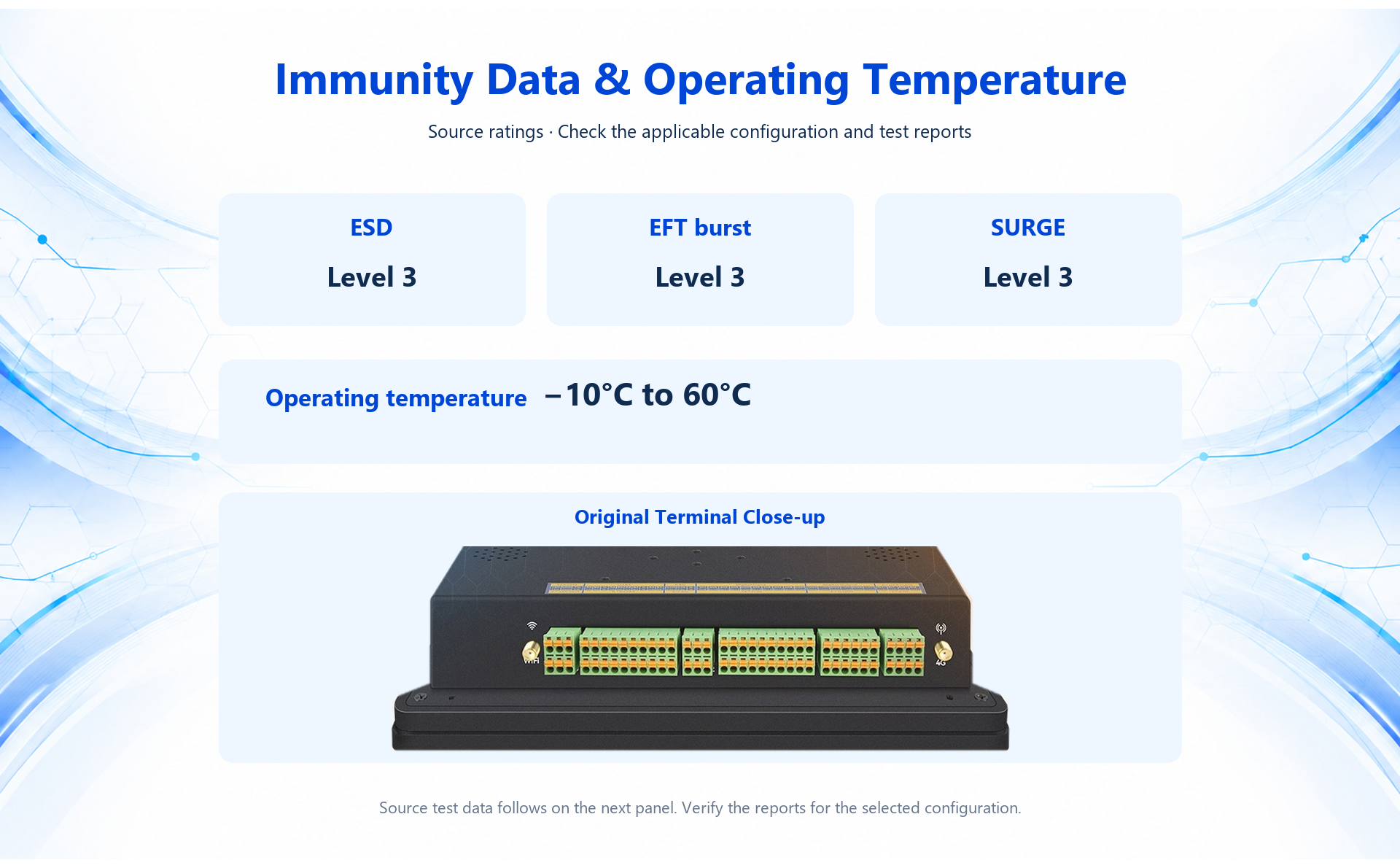

Operating temperature-10 – 60 ℃Not specified

terminals

terminals — AYG101P1-RK3568

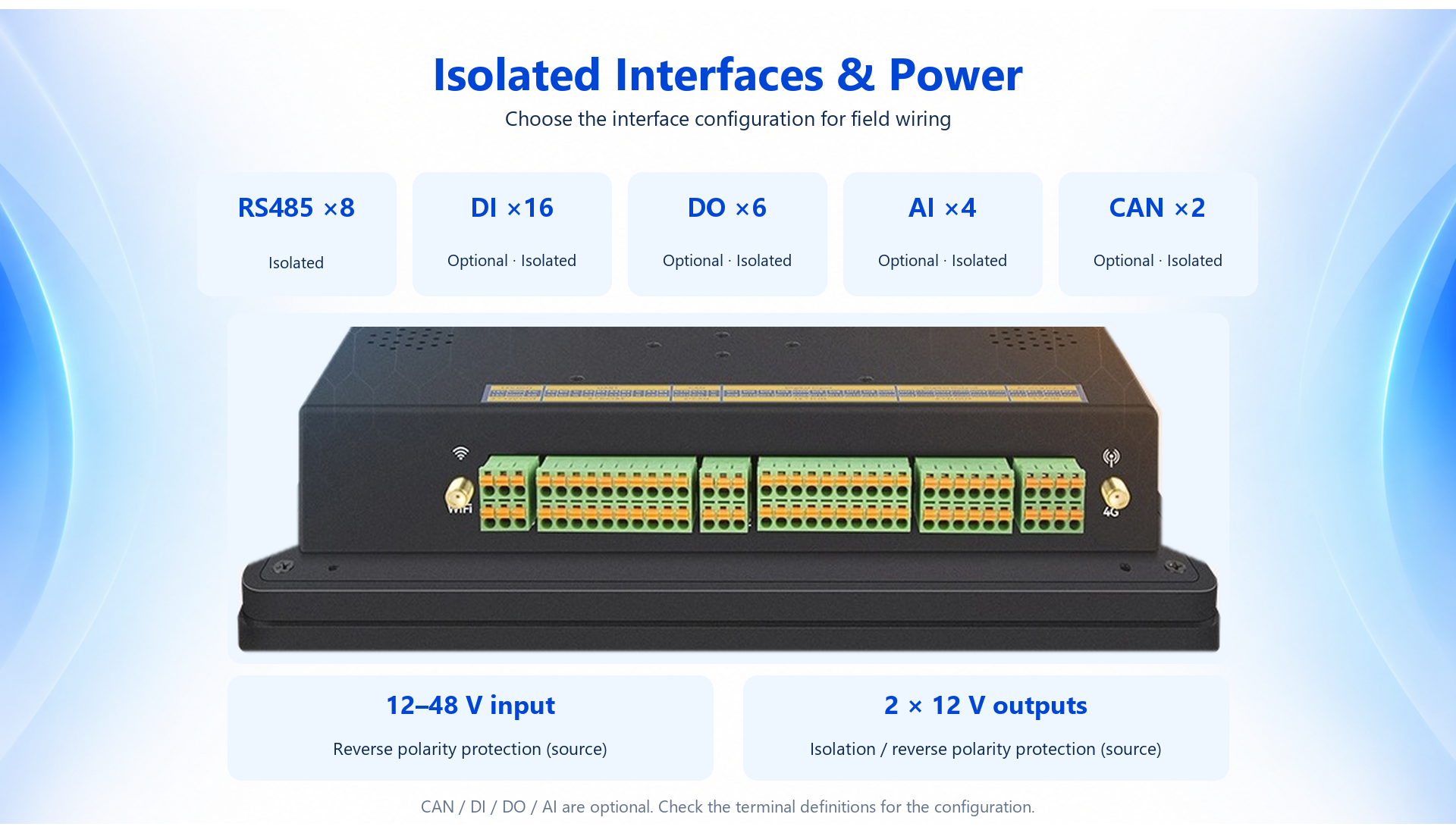

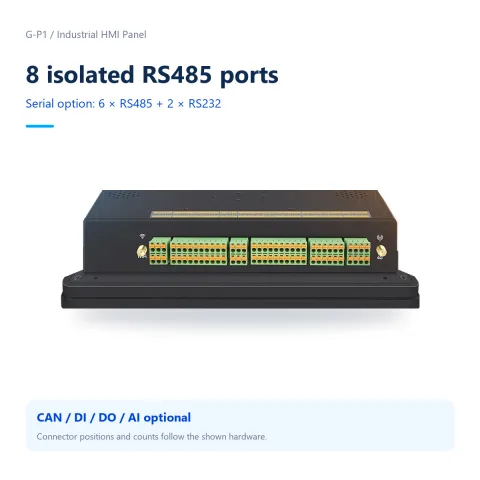

Isolated RS4858 channelsStandard
DO6 channelsOptional
AI4 channelsOptional
CAN2 channelsOptional
Power output2 channelsNot specified

Rear interfaces

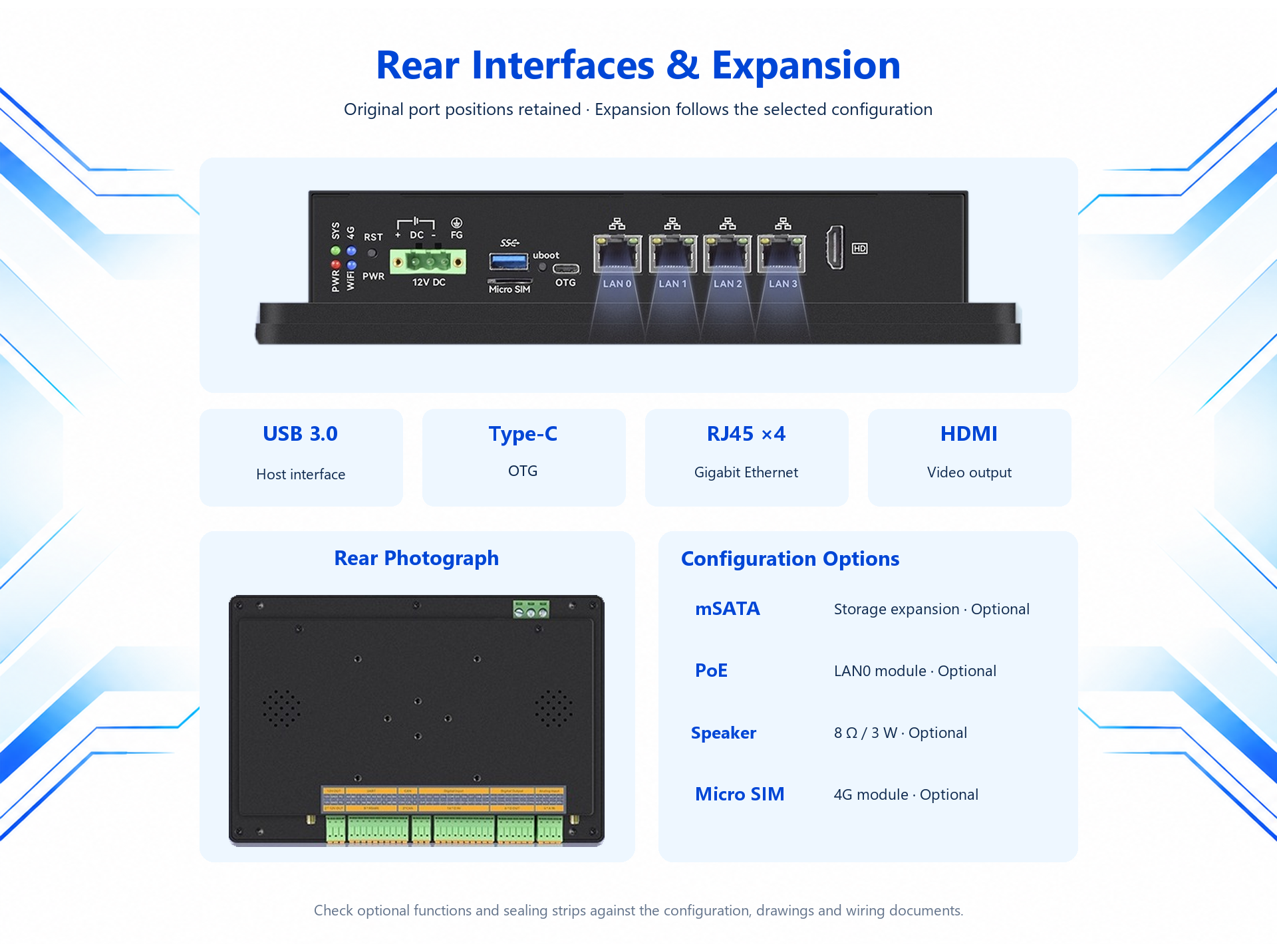

Rear interfaces — AYG101P1-RK3568
USB Host1 channelsNot specified
USB OTG1 channelsNot specified
Ethernet4 channelsNot specified
HDMI1 channelsNot specified
Serial-port variantRS485×8 / RS485×6+RS232×2Configuration variant
Speakerimpedance: 8; power: 3Optional

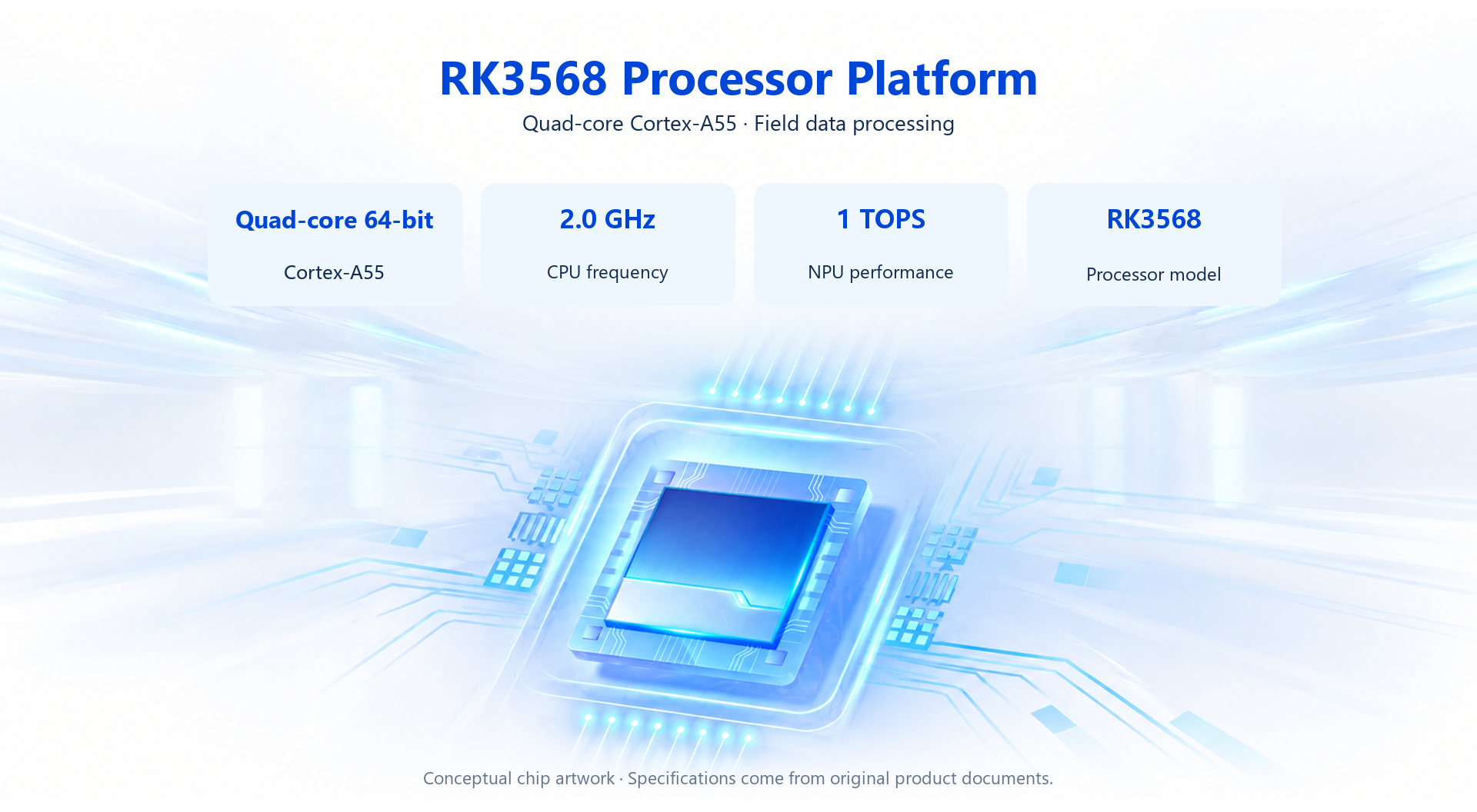

Processor

Processor — AYG101P1-RK3568

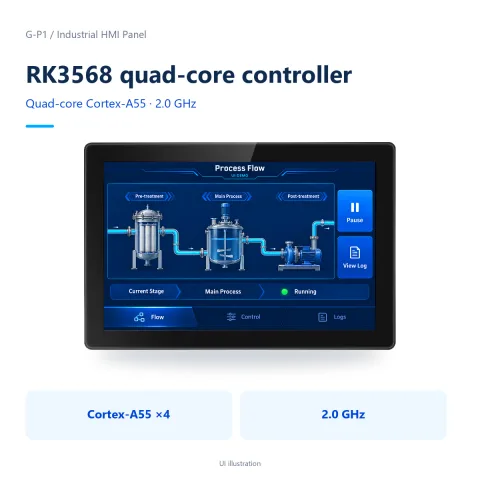

CPURK3568Not specified
Core count4 coresNot specified
Clock frequency2 GHzNot specified

Wireless

Wireless — AYG101P1-RK3568

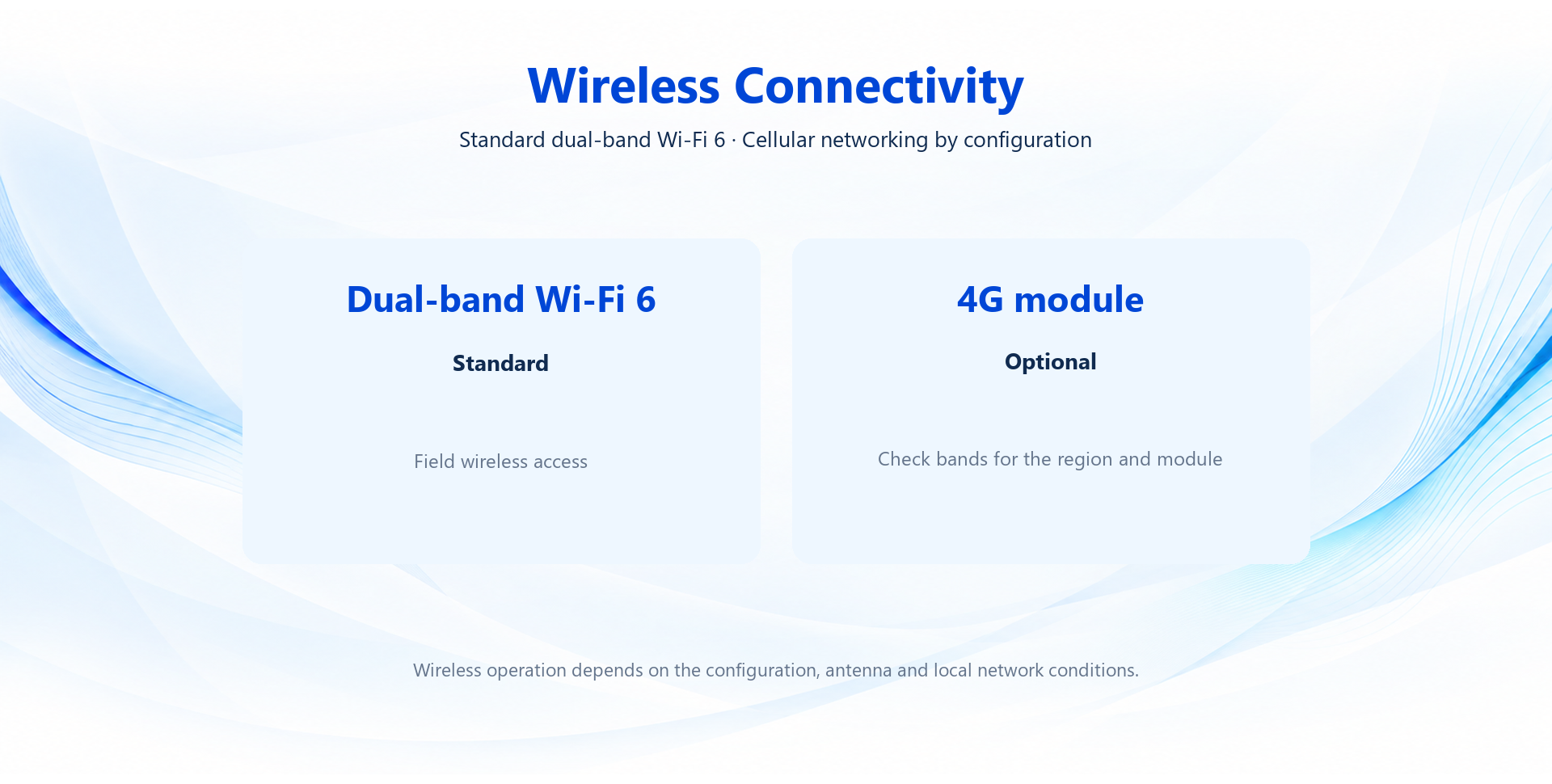

WiFiWiFi 6Standard

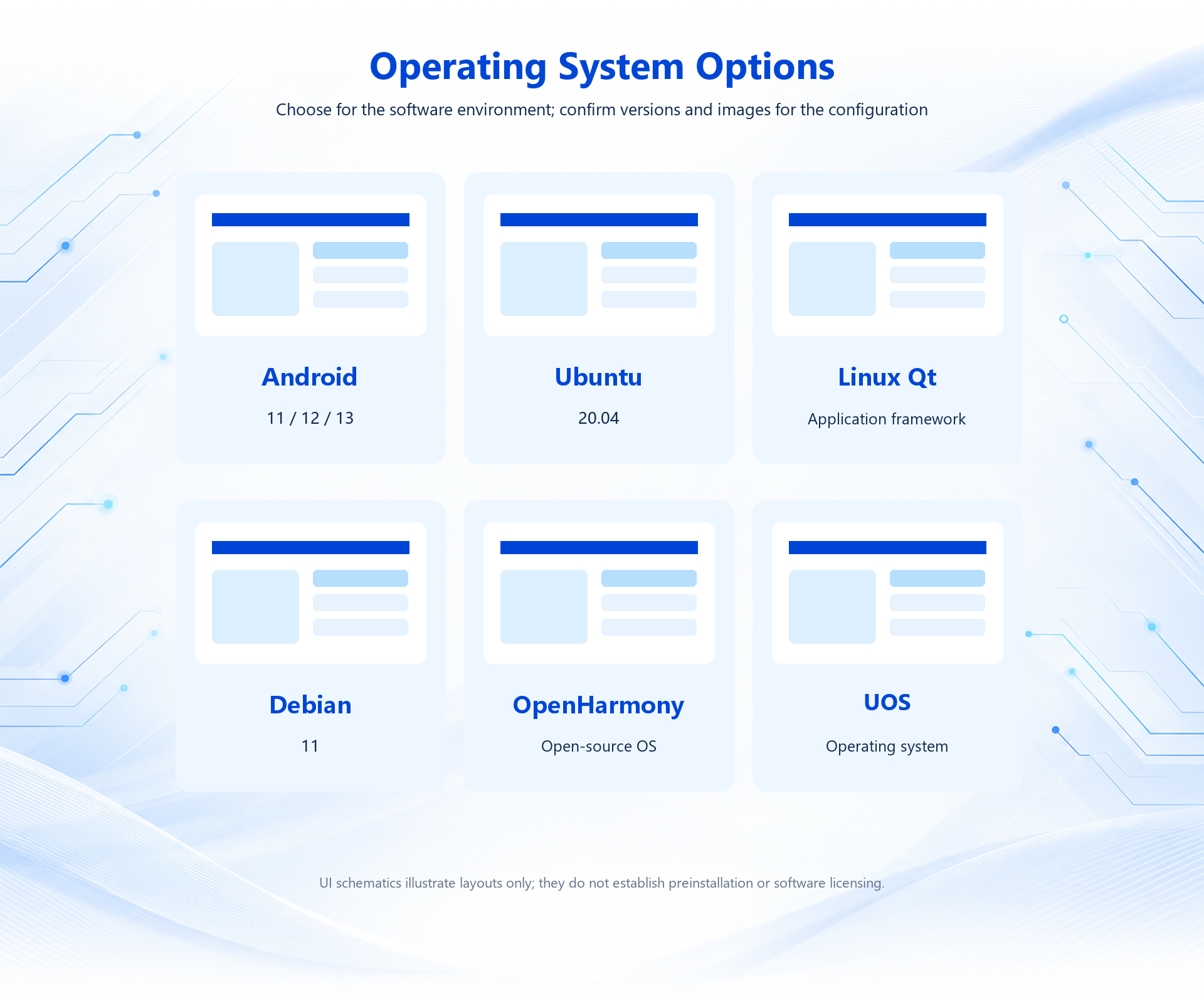

Operating system

Operating system — AYG101P1-RK3568
Android11 / 12 / 13Configuration dependent
Ubuntu20.04Configuration dependent
Linux QTLinux QTConfiguration dependent
Debian11Configuration dependent
OpenHarmony4.0Configuration dependent
UOSUnionTech UOSConfiguration dependent

Installation

Installation — AYG101P1-RK3568

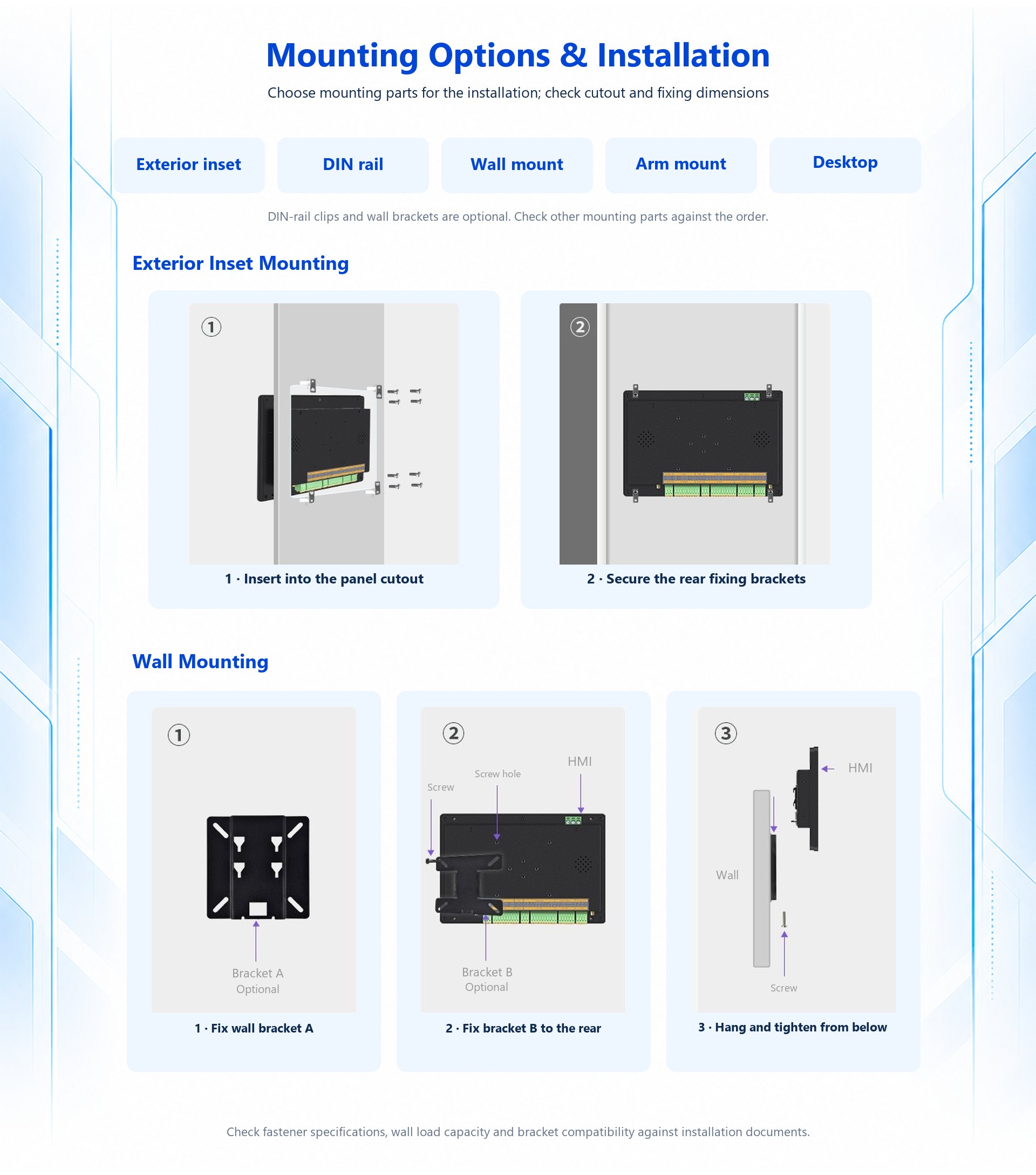

Mounting methodsExterior inset mounting / DIN-rail mounting / Wall mounting / Desktop mounting / Arm mountingMounting parts depend on configuration
Mounting holes75 × 75 mmNot specified

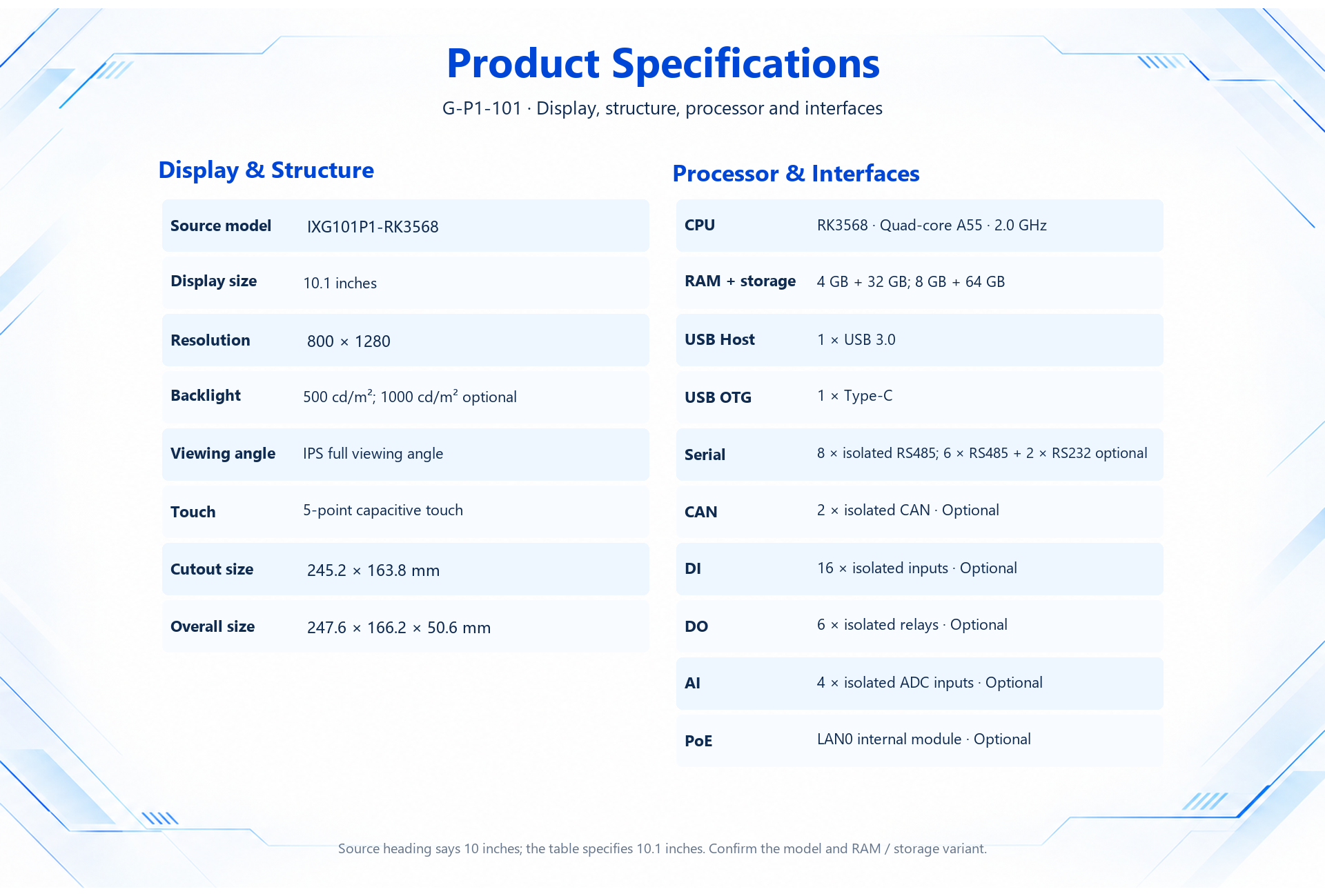

Display and core specifications

Display and core specifications — AYG101P1-RK3568
Resolution800 × 1280 pxNot specified
Backlight brightness500 cd/m²1000 cd/m² optional
Viewing angleIPSNot specified
Touch type5 pointsNot specified

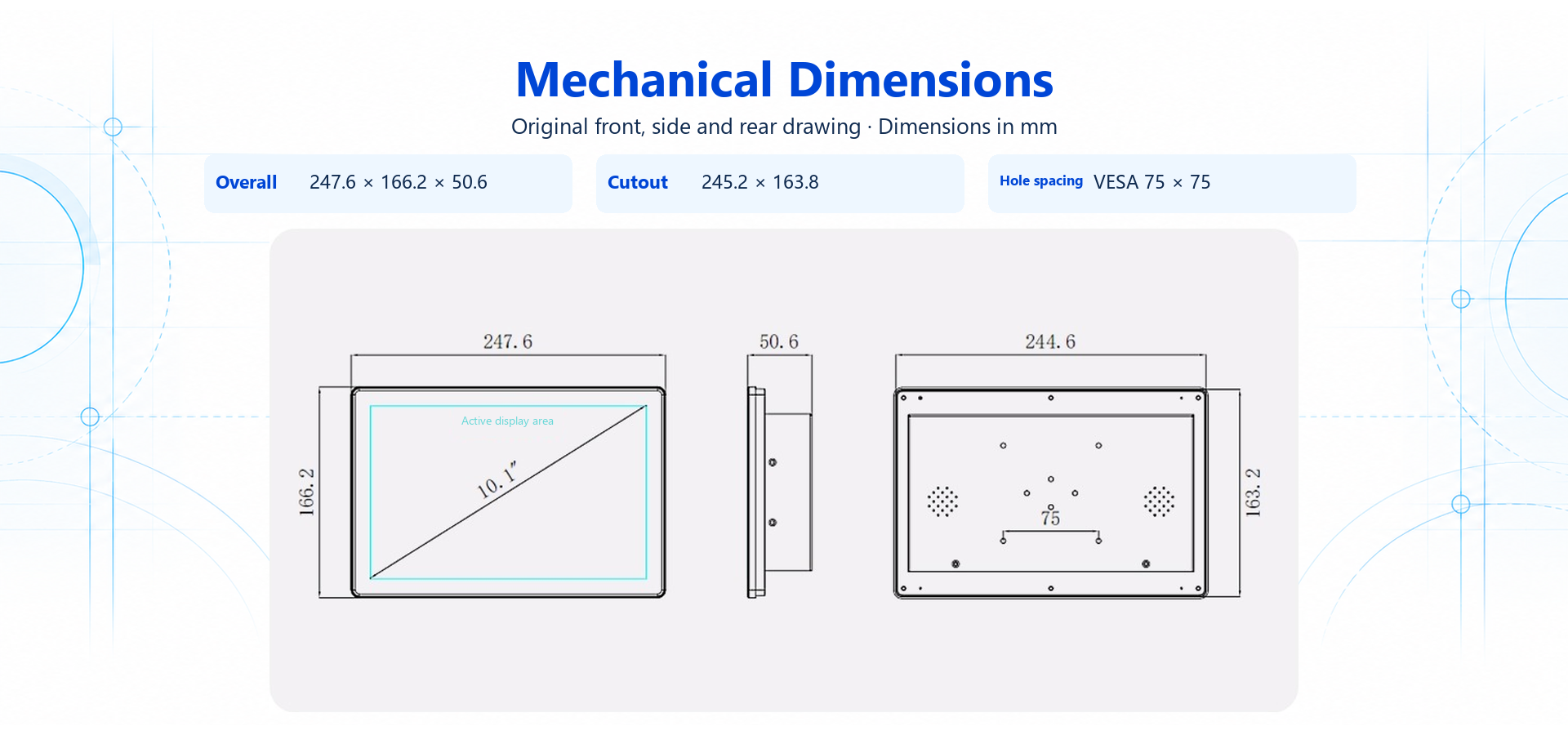

Panel cutout dimensions245.2 × 163.8 mmNot specified
Overall dimensions247.6 × 166.2 × 50.6 mmNot specified
CPURK3568Not specified
RAM + storage4 / 32 / 8 / 64 GBTwo paired configurations; standard configuration unconfirmed
USB Host1 channelsNot specified
USB OTG1 channelsNot specified
Serial portsRS485×8 / RS485×6+RS232×2Serial-port variant
CAN bus2 channelsOptional
DO6 channelsOptional
AI4 channelsOptional

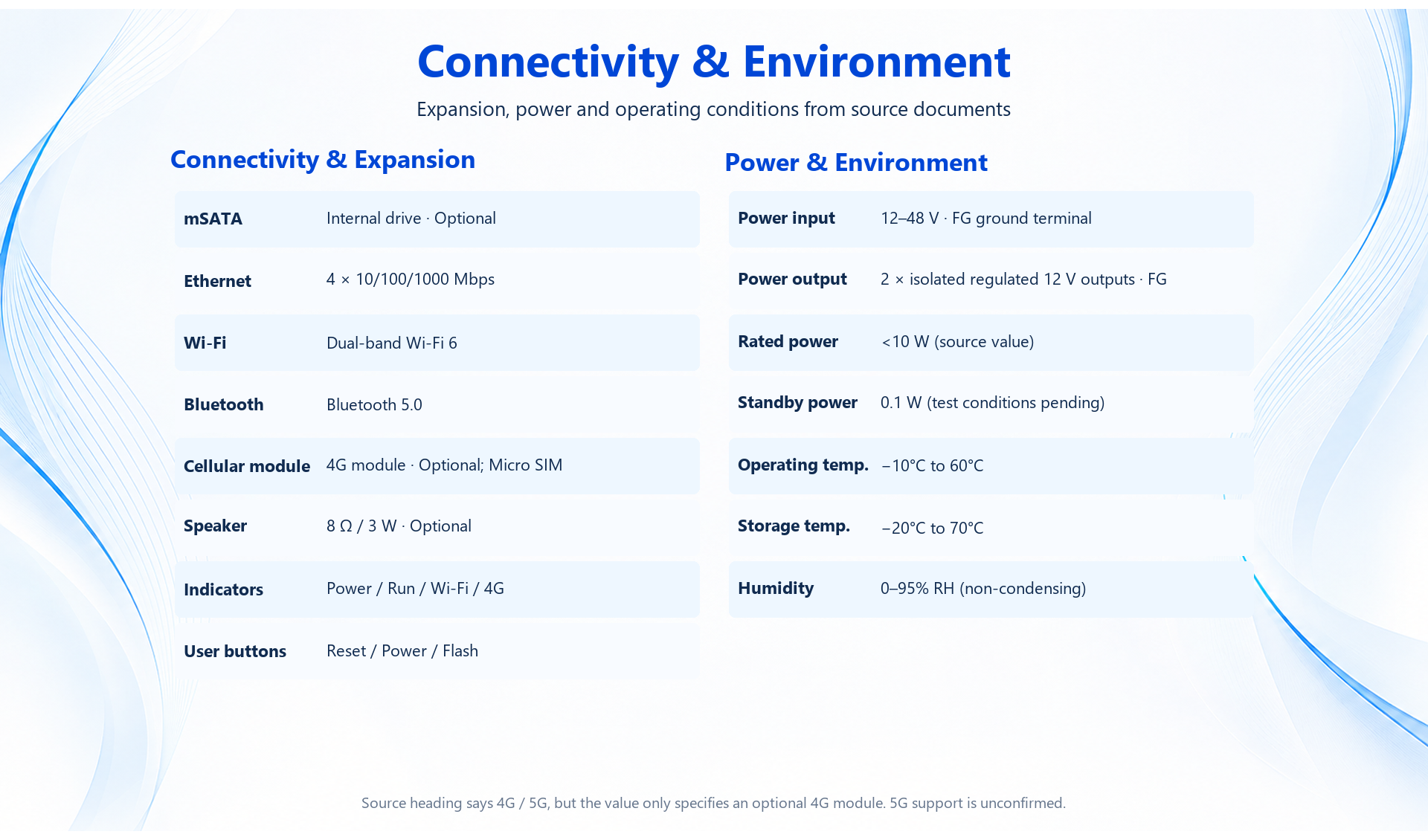

Connectivity and environmental specifications

Connectivity and environmental specifications — AYG101P1-RK3568
Ethernet4 channelsNot specified
WiFiWiFi 6Not specified
Bluetooth5.0Not specified
Audio amplifierimpedance: 8; power: 3Optional
IndicatorsPower / Run / WiFi / 4GNot specified
User buttonsReset / Power / ProgrammingNot specified
Power input12 / 48 VNot specified
Power output2 channelsNot specified
Rated power10 WNot specified
Operating temperature-10 – 60 ℃Not specified
Storage temperature-20 – 70 ℃Not specified
Operating humidity0 – 95 %RHNot specified

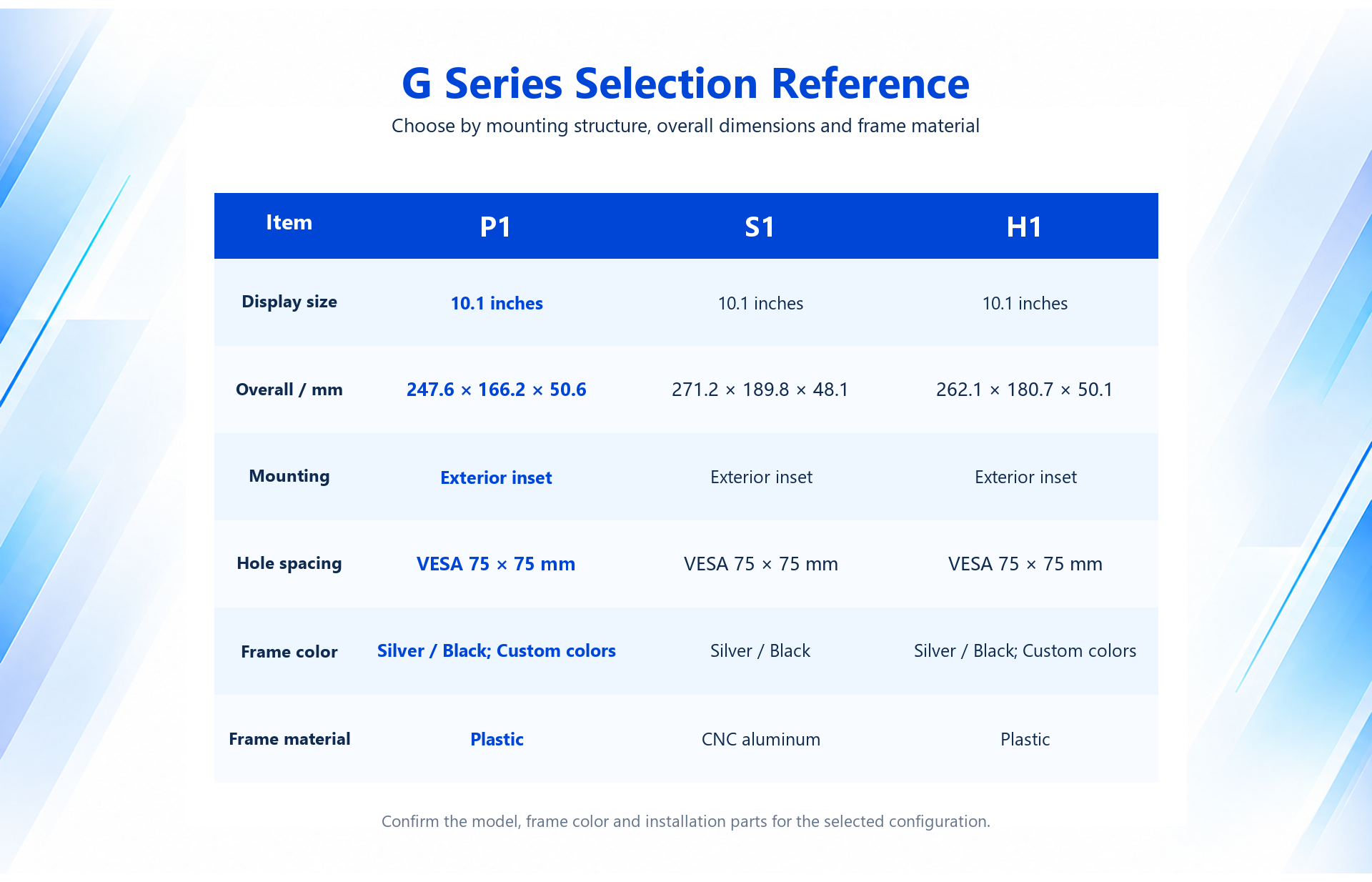

Mechanical dimensions

Mechanical dimensions — AYG101P1-RK3568
Overall width247.6 mmNot specified
Overall height166.2 mmNot specified
Overall thickness50.6 mmNot specified
Rear width244.6 mmNot specified
Rear height163.2 mmNot specified
VESA hole spacing75 mmNot specified

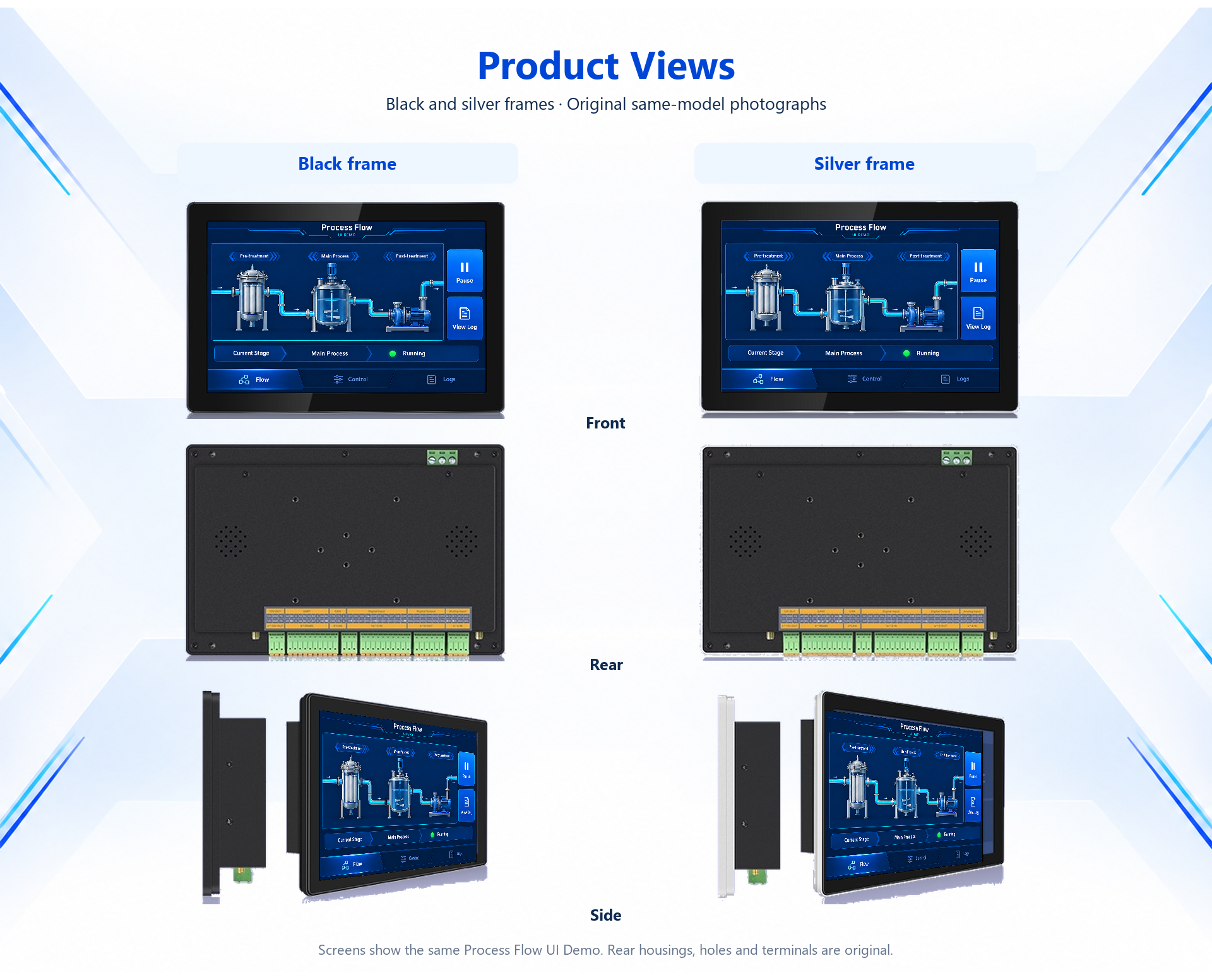

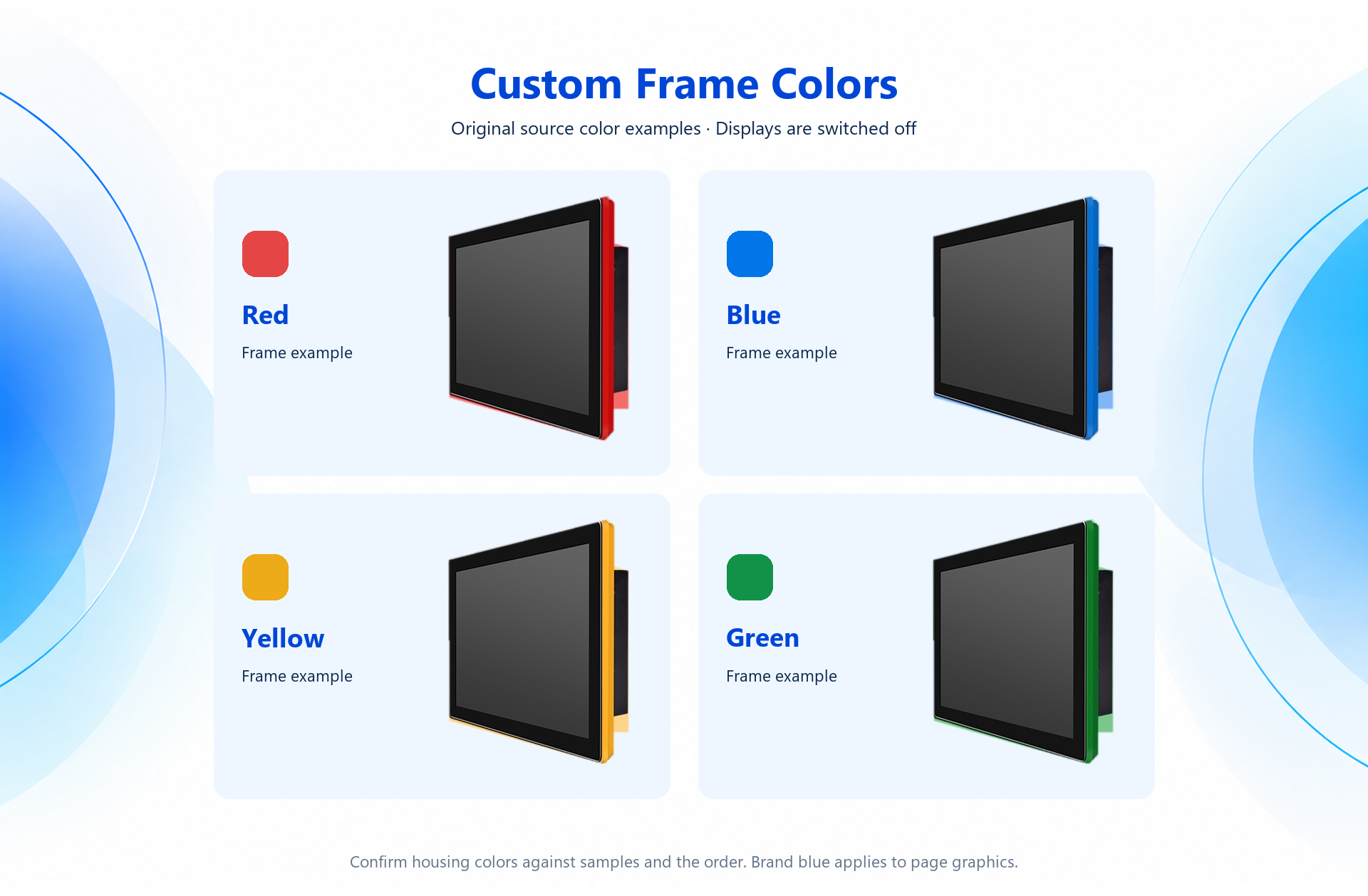

Photographed color options

Photographed color options — AYG101P1-RK3568
Optional frame colorsBlack / SilverConfiguration dependent

G-P1-101
