Interactive P Series

P-M1-101 10.1-inch HMI Panel

10.1 inches · Interactive P Series

Screen size
7″10.1″
CPU
chip: A133P; cores: 4; clock_GHz: 1.8
RAM / storage
RAM: 1; storage: 32 GB
Display size
10.1 inches
Brightness
standard: 500; optional: 1000 cd/m²
Request a quote

Specifications follow the selected configuration. Contact us to confirm options and delivery requirements.

Built around your requirements

Explore the display, enclosure and configuration-specific capabilities of this HMI panel.

Display size: 10.1 inches. Brightness: standard: 500; optional: 1000 cd/m². Viewing angle: IPS. Operating temperature: -10 – 60 ℃

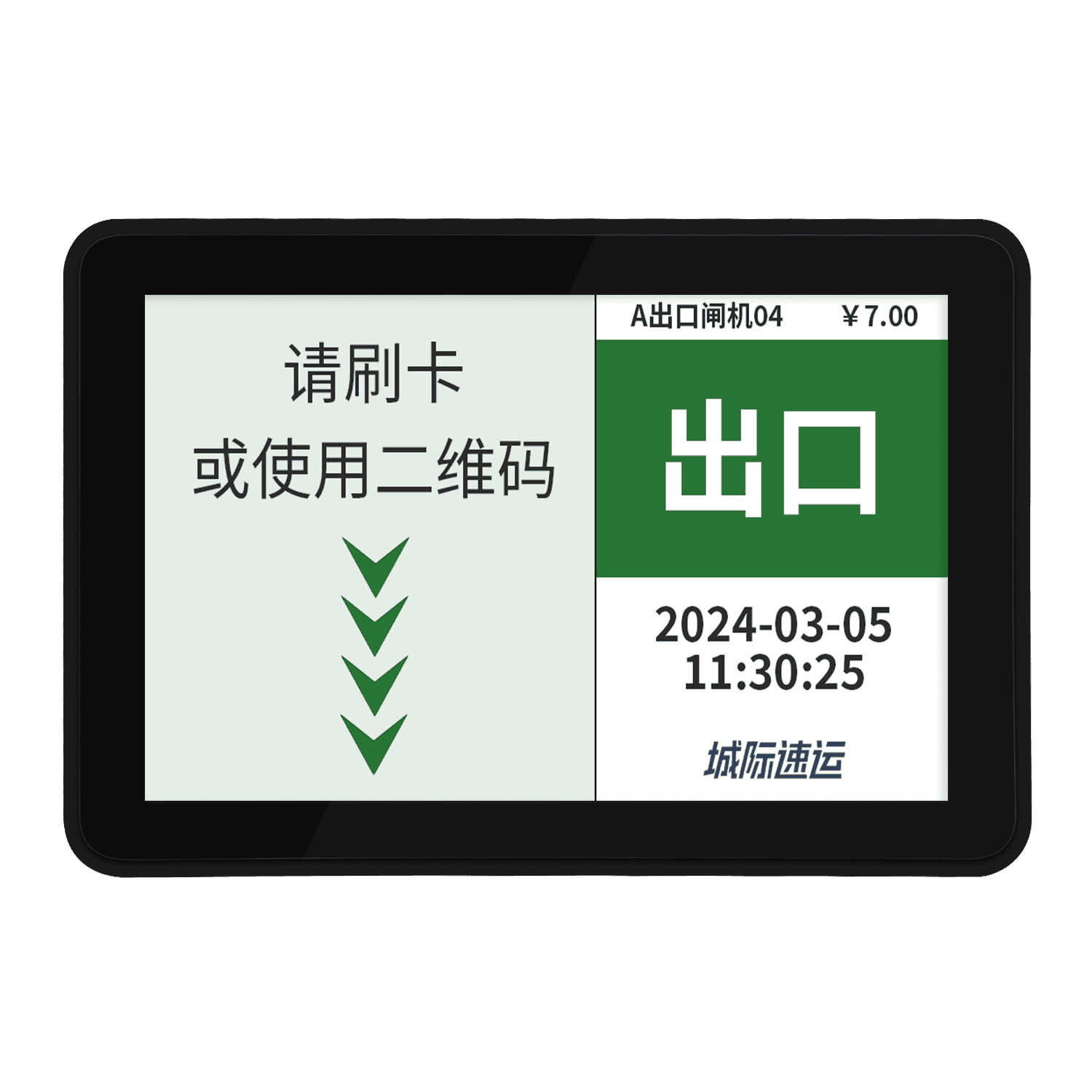

A closer look

Complete series material may show other sizes or configurations. Refer to the selected model specifications and confirmed delivery configuration. Select an image to enlarge it.

Configuration & specifications

Only source-checked specifications with a clear model association are listed. Contact us for details that are not listed.

AYP101M1-A133P

Source processor claim

Source processor claim — AYP101M1-A133P
CPUchip: A133P; cores: 4; clock_GHz: 1.8Not specified
RAM / storageRAM: 1; storage: 32 GBNot specified

Display and structure

Display and structure — AYP101M1-A133P
Display size10.1 inchesStandard dimensions
Brightnessstandard: 500; optional: 1000 cd/m²500 standard / 1000 optional
Viewing angleIPSStandard

Core configuration

Core configuration — AYP101M1-A133P
CPUAllwinner A133P, 4 Cortex-A53 cores, 1.8 GHzStandard
GPUGE8300Standard
RAMstandard: 1; optional: 2 / 4 GBOptional items available
Storagestandard: 32; optional: 64 / 128 GBOptional items available
Ethernet10 / 100 MbpsStandard
USB HostUSB2.0: 4 channelsStandard
USB OTG1 channelsStandard

Operating system

Operating system — AYP101M1-A133P
Android systemAndroid 10Depends on OS configuration
Linux systemsUbuntu 18.04/Linux QTDepends on OS configuration
Other OS optionsNot supportedDepends on OS configuration

Environmental specifications

Environmental specifications — AYP101M1-A133P
Operating temperature-10 – 60 ℃Not specified
Storage temperature-20 – 70 ℃Not specified
Operating humidity0 – 95 %RHNot specified
