No Shell S Series

S-043 4.3-inch HMI Panel

Name: S-043 4.3-inch HMI Panel
Brand: AOYU TECH
SKU: S-043

4.3 inches · No Shell S Series

Screen size

4.3″7″10.1″

Configuration

Size: 4.3 inches
Resolution: 800 × 480 px
Backlight brightness: 500 cd/m²
Viewing angle: IPS

Request a quote

Specifications follow the selected configuration. Contact us to confirm options and delivery requirements.

Built around your requirements

Explore the display, enclosure and configuration-specific capabilities of this HMI panel.

Size: 4.3 inches. Resolution: 800 × 480 px. Backlight brightness: 500 cd/m². Viewing angle: IPS

Size: 4.3 inches
Resolution: 800 × 480 px
Backlight brightness: 500 cd/m²
Viewing angle: IPS

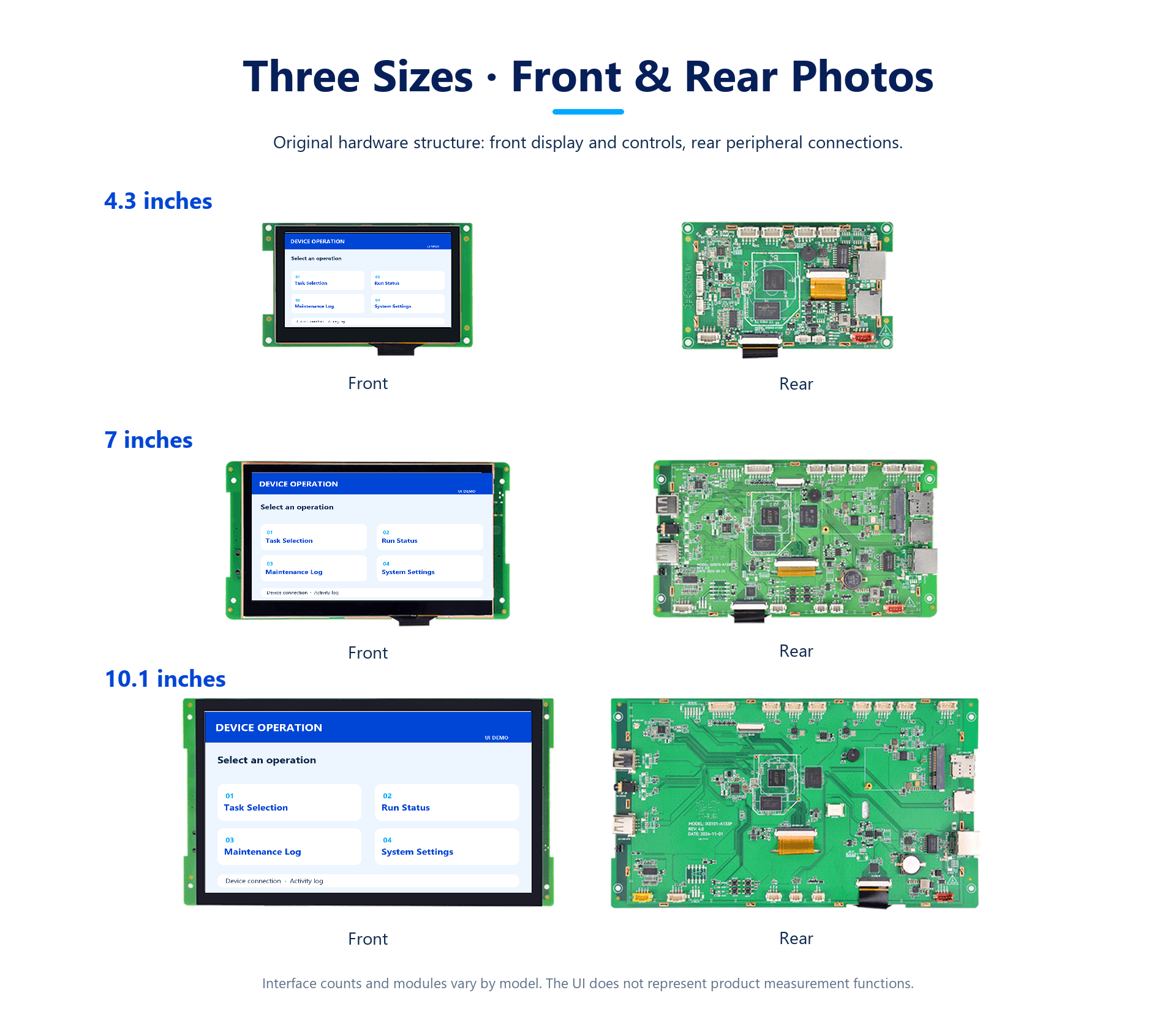

A closer look

Complete series material may show other sizes or configurations. Refer to the selected model specifications and confirmed delivery configuration. Select an image to enlarge it.

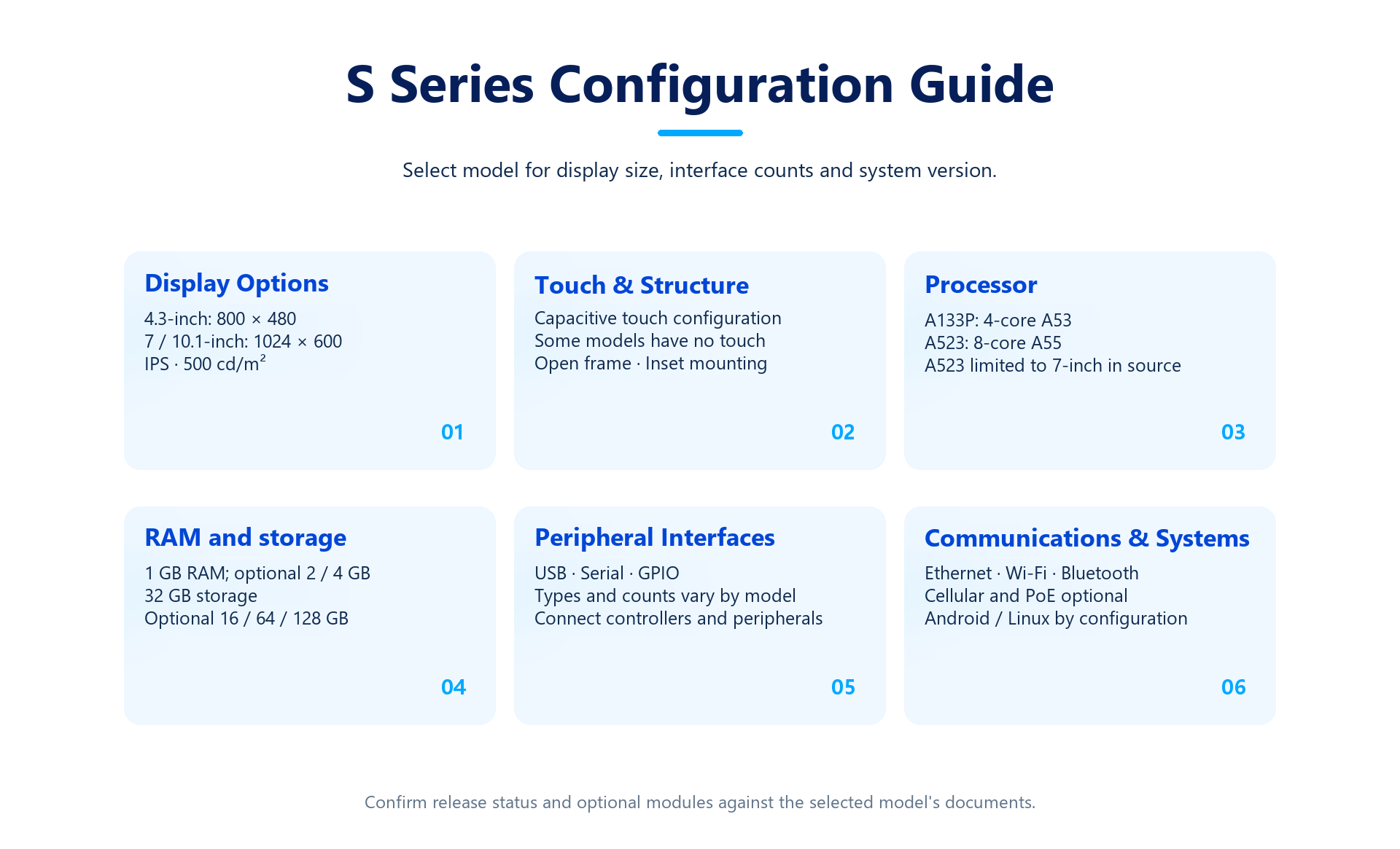

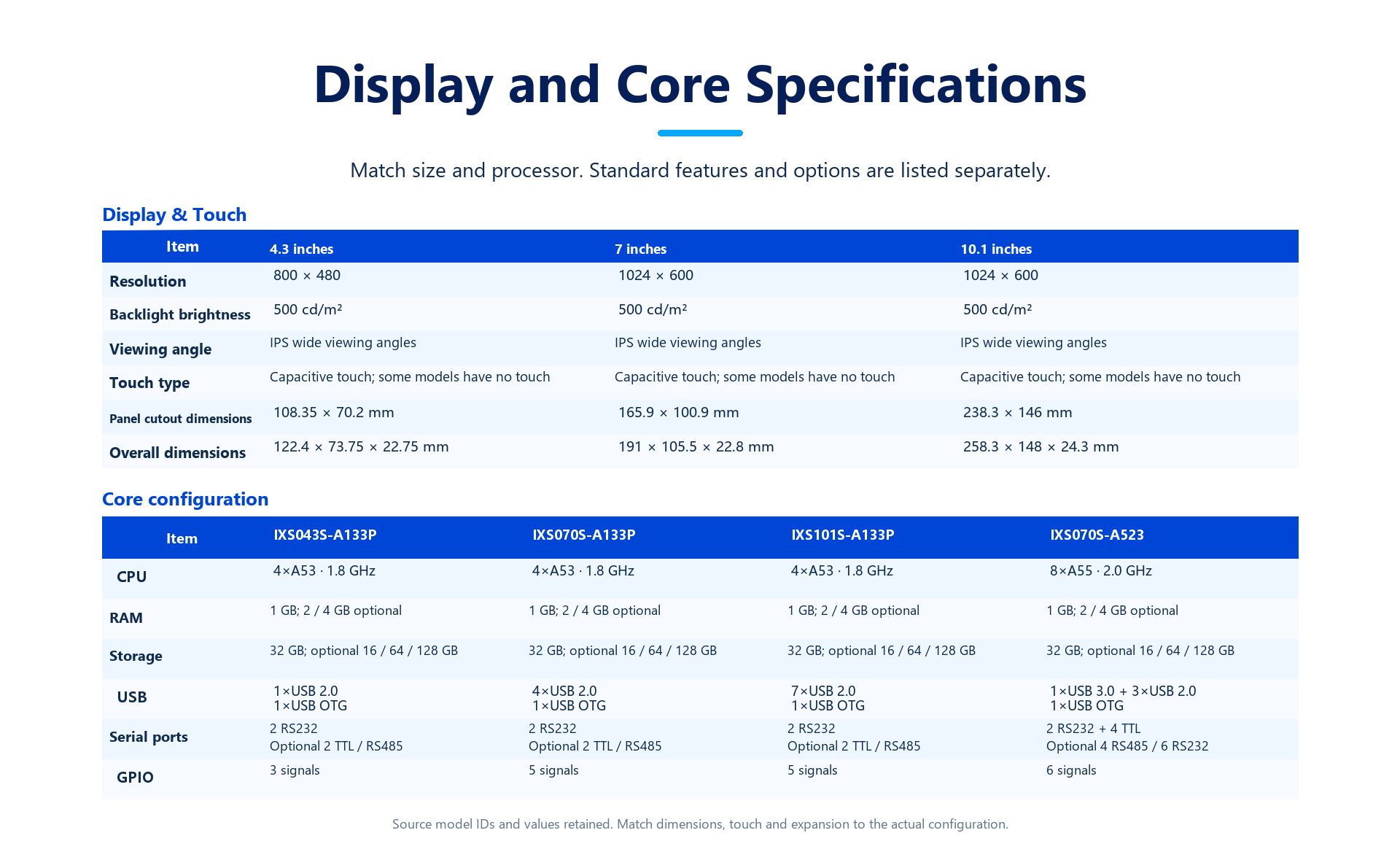

Configuration & specifications

Only source-checked specifications with a clear model association are listed. Contact us for details that are not listed.

AYS043S-A133P

Display and structure

Display and structure — AYS043S-A133P
Size	4.3 inchesOriginal table configuration
Resolution	800 × 480 pxOriginal table configuration
Backlight brightness	500 cd/m²Original table configuration
Viewing angle	IPSOriginal table configuration

Core configuration

Core configuration — AYS043S-A133P
CPU	Allwinner A133P, quad-core A53, 1.8 GHzStandard
RAM	standard_GB: 1; optional_GB: 2 / 41 GB standard; other capacities optional
Storage	standard_GB: 32; optional_GB: 16 / 64 / 12832 GB standard; other capacities optional

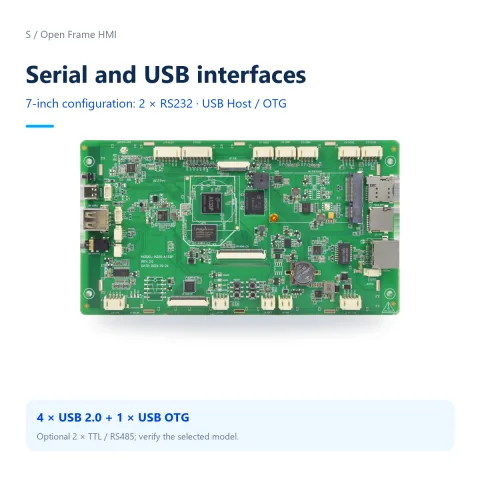

USB	One USB 2.0 and one USB OTGStandard
Serial ports	Two RS232; optional two TTL/RS485Subject to serial-port configuration
GPIO	3Standard

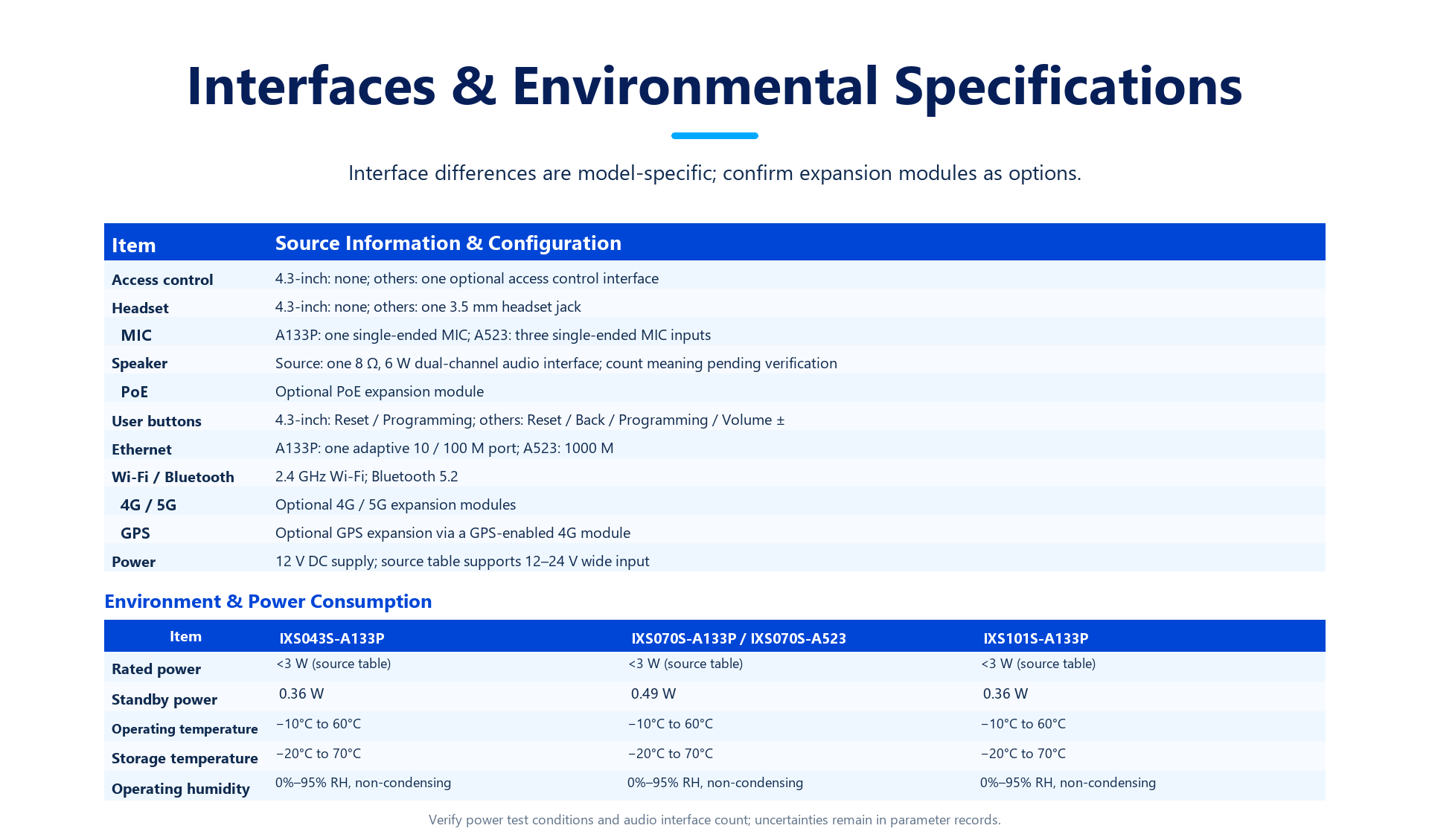

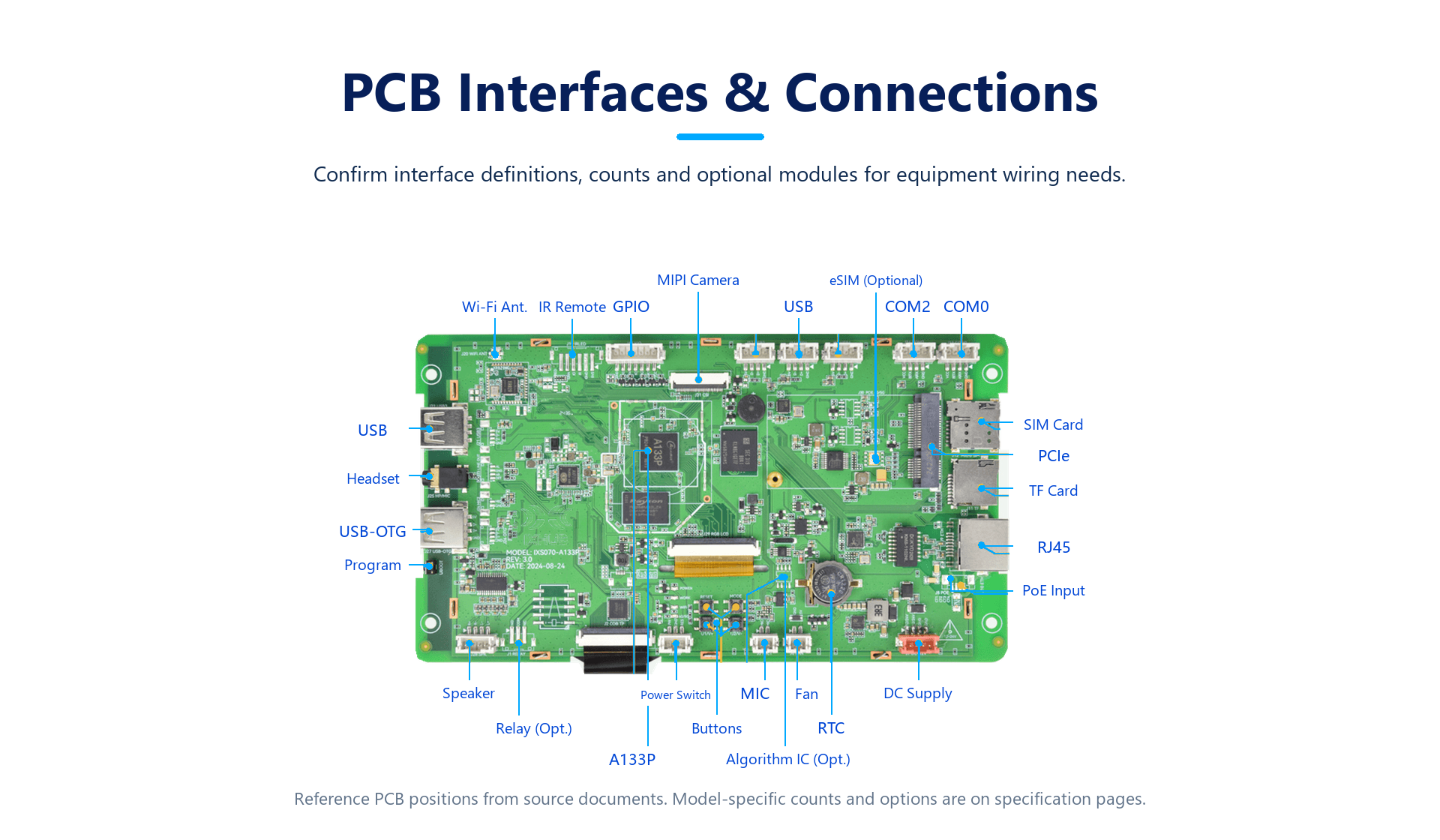

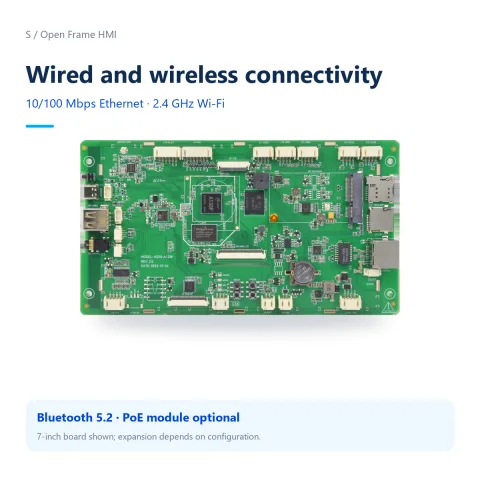

Interfaces and communications

Interfaces and communications — AYS043S-A133P
Access control	0Not supported
Headset	0Not supported
MIC	1Standard
PoE	PoEOptional
User buttons	Reset / ProgrammingStandard
Ethernet	100Standard
Wi-Fi and Bluetooth	wifi_GHz: 2.4; bluetooth: 5.2Standard

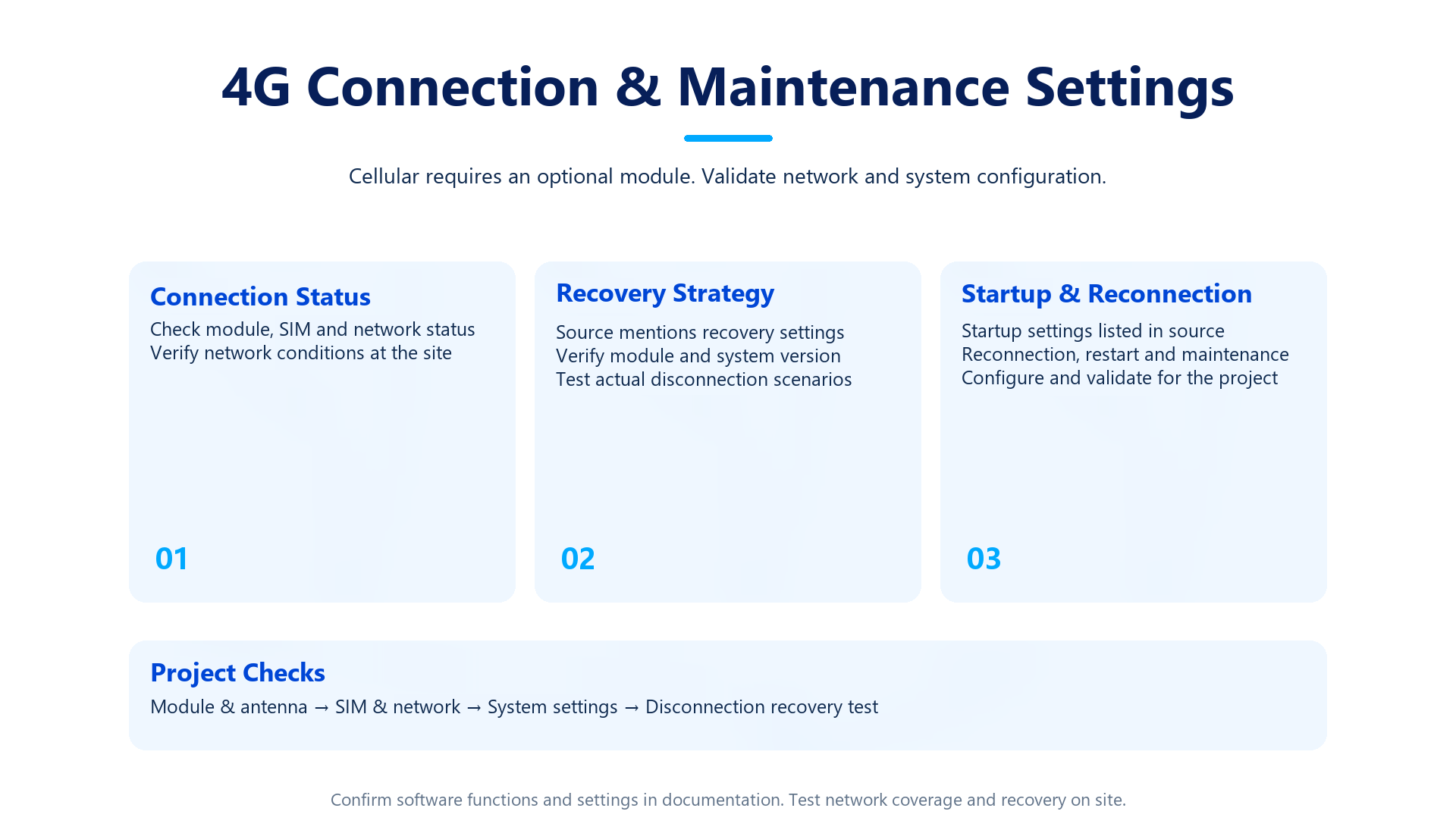

4G/5G	4G / 5GOptional
GPS	GPS-enabled 4G moduleOptional

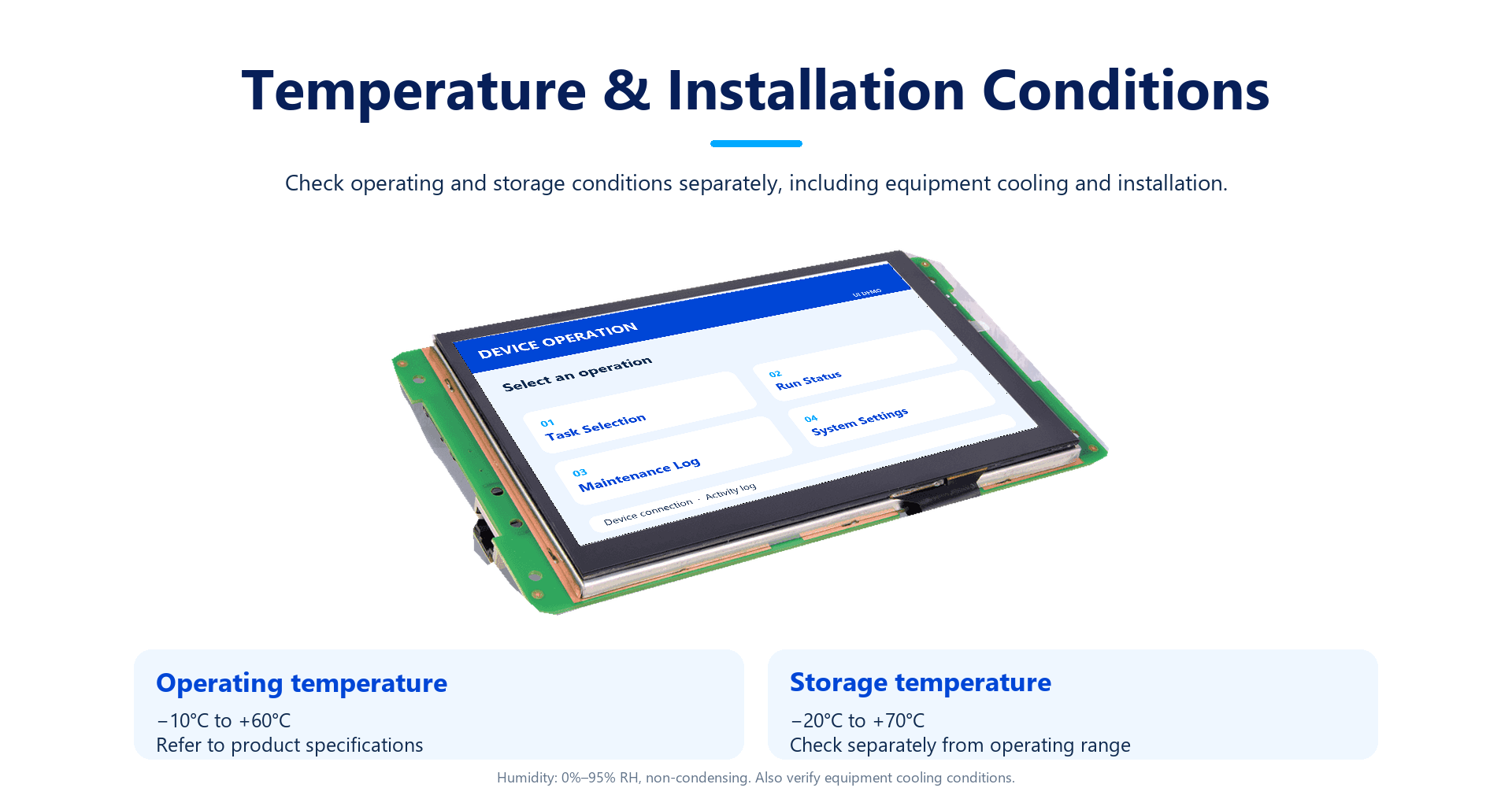

Environment and power supply

Environment and power supply — AYS043S-A133P
Operating humidity	range: 0 / 95; condensation: false % RHOriginal table configuration

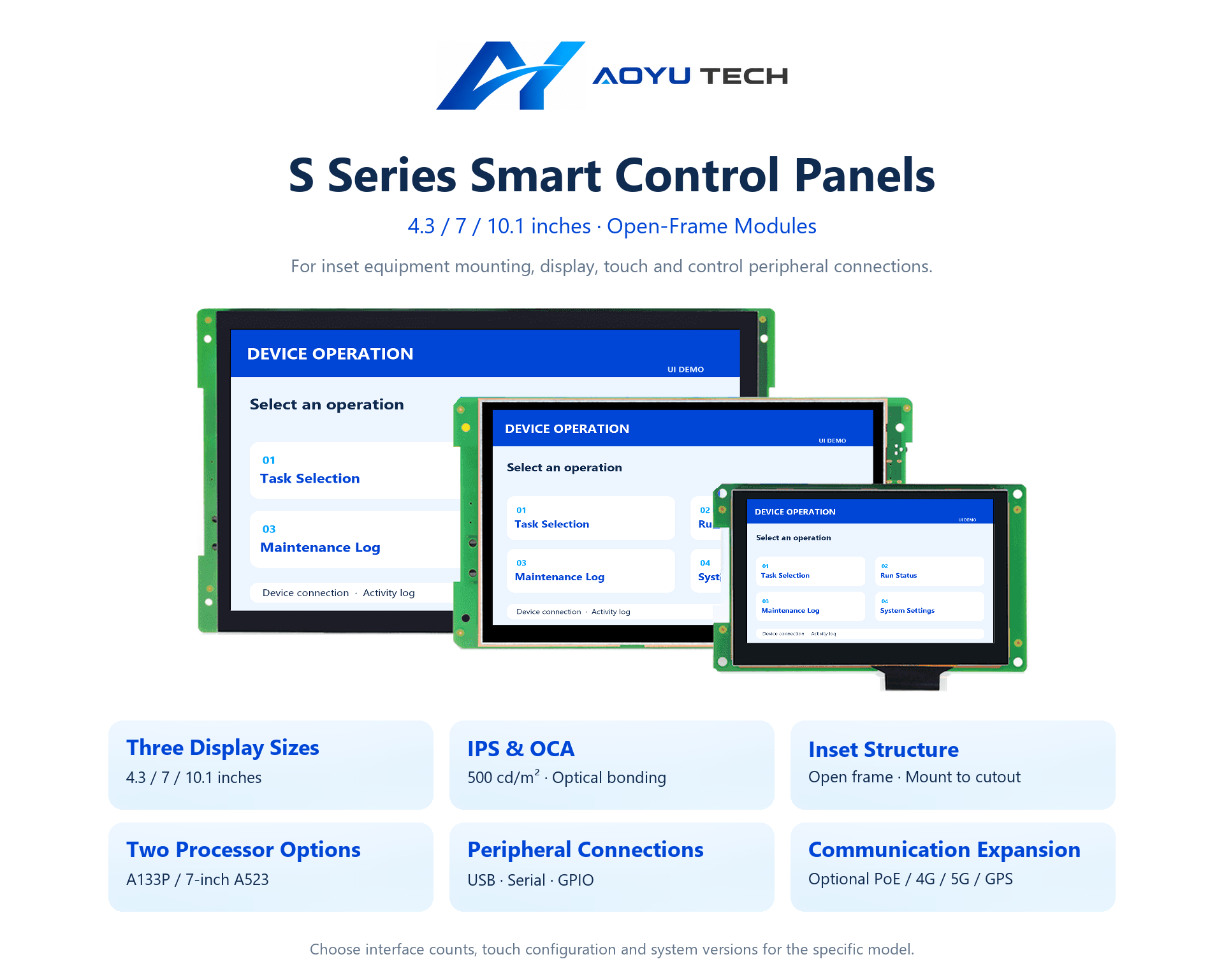

Overview

Overview — AYS043S-A133P
Series structure	size_inch: 4.3 / 7 / 10.1; structure: Open-frame, without enclosure; installation: Inset mountingNot specified

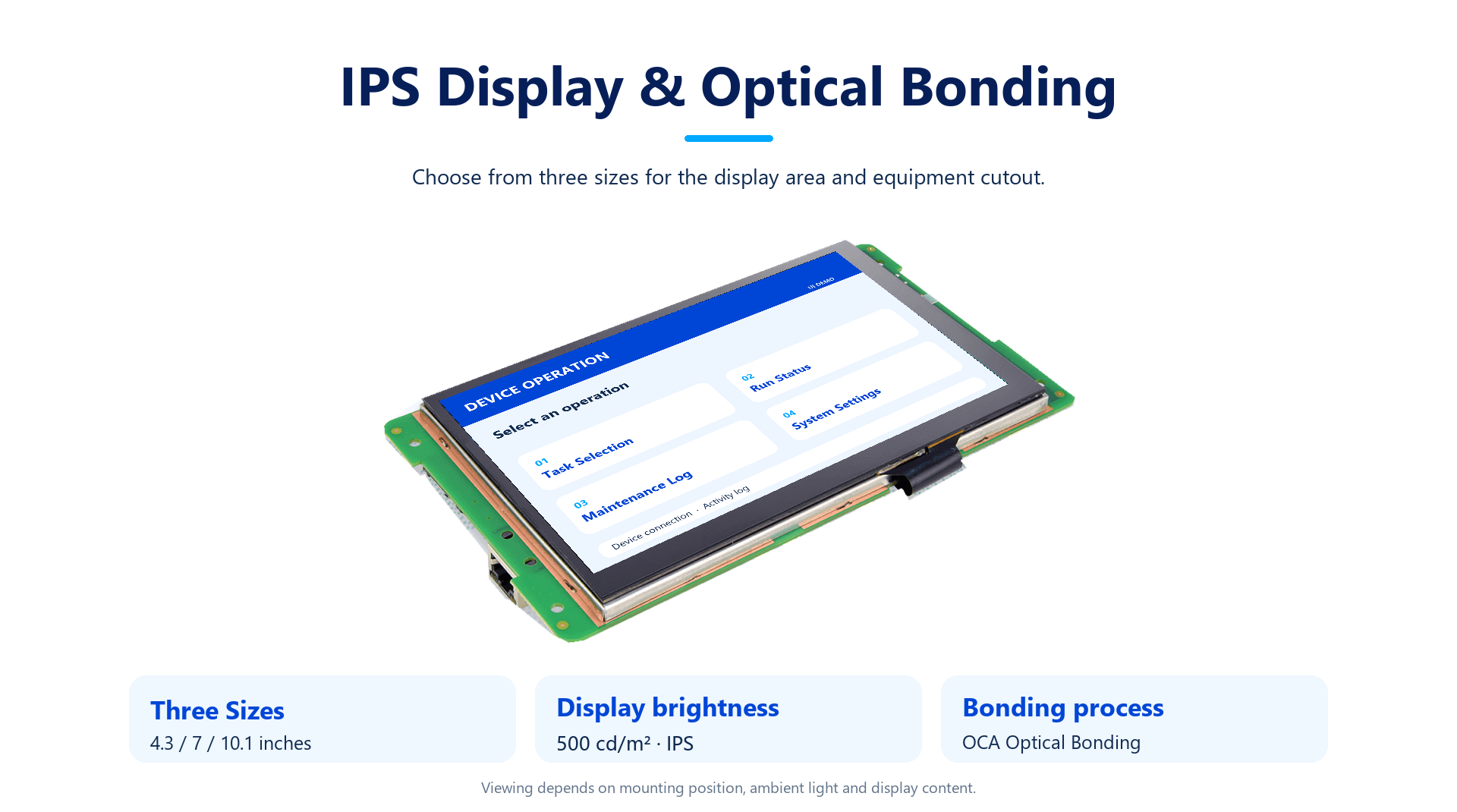

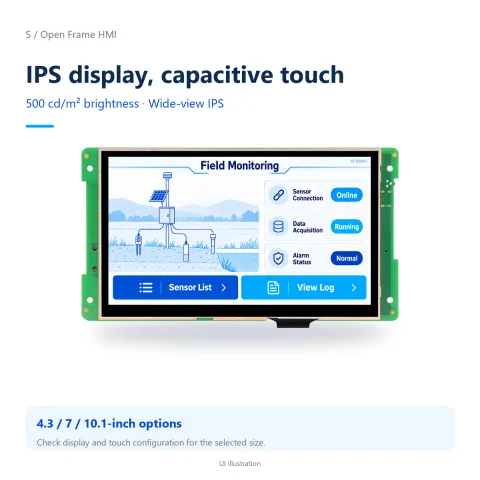

Display

Display — AYS043S-A133P
IPS and bonding	size_inch: 4.3 / 7 / 10.1; brightness: 500; bonding: OCANot specified

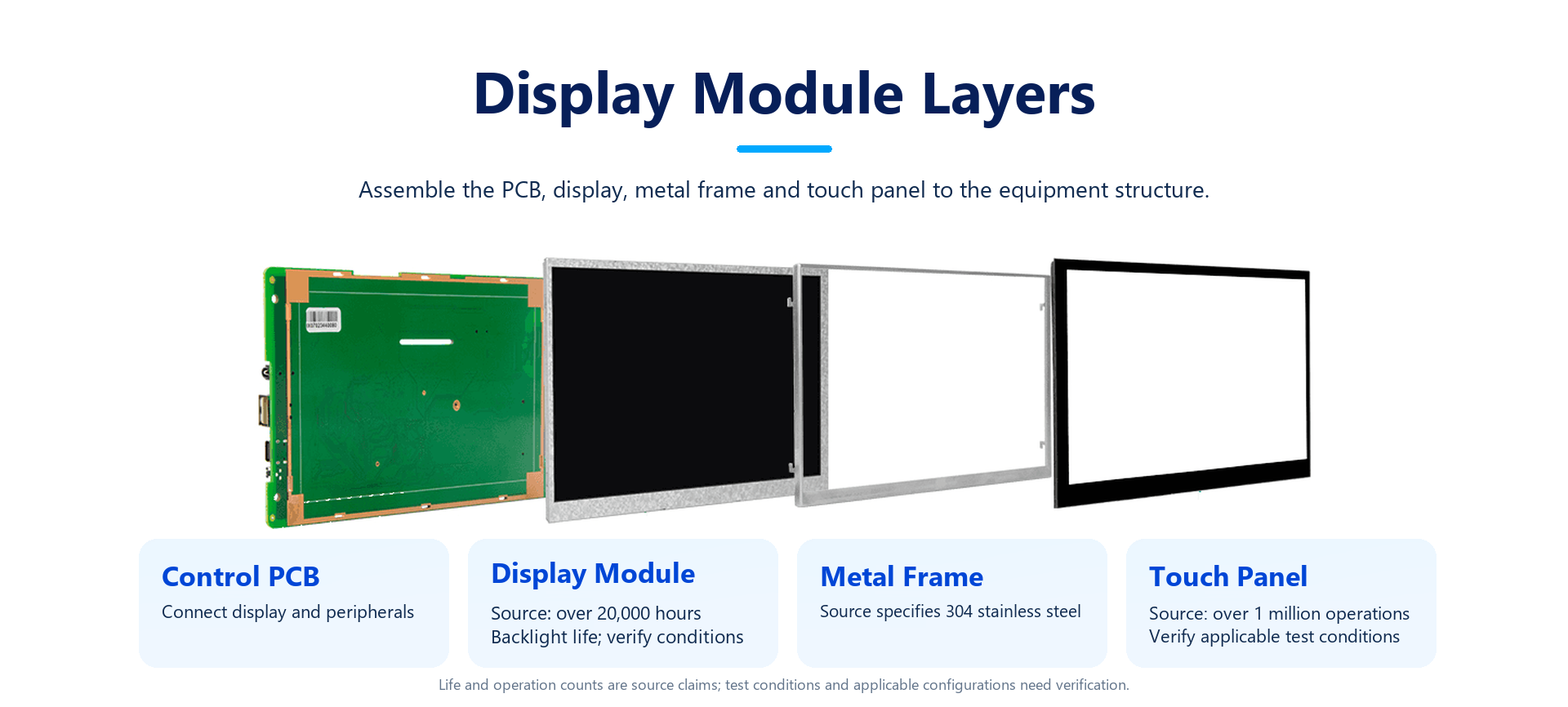

Structure

Structure — AYS043S-A133P
Frame material	material: 304 stainless steelNot specified

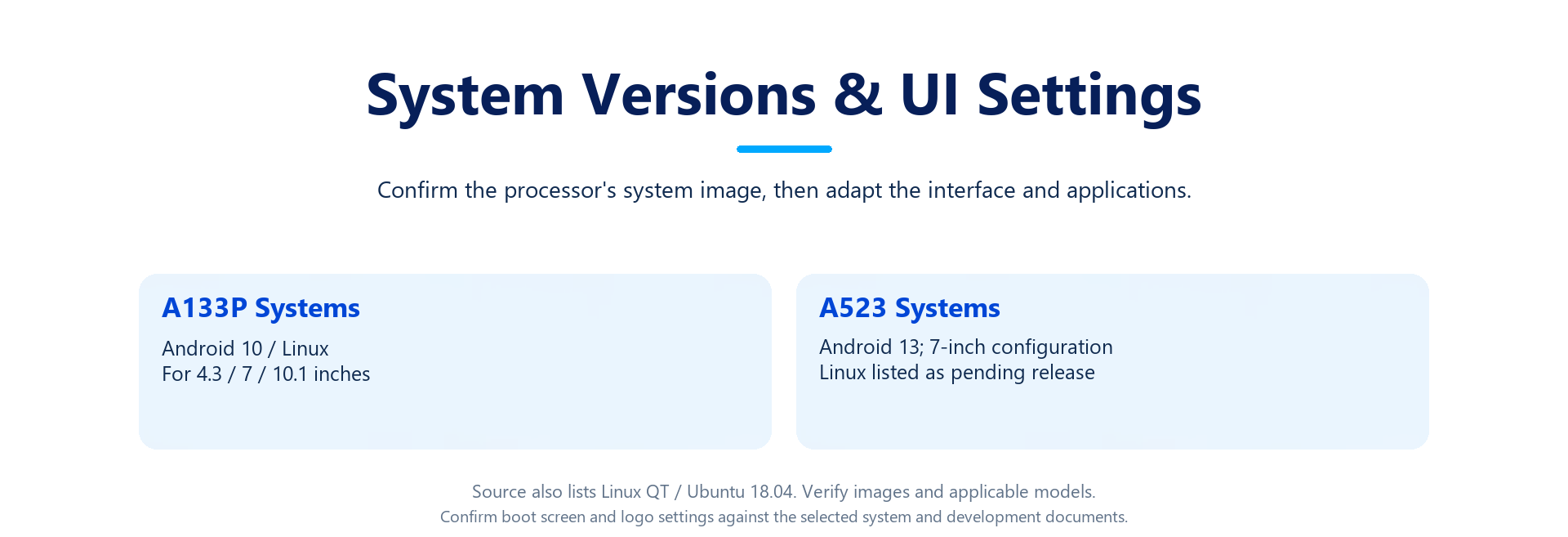

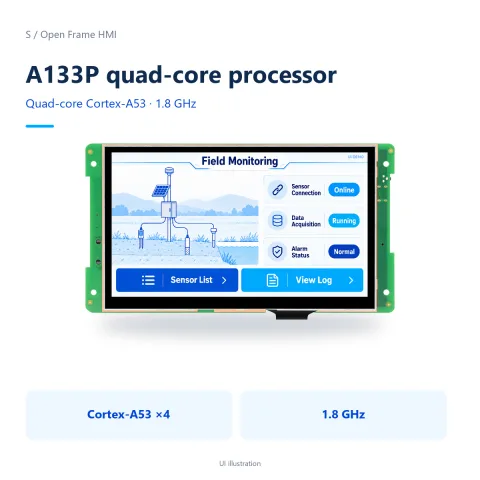

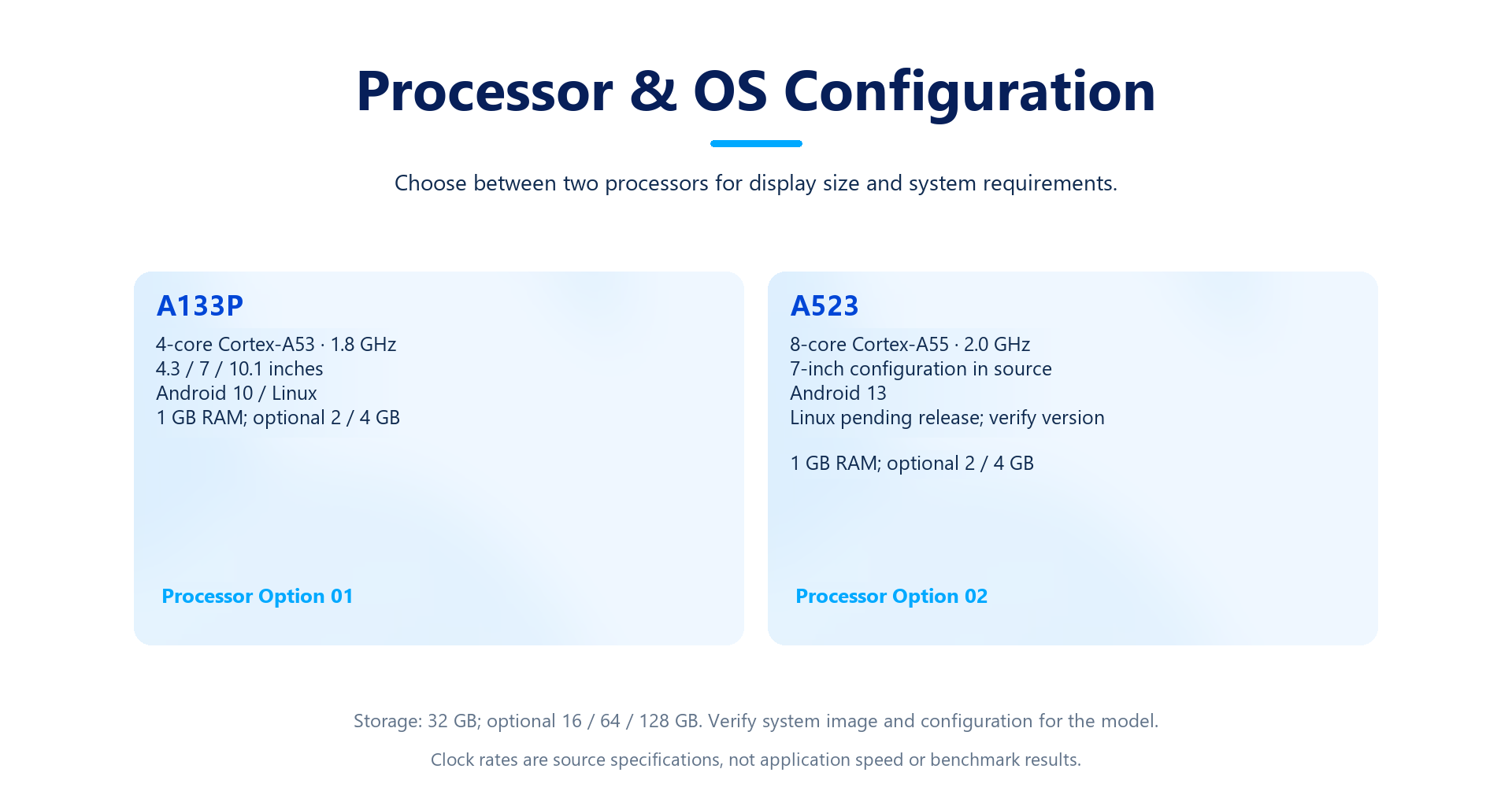

Processor and operating system

Processor and operating system — AYS043S-A133P
A133P	cores: 4; architecture: A53; clock_GHz: 1.8; RAM_GB: 1; storage_GB: 32; system_raw: Android 10 / LinuxNot specified

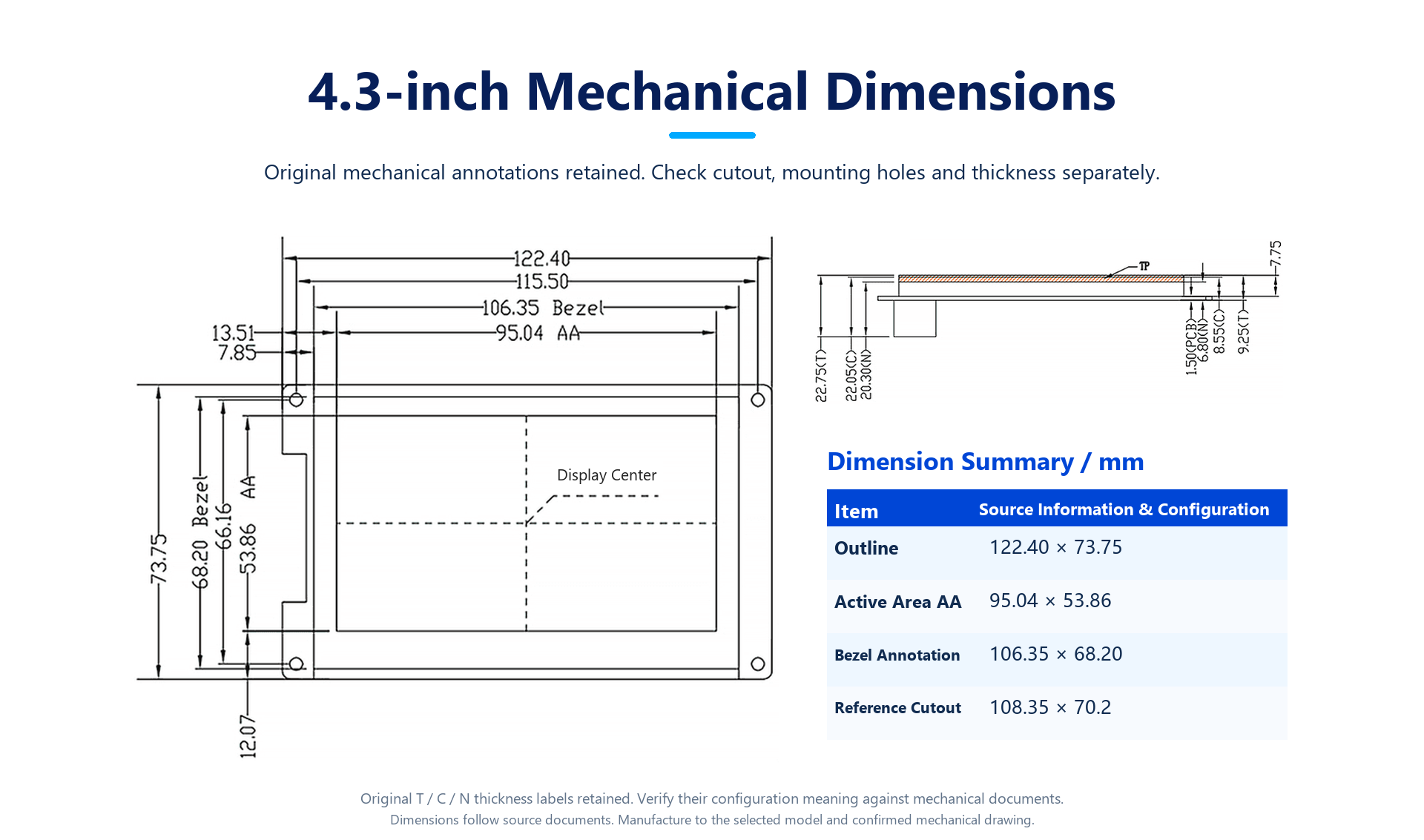

Mechanical dimensions

Mechanical dimensions — AYS043S-A133P
4.3-inch bezel	106.35 × 68.2 mmNot specified
4.3-inch active area AA	95.04 × 53.86 mmNot specified
4.3-inch hole-position annotations	115.5 × 66.16 mmNot specified
