Interactive P Series

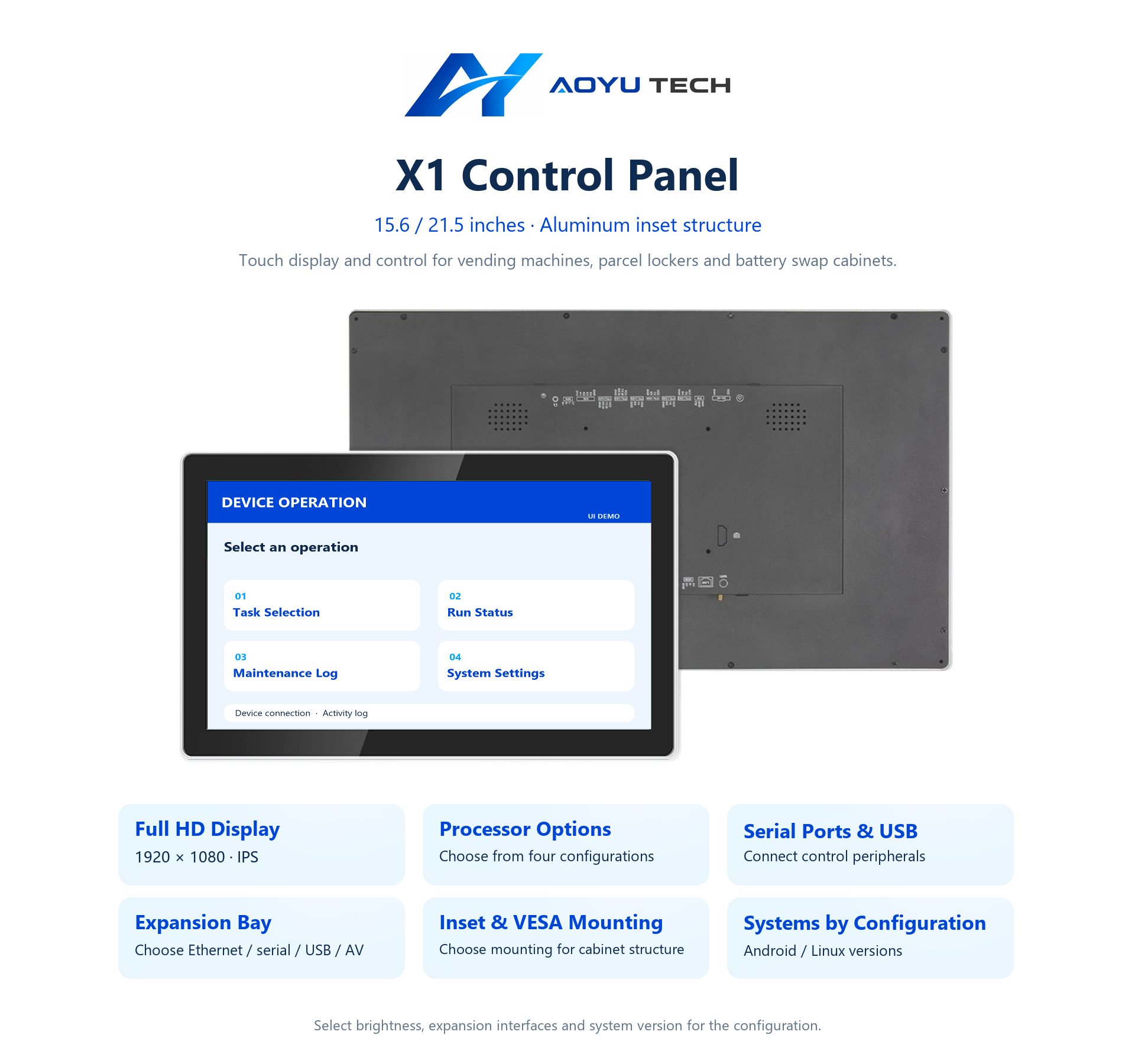

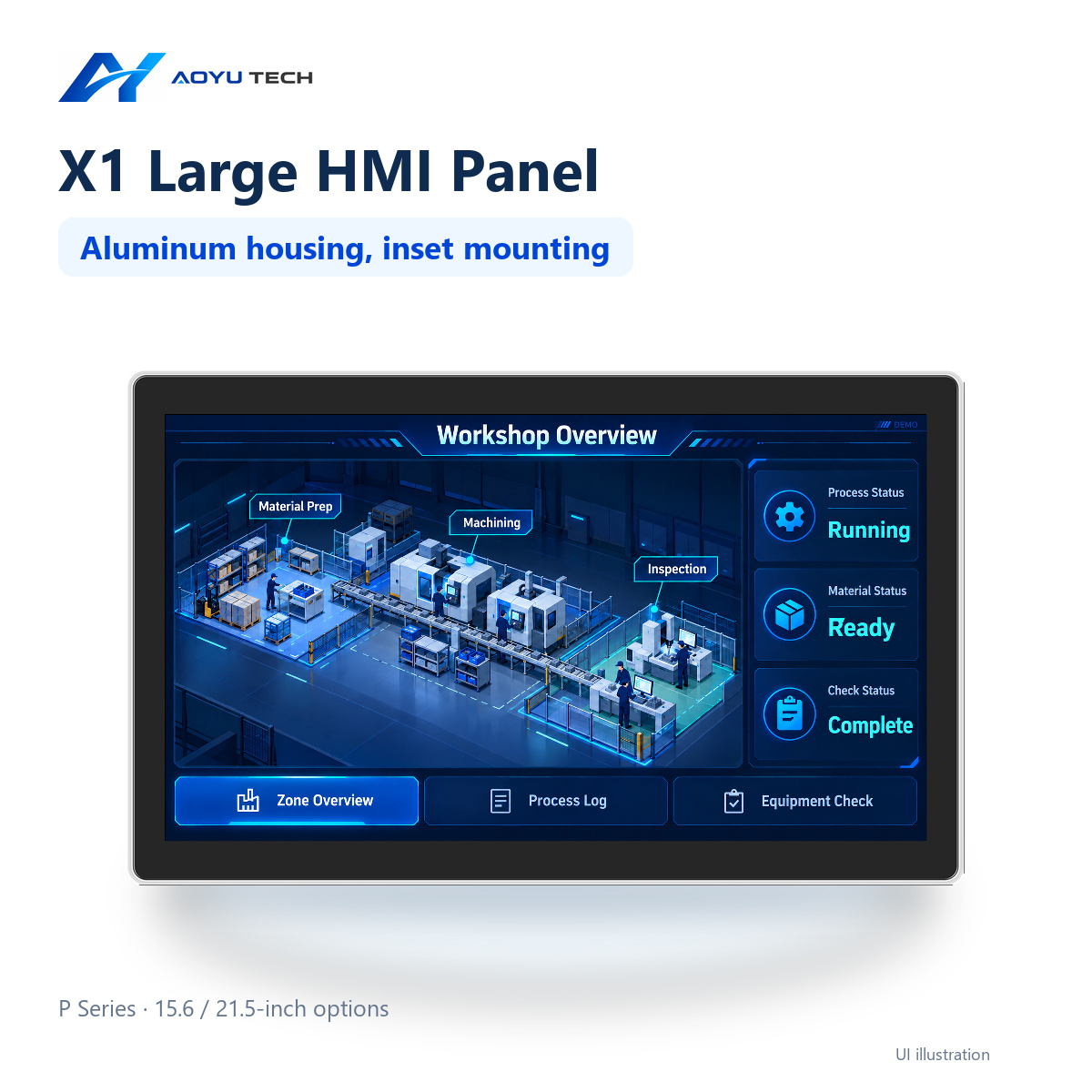

P-X1-156 15.6-inch HMI Panel

15.6 inches · Interactive P Series

Screen size
15.6″21.5″
Display size
15.6 inches
Resolution
1920 × 1080 px
Brightness
standard: 250; optional: 500 / 1000 cd/m²
Viewing angle
IPS
Request a quote

Specifications follow the selected configuration. Contact us to confirm options and delivery requirements.

Built around your requirements

Explore the display, enclosure and configuration-specific capabilities of this HMI panel.

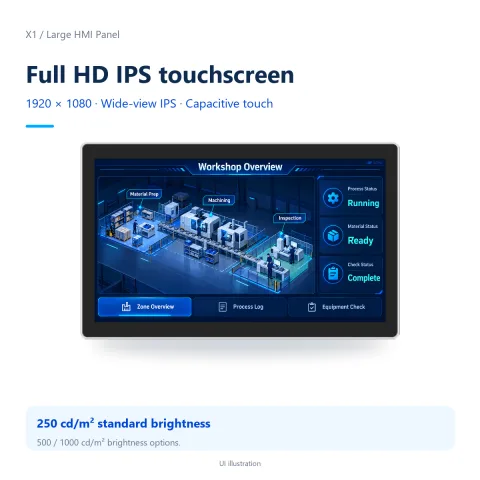

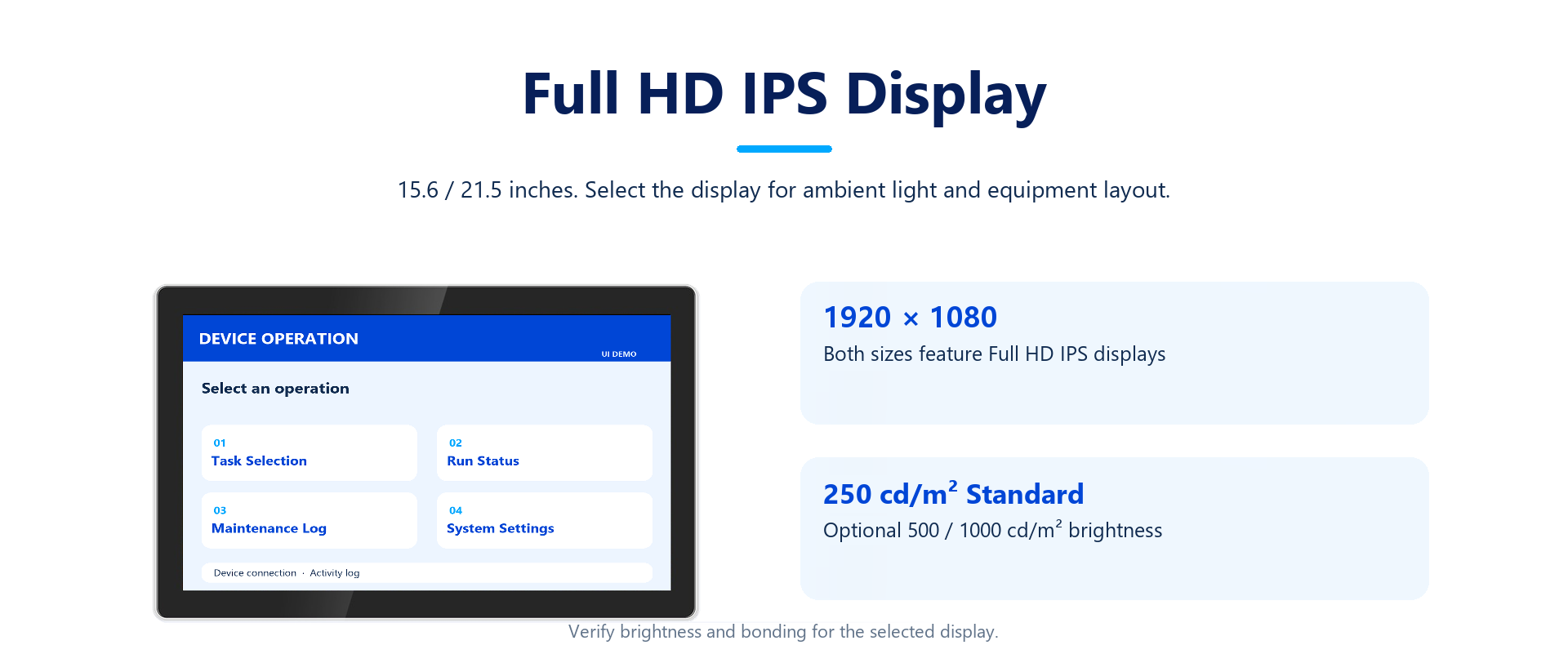

Display size: 15.6 inches. Resolution: 1920 × 1080 px. Brightness: standard: 250; optional: 500 / 1000 cd/m². Viewing angle: IPS

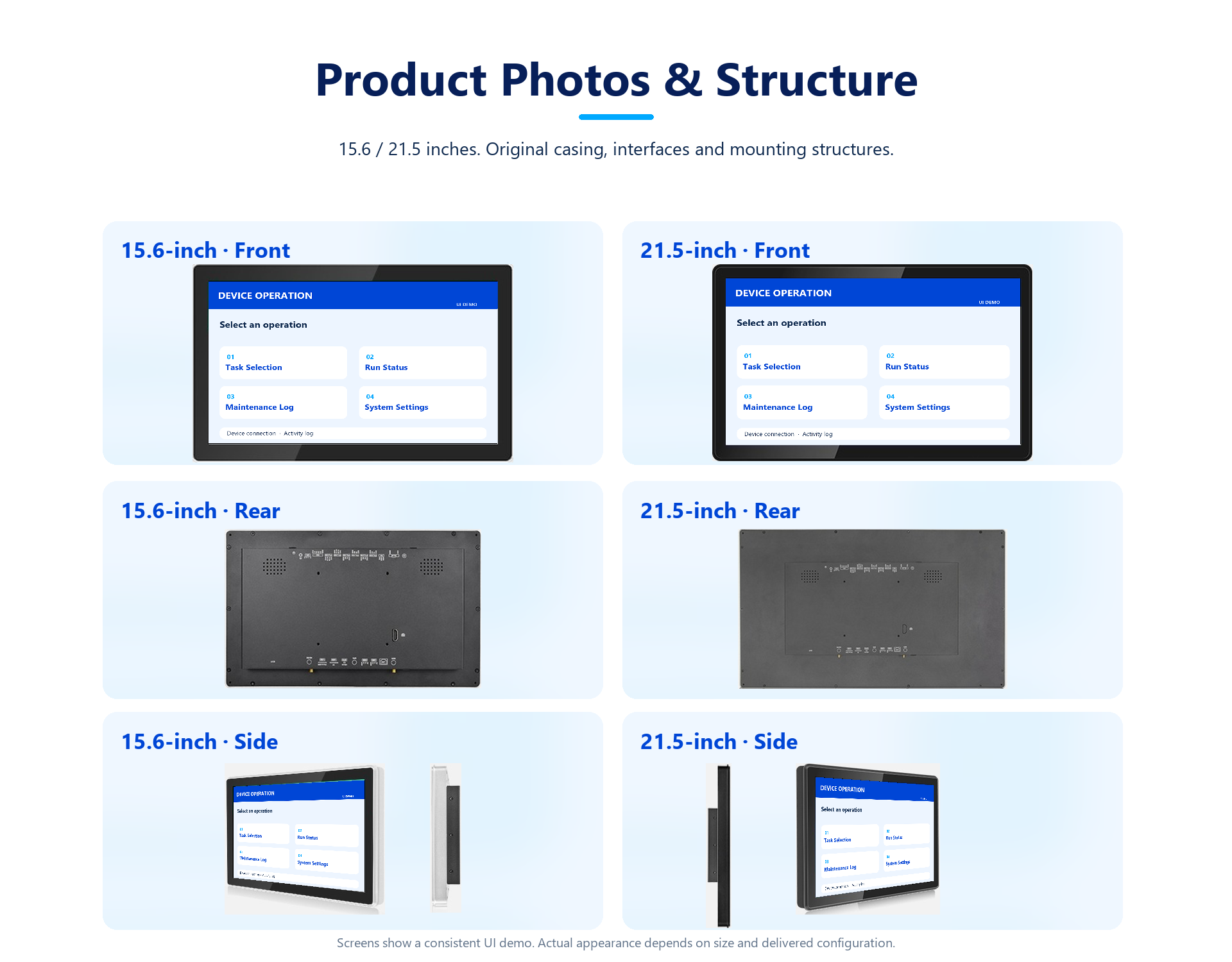

A closer look

Complete series material may show other sizes or configurations. Refer to the selected model specifications and confirmed delivery configuration. Select an image to enlarge it.

Configuration & specifications

Only source-checked specifications with a clear model association are listed. Contact us for details that are not listed.

AYP156X1-A133P

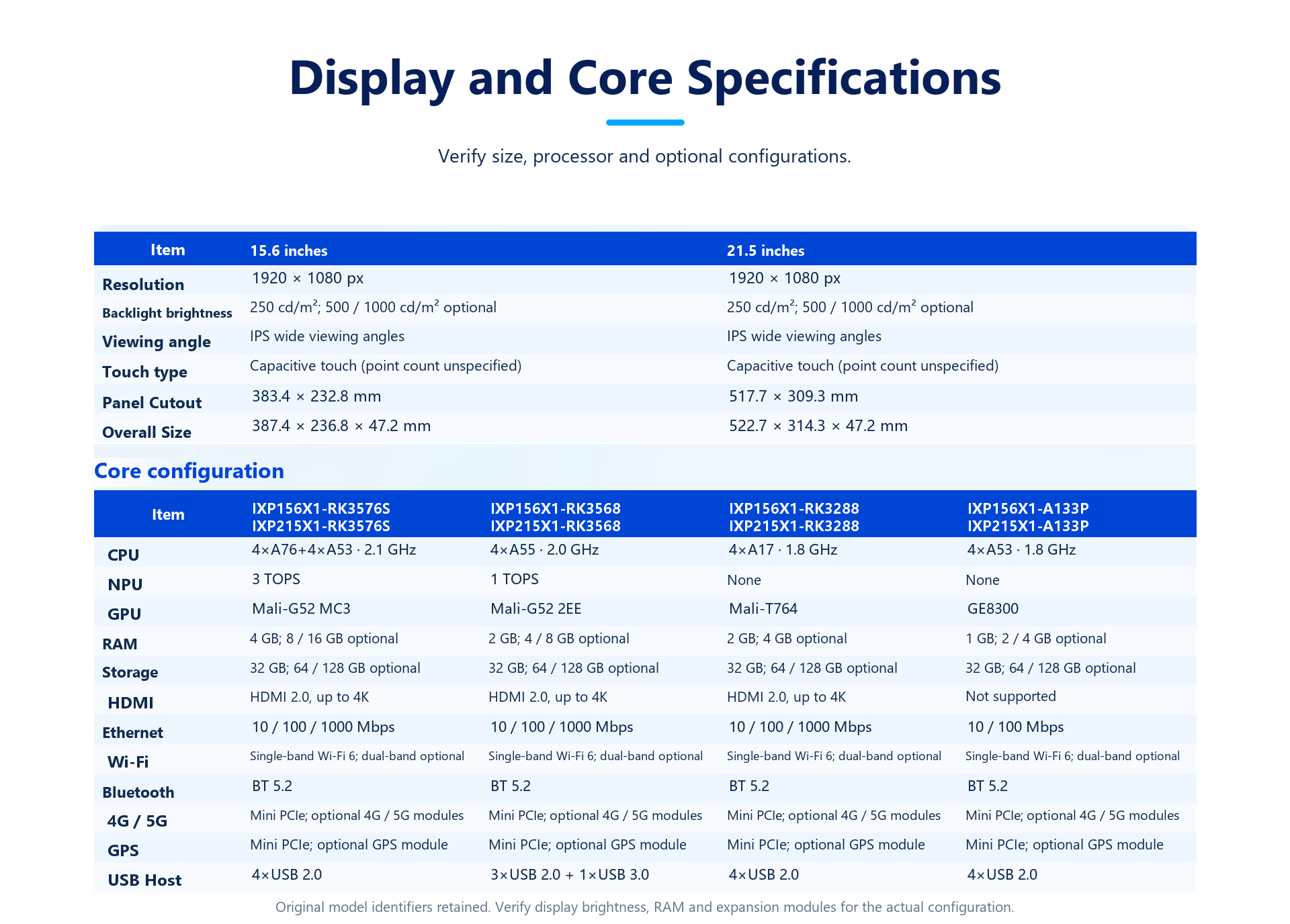

Display and structure

Display and structure — AYP156X1-A133P
Display size15.6 inchesStandard dimensions
Resolution1920 × 1080 pxStandard
Brightnessstandard: 250; optional: 500 / 1000 cd/m²250 standard; 500/1000 optional
Viewing angleIPSStandard

Core configuration

Core configuration — AYP156X1-A133P

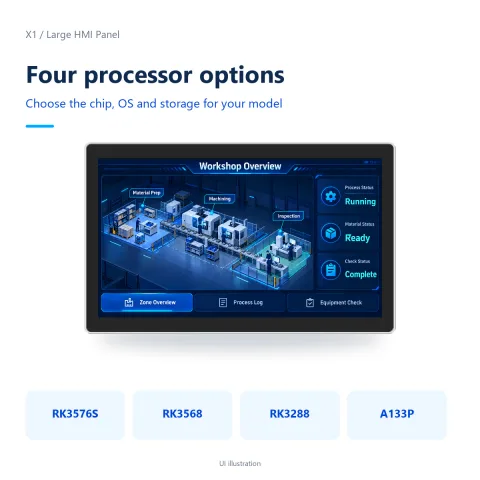

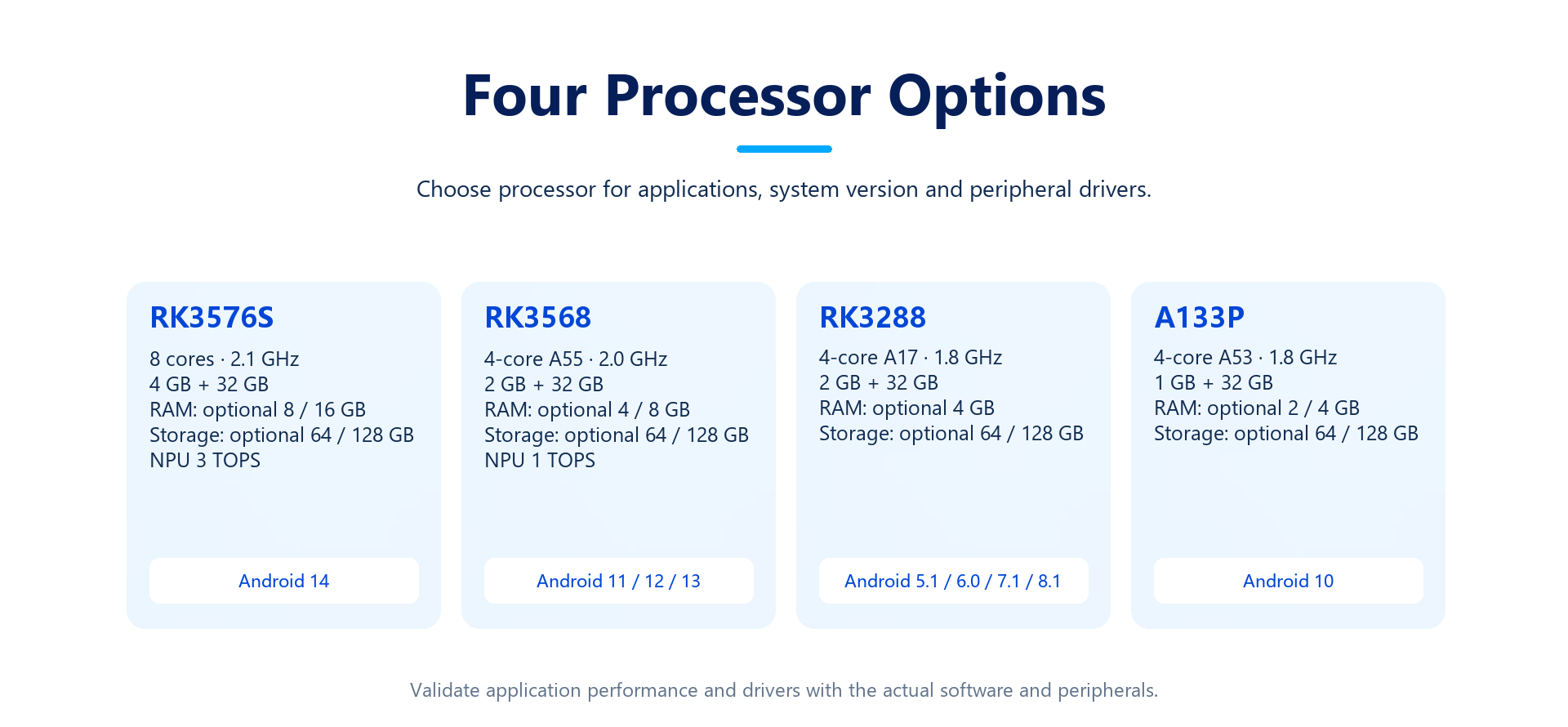

CPUAllwinner A133P, 4 Cortex-A53 cores, 1.8 GHzStandard
GPUGE8300Standard
RAMstandard: 1; optional: 2 / 4 GBOptional items available
Storagestandard: 32; optional: 64 / 128 GBOptional items available

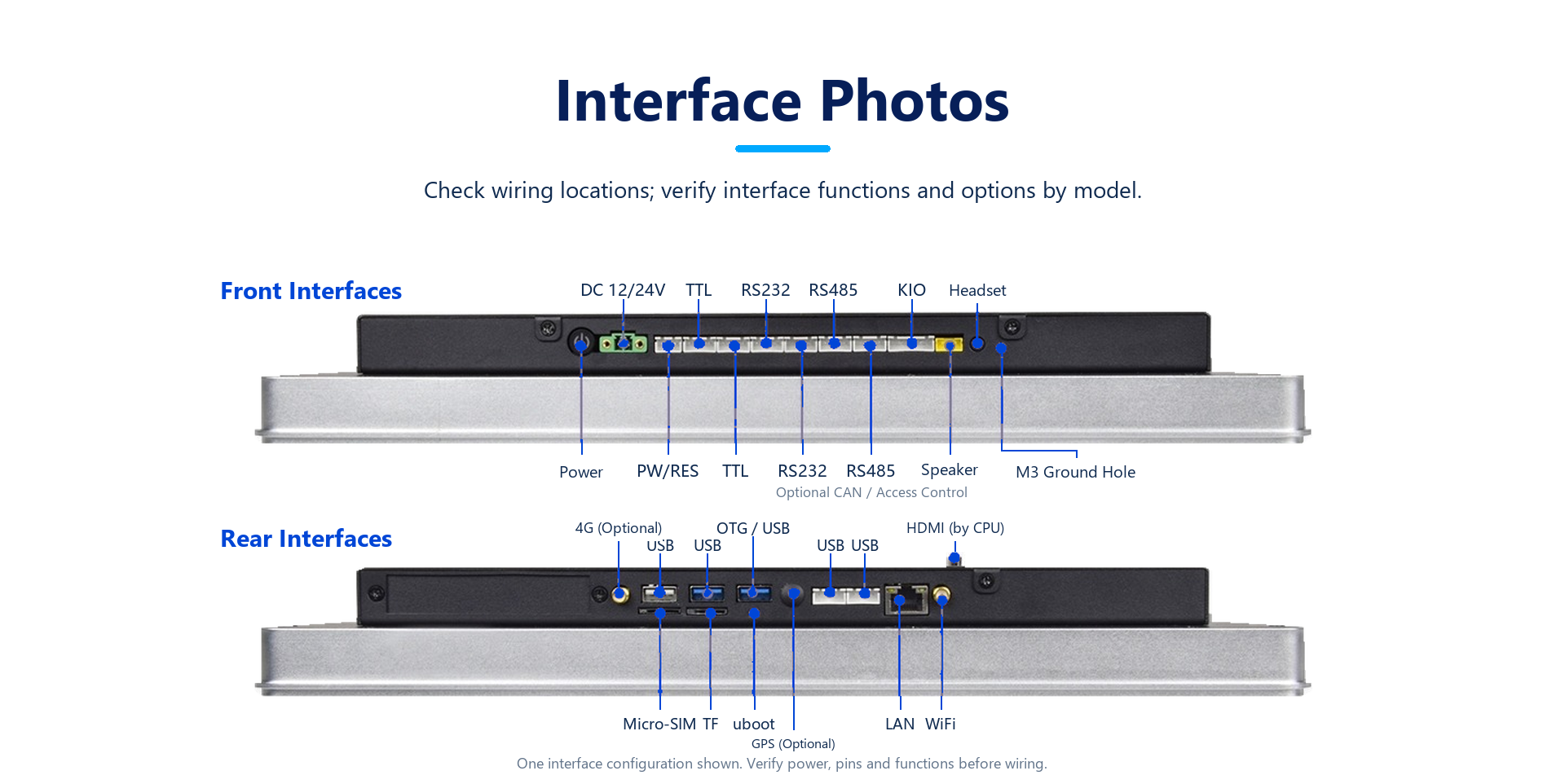

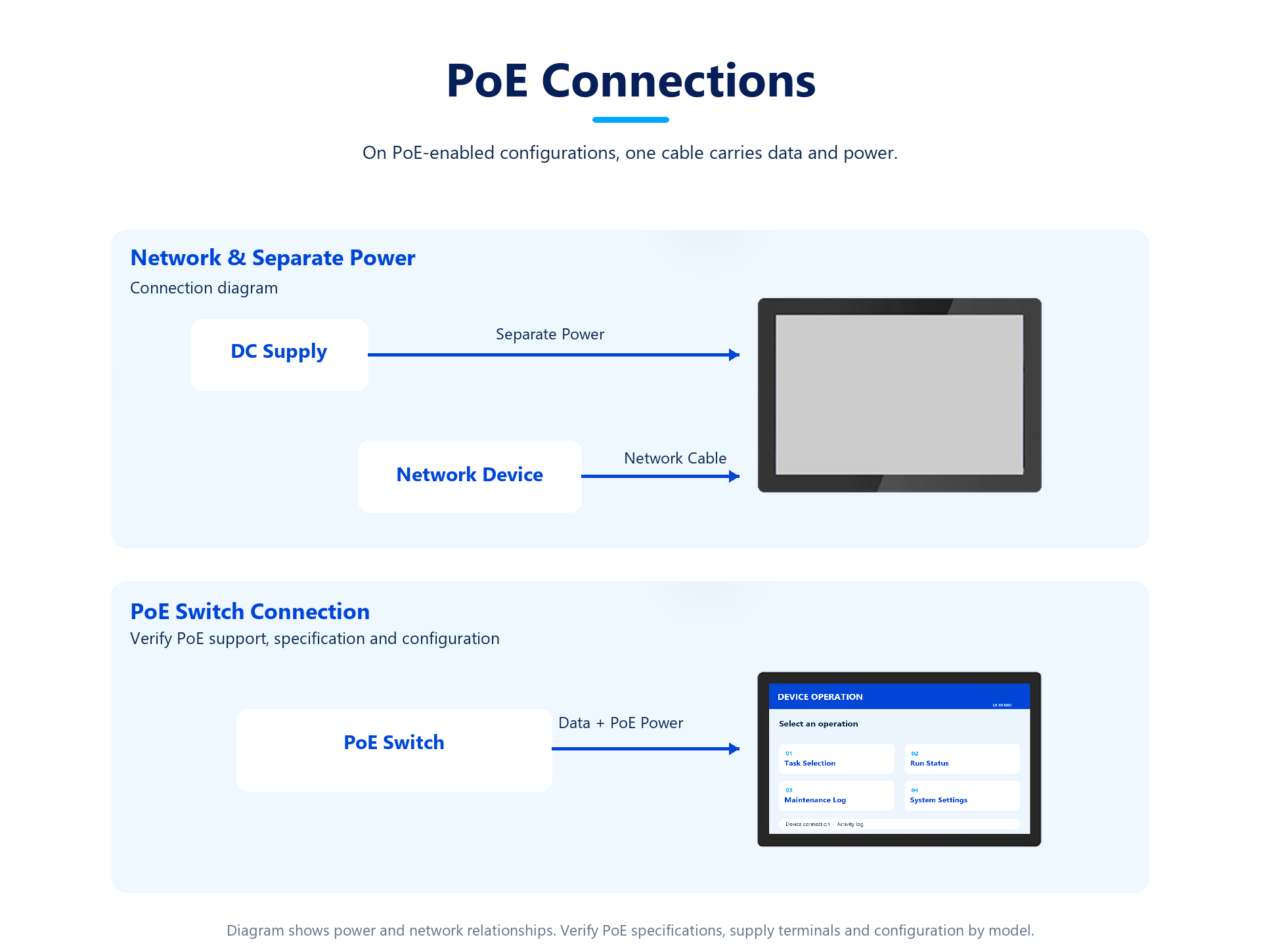

Ethernet10 / 100 MbpsStandard

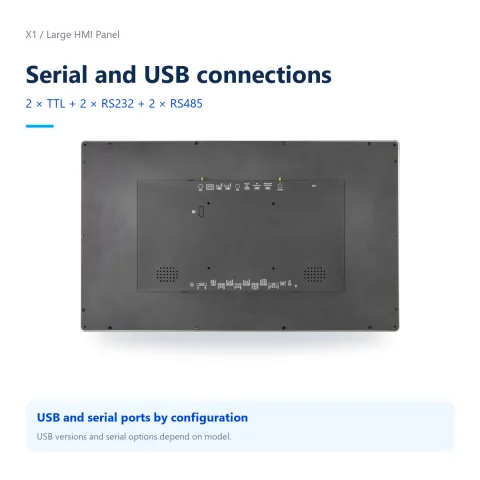

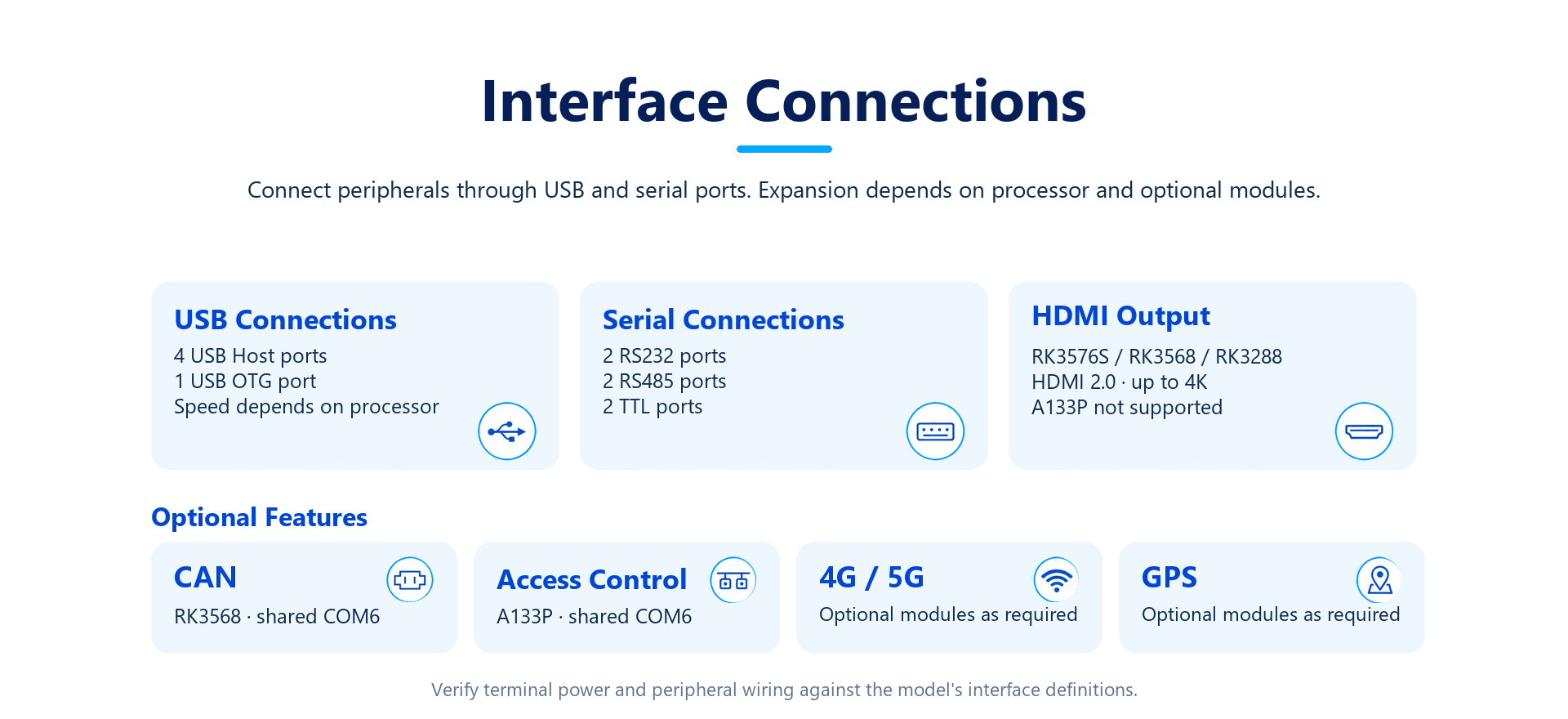

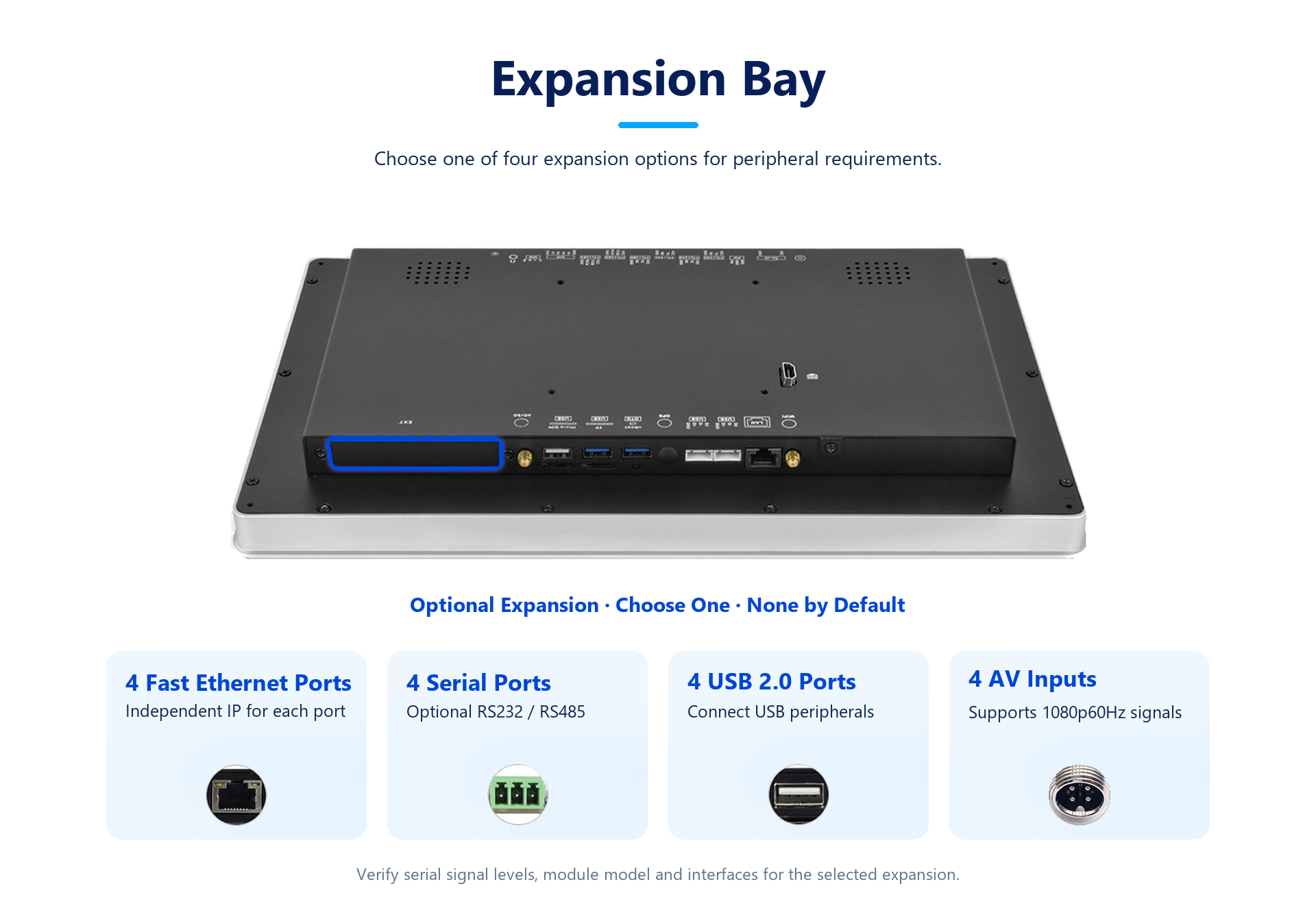

USB HostUSB2.0: 4 channelsStandard
USB OTG1 channelsStandard

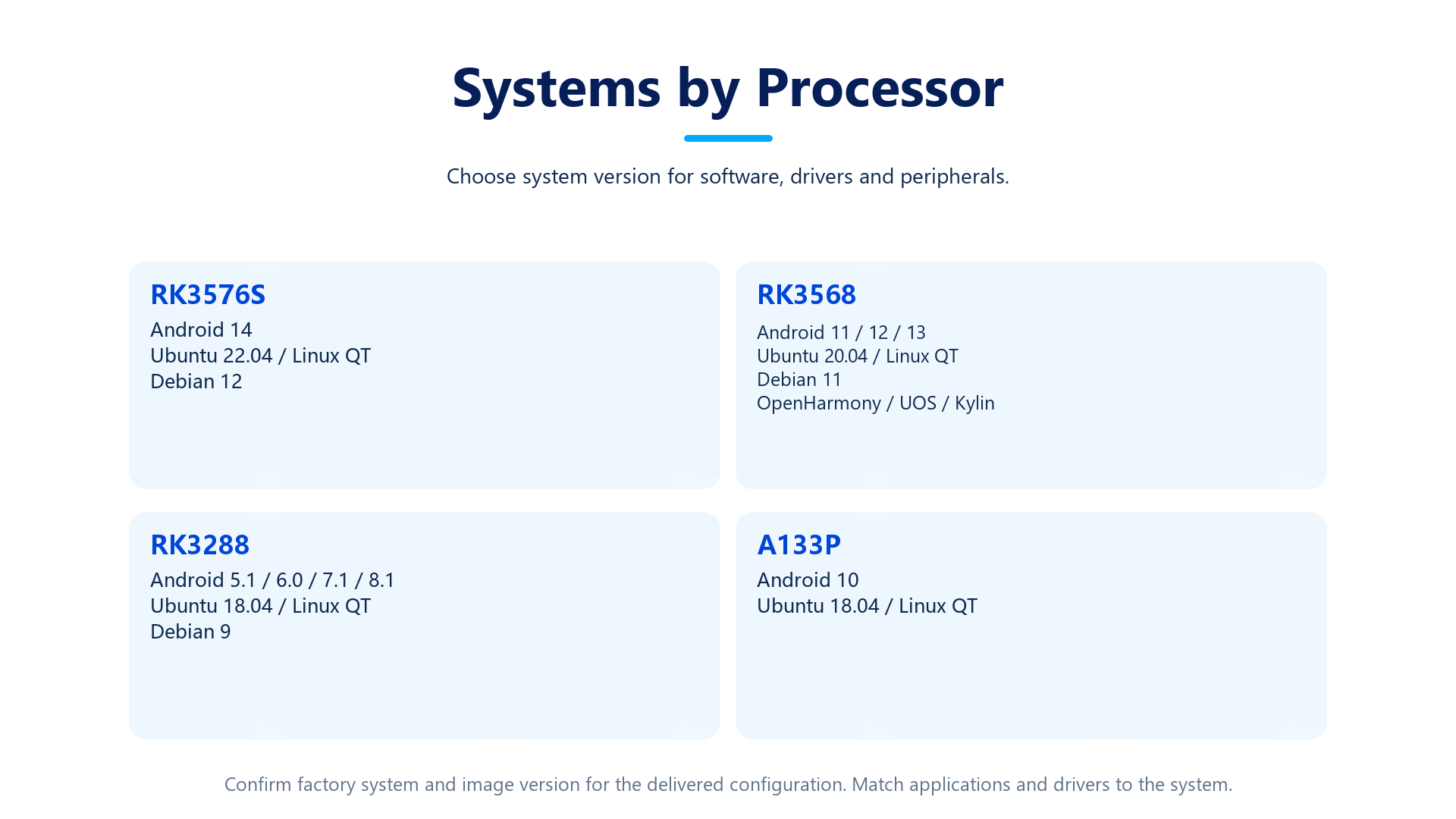

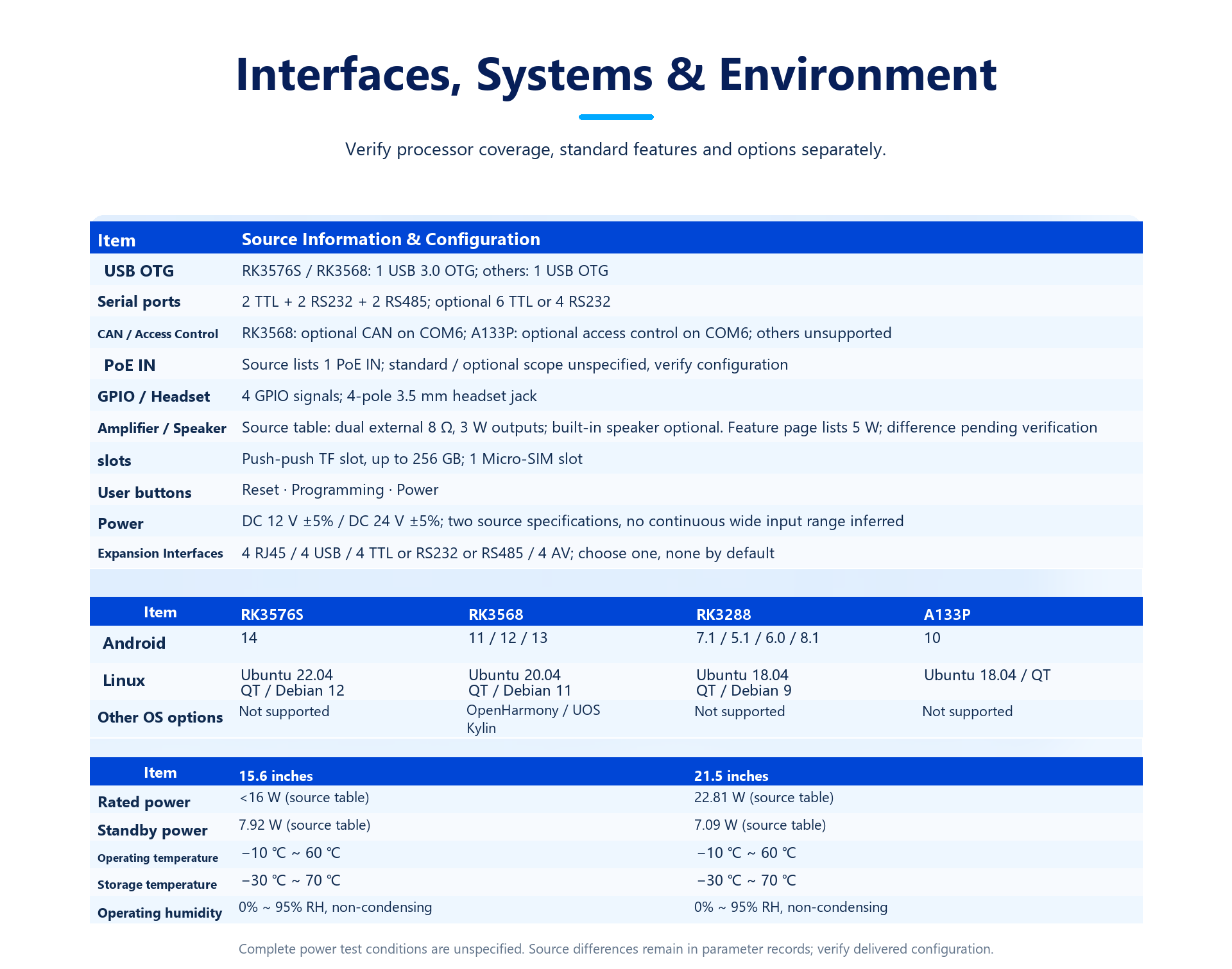

Operating system

Operating system — AYP156X1-A133P
Android systemAndroid 10Depends on OS configuration
Linux systemsUbuntu 18.04/Linux QTDepends on OS configuration
Other OS optionsNot supportedDepends on OS configuration

Environmental specifications

Environmental specifications — AYP156X1-A133P
Operating temperature-10 – 60 ℃Not specified
Storage temperature-30 – 70 ℃Not specified
Operating humidity0 – 95 %RHNot specified

Source processor claim

Source processor claim — AYP156X1-A133P
A133Pcores: 4; clock_GHz: 1.8; RAM_GB: 1; storage_GB: 32Not specified

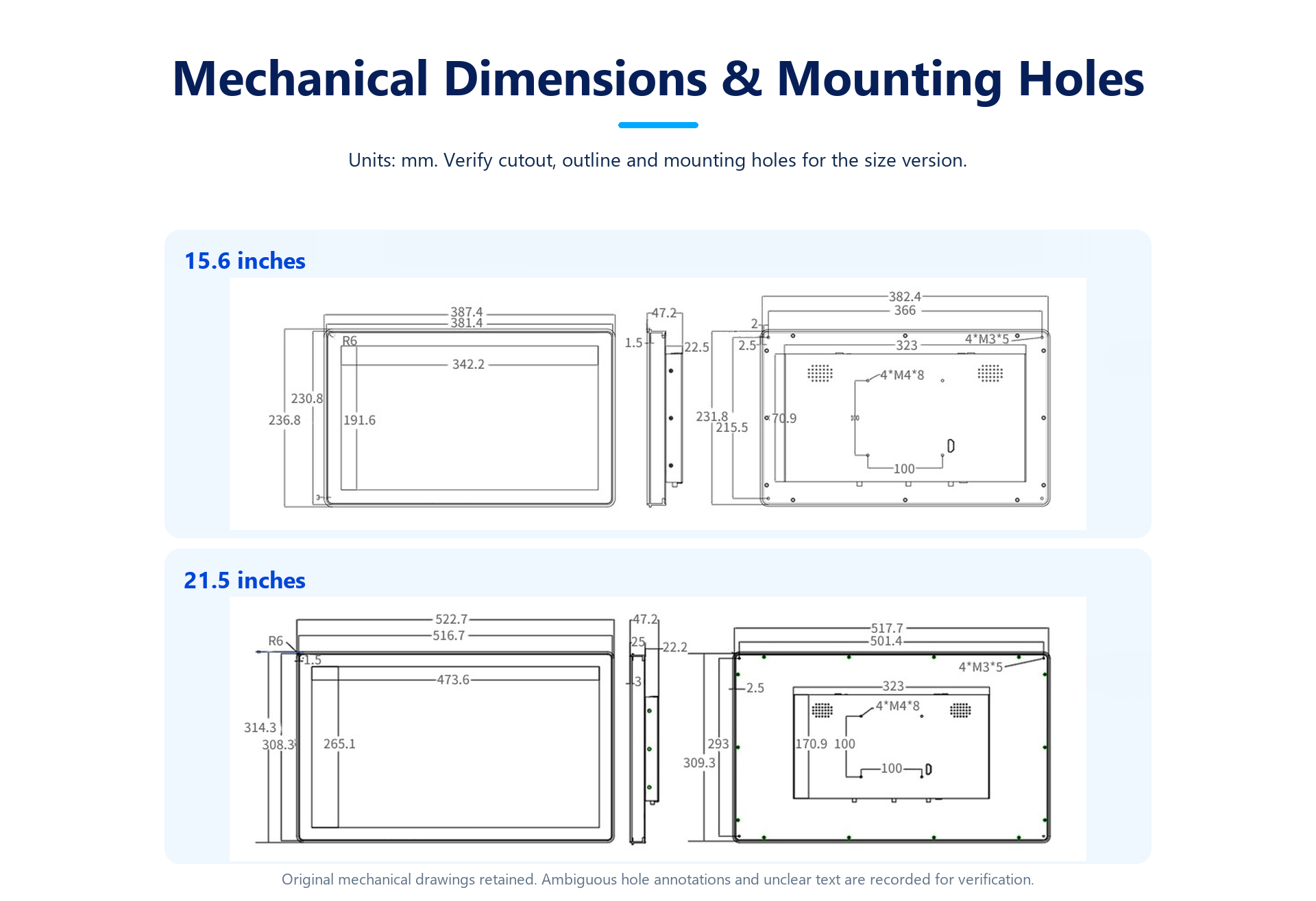

Mechanical dimensions

Mechanical dimensions — AYP156X1-A133P
15.6-inch front inner frame381.4 × 230.8 mmNot specified
15.6-inch display area342.2 × 191.6 mmNot specified
15.6-inch corner radius6 mmNot specified

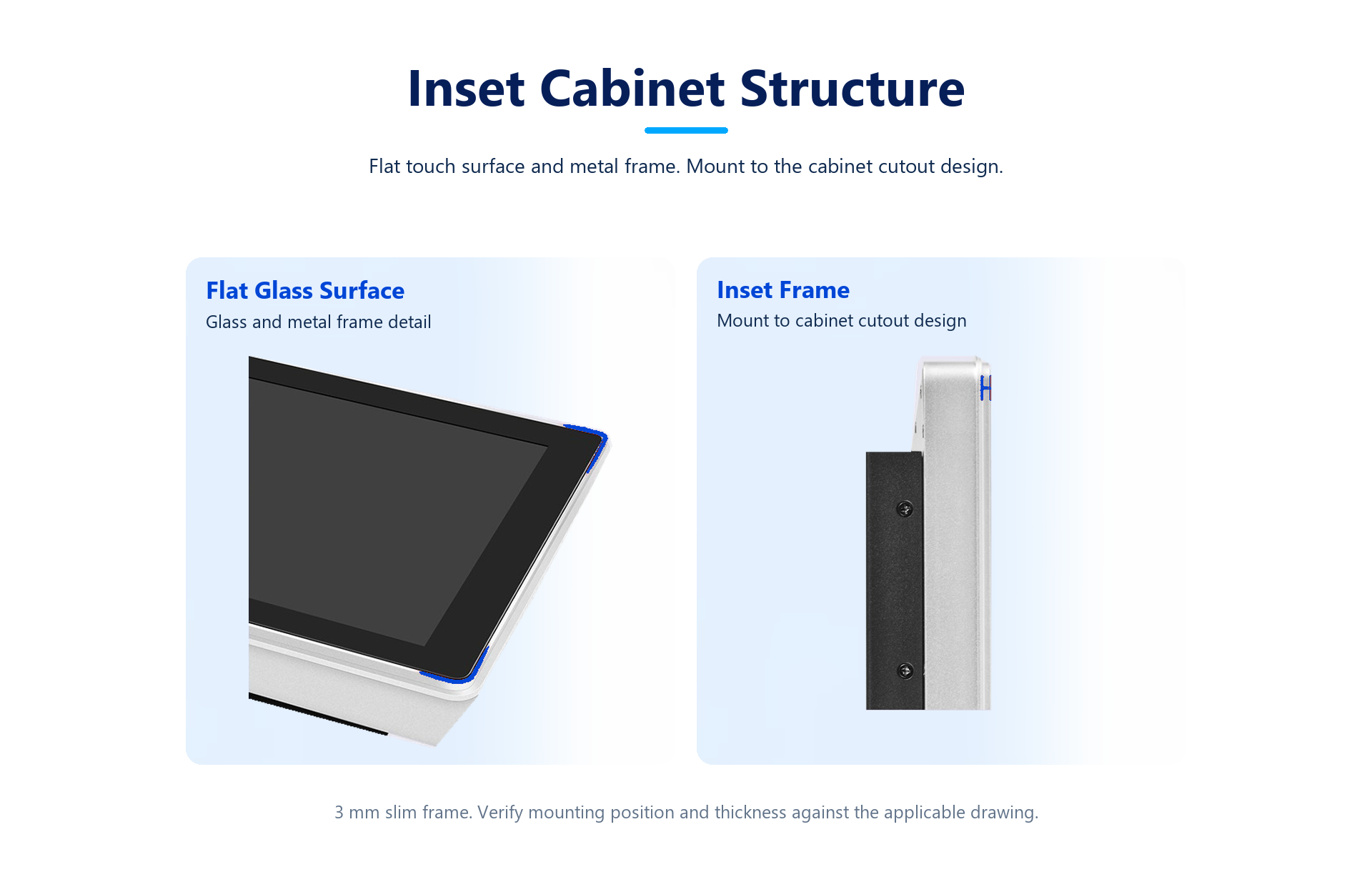

15.6-inch bezel annotations3 mmNot specified
15.6-inch edge spacing2 × 2.5 mmNot specified

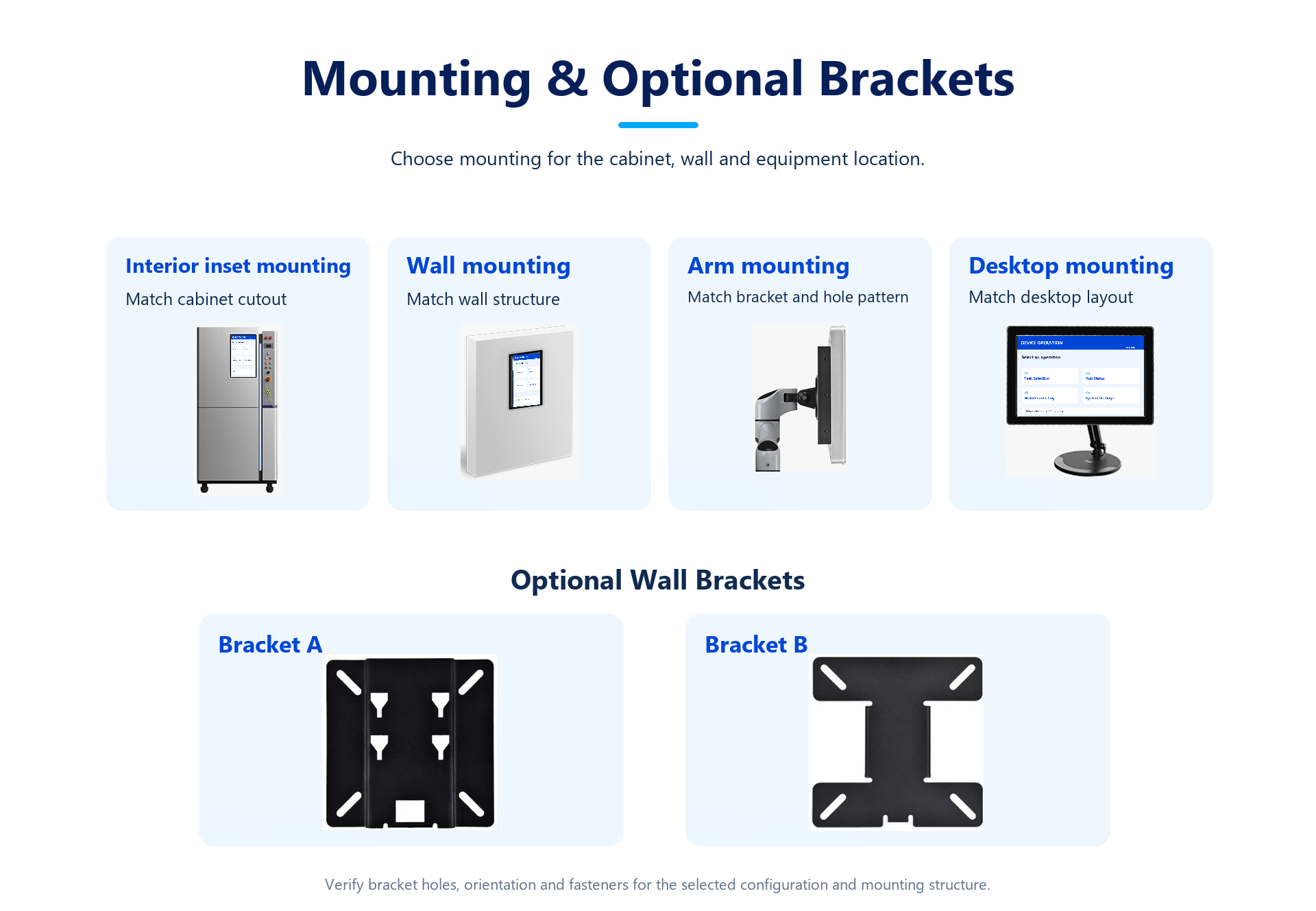

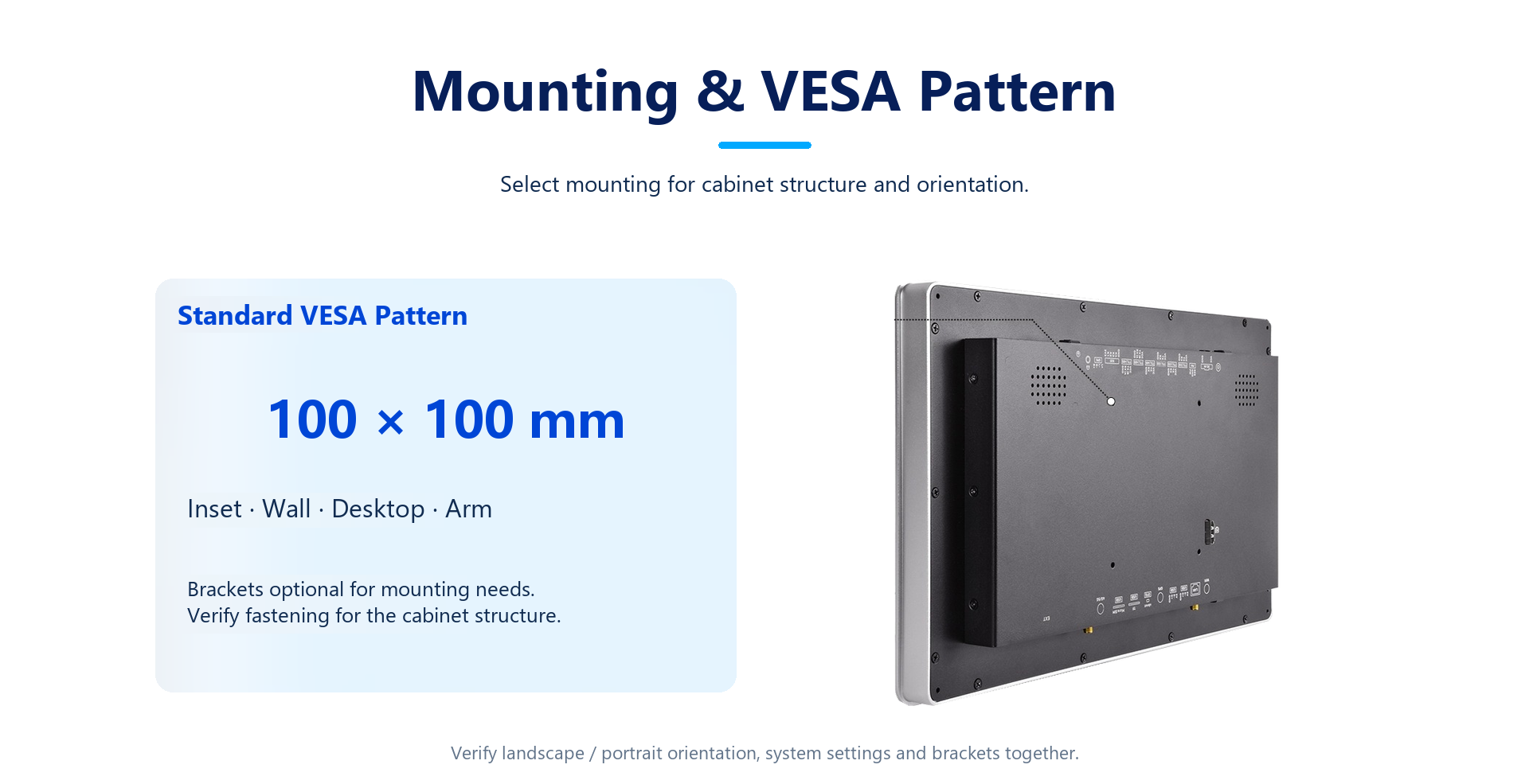

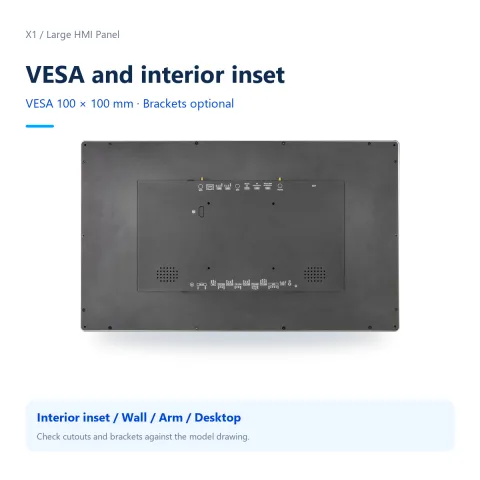

15.6-inch VESA hole spacing100 × 100 mmNot specified

P-X1-156

Let’s find your configuration

Tell us about your application, quantities and interface requirements. We will help confirm a suitable configuration.
