Interactive P Series

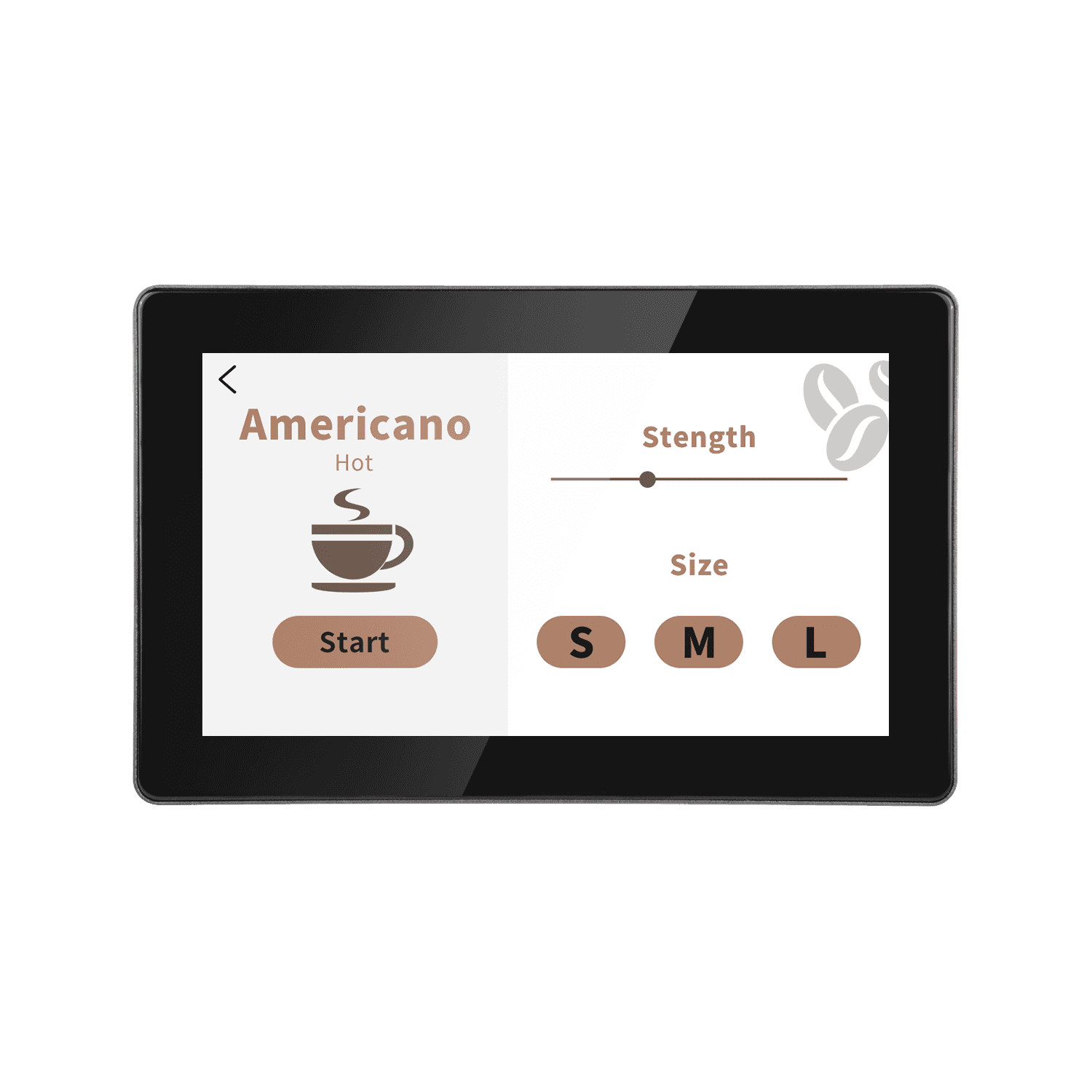

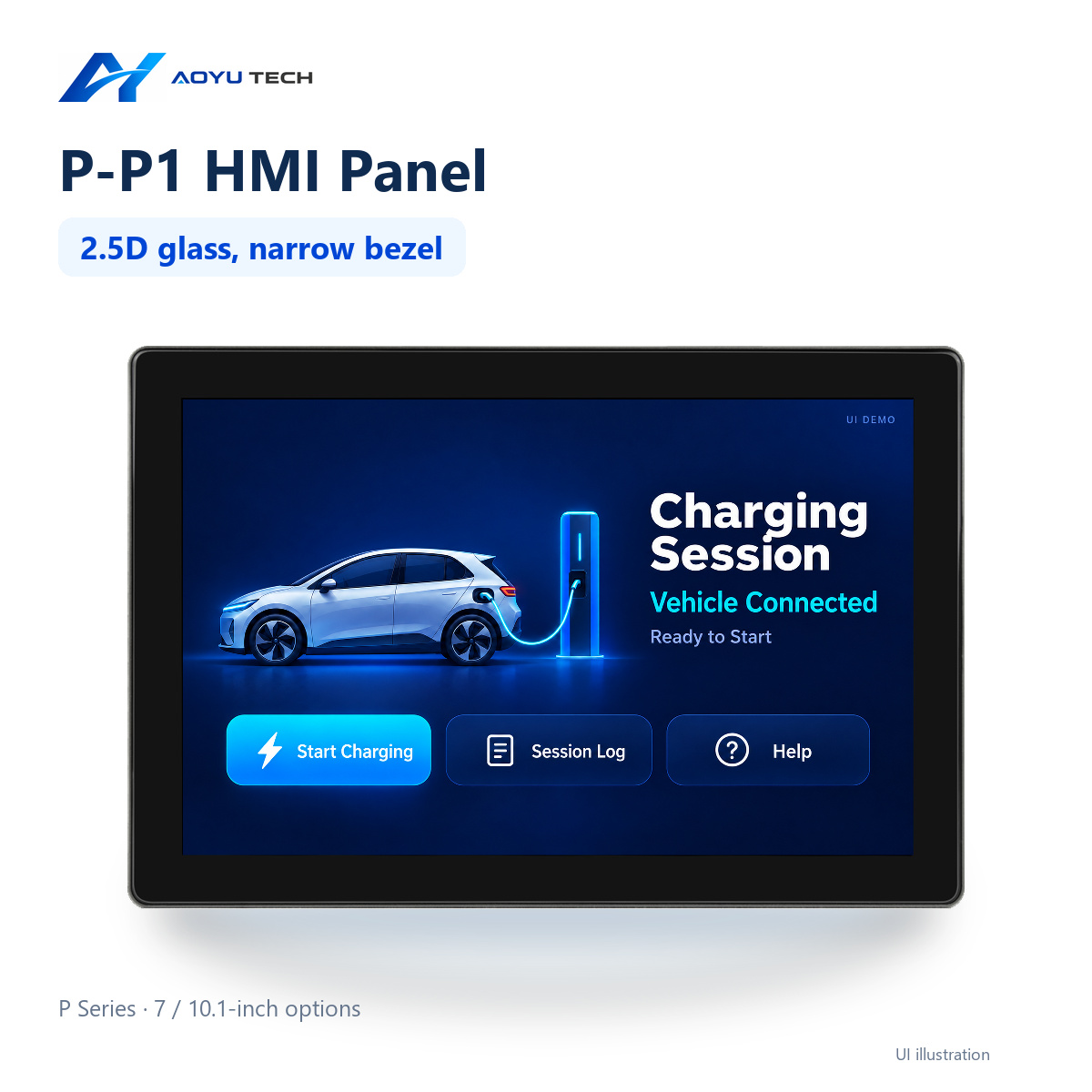

P-P1-070 7-inch HMI Panel
7 inches · Interactive P Series
- Display size
- 7 inches
- Resolution
- 1024 × 600 px

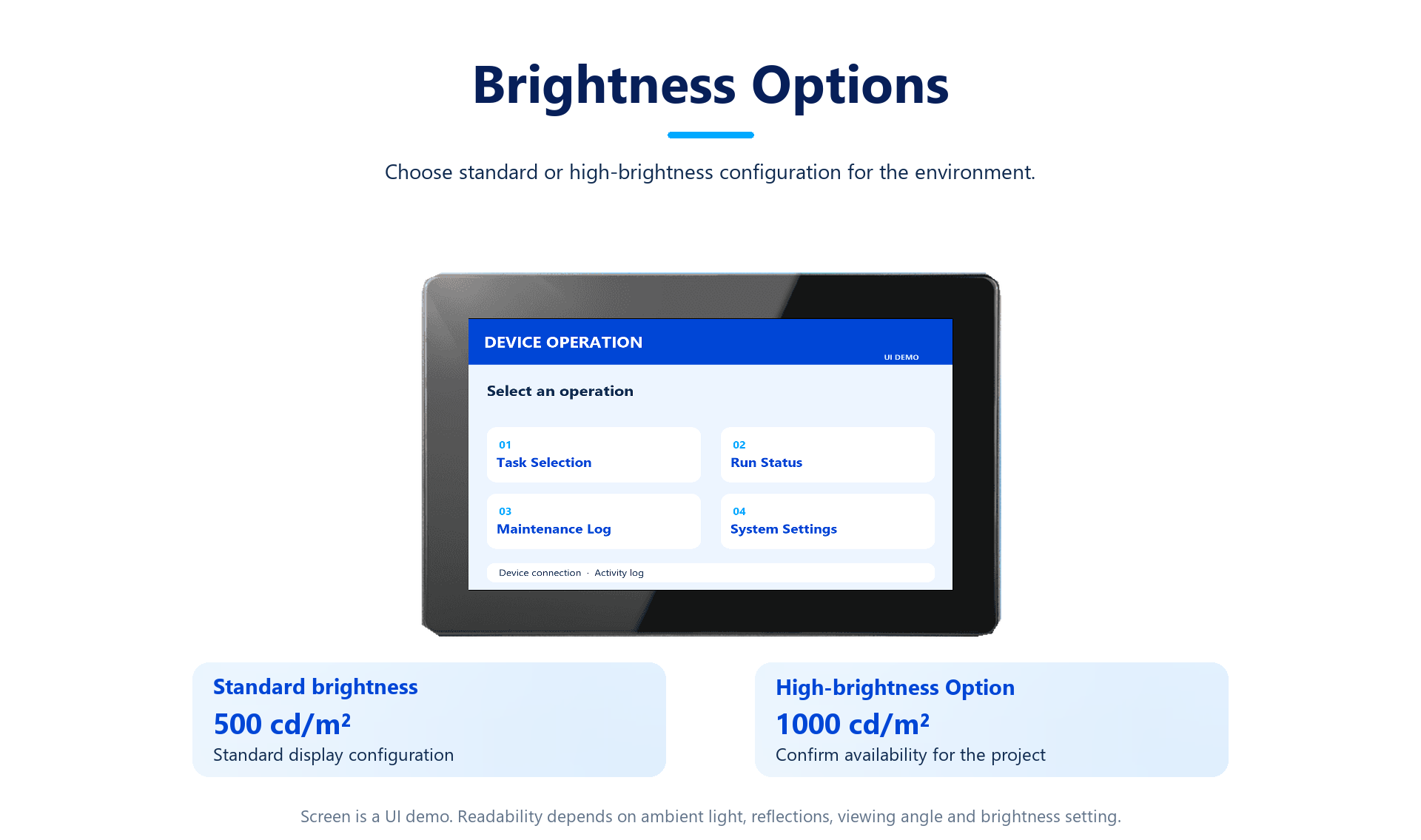

- Brightness
- standard: 500; optional: 1000 cd/m²
- Viewing angle
- IPS
- Display size
- 7 inches
- Resolution
- 1024 × 600 px
- Brightness
- standard: 500; optional: 1000 cd/m²
- Viewing angle
- IPS
- Display size
- 7 inches
- Resolution
- 1024 × 600 px
- Brightness
- standard: 500; optional: 1000 cd/m²
- Viewing angle
- IPS
- Display size
- 7 inches
- Resolution
- 1024 × 600 px
- Brightness
- standard: 500; optional: 1000 cd/m²
- Viewing angle
- IPS
Specifications follow the selected configuration. Contact us to confirm options and delivery requirements.
Built around your requirements
Explore the display, enclosure and configuration-specific capabilities of this HMI panel.

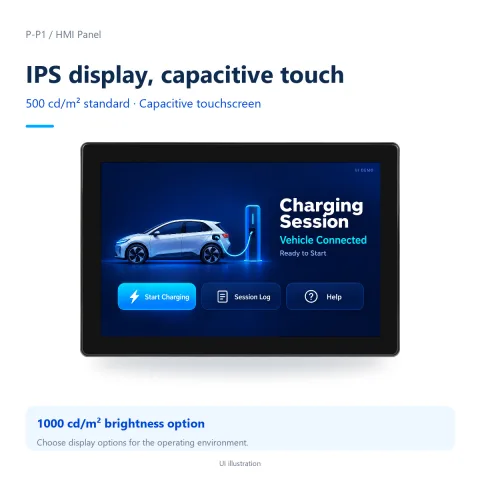

Display size: 7 inches. Resolution: 1024 × 600 px. Brightness: standard: 500; optional: 1000 cd/m². Viewing angle: IPS
- Display size: 7 inches
- Resolution: 1024 × 600 px
- Brightness: standard: 500; optional: 1000 cd/m²
- Viewing angle: IPS

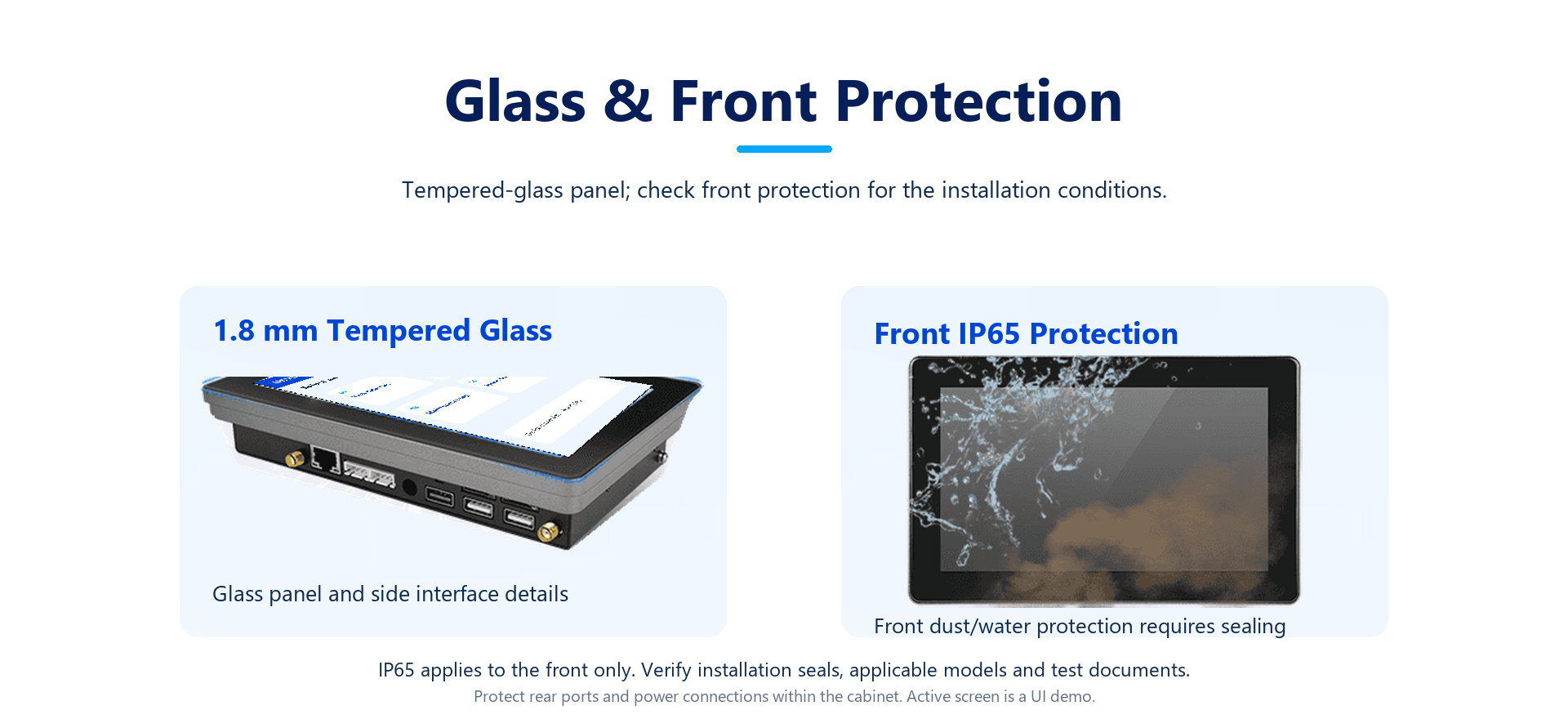

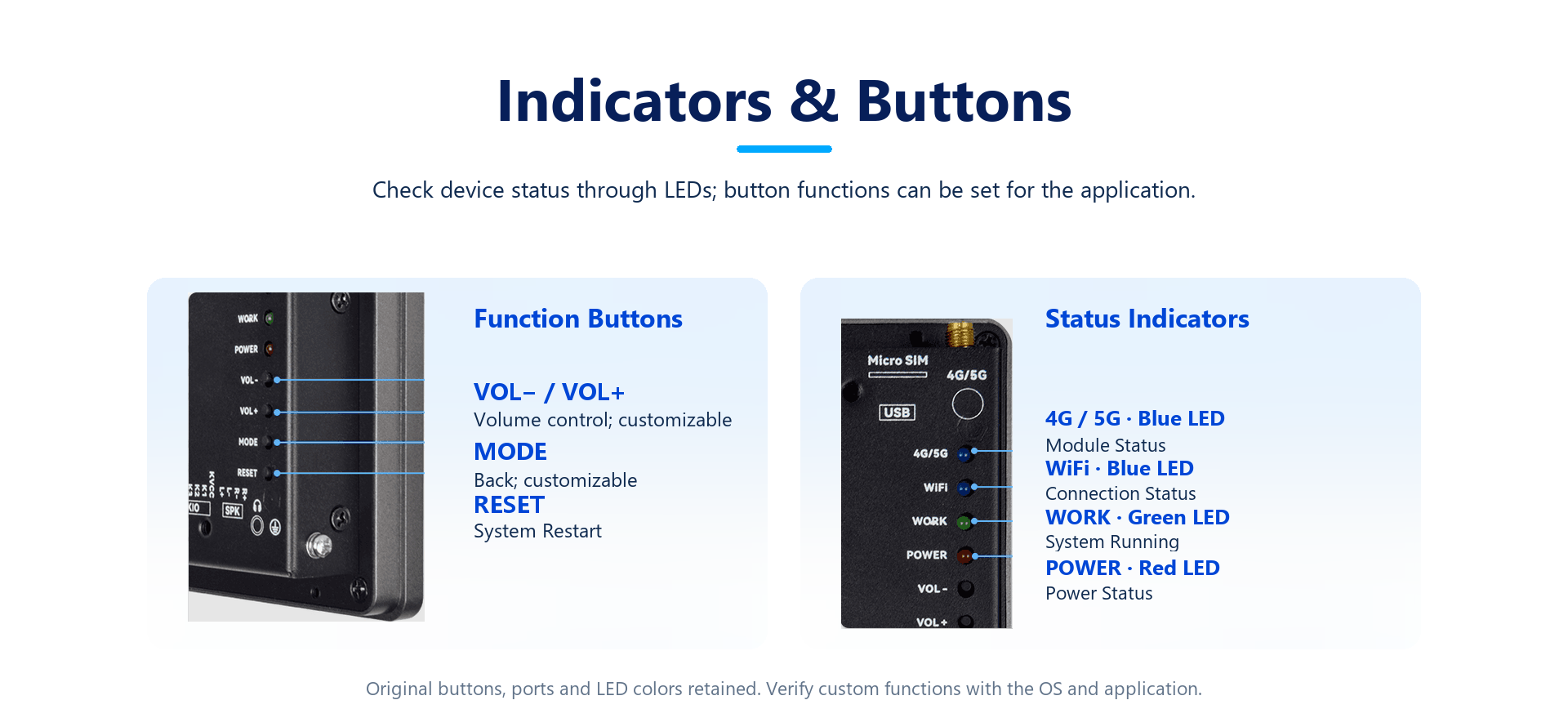

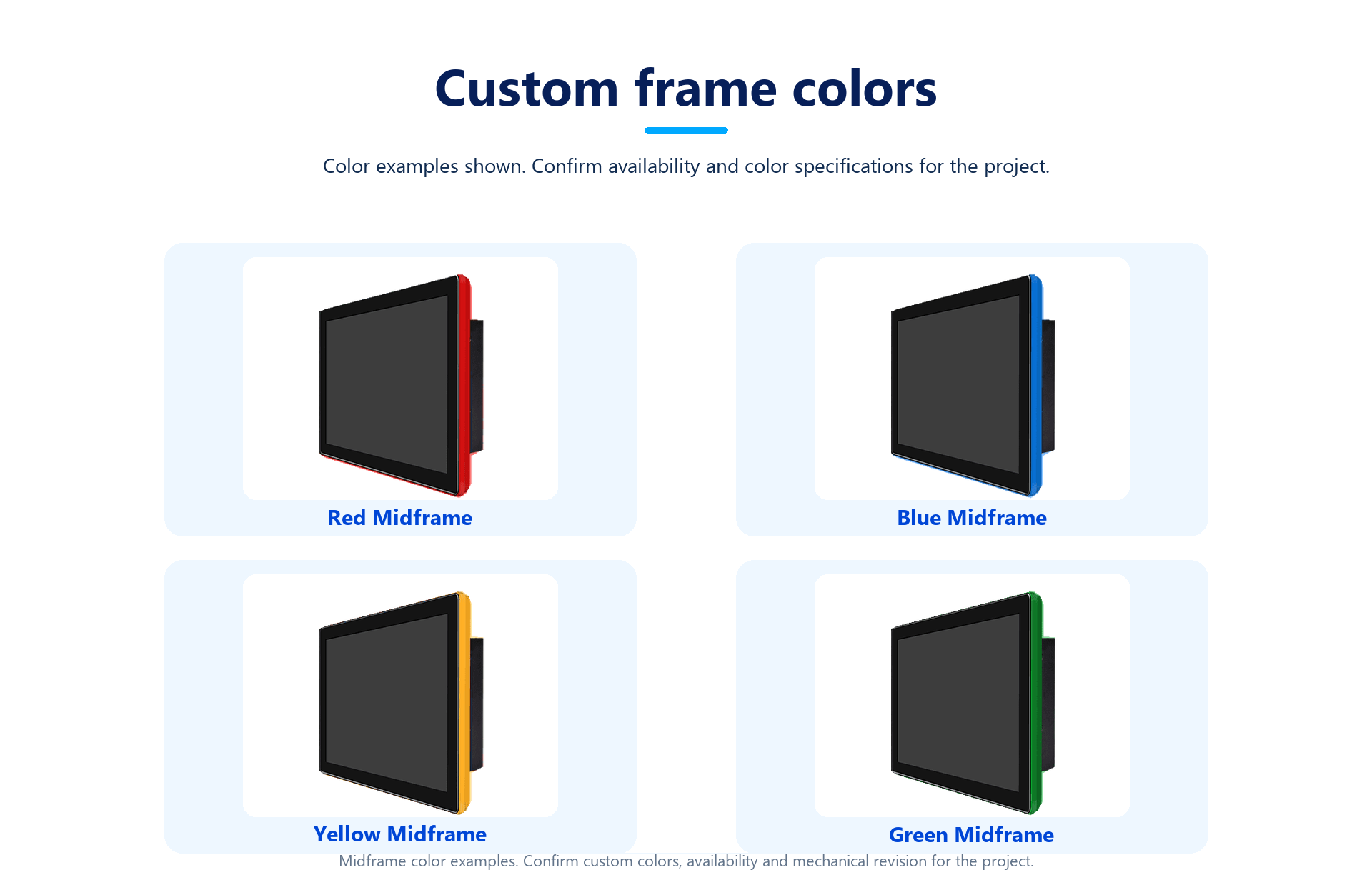

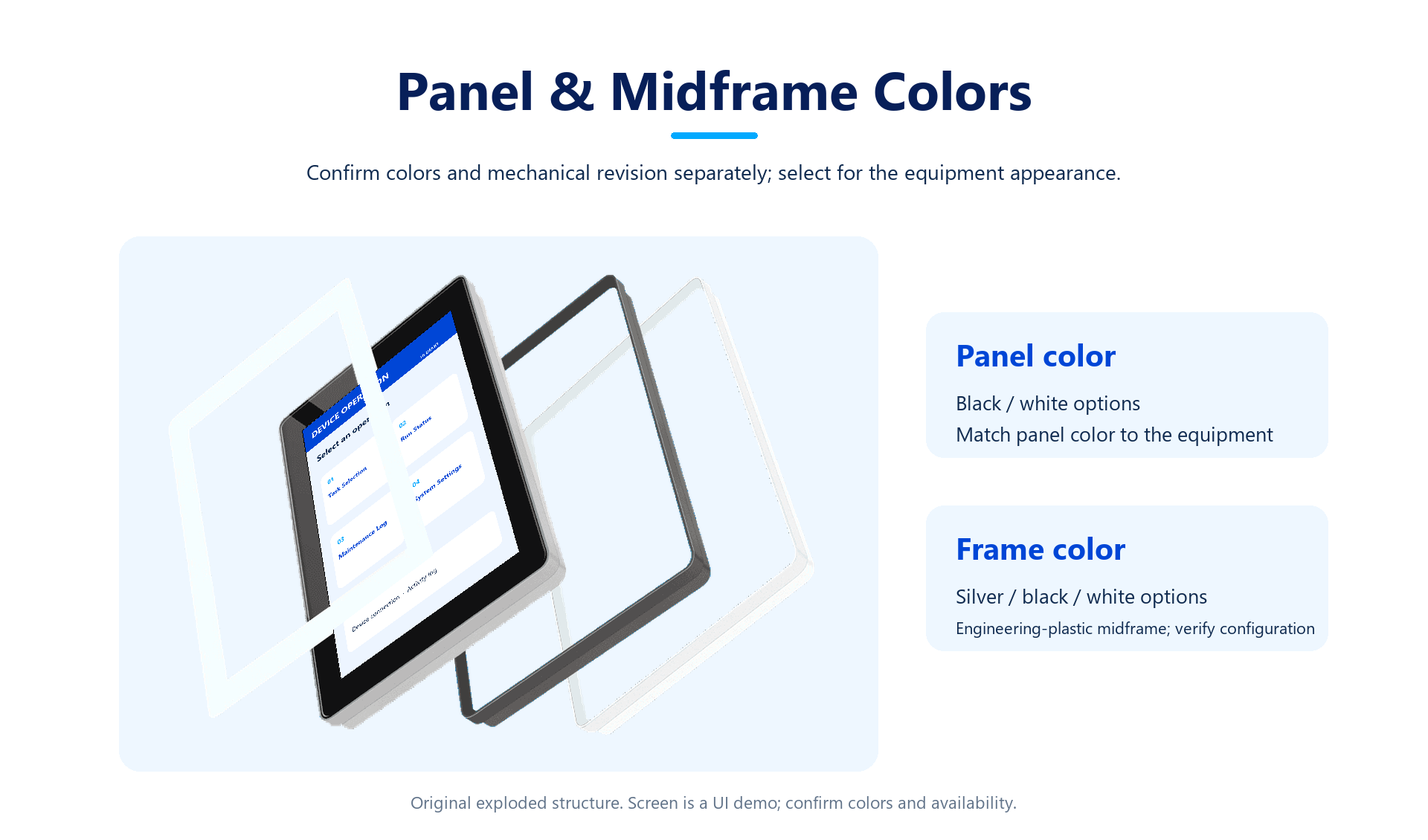

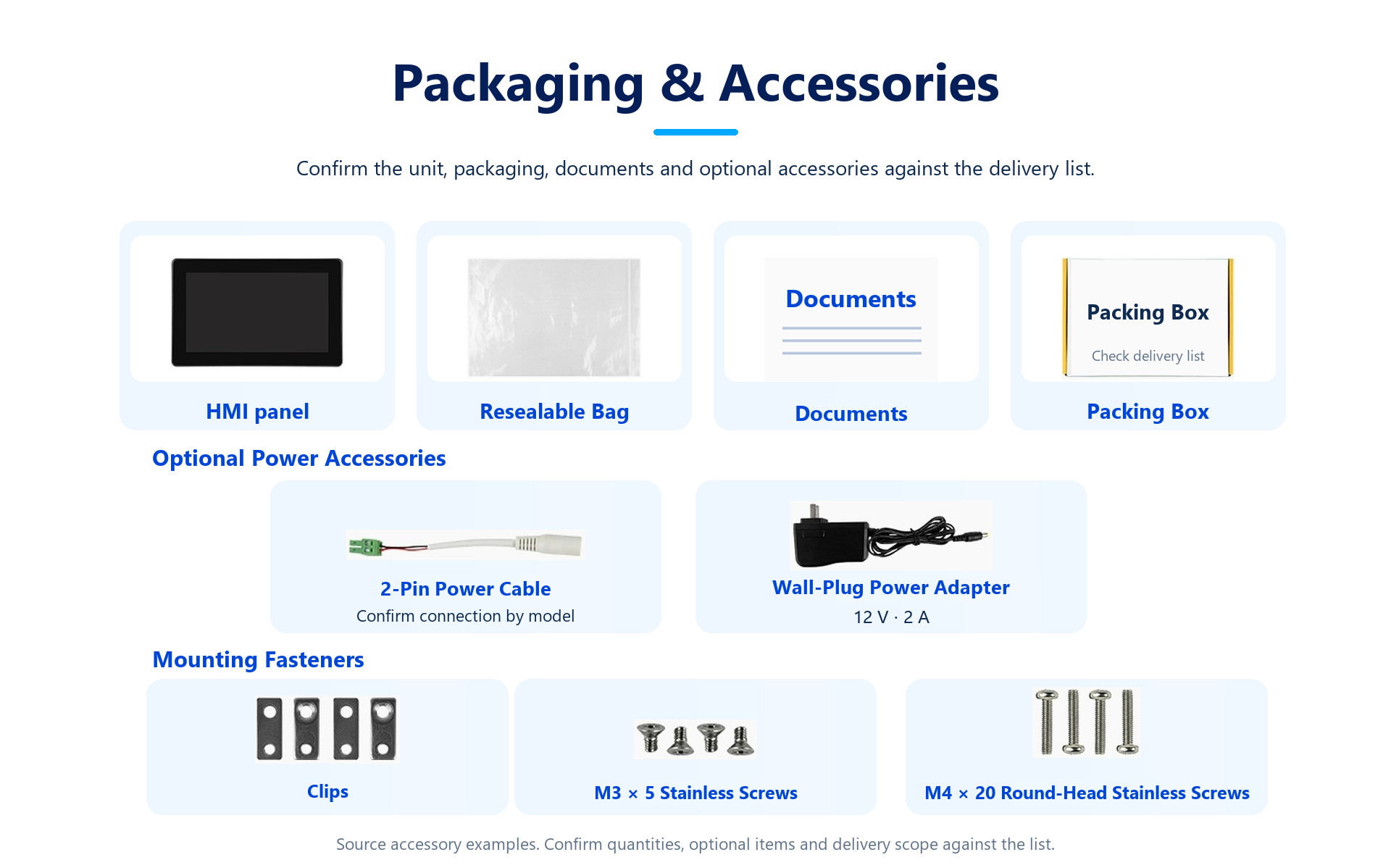

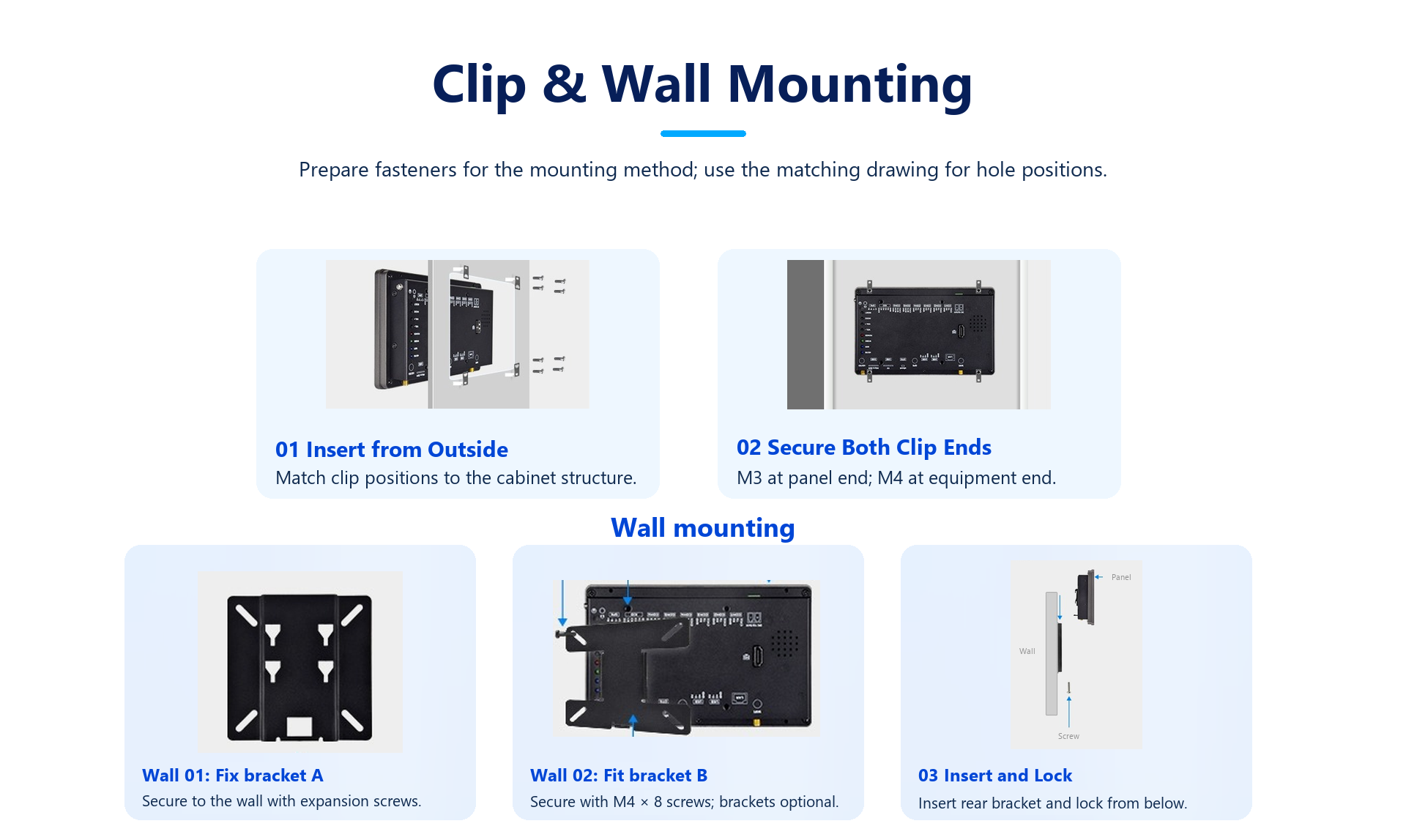

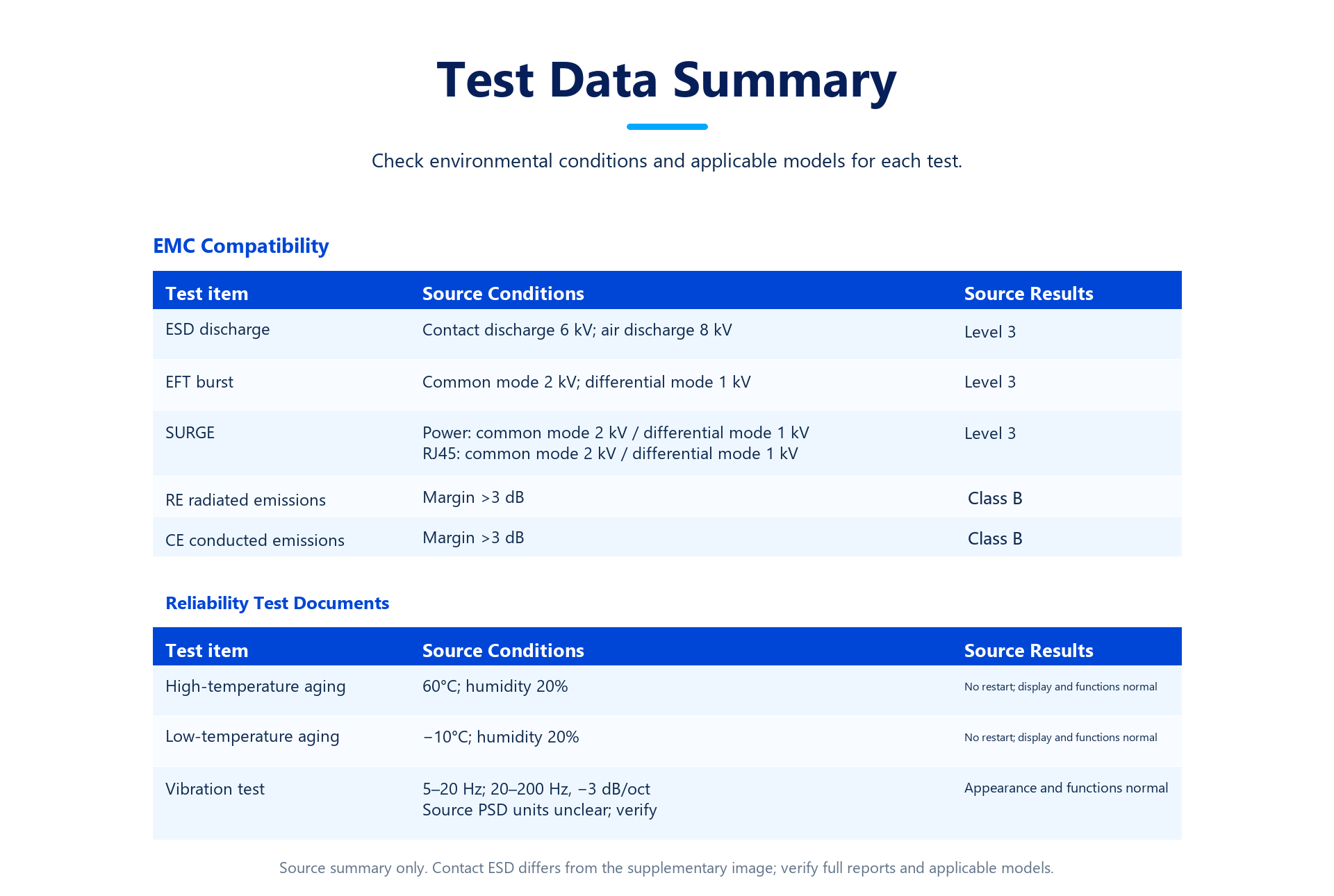

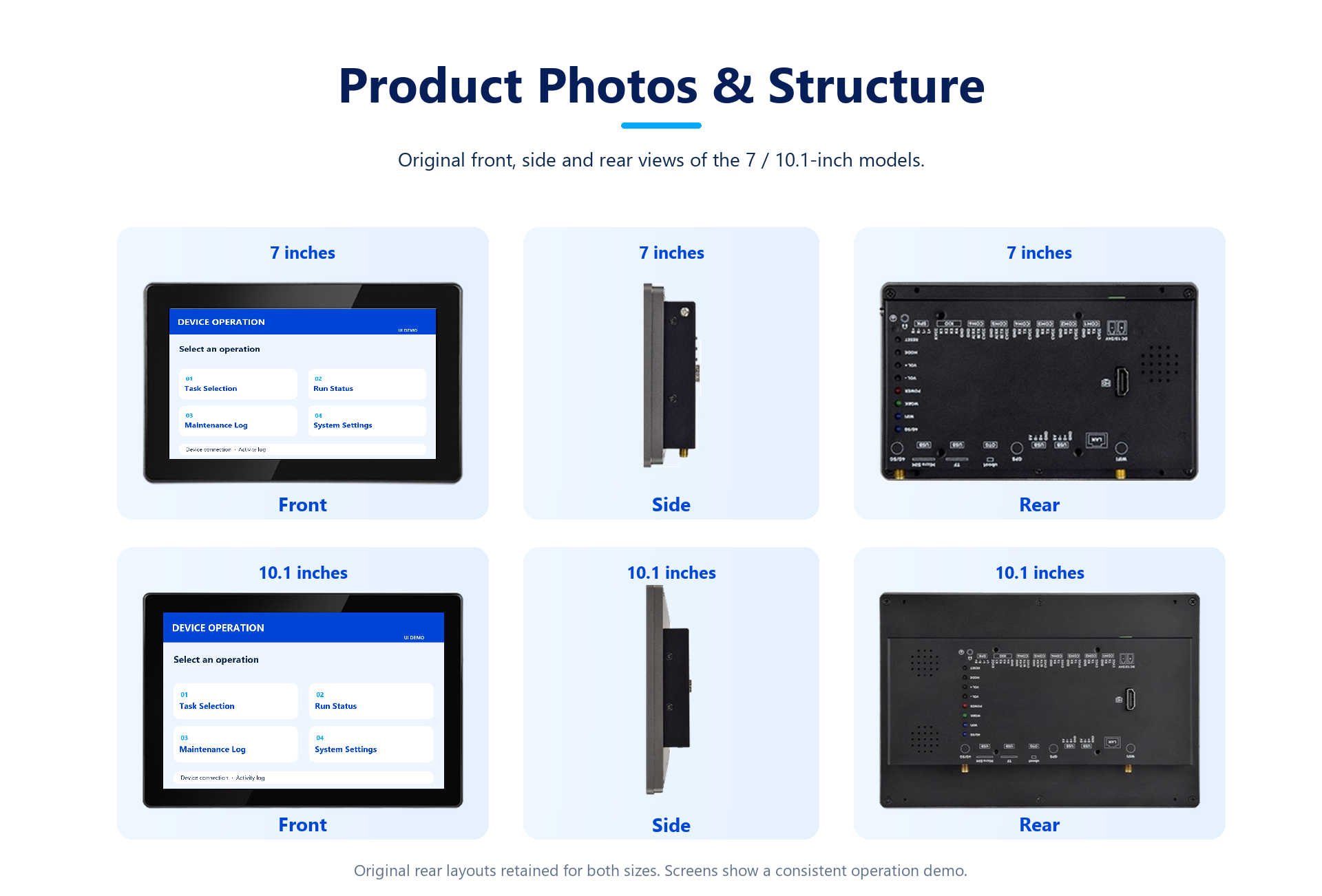

A closer look
Complete series material may show other sizes or configurations. Refer to the selected model specifications and confirmed delivery configuration. Select an image to enlarge it.

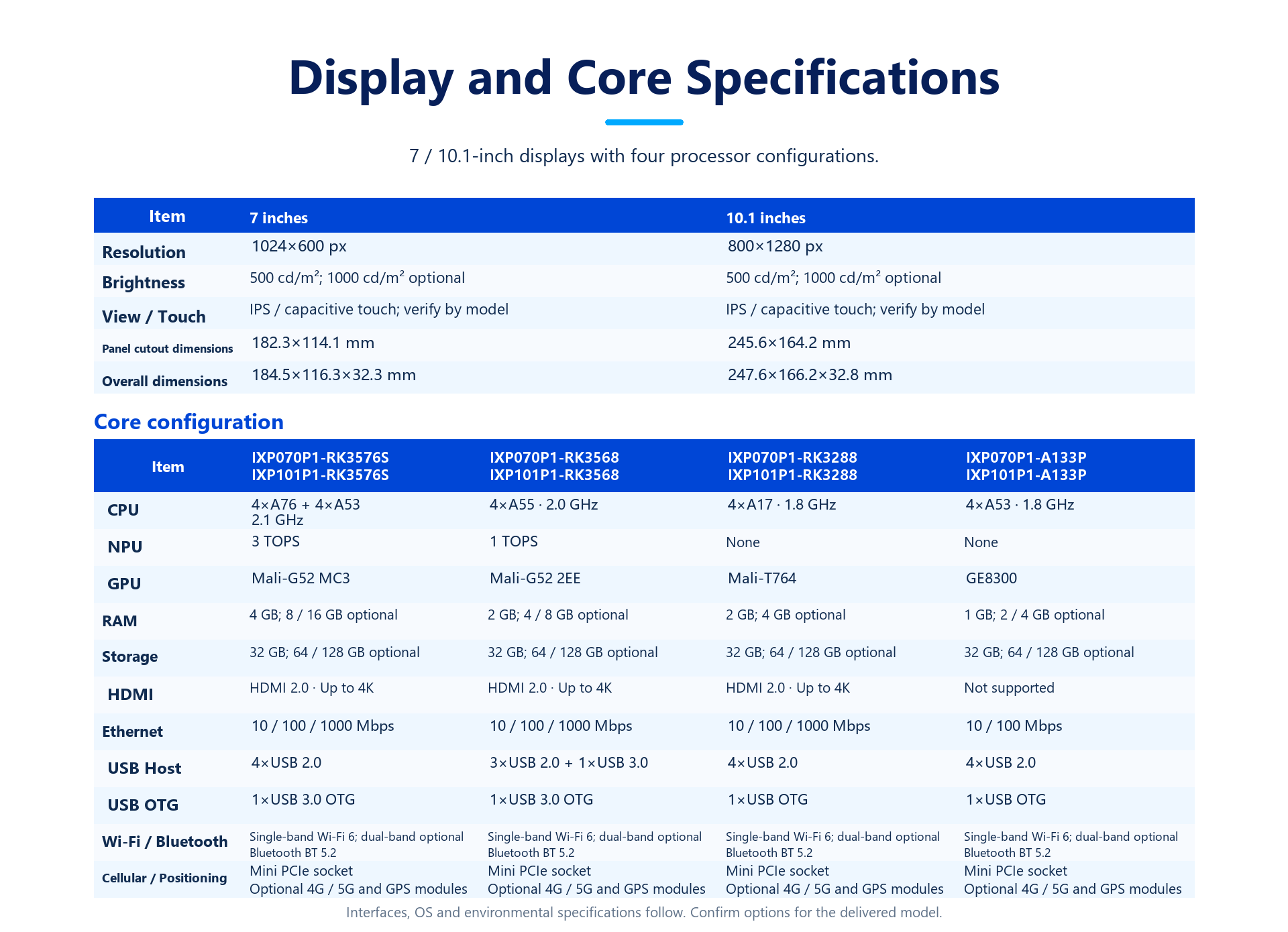

Configuration & specifications
Only source-checked specifications with a clear model association are listed. Contact us for details that are not listed.
AYP070P1-A133P
Display and structure
| Display size | 7 inchesStandard dimensions |
|---|---|
| Resolution | 1024 × 600 pxStandard |
| Brightness | standard: 500; optional: 1000 cd/m²500 standard / 1000 optional |
| Viewing angle | IPSStandard |

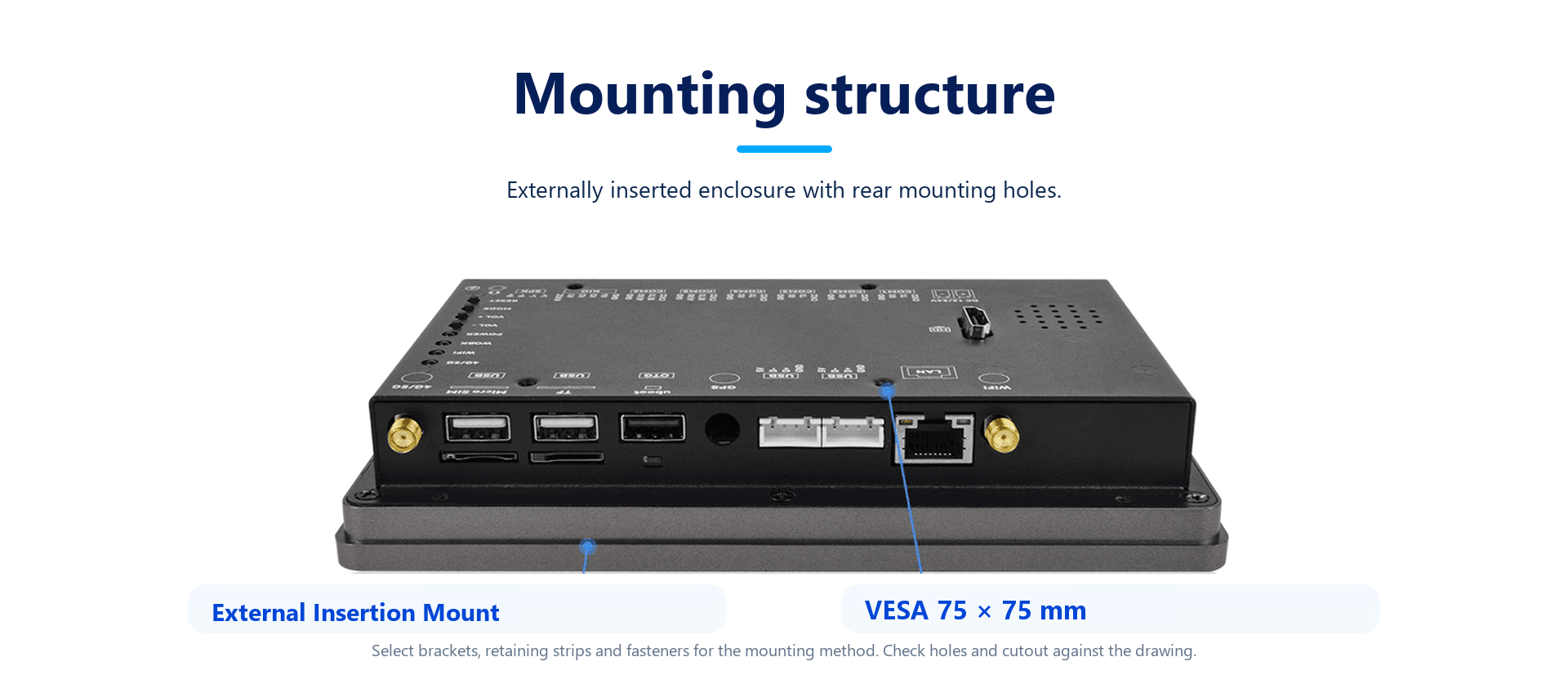

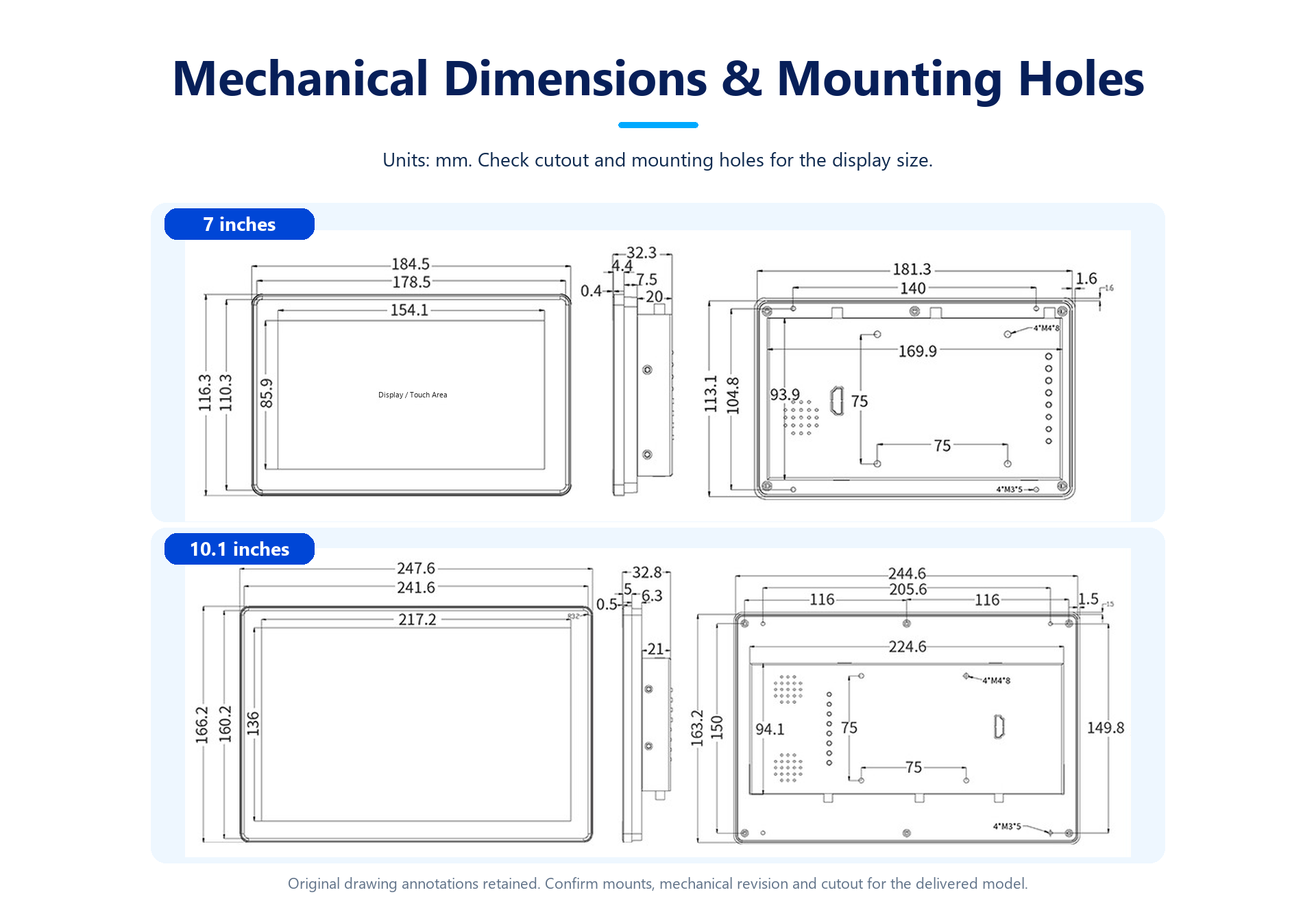

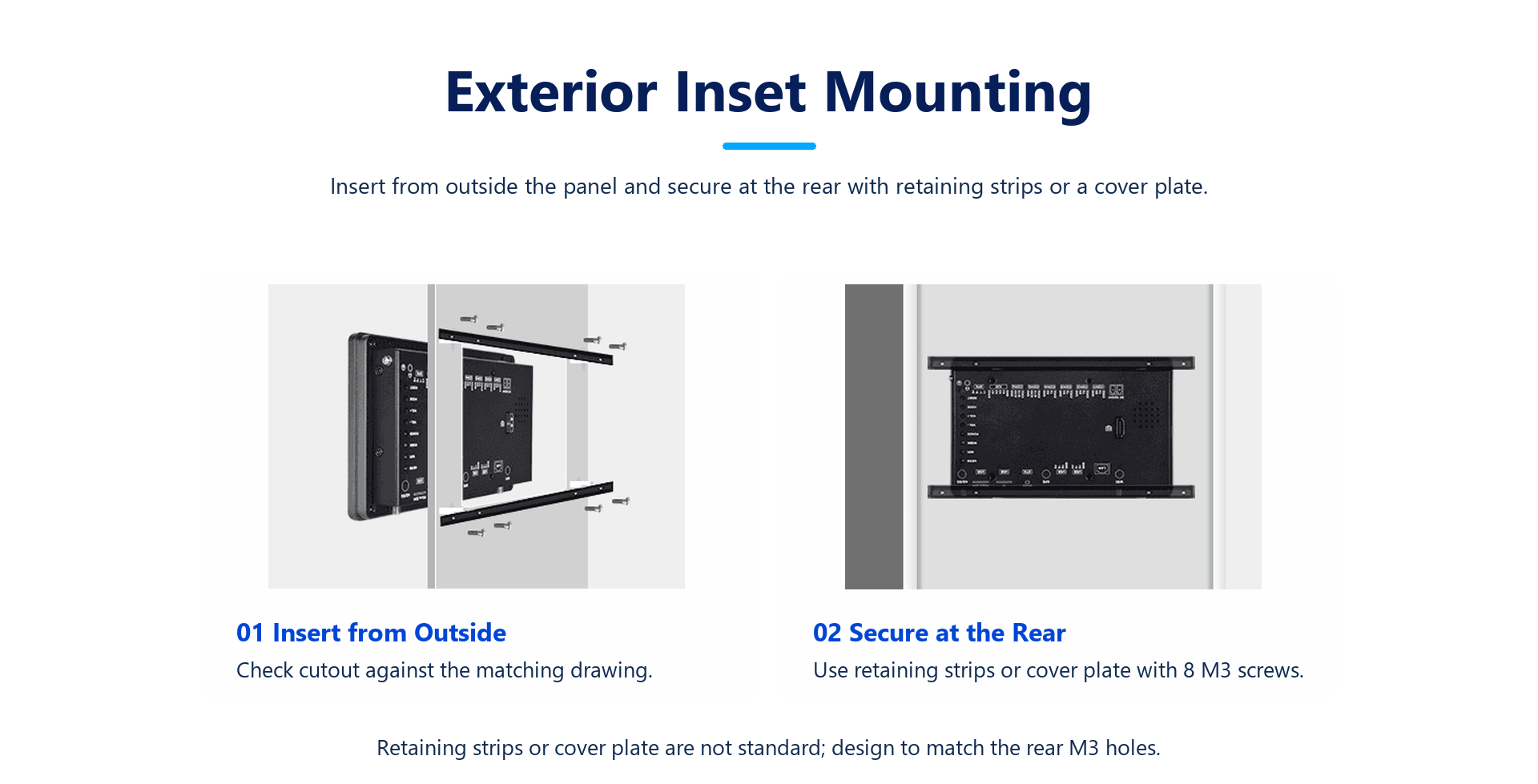

| Panel cutout dimensions | 182.3 × 114.1 mmApplicable display size |
| Overall dimensions | 184.5 × 116.3 × 32.3 mmApplicable display size |
Core configuration
| CPU | Allwinner A133P, 4 Cortex-A53 cores, 1.8 GHzStandard |
|---|---|
| GPU | GE8300Standard |
| RAM | standard: 1; optional: 2 / 4 GBOptional items available |
| Storage | standard: 32; optional: 64 / 128 GBOptional items available |
| Ethernet | 10 / 100 MbpsStandard |
| USB Host | USB2.0: 4 channelsStandard |
| USB OTG | 1 channelsStandard |

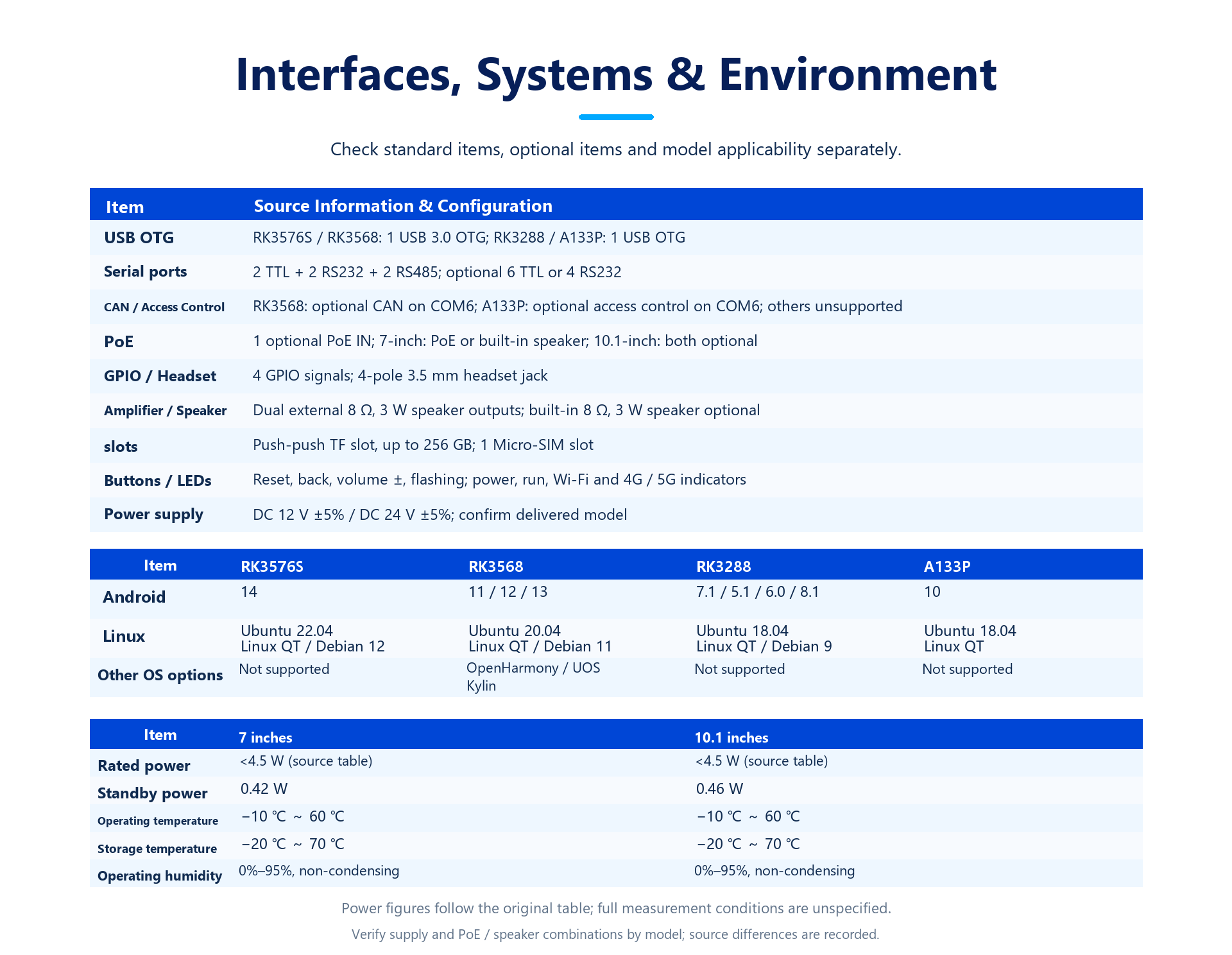

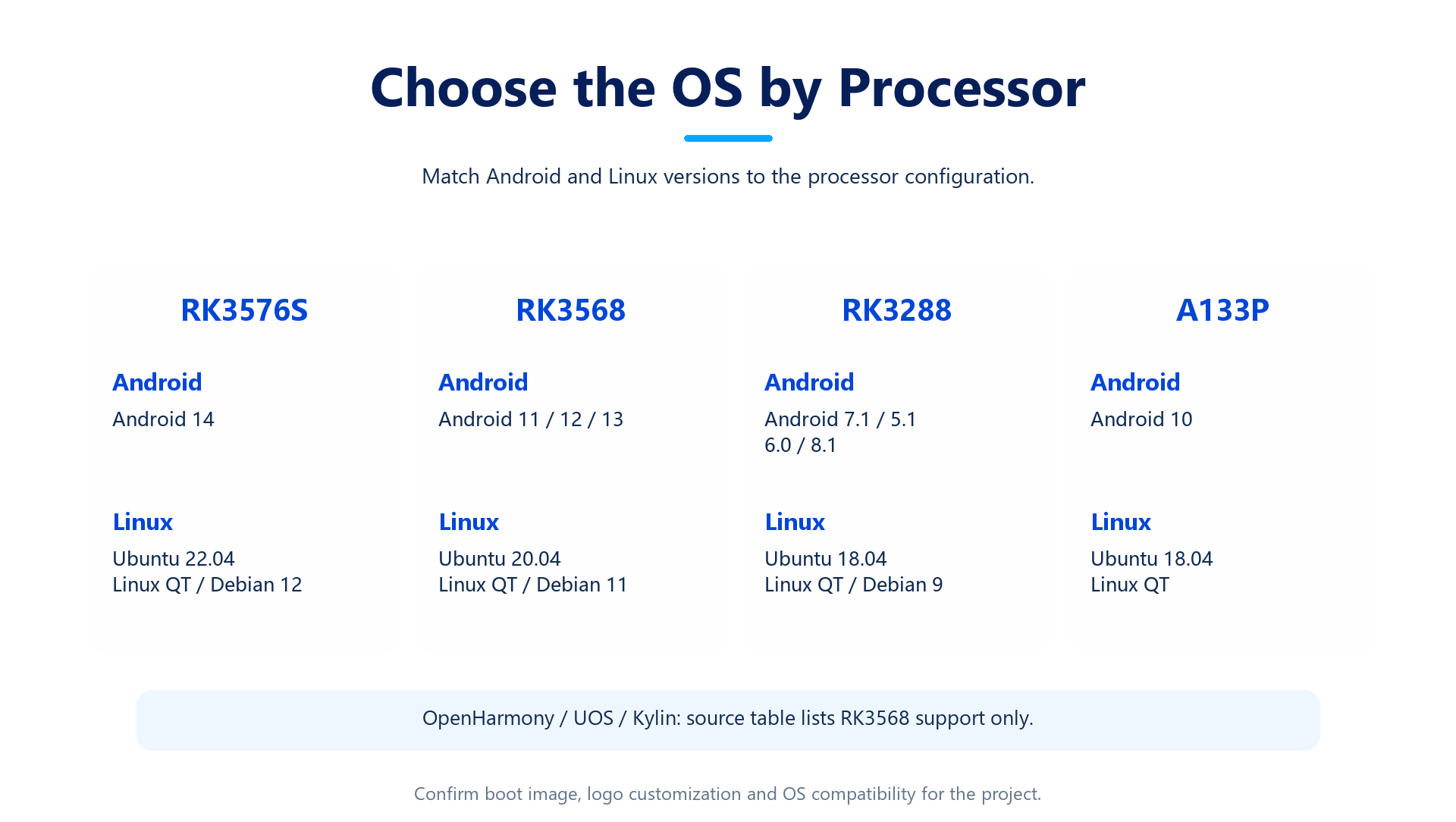

Operating system
| Android system | Android 10Depends on OS configuration |
|---|---|
| Linux systems | Ubuntu 18.04/Linux QTDepends on OS configuration |
| Other OS options | Not supportedDepends on OS configuration |
Environmental specifications
| Operating temperature | -10 – 60 ℃Not specified |
|---|---|
| Storage temperature | -20 – 70 ℃Not specified |
| Operating humidity | 0 – 95 %RHNot specified |
Processor overview
| A133P | cores: 4; clock_GHz: 1.8; RAM_GB: 1; storage_GB: 32Not specified |
|---|
AYP070P1-RK3288
Display and structure
| Display size | 7 inchesStandard dimensions |
|---|---|
| Resolution | 1024 × 600 pxStandard |
| Brightness | standard: 500; optional: 1000 cd/m²500 standard / 1000 optional |
| Viewing angle | IPSStandard |
| Panel cutout dimensions | 182.3 × 114.1 mmApplicable display size |
| Overall dimensions | 184.5 × 116.3 × 32.3 mmApplicable display size |
Core configuration
| CPU | Rockchip RK3288, 4 Cortex-A17 cores, 1.8 GHzStandard |
|---|---|
| GPU | Mali-T764Standard |
| RAM | standard: 2; optional: 4 GBOptional items available |
| Storage | standard: 32; optional: 64 / 128 GBOptional items available |
| Ethernet | 10 / 100 / 1000 MbpsStandard |
| USB Host | USB2.0: 4 channelsStandard |
| USB OTG | 1 channelsStandard |
Operating system
| Android system | Android 7.1/5.1/6.0/8.1Depends on OS configuration |
|---|---|
| Linux systems | Ubuntu 18.04/Linux QT/Debian9Depends on OS configuration |
| Other OS options | Not supportedDepends on OS configuration |
Environmental specifications
| Operating temperature | -10 – 60 ℃Not specified |
|---|---|
| Storage temperature | -20 – 70 ℃Not specified |
| Operating humidity | 0 – 95 %RHNot specified |
Processor overview
| RK3288 | cores: 4; clock_GHz: 1.8; RAM_GB: 2; storage_GB: 32Not specified |
|---|
AYP070P1-RK3568
Display and structure
| Display size | 7 inchesStandard dimensions |
|---|---|
| Resolution | 1024 × 600 pxStandard |
| Brightness | standard: 500; optional: 1000 cd/m²500 standard / 1000 optional |
| Viewing angle | IPSStandard |
| Panel cutout dimensions | 182.3 × 114.1 mmApplicable display size |
| Overall dimensions | 184.5 × 116.3 × 32.3 mmApplicable display size |
Core configuration
| CPU | Rockchip RK3568, 4 Cortex-A55 cores, 2.0 GHzStandard |
|---|---|
| NPU | 1 TOPSStandard |
| GPU | Mali-G52 2EEStandard |
| RAM | standard: 2; optional: 4 / 8 GBOptional items available |
| Storage | standard: 32; optional: 64 / 128 GBOptional items available |
| Ethernet | 10 / 100 / 1000 MbpsStandard |
| USB Host | USB2.0: 3; USB3.0: 1 channelsStandard |
| USB OTG | 1 channelsStandard |
Operating system
| Android system | Android 11/12/13Depends on OS configuration |
|---|---|
| Linux systems | Ubuntu 20.04/Linux QT/Debian11Depends on OS configuration |
| Other OS options | OpenHarmony / UnionTech UOS / KylinDepends on OS configuration |
Environmental specifications
| Operating temperature | -10 – 60 ℃Not specified |
|---|---|
| Storage temperature | -20 – 70 ℃Not specified |
| Operating humidity | 0 – 95 %RHNot specified |
Processor overview
| RK3568 | cores: 4; clock_GHz: 2; RAM_GB: 2; storage_GB: 32Not specified |
|---|
AYP070P1-RK3576S
Display and structure
| Display size | 7 inchesStandard dimensions |
|---|---|
| Resolution | 1024 × 600 pxStandard |
| Brightness | standard: 500; optional: 1000 cd/m²500 standard / 1000 optional |
| Viewing angle | IPSStandard |
| Panel cutout dimensions | 182.3 × 114.1 mmApplicable display size |
| Overall dimensions | 184.5 × 116.3 × 32.3 mmApplicable display size |
Core configuration
| CPU | Rockchip RK3576S, 4 Cortex-A76 + 4 Cortex-A53 cores, 2.1 GHzStandard |
|---|---|
| NPU | 3 TOPSStandard |
| GPU | Mali-G52 MC3Standard |
| RAM | standard: 4; optional: 8 / 16 GBOptional items available |
| Storage | standard: 32; optional: 64 / 128 GBOptional items available |
| Ethernet | 10 / 100 / 1000 MbpsStandard |
| USB Host | USB2.0: 4 channelsStandard |
| USB OTG | 1 channelsStandard |
Operating system
| Android system | Android 14Depends on OS configuration |
|---|---|
| Linux systems | Ubuntu 22.04/Linux QT/Debian12Depends on OS configuration |
| Other OS options | Not supportedDepends on OS configuration |
Environmental specifications
| Operating temperature | -10 – 60 ℃Not specified |
|---|---|
| Storage temperature | -20 – 70 ℃Not specified |
| Operating humidity | 0 – 95 %RHNot specified |
Processor overview
| RK3576S | cores: 8; clock_GHz: 2.1; RAM_GB: 4; storage_GB: 32Not specified |
|---|
