Economic IOT M Series

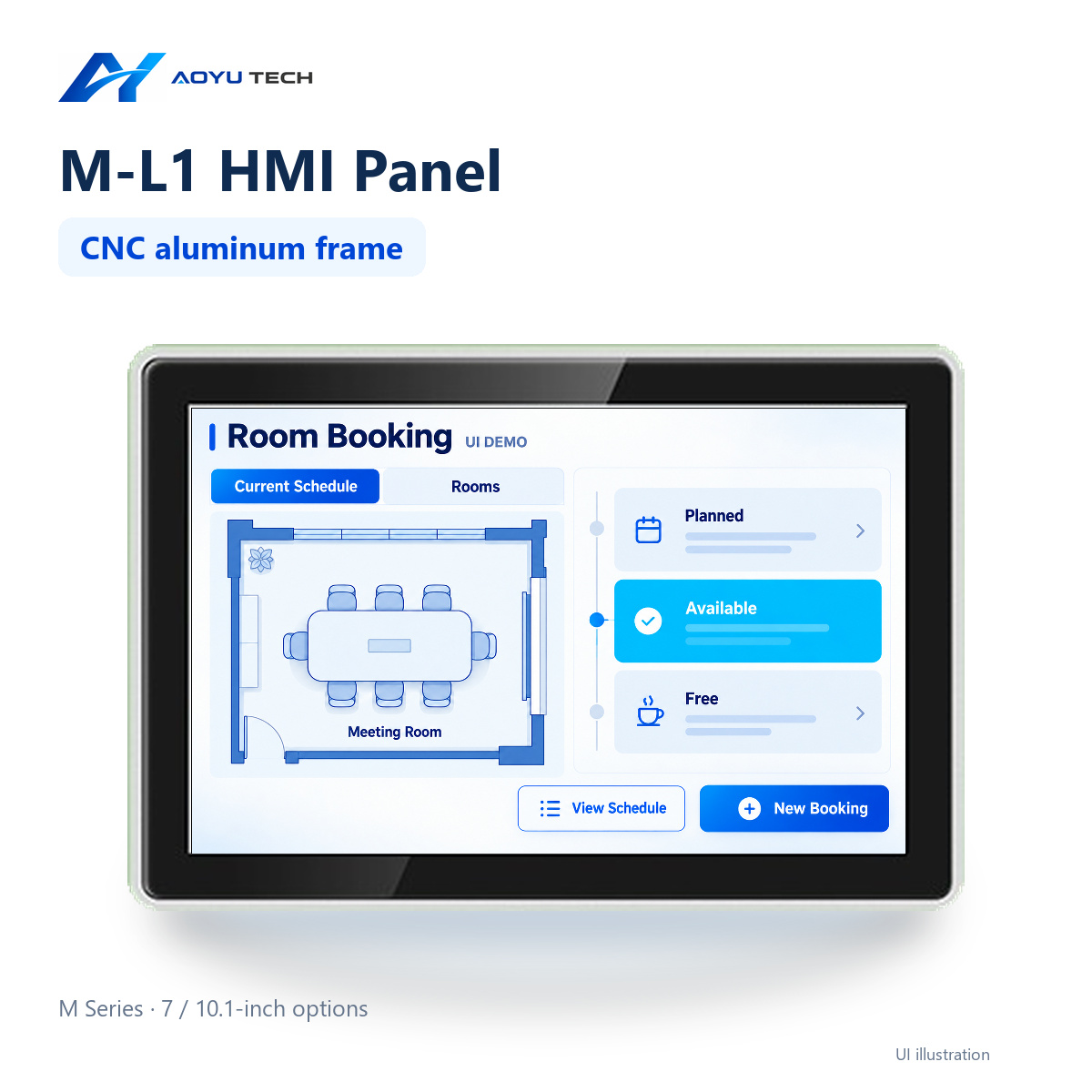

M-L1-070 7-inch HMI Panel
7 inches · Economic IOT M Series
- Series
- M-L1
- Size variant
- 7 / 10.1 inches

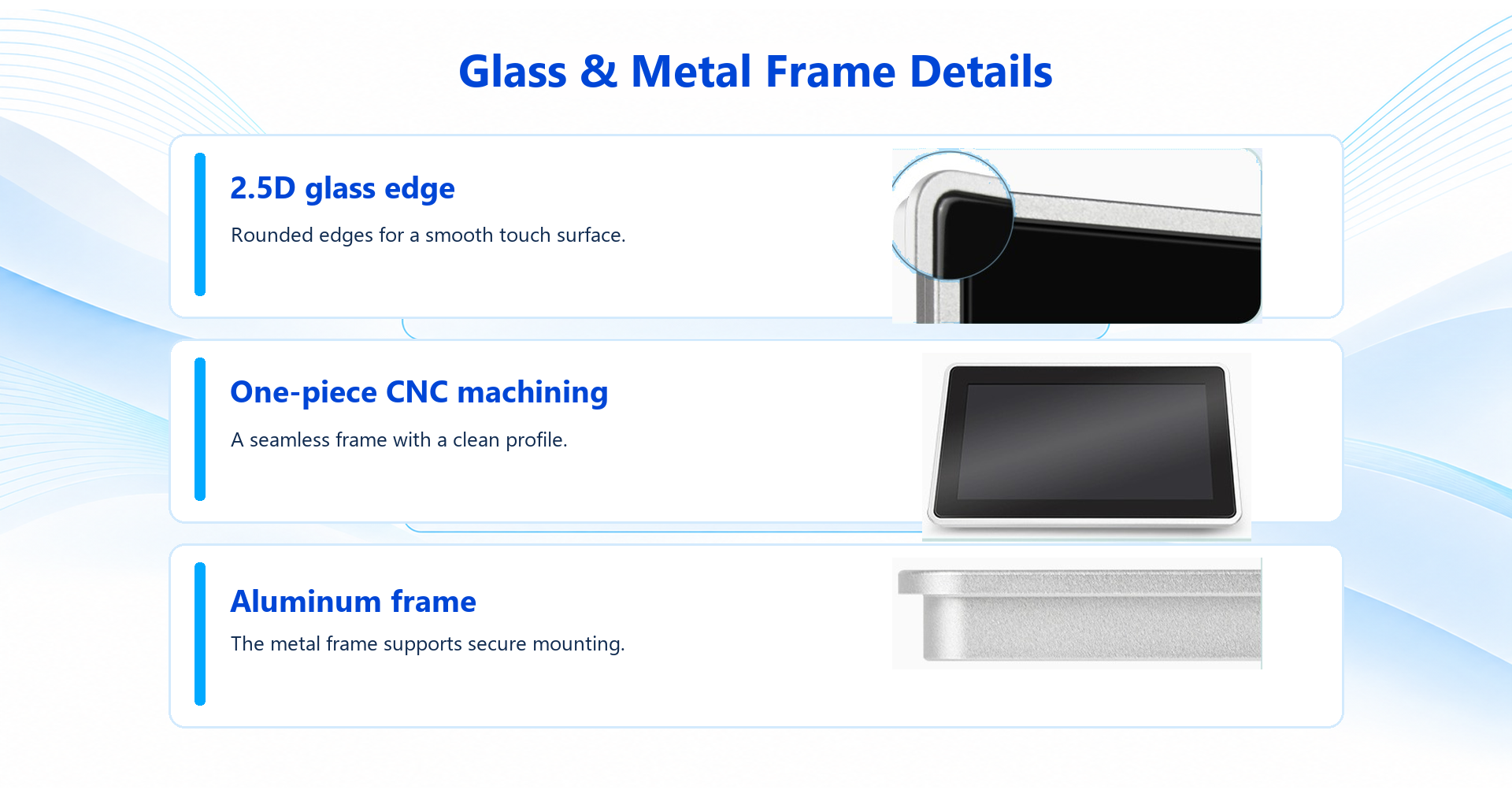

- Frame material
- CNC aluminum alloy
- Standard brightness
- 500 cd/m²
- Series
- M-L1
- Size variant
- 7 / 10.1 inches
- Frame material
- CNC aluminum alloy
- Standard brightness
- 500 cd/m²
- Series
- M-L1
- Size variant
- 7 / 10.1 inches
- Frame material
- CNC aluminum alloy
- Standard brightness
- 500 cd/m²
- Series
- M-L1
- Size variant
- 7 / 10.1 inches
- Frame material
- CNC aluminum alloy
- Standard brightness
- 500 cd/m²
Specifications follow the selected configuration. Contact us to confirm options and delivery requirements.
Built around your requirements
Explore the display, enclosure and configuration-specific capabilities of this HMI panel.
Series: M-L1. Size variant: 7 / 10.1 inches. Frame material: CNC aluminum alloy. Standard brightness: 500 cd/m²
- Series: M-L1
- Size variant: 7 / 10.1 inches
- Frame material: CNC aluminum alloy
- Standard brightness: 500 cd/m²
A closer look
Complete series material may show other sizes or configurations. Refer to the selected model specifications and confirmed delivery configuration. Select an image to enlarge it.
Configuration & specifications
Only source-checked specifications with a clear model association are listed. Contact us for details that are not listed.
AYM070L1-A133P
Product
| Series | M-L1Not specified |
|---|---|
| Size variant | 7 / 10.1 inchesNot specified |
Hero selling points
| Frame material | CNC aluminum alloyNot specified |
|---|---|
| Standard brightness | 500 cd/m²Standard |

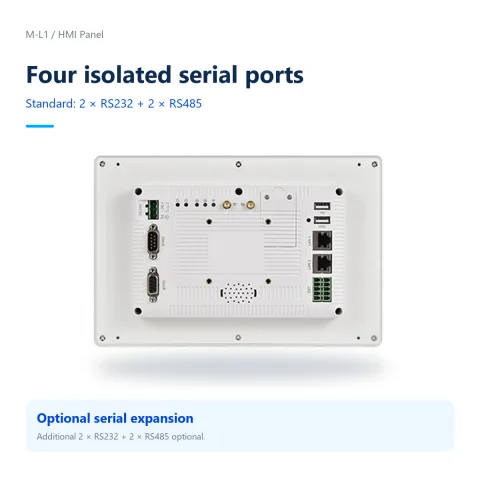

| Isolated serial ports | RS232: 2; RS485: 2 channelsStandard |

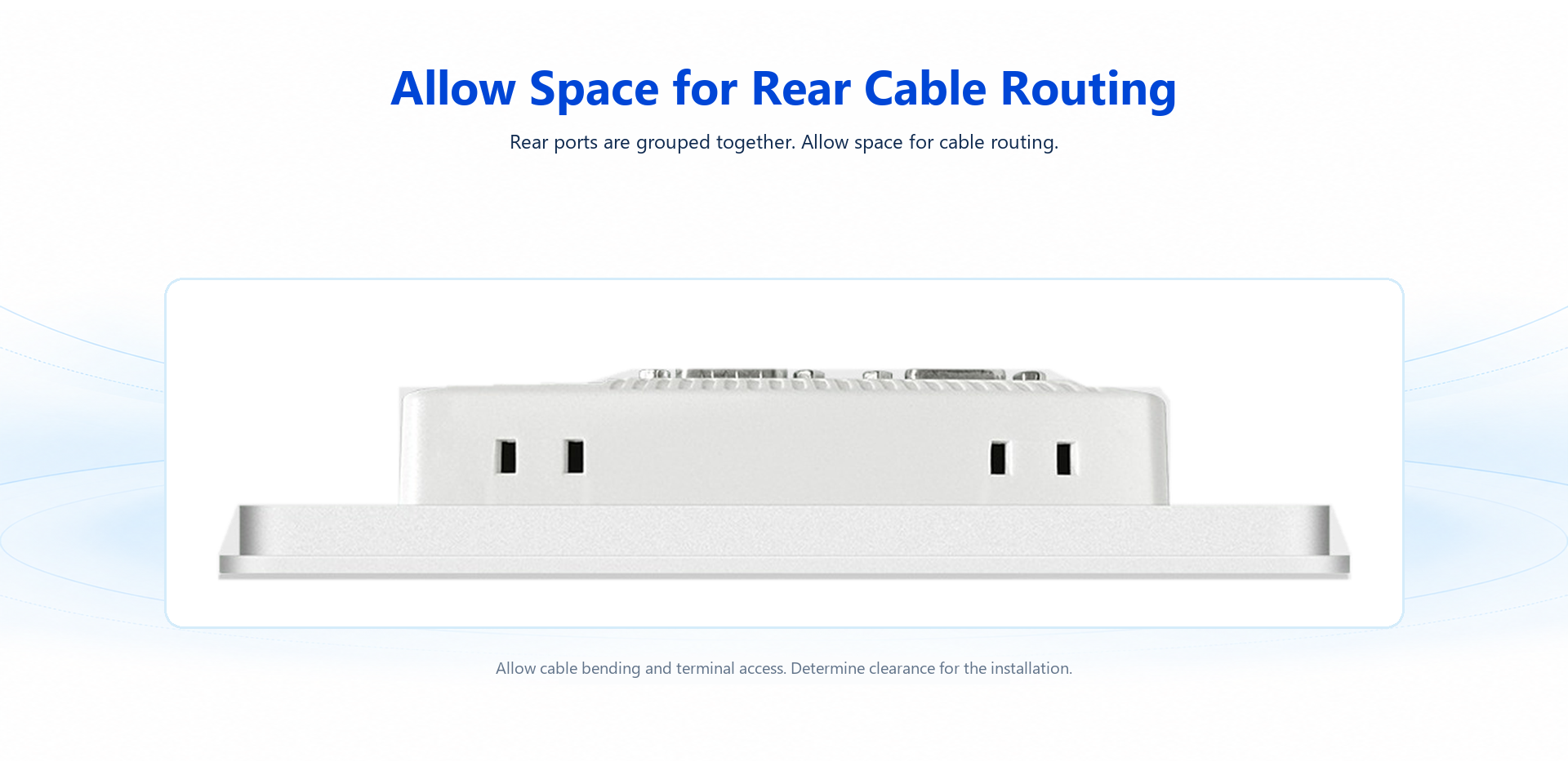

| Rear cable exit | Perpendicular rear cable exitNot specified |
Series selection
| Mounting methods | Exterior inset mountingNot specified |
|---|---|
| Mounting hole spacing | 50 × 50 mmNot specified |
| Frame material | CNC aluminum alloyNot specified |
| Frame color | Silver / BlackNot specified |
Power supply
| Overcurrent protection | trueNot specified |
|---|
Structure
| Rear cable exit | Perpendicular cable exitNot specified |
|---|
Display
| Standard brightness | 500 cd/m²Standard |
|---|---|
| Full bonding | Full bondingNot specified |
| AG glass | AG anti-glare glassOptional |
Environment and protection
| Operating temperature | -10 – 60 ℃Not specified |
|---|

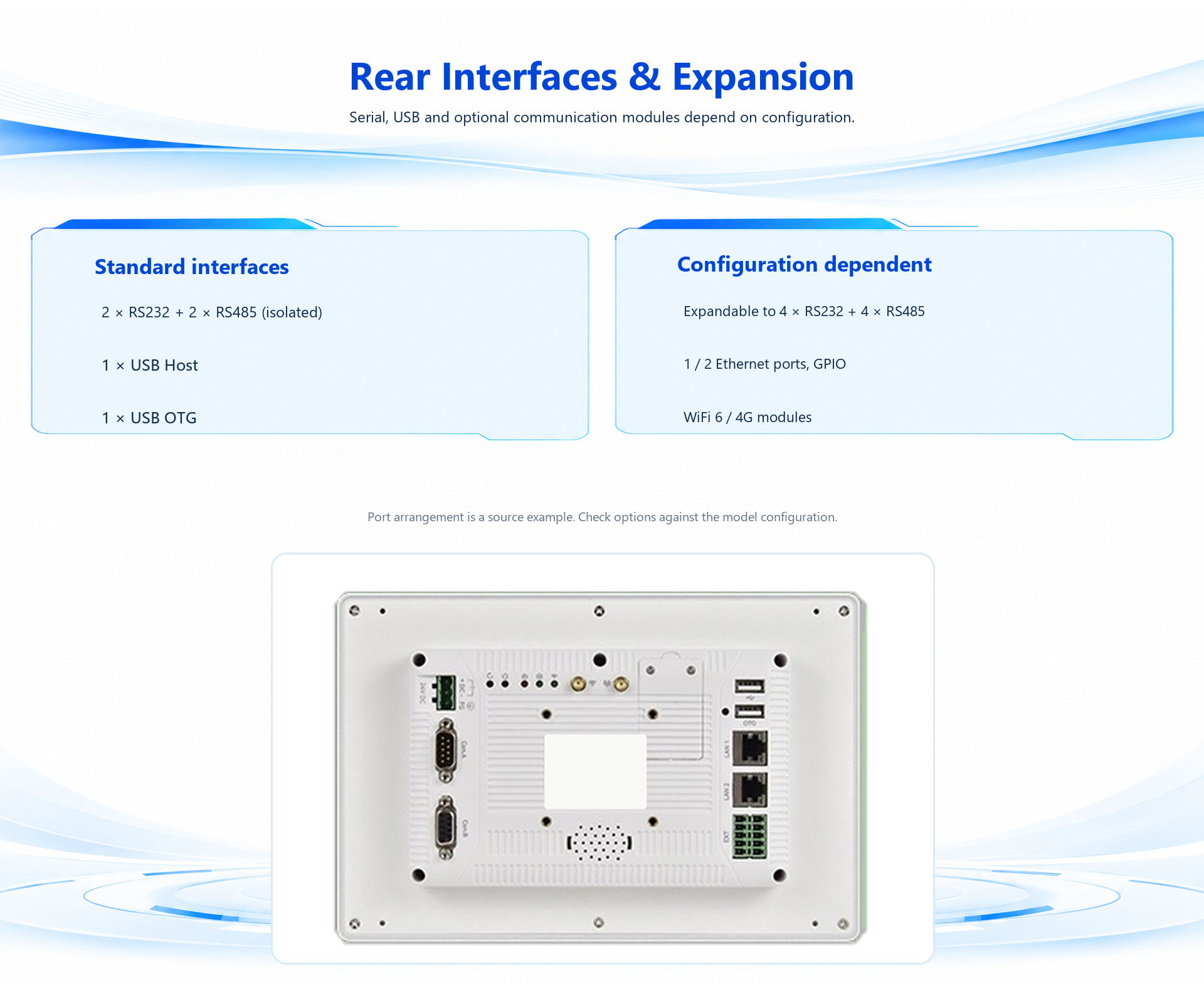

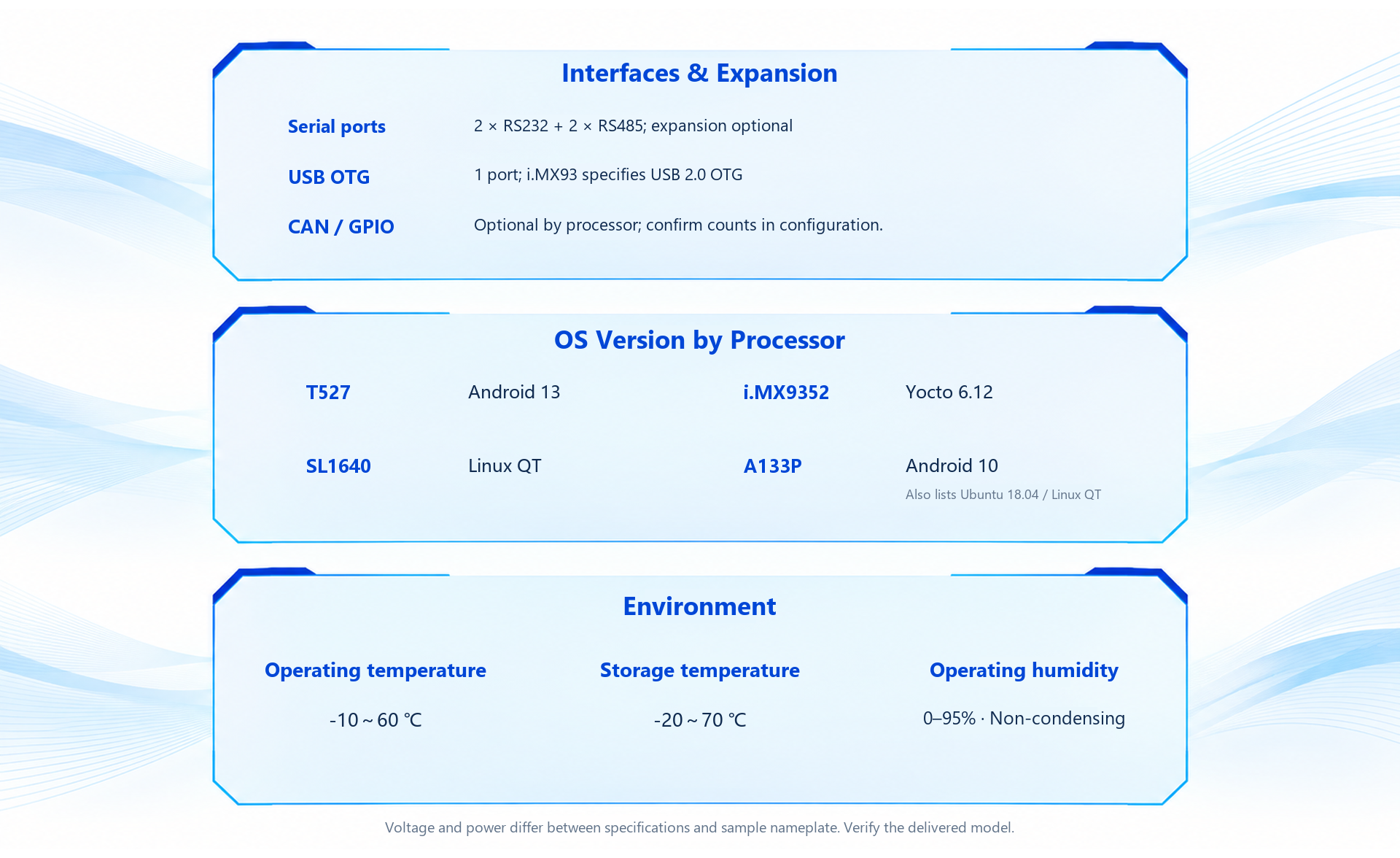

Interfaces
| Standard isolated serial ports | RS232: 2; RS485: 2 channelsStandard |
|---|---|
| Isolated serial port expansion | RS232: 4; RS485: 4 channelsTotal after expansion |
| USB Host | 1 channelsNot specified |
| USB OTG | 1 channelsNot specified |

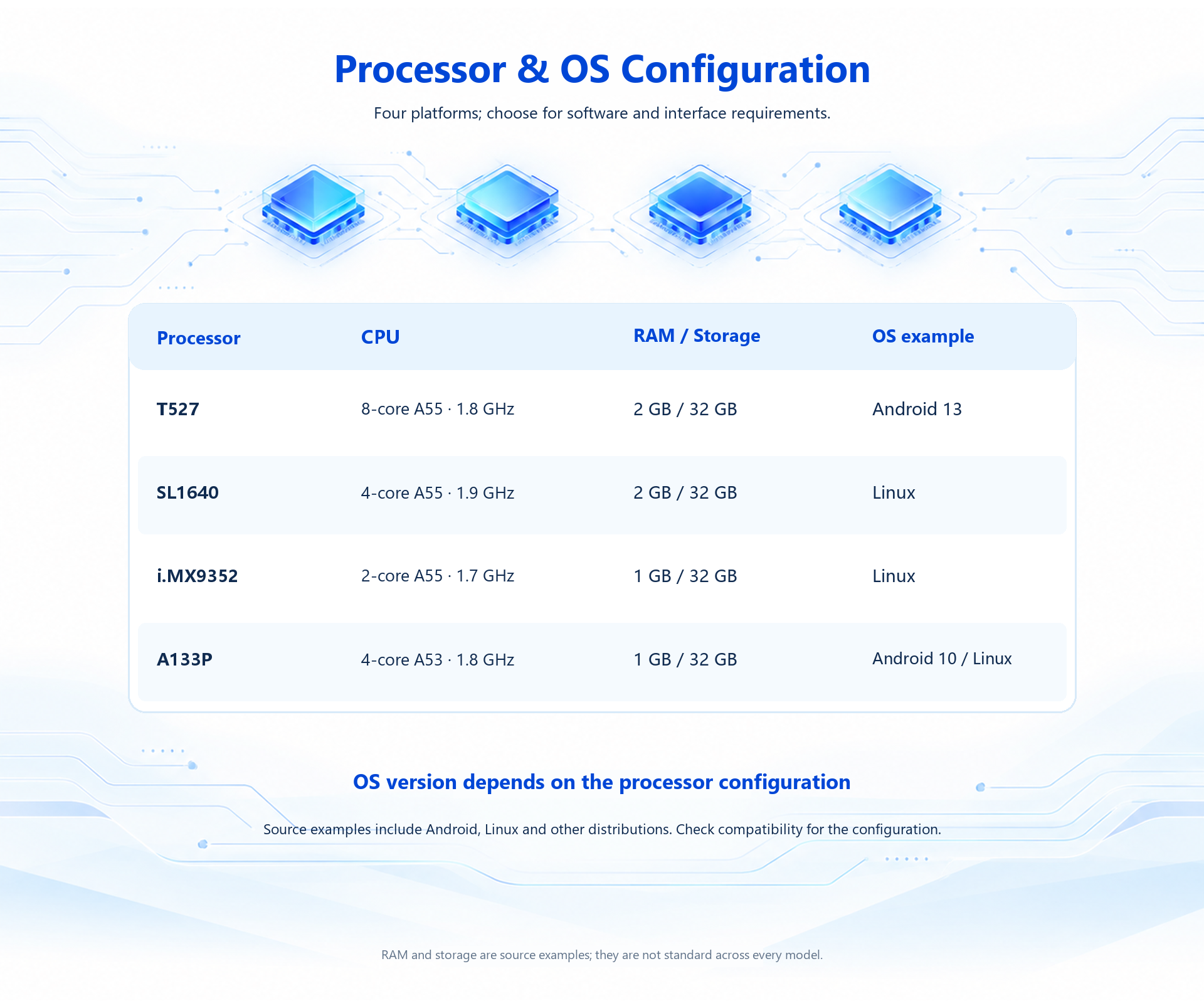

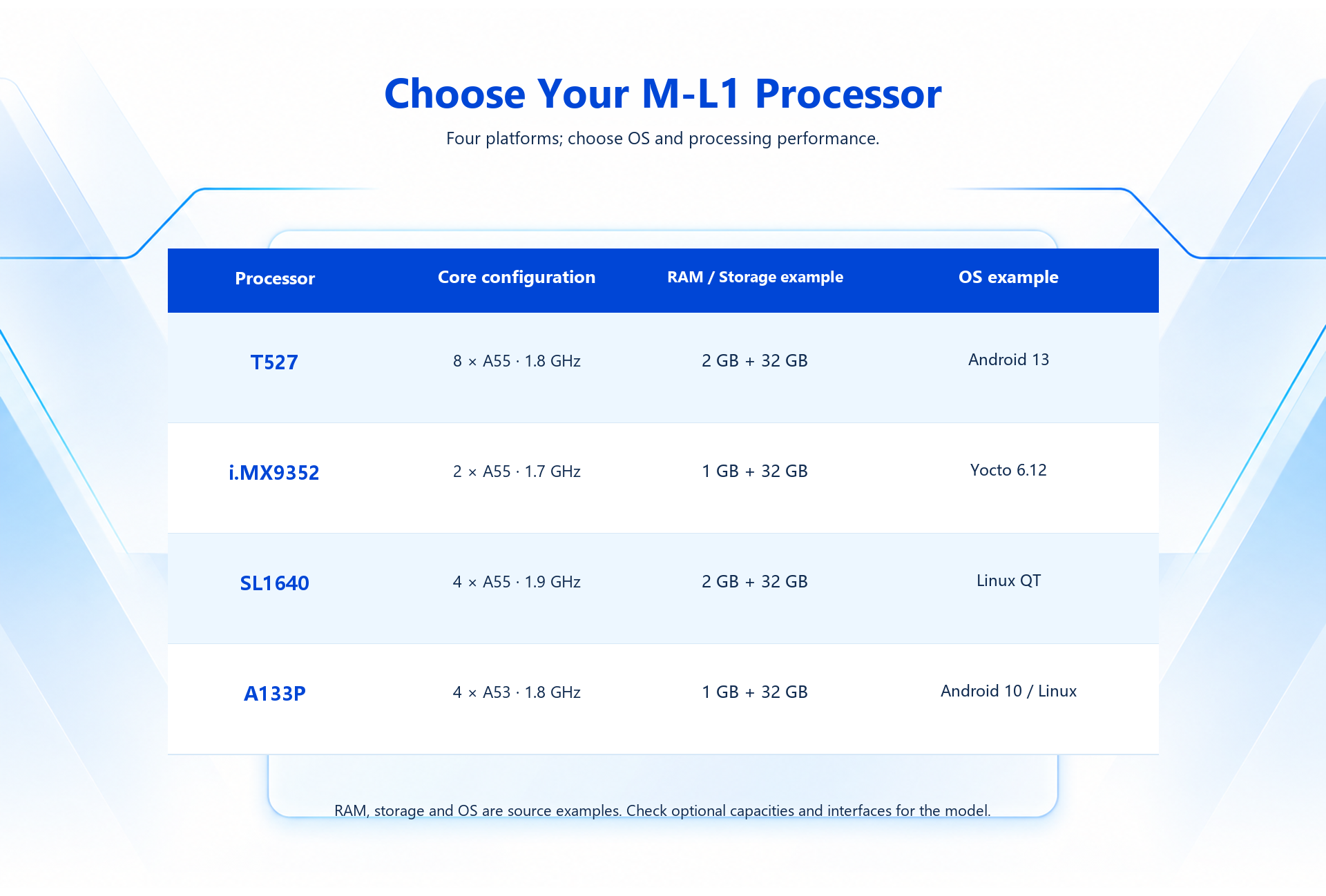

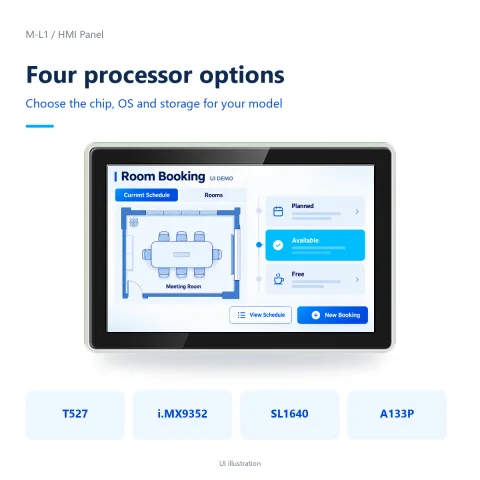

Processor configuration
| Chip | Allwinner A133PNot specified |
|---|---|
| CPU | 4-core A53 @ 1.8 GHzNot specified |

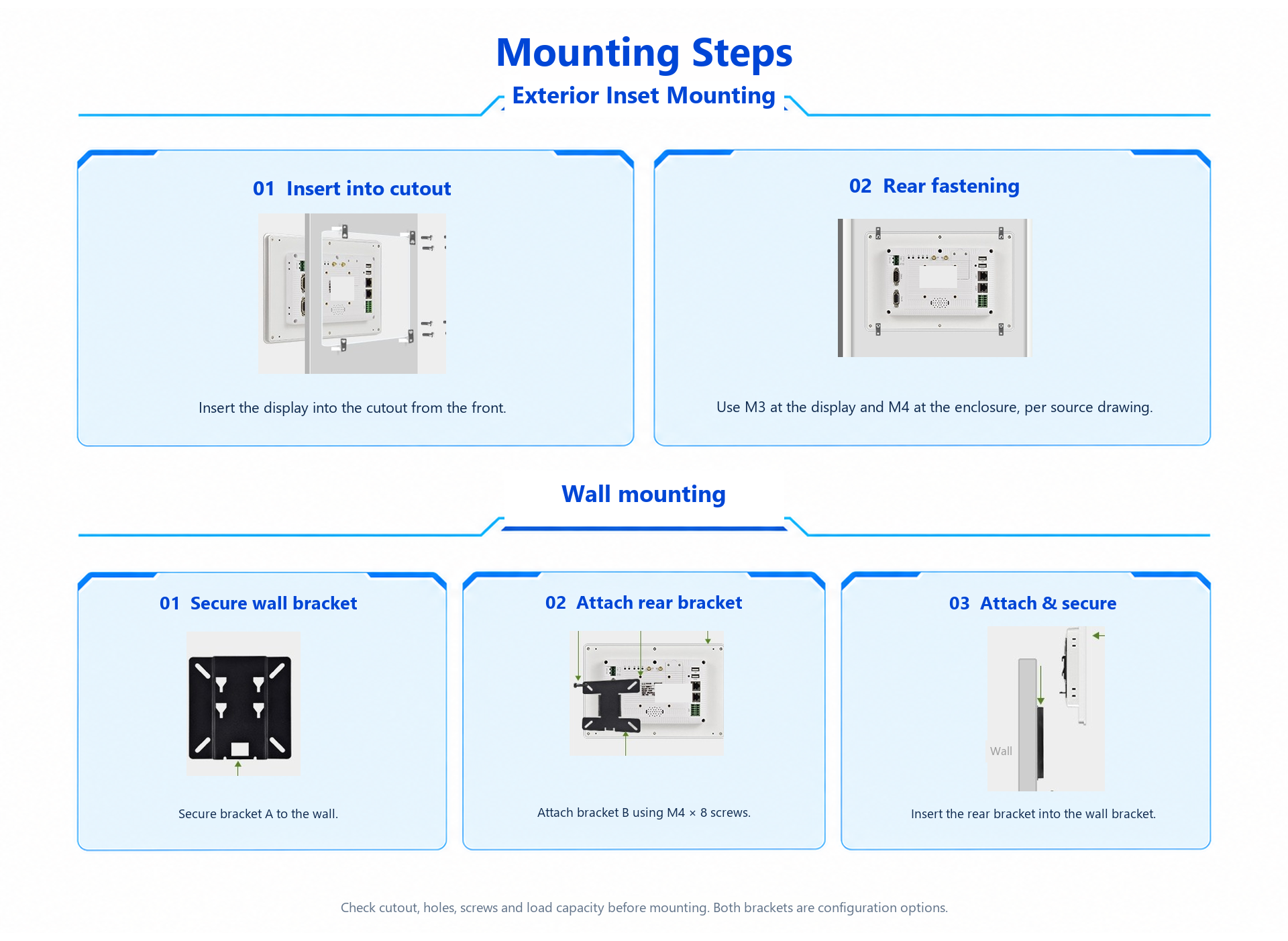

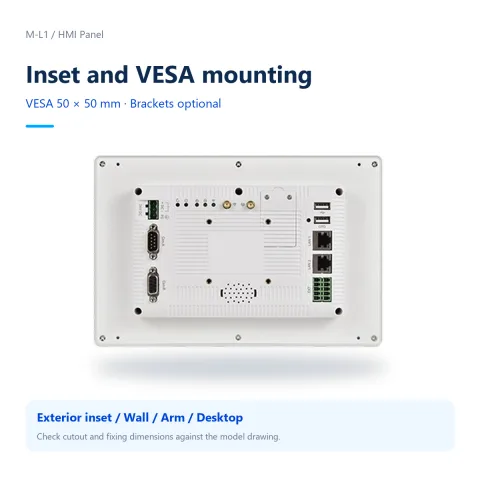

Installation

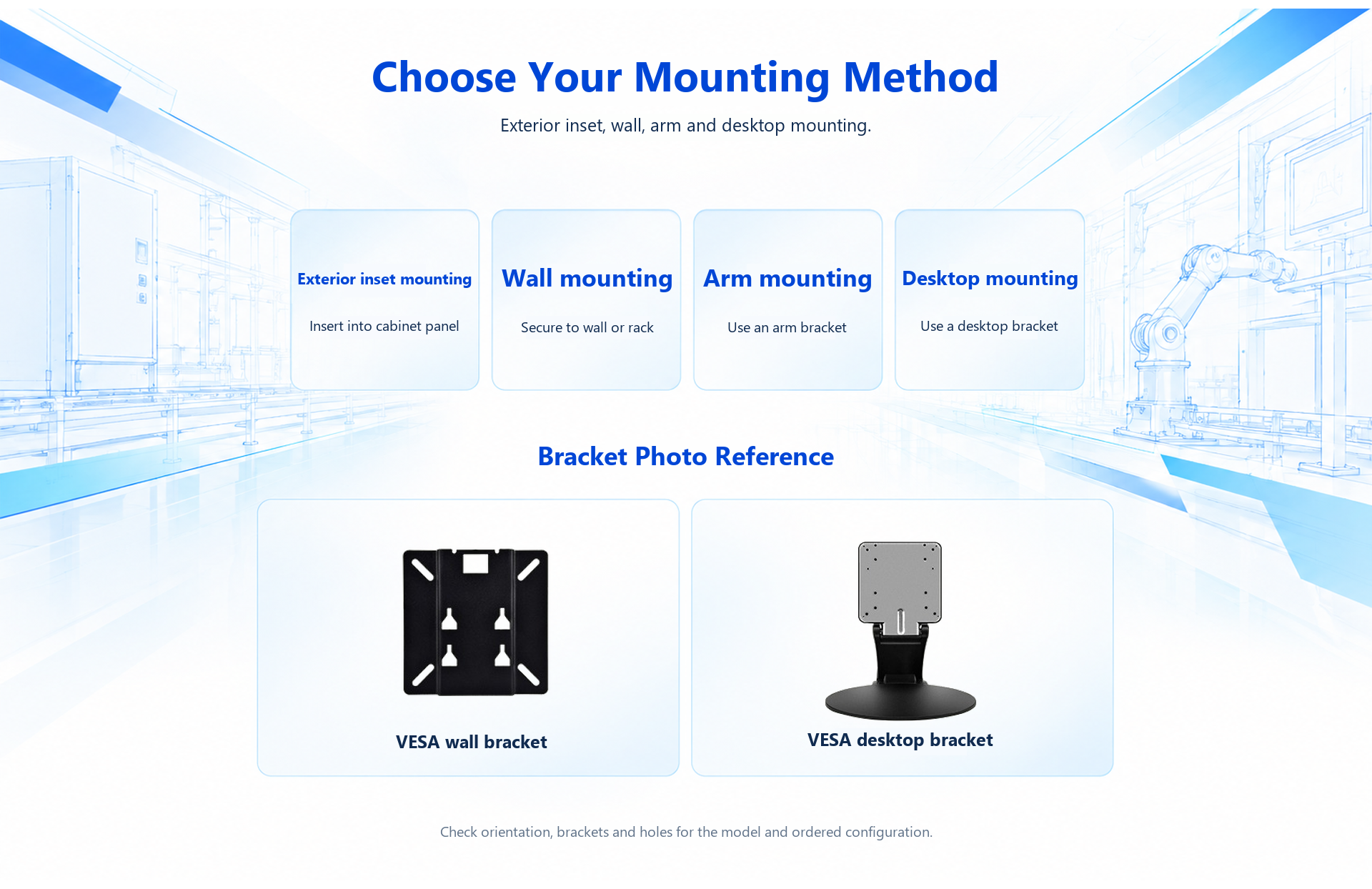

| Mounting methods | Exterior inset / Wall mount / Arm mount / Desktop mountMounting parts depend on configuration |
|---|

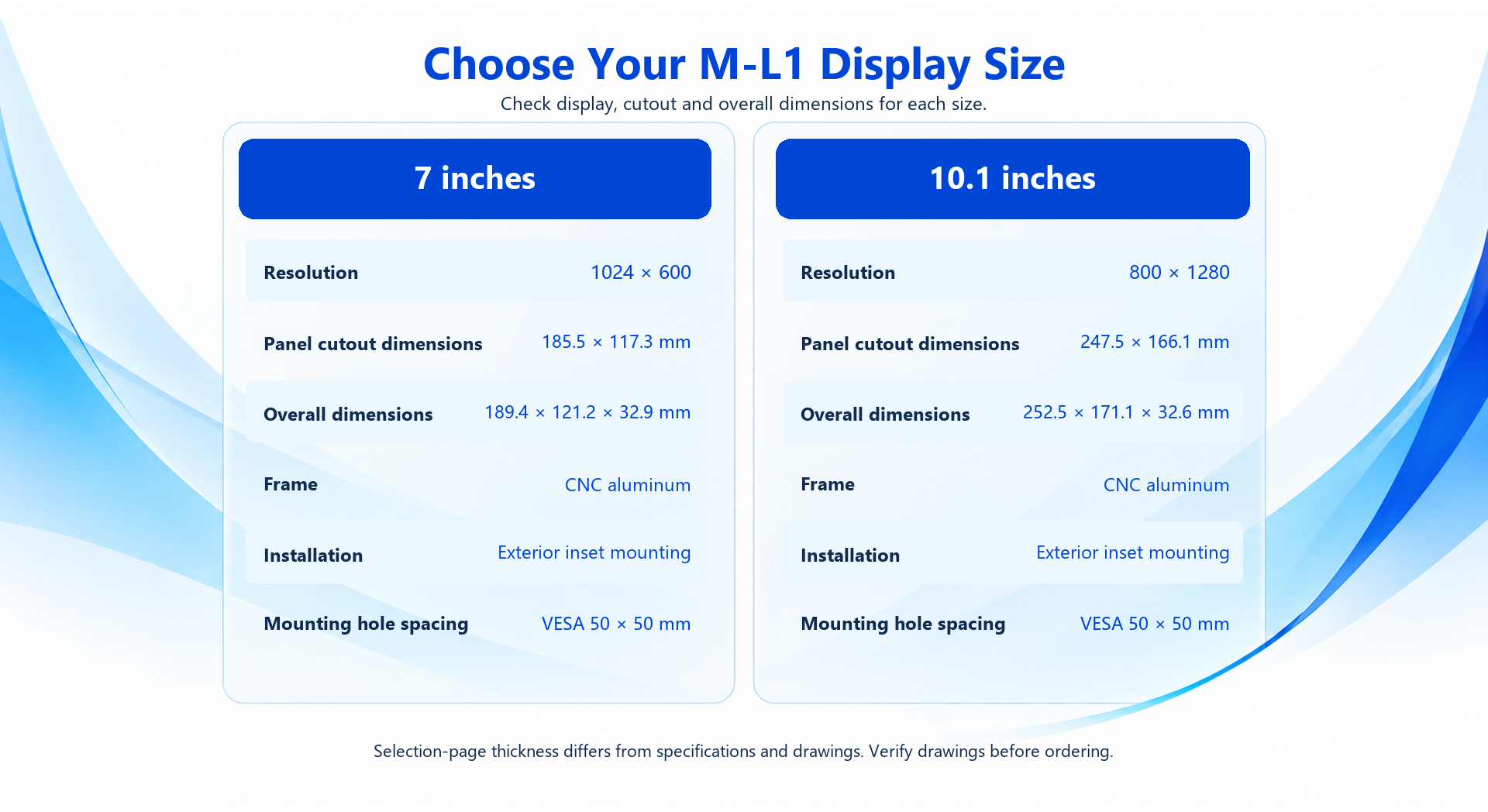

Display & mechanical specifications
| Display size | 7 inchesNot specified |
|---|---|
| Resolution | 1024×600 pixelsNot specified |

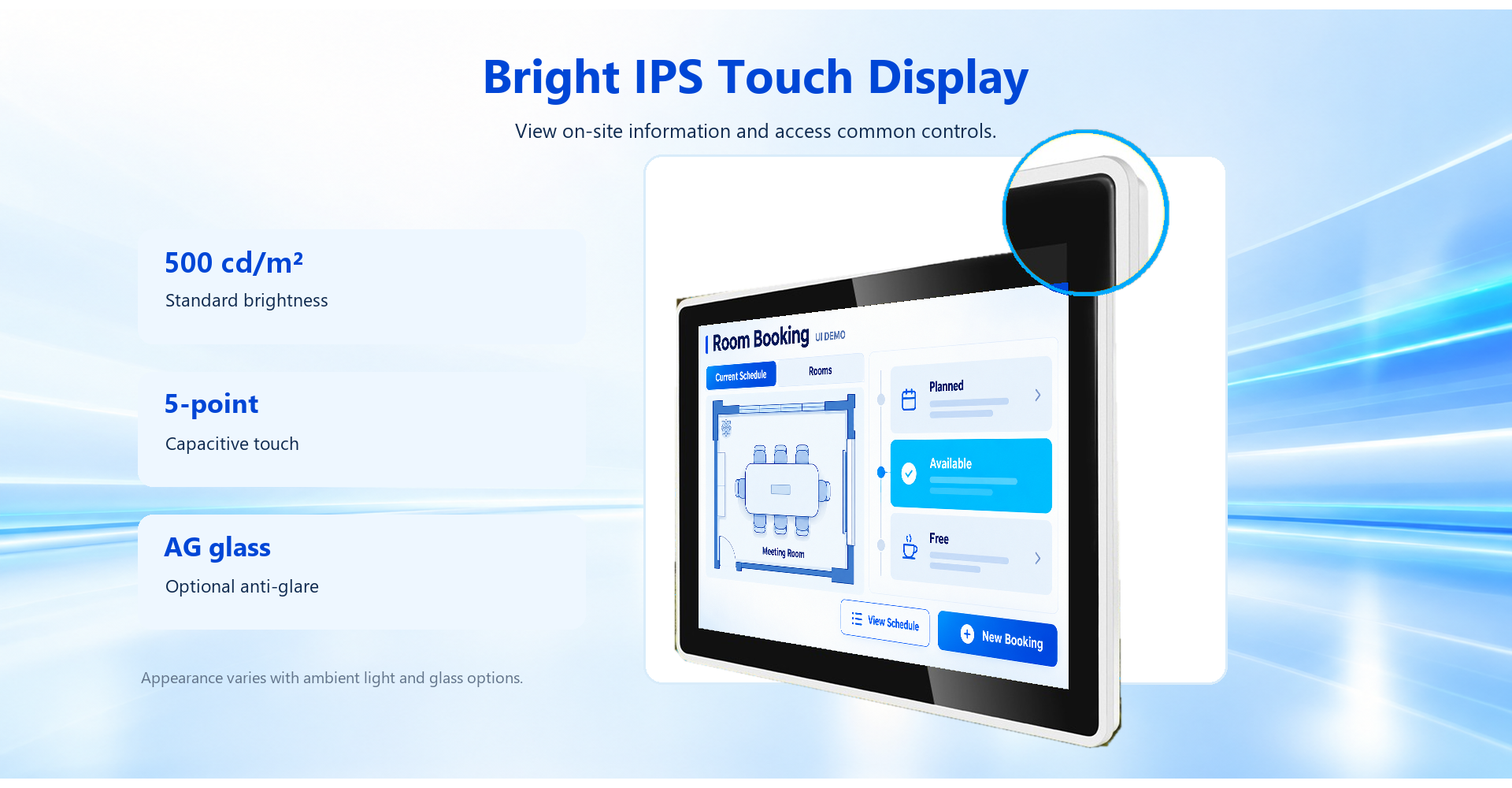

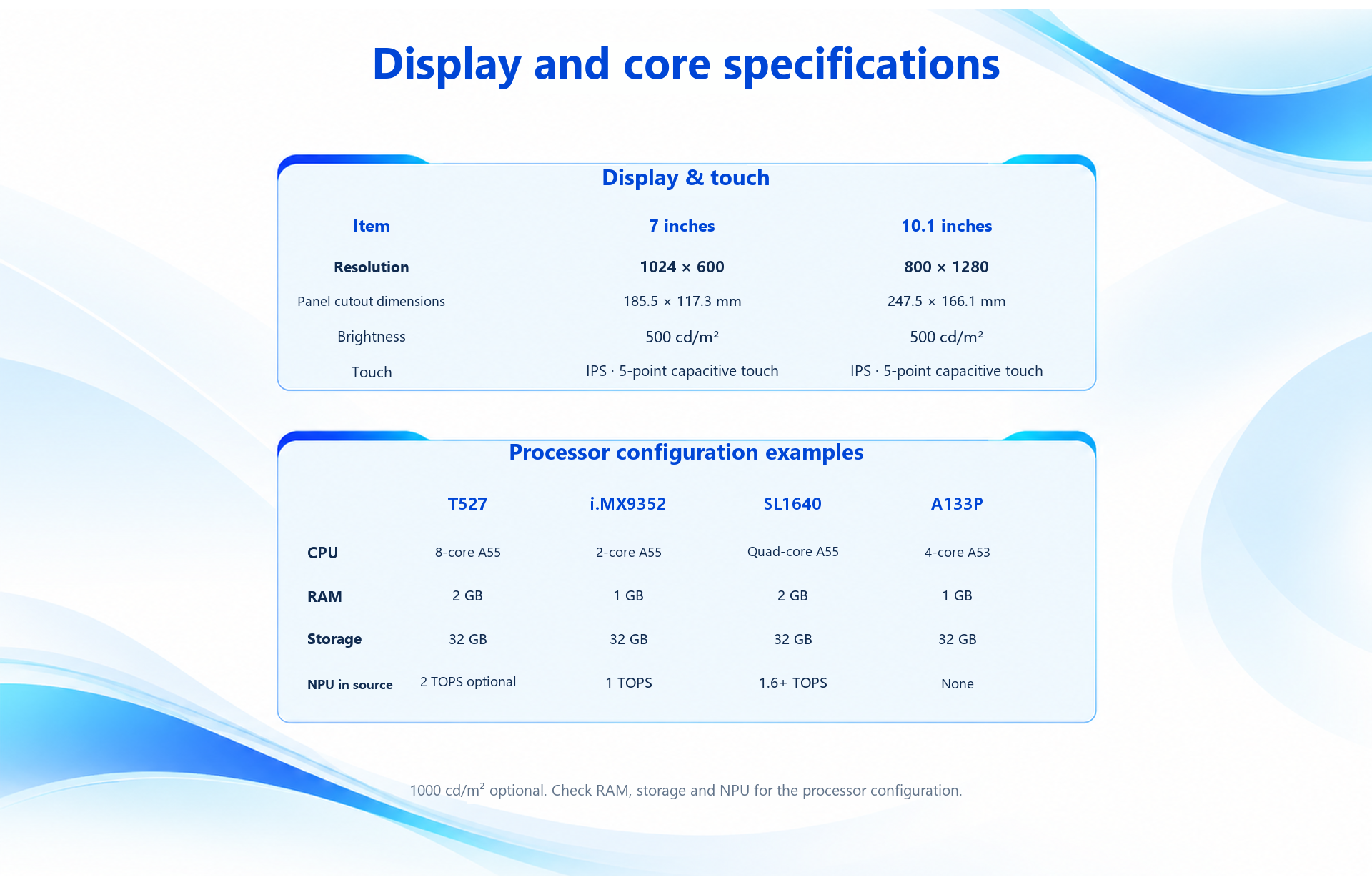

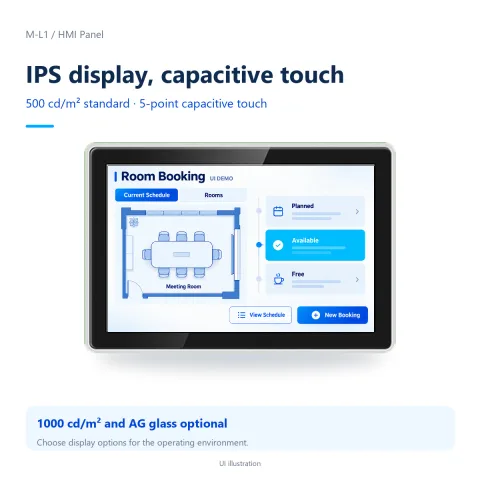

Display & touch specifications
| Backlight brightness | 500 cd/m²1000 optional |
|---|---|
| Viewing angle | IPSNot specified |
| Touch type | 5 pointsNot specified |
Core specifications
| Storage | 32 GBOther capacities optional |
|---|
Interface and power specifications
| Audio amplifier | 1.6 WNot specified |
|---|
Operating system
| Android systems | Android 10Not specified |
|---|---|
| Linux systems | Ubuntu 18.04/Linux QTNot specified |
Environmental specifications
| Operating temperature | -10 – 60 ℃Not specified |
|---|---|
| Storage temperature | -20 – 70 ℃Not specified |
| Operating humidity | 0 – 95 %RHNot specified |

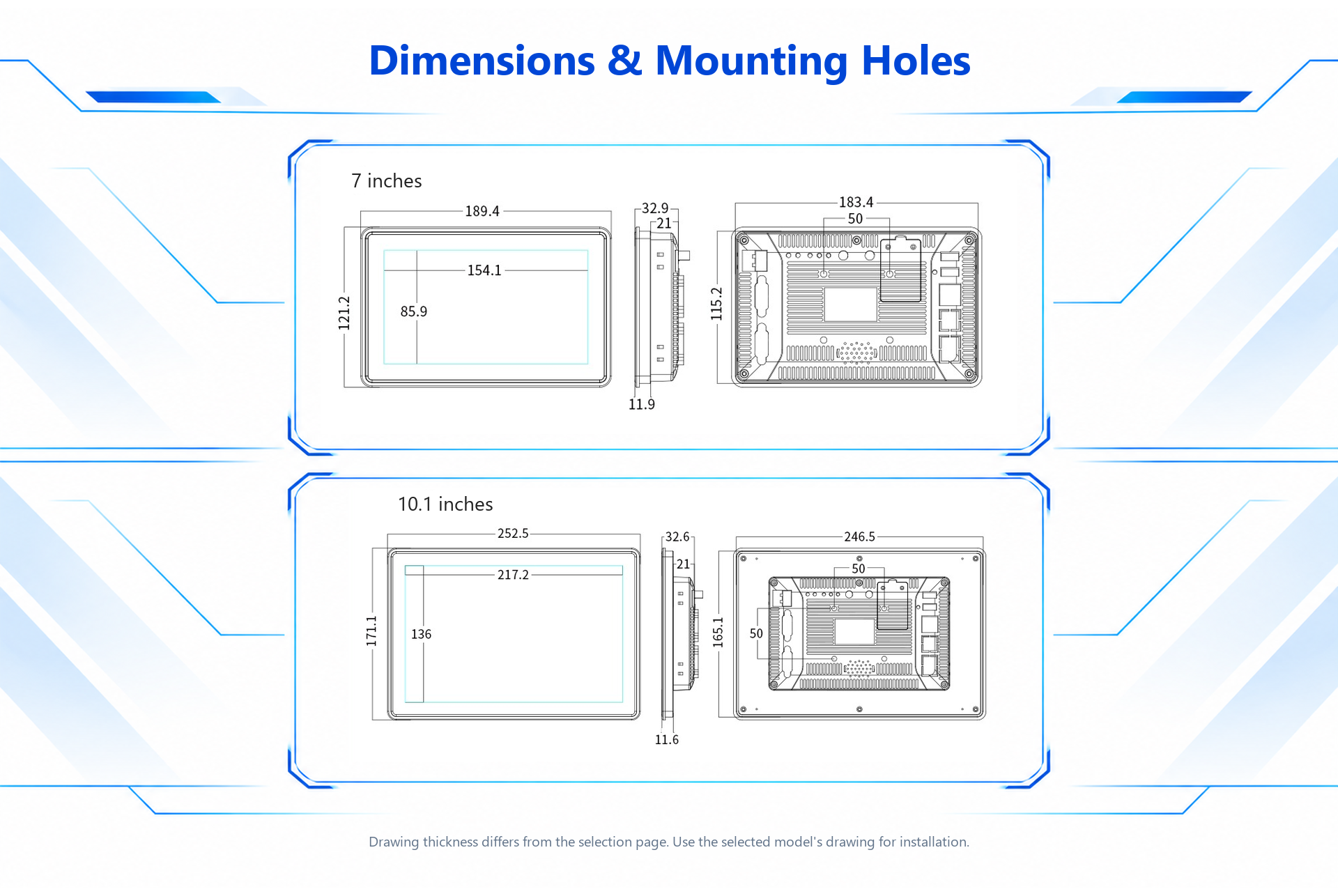

Mechanical drawing
| Rear width in drawing | 183.4 mmNot specified |
|---|---|
| VESA hole spacing | 50 × 50 mmNot specified |

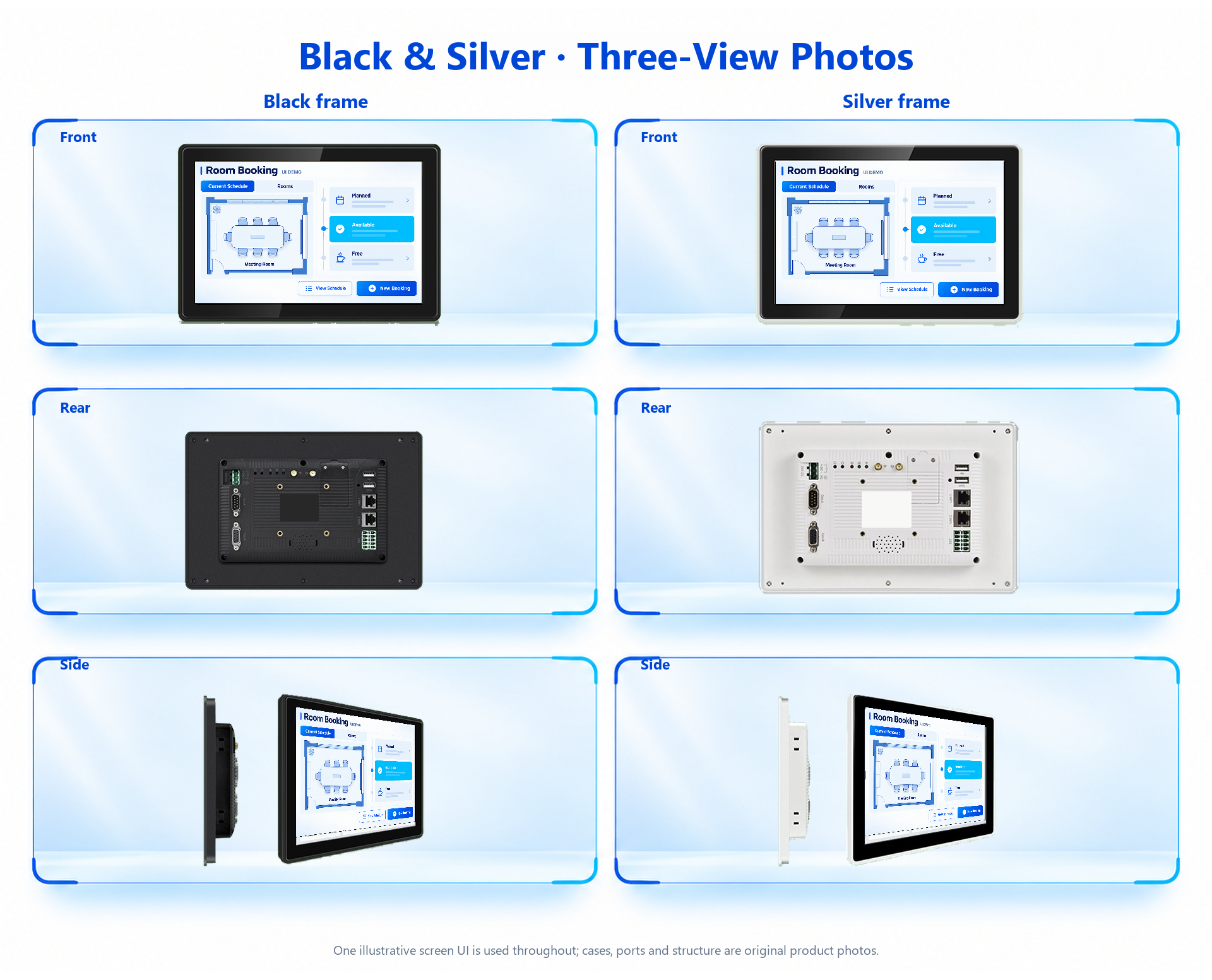

Product photographs
| Frame color | Black / SilverNot specified |
|---|
AYM070L1-IMX93
Product
| Series | M-L1Not specified |
|---|---|
| Size variant | 7 / 10.1 inchesNot specified |
Hero selling points
| Frame material | CNC aluminum alloyNot specified |
|---|---|
| Standard brightness | 500 cd/m²Standard |
| Isolated serial ports | RS232: 2; RS485: 2 channelsStandard |
| Rear cable exit | Perpendicular rear cable exitNot specified |
Series selection
| Mounting methods | Exterior inset mountingNot specified |
|---|---|
| Mounting hole spacing | 50 × 50 mmNot specified |
| Frame material | CNC aluminum alloyNot specified |
| Frame color | Silver / BlackNot specified |
Power supply
| Overcurrent protection | trueNot specified |
|---|
Structure
| Rear cable exit | Perpendicular cable exitNot specified |
|---|
Display
| Standard brightness | 500 cd/m²Standard |
|---|---|
| Full bonding | Full bondingNot specified |
| AG glass | AG anti-glare glassOptional |
Environment and protection
| Operating temperature | -10 – 60 ℃Not specified |
|---|
Interfaces
| Standard isolated serial ports | RS232: 2; RS485: 2 channelsStandard |
|---|---|
| Isolated serial port expansion | RS232: 4; RS485: 4 channelsTotal after expansion |
| USB Host | 1 channelsNot specified |
| USB OTG | 1 channelsNot specified |
Processor configuration
| Chip | NXP i.MX9352Not specified |
|---|---|
| CPU | 2-core A55 @ 1.7 GHzNot specified |
Installation
| Mounting methods | Exterior inset / Wall mount / Arm mount / Desktop mountMounting parts depend on configuration |
|---|
Display & mechanical specifications
| Display size | 7 inchesNot specified |
|---|---|
| Resolution | 1024×600 pixelsNot specified |
Display & touch specifications
| Backlight brightness | 500 cd/m²1000 optional |
|---|---|
| Viewing angle | IPSNot specified |
| Touch type | 5 pointsNot specified |
Core specifications
| Storage | 32 GBOther capacities optional |
|---|
Interface and power specifications
| Audio amplifier | 1.6 WNot specified |
|---|
Operating system
| Android systems | Not supportedNot specified |
|---|---|
| Linux systems | Yocto 6.12Not specified |
Environmental specifications
| Operating temperature | -10 – 60 ℃Not specified |
|---|---|
| Storage temperature | -20 – 70 ℃Not specified |
| Operating humidity | 0 – 95 %RHNot specified |
Mechanical drawing
| Rear width in drawing | 183.4 mmNot specified |
|---|---|
| VESA hole spacing | 50 × 50 mmNot specified |
Product photographs
| Frame color | Black / SilverNot specified |
|---|
AYM070L1-SL1640
Product
| Series | M-L1Not specified |
|---|---|
| Size variant | 7 / 10.1 inchesNot specified |
Hero selling points
| Frame material | CNC aluminum alloyNot specified |
|---|---|
| Standard brightness | 500 cd/m²Standard |
| Isolated serial ports | RS232: 2; RS485: 2 channelsStandard |
| Rear cable exit | Perpendicular rear cable exitNot specified |
Series selection
| Mounting methods | Exterior inset mountingNot specified |
|---|---|
| Mounting hole spacing | 50 × 50 mmNot specified |
| Frame material | CNC aluminum alloyNot specified |
| Frame color | Silver / BlackNot specified |
Power supply
| Overcurrent protection | trueNot specified |
|---|
Structure
| Rear cable exit | Perpendicular cable exitNot specified |
|---|
Display
| Standard brightness | 500 cd/m²Standard |
|---|---|
| Full bonding | Full bondingNot specified |
| AG glass | AG anti-glare glassOptional |
Environment and protection
| Operating temperature | -10 – 60 ℃Not specified |
|---|
Interfaces
| Standard isolated serial ports | RS232: 2; RS485: 2 channelsStandard |
|---|---|
| Isolated serial port expansion | RS232: 4; RS485: 4 channelsTotal after expansion |
| USB Host | 1 channelsNot specified |
| USB OTG | 1 channelsNot specified |
Processor configuration
| Chip | Synaptics SL1640Not specified |
|---|---|
| CPU | 4-core A55 @ 1.9 GHzNot specified |
Installation
| Mounting methods | Exterior inset / Wall mount / Arm mount / Desktop mountMounting parts depend on configuration |
|---|
Display & mechanical specifications
| Display size | 7 inchesNot specified |
|---|---|
| Resolution | 1024×600 pixelsNot specified |
Display & touch specifications
| Backlight brightness | 500 cd/m²1000 optional |
|---|---|
| Viewing angle | IPSNot specified |
| Touch type | 5 pointsNot specified |
Core specifications
| Storage | 32 GBOther capacities optional |
|---|
Interface and power specifications
| Audio amplifier | 1.6 WNot specified |
|---|
Operating system
| Android systems | Not supportedNot specified |
|---|---|
| Linux systems | Linux QTNot specified |
Environmental specifications
| Operating temperature | -10 – 60 ℃Not specified |
|---|---|
| Storage temperature | -20 – 70 ℃Not specified |
| Operating humidity | 0 – 95 %RHNot specified |
Mechanical drawing
| Rear width in drawing | 183.4 mmNot specified |
|---|---|
| VESA hole spacing | 50 × 50 mmNot specified |
Product photographs
| Frame color | Black / SilverNot specified |
|---|
AYM070L1-T527
Product
| Series | M-L1Not specified |
|---|---|
| Size variant | 7 / 10.1 inchesNot specified |
Hero selling points
| Frame material | CNC aluminum alloyNot specified |
|---|---|
| Standard brightness | 500 cd/m²Standard |
| Isolated serial ports | RS232: 2; RS485: 2 channelsStandard |
| Rear cable exit | Perpendicular rear cable exitNot specified |
Series selection
| Mounting methods | Exterior inset mountingNot specified |
|---|---|
| Mounting hole spacing | 50 × 50 mmNot specified |
| Frame material | CNC aluminum alloyNot specified |
| Frame color | Silver / BlackNot specified |
Power supply
| Overcurrent protection | trueNot specified |
|---|
Structure
| Rear cable exit | Perpendicular cable exitNot specified |
|---|
Display
| Standard brightness | 500 cd/m²Standard |
|---|---|
| Full bonding | Full bondingNot specified |
| AG glass | AG anti-glare glassOptional |
Environment and protection
| Operating temperature | -10 – 60 ℃Not specified |
|---|
Interfaces
| Standard isolated serial ports | RS232: 2; RS485: 2 channelsStandard |
|---|---|
| Isolated serial port expansion | RS232: 4; RS485: 4 channelsTotal after expansion |
| USB Host | 1 channelsNot specified |
| USB OTG | 1 channelsNot specified |
Processor configuration
| Chip | Allwinner T527Not specified |
|---|---|
| CPU | 8-core A55 @ 1.8 GHzNot specified |
Installation
| Mounting methods | Exterior inset / Wall mount / Arm mount / Desktop mountMounting parts depend on configuration |
|---|
Display & mechanical specifications
| Display size | 7 inchesNot specified |
|---|---|
| Resolution | 1024×600 pixelsNot specified |
Display & touch specifications
| Backlight brightness | 500 cd/m²1000 optional |
|---|---|
| Viewing angle | IPSNot specified |
| Touch type | 5 pointsNot specified |
Core specifications
| Storage | 32 GBOther capacities optional |
|---|
Interface and power specifications
| Audio amplifier | 1.6 WNot specified |
|---|
Operating system
| Android systems | Android 13Not specified |
|---|---|
| Linux systems | Not supportedNot specified |
Environmental specifications
| Operating temperature | -10 – 60 ℃Not specified |
|---|---|
| Storage temperature | -20 – 70 ℃Not specified |
| Operating humidity | 0 – 95 %RHNot specified |
Mechanical drawing
| Rear width in drawing | 183.4 mmNot specified |
|---|---|
| VESA hole spacing | 50 × 50 mmNot specified |
Product photographs
| Frame color | Black / SilverNot specified |
|---|
M-L1-070
Let’s find your configuration
Tell us about your application, quantities and interface requirements. We will help confirm a suitable configuration.
