Interactive P Series

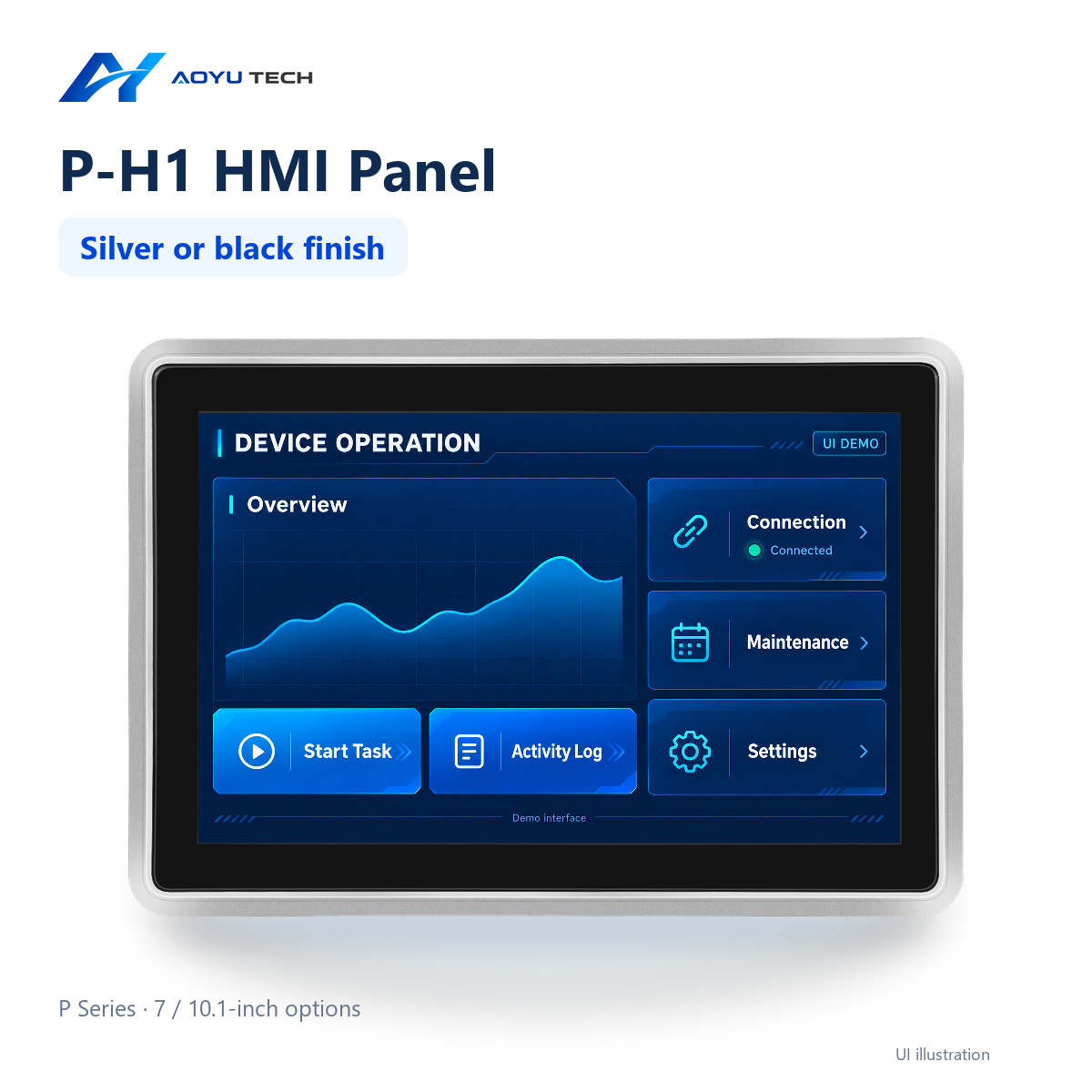

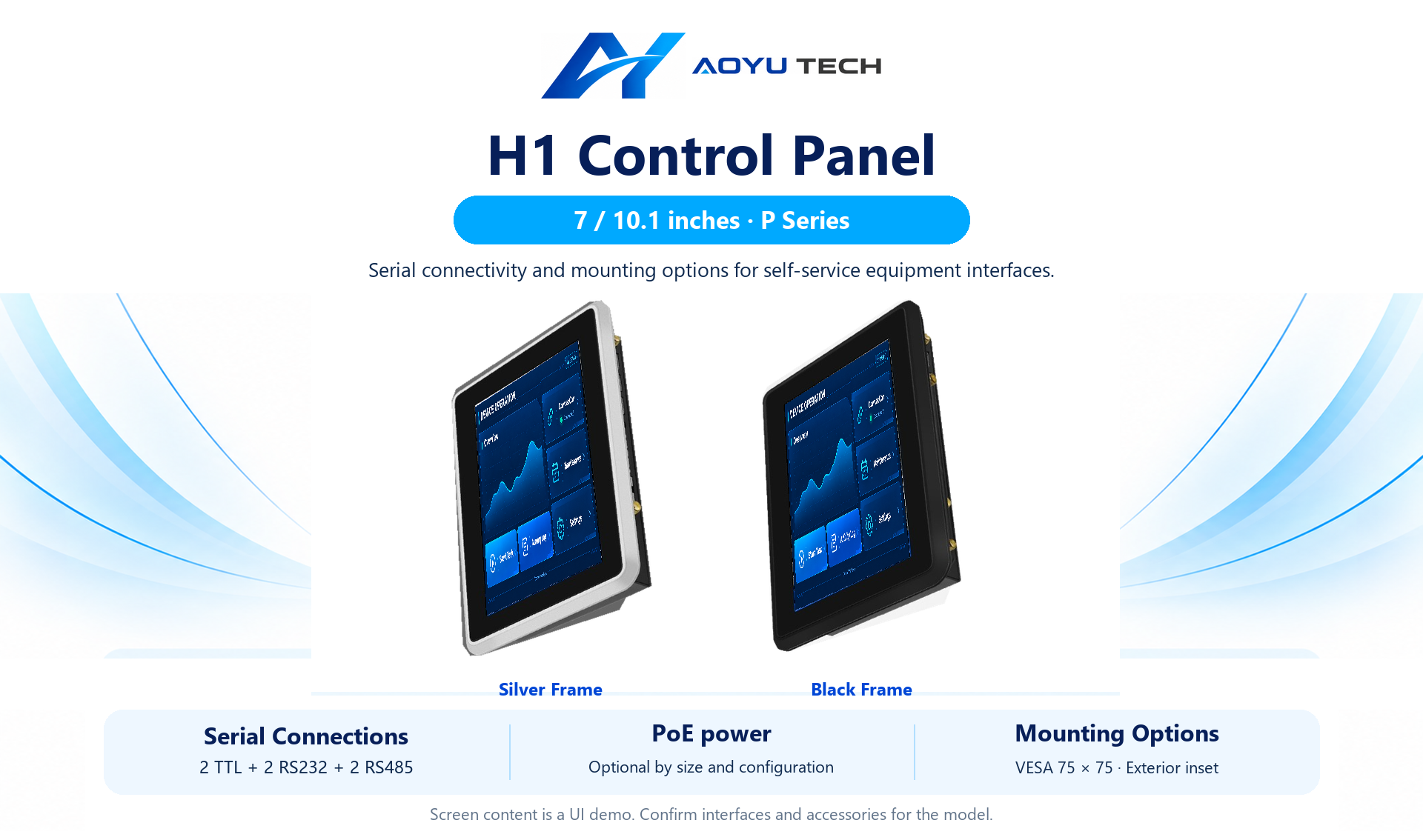

P-H1-101 10.1-inch HMI Panel

10.1 inches · Interactive P Series

Screen size
7″10.1″
CPU
chip: A133P; cores: 4; clock_GHz: 1.8
RAM / storage
RAM: 1; storage: 32 GB
Display size
10.1 inches
Resolution
800 × 1280 px
Request a quote

Specifications follow the selected configuration. Contact us to confirm options and delivery requirements.

Built around your requirements

Explore the display, enclosure and configuration-specific capabilities of this HMI panel.

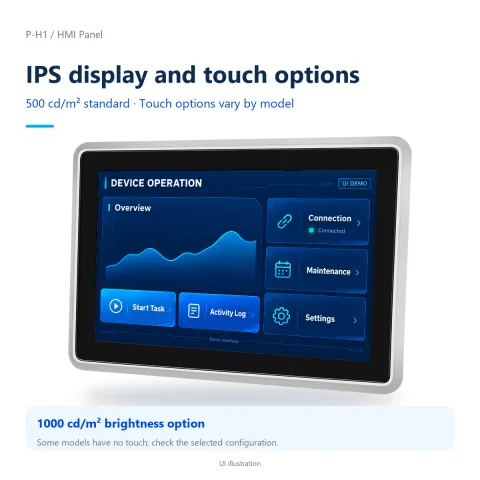

Display size: 10.1 inches. Resolution: 800 × 1280 px. Viewing angle: IPS. Panel cutout dimensions: 249.3 × 167.9 mm

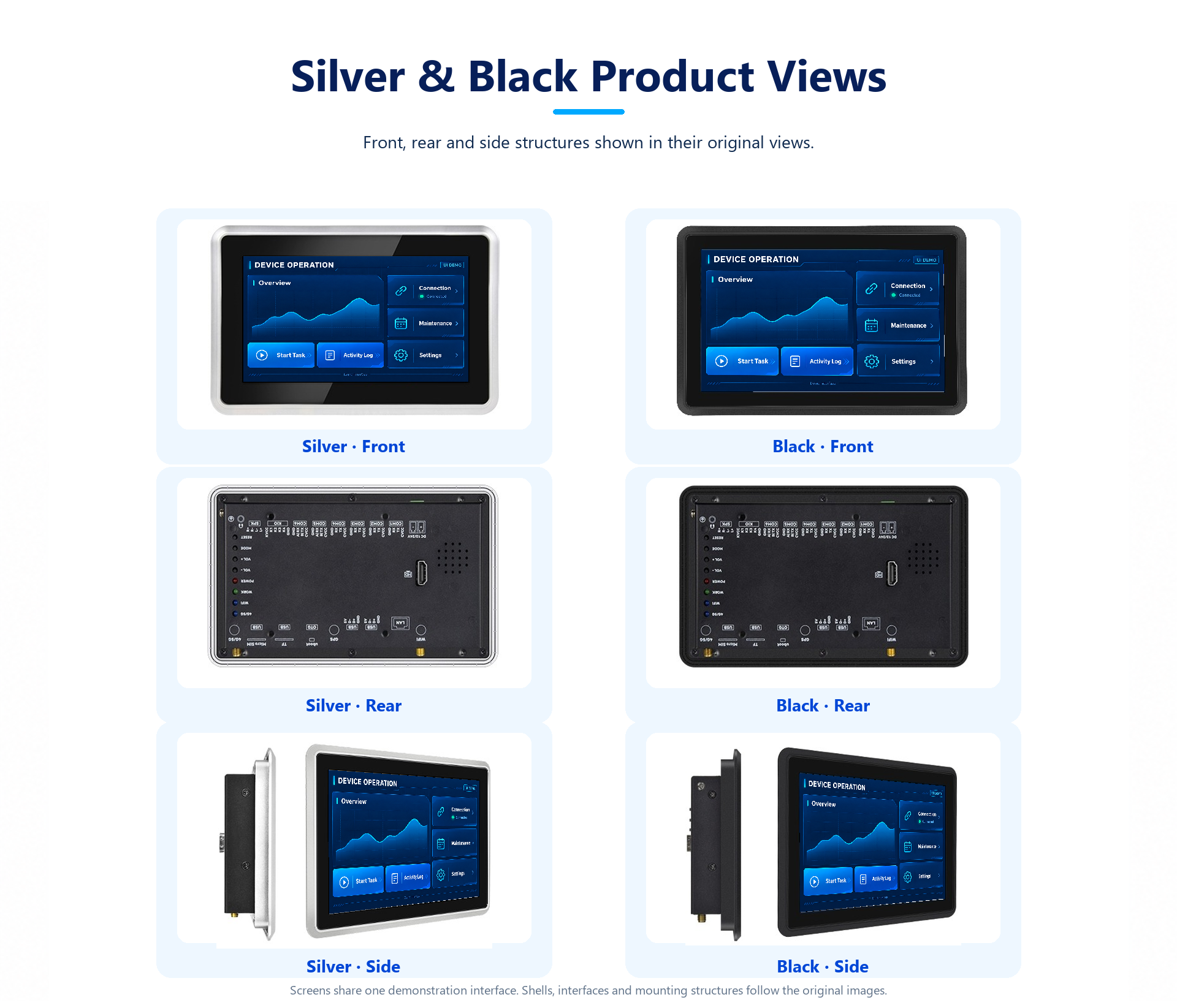

A closer look

Complete series material may show other sizes or configurations. Refer to the selected model specifications and confirmed delivery configuration. Select an image to enlarge it.

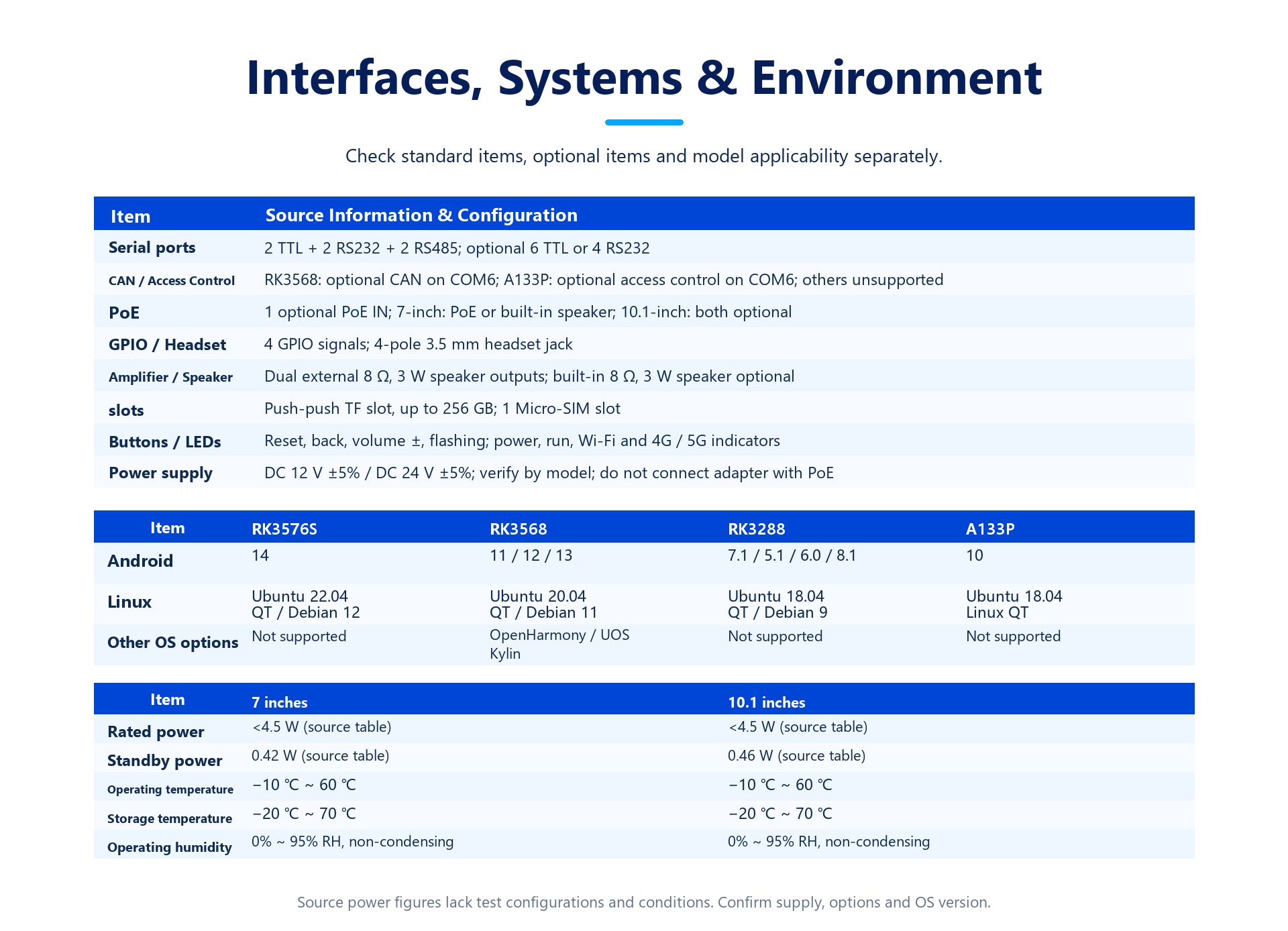

Configuration & specifications

Only source-checked specifications with a clear model association are listed. Contact us for details that are not listed.

AYP101H1-A133P

Processor marketing page

Processor marketing page — AYP101H1-A133P
CPUchip: A133P; cores: 4; clock_GHz: 1.8Not specified
RAM / storageRAM: 1; storage: 32 GBNot specified

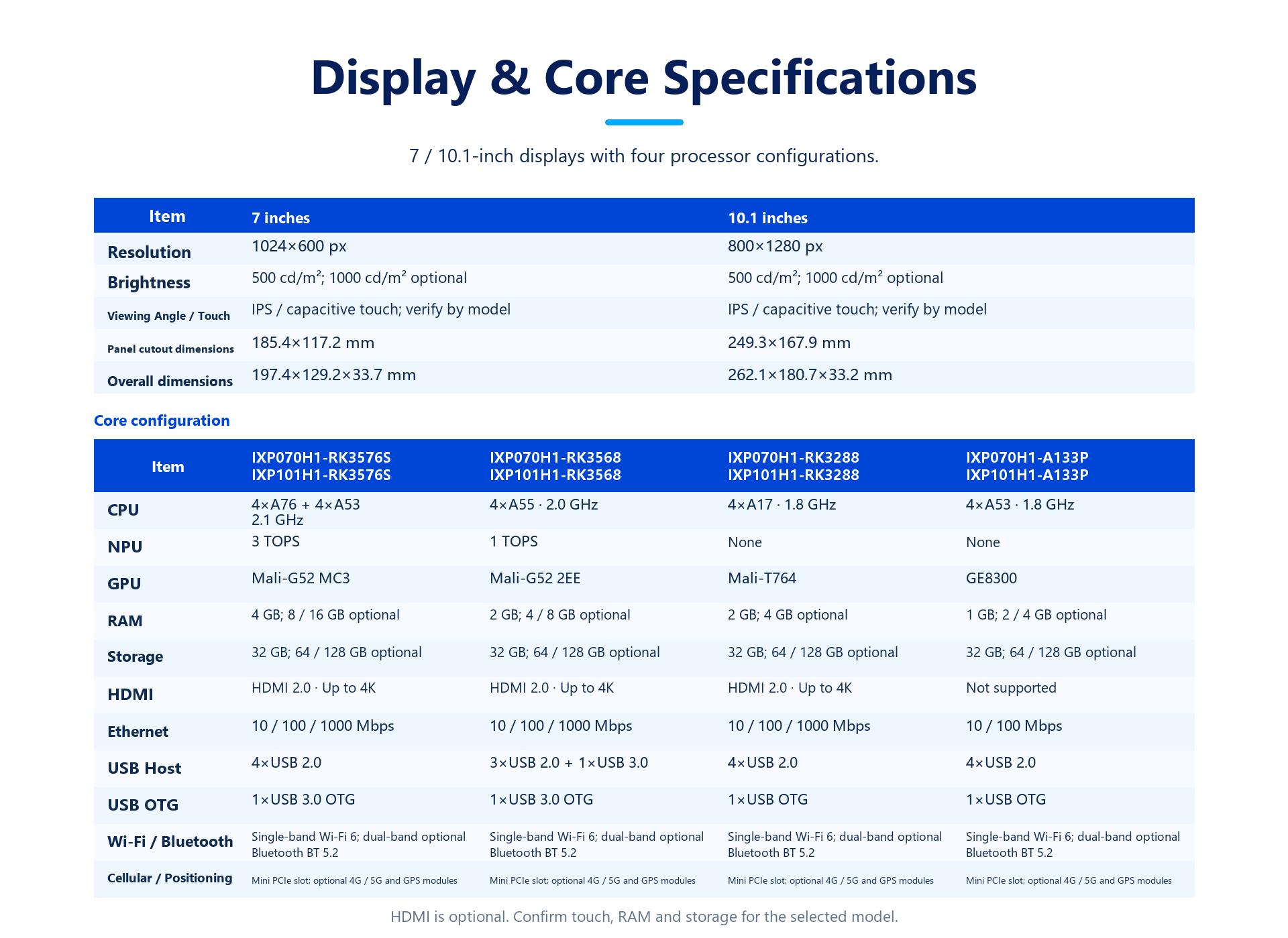

Display and structure

Display and structure — AYP101H1-A133P
Display size10.1 inchesStandard dimensions
Resolution800 × 1280 pxStandard
Viewing angleIPSStandard

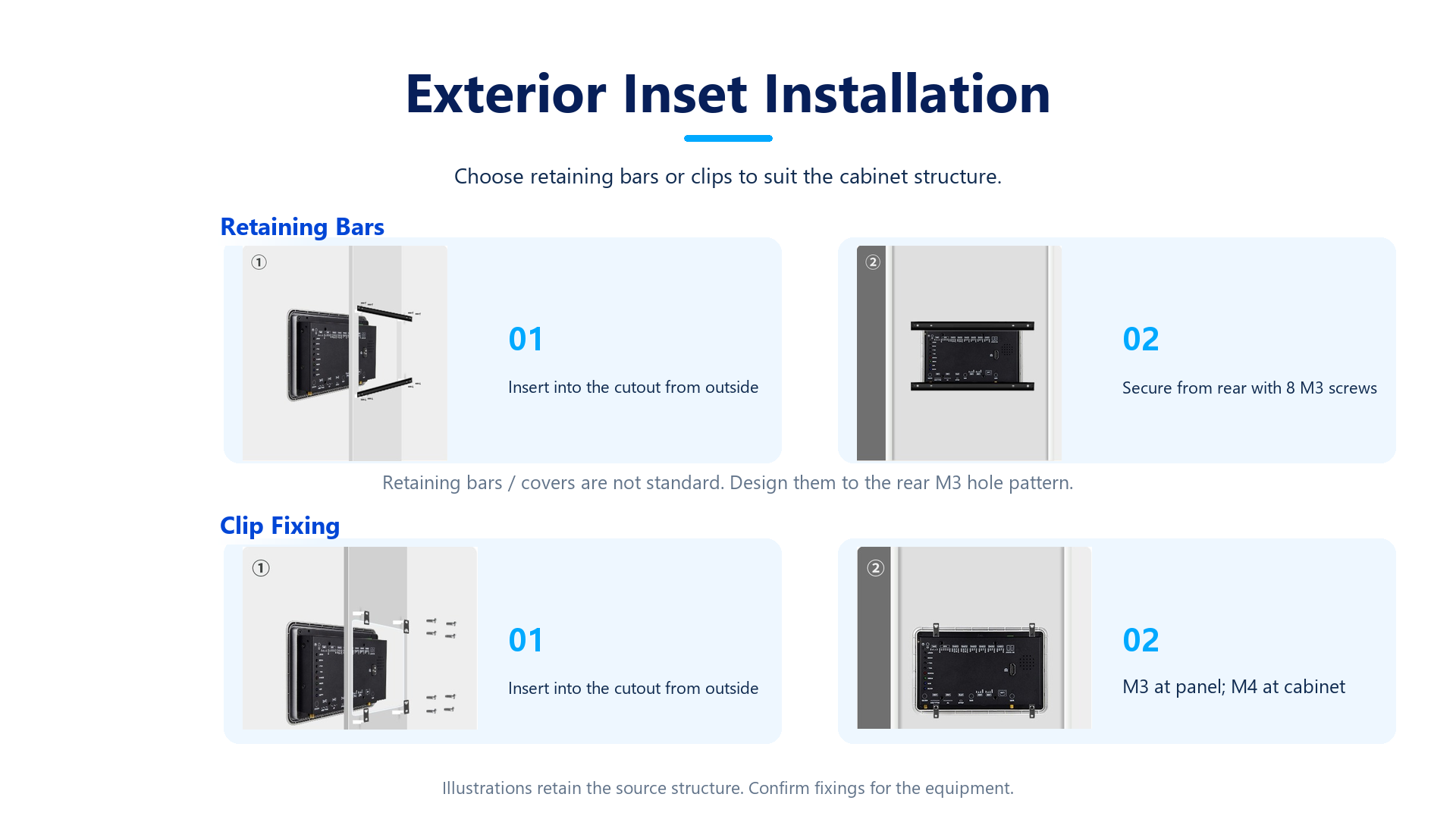

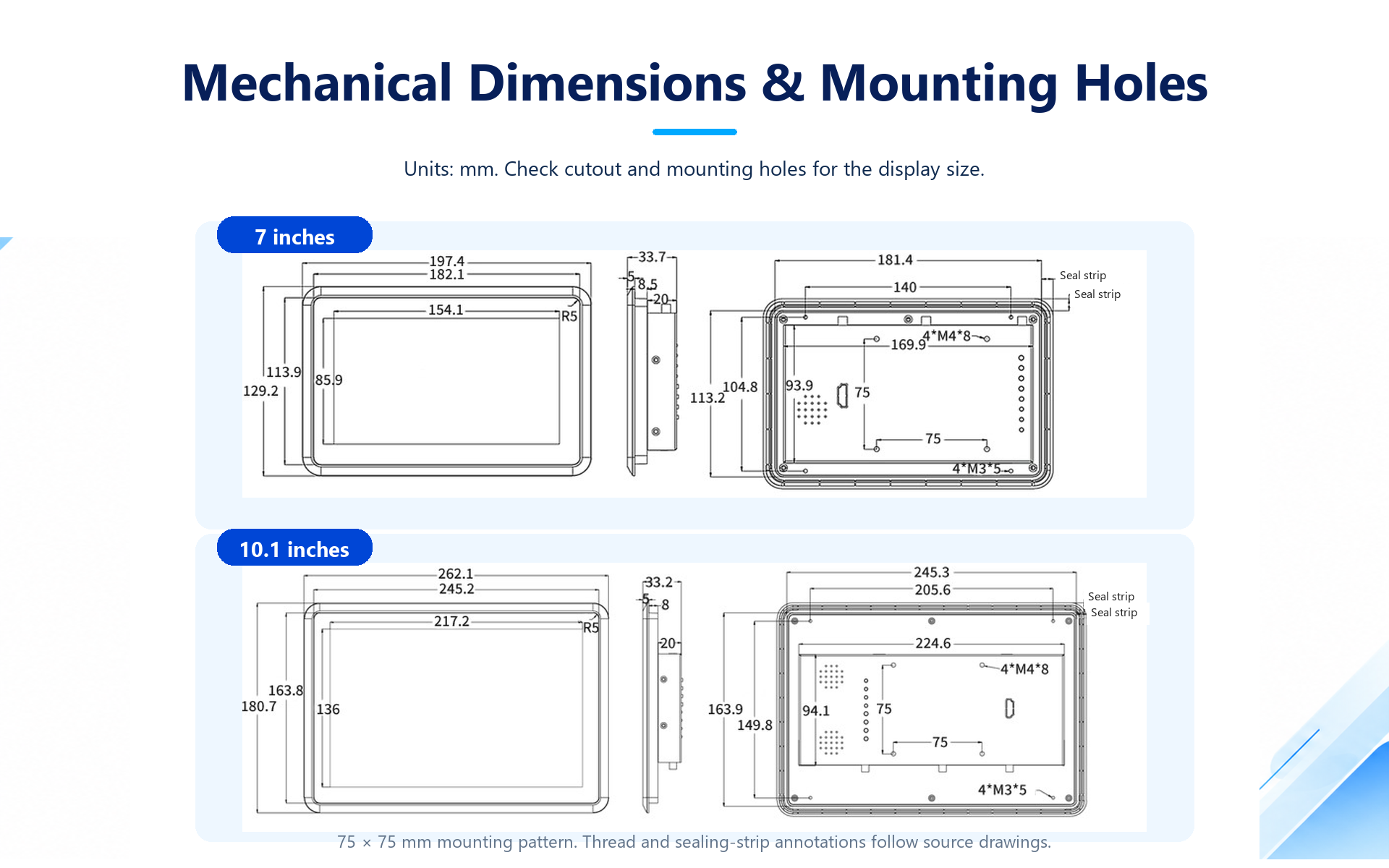

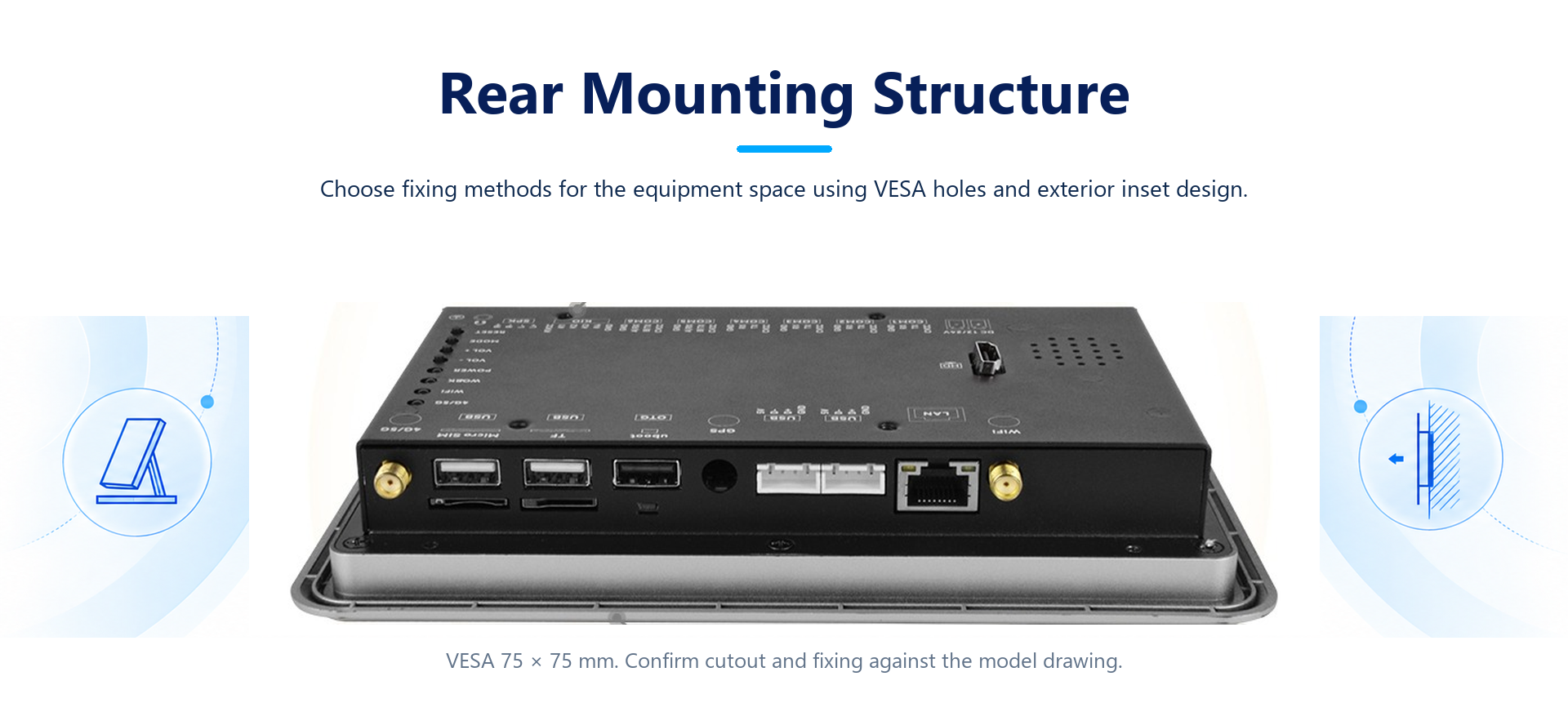

Panel cutout dimensions249.3 × 167.9 mmApplicable display size
Overall dimensions262.1 × 180.7 × 33.2 mmApplicable display size

Core configuration

Core configuration — AYP101H1-A133P

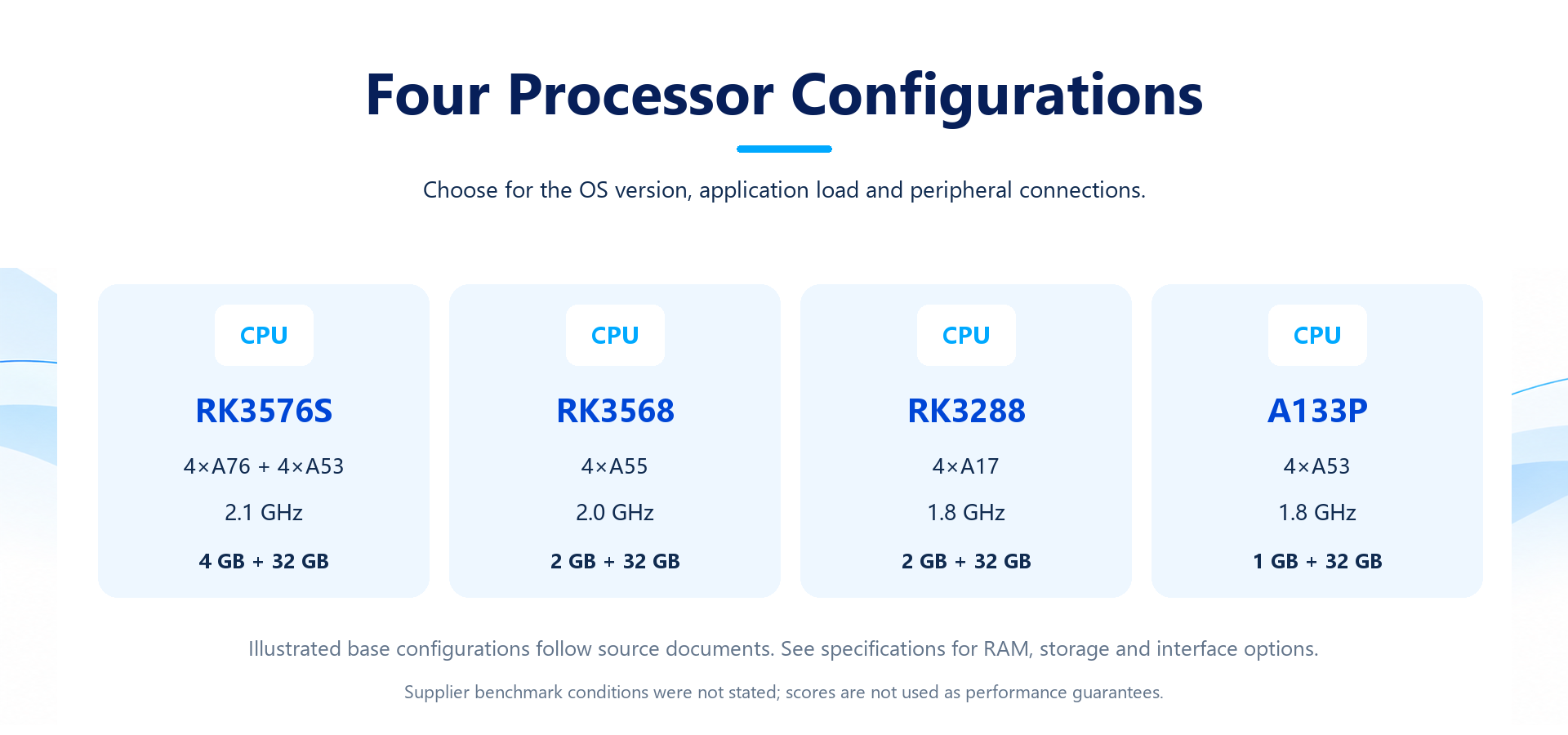

CPUAllwinner A133P, 4 Cortex-A53 cores, 1.8 GHzStandard
GPUGE8300Standard
RAMstandard: 1; optional: 2 / 4 GBOptional items available
Storagestandard: 32; optional: 64 / 128 GBOptional items available

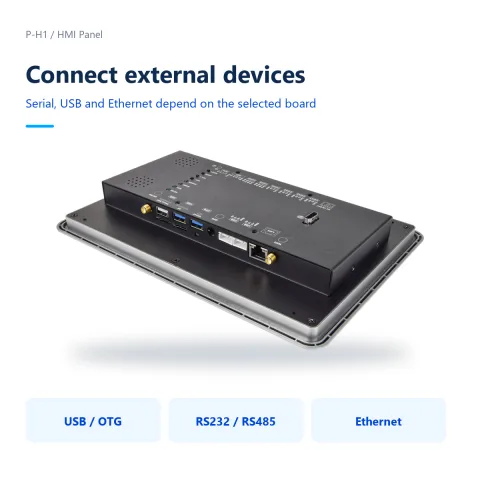

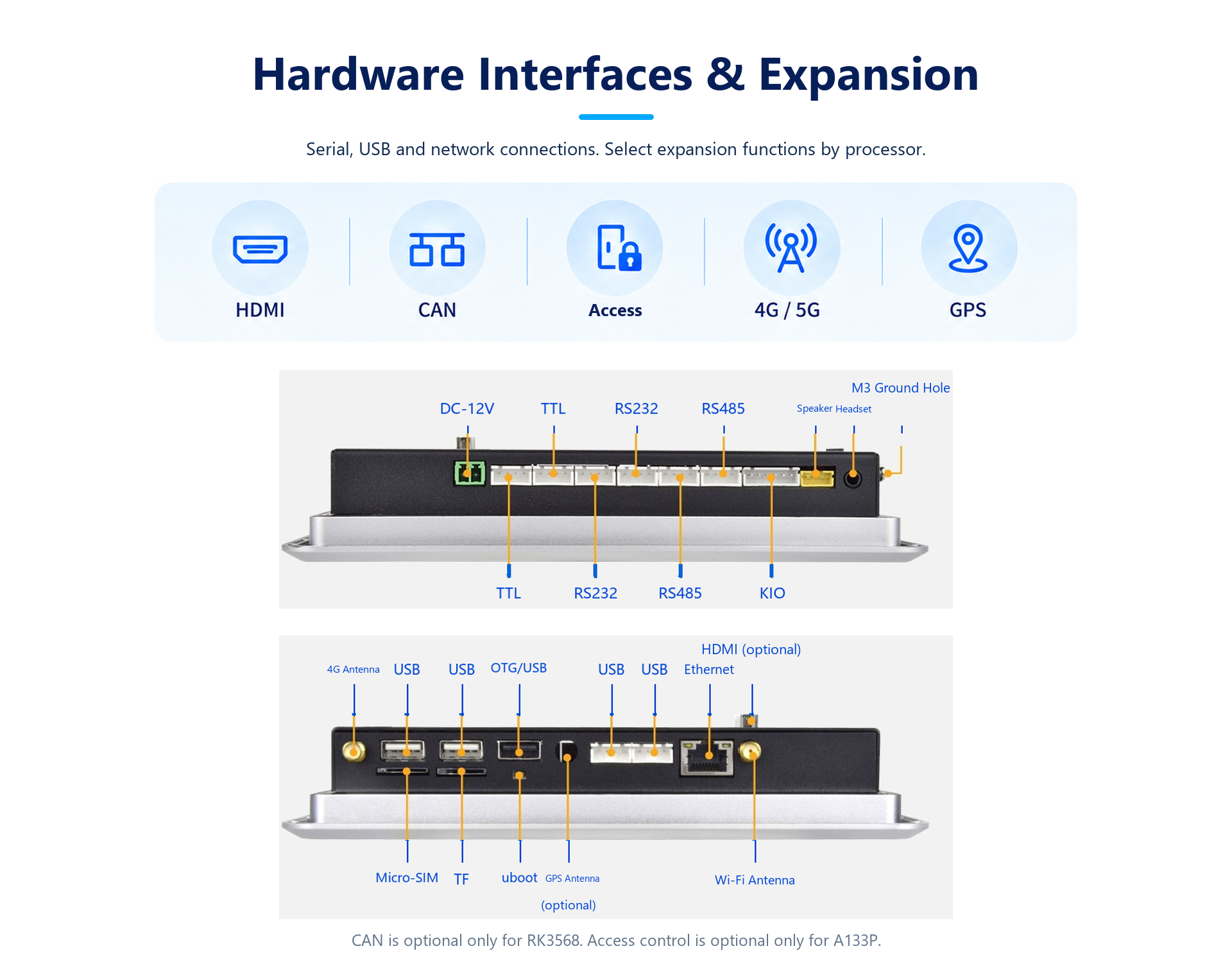

Ethernet10 / 100 MbpsStandard
USB HostUSB2.0: 4 channelsStandard
USB OTG1 channelsStandard

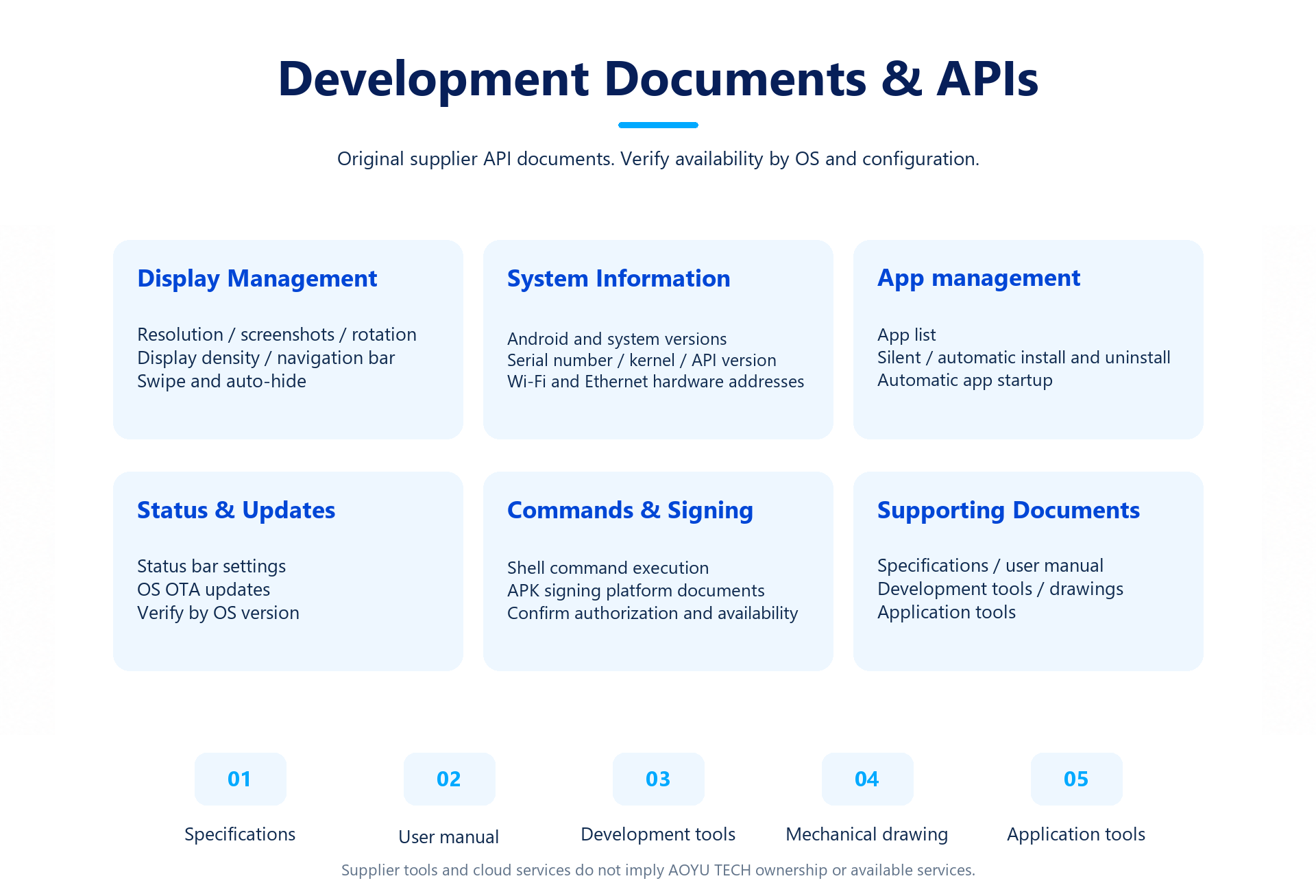

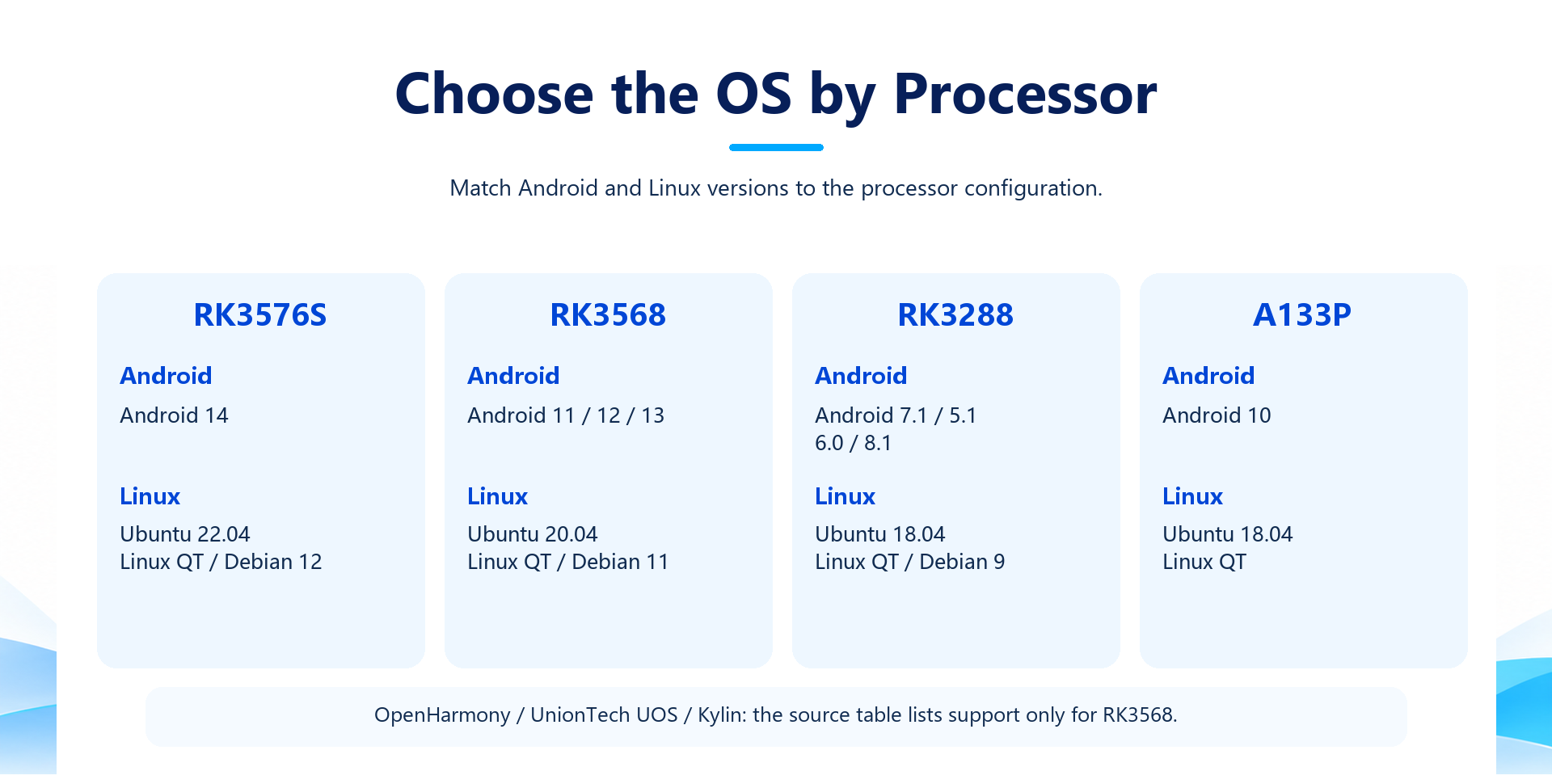

Operating system

Operating system — AYP101H1-A133P
Android systemAndroid 10Depends on OS configuration
Linux systemsUbuntu 18.04/Linux QTDepends on OS configuration
Other OS optionsNot supportedDepends on OS configuration

Environmental specifications

Environmental specifications — AYP101H1-A133P
Operating temperature-10 – 60 ℃Not specified
Storage temperature-20 – 70 ℃Not specified
Operating humidity0 – 95 %RHNot specified

P-H1-101

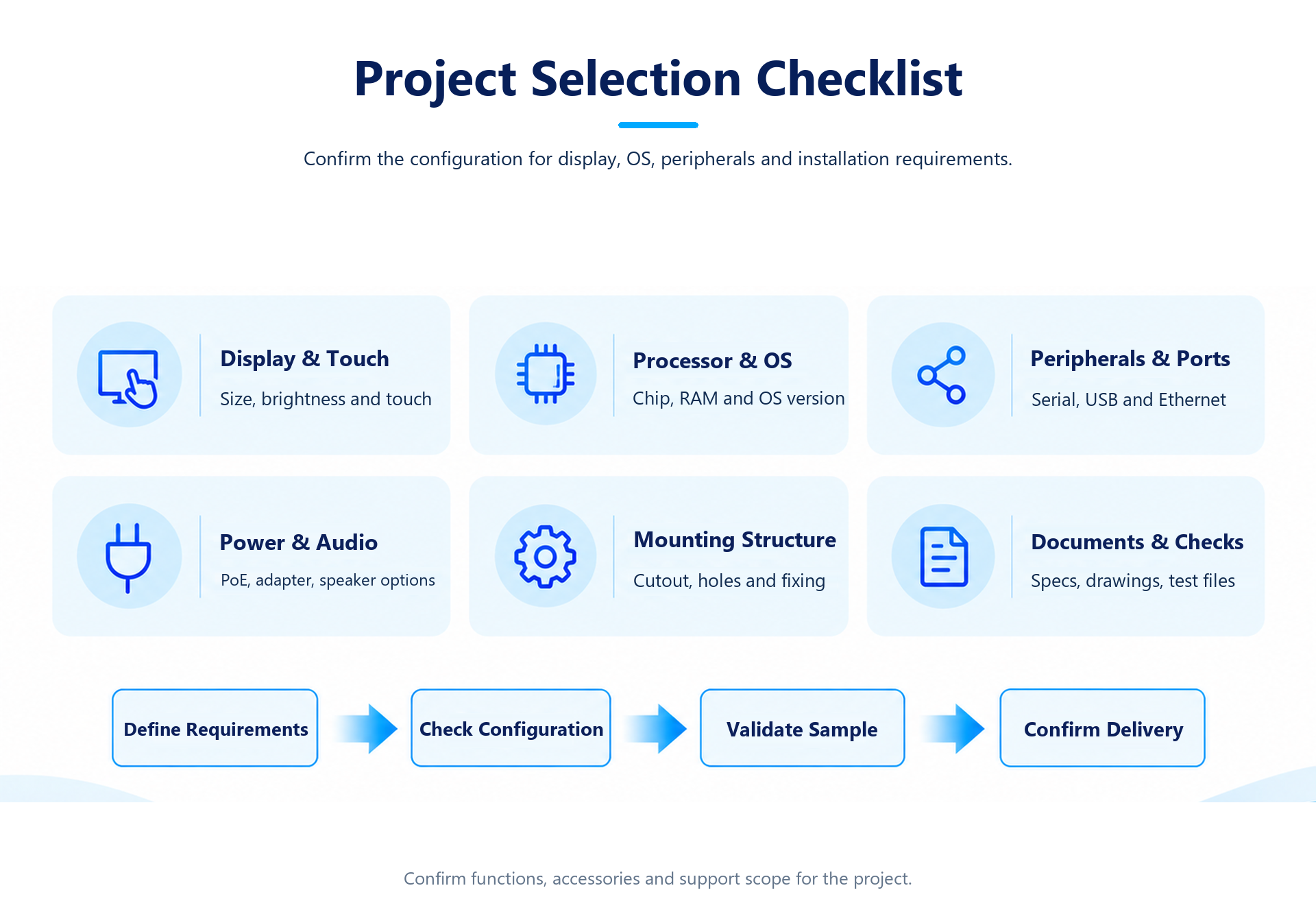

Let’s find your configuration
