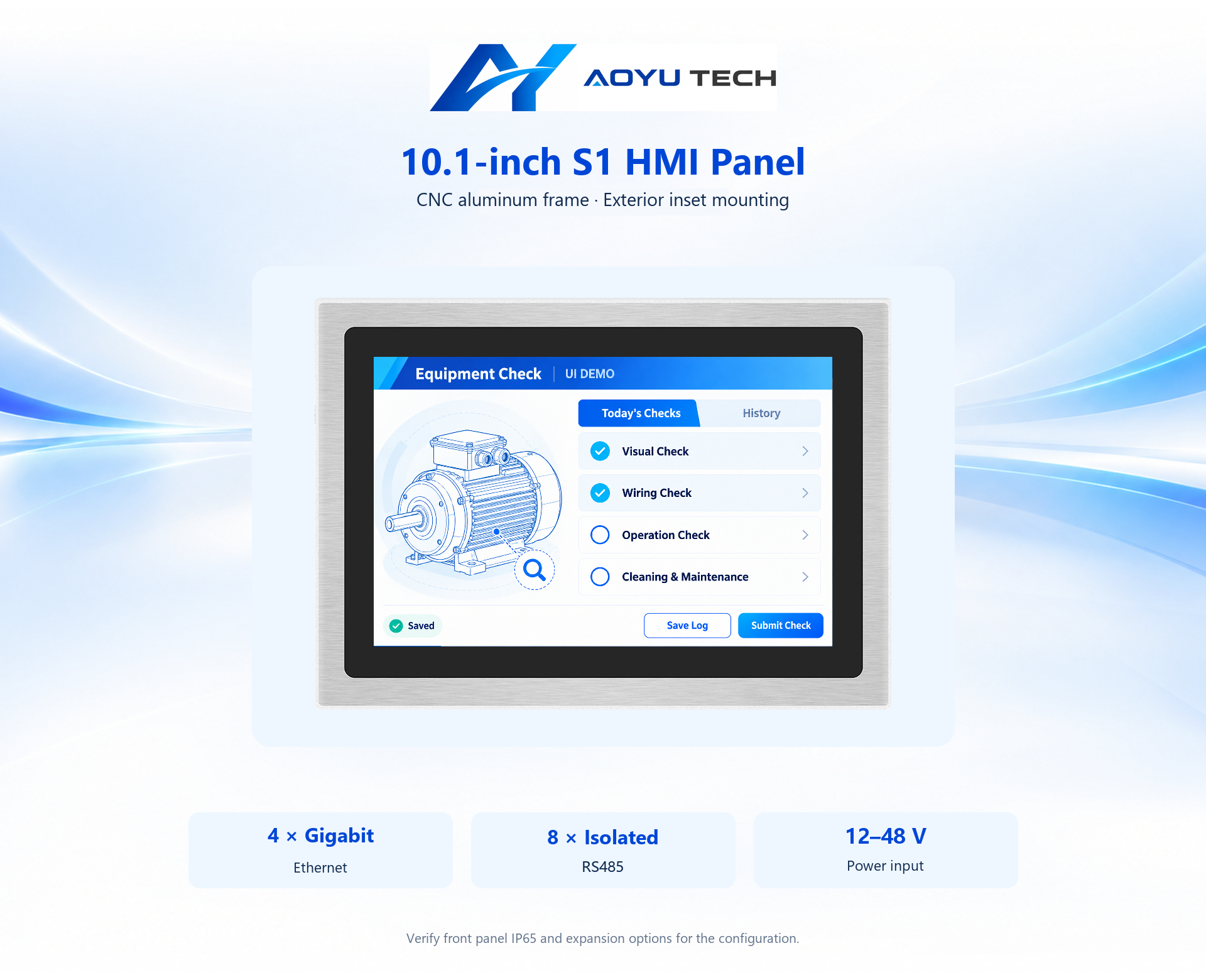

G-S1-101 10.1-inch HMI Panel

10.1 inches · Auto Control G Series

Series
G-S1
Frame
CNC aluminum alloy
Ethernet
4 channels

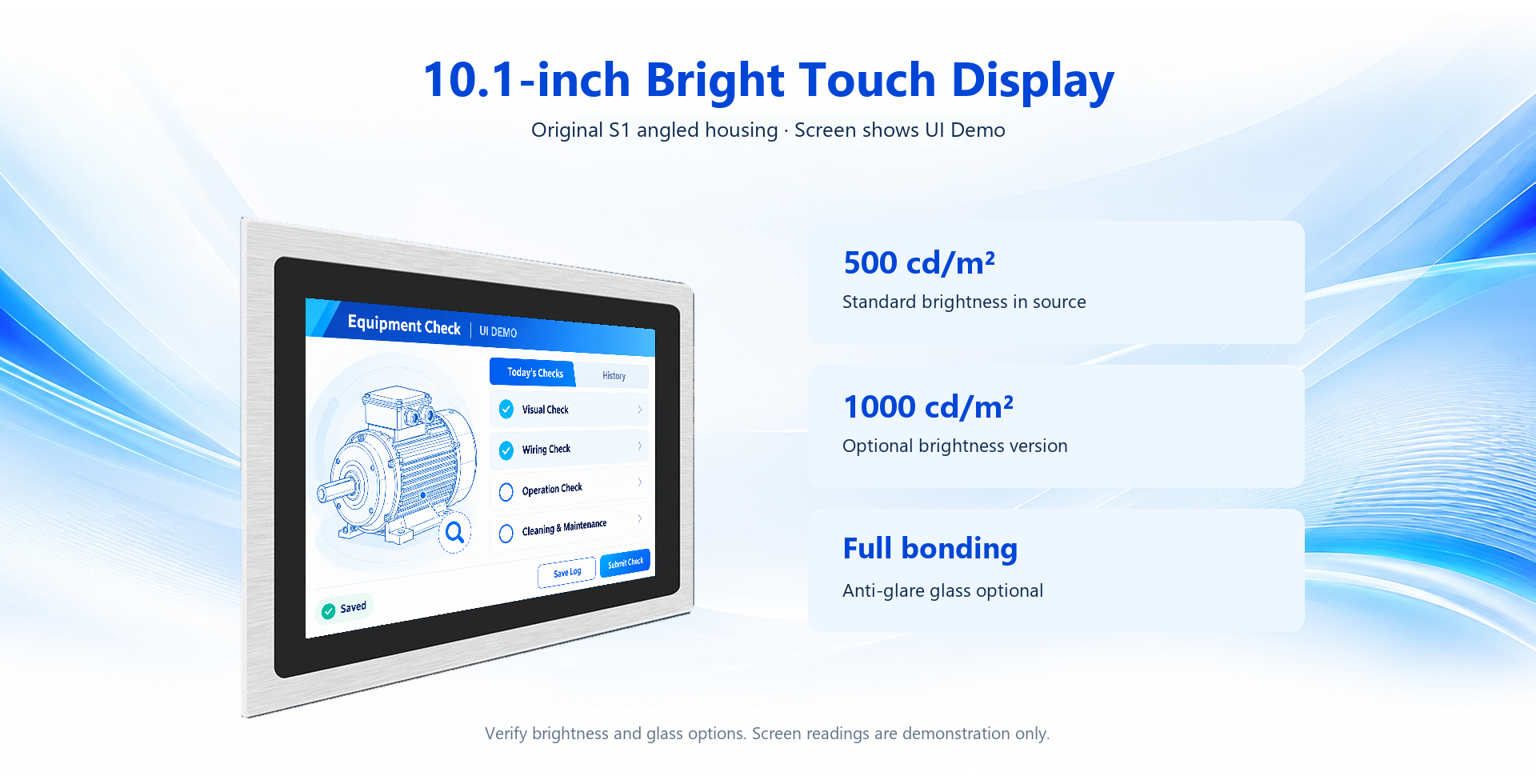

Standard brightness
500 cd/m²
Request a quote

Specifications follow the selected configuration. Contact us to confirm options and delivery requirements.

Built around your requirements

Explore the display, enclosure and configuration-specific capabilities of this HMI panel.

Series: G-S1. Frame: CNC aluminum alloy. Ethernet: 4 channels. Standard brightness: 500 cd/m²

A closer look

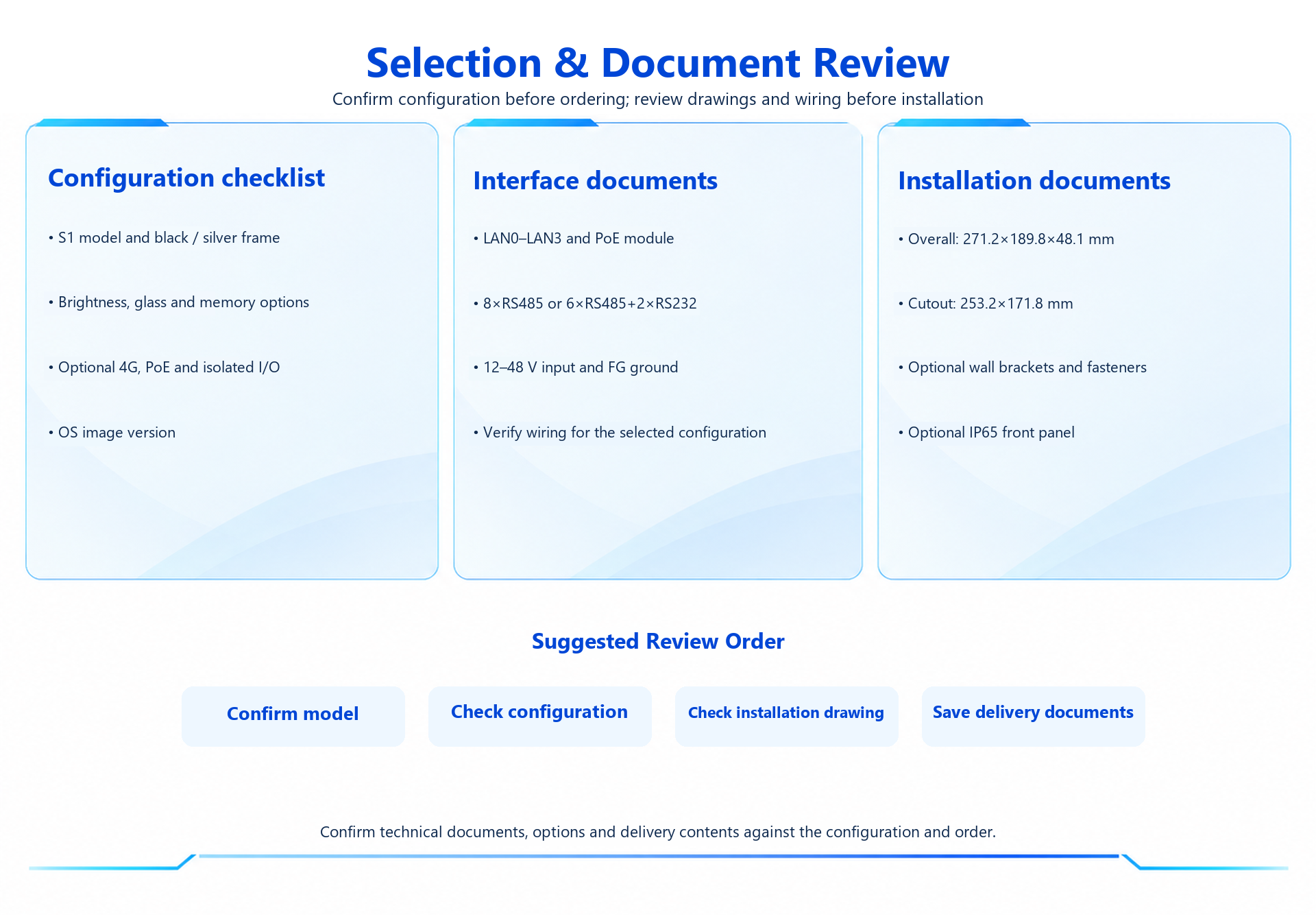

Complete series material may show other sizes or configurations. Refer to the selected model specifications and confirmed delivery configuration. Select an image to enlarge it.

Configuration & specifications

Only source-checked specifications with a clear model association are listed. Contact us for details that are not listed.

AYG101S1-RK3568

Overview

Overview — AYG101S1-RK3568
SeriesG-S1Not specified
FrameCNC aluminum alloyNot specified
Ethernet4 channelsNot specified
Standard brightness500 cd/m²Standard
Power input12 / 48 VNot specified

Display

Display — AYG101S1-RK3568
Standard brightness500 cd/m²Standard
Optional brightness1000 cd/m²Optional
Bonding processFull bondingNot specified

Network

Network — AYG101S1-RK3568

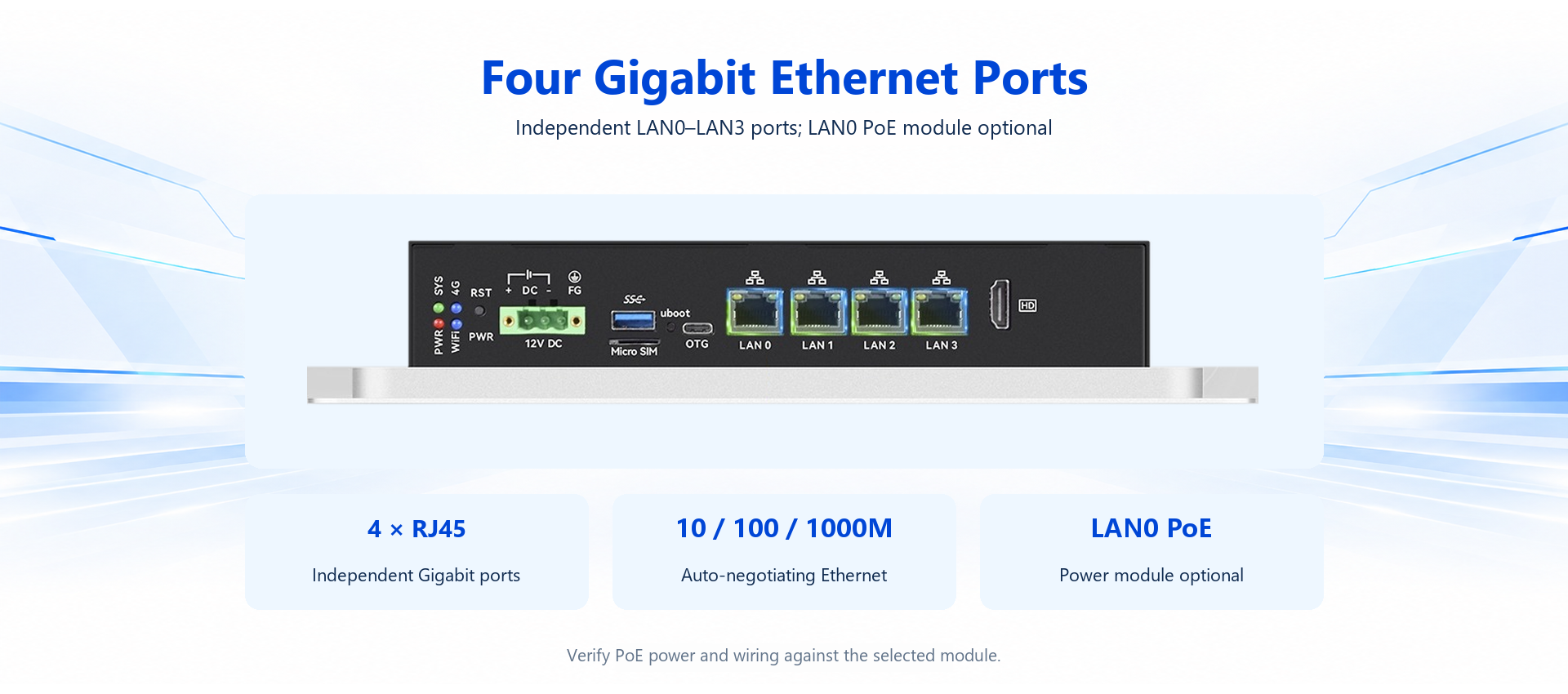

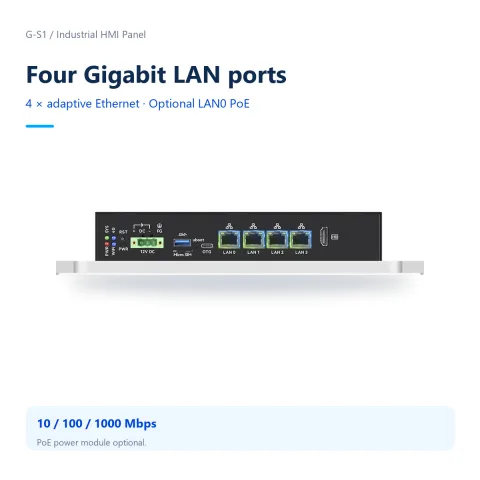

Gigabit Ethernet4 channelsNot specified
LAN0 PoELAN0Optional

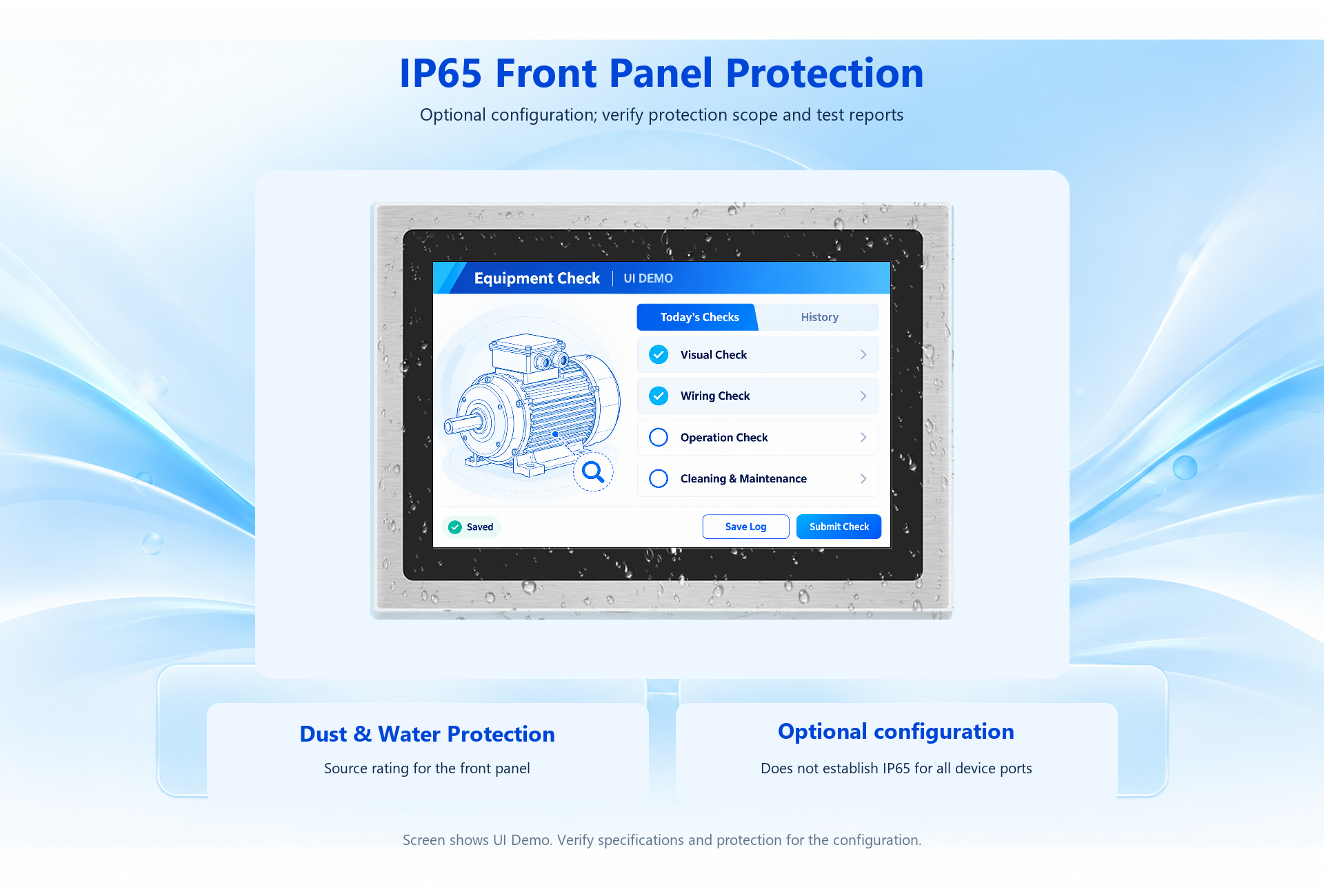

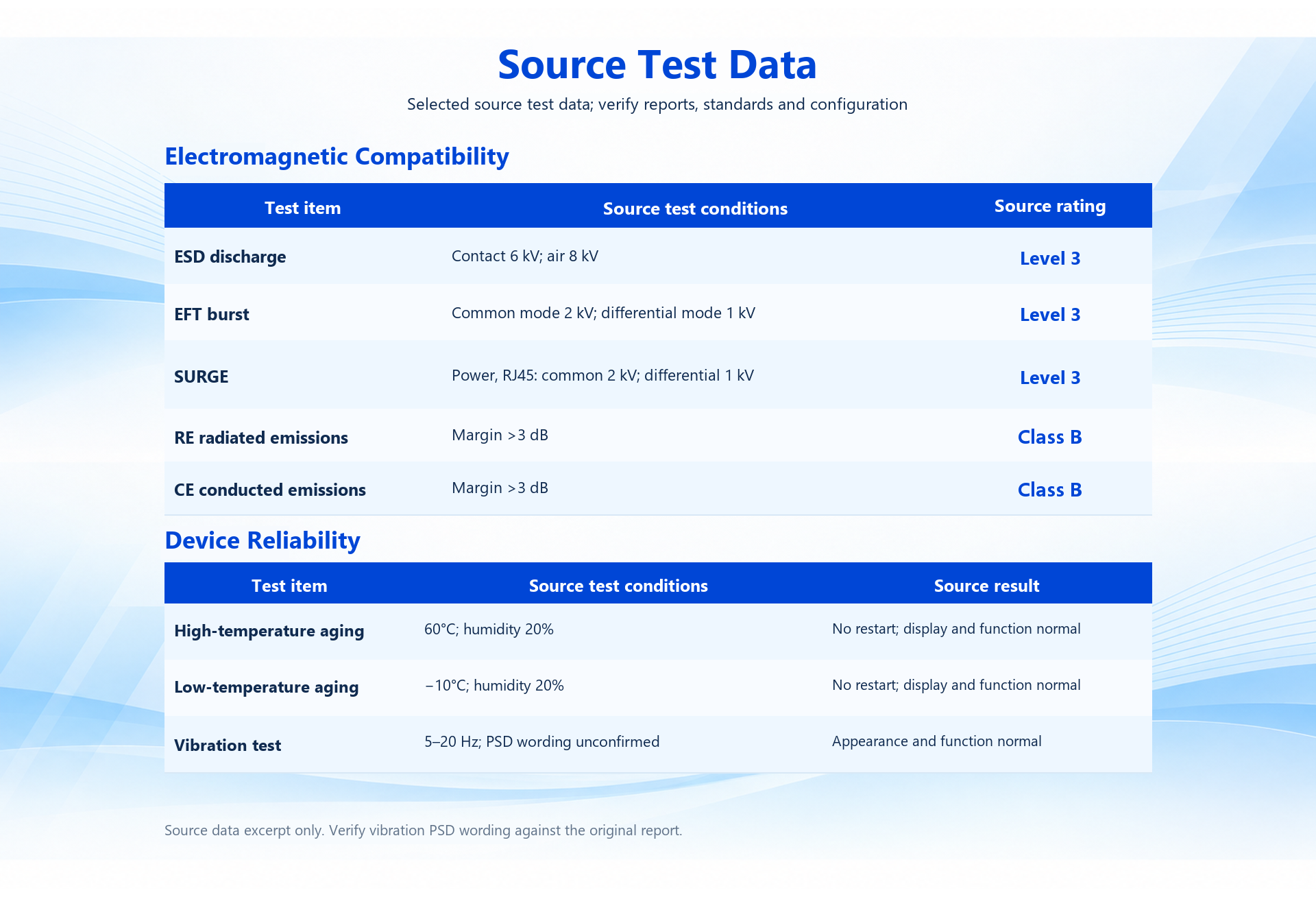

Environment and protection

Environment and protection — AYG101S1-RK3568

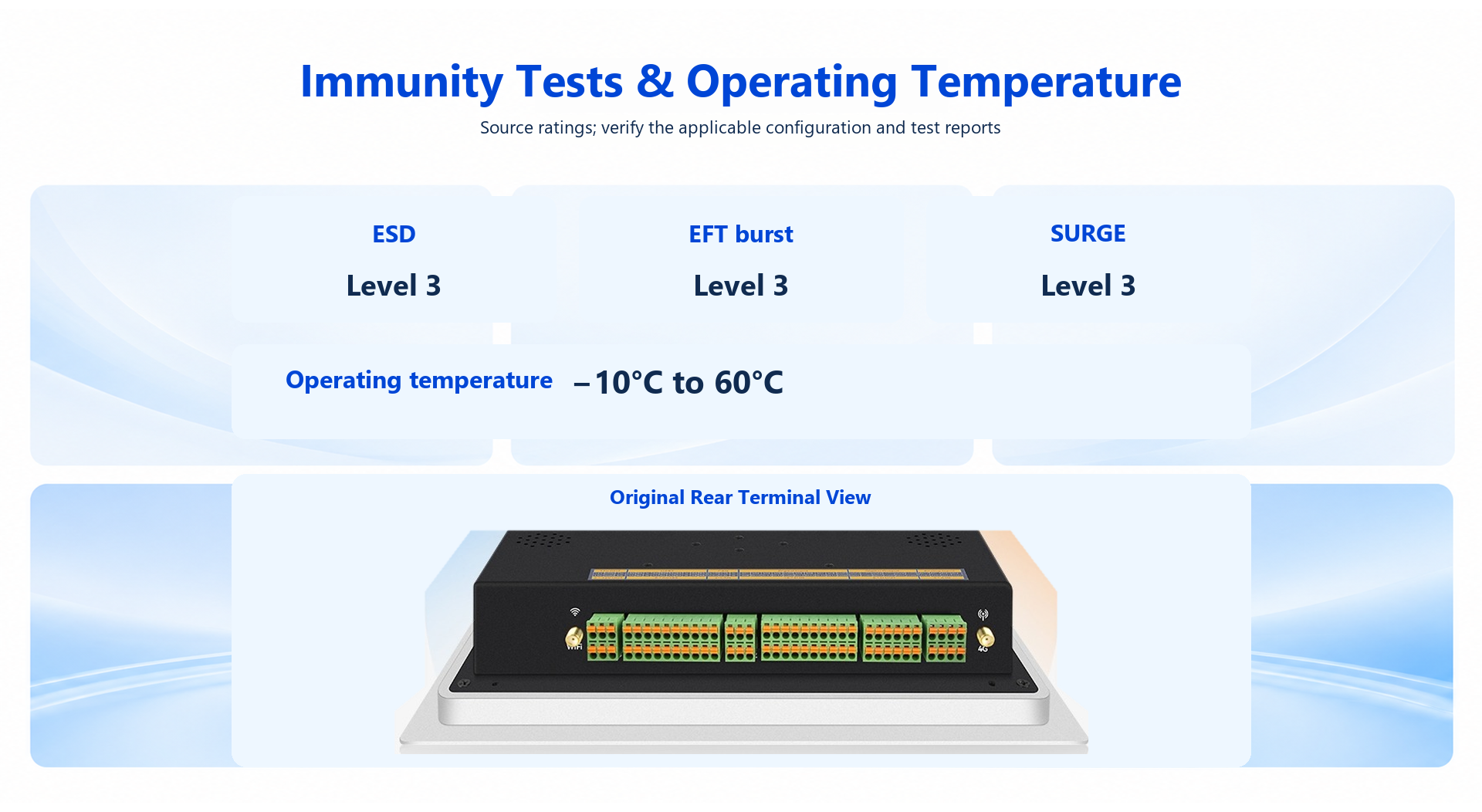

Operating temperature-10 – 60 ℃Not specified

terminals

terminals — AYG101S1-RK3568

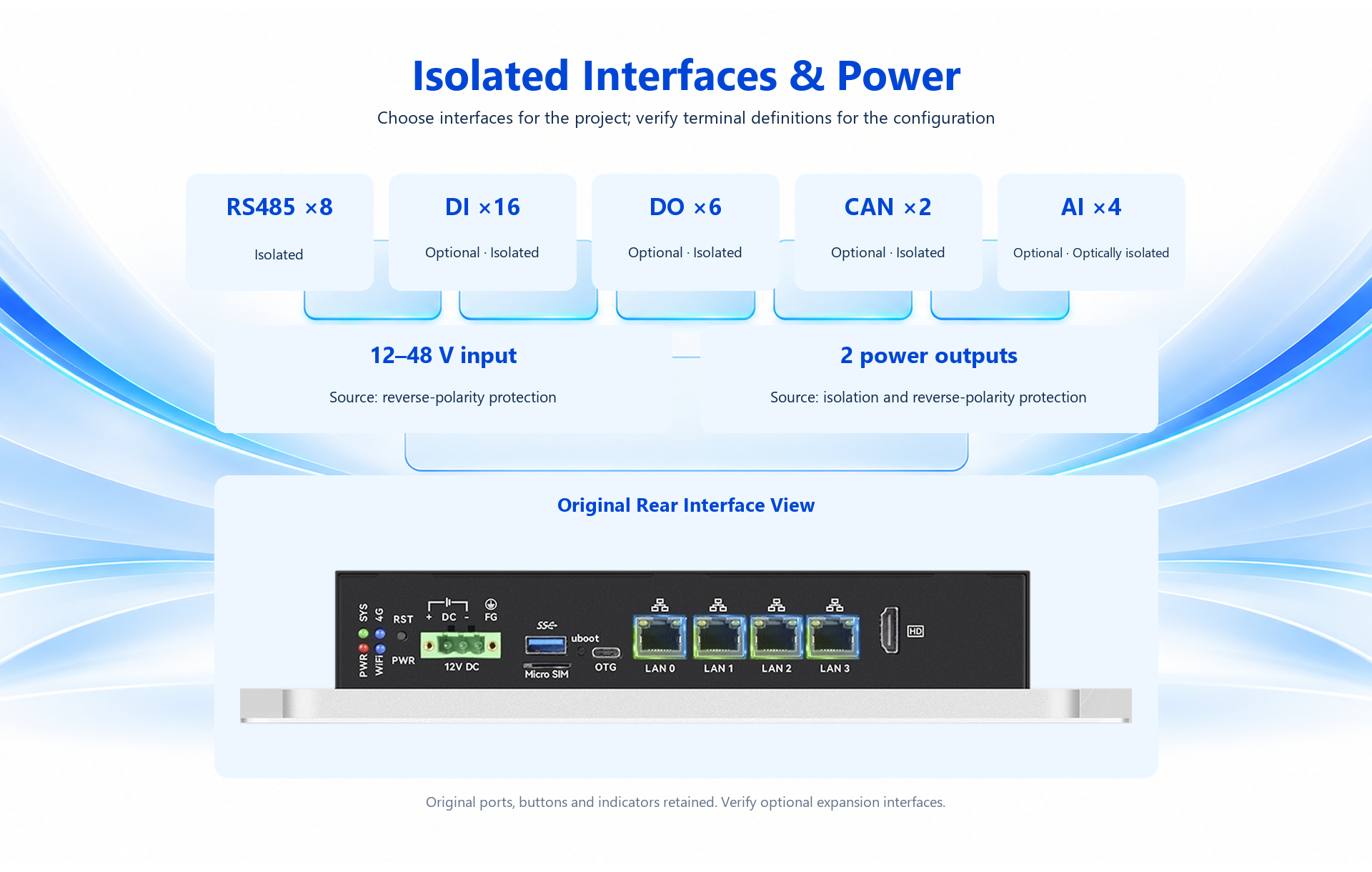

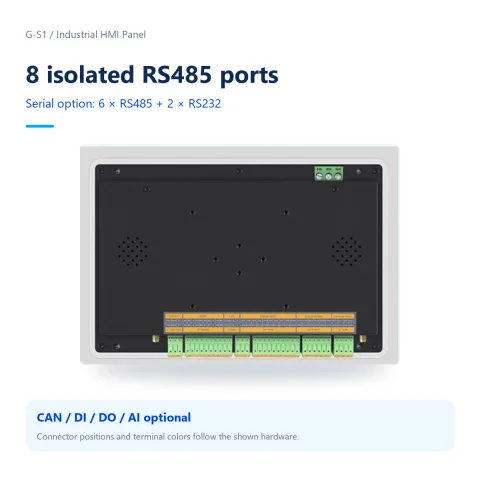

Isolated RS4858 channelsStandard
DO6 channelsOptional
AI4 channelsOptional
CAN2 channelsOptional
Power output2 channelsNot specified

Rear interfaces

Rear interfaces — AYG101S1-RK3568
USB Host1 channelsNot specified
USB OTG1 channelsNot specified
Ethernet4 channelsNot specified
HDMI1 channelsNot specified
Serial-port variantRS485×8 / RS485×6+RS232×2Configuration variant
Speakerimpedance: 8; power: 3Optional

Processor

Processor — AYG101S1-RK3568

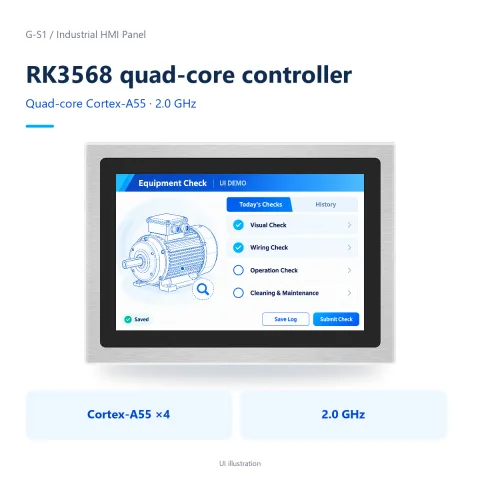

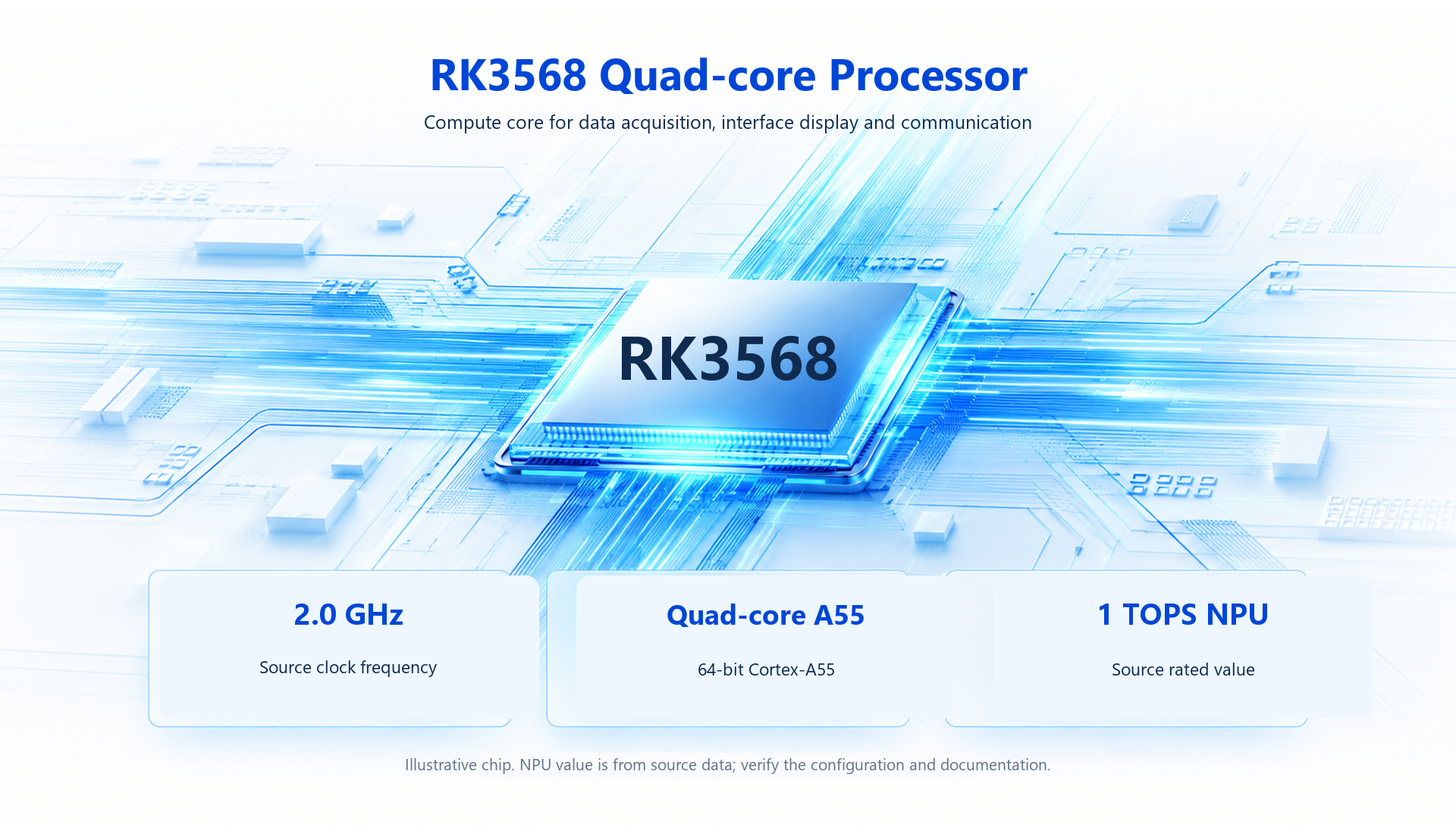

CPURK3568Not specified
Core count4 coresNot specified
Clock frequency2 GHzNot specified

Wireless

Wireless — AYG101S1-RK3568

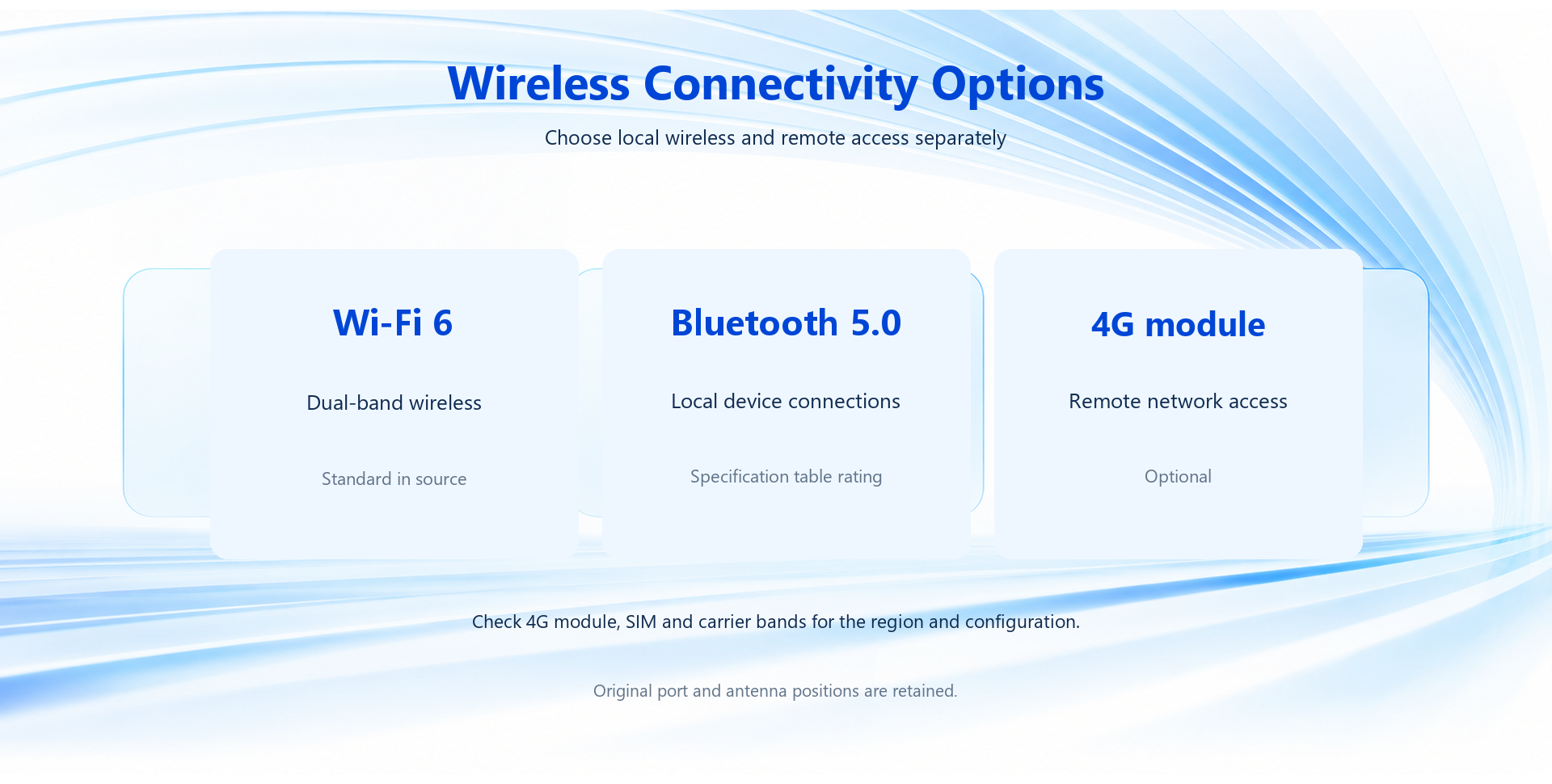

WiFiWiFi 6Standard

Operating system

Operating system — AYG101S1-RK3568

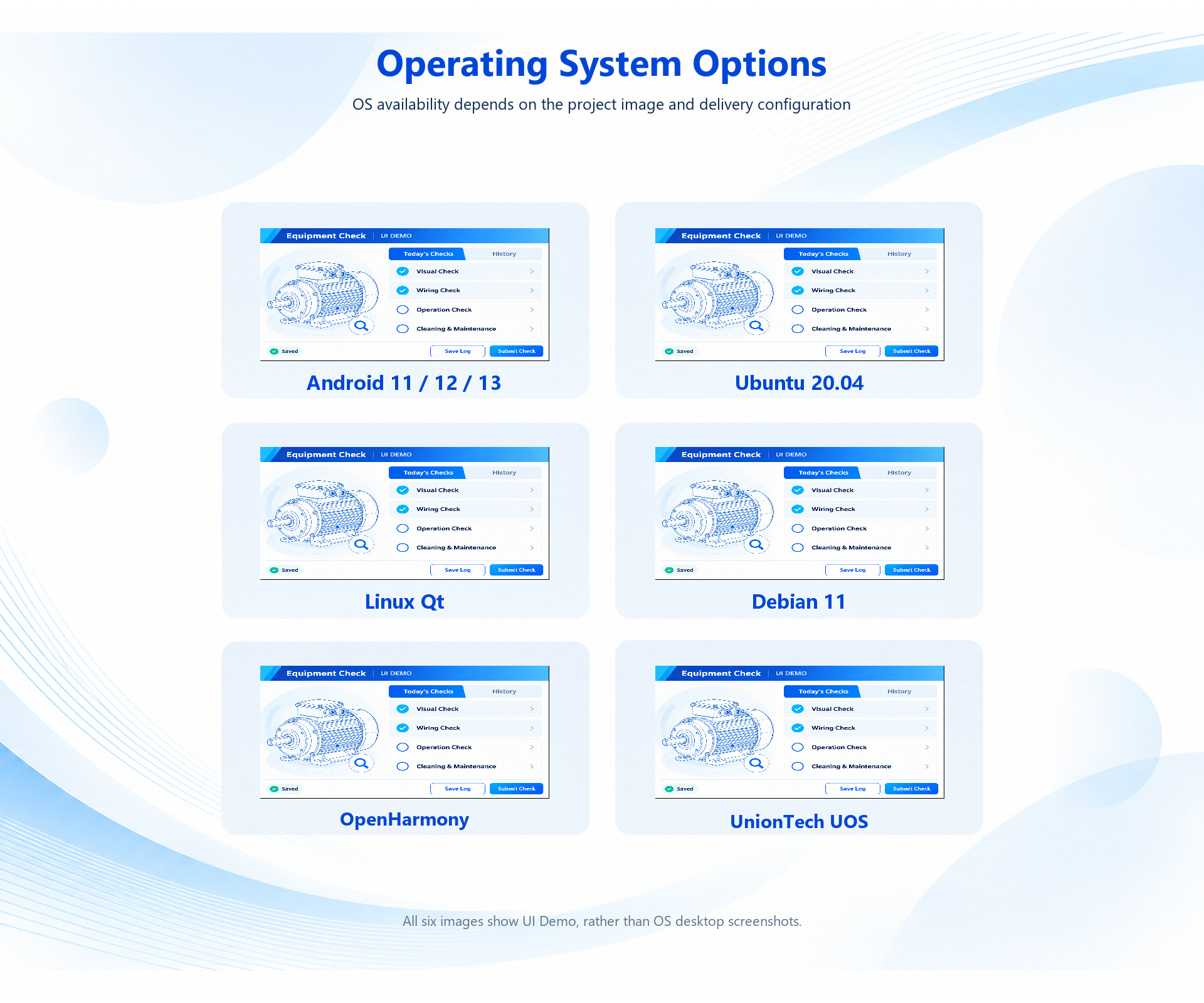

Android11 / 12 / 13Configuration dependent
Ubuntu20.04Configuration dependent
Linux QTLinux QTConfiguration dependent
Debian11Configuration dependent
UOSUnionTech UOSConfiguration dependent
Android systemsAndroid 11 / Android 12 / Android 13OS image / system configuration options
Linux systemsUbuntu 20.04 / Linux Qt / Debian 11OS image / system configuration options
Other OS optionsOpenHarmony 4.0 / UnionTech UOSOS image / system configuration options

Installation

Installation — AYG101S1-RK3568

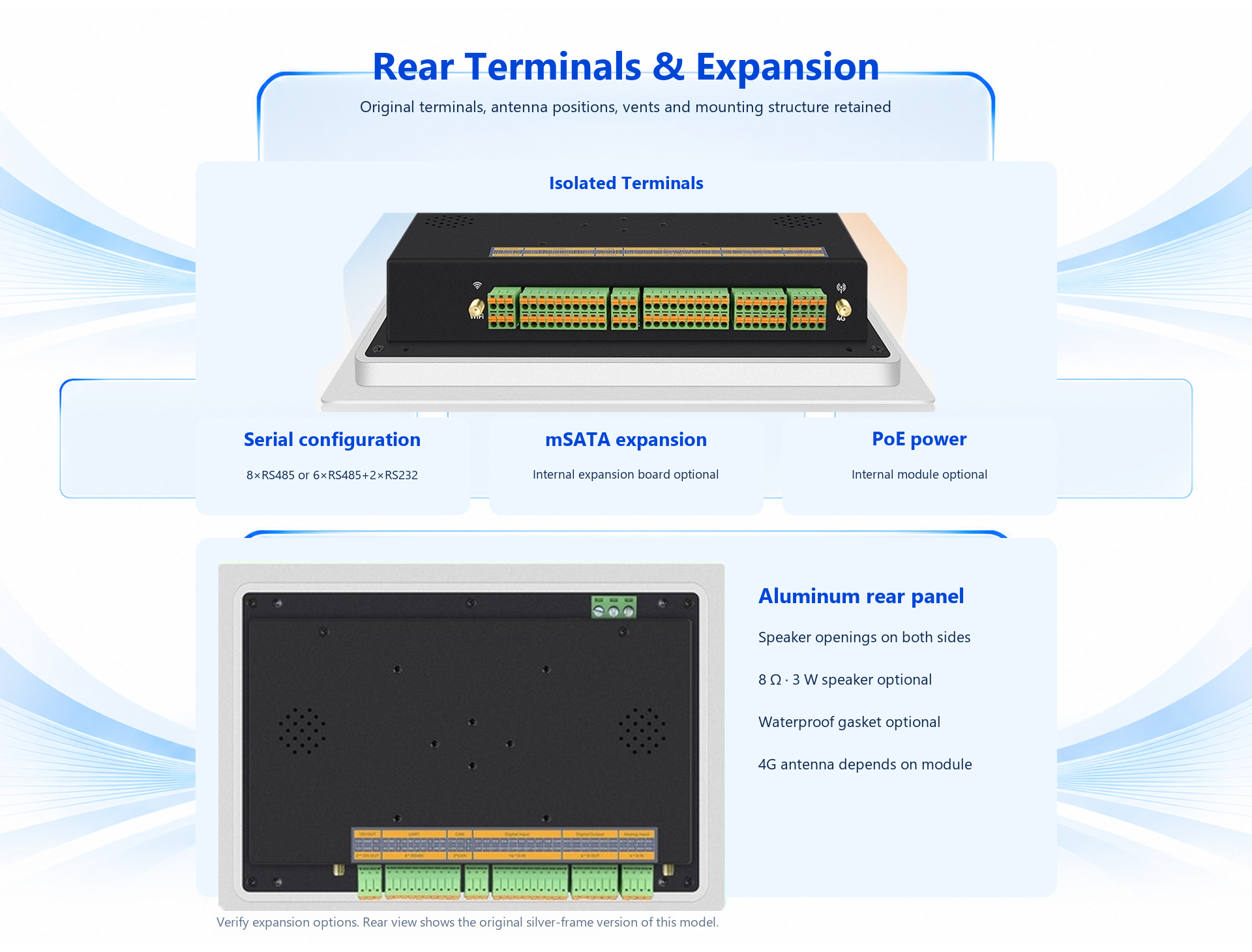

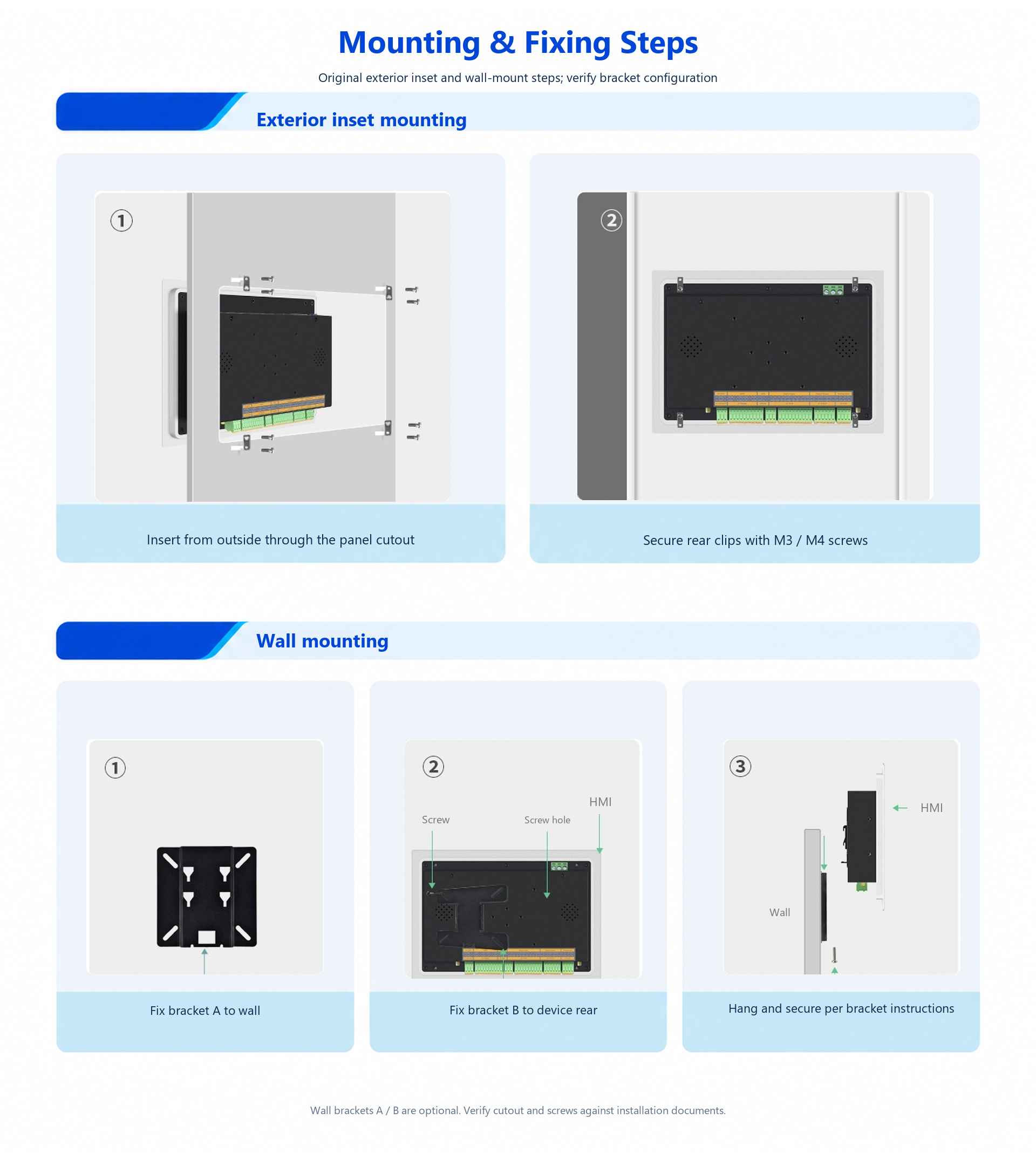

Mounting methodsExterior inset mounting / DIN-rail mounting / Wall mounting / Desktop mounting / Arm mountingMounting parts depend on configuration

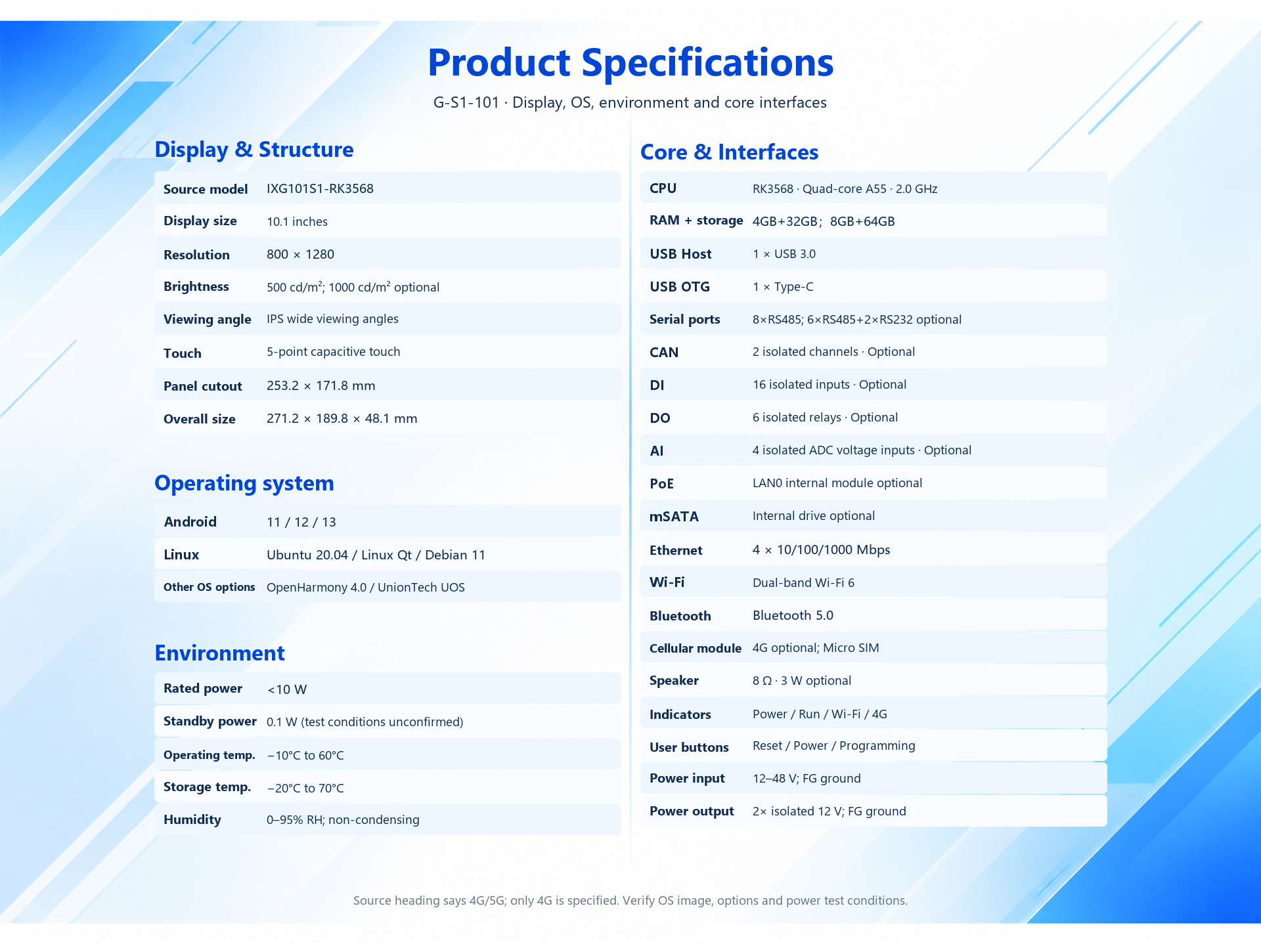

Display and core specifications

Display and core specifications — AYG101S1-RK3568
Resolution800 × 1280 pxNot specified
Backlight brightness500 cd/m²1000 cd/m² optional

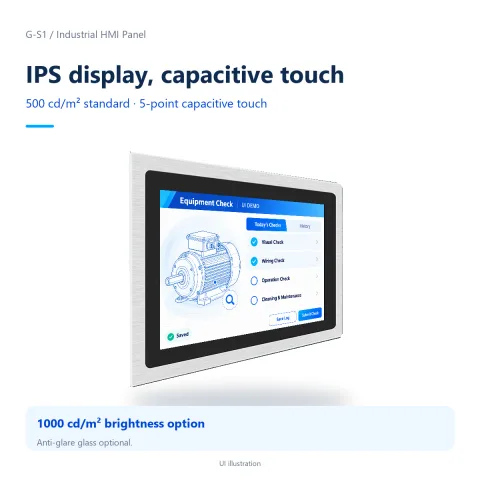

Viewing angleIPSNot specified
Touch type5 pointsNot specified
CPURK3568Not specified
RAM + storage4 / 32 / 8 / 64 GBTwo paired configurations; standard configuration unconfirmed
USB Host1 channelsNot specified
USB OTG1 channelsNot specified
Serial portsRS485×8 / RS485×6+RS232×2Serial-port variant
CAN bus2 channelsOptional
DO6 channelsOptional
AI4 channelsOptional

Connectivity and environmental specifications

Connectivity and environmental specifications — AYG101S1-RK3568
Ethernet4 channelsNot specified
WiFiWiFi 6Not specified
Bluetooth5.0Not specified
Audio amplifierimpedance: 8; power: 3Optional
IndicatorsPower / Run / WiFi / 4GNot specified
User buttonsReset / Power / ProgrammingNot specified
Power input12 / 48 VNot specified
Power output2 channelsNot specified
Rated power10 WNot specified
Operating temperature-10 – 60 ℃Not specified
Storage temperature-20 – 70 ℃Not specified
Operating humidity0 – 95 %RHNot specified

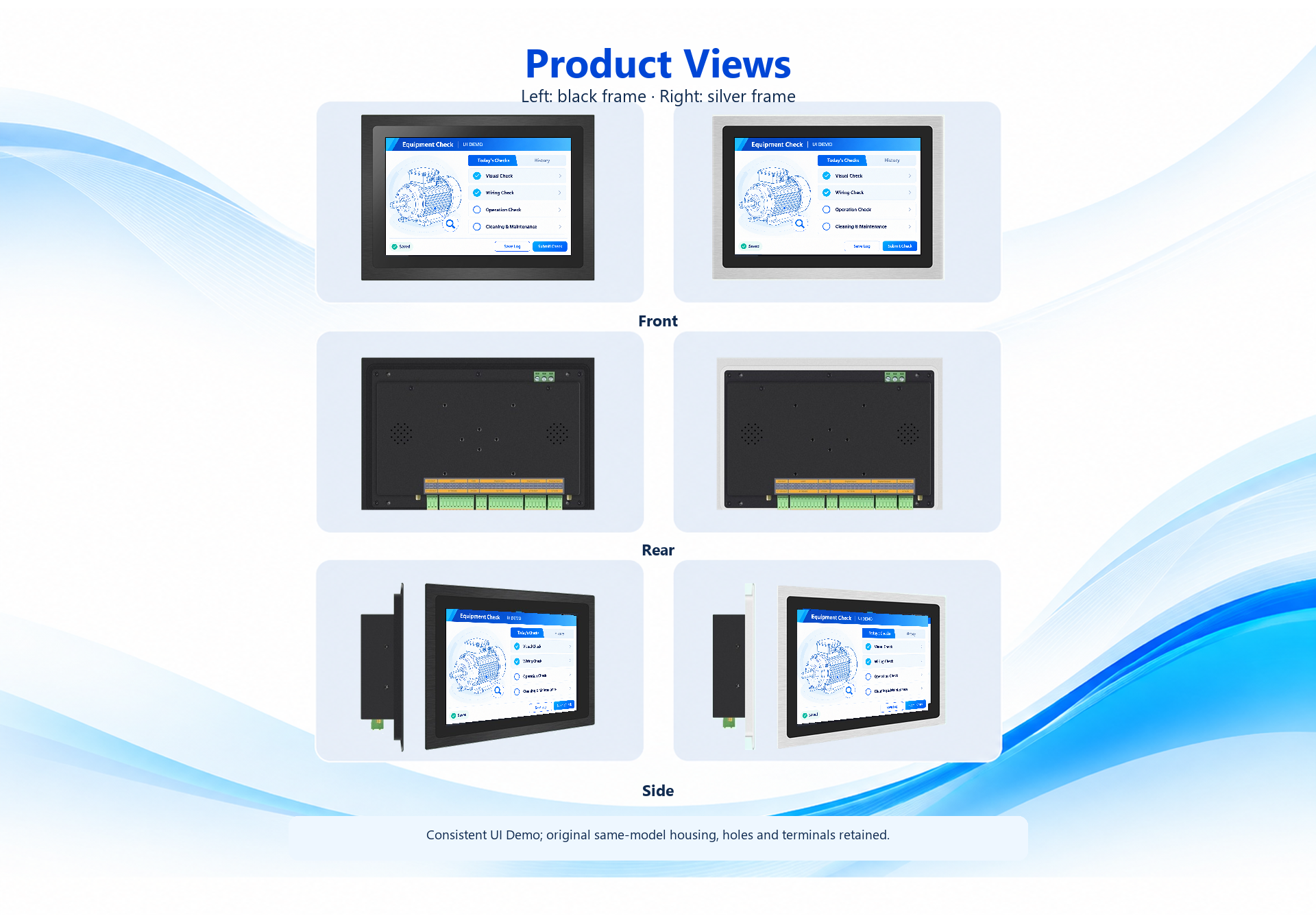

Photographed color options

Photographed color options — AYG101S1-RK3568
Optional frame colorsBlack / SilverConfiguration dependent

Appearance

Appearance — AYG101S1-RK3568
Frame2.3 mmNot specified

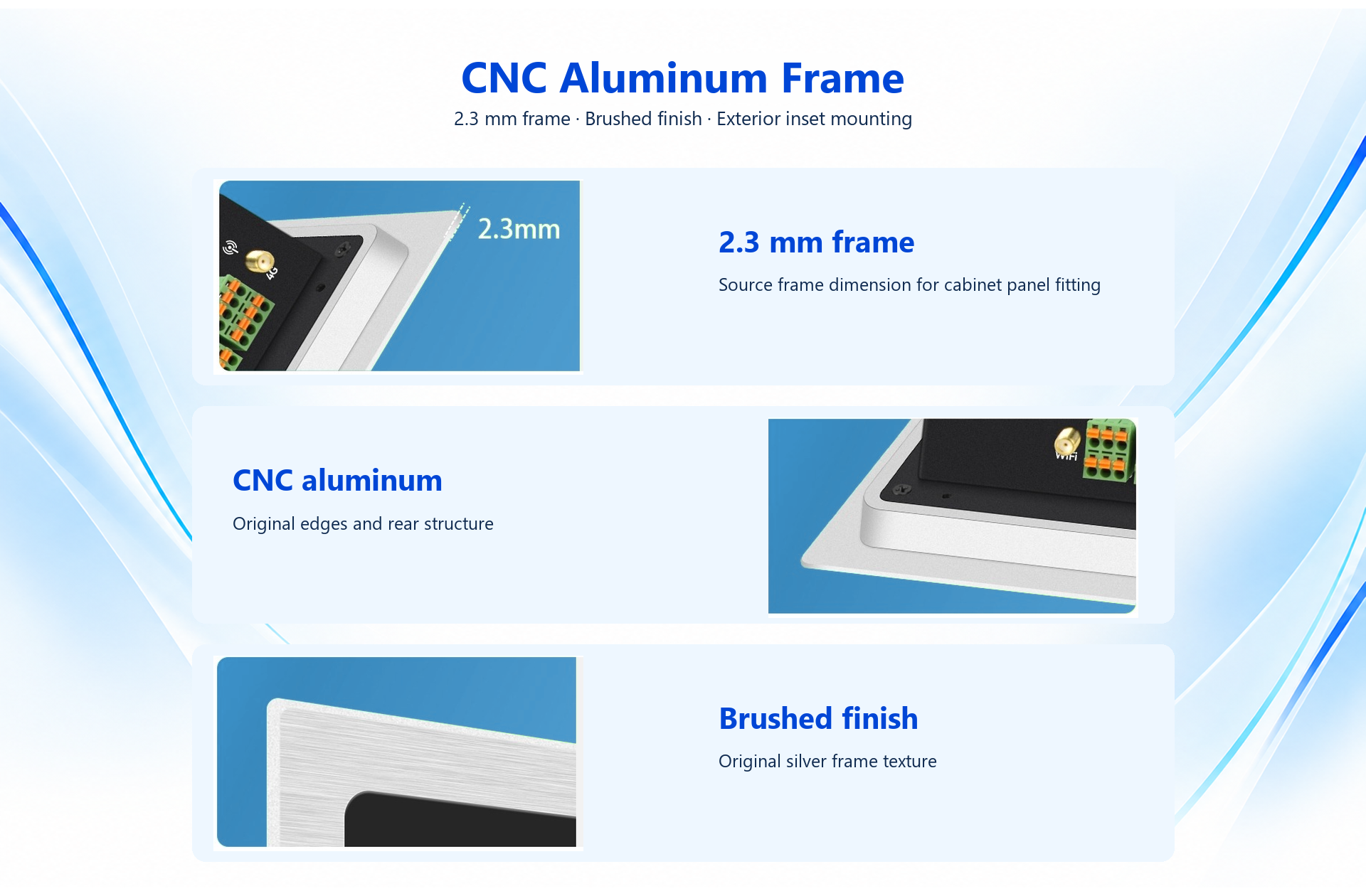

Frame materialCNC aluminum alloyNot specified
Surface finishBrushed finishNot specified

Mechanical dimensions

Mechanical dimensions — AYG101S1-RK3568

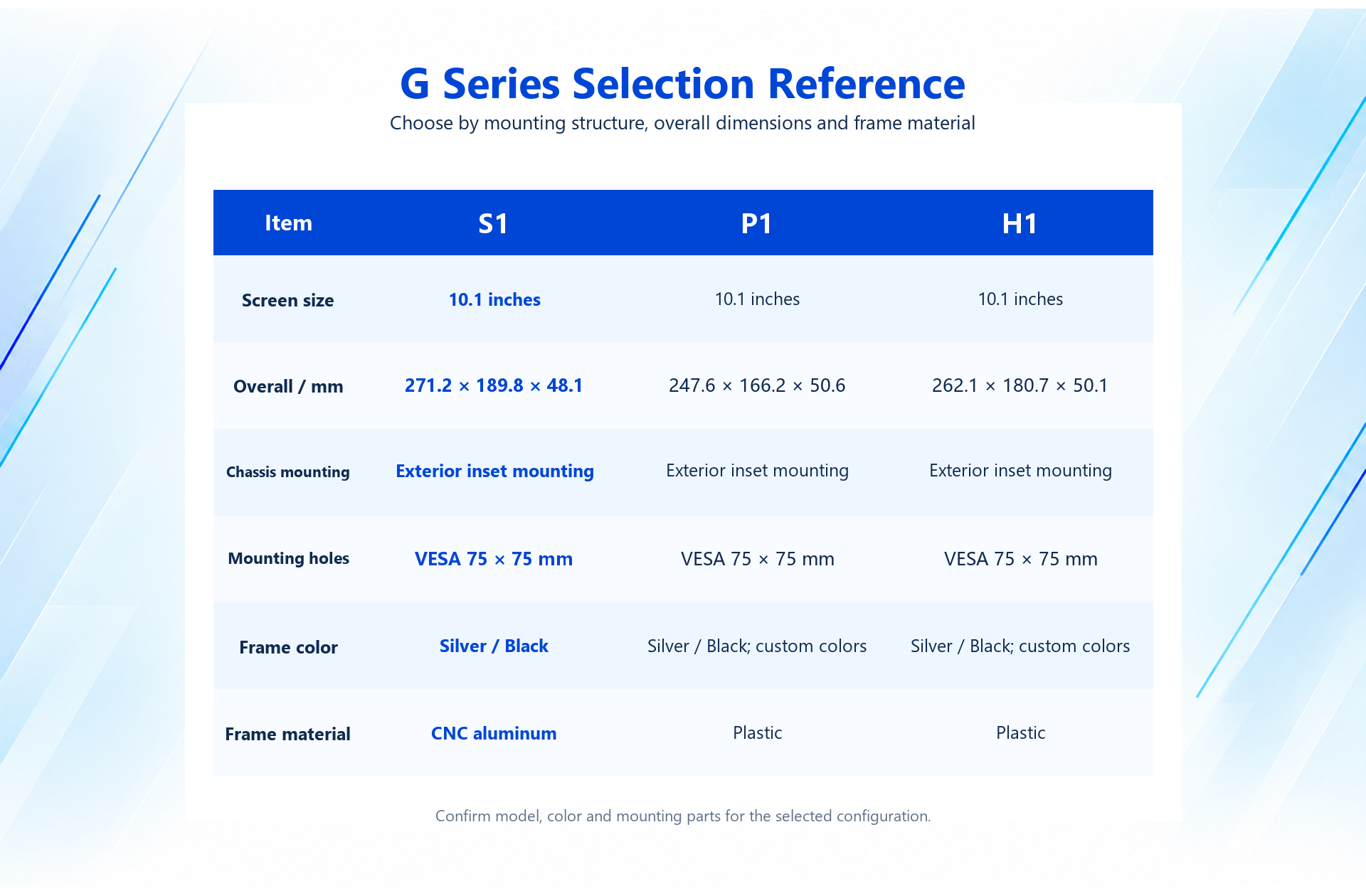

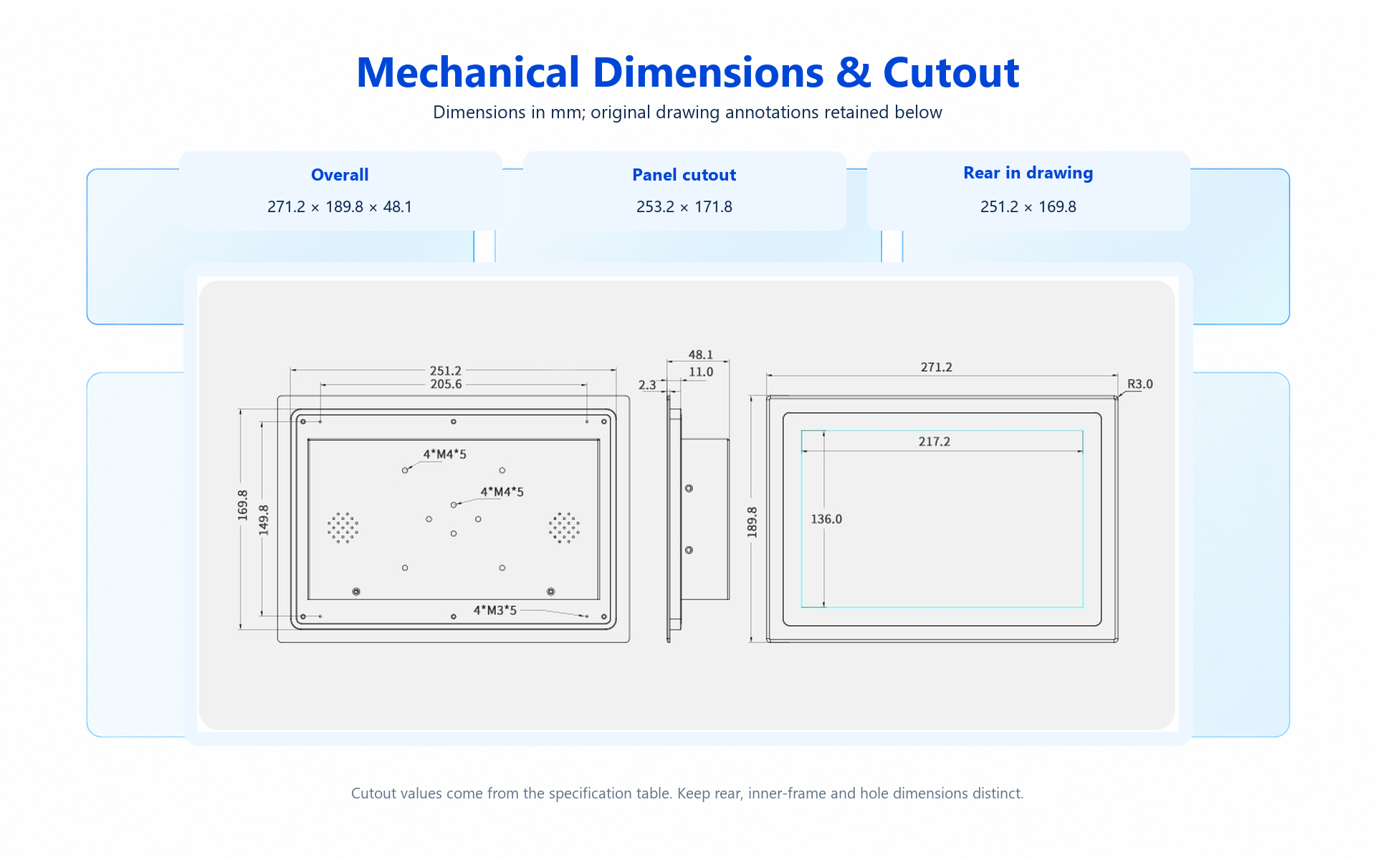

Overall width271.2 mmNot specified
Overall height189.8 mmNot specified
Panel cutout width253.2 mmNot specified
Panel cutout height171.8 mmNot specified
Rear width251.2 mmNot specified
Rear height169.8 mmNot specified
Inner horizontal annotation205.6 mmNot specified
Inner vertical annotation149.8 mmNot specified
Front flange2.3 mmNot specified
Front panel corner radius3 mmNot specified
