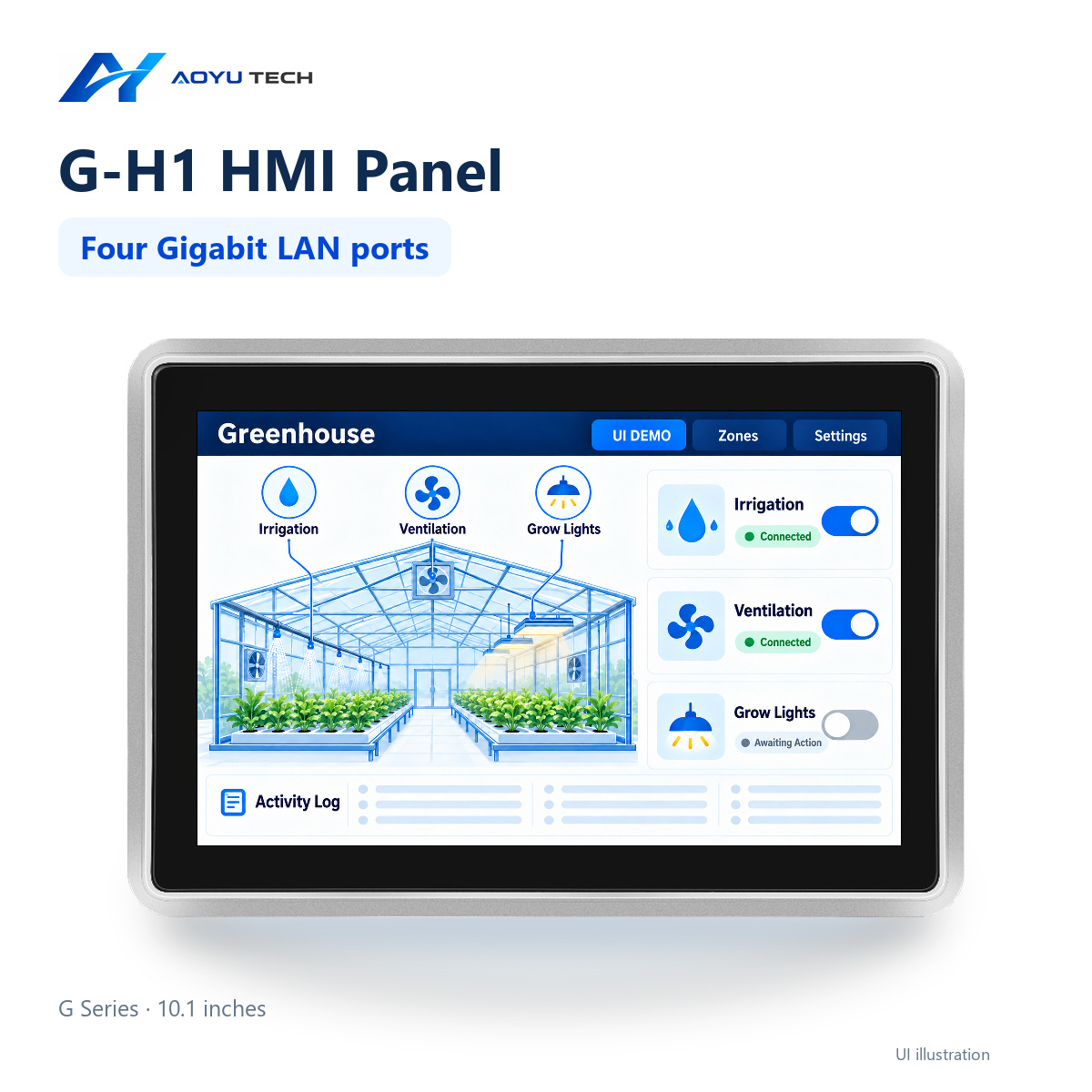

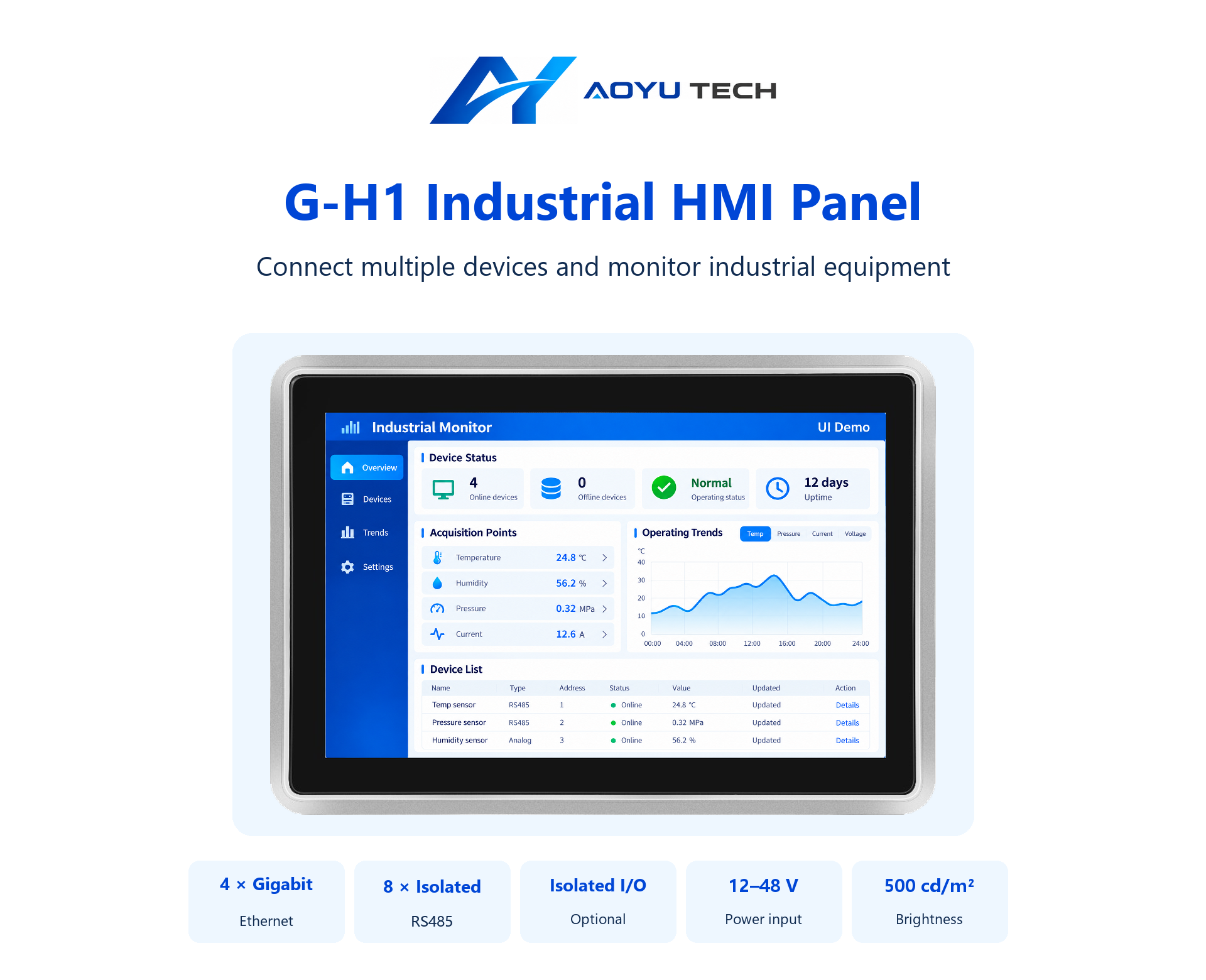

G-H1-101 10.1-inch HMI Panel

10.1 inches · Auto Control G Series

Ethernet
4 channels
Brightness
500 cd/m²
Power input
12 / 48 V
PoE
PoE
Request a quote

Specifications follow the selected configuration. Contact us to confirm options and delivery requirements.

Built around your requirements

Explore the display, enclosure and configuration-specific capabilities of this HMI panel.

Ethernet: 4 channels. Brightness: 500 cd/m². Power input: 12 / 48 V. PoE: PoE

A closer look

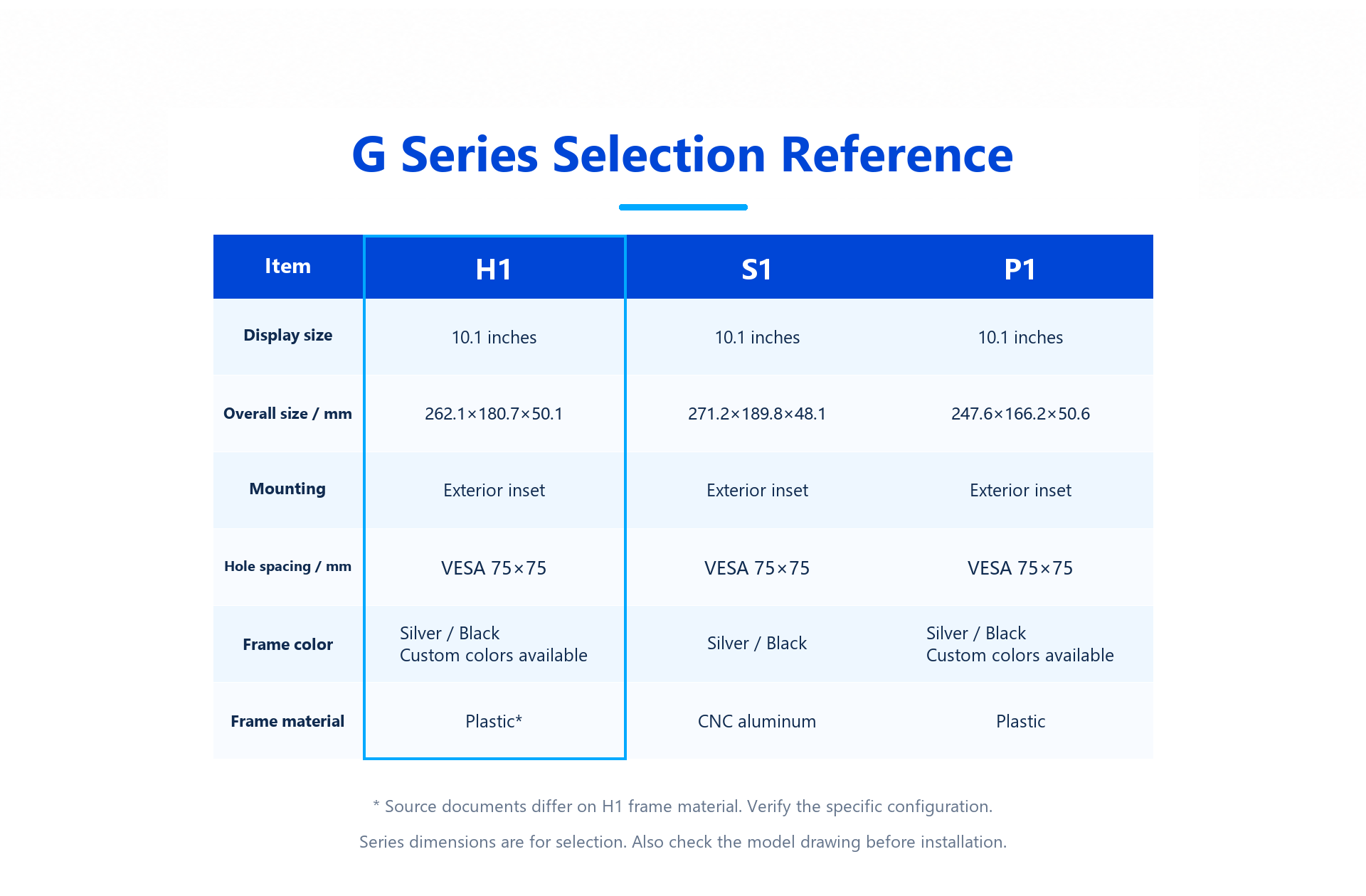

Complete series material may show other sizes or configurations. Refer to the selected model specifications and confirmed delivery configuration. Select an image to enlarge it.

Configuration & specifications

Only source-checked specifications with a clear model association are listed. Contact us for details that are not listed.

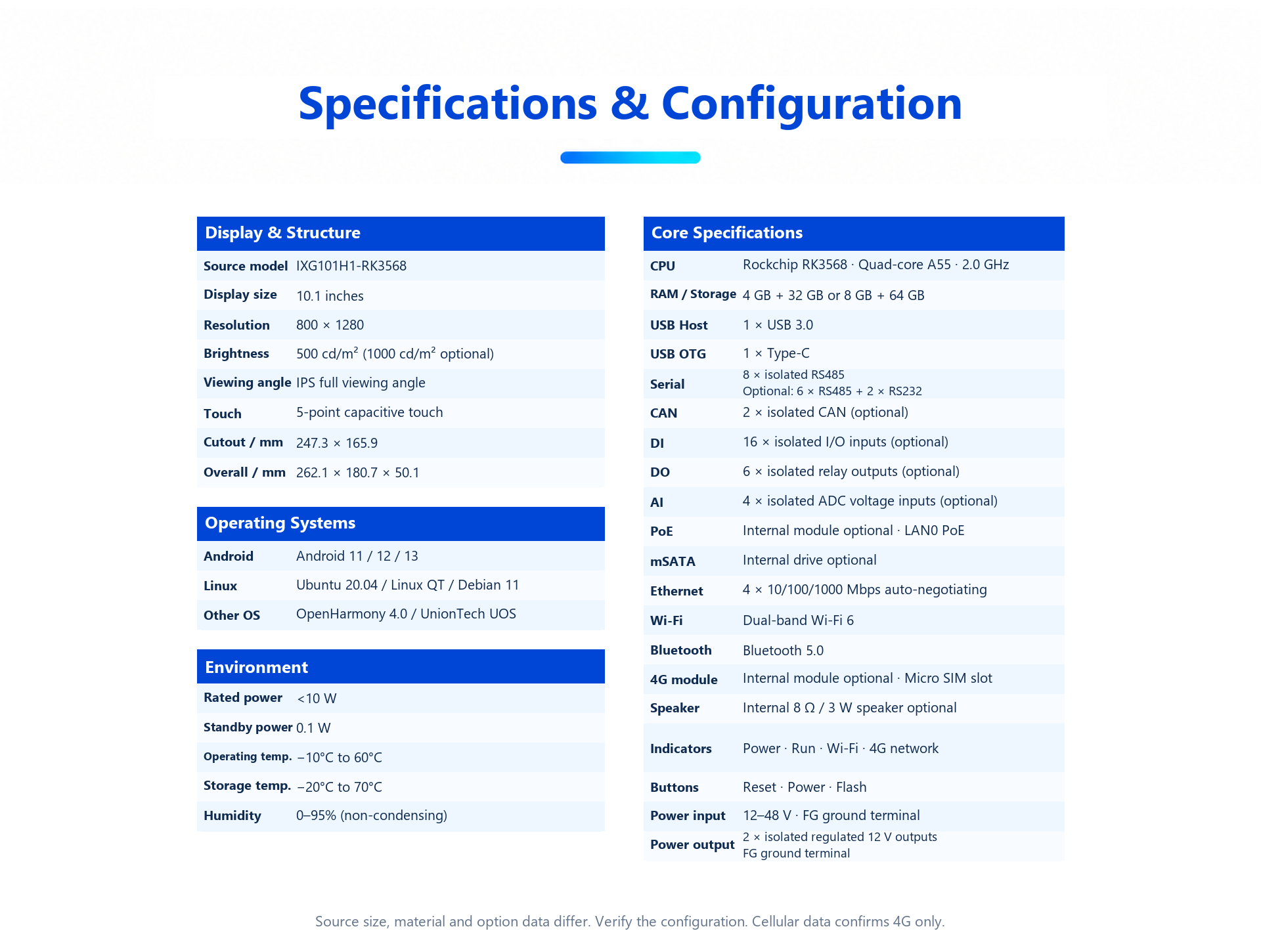

AYG101H1-RK3568

Overview

Overview — AYG101H1-RK3568
Ethernet4 channelsNot specified
Brightness500 cd/m²Not specified
Power input12 / 48 VNot specified
PoEPoEOptional

Color options

Color options — AYG101H1-RK3568

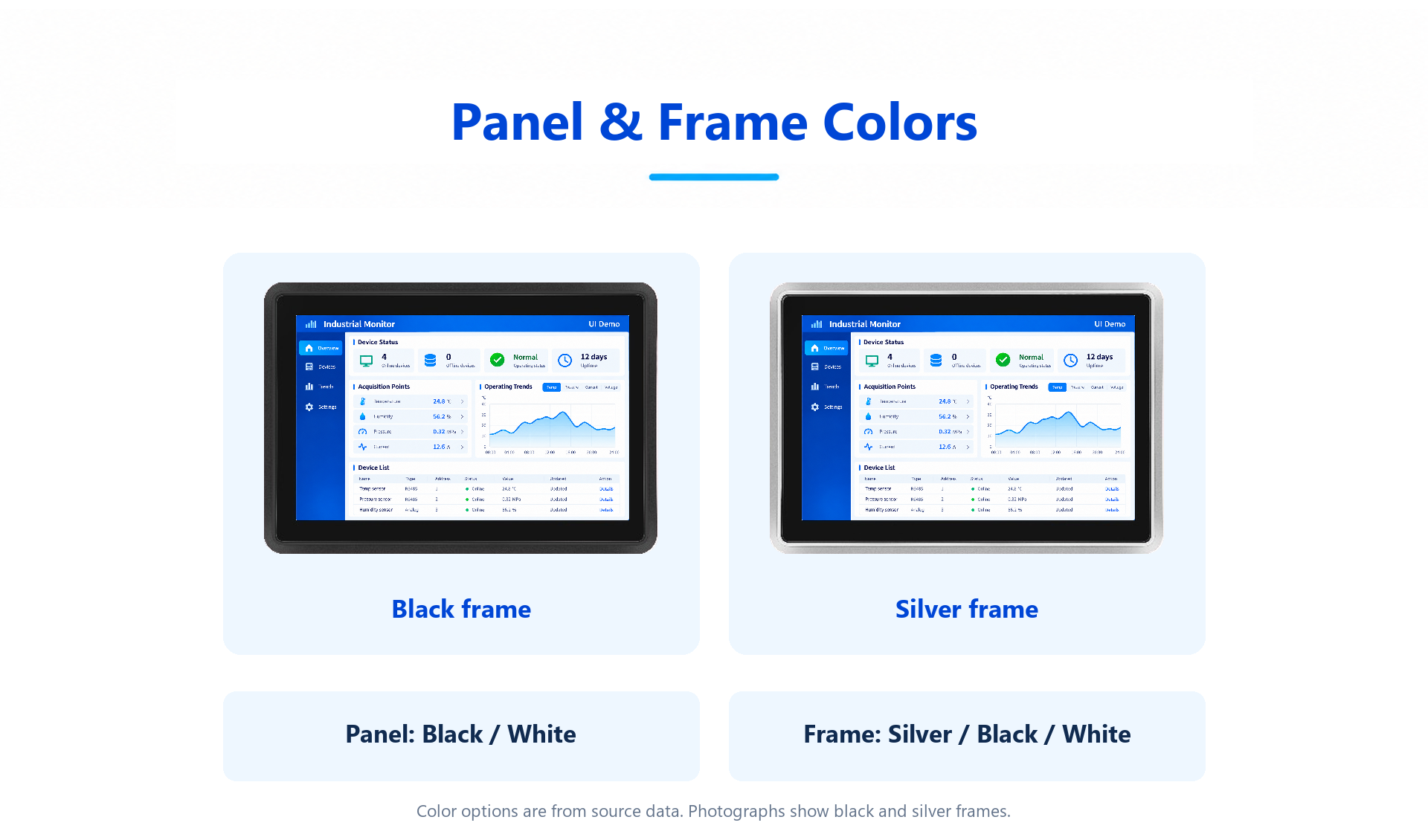

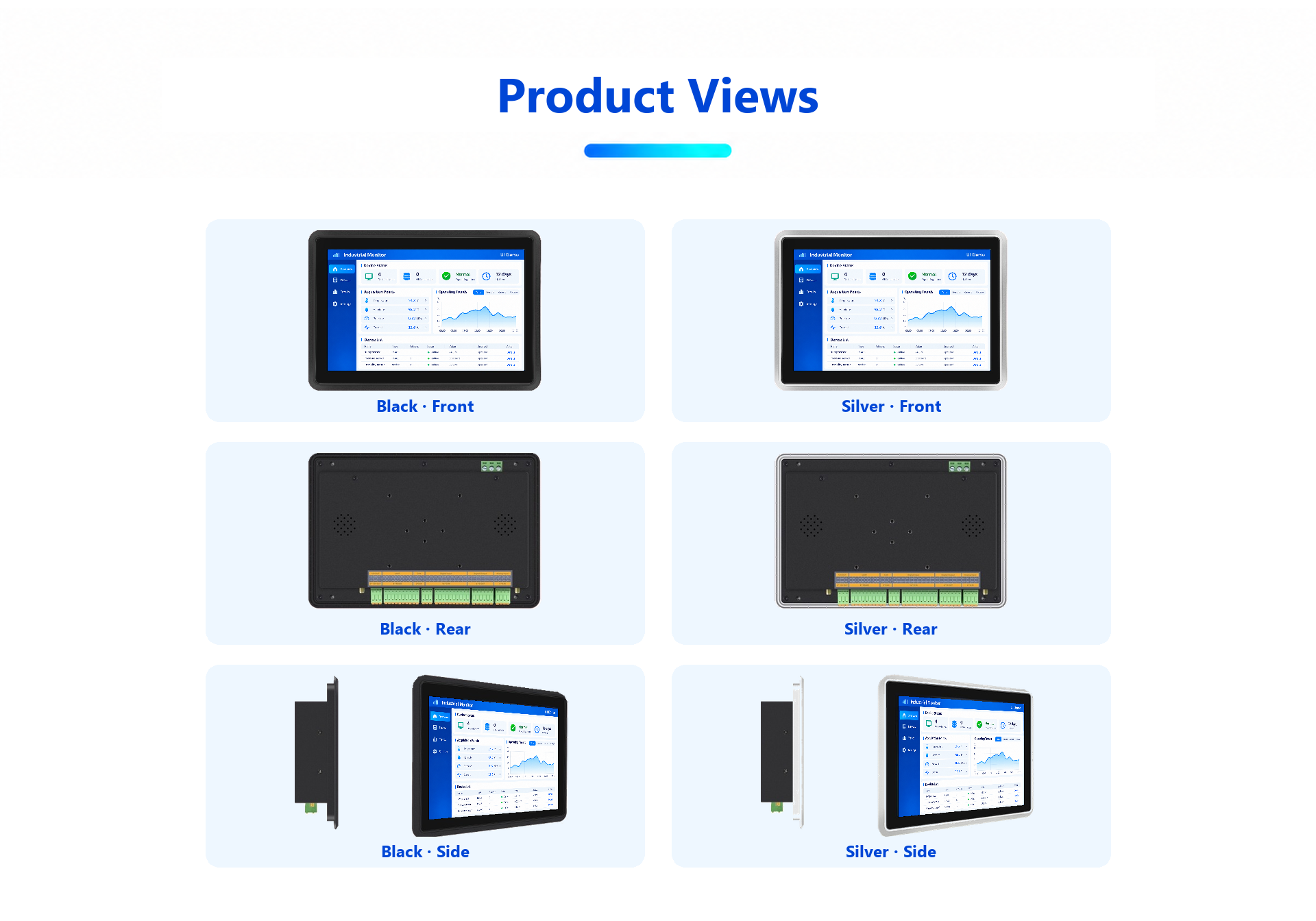

Panel colorBlack / WhiteNot specified
Frame colorSilver / Black / WhiteNot specified

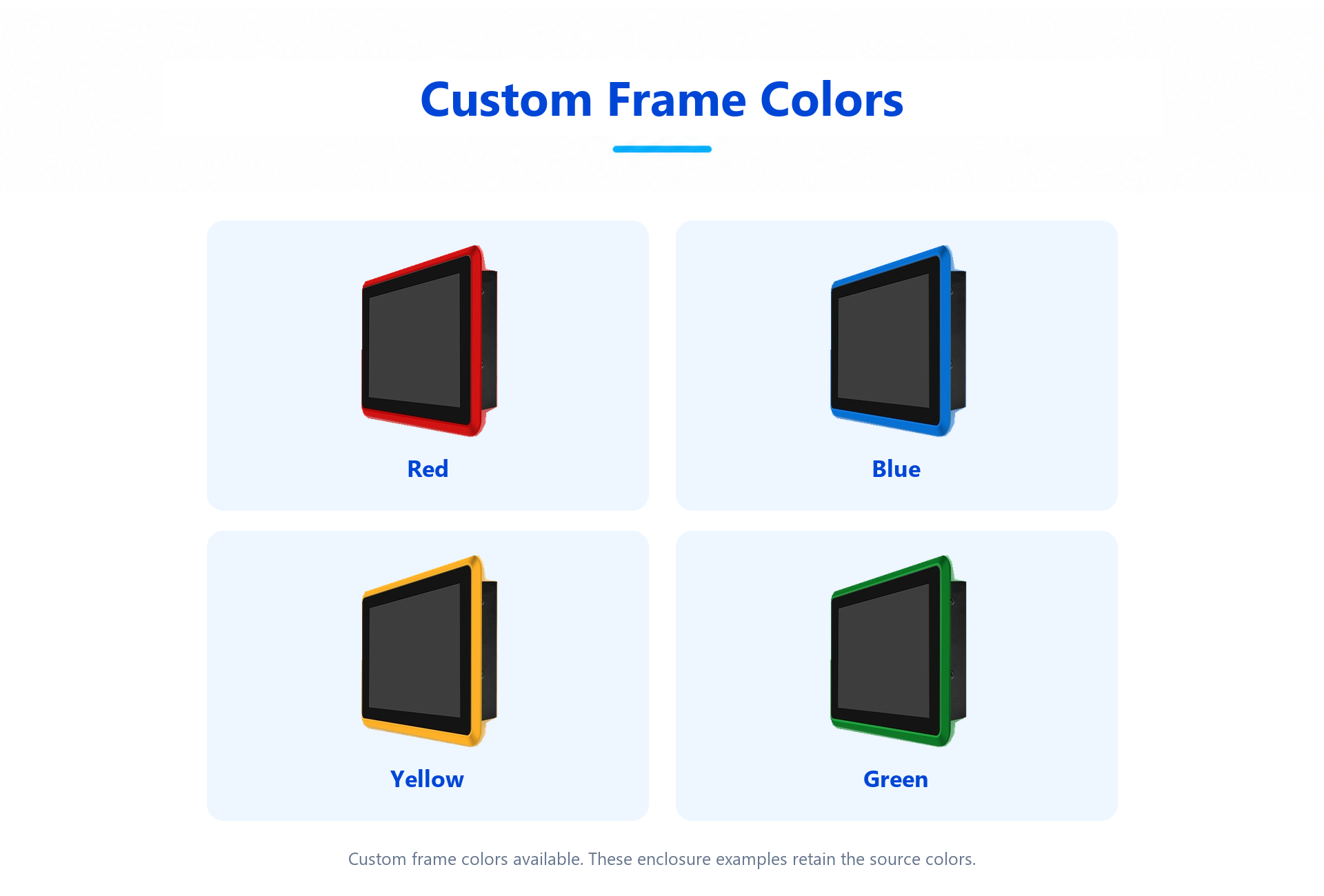

Custom frame colorsRed / Blue / Yellow / GreenCustom configuration
Photographed color optionsBlack / SilverNot specified

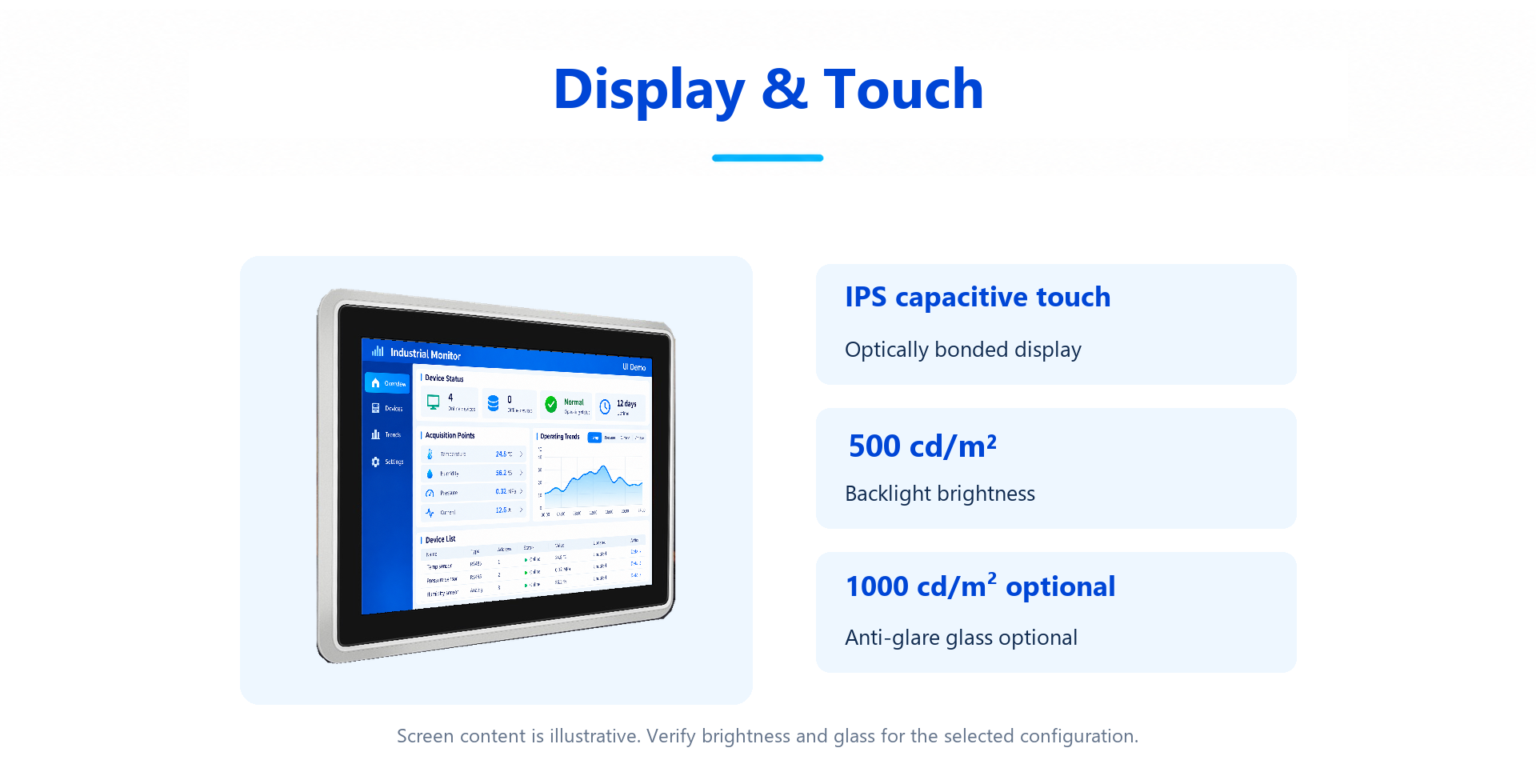

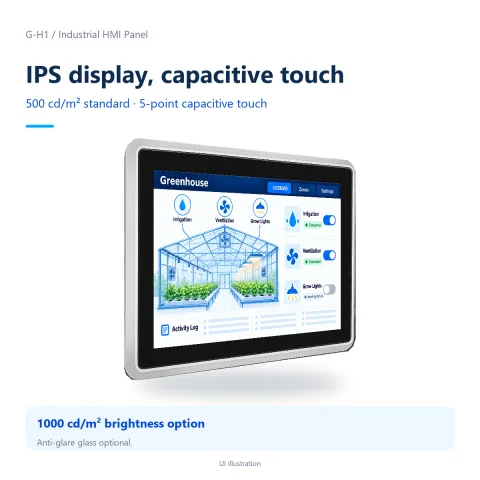

Display

Display — AYG101H1-RK3568
Brightness500 cd/m²Standard
Full bondingtrueNot specified
Optional brightness1000 cd/m²Optional
Anti-glare glassAnti-glare glassOptional

Network

Network — AYG101H1-RK3568

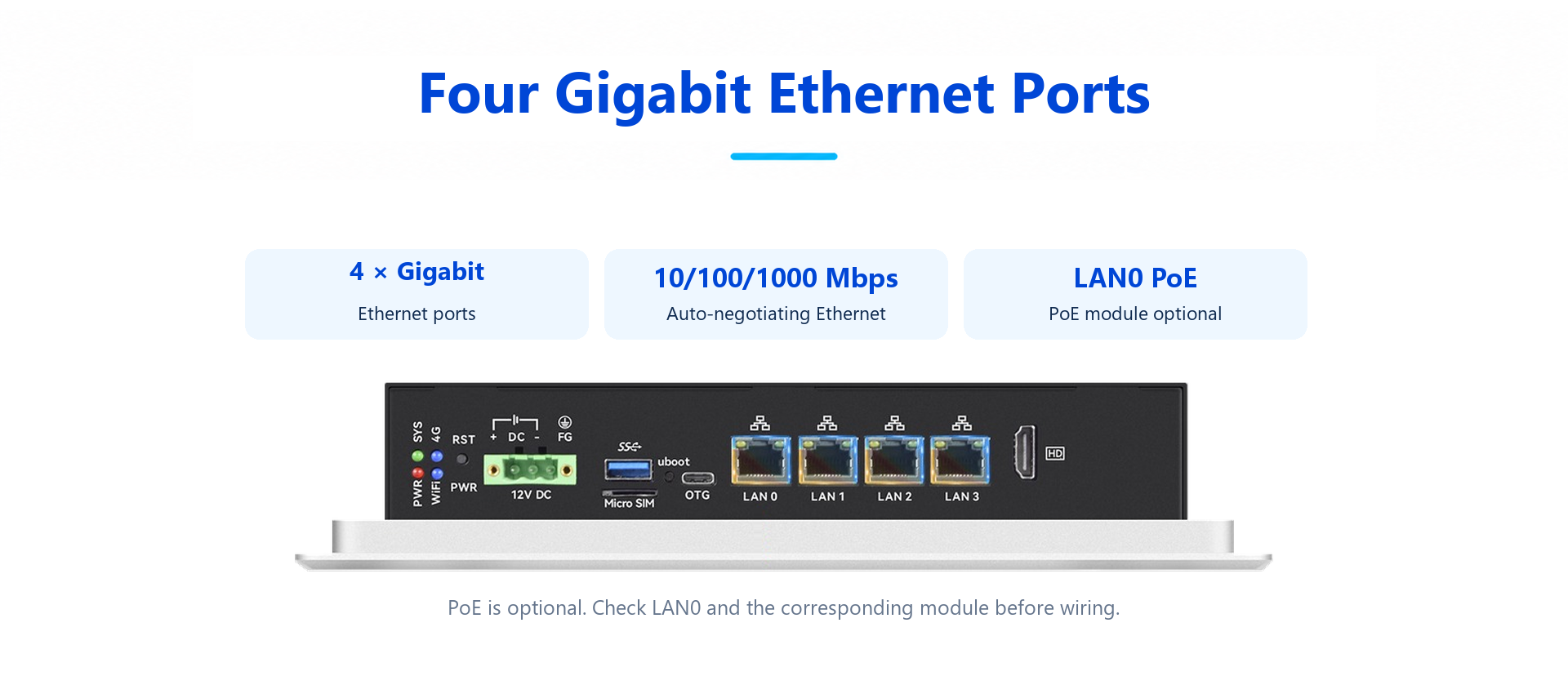

Ethernetcount: 4; speed: 1000 MbpsNot specified
PoE powerPoEOptional

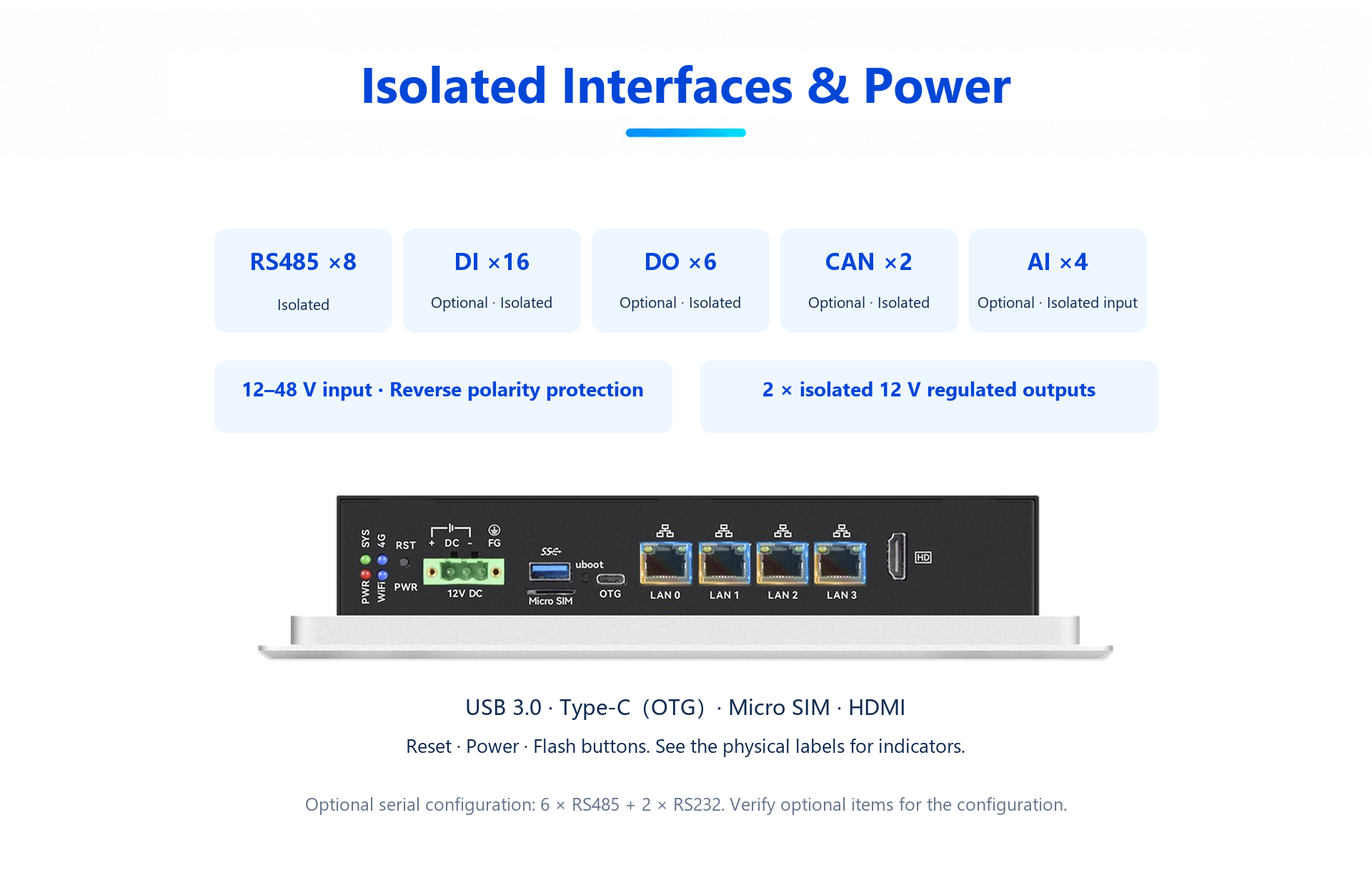

Interfaces

Interfaces — AYG101H1-RK3568

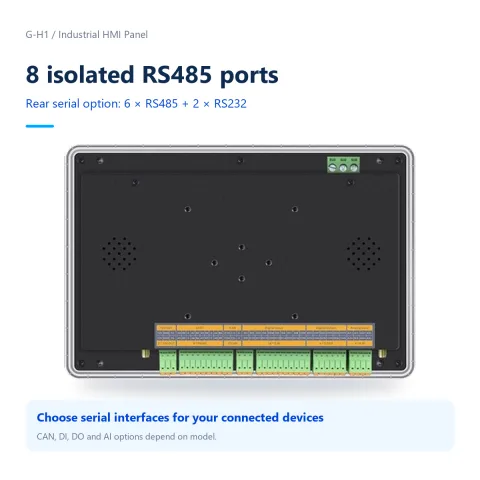

Isolated RS4858 channelsNot specified

Power supply

Power supply — AYG101H1-RK3568
Input range12 / 48 VNot specified
Input protectiontrueNot specified
Isolated power output count2 channelsNot specified
Output isolation and protectionElectrical isolation / Reverse-polarity protectionNot specified

Front interfaces

Front interfaces — AYG101H1-RK3568
Reset buttonReset buttonNot specified
USB HostUSB3.0Not specified
Programming buttonProgramming buttonNot specified
Power input connectorDC 12V/48VNot specified
IndicatorsIndicatorsNot specified
Power buttonPower buttonNot specified
SIM slotMicro SIMNot specified
USB OTGType-C OTGNot specified
Ethernet annotation4 channelsNot specified
Video outputHDMINot specified

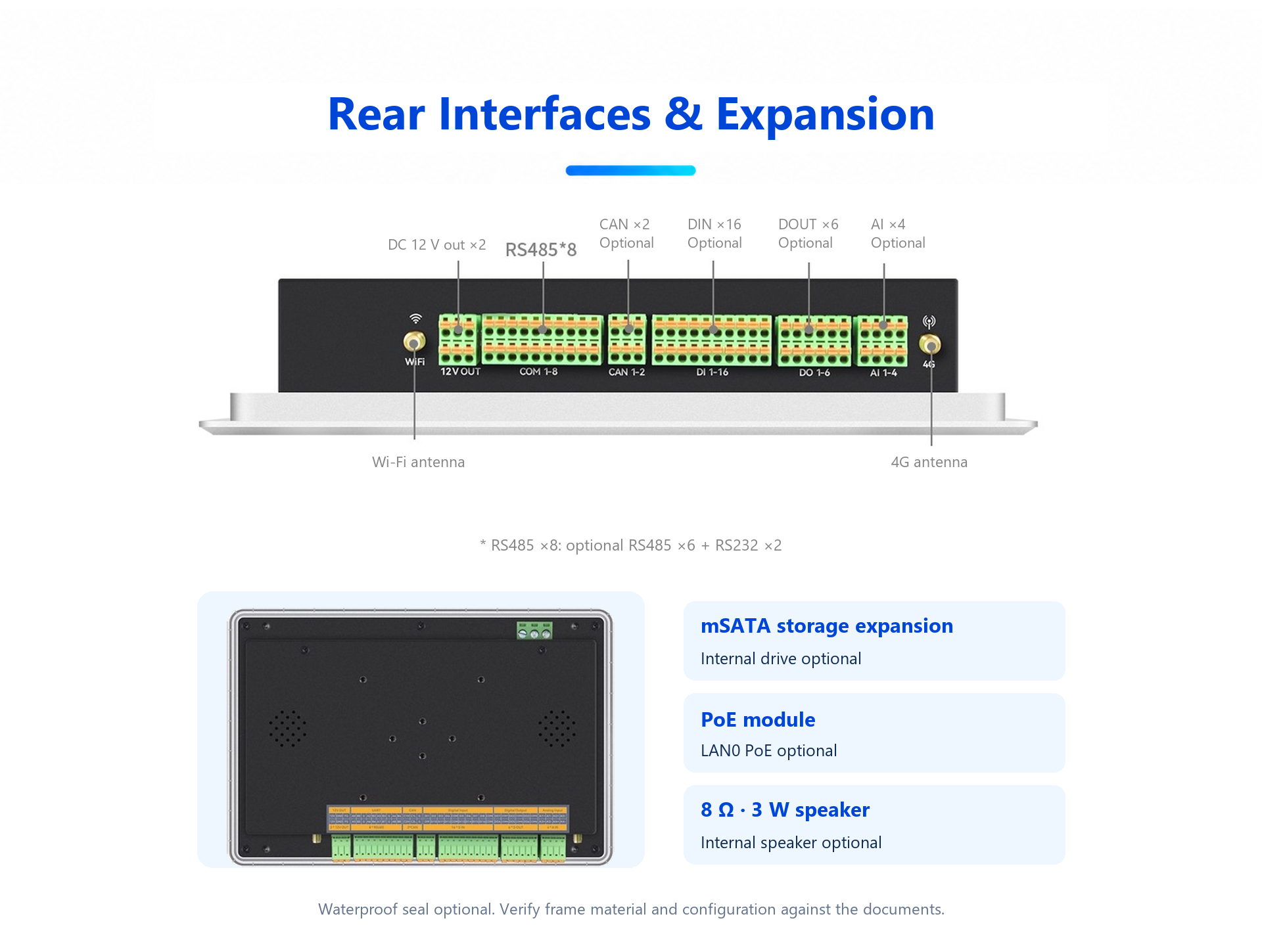

Rear structure

Rear structure — AYG101H1-RK3568
Power output2 channelsNot specified
RS4858 channelsNot specified
Serial-port variantRS485: 6; RS232: 2 channelsOptional
Wi-Fi antennaWi-Fi antennaNot specified
4G antenna4G antennaDependent on optional 4G configuration
mSATAmSATAOptional

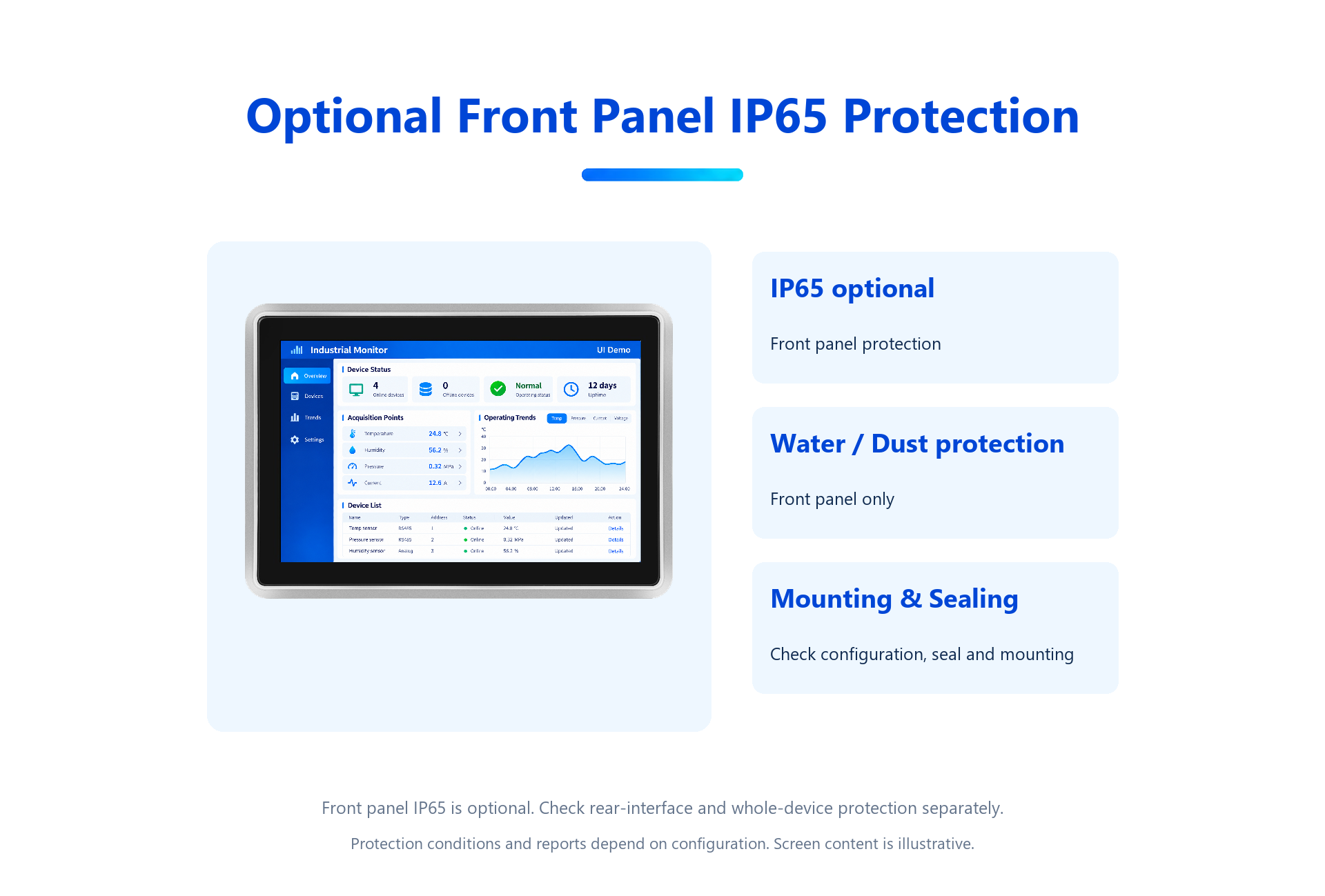

GasketWaterproof gasketOptional
Speakerimpedance: 8; power: 3Optional
PoE modulePoEOptional

Processor

Processor — AYG101H1-RK3568

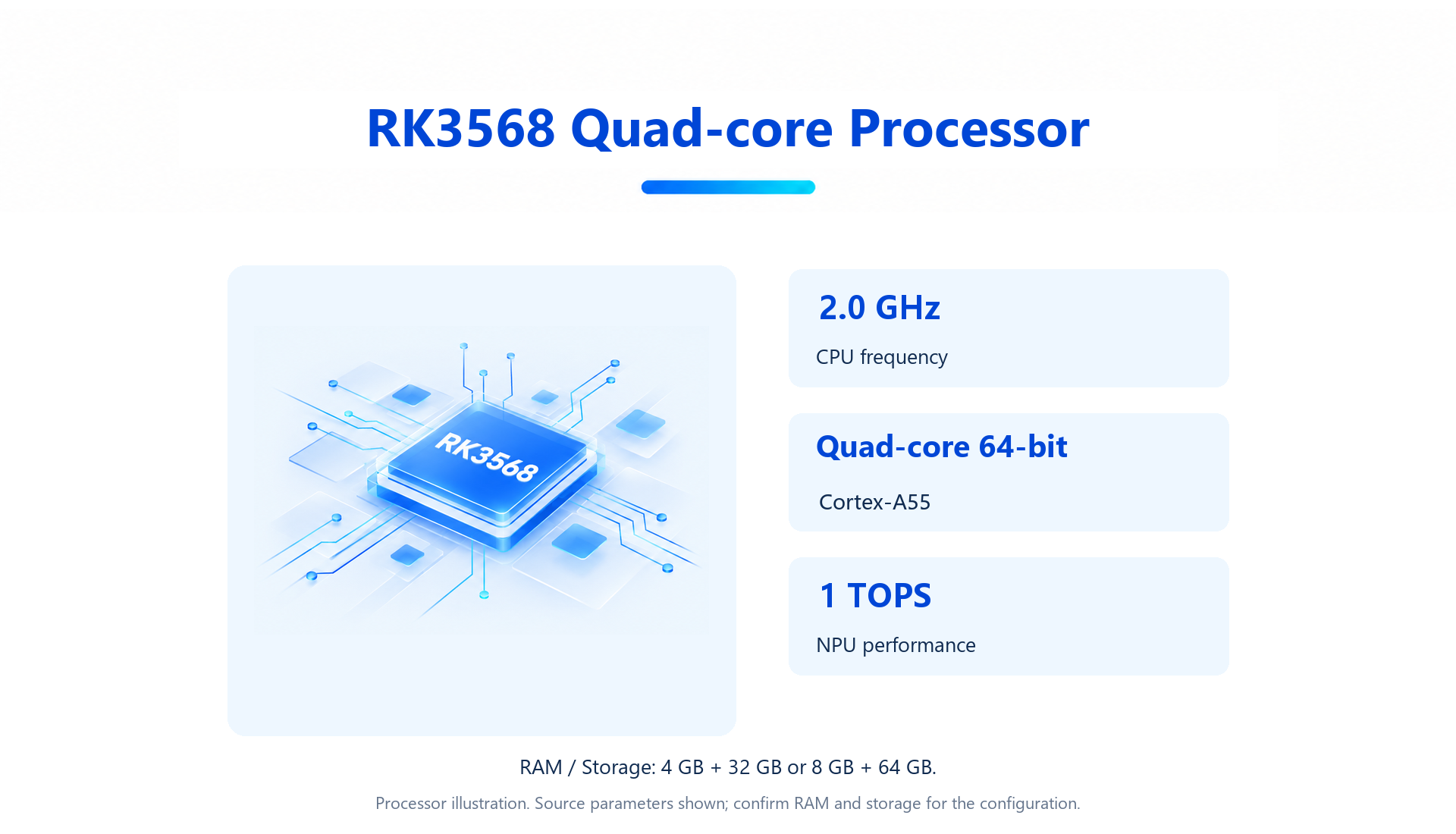

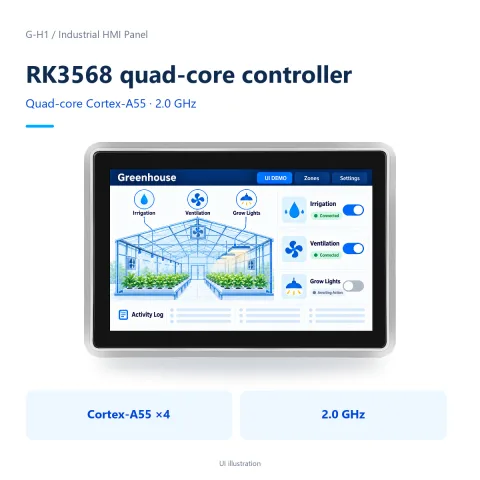

CPURK3568Not specified
Clock frequency2 GHzNot specified
Architecturecores: 4; bits: 64; architecture: Cortex-A55Not specified
NPU1 TOPSNot specified

Wireless

Wireless — AYG101H1-RK3568

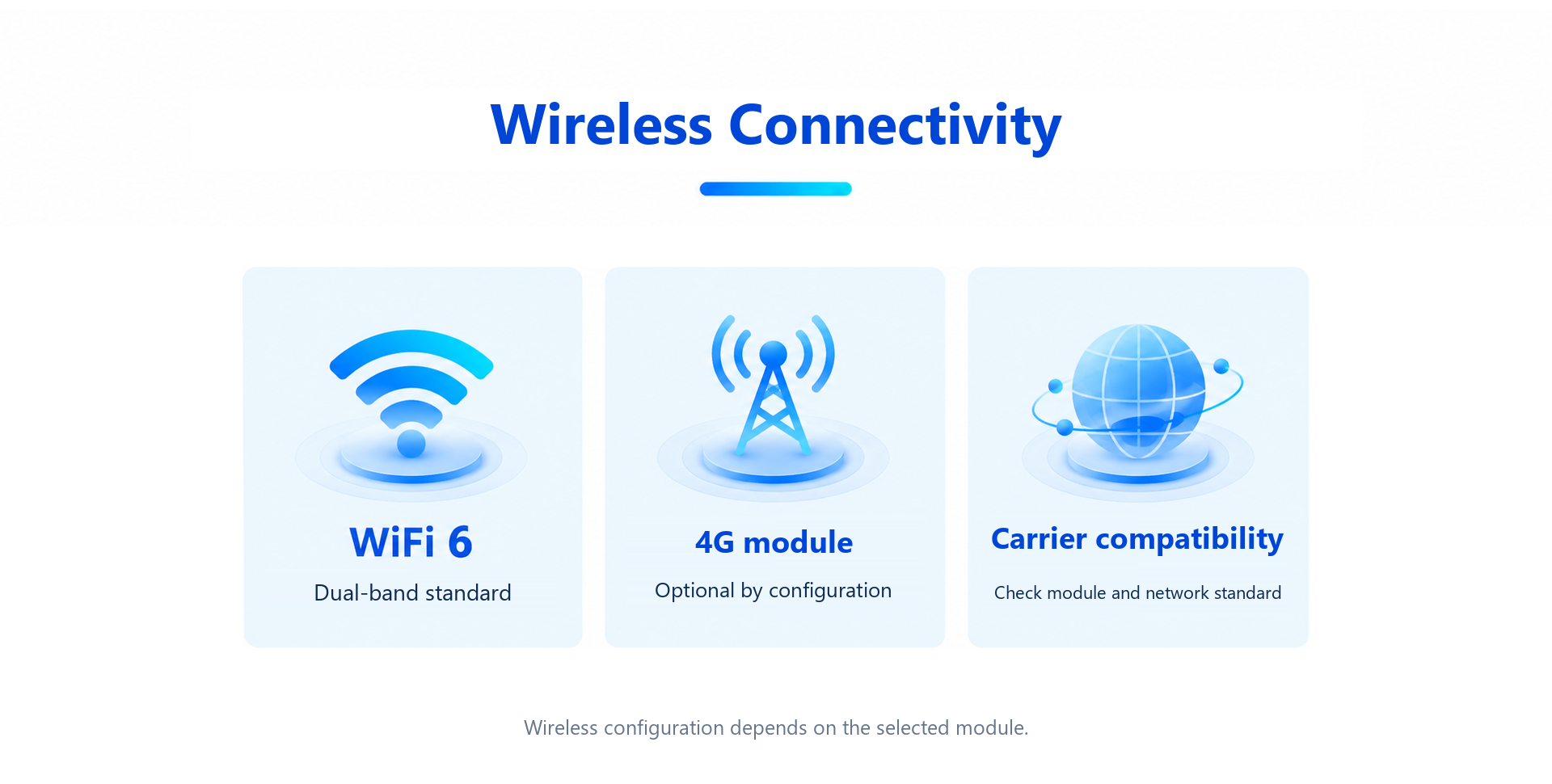

WiFiDual-band Wi-Fi 6Standard
Cellular network4G multi-carrier support (verify module and bands)Optional

System

System — AYG101H1-RK3568

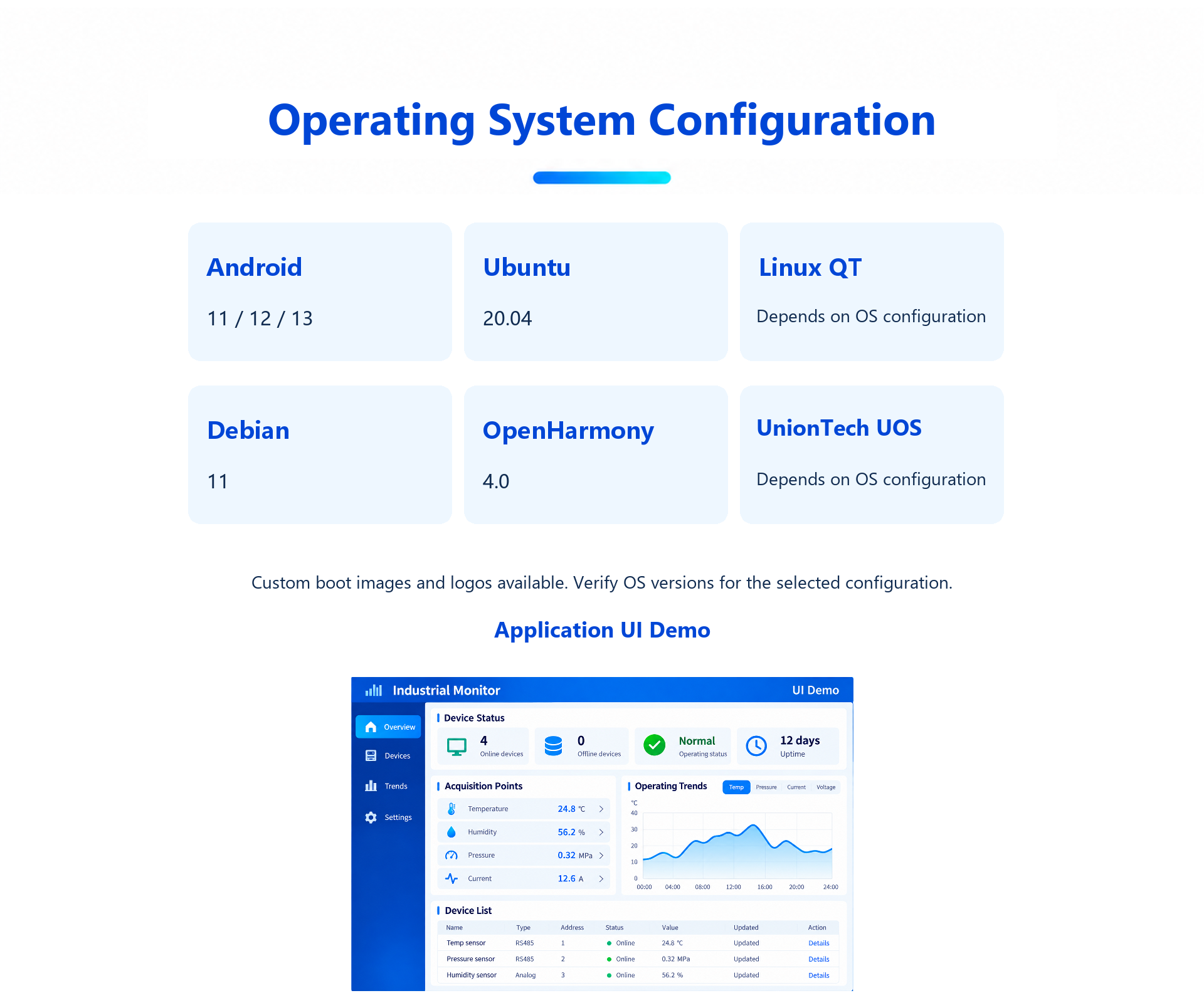

AndroidAndroid 11 / Android 12 / Android 13Depends on OS configuration
UbuntuUbuntu 20.04Depends on OS configuration
Linux QTLinux QTDepends on OS configuration
DebianDebian 11Depends on OS configuration
Other OS optionsOpenHarmony / UnionTech UOSDepends on OS configuration
Boot screenUser configurableDepends on OS configuration
AndroidAndroid 11 / Android 12 / Android 13Depends on OS configuration
LinuxUbuntu 20.04 / Linux QT / Debian 11Depends on OS configuration
Other OS optionsOpenHarmony 4.0 / UnionTech UOSDepends on OS configuration

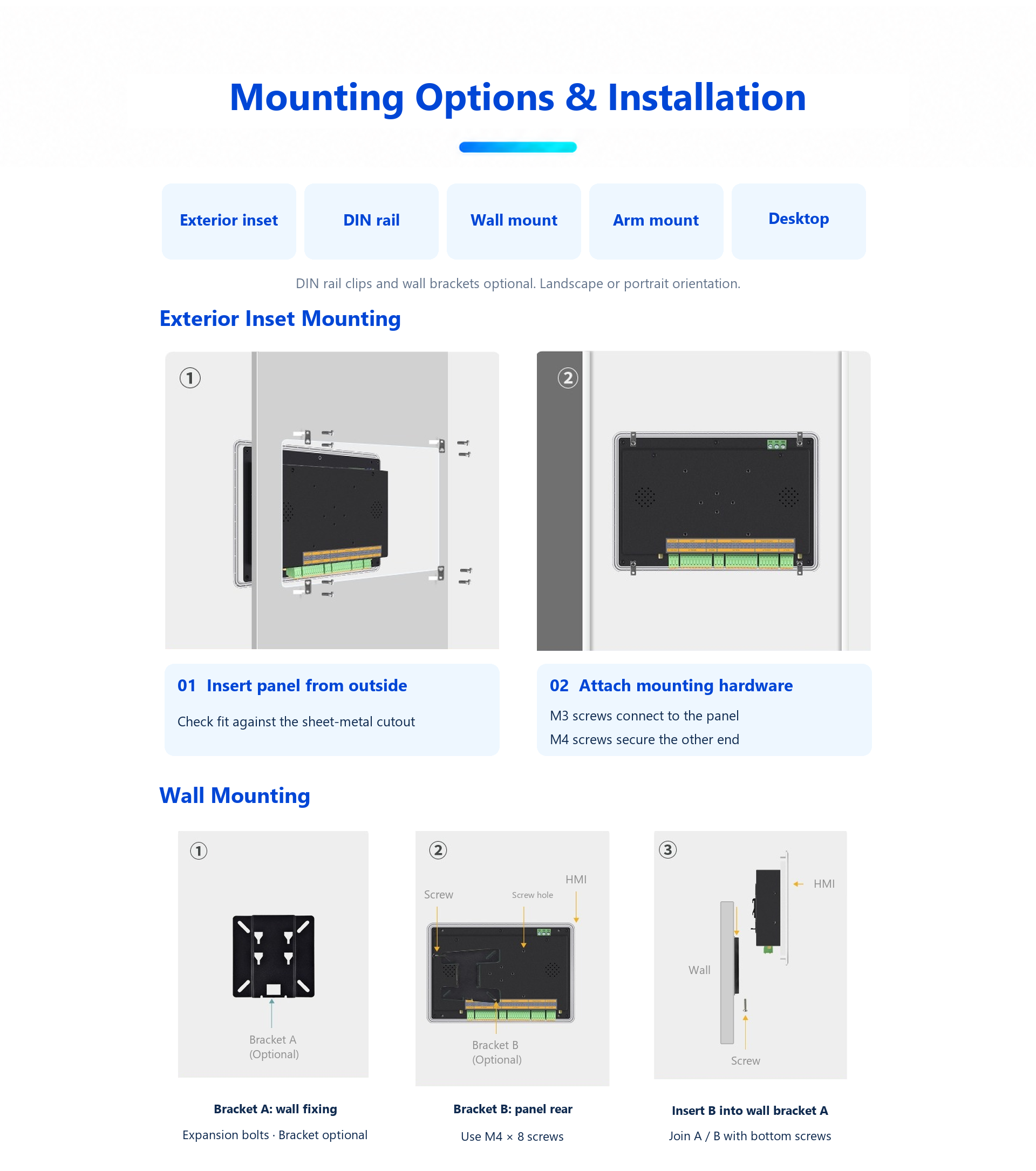

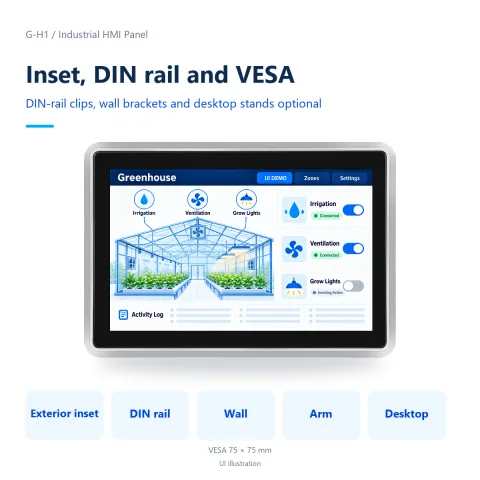

Installation

Installation — AYG101H1-RK3568
Mounting methodsExterior inset mounting / Standard DIN-rail mounting / Wall mounting / Arm mounting / Desktop mountingNot specified
Landscape / PortraitLandscape / PortraitNot specified
Optional accessoriesDIN-rail clips / Wall bracketOptional
Exterior inset fixing screwsM3 / M4Not specified
Wall bracketA / BOptional accessory
Wall-mount fixing screwstype: M4; length: 8 mmNot specified

Display and structure

Display and structure — AYG101H1-RK3568
Resolution800 × 1280 pxNot specified
Backlight brightness500 cd/m²Not specified
Optional brightness1000 cd/m²Optional
Viewing angleIPS wide viewing anglesNot specified
Touch typepoints: 5; type: CapacitiveNot specified
Panel cutout dimensions247.3 × 165.9 mmNot specified
Overall dimensions262.1 × 180.7 × 50.1 mmNot specified

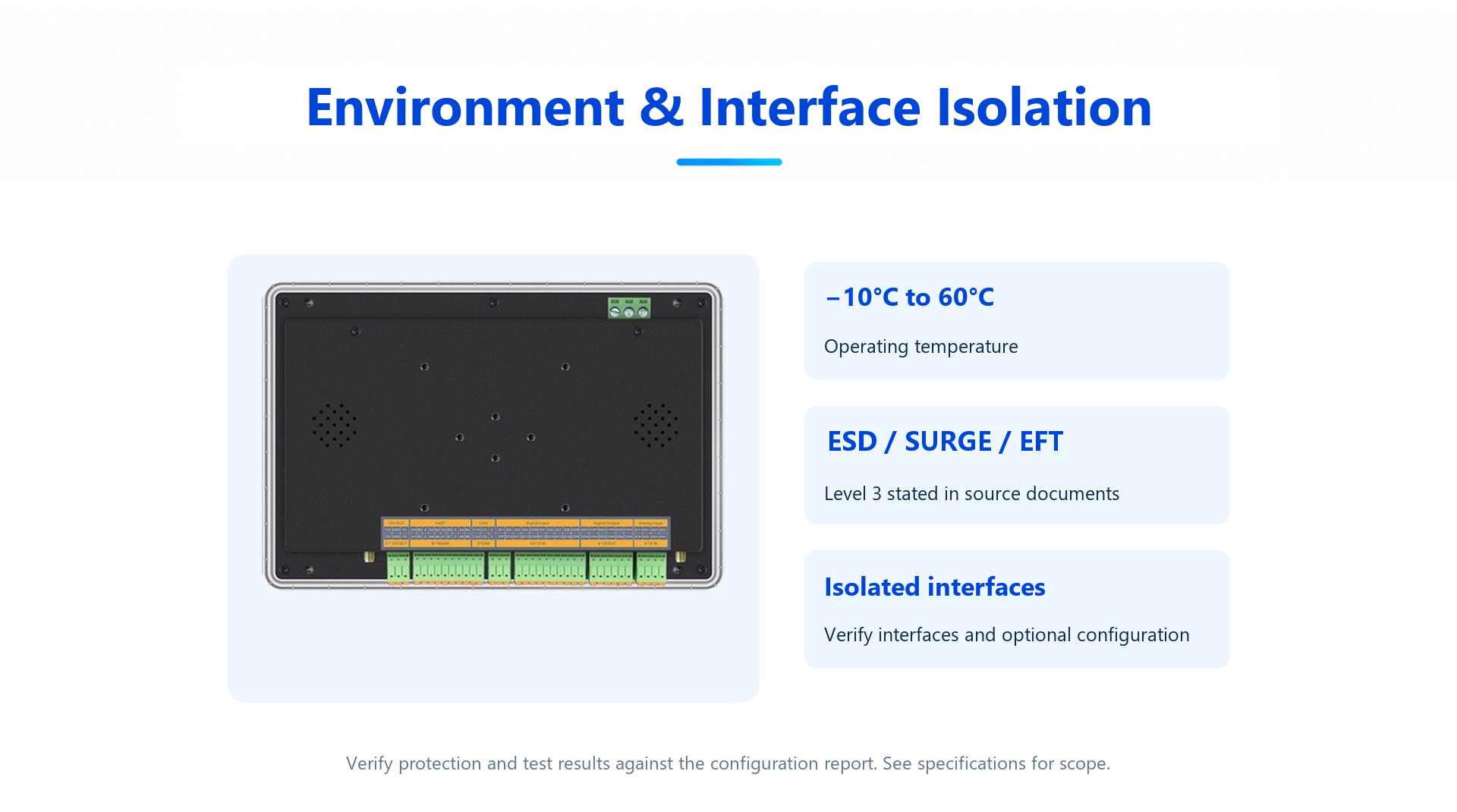

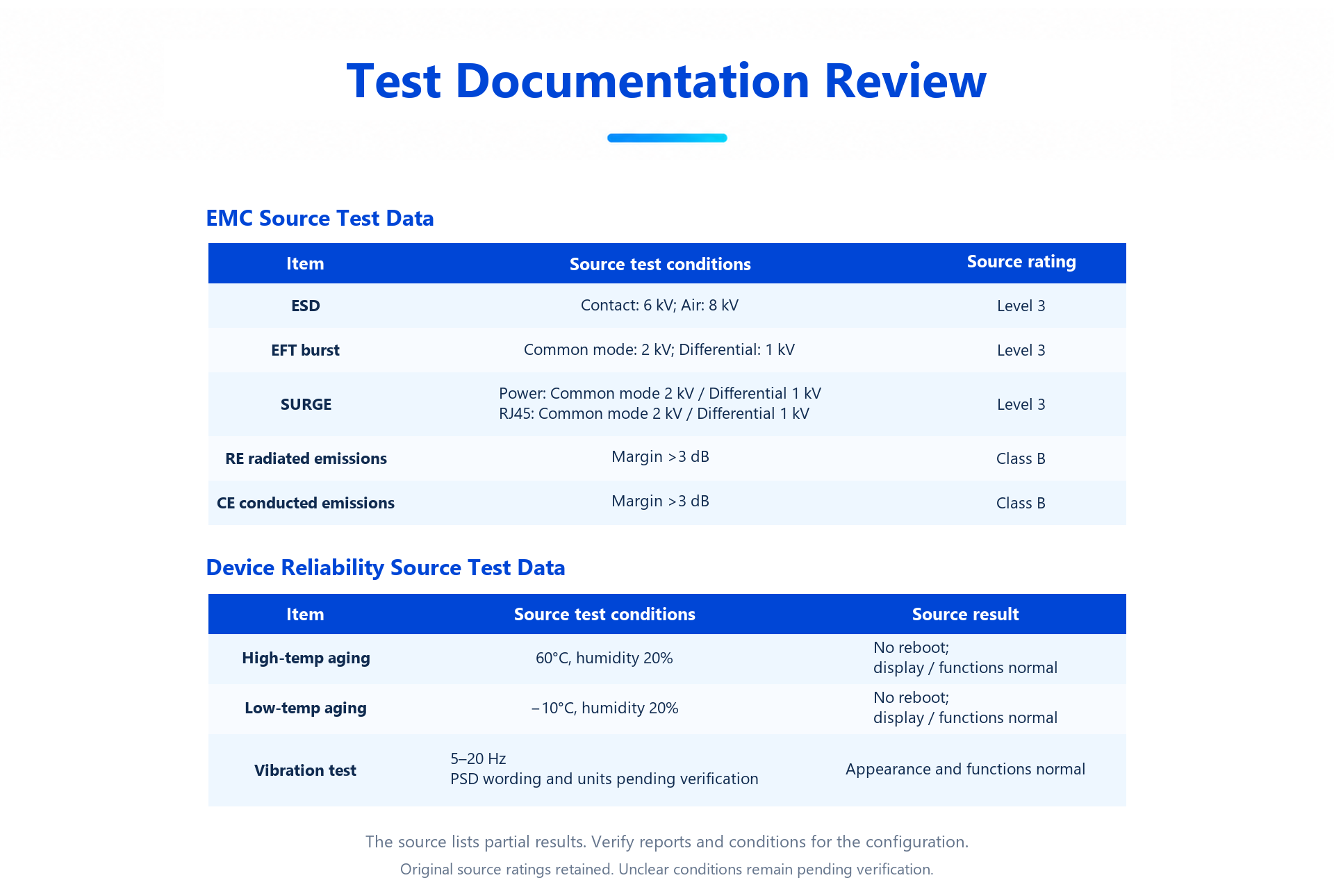

Environment

Environment — AYG101H1-RK3568
Rated poweroperator: <; value: 10 WNot specified
Standby power0.1 WNot specified
Operating temperature-10 – 60 ℃Not specified
Storage temperature-20 – 70 ℃Not specified
Operating humidityrange: 0 / 95; condition: Non-condensing %Not specified

Core specifications

Core specifications — AYG101H1-RK3568
CPUchip: RK3568; cores: 4; architecture: A55; frequency_GHz: 2Not specified
RAM and storageram: 4; storage: 32 / ram: 8; storage: 64 GBConfiguration variant
USB Hostcount: 1; version: 3.0Not specified
USB OTGcount: 1; type: Type-CNot specified
Serial portsdefault_RS485: 8; optional: RS485: 6; RS232: 2 channelsIncludes optional variants
PoEport: LAN0Optional
mSATAmSATAOptional
Ethernetcount: 4; speeds: 10 / 100 / 1000 MbpsNot specified
WiFiDual-band Wi-Fi 6Standard configuration in source13
Bluetooth5Not specified
Audio amplifierimpedance: 8; power: 3Optional
IndicatorsPower / Run / WiFi / 4G networkNot specified
User buttonsReset / Power / ProgrammingNot specified
Power inputrange: 12 / 48; ground: FG VNot specified
Power outputcount: 2; voltage: 12; isolation: true; ground: FGNot specified

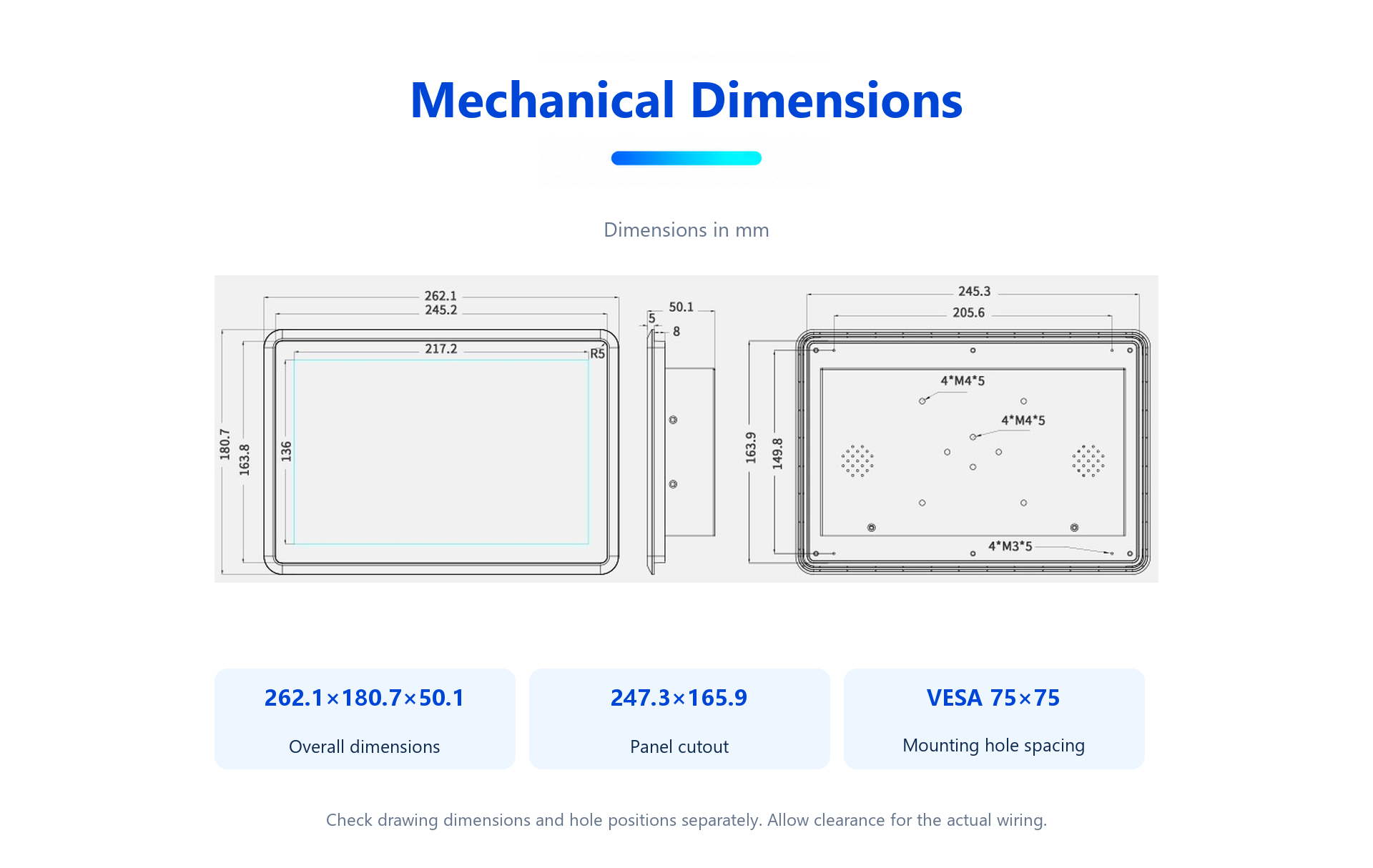

Mechanical dimensions

Mechanical dimensions — AYG101H1-RK3568
Overall width262.1 mmNot specified
Active display width217.2 mmNot specified
Overall height180.7 mmNot specified
Active display height136 mmNot specified
Overall thickness50.1 mmNot specified
Corner radius5 mmNot specified
Rear perimeter width245.3 mmNot specified
Rear horizontal hole spacing205.6 mmNot specified
Rear perimeter height163.9 mmNot specified
Rear vertical hole spacing149.8 mmNot specified
Rear mounting screw holesgroups: 2; count_each: 4; type: M4; depth: 5 mmNot specified
Rear perimeter screw holescount: 4; type: M3; depth: 5 mmNot specified
