Economic IOT M Series

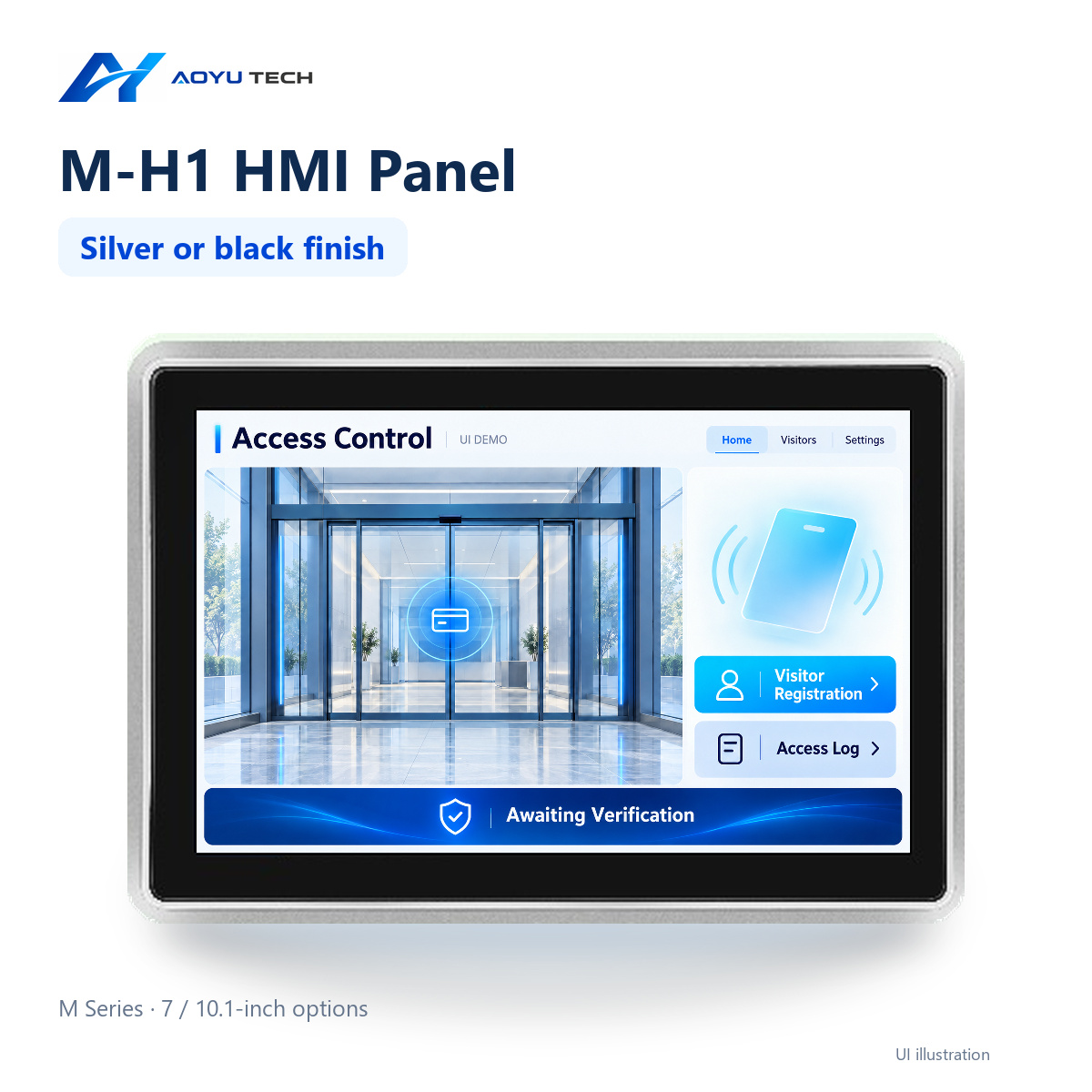

M-H1-070 7-inch HMI Panel
7 inches · Economic IOT M Series
- Series
- M-H1
- Size variant
- 7 / 10.1 inches
- Standard brightness
- 500 cd/m²
- Glass options
- Anti-glare glass
- Series
- M-H1
- Size variant
- 7 / 10.1 inches
- Standard brightness
- 500 cd/m²
- Glass options
- Anti-glare glass
- Series
- M-H1
- Size variant
- 7 / 10.1 inches
- Standard brightness
- 500 cd/m²
- Glass options
- Anti-glare glass
- Series
- M-H1
- Size variant
- 7 / 10.1 inches
- Standard brightness
- 500 cd/m²
- Glass options
- Anti-glare glass
Specifications follow the selected configuration. Contact us to confirm options and delivery requirements.
Built around your requirements
Explore the display, enclosure and configuration-specific capabilities of this HMI panel.
Series: M-H1. Size variant: 7 / 10.1 inches. Standard brightness: 500 cd/m². Glass options: Anti-glare glass
- Series: M-H1
- Size variant: 7 / 10.1 inches
- Standard brightness: 500 cd/m²
- Glass options: Anti-glare glass
A closer look
Complete series material may show other sizes or configurations. Refer to the selected model specifications and confirmed delivery configuration. Select an image to enlarge it.
Configuration & specifications
Only source-checked specifications with a clear model association are listed. Contact us for details that are not listed.
AYM070H1-A133P
Product
| Series | M-H1Not specified |
|---|---|
| Size variant | 7 / 10.1 inchesNot specified |
Overview features
| Standard brightness | 500 cd/m²Standard |
|---|---|
| Glass options | Anti-glare glassOptional |

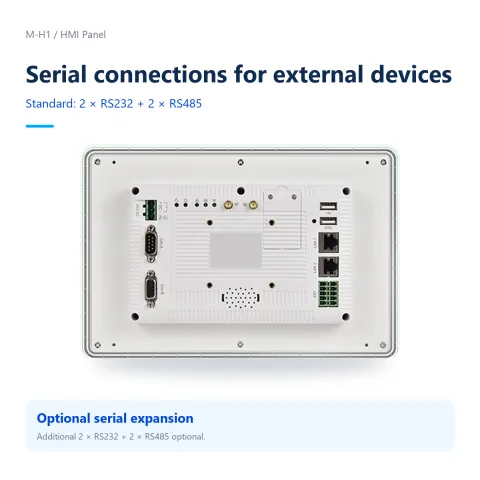

| Standard serial ports | RS232: 2; RS485: 2 channelsStandard |
| Wide voltage input | 9 / 48 VNot specified |
| Rear cable exit | Perpendicular cable exitNot specified |

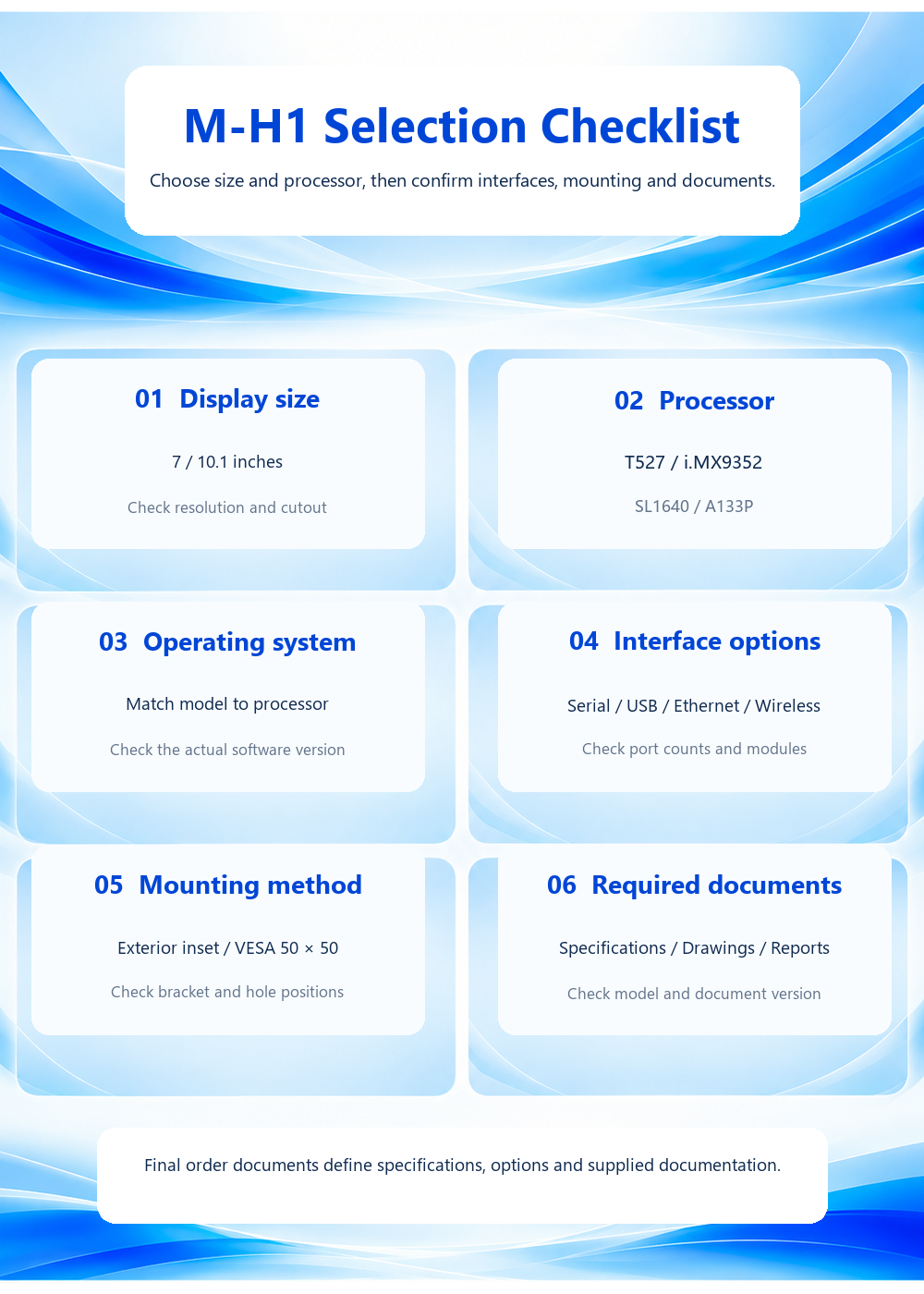

Series selection
| Chassis mounting | Exterior inset mountingNot specified |
|---|---|
| Mounting holes | 50 × 50 mmNot specified |
| Enclosure material | PlasticNot specified |
| Enclosure color | Silver / BlackCustom options on request |

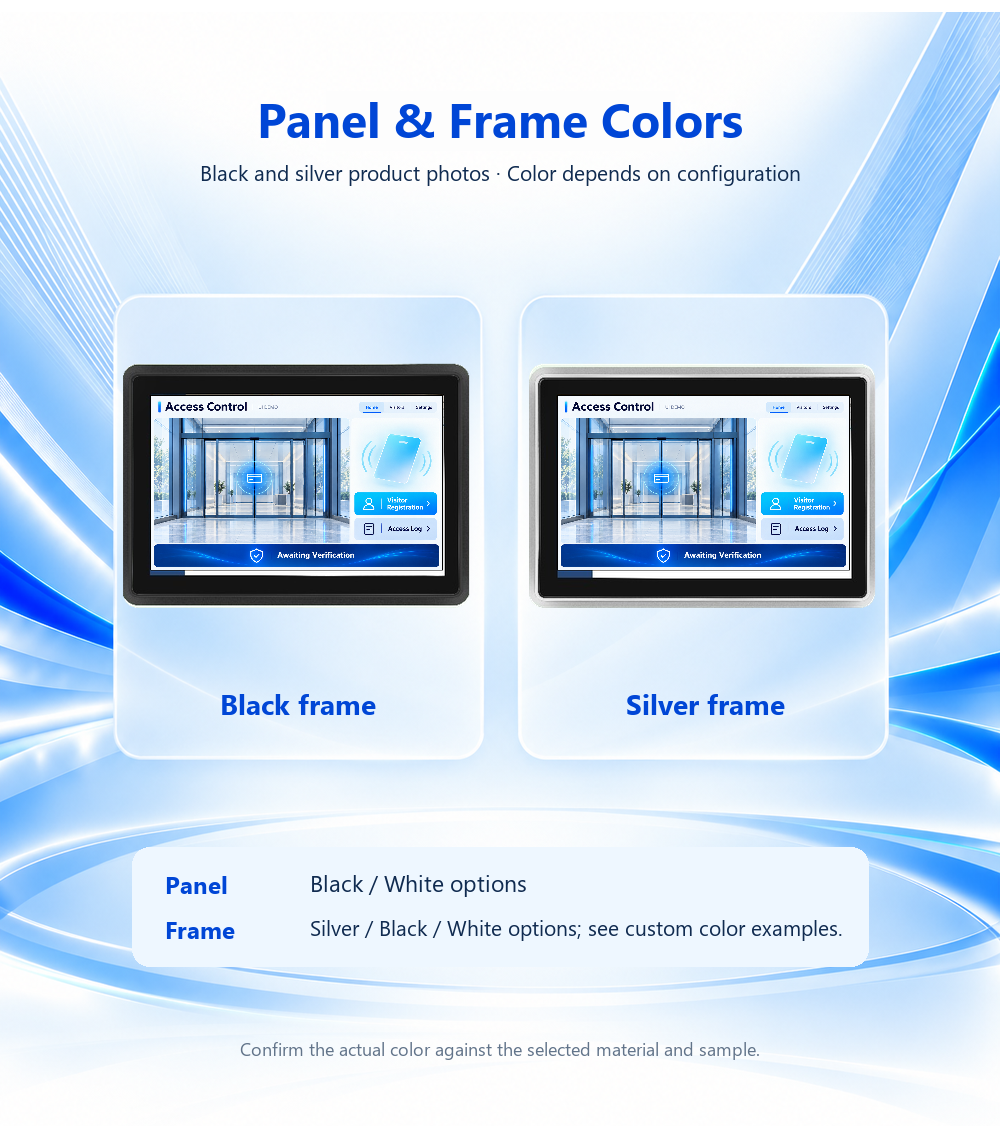

Appearance
| Panel color | Black / WhiteOptional |
|---|---|
| Frame color | Silver / Black / WhiteOptional |

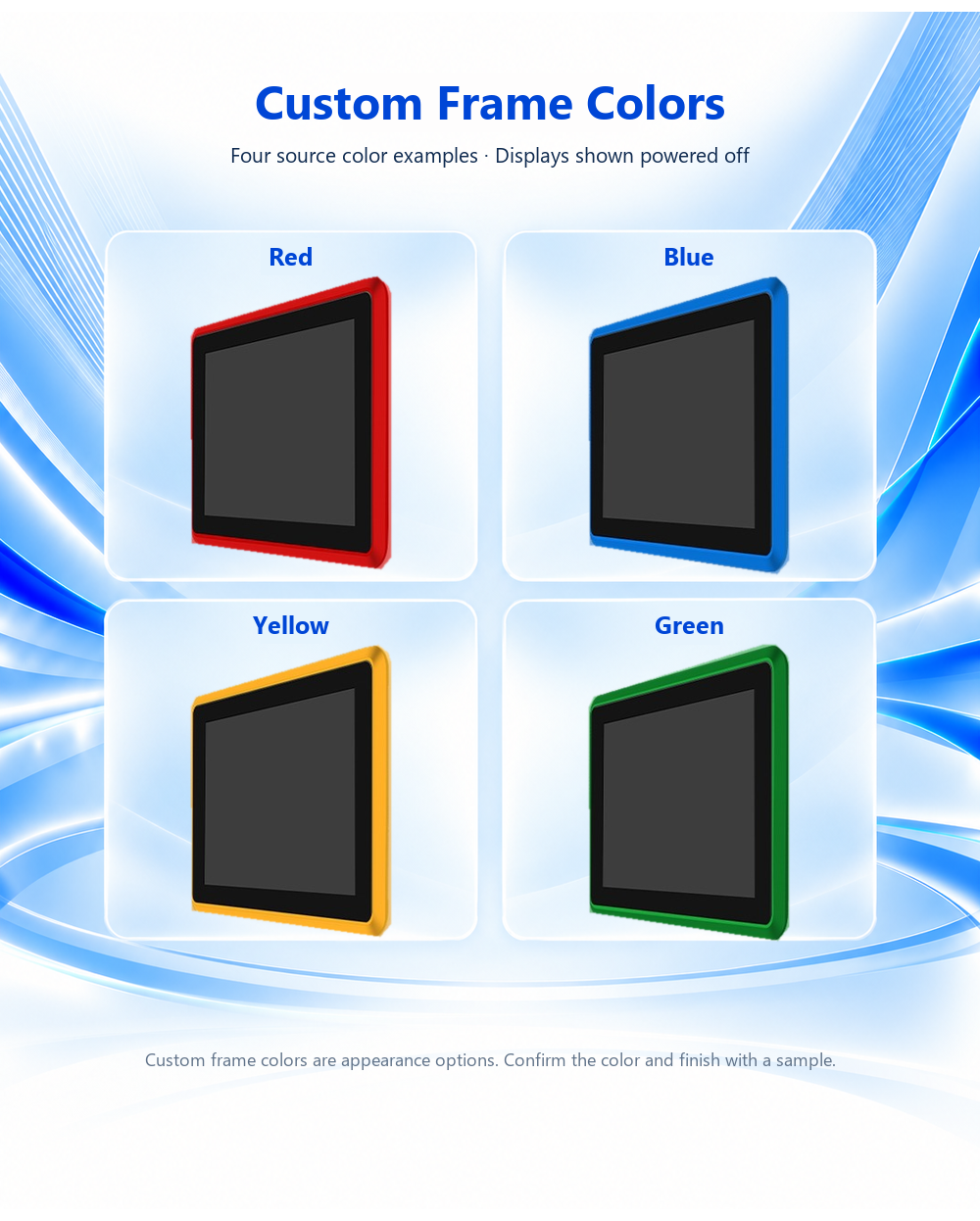

| Custom frame colors | Red / Blue / Yellow / GreenCustomization examples |
Display
| Standard brightness | 500 cd/m²Standard |
|---|---|
| High-brightness option | 1000 cd/m²Optional |
| AG glass | AG anti-glareOptional |
| Bonding | Full bondingNot specified |
Protection & power
| Overvoltage protection | trueNot specified |
|---|---|
| Overcurrent protection | trueNot specified |
| Input range | 9 / 48 VNot specified |

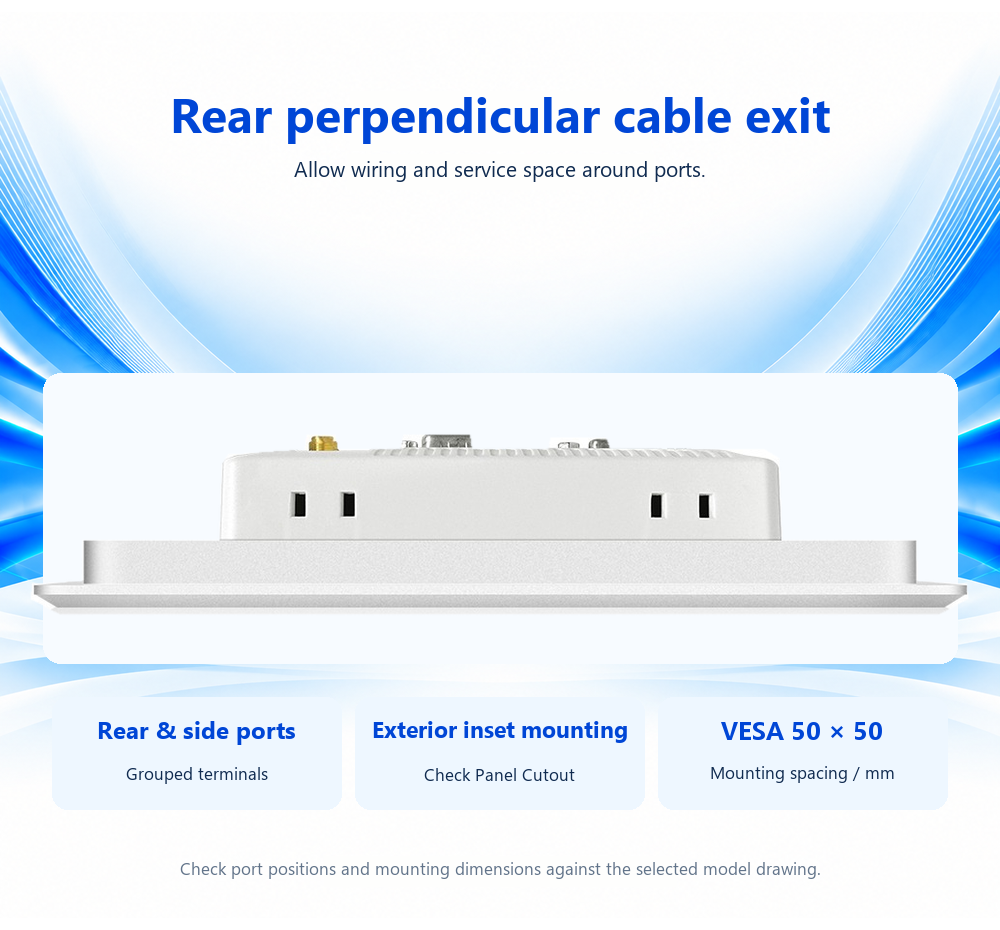

Structure
| Rear cable exit | Perpendicular rear cable exitNot specified |
|---|

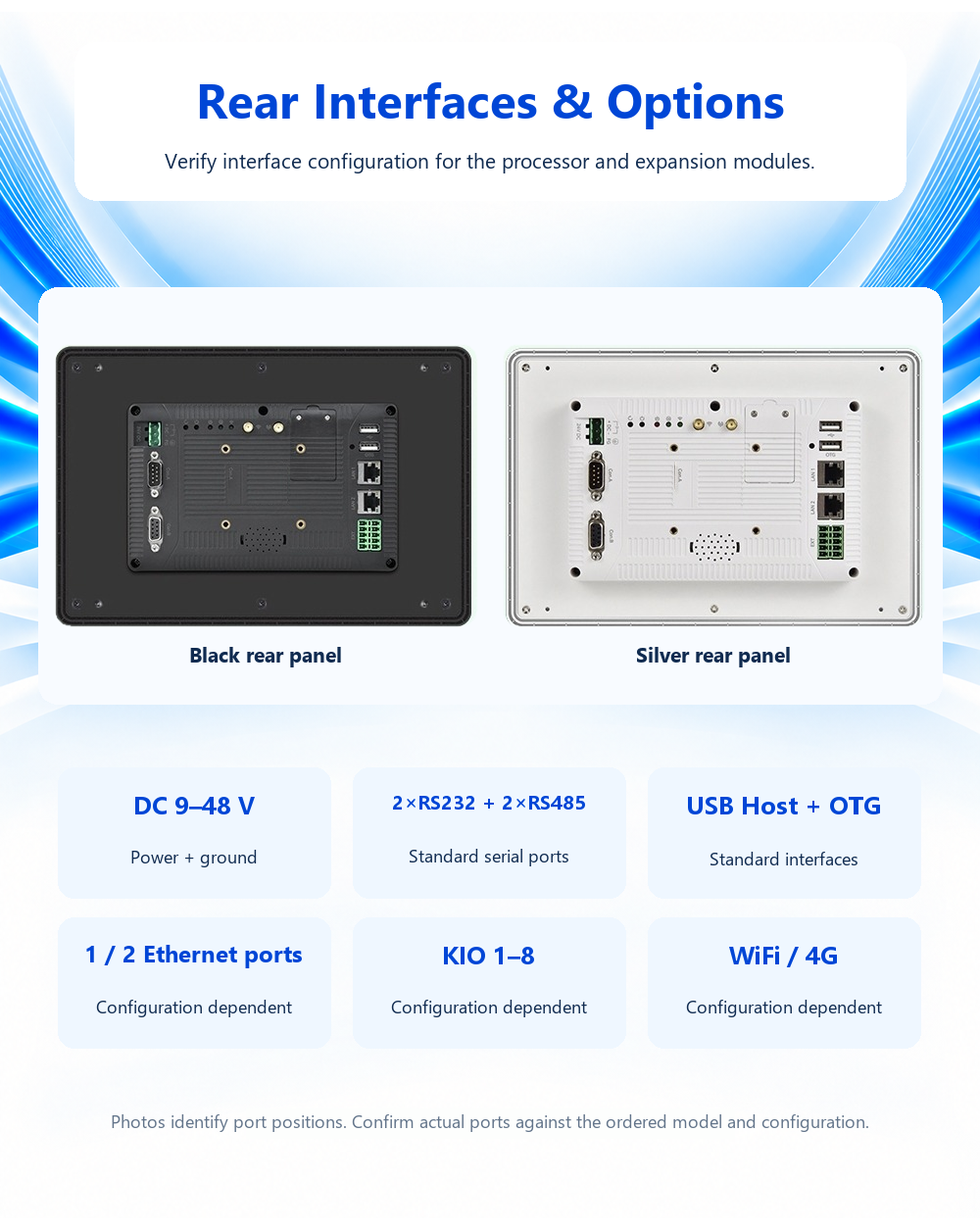

Environment & interfaces
| Operating temperature | -10 – 60 ℃Not specified |
|---|---|
| Serial port count | RS232: 2; RS485: 2 channelsStandard |
| USB count | HOST: 1; OTG: 1 channelsNot specified |
Optional interfaces
| Additional serial ports | RS232: 4; RS485: 4 channelsTotal after expansion |
|---|---|
| Power & ground | 9 / 48 VNot specified |
| Optional Ethernet | 1 / 2 channelsOptional |
| Optional KIO | 8 channelsOptional |
| Speaker | 1.6 WNot specified |

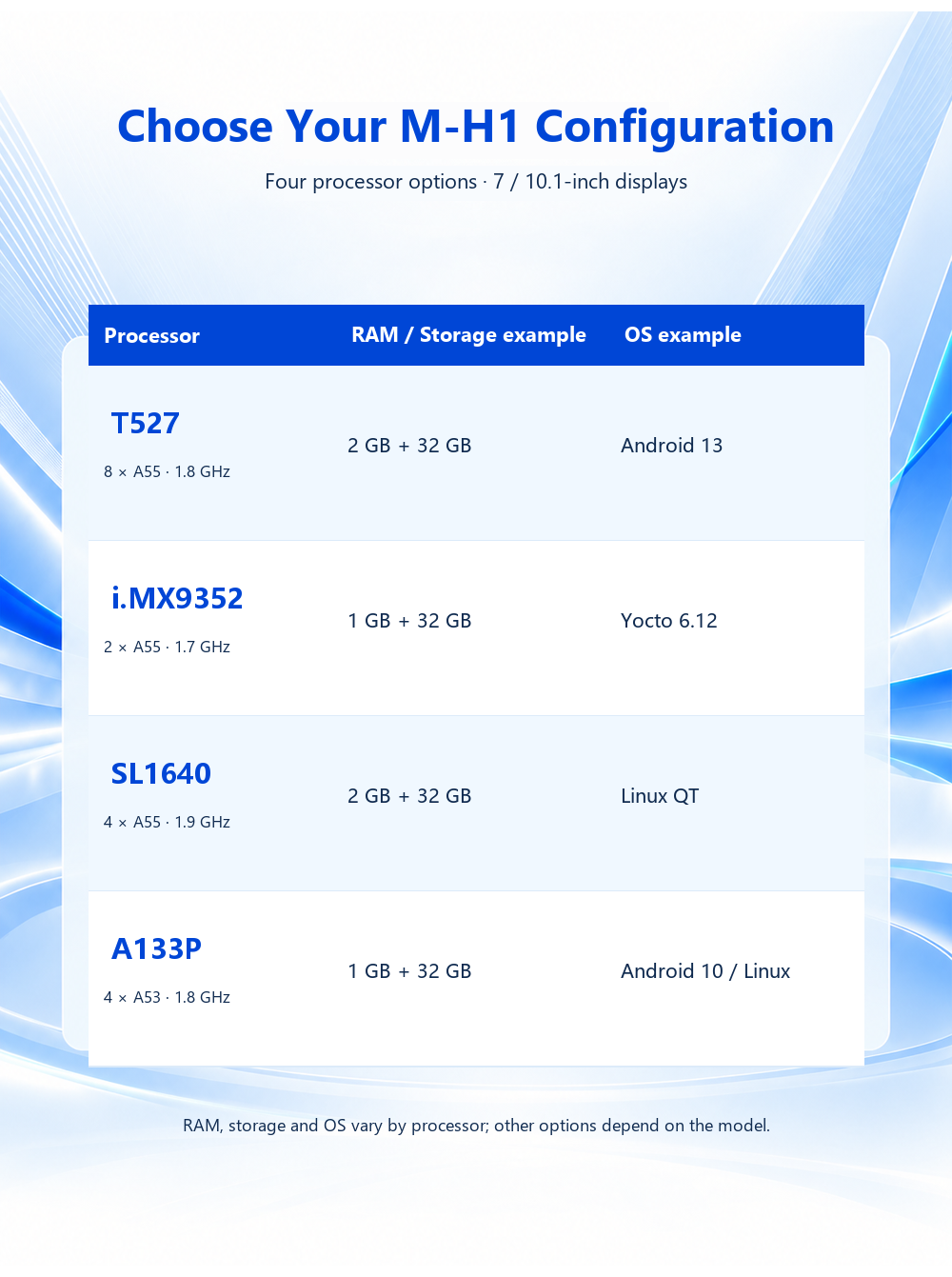

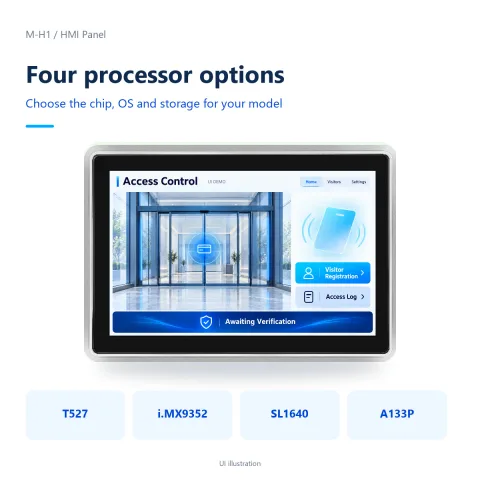

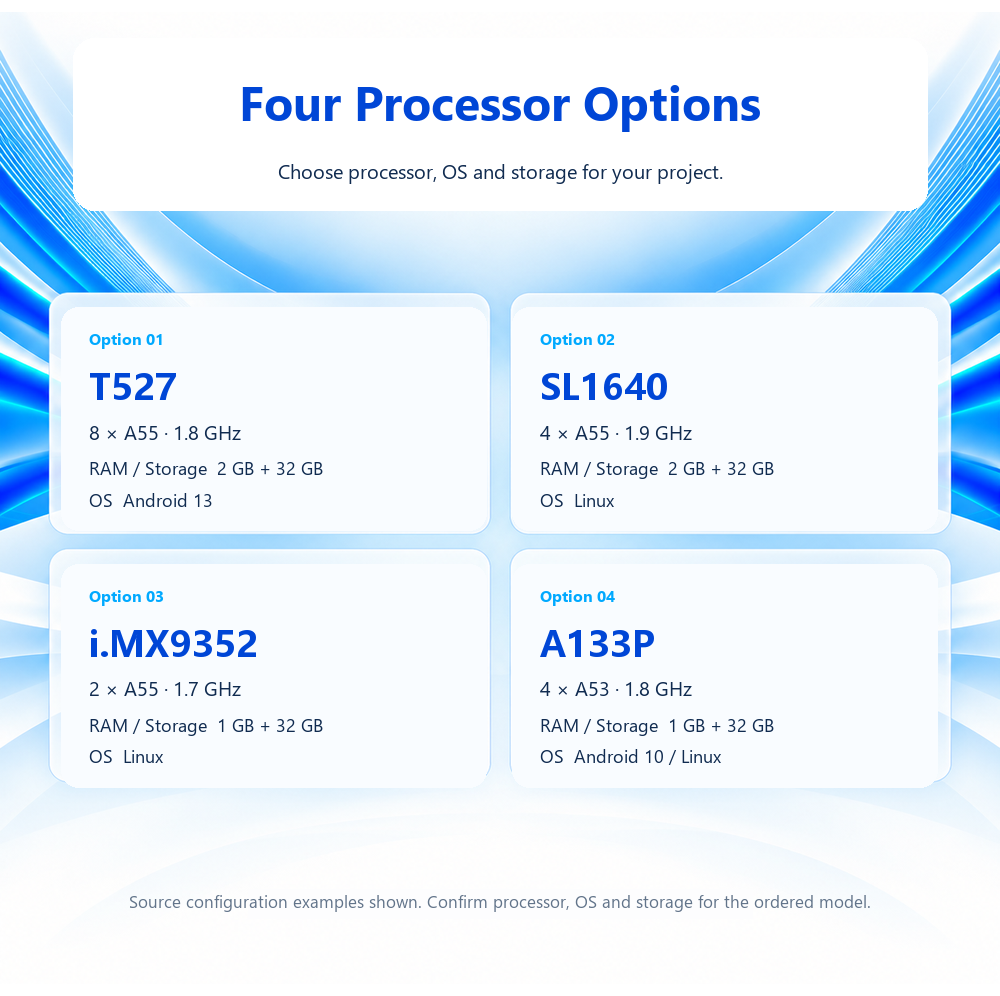

Processor configuration
| Chip | Allwinner A133PNot specified |
|---|---|
| CPU | 4-core A53 @ 1.8 GHzNot specified |

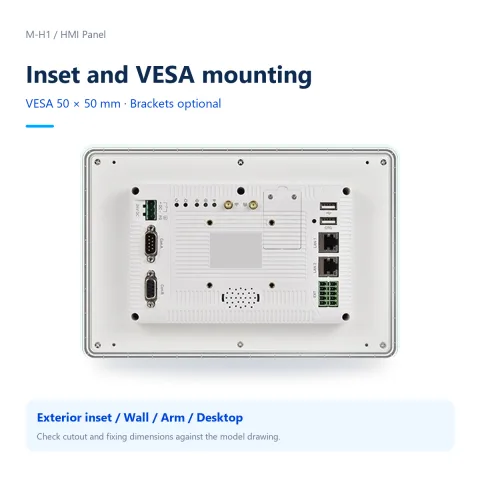

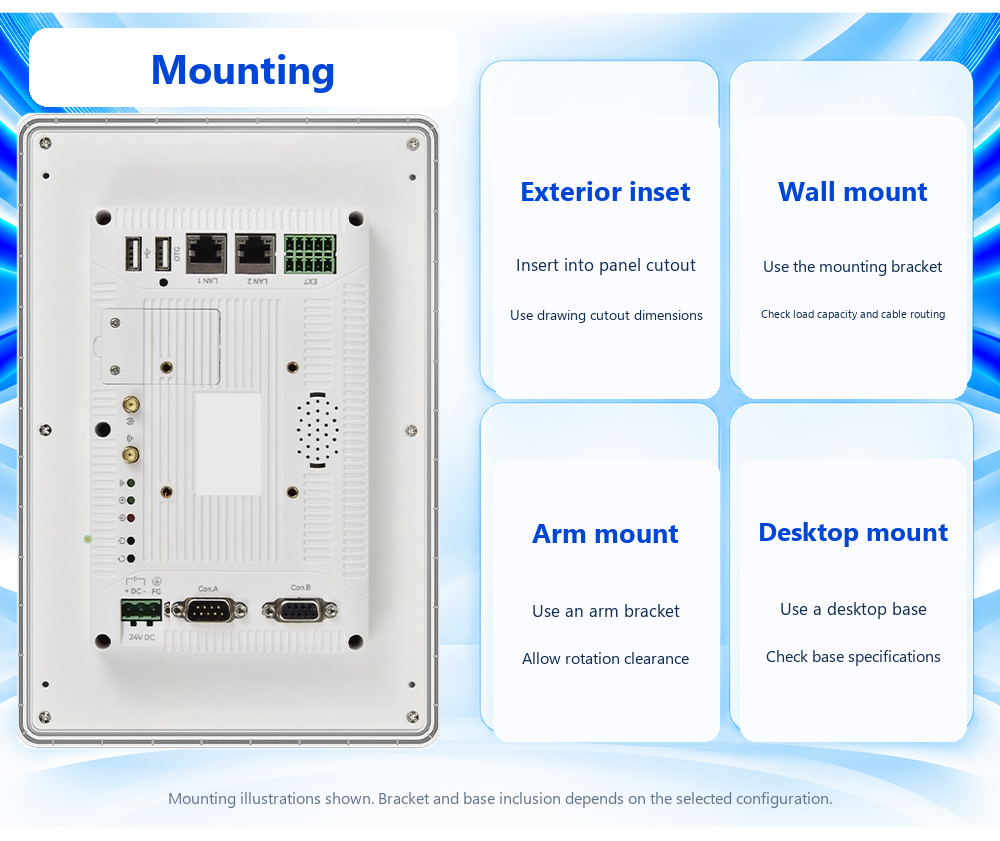

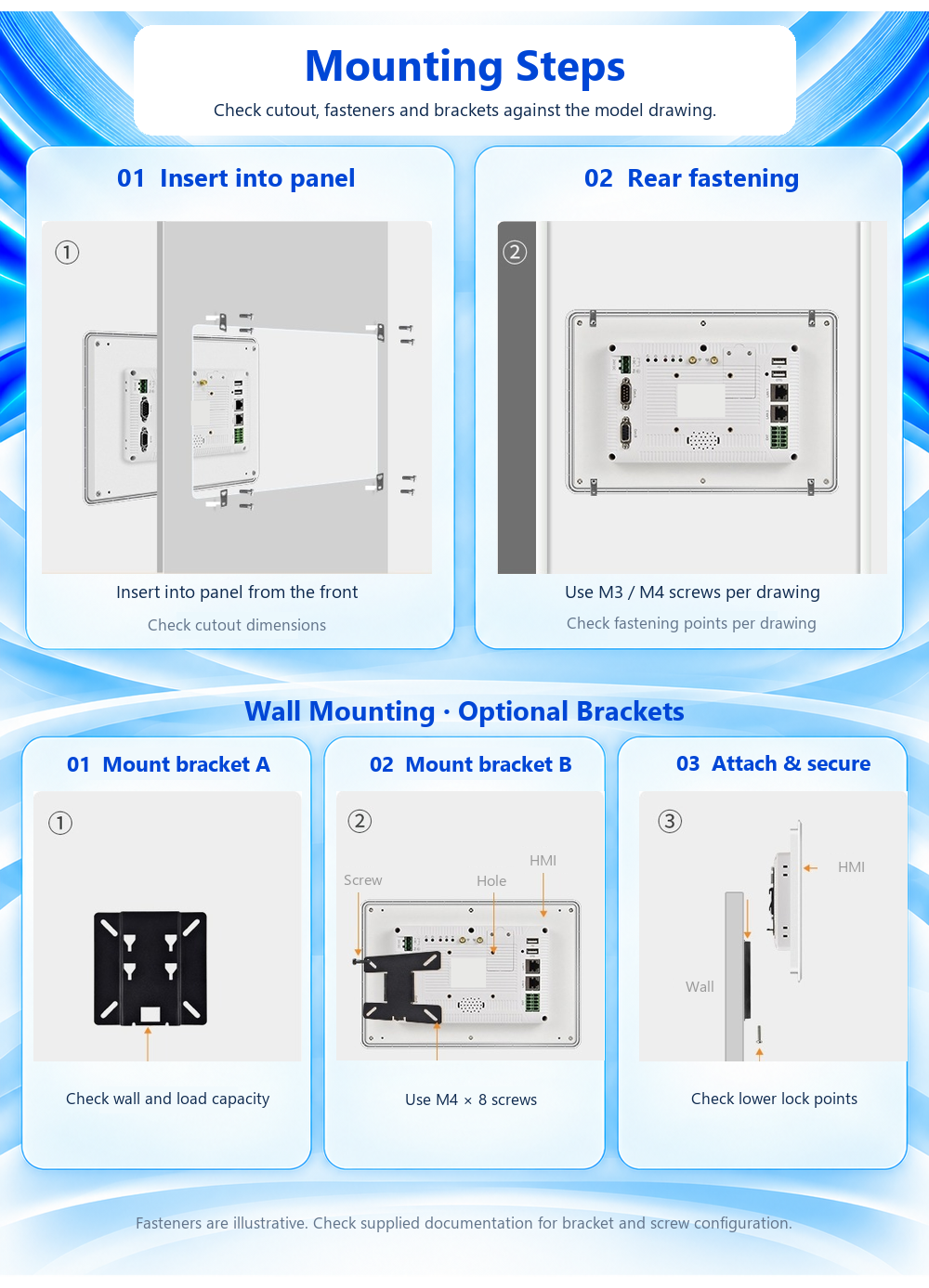

Installation
| Structure | Exterior inset mountingNot specified |
|---|---|
| Mounting examples | Exterior inset / Wall mount / Arm mount / Desktop mountMounting parts depend on configuration |

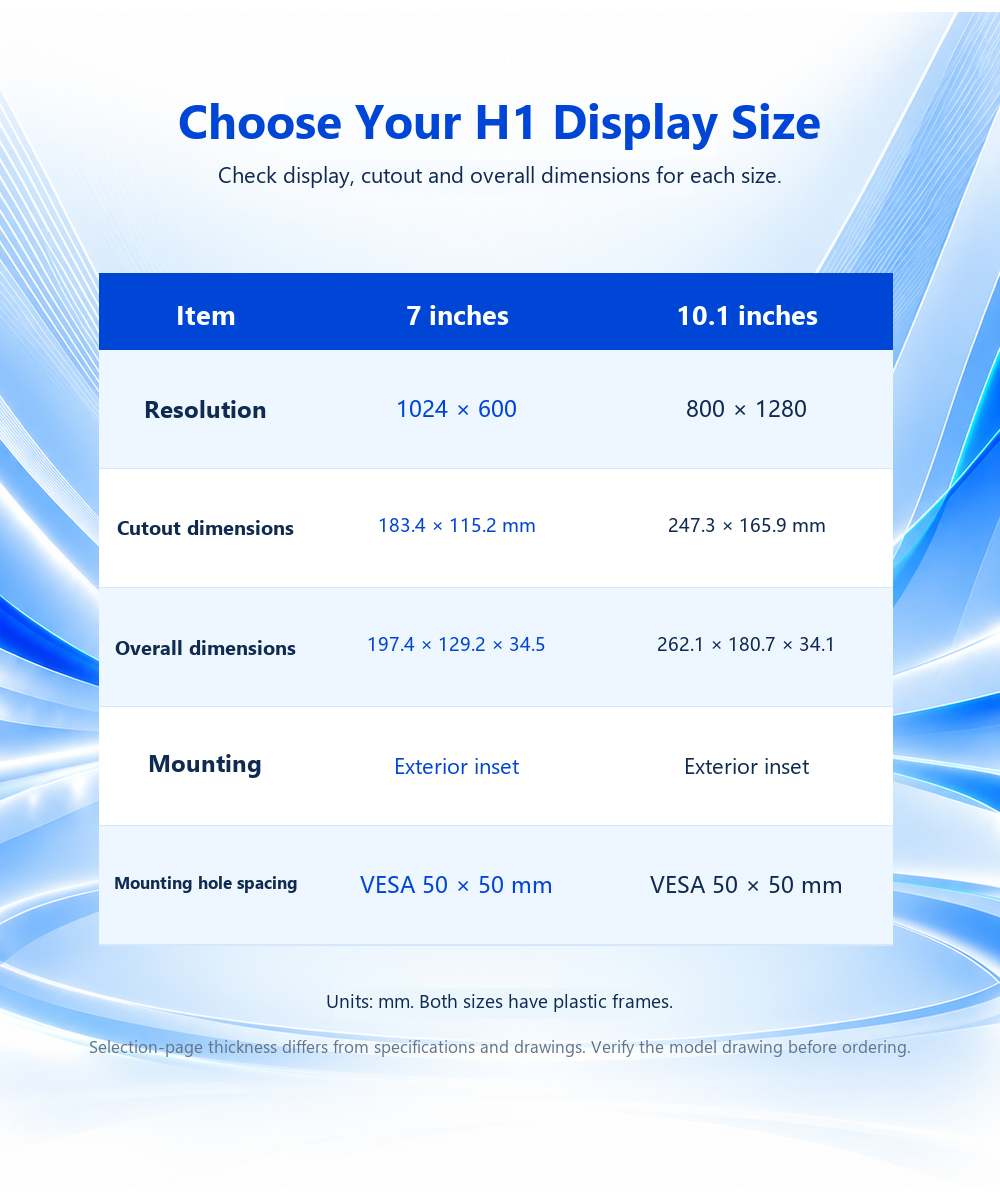

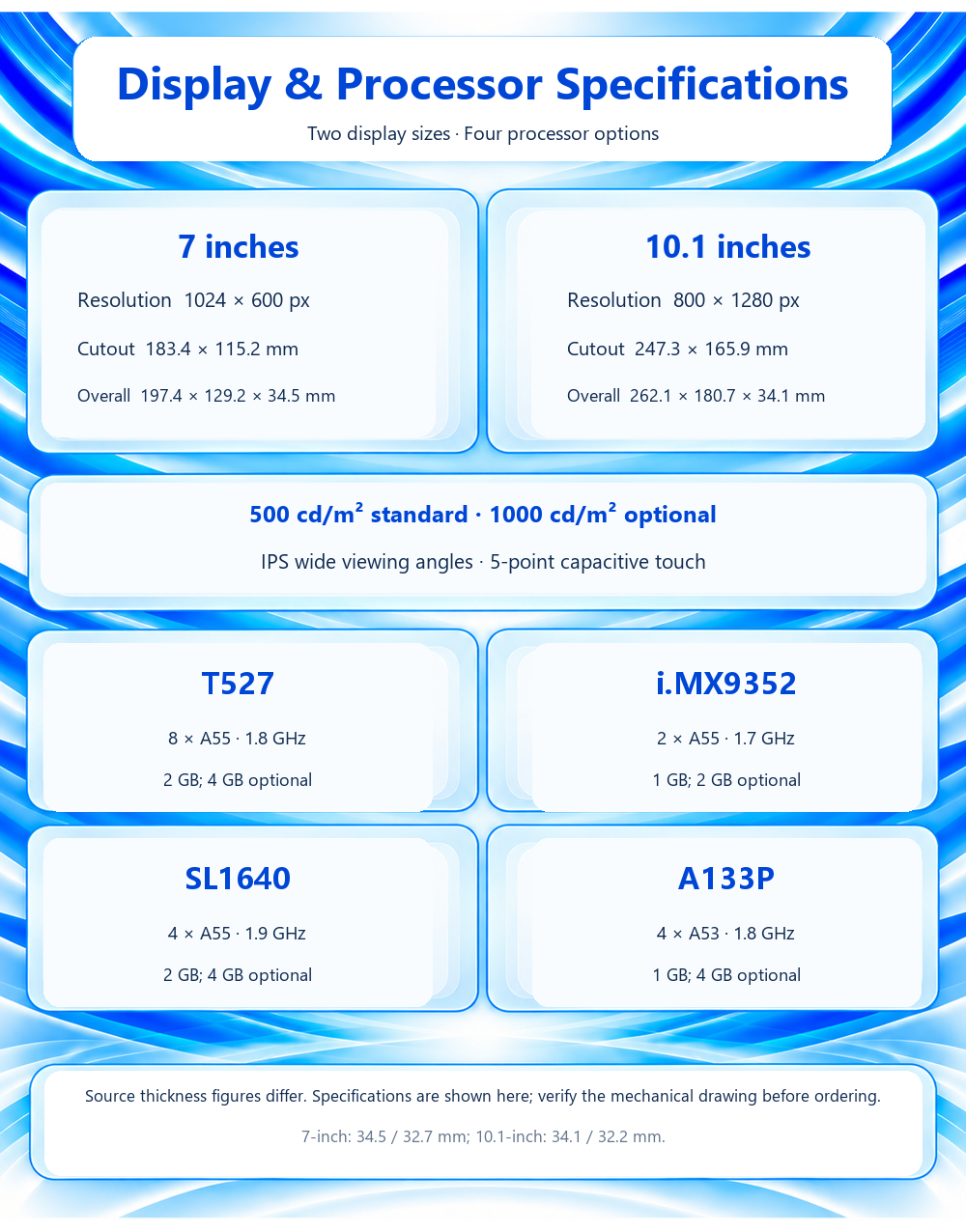

Display & mechanical specifications
| Display size | 7 inchesNot specified |
|---|---|
| Resolution | 1024*600 pixelsNot specified |

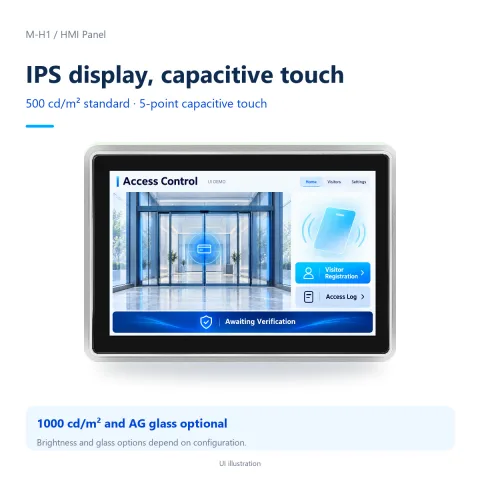

Display & touch specifications
| Backlight brightness | 500 cd/m²1000 optional |
|---|---|
| Viewing angle | IPSNot specified |
| Touch type | 5 pointsNot specified |
Interface specifications
| Audio amplifier | 1.6 WNot specified |
|---|---|
| Power | 9 / 48 VNot specified |

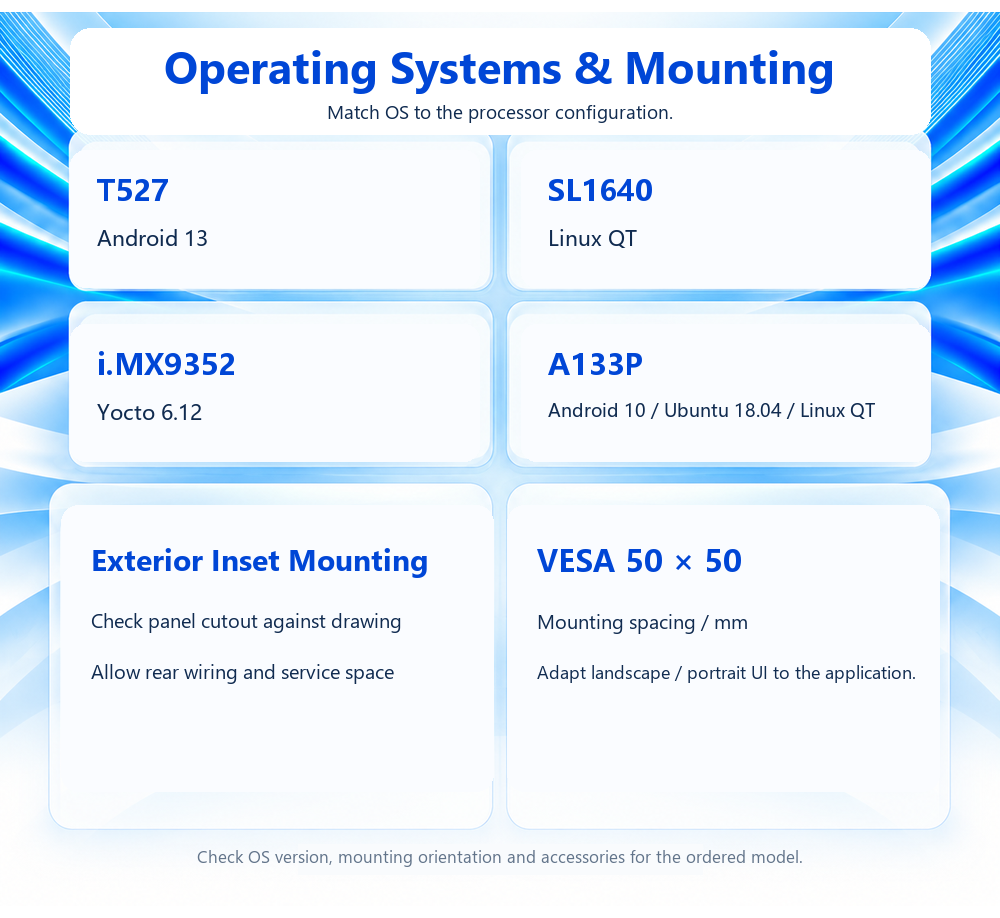

Operating system
| Android systems | Android 10Not specified |
|---|---|
| Linux systems | Ubuntu 18.04/Linux QTNot specified |

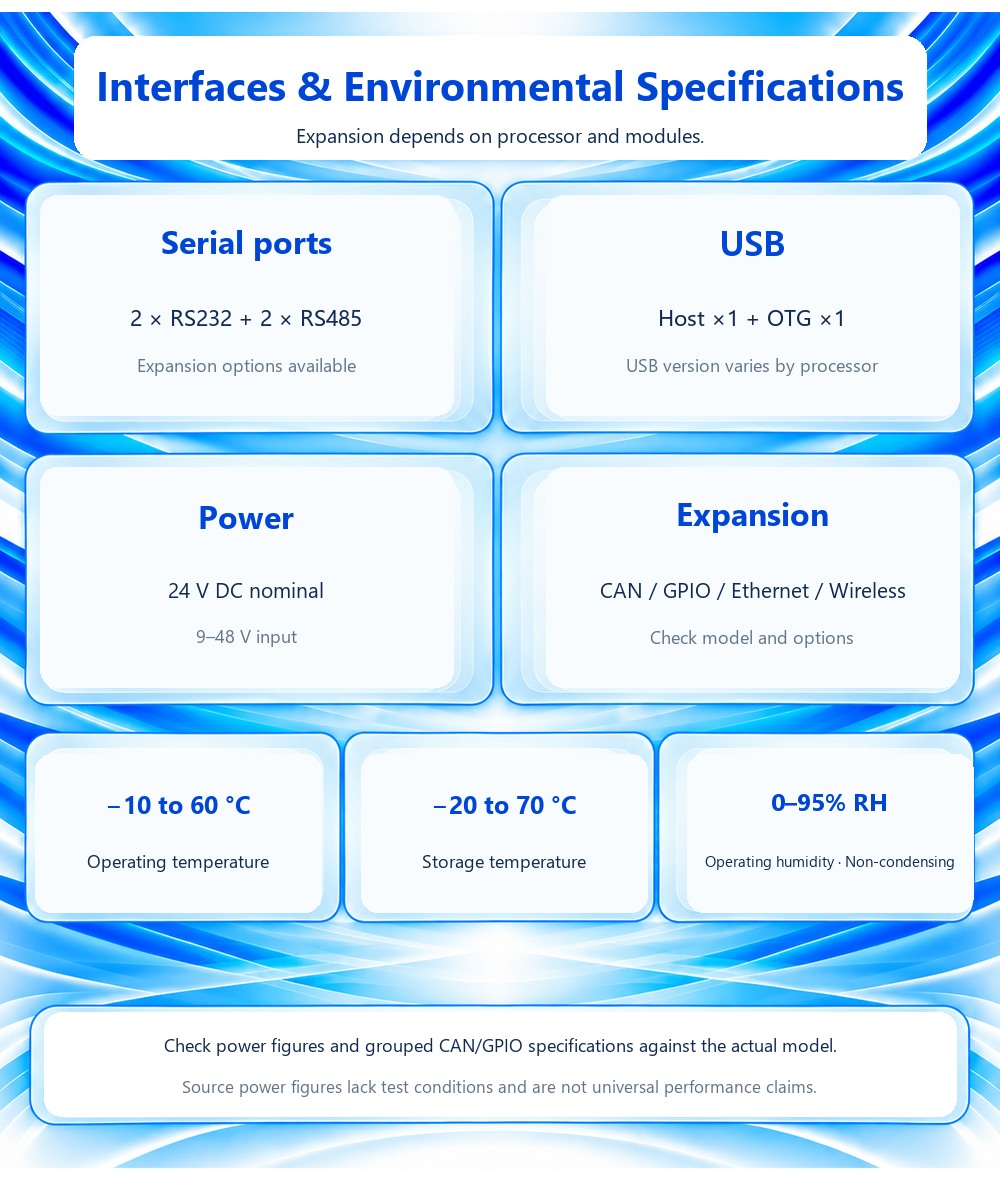

Environmental specifications
| Operating temperature | -10 – 60 ℃Not specified |
|---|---|
| Storage temperature | -20 – 70 ℃Not specified |
| Operating humidity | 0 – 95 %RHNot specified |

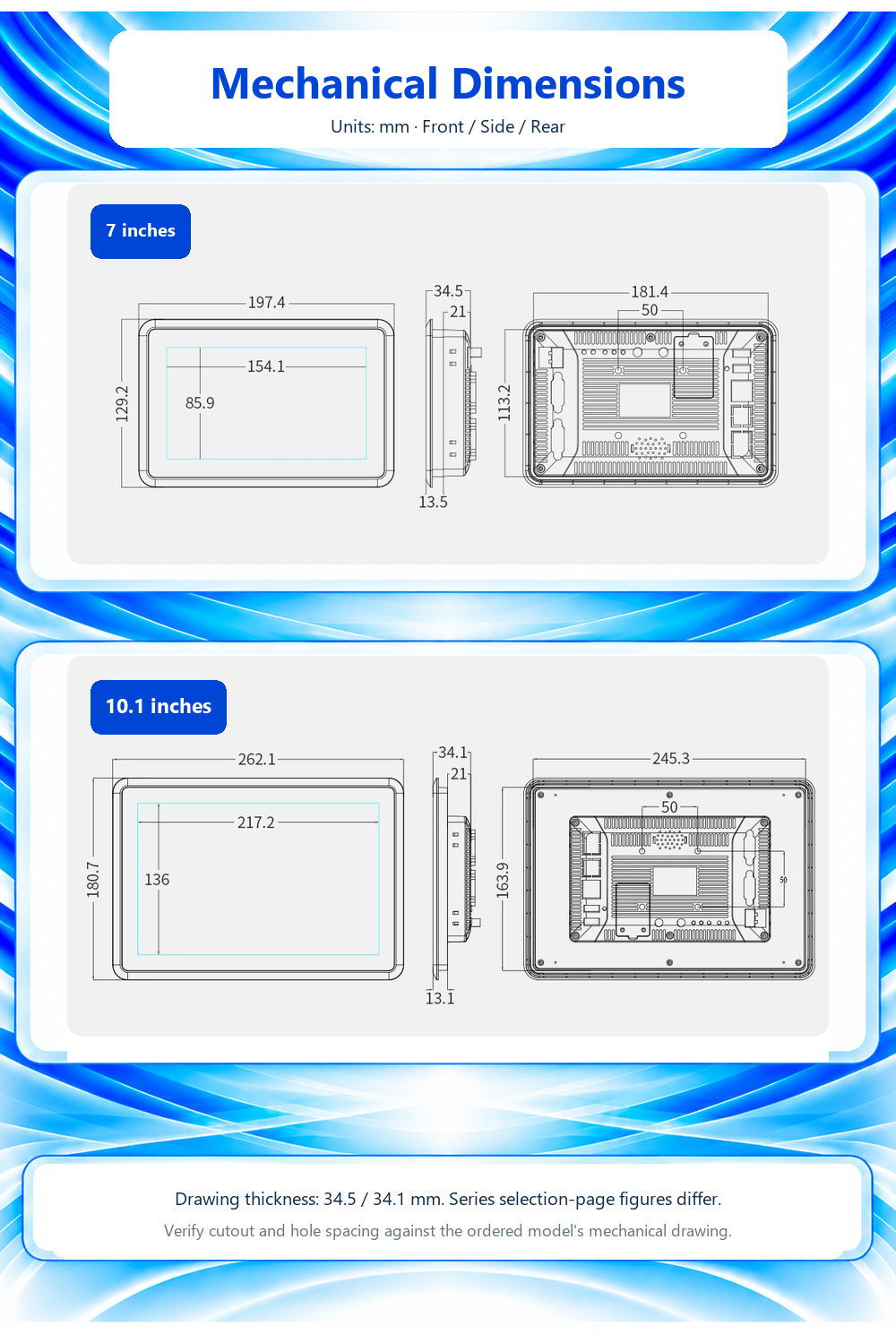

Mechanical drawing
| Display window in drawing | 154.1×85.9 mmNot specified |
|---|---|
| VESA hole spacing | 50 × 50 mmNot specified |

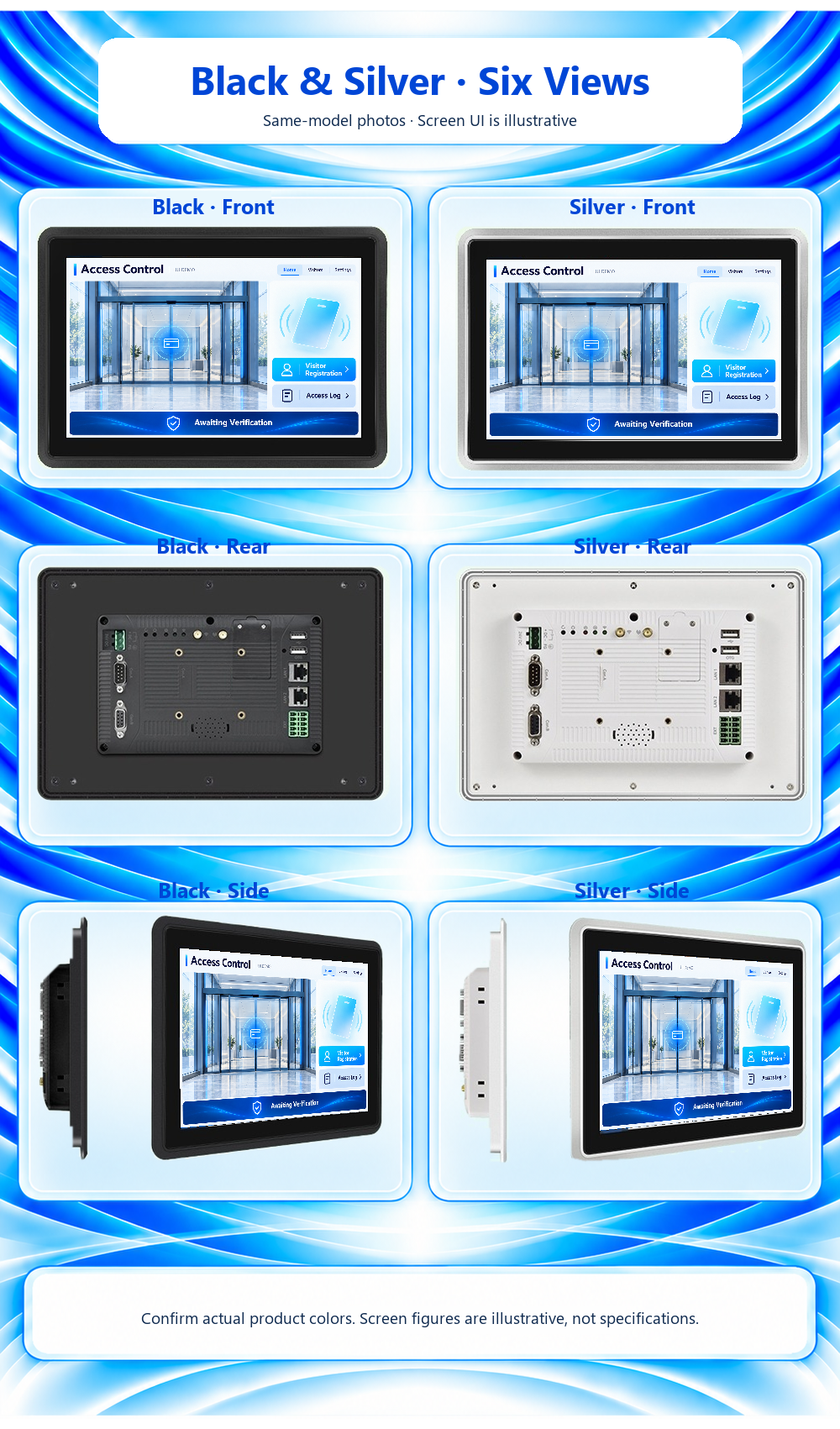

Product photographs
| Frame color | Black / SilverNot specified |
|---|
AYM070H1-IMX93
Product
| Series | M-H1Not specified |
|---|---|
| Size variant | 7 / 10.1 inchesNot specified |
Overview features
| Standard brightness | 500 cd/m²Standard |
|---|---|
| Glass options | Anti-glare glassOptional |
| Standard serial ports | RS232: 2; RS485: 2 channelsStandard |
| Wide voltage input | 9 / 48 VNot specified |
| Rear cable exit | Perpendicular cable exitNot specified |
Series selection
| Chassis mounting | Exterior inset mountingNot specified |
|---|---|
| Mounting holes | 50 × 50 mmNot specified |
| Enclosure material | PlasticNot specified |
| Enclosure color | Silver / BlackCustom options on request |
Appearance
| Panel color | Black / WhiteOptional |
|---|---|
| Frame color | Silver / Black / WhiteOptional |
| Custom frame colors | Red / Blue / Yellow / GreenCustomization examples |
Display
| Standard brightness | 500 cd/m²Standard |
|---|---|
| High-brightness option | 1000 cd/m²Optional |
| AG glass | AG anti-glareOptional |
| Bonding | Full bondingNot specified |
Protection & power
| Overvoltage protection | trueNot specified |
|---|---|
| Overcurrent protection | trueNot specified |
| Input range | 9 / 48 VNot specified |
Structure
| Rear cable exit | Perpendicular rear cable exitNot specified |
|---|
Environment & interfaces
| Operating temperature | -10 – 60 ℃Not specified |
|---|---|
| Serial port count | RS232: 2; RS485: 2 channelsStandard |
| USB count | HOST: 1; OTG: 1 channelsNot specified |
Optional interfaces
| Additional serial ports | RS232: 4; RS485: 4 channelsTotal after expansion |
|---|---|
| Power & ground | 9 / 48 VNot specified |
| Optional Ethernet | 1 / 2 channelsOptional |
| Optional KIO | 8 channelsOptional |
| Speaker | 1.6 WNot specified |
Processor configuration
| Chip | NXP i.MX9352Not specified |
|---|---|
| CPU | 2-core A55 @ 1.7 GHzNot specified |
Installation
| Structure | Exterior inset mountingNot specified |
|---|---|
| Mounting examples | Exterior inset / Wall mount / Arm mount / Desktop mountMounting parts depend on configuration |
Display & mechanical specifications
| Display size | 7 inchesNot specified |
|---|---|
| Resolution | 1024*600 pixelsNot specified |
Display & touch specifications
| Backlight brightness | 500 cd/m²1000 optional |
|---|---|
| Viewing angle | IPSNot specified |
| Touch type | 5 pointsNot specified |
Interface specifications
| Audio amplifier | 1.6 WNot specified |
|---|---|
| Power | 9 / 48 VNot specified |
Operating system
| Linux systems | Yocto 6.12Not specified |
|---|
Environmental specifications
| Operating temperature | -10 – 60 ℃Not specified |
|---|---|
| Storage temperature | -20 – 70 ℃Not specified |
| Operating humidity | 0 – 95 %RHNot specified |
Mechanical drawing
| Display window in drawing | 154.1×85.9 mmNot specified |
|---|---|
| VESA hole spacing | 50 × 50 mmNot specified |
Product photographs
| Frame color | Black / SilverNot specified |
|---|
AYM070H1-SL1640
Product
| Series | M-H1Not specified |
|---|---|
| Size variant | 7 / 10.1 inchesNot specified |
Overview features
| Standard brightness | 500 cd/m²Standard |
|---|---|
| Glass options | Anti-glare glassOptional |
| Standard serial ports | RS232: 2; RS485: 2 channelsStandard |
| Wide voltage input | 9 / 48 VNot specified |
| Rear cable exit | Perpendicular cable exitNot specified |
Series selection
| Chassis mounting | Exterior inset mountingNot specified |
|---|---|
| Mounting holes | 50 × 50 mmNot specified |
| Enclosure material | PlasticNot specified |
| Enclosure color | Silver / BlackCustom options on request |
Appearance
| Panel color | Black / WhiteOptional |
|---|---|
| Frame color | Silver / Black / WhiteOptional |
| Custom frame colors | Red / Blue / Yellow / GreenCustomization examples |
Display
| Standard brightness | 500 cd/m²Standard |
|---|---|
| High-brightness option | 1000 cd/m²Optional |
| AG glass | AG anti-glareOptional |
| Bonding | Full bondingNot specified |
Protection & power
| Overvoltage protection | trueNot specified |
|---|---|
| Overcurrent protection | trueNot specified |
| Input range | 9 / 48 VNot specified |
Structure
| Rear cable exit | Perpendicular rear cable exitNot specified |
|---|
Environment & interfaces
| Operating temperature | -10 – 60 ℃Not specified |
|---|---|
| Serial port count | RS232: 2; RS485: 2 channelsStandard |
| USB count | HOST: 1; OTG: 1 channelsNot specified |
Optional interfaces
| Additional serial ports | RS232: 4; RS485: 4 channelsTotal after expansion |
|---|---|
| Power & ground | 9 / 48 VNot specified |
| Optional Ethernet | 1 / 2 channelsOptional |
| Optional KIO | 8 channelsOptional |
| Speaker | 1.6 WNot specified |
Processor configuration
| Chip | Synaptics SL1640Not specified |
|---|---|
| CPU | 4-core A55 @ 1.9 GHzNot specified |
Installation
| Structure | Exterior inset mountingNot specified |
|---|---|
| Mounting examples | Exterior inset / Wall mount / Arm mount / Desktop mountMounting parts depend on configuration |
Display & mechanical specifications
| Display size | 7 inchesNot specified |
|---|---|
| Resolution | 1024*600 pixelsNot specified |
Display & touch specifications
| Backlight brightness | 500 cd/m²1000 optional |
|---|---|
| Viewing angle | IPSNot specified |
| Touch type | 5 pointsNot specified |
Interface specifications
| Audio amplifier | 1.6 WNot specified |
|---|---|
| Power | 9 / 48 VNot specified |
Operating system
| Linux systems | Linux QTNot specified |
|---|
Environmental specifications
| Operating temperature | -10 – 60 ℃Not specified |
|---|---|
| Storage temperature | -20 – 70 ℃Not specified |
| Operating humidity | 0 – 95 %RHNot specified |
Mechanical drawing
| Display window in drawing | 154.1×85.9 mmNot specified |
|---|---|
| VESA hole spacing | 50 × 50 mmNot specified |
Product photographs
| Frame color | Black / SilverNot specified |
|---|
AYM070H1-T527
Product
| Series | M-H1Not specified |
|---|---|
| Size variant | 7 / 10.1 inchesNot specified |
Overview features
| Standard brightness | 500 cd/m²Standard |
|---|---|
| Glass options | Anti-glare glassOptional |
| Standard serial ports | RS232: 2; RS485: 2 channelsStandard |
| Wide voltage input | 9 / 48 VNot specified |
| Rear cable exit | Perpendicular cable exitNot specified |
Series selection
| Chassis mounting | Exterior inset mountingNot specified |
|---|---|
| Mounting holes | 50 × 50 mmNot specified |
| Enclosure material | PlasticNot specified |
| Enclosure color | Silver / BlackCustom options on request |
Appearance
| Panel color | Black / WhiteOptional |
|---|---|
| Frame color | Silver / Black / WhiteOptional |
| Custom frame colors | Red / Blue / Yellow / GreenCustomization examples |
Display
| Standard brightness | 500 cd/m²Standard |
|---|---|
| High-brightness option | 1000 cd/m²Optional |
| AG glass | AG anti-glareOptional |
| Bonding | Full bondingNot specified |
Protection & power
| Overvoltage protection | trueNot specified |
|---|---|
| Overcurrent protection | trueNot specified |
| Input range | 9 / 48 VNot specified |
Structure
| Rear cable exit | Perpendicular rear cable exitNot specified |
|---|
Environment & interfaces
| Operating temperature | -10 – 60 ℃Not specified |
|---|---|
| Serial port count | RS232: 2; RS485: 2 channelsStandard |
| USB count | HOST: 1; OTG: 1 channelsNot specified |
Optional interfaces
| Additional serial ports | RS232: 4; RS485: 4 channelsTotal after expansion |
|---|---|
| Power & ground | 9 / 48 VNot specified |
| Optional Ethernet | 1 / 2 channelsOptional |
| Optional KIO | 8 channelsOptional |
| Speaker | 1.6 WNot specified |
Processor configuration
| Chip | Allwinner T527Not specified |
|---|---|
| CPU | 8-core A55 @ 1.8 GHzNot specified |
Installation
| Structure | Exterior inset mountingNot specified |
|---|---|
| Mounting examples | Exterior inset / Wall mount / Arm mount / Desktop mountMounting parts depend on configuration |
Display & mechanical specifications
| Display size | 7 inchesNot specified |
|---|---|
| Resolution | 1024*600 pixelsNot specified |
Display & touch specifications
| Backlight brightness | 500 cd/m²1000 optional |
|---|---|
| Viewing angle | IPSNot specified |
| Touch type | 5 pointsNot specified |
Interface specifications
| Audio amplifier | 1.6 WNot specified |
|---|---|
| Power | 9 / 48 VNot specified |
Operating system
| Android systems | Android 13Not specified |
|---|
Environmental specifications
| Operating temperature | -10 – 60 ℃Not specified |
|---|---|
| Storage temperature | -20 – 70 ℃Not specified |
| Operating humidity | 0 – 95 %RHNot specified |
Mechanical drawing
| Display window in drawing | 154.1×85.9 mmNot specified |
|---|---|
| VESA hole spacing | 50 × 50 mmNot specified |
Product photographs
| Frame color | Black / SilverNot specified |
|---|
M-H1-070
Let’s find your configuration
Tell us about your application, quantities and interface requirements. We will help confirm a suitable configuration.
Thank you — your inquiry was sent.
We'll get back to you shortly. For urgent matters, reach us via WhatsApp or email.
