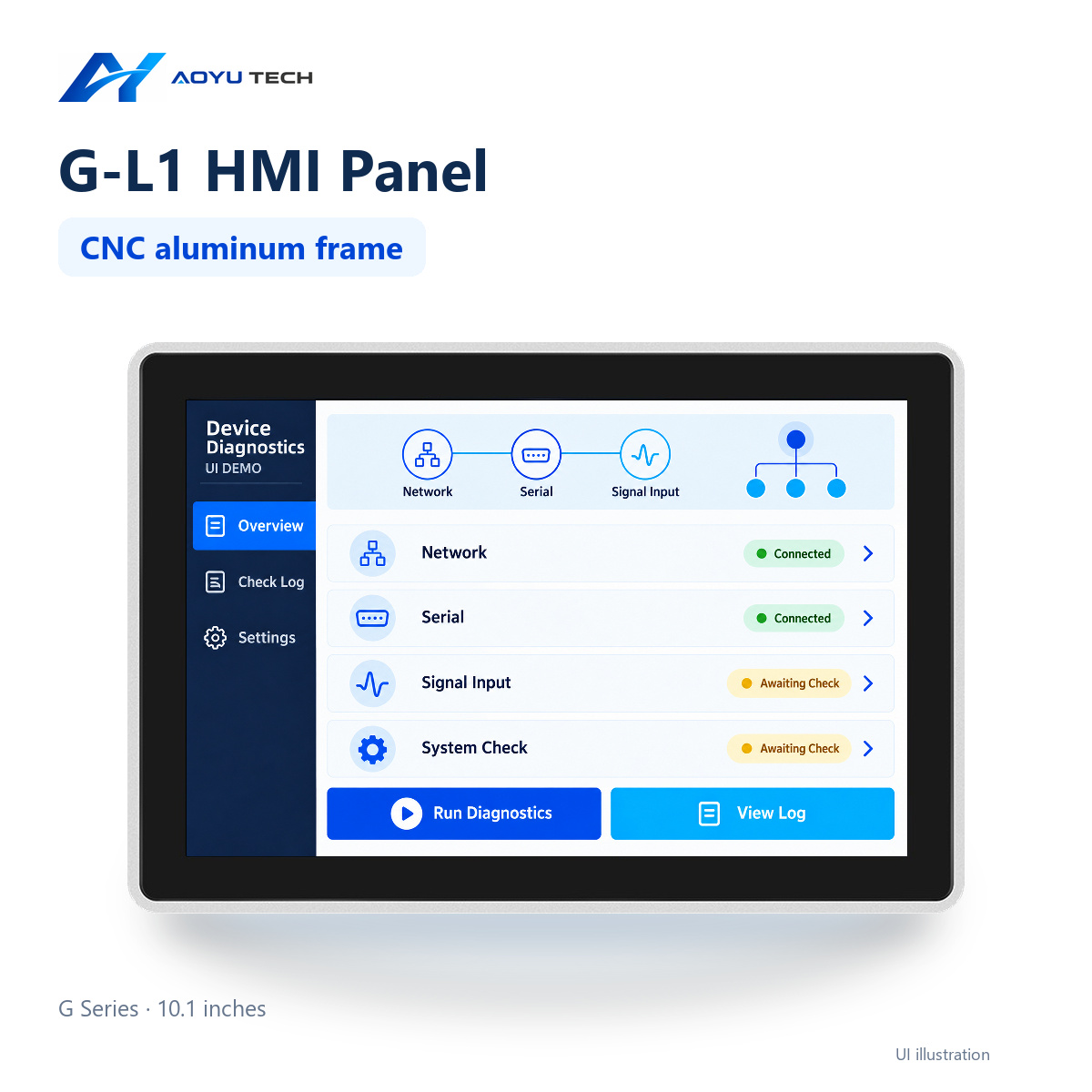

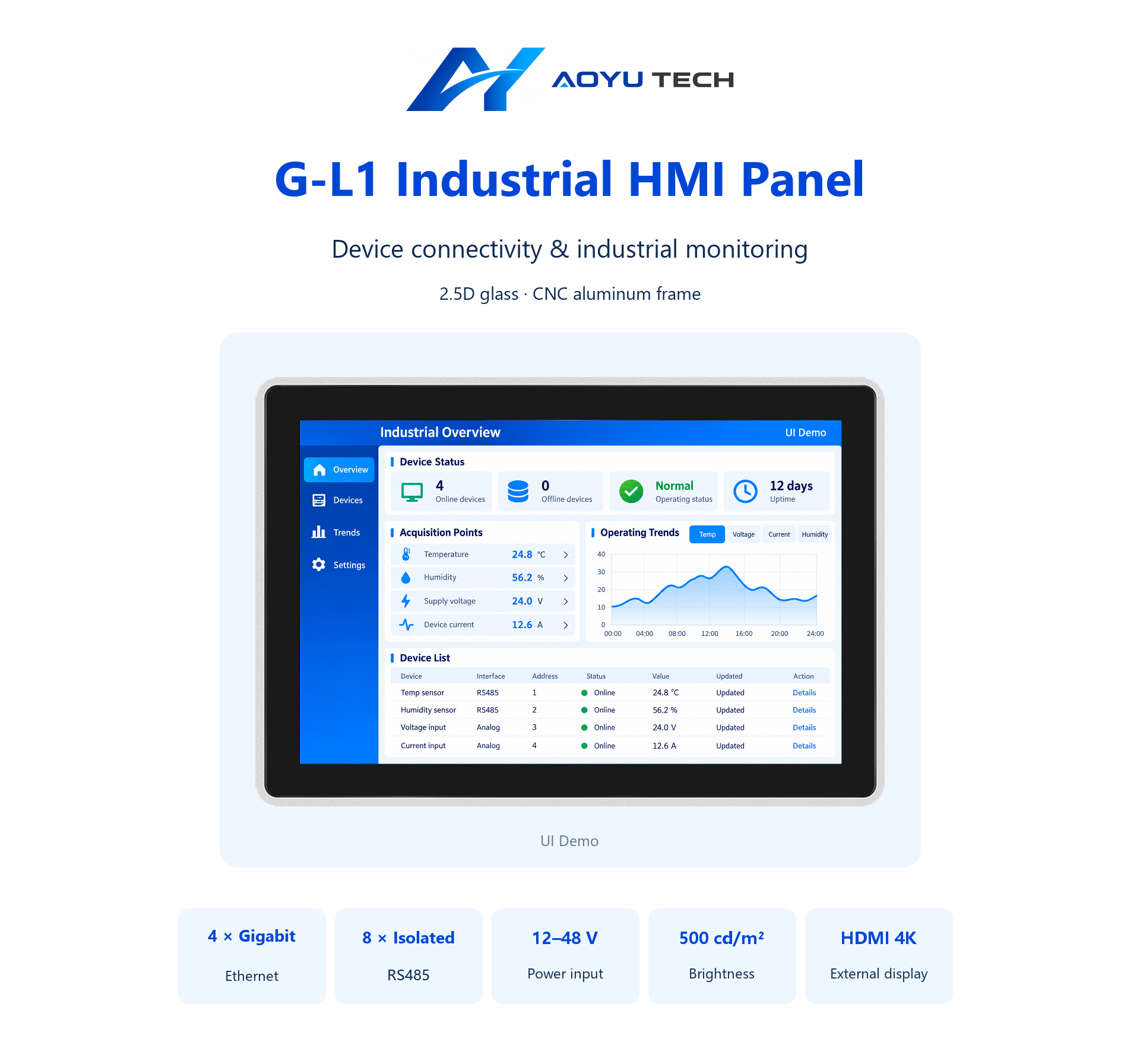

G-L1-101 10.1-inch HMI Panel
10.1 inches · Auto Control G Series
- Frame material and process
- CNC aluminum alloy
- Glass
- 2.5D glass
- Mounting structure
- Exterior inset mounting

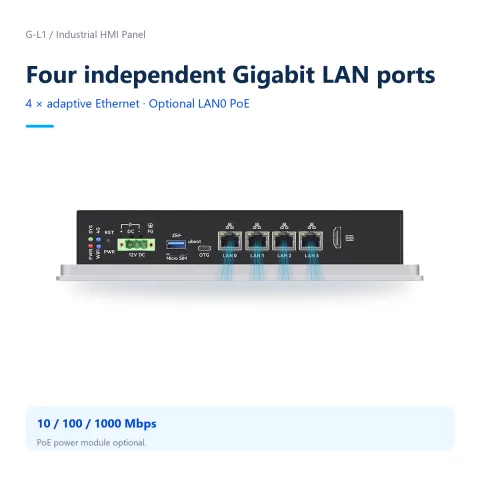

- Ethernet
- count: 4; speed: 1000 Mbps
Specifications follow the selected configuration. Contact us to confirm options and delivery requirements.
Built around your requirements
Explore the display, enclosure and configuration-specific capabilities of this HMI panel.
Frame material and process: CNC aluminum alloy. Glass: 2.5D glass. Mounting structure: Exterior inset mounting. Ethernet: count: 4; speed: 1000 Mbps
- Frame material and process: CNC aluminum alloy
- Glass: 2.5D glass
- Mounting structure: Exterior inset mounting
- Ethernet: count: 4; speed: 1000 Mbps
A closer look
Complete series material may show other sizes or configurations. Refer to the selected model specifications and confirmed delivery configuration. Select an image to enlarge it.
Configuration & specifications
Only source-checked specifications with a clear model association are listed. Contact us for details that are not listed.
AYG101L1-RK3568
Overview
| Frame material and process | CNC aluminum alloyNot specified |
|---|---|
| Glass | 2.5D glassNot specified |
| Mounting structure | Exterior inset mountingNot specified |
| Ethernet | count: 4; speed: 1000 MbpsNot specified |
| PoE | PoEOptional |
| Power input | 12 / 48 VNot specified |
| Brightness | 500 cd/m²Not specified |

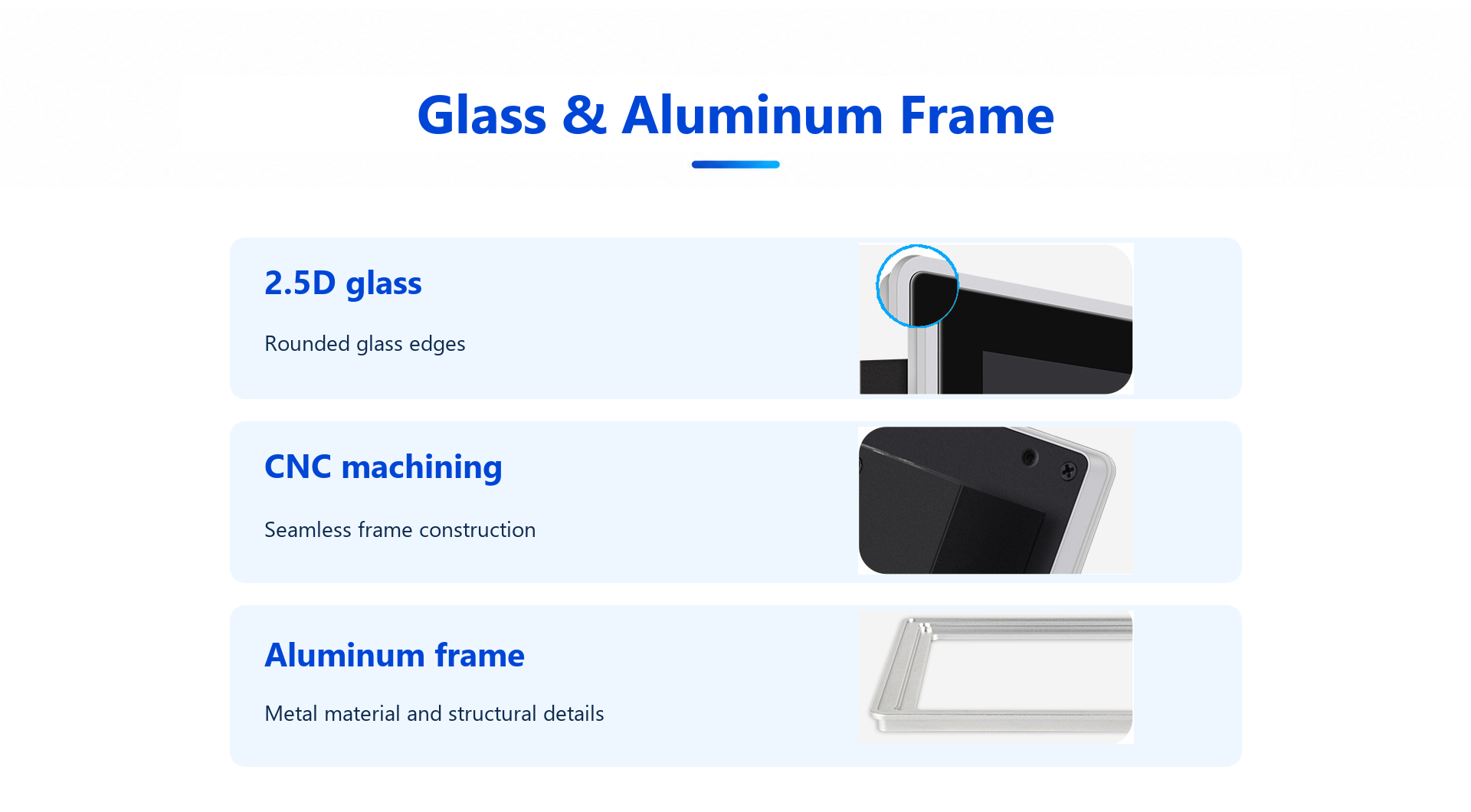

Glass and structure
| Glass | 2.5DNot specified |
|---|---|
| Frame manufacturing process | CNCNot specified |
| Frame material | Aluminum alloyNot specified |

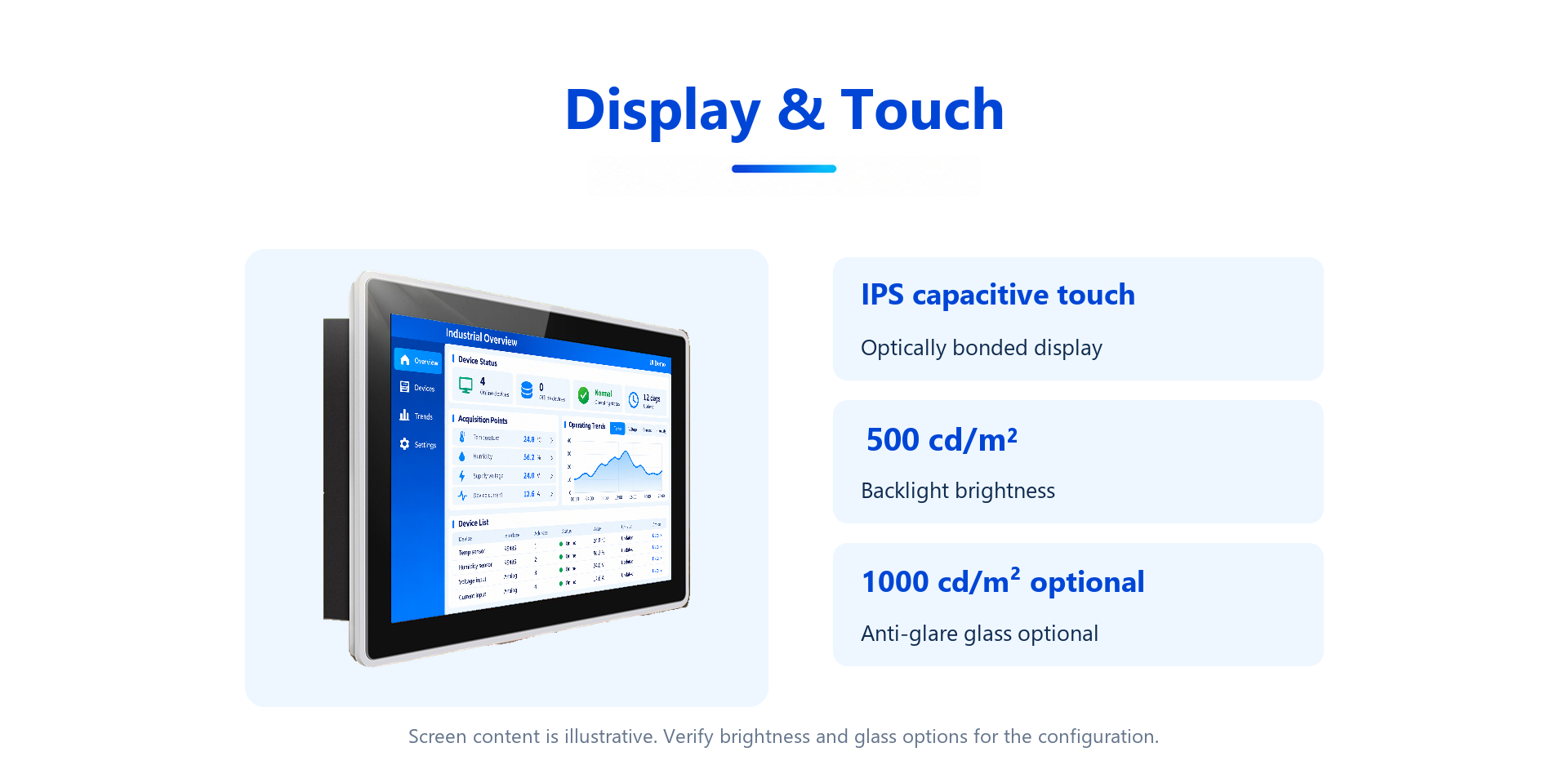

Display

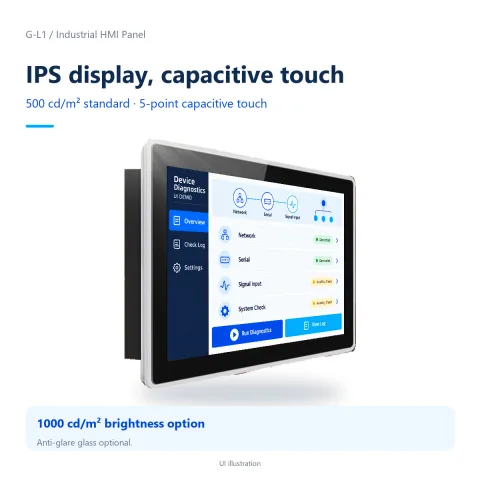

| Panel | IPSNot specified |
|---|---|
| Backlight brightness | 500 cd/m²Standard configuration per specification table |
| Bonding | Full bondingNot specified |
| Optional brightness | 1000 cd/m²Optional |
| Optional glass | Anti-glare glassOptional |
Network
| Ethernet count | count: 4; speed: 1000 MbpsNot specified |
|---|---|
| PoE | PoEOptional |

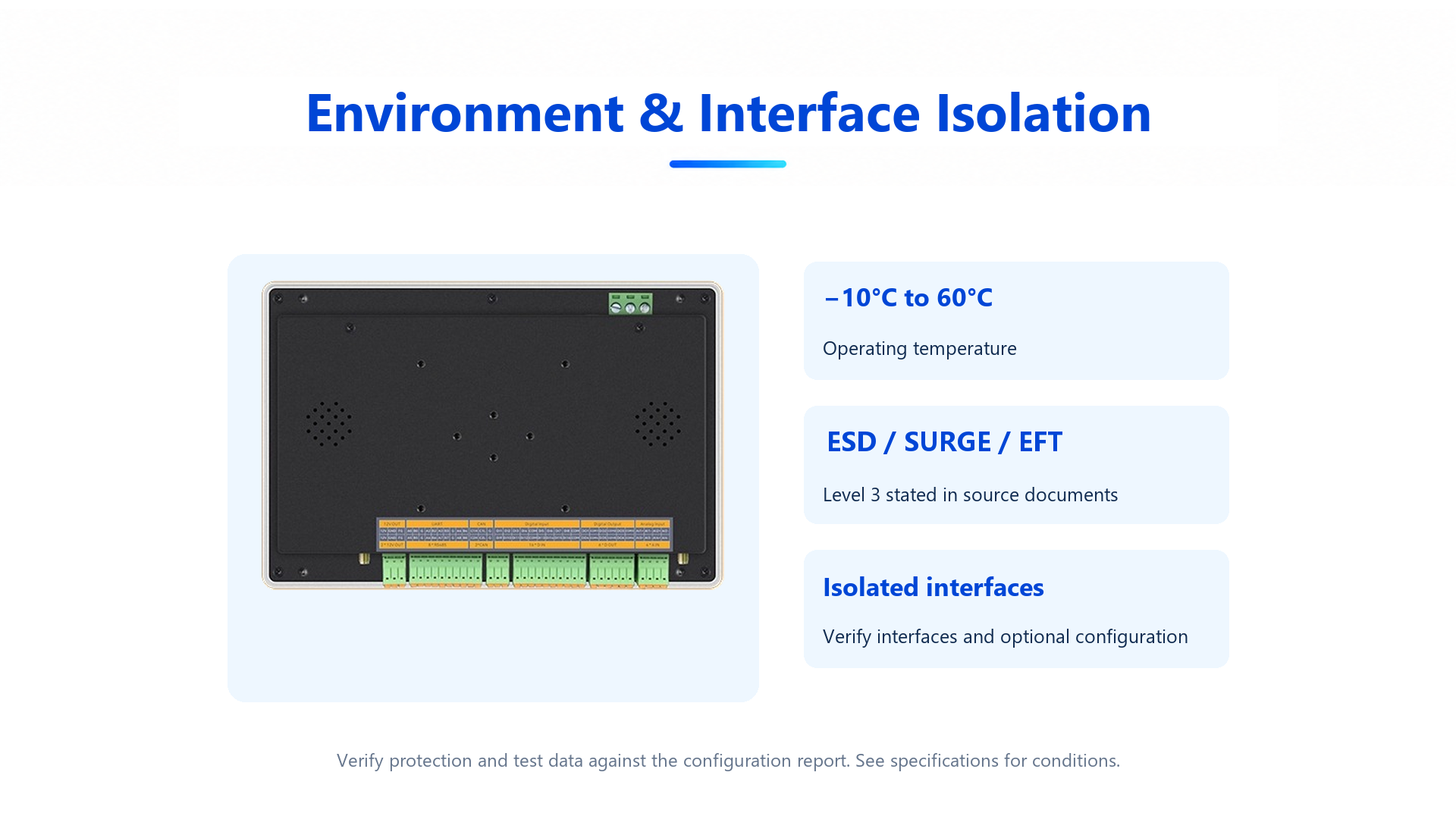

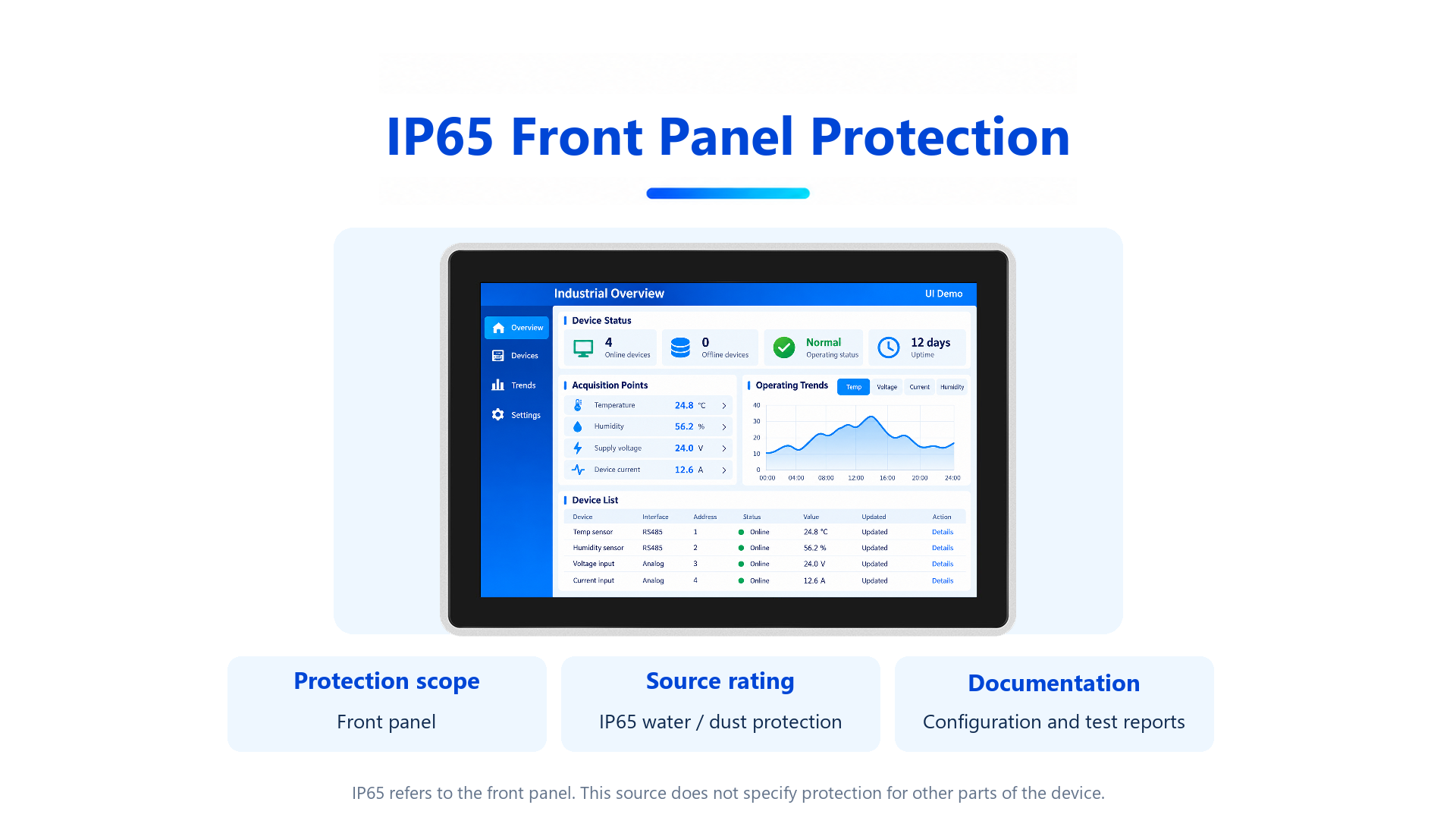

Environment and protection
| Operating temperature | -10 – 60 ℃Not specified |
|---|
Interfaces
| RS485 | 8 channelsOptionality not stated |
|---|
Power supply
| Input range | 12 / 48 VNot specified |
|---|---|
| Input protection | trueNot specified |
| Power output count | 2 channelsNot specified |
| Output isolation and protection | Electrical isolation / Reverse-polarity protectionNot specified |

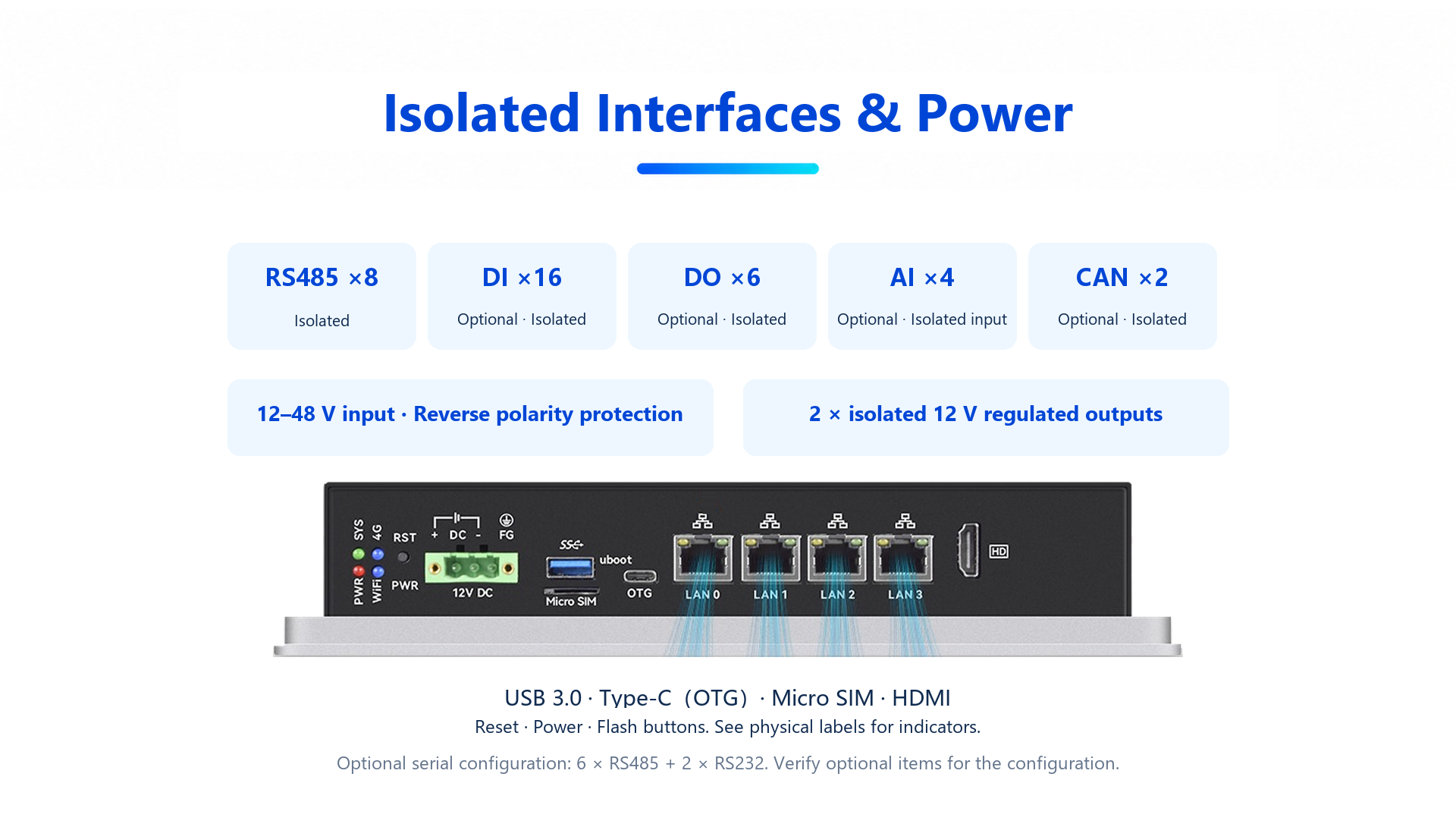

Front interfaces
| Indicators | System / 4G / Power / WiFiNot specified |
|---|---|
| Reset button | Reset buttonNot specified |
| Ground | FGNot specified |
| USB Host | USB3.0Not specified |
| Programming button | Programming buttonNot specified |
| Power input connector | DC 12V/48VNot specified |
| Power button | Power buttonNot specified |
| SIM slot | Micro SIMNot specified |
| USB OTG | Type-C OTGNot specified |
| Ethernet | 4 channelsNot specified |
| Video output | HDMINot specified |

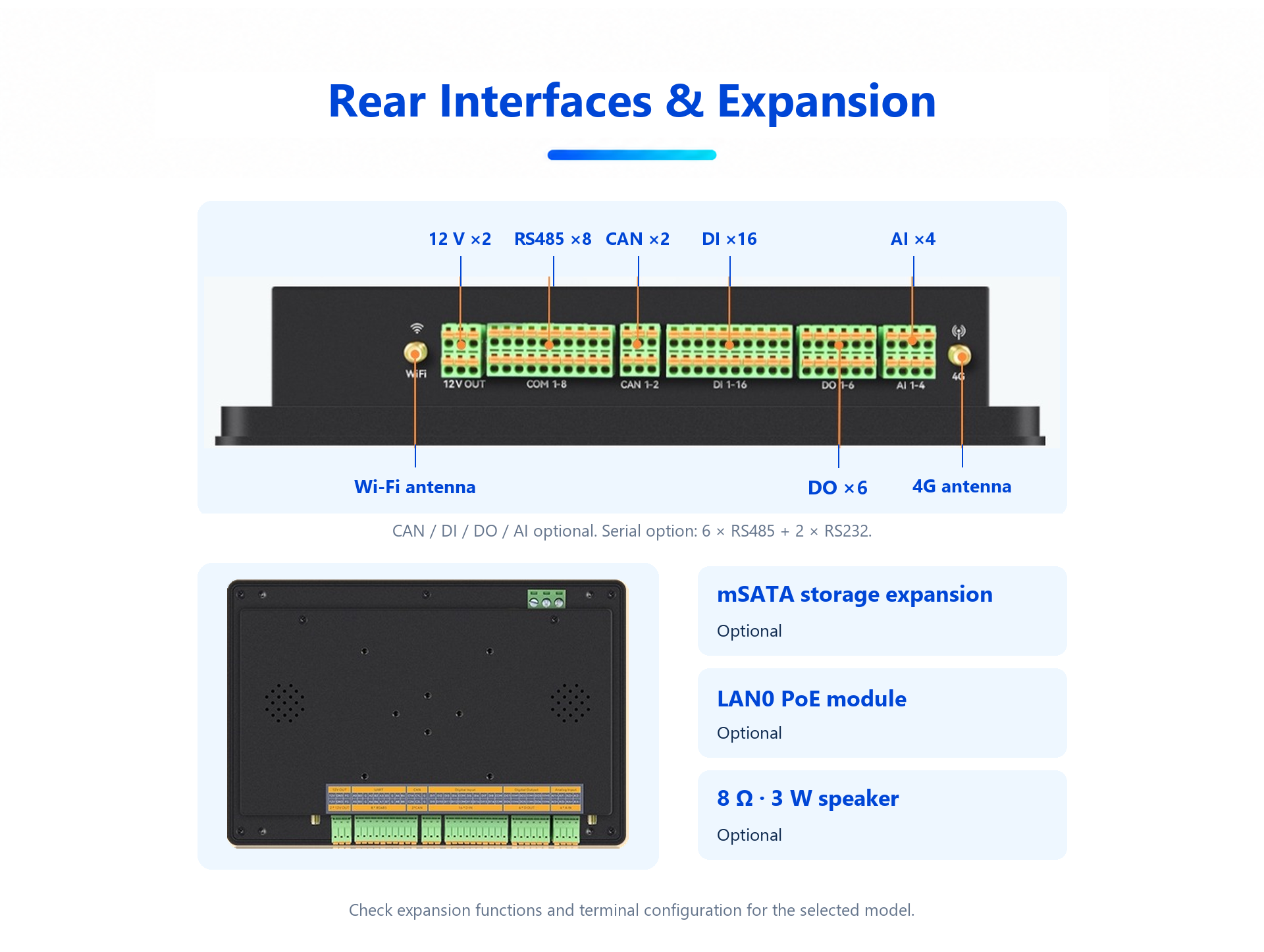

Rear interfaces
| Power output | count: 2; voltage: 12Not specified |
|---|---|
| RS485 | 8 channelsNot specified |
| Wi-Fi antenna | Wi-Fi antennaNot specified |
| 4G antenna | 4G antennaNot specified |
| Serial-port variant | RS485: 6; RS232: 2 channelsOptional |
Expansion
| Storage | mSATAOptional |
|---|---|
| Speaker | impedance: 8; power: 3Optional |
| PoE module | PoEOptional |
External display
| Output connector | HDMIStandard |
|---|---|

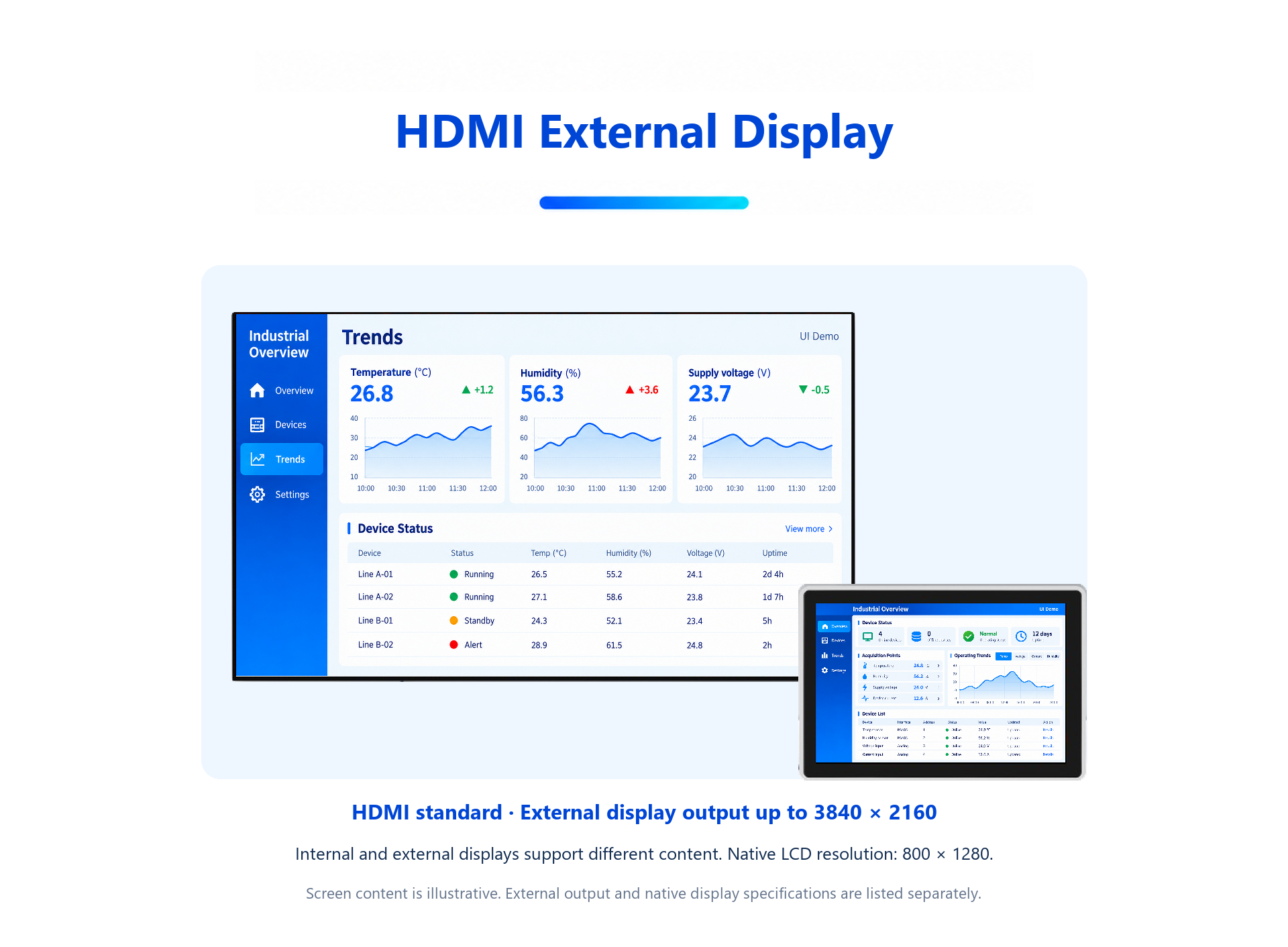

| External output resolution | 3840 × 2160 pxHDMI external display |
| Display orientation | Asynchronous dual-display outputExternal display |

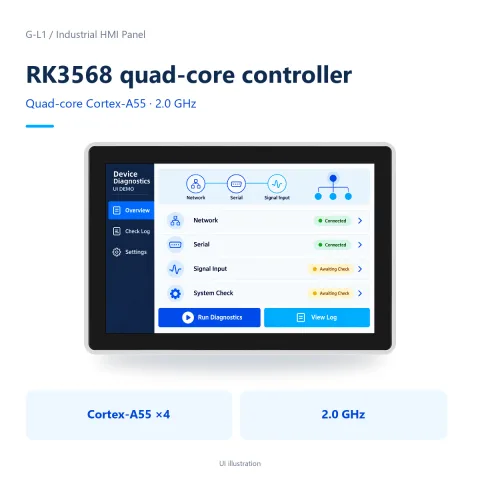

Processor

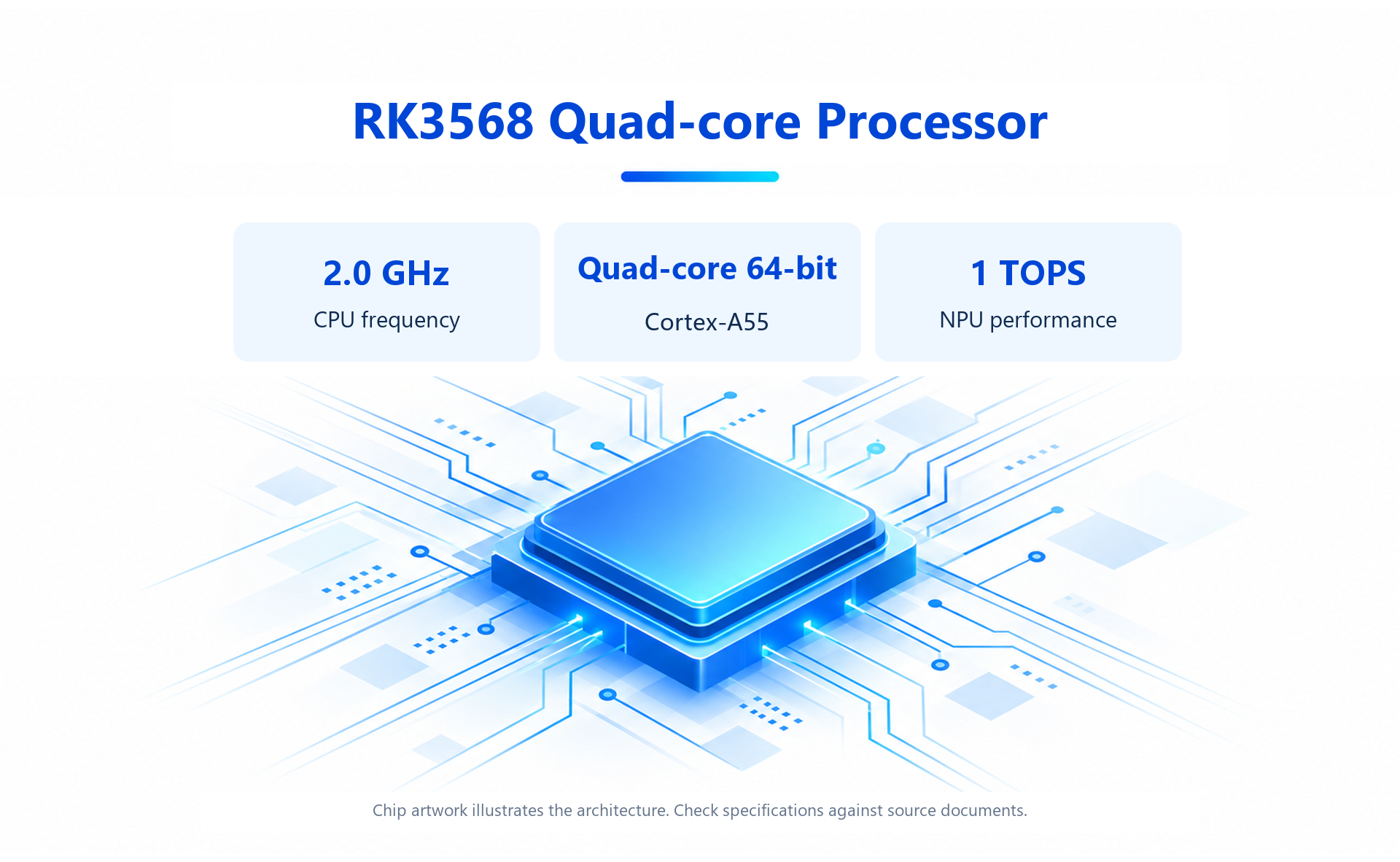

| CPU | RK3568Not specified |
|---|---|
| Clock frequency | 2 GHzNot specified |
| Architecture | cores: 4; bits: 64; architecture: Cortex-A55Not specified |
| NPU | 1 TOPSNot specified |
Wireless

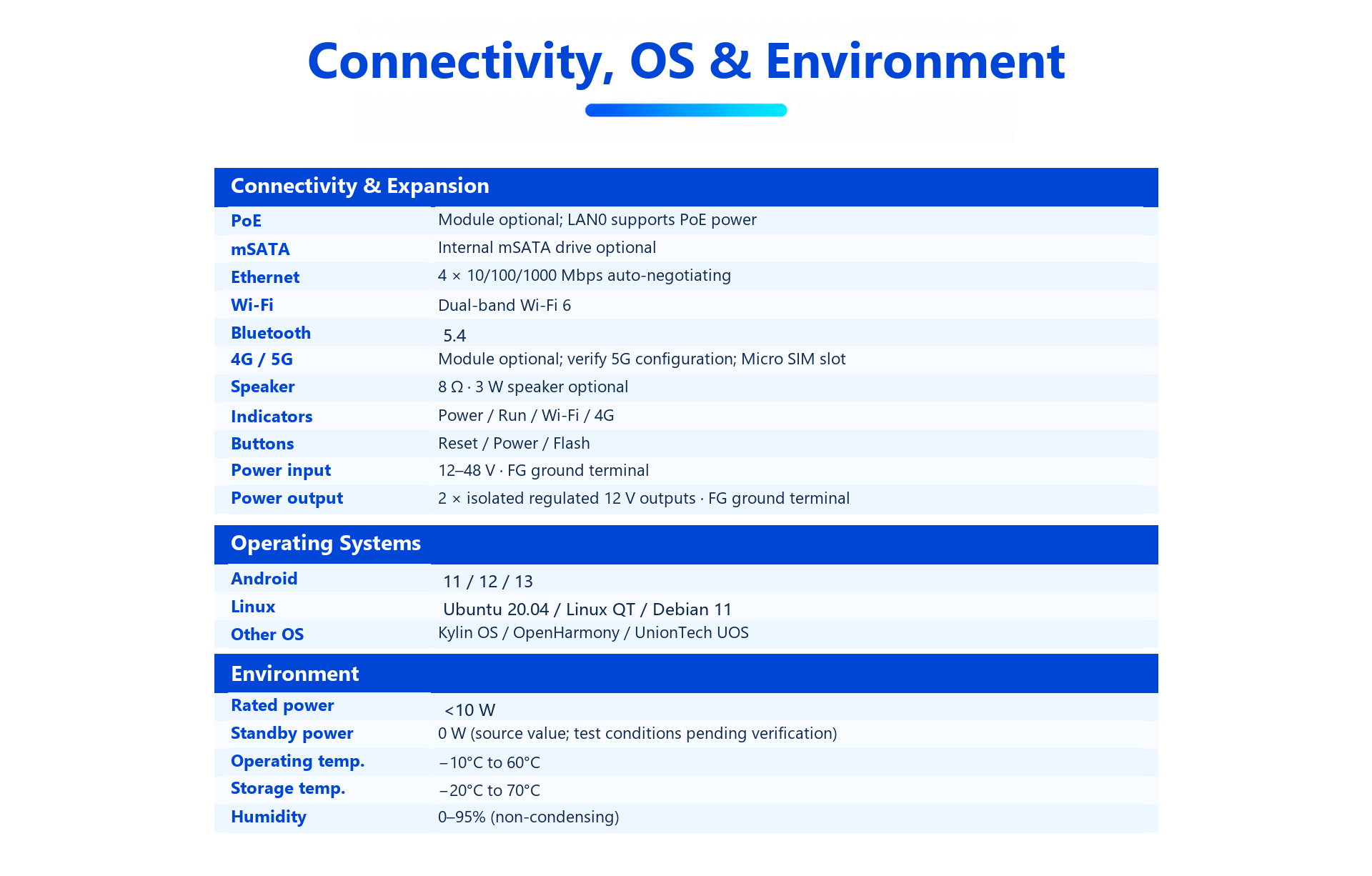

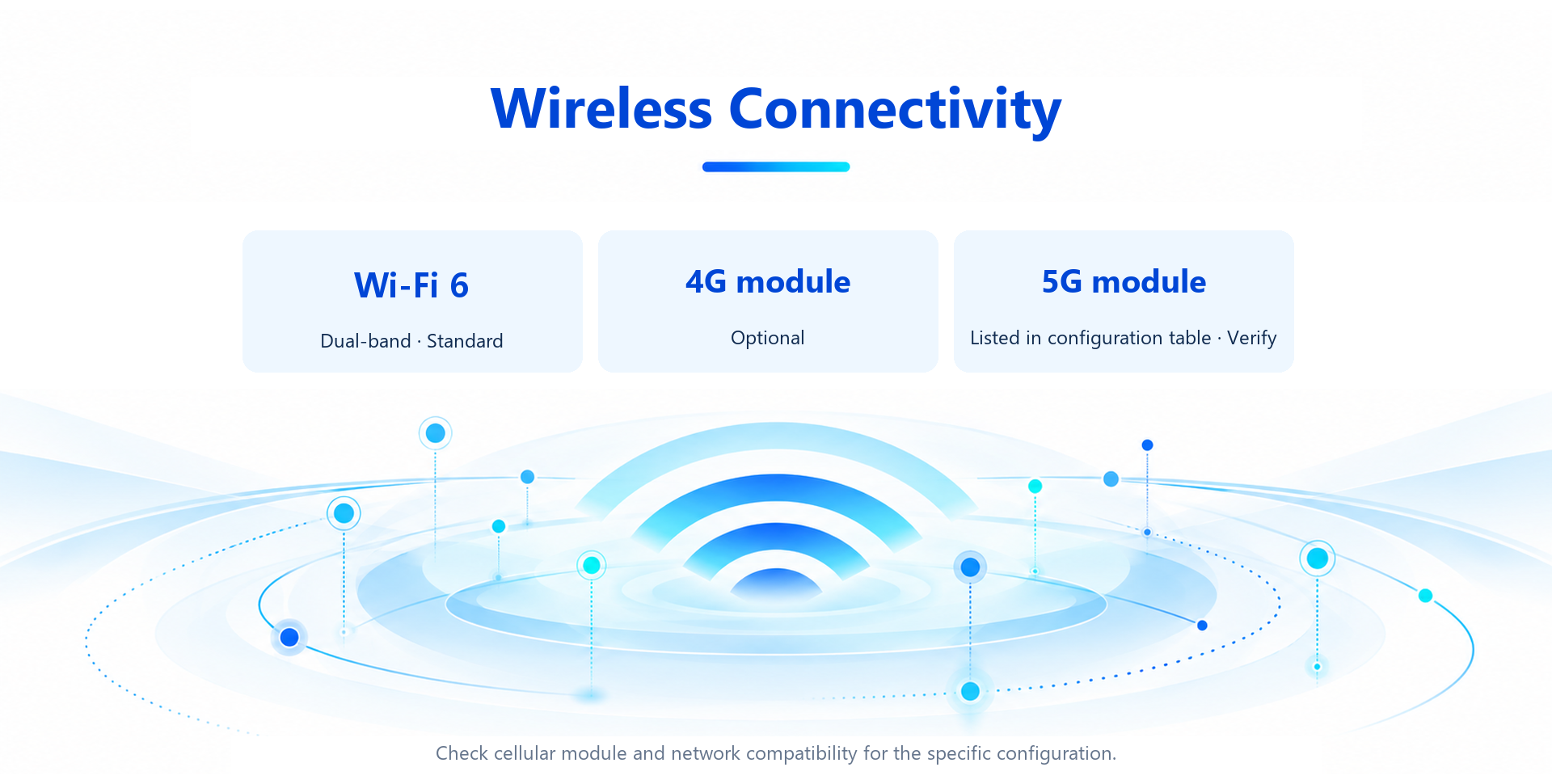

| WiFi | Dual-band Wi-Fi 6Standard |
|---|
System
| Android | Android11 / Android12 / Android13Depends on OS configuration |
|---|---|
| Ubuntu | Ubuntu20.04Depends on OS configuration |
| Linux QT | Linux QTDepends on OS configuration |
| Debian | Debian11Depends on OS configuration |
| Kylin OS | Kylin OSDepends on OS configuration |
| OpenHarmony | OpenHarmonyDepends on OS configuration |
| UnionTech UOS | UnionTech UOSDepends on OS configuration |
| Android | Android11 / Android12 / Android13Depends on OS configuration |
| Linux | Ubuntu20.04 / Linux QT / Debian11Depends on OS configuration |
| Other OS options | Kylin OS / OpenHarmony / UnionTech UOSDepends on OS configuration |

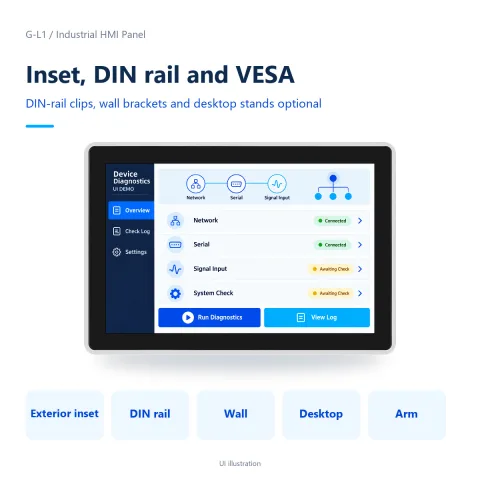

Installation

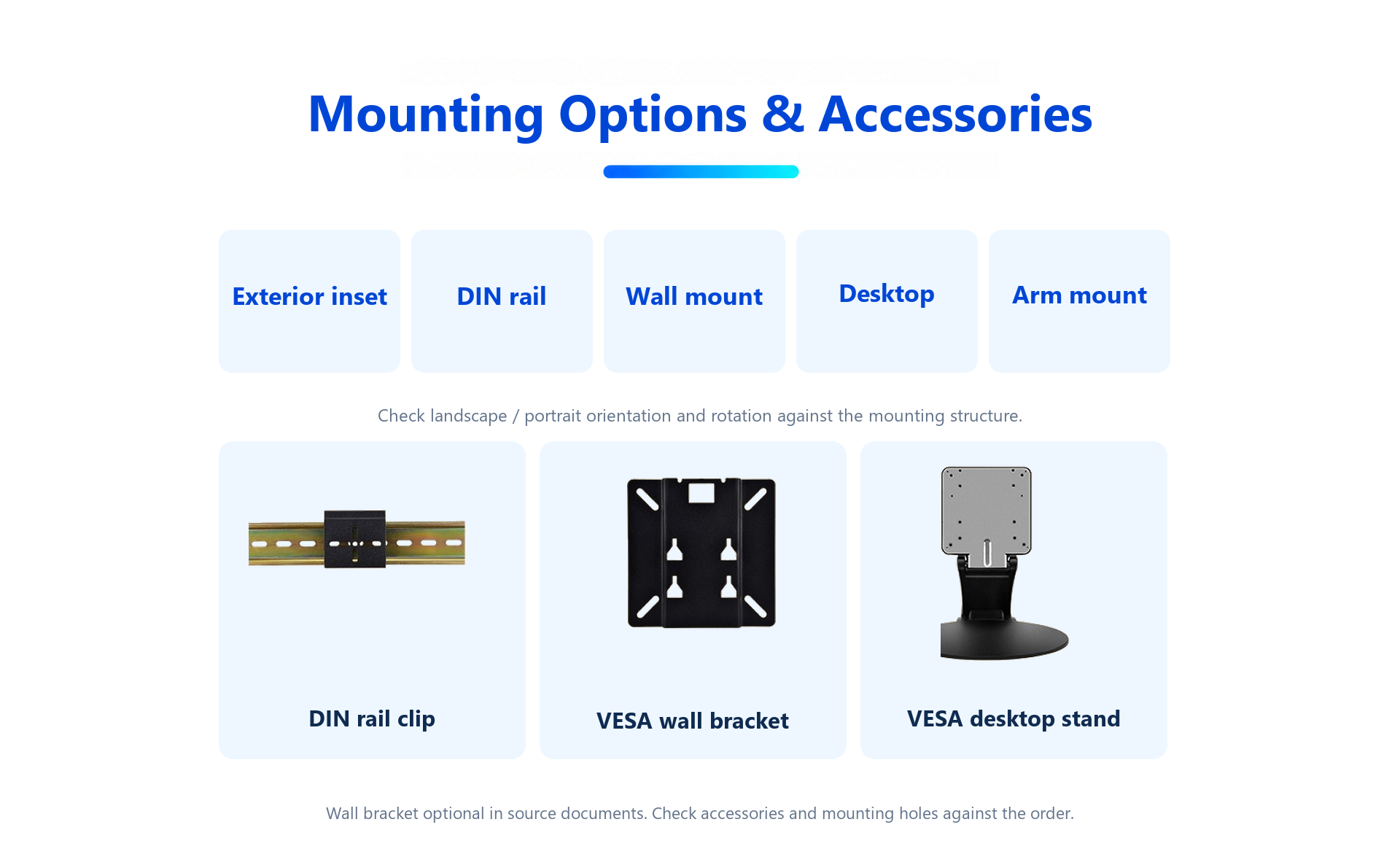

| Mounting methods | Exterior inset mounting / Standard DIN-rail mounting / Wall mounting / Desktop mounting / Arm mountingNot specified |
|---|---|
| Landscape / Portrait | Landscape / PortraitNot specified |
| Mounting accessories | DIN-rail clips / VESA wall bracket / VESA desktop standConfiguration unspecified; optional wall mount in panel16 |
Installation steps

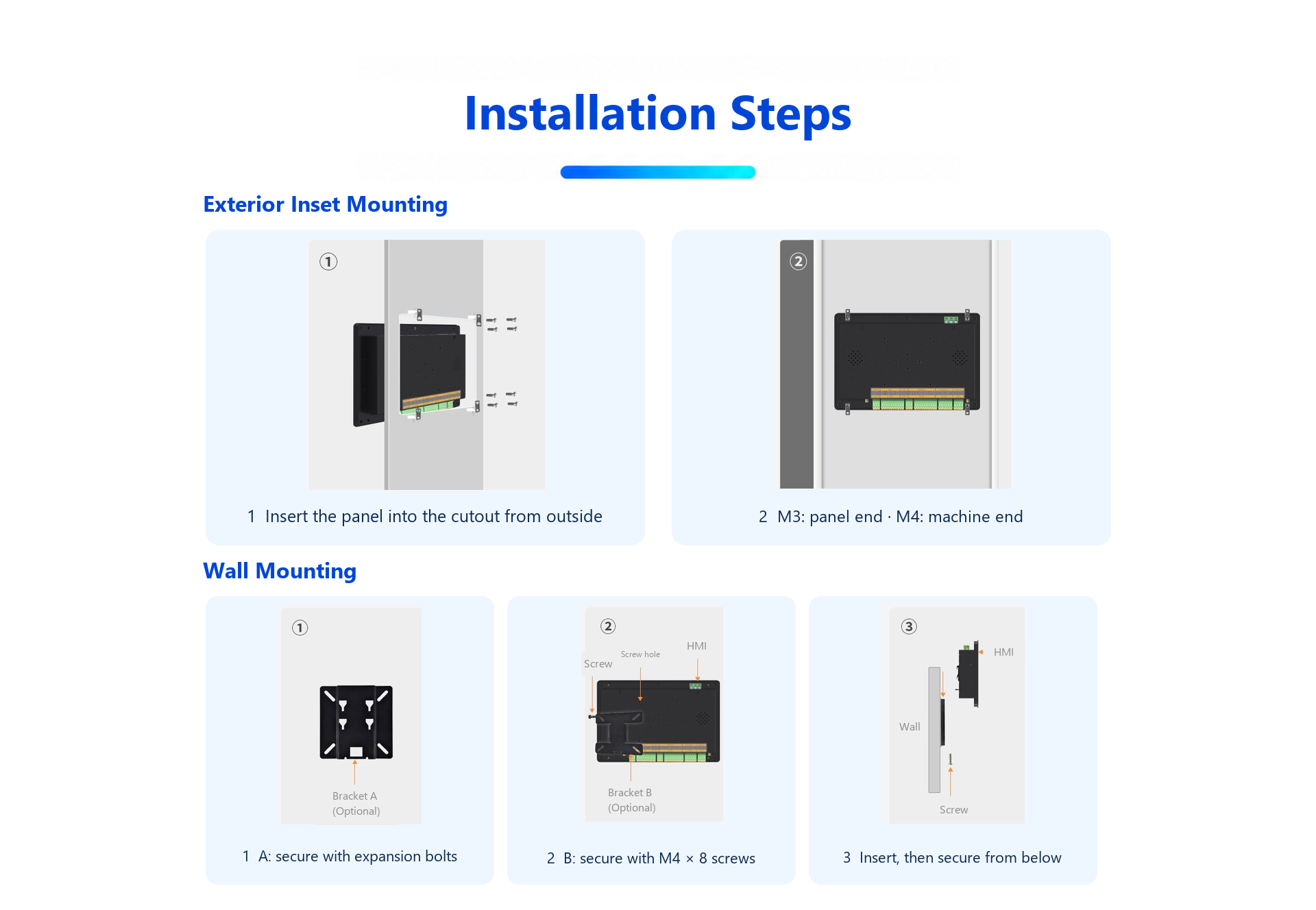

| Exterior inset step 1 | Insert from outside to insideNot specified |
|---|---|
| Exterior inset fixing screws | M3 / M4Not specified |
| Wall bracket | A / BOptional accessory |
| Wall fixing | Expansion boltsNot specified |
| Wall-mount fixing screws | type: M4; length: 8 mmNot specified |
| Wall-mount connection | Insert rear bracket into wall bracket and connect A/B with bottom screwsNot specified |
Display and structure
| Resolution | 800 × 1280 pxInternal LCD |
|---|---|
| Backlight brightness | 500 cd/m²Includes optional configurations |
| Optional brightness | 1000 cd/m²Optional |
| Viewing angle | IPS wide viewing anglesNot specified |
| Touch type | points: 5; type: CapacitiveNot specified |
| Panel cutout dimensions | 247.5 × 166.1 mmNot specified |

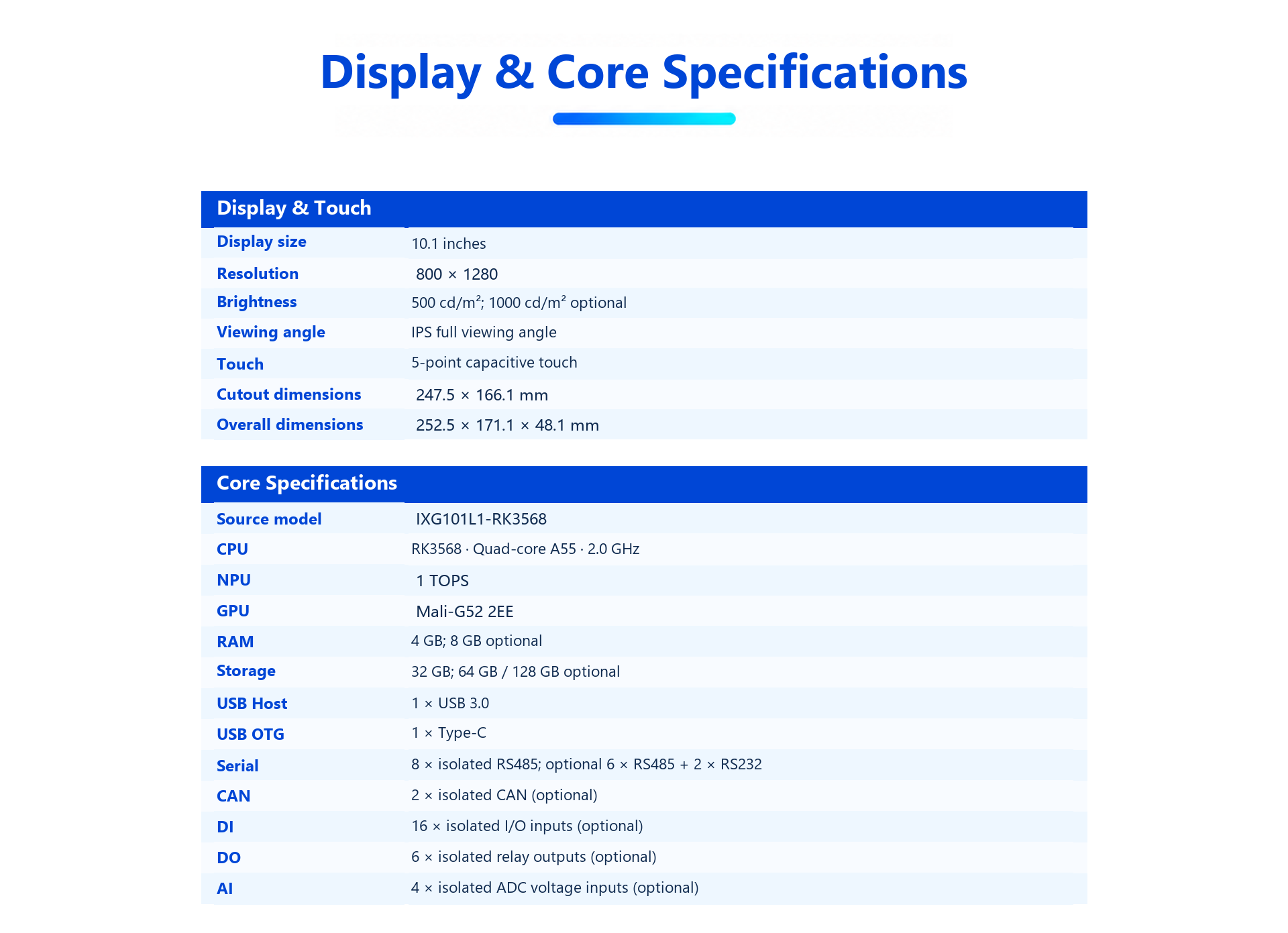

Core specifications
| CPU | chip: RK3568; cores: 4; architecture: A55; frequency_GHz: 2Not specified |
|---|---|
| NPU | 1 TOPSNot specified |
| GPU | Mali-G52 2EENot specified |
| RAM | base: 4; optional: 8 GBIncludes optional configurations |
| Storage | base: 32; optional: 64 / 128 GBIncludes optional configurations |
| USB Host | count: 1; version: 3.0Not specified |
| USB OTG | count: 1; type: Type-CNot specified |
| Serial ports | default_RS485: 8; optional: RS485: 6; RS232: 2 channelsIncludes optional variants |
| CAN | 2 channelsOptional |
| DO | 6 channelsOptional |
| AI | 4 channelsOptional |
| PoE | port: LAN0Optional |
| mSATA | mSATAOptional |
| Ethernet | count: 4; speeds: 10 / 100 / 1000 MbpsNot specified |
| WiFi | Dual-band Wi-Fi 6Standard configuration in panel13 |
| Bluetooth | 5.4Not specified |
| Audio amplifier | impedance: 8; power: 3Optional |
| Indicators | Power / Run / WiFi / 4G networkNot specified |
| User buttons | Reset / Power / ProgrammingNot specified |
| Power input | range: 12 / 48; ground: FG VNot specified |
| Power output | count: 2; voltage: 12; isolation: true; ground: FGNot specified |

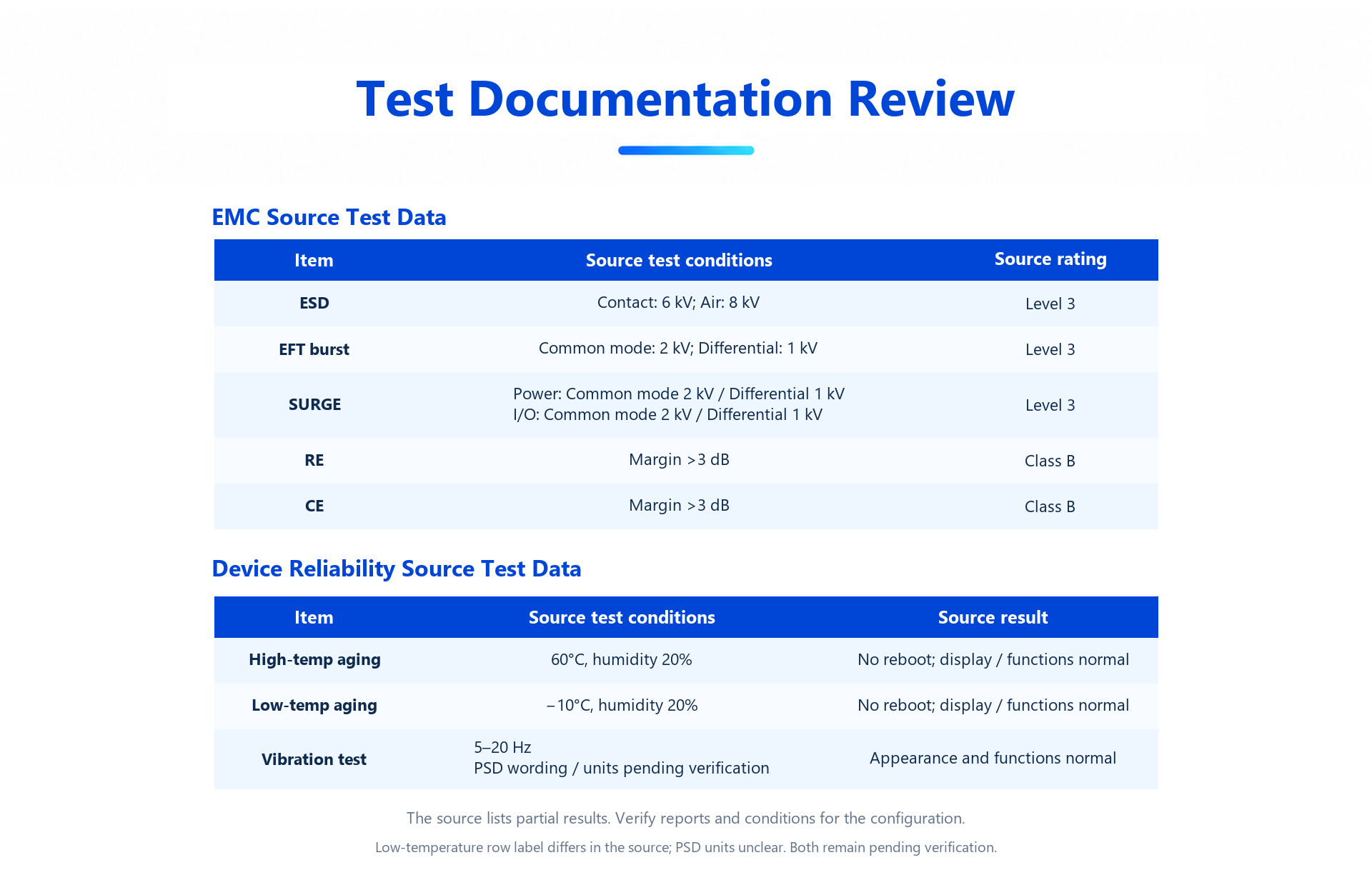

Environment
| Rated power | operator: <; value: 10 WNot specified |
|---|---|
| Operating temperature | -10 – 60 ℃Not specified |
| Storage temperature | -20 – 70 ℃Not specified |
| Operating humidity | range: 0 / 95; condition: Non-condensing %Not specified |

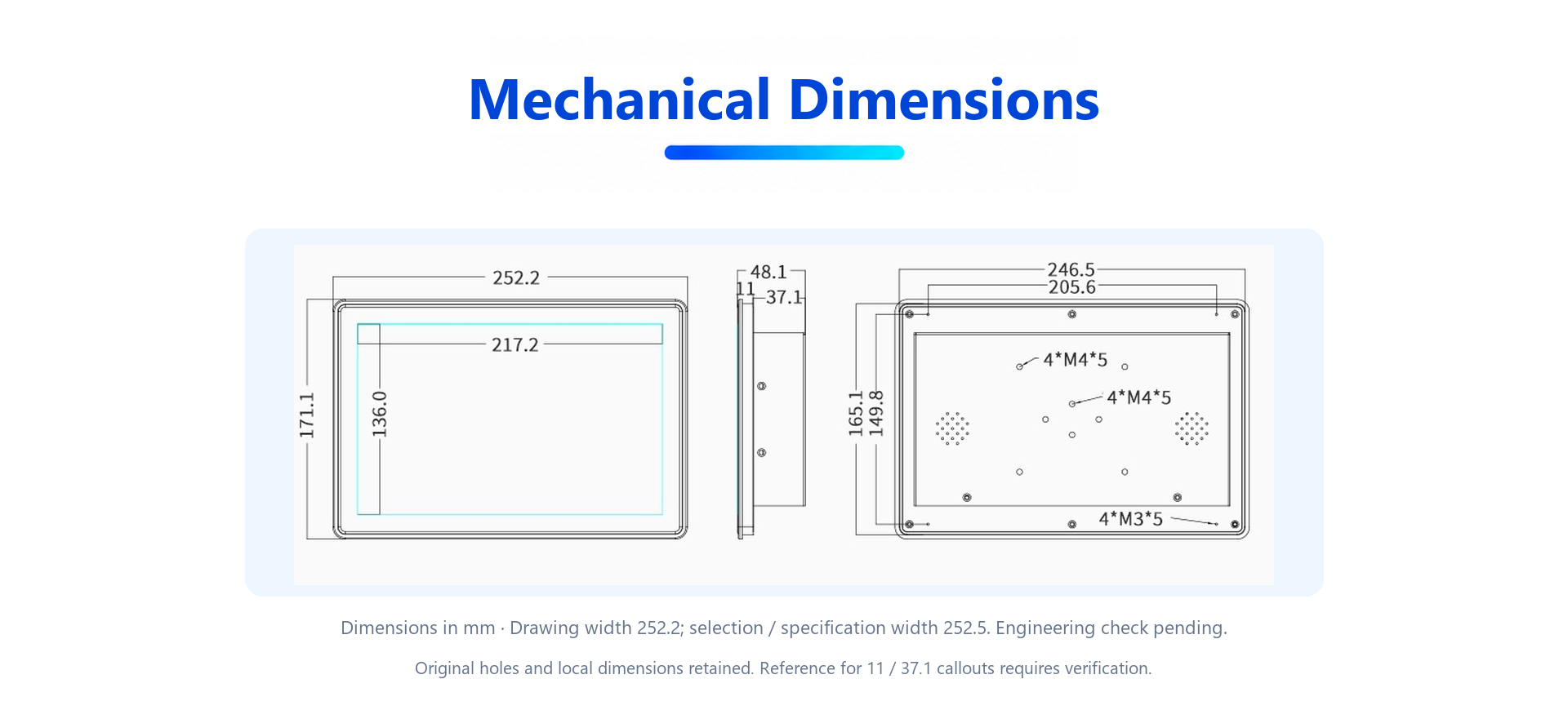

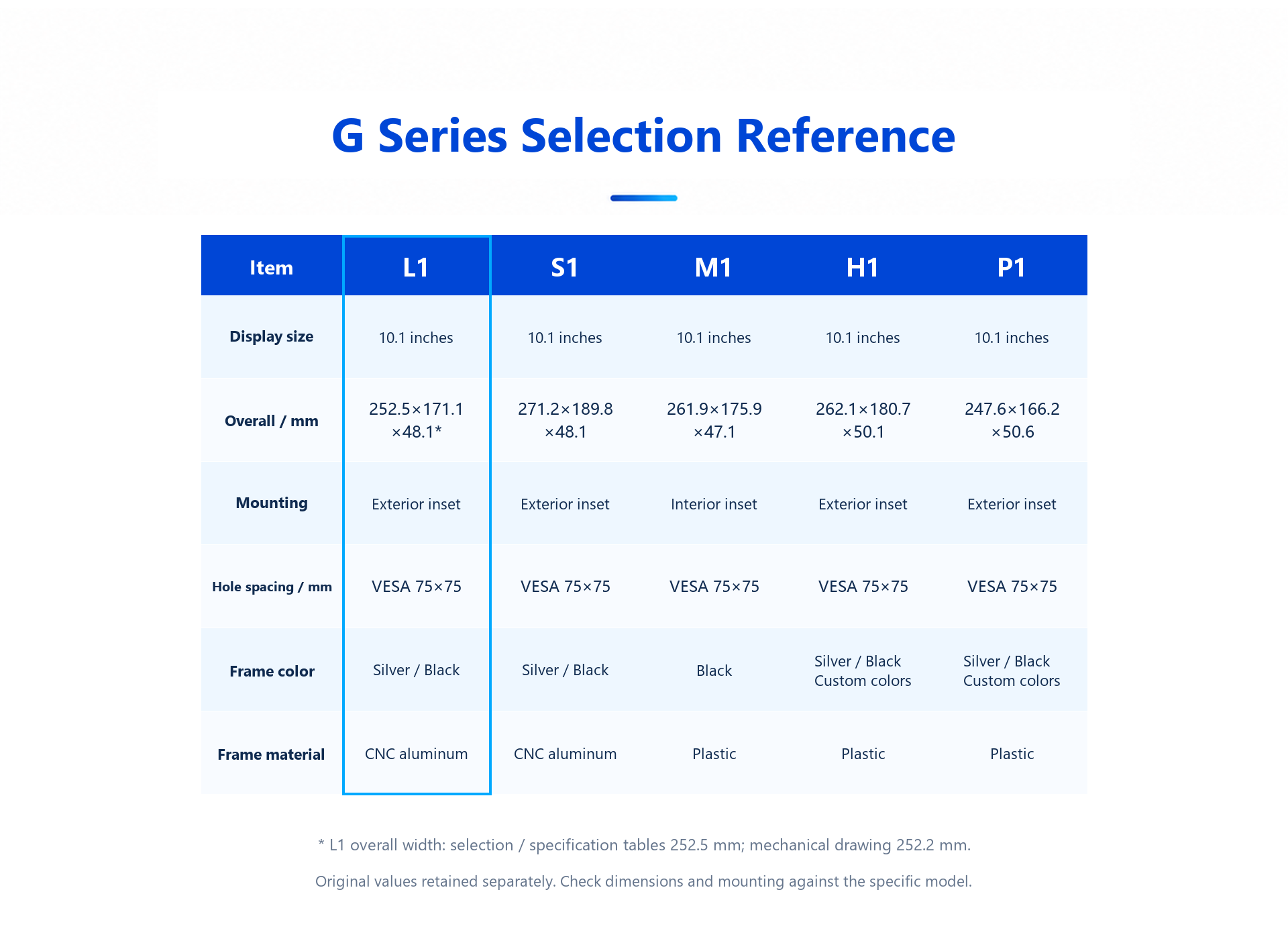

Mechanical dimensions
| Overall height | 171.1 mmNot specified |
|---|---|
| Active display width | 217.2 mmNot specified |
| Active display height | 136 mmNot specified |
| Overall thickness | 48.1 mmNot specified |
| Rear perimeter width | 246.5 mmNot specified |
| Rear horizontal hole spacing | 205.6 mmNot specified |
| Rear perimeter height | 165.1 mmNot specified |
| Rear vertical hole spacing | 149.8 mmNot specified |
| Rear mounting screw holes | groups: 2; count_each: 4; type: M4; depth: 5 mmNot specified |
| Rear perimeter screw holes | count: 4; type: M3; depth: 5 mmNot specified |
Color options

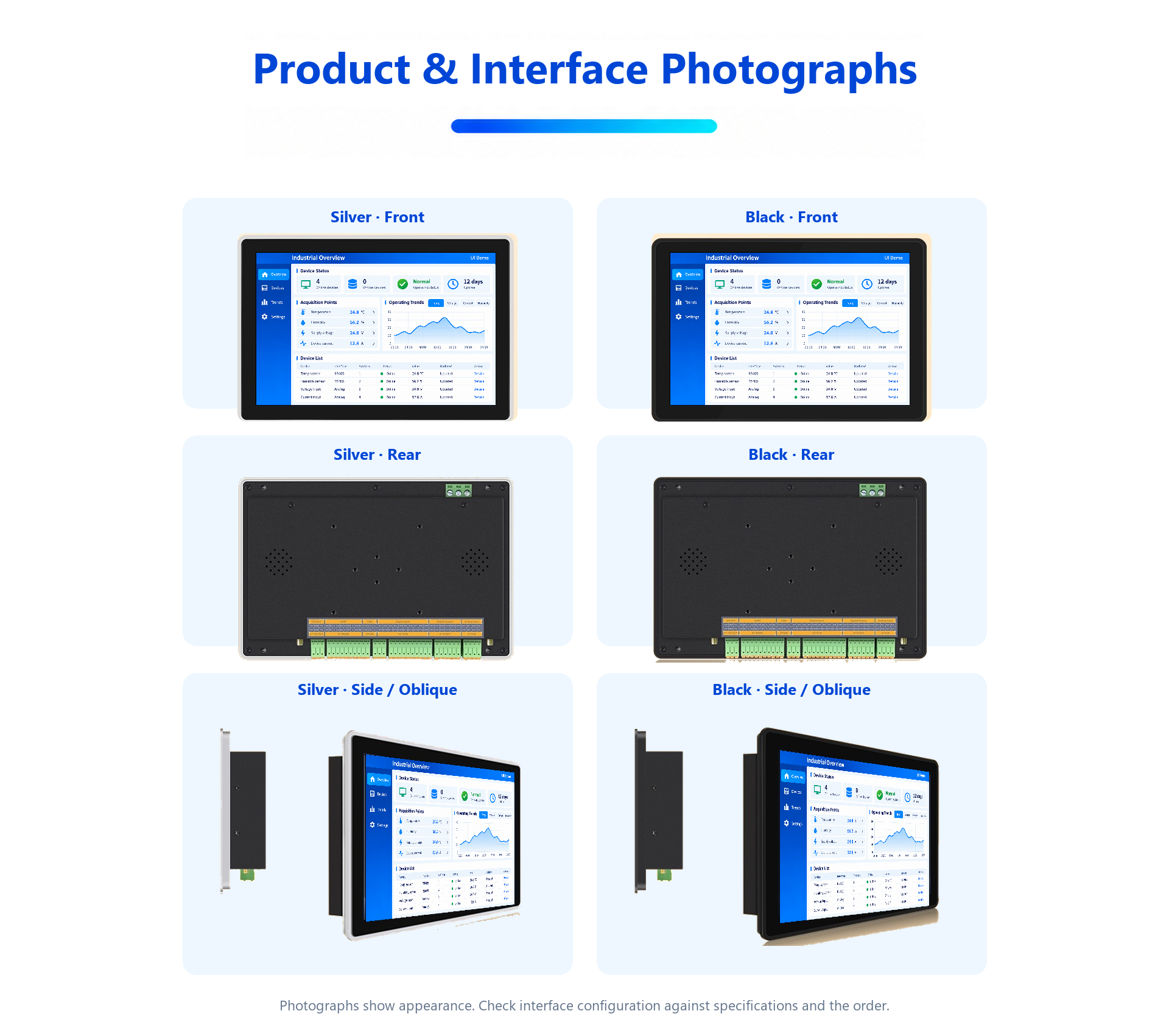

| Photographed frame colors | Silver / BlackNot specified |
|---|
